In order to solve the traditional operation mode of manual die-cutting machine and avoid the safety accident caused by manual paper placement, this design reduces the labor intensity and improves the production efficiency. Our company introduced the mechanical hand creasing machine. Because of its stability and security, it has been recognized by most users and filled the gap in the domestic market. Has a leading position in the industry.
Indentation and die-cutting: Die-cutting plate (knife plate) performs indentation and die-cutting on printed matter under the action of high pressure to complete the pressing and die-cutting process.

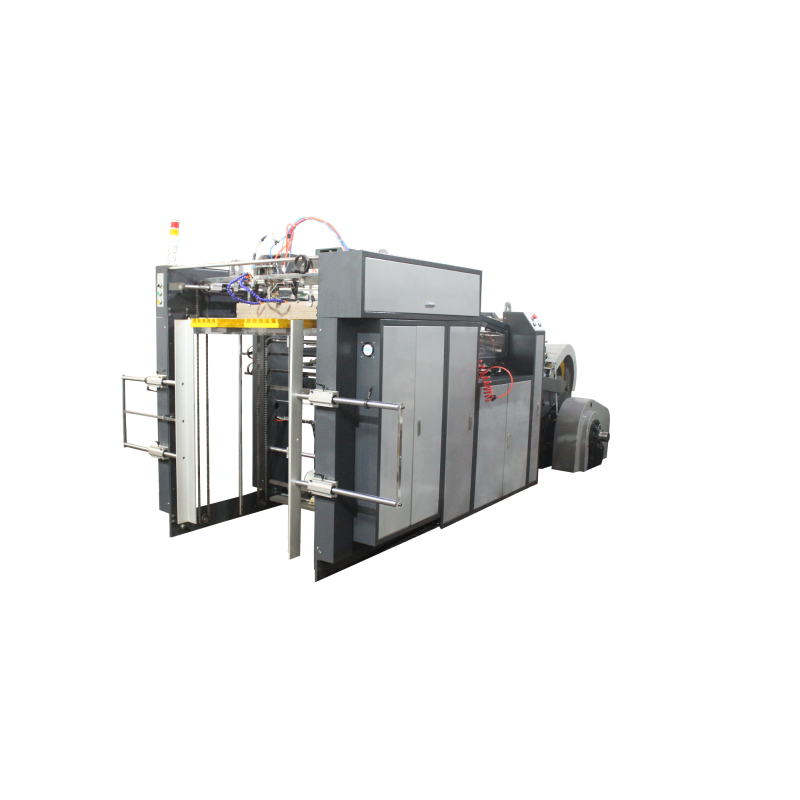

The mechanical hand creasing machine belongs to post-press packaging equipment. This machine mainly carries out die cutting, creasing and hot die cutting on the surface of paper and plastic sheets. It is used for pressing various pictures, clothes, greeting cards, trademarks, book covers, notebooks, packaging boxes, cartons, paper bags, cork cushions, folders and other high-grade decorative and printed materials. Suitable product materials include paper, cardboard, plastic (PVC, PP, PE), leather, wood, cork, etc., which are necessary equipment for printing houses, packaging enterprises and office stationery manufacturers. The main customer groups are paper printing plants and paper packaging plants.
Specifications
| Model |
MSMC-930 |
MSMC-1100 |
MSMC-1200 |
| MAX paper width |
960mm |
1100mm |
1200mm |
| MAX paper length（Customizable） |
700mm |
800mm |
900mm |
| MIN paperwidth |
260mm |
260mm |
260mm |
| MIN paperlength |
260mm |
260mm |
260mm |
| MAX speed |
0 - 2000 sheets per hour |
| Voltage |
3-phase 380V / 3-phase 220V (customizable) |
| Power |
≈2.5KW |
| Feeder host dimension |
3400*1750*1800mm |
3800*1970*1800mm |
3800*1970*1800mm |
| Machine dimension |
4000*1750*1800mm |
4500*1970*1800mm |
4500*1970*1800mm |
| Feeder host weight |
≈1500kgs |
≈1800kg |
≈1850kg |
| Machine weight |
4300kgs |
5700kgs |
5950kgs |
1. Automatic feeding, die cutting, and delivery greatly reduce manual work and ensure continuous, stable production.
2. Equipped with servo positioning or precision guides, ensuring accurate, clean creasing lines and consistent finished products.
3. Equipped with photoelectric sensors, safety clutch, and emergency stop systems for safe operation.
4. Stable operation, ideal for long runs and large-volume orders, meeting industrial-scale production needs.

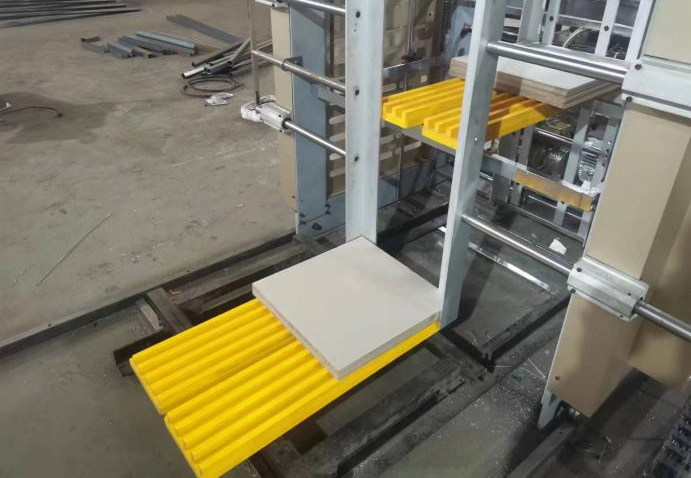

1. Pre-sheet piling device, sheet piling device is composed of traveling crane, track and positioning plate, with high pre-stacking height, reducing workers' work intensity and high efficiency. The paper feed height can reach 1300mm.

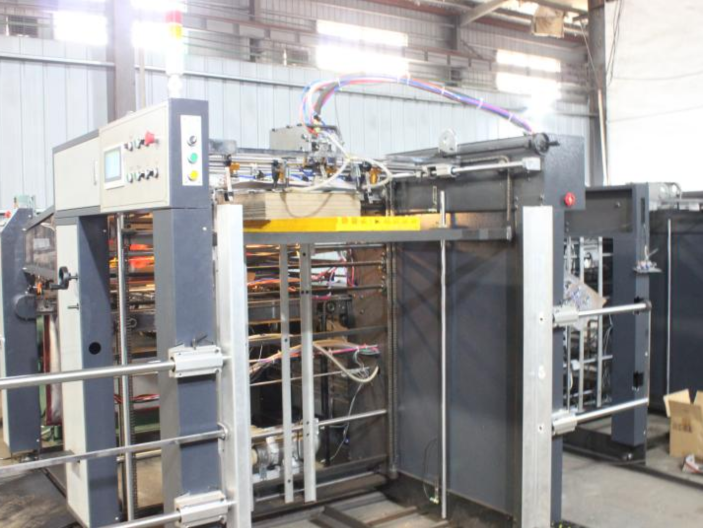

2. Feida paper feeding, using the latest configuration, large amount of paper transfer and paper suction. Feida four suction and one free high-speed paper feeding, accurate and stable paper feeding. Convenient adjustment, using screw handwheel. Convenient for users to operate. The speed is as high as 2000 sheets/hour.

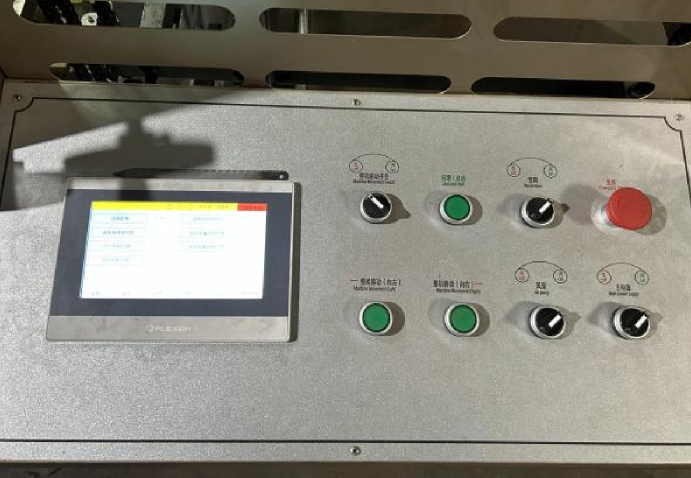

3. The control touch screen is simple in design.

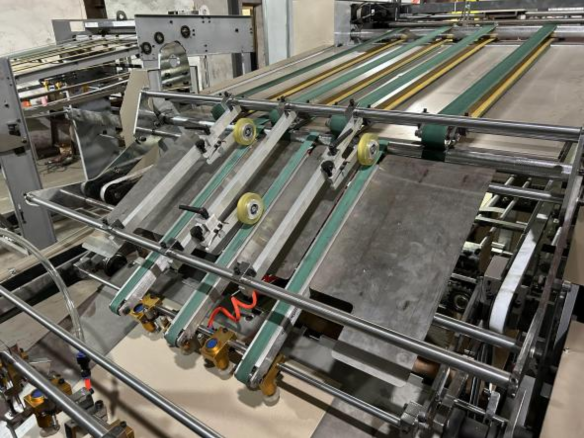

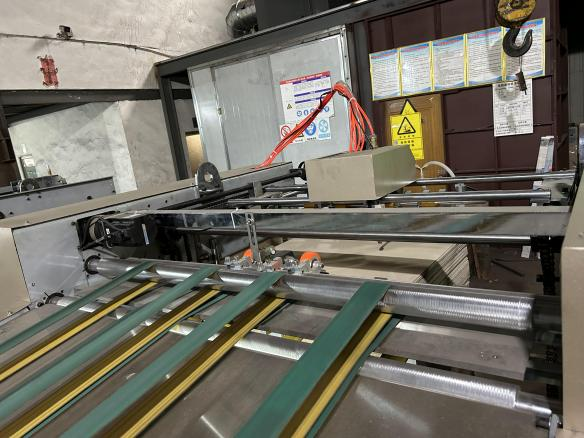

The conveying platform consists of rollers, belts and paper rollers. The conveying speed is in direct proportion to the flying speed, and the paper is not blocked. The conveying motor adopts high-power servo motor, which has sufficient power, accurate and precise conveying.

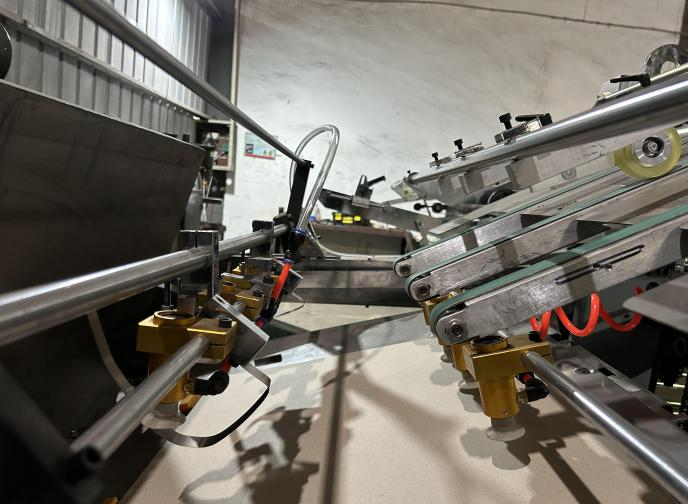

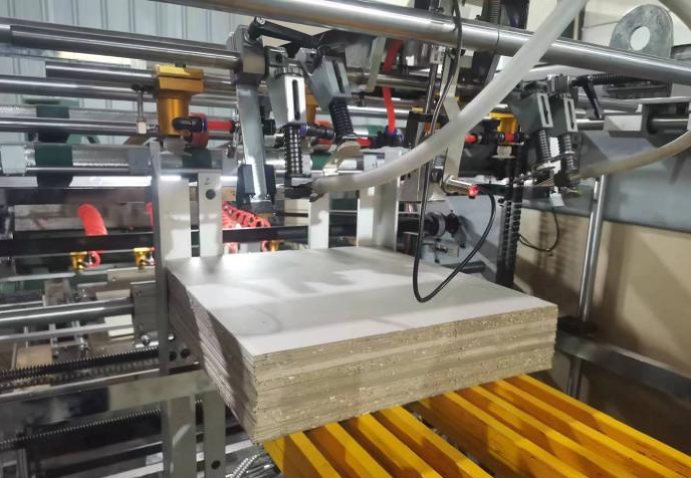

1. The paper feeding device is blocked by stainless steel and spring, and the paper is sucked in vacuum, which can effectively prevent the paper from biting. Suitable for different types of thin and thick paper. The mechanical hand receives and puts paper, without manual work, which speeds up the production efficiency.

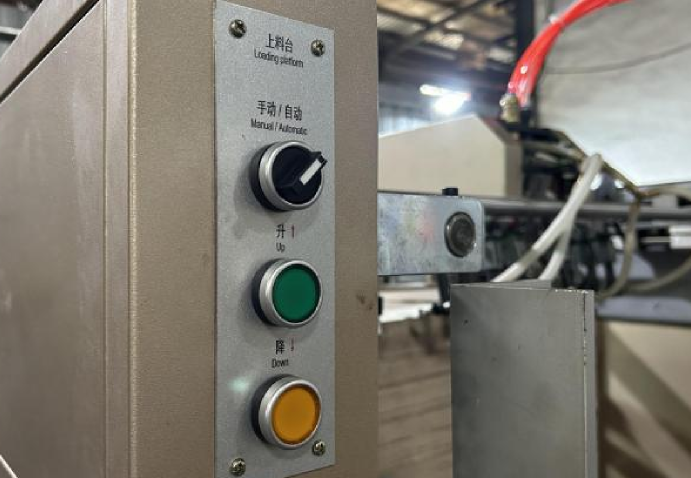

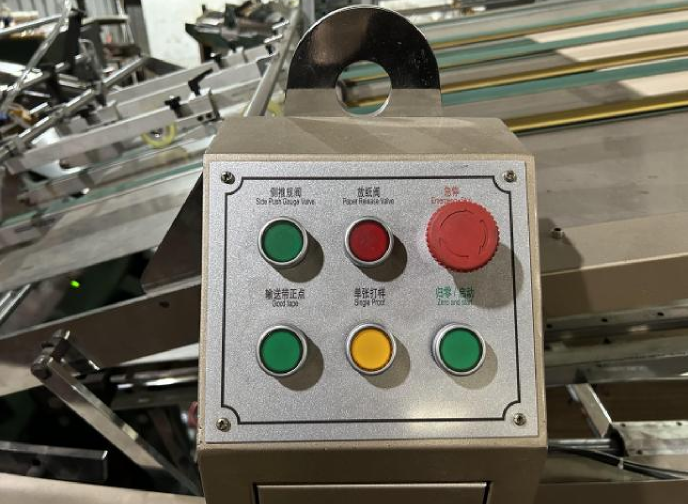

2.The controller is simple and clear.

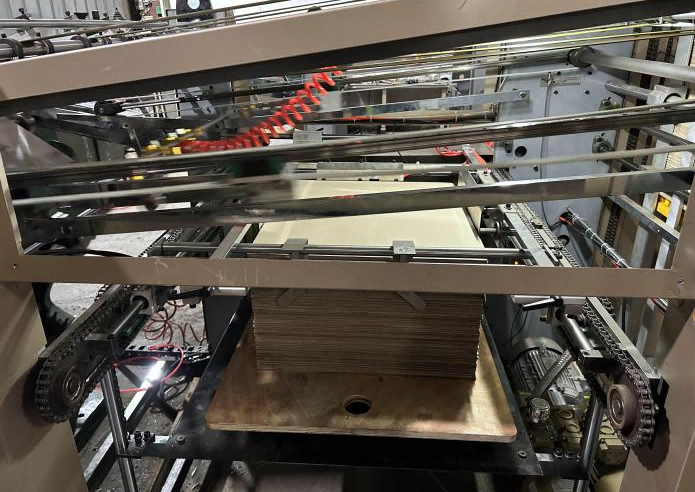

The paper delivery platform is equipped with traveling crane, lifting platform and platform replacement device, which can realize continuous operation without stopping paper delivery and increase efficiency.

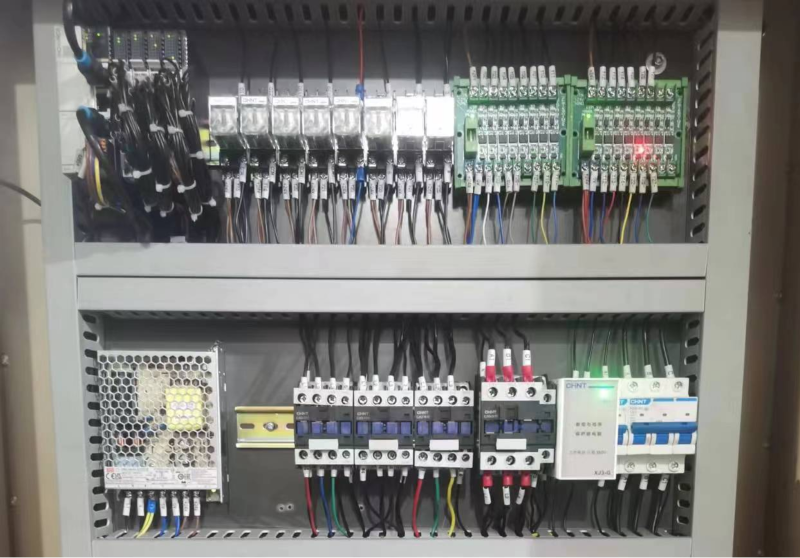

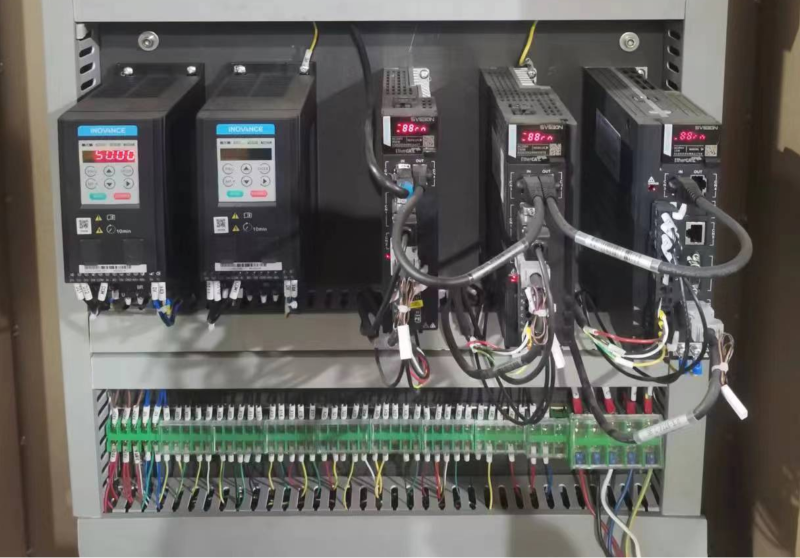

Electrical appliances adopt internationally renowned brands, and their performance is more stable.

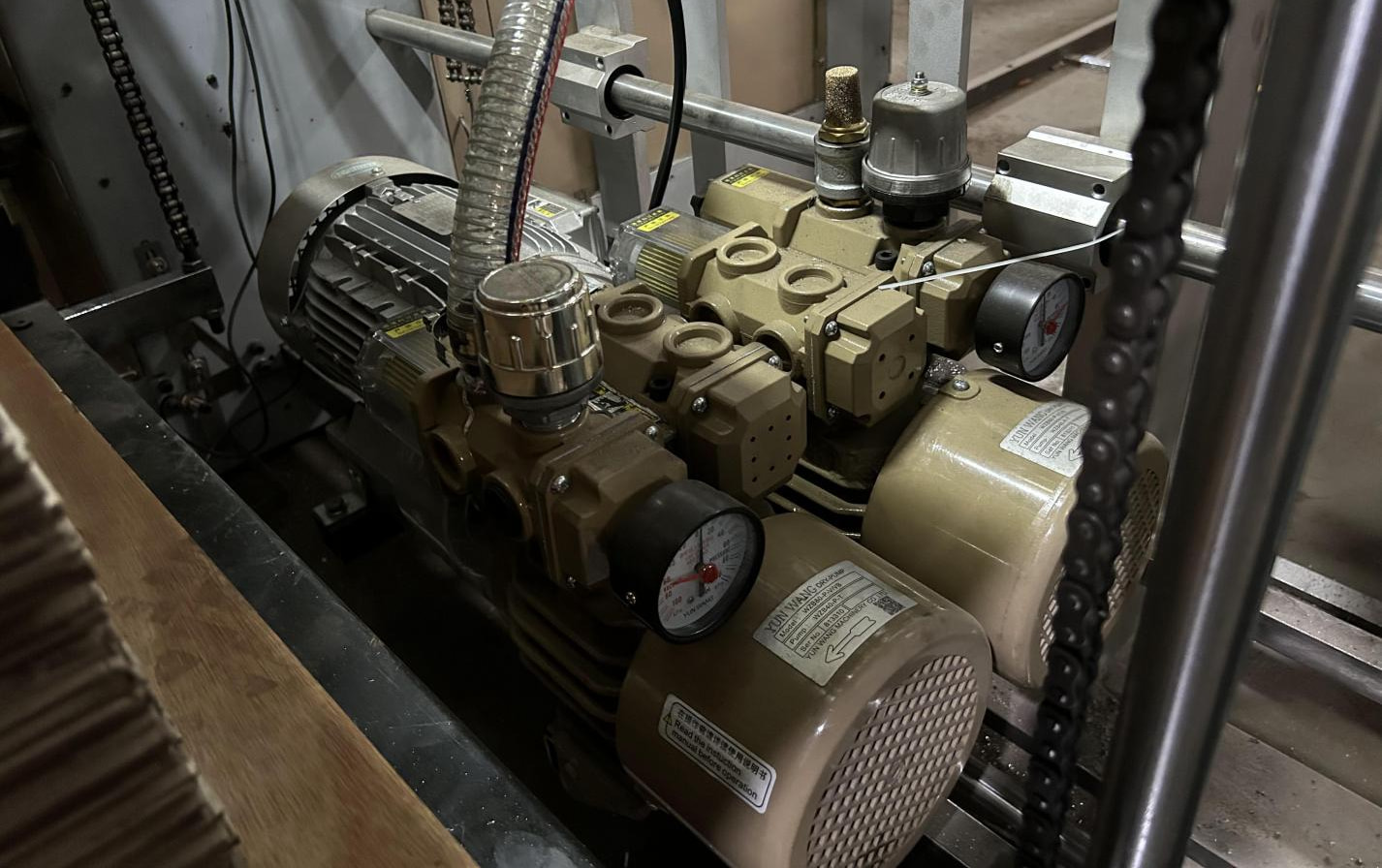

The vacuum pump adopts well-known brands, with one suction and one blowing, with positive pressure and negative pressure, low noise and stable air pressure.
Professional Manufacturing:
A strong enterprise specializing in the production of post-press equipment An honest enterprise integrating design, manufacturing, sales and after-sales
Innovative Services:
Dedicated to researching paper surface processing technologies, providing diversified lamination solutions. Customizing exclusive lamination processes according to customer needs, enhancing product added value. Providing comprehensive technical support and operational training to ensure customers master equipment usage.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

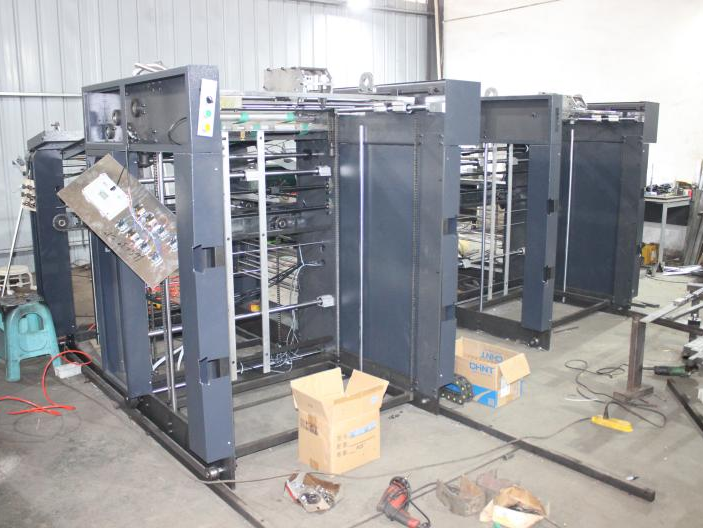

Workshop
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products. Complete Specifications: Meet diverse needs and cover a wide range of industry applications. Vertical Technology: Deepen every production process to continuously enhance technological standards. Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

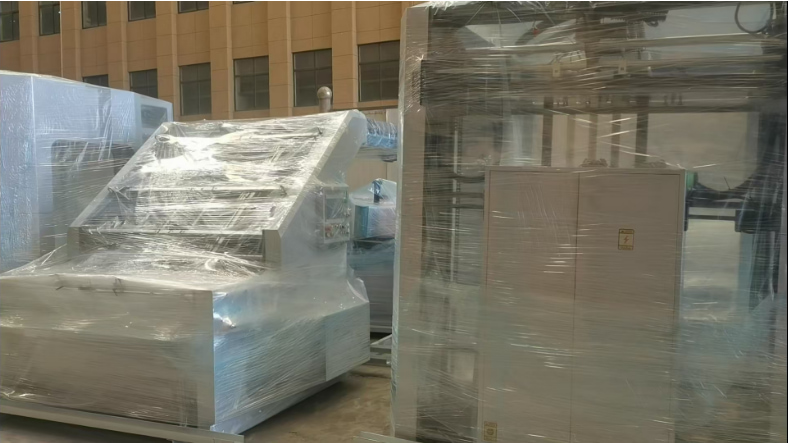

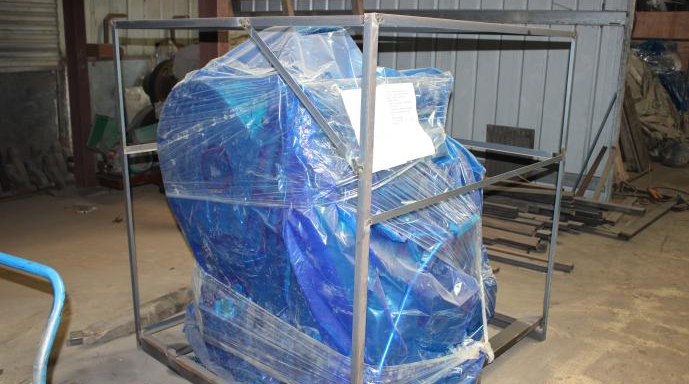

Packaging & shipment:
Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
