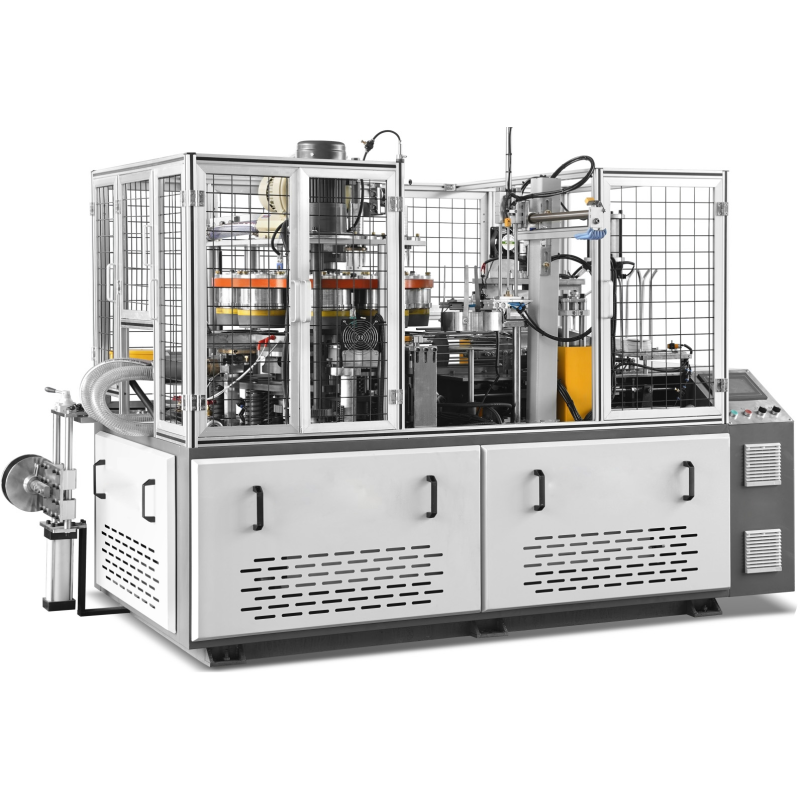

This machine is specifically designed for efficient, stable, and automated production of paper bowls of a single specification, making it ideal for high-capacity production environments with low maintenance requirements.
Model |
MSMG-B600 |
MSMG-B600M |
MSMG-B600L |
Paper Cup Specification |
Top: 80-150mm |
Top: 100-165mm |
Top: 150-220mm |
Height: 40-110mm |
Height: 40-110mm |
Height: 50-170mm |
Bottom:60-128mm |
Bottom: 70-145mm |
Bottom: 128-175mm |
Production Capacity |
65-75pcs/min |
55-65pcs/min |
45-55pcs/min |
Power Source |
220V/380V 50/60HZ 3P |
Total Power |
12KW |
14KW |
16KW |
Air Supply Requirement |
Air pressure:0.5-0.8Mpa,Air out-put: 0.4cbm/minute |
Dimensions |
2550×1550×1900mm |
2650×1600×1900mm |
2950×1700×2150mm |
1. Automatic lubrication system:This significantly enhances efficiency, making it ideal for high-volume manufacturing while maintaining consistent quality.

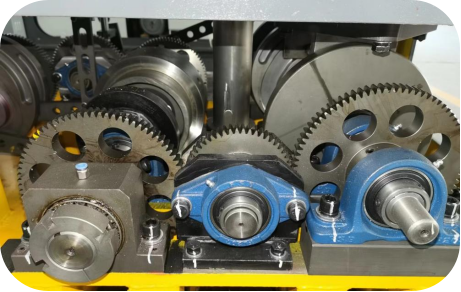

2. Cam and helical gear transmission:Ensures stable, low-noise operation, addressing common issues like jitter and instability found in chain-driven systems, thereby improving reliability and performance.
3. Delta/Omron/Panasonic control system:Enhances precision and automation, enabling fast, stable operation and automatic shutdown in case of failure, ensuring safety and reducing labor intensity.

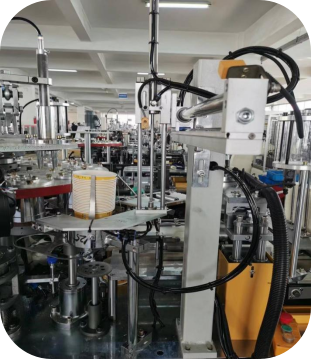

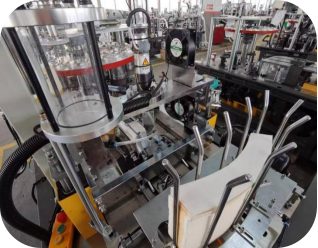

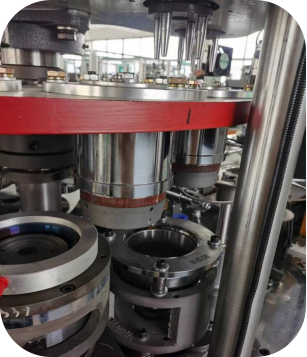

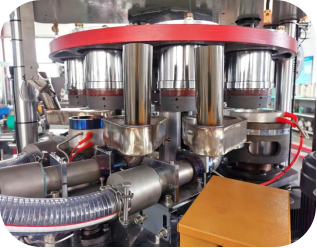

1.MSMG-B600, an upgraded single-rotary disc type low mold stroke paper bowl machine based on MSMG-Z35 (45-60pcs/min), achieves a faster bowl making speed of 60-80pcs/min which benefits from the low mold stroke and the design of highly integrated working station, especially more suitable for paper bowls of a single specification due to the inconvenience of molds replacement.

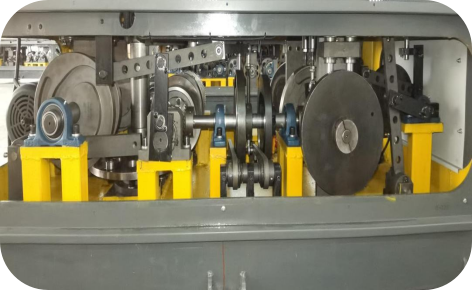

2.Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.

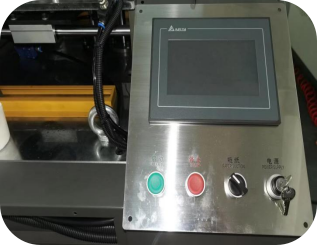

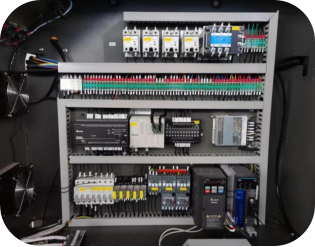

3.The whole bowl making process is controlled and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running.
4.High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.
Professional Manufacturing:
A strong enterprise focused on the production of paper container forming machines.
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.
Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
