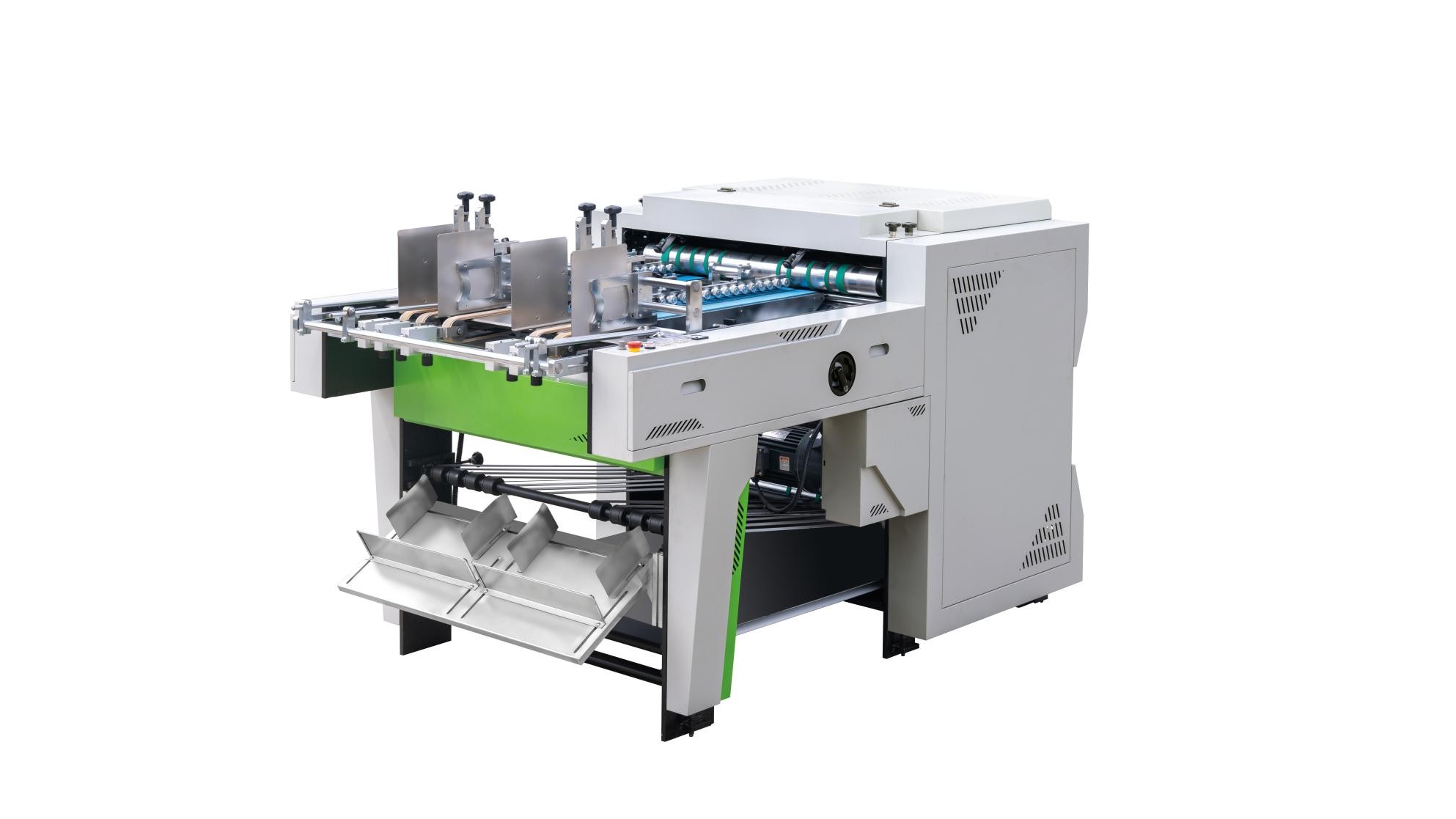

Automatic Dual-working V Grooving Machine

Model:MSKC-930KZ

Introduction

图片 2.jpg

01. Usage:



Grooving machine belongs to the box package production line equipment. The machine is special designed for paper card and greyboard V type grooving. It suits for box, case or other packaging product, such as phone box, medicine box, watch box etc.



02. Specification:



Model

MSKC-930KZ

Min Sheet Size

100*100MM

Max Sheet Size

550*930MM

Thickness

250GSM-2MM

Knife Angle

80-140° ADJUSTABLE

Feeding Correction Length

820MM

Total Grooving Knives Number

12 SETS, EACH HOST WITH 4 SET GROOVING KNIVES, AND 3 ROW KNIFE HOLDER

Knife Material

TUNGSTEN STEEL

Grooving Speed

20-32M/MIN(CONSIDERING300*300MM 130-150PCS/MIN)

Roll Diameter*Length

600*100MM

Power

2.2 KW

Voltage

380V 50HZ 3PHASE

Precision

±0.1-0.2 MM

Net Weight

1500KGS

Package Dimension

2550*1650*1750MM

Gross Weight

1850KGS



03. Feature Highlights


1.Double station, can do horizontal and vertical grooving on both sides at the same time
2.Can be used for both cardboard and grey board products
3.The machine is equipped with a finished product collection tank, which is convenient for operators to sort out



04. Details

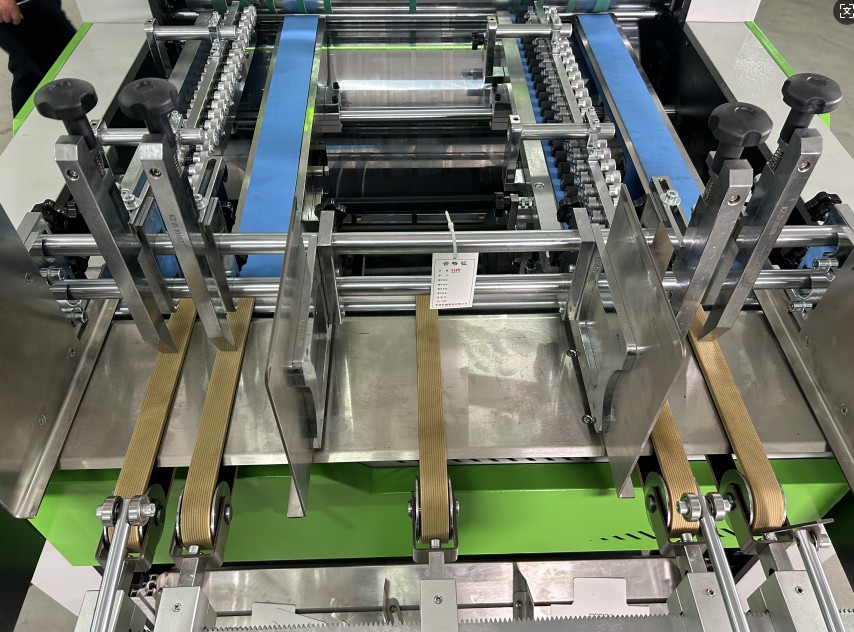

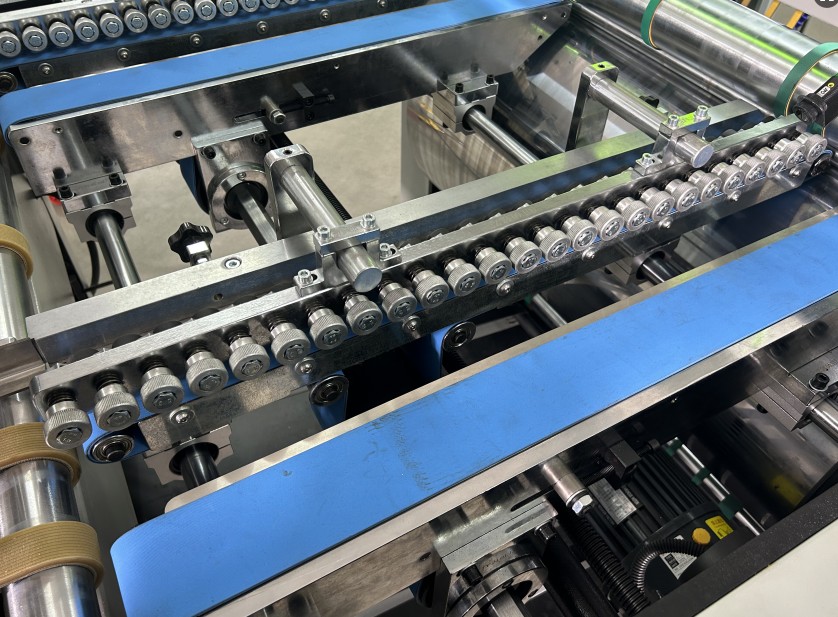

FEEDING PART & EDGE COORECTION PART

图片 4.jpg

图片 3.jpg

1.Belt feeding structure suit for the paper card and grey board material

2.Adjustable size to suit large and small sizes, work for the box or hardcover case

3.Single-sided pressure wheel correction is more accurate.

4.The counting photoelectric can count the output.

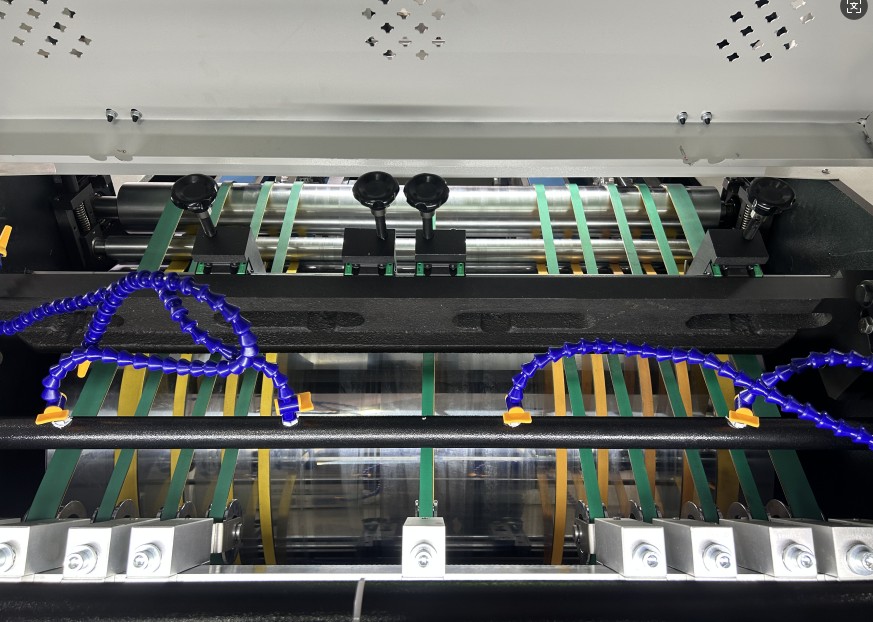

GROOVING PART

图片 6.jpg

图片 5.jpg

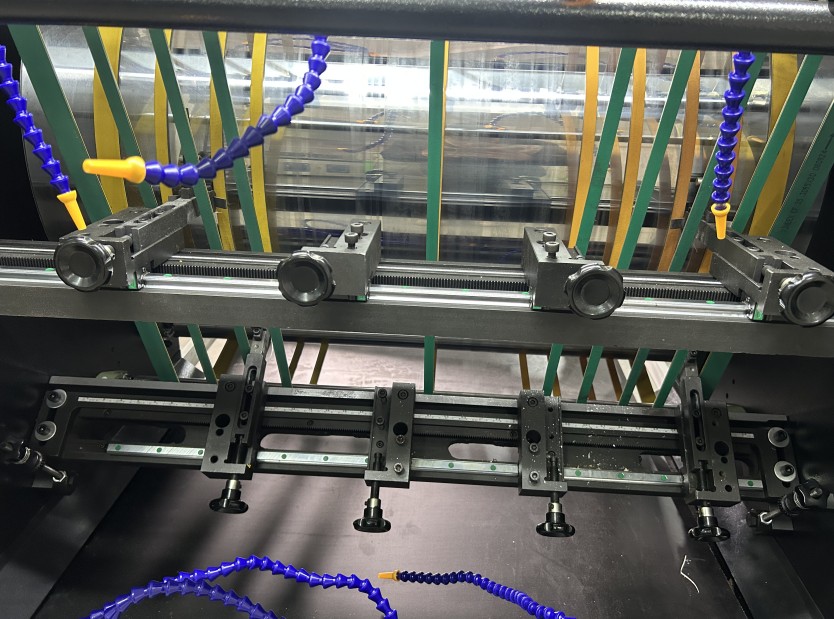

The part with 3 rows of knives, each row has 4 knives, which can meet the needs of multiple products to open multiple slots at one time.

The air blow pipe can adjust the position of the air blow port according to the needs, which is convenient for cleaning the slotting waste

The conveyor belt can help collect waste and reduce the workload of operators

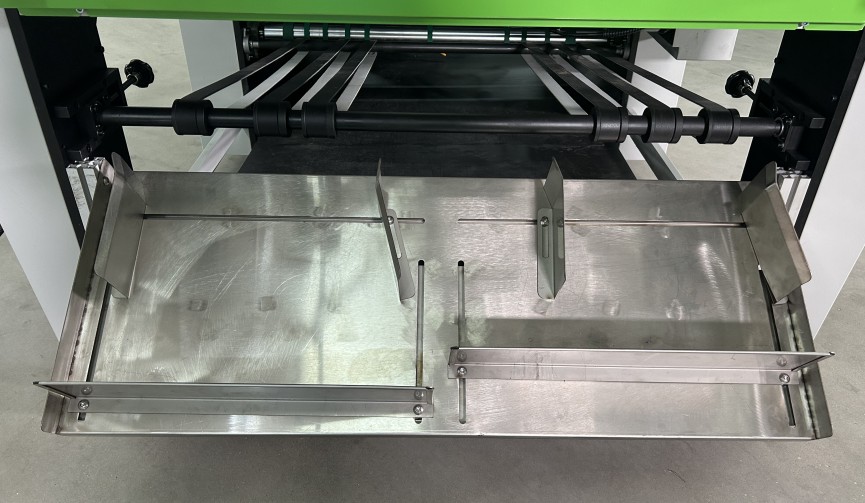

FINISHED PRODUCT COLLECTION TANK

图片 7.jpg

Double-station finished product collection tank, the size can be adjusted according to the product, convenient for operators to collect and sort



05. Main Configuration List



Name

Origin/Brand

Inverter 380V/2.2Kw Ad350-4T2.2Gb

Shenzhen Kewo

Intermediate Relay Zx-22F/2Z(D)

Chint

Ac Contactor Nxc-0910

Chint

Air Switch Nxb-63 3P C32

Chint

Air Switch Nxb-63 1P C10

Chint

Main Motor 380V/2.2Kw

Haoxing

Knife Grinder Two-Phase 220V

Makute

Photoelectric Switch Xs618-G-Nal5

Military Industry

Button. Flat Button. Knob

Helijia

Alarm

Wenzhou



06. Who are we?



Professional Manufacturing:

A strong enterprise focused on the production of rigid box making machine.
Innovative Services:

A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services.
Thoughtful Cooperation:

A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

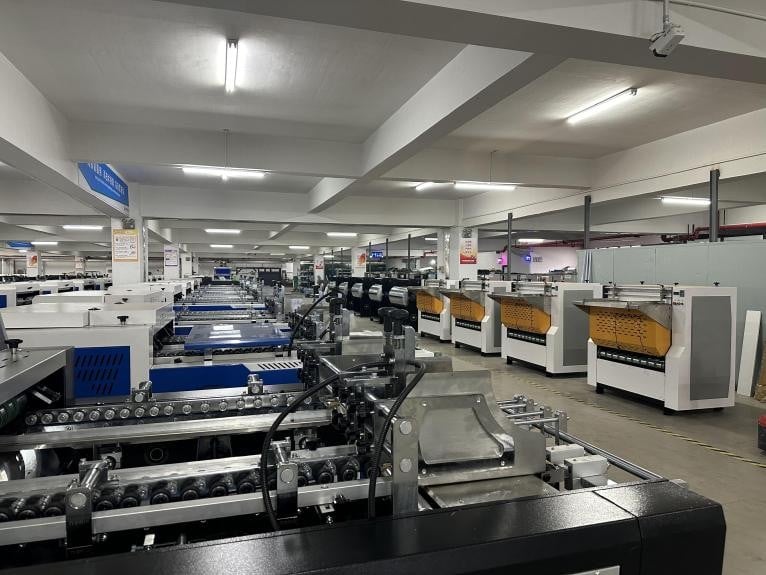

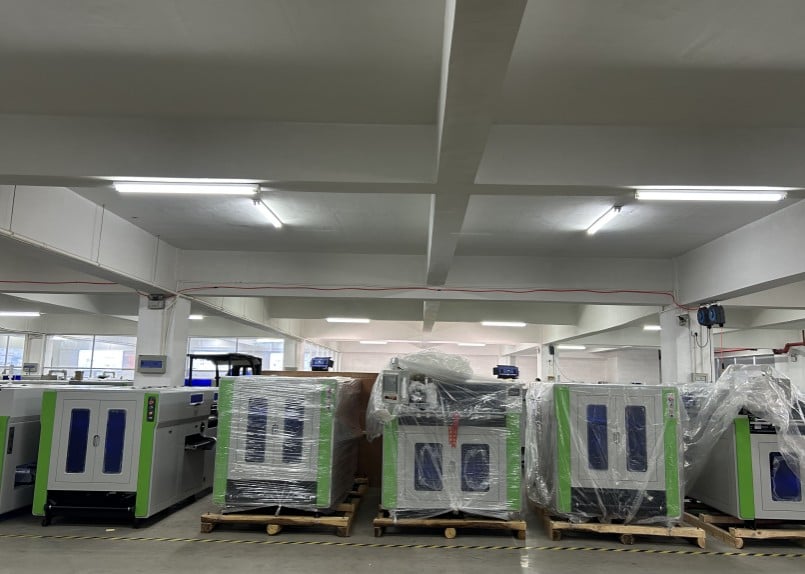

Workshop

Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.

Complete Specifications: Meet diverse needs and cover a wide range of industry applications.

Vertical Technology: Deepen every production process to continuously enhance technological standards.

Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

图片 13.jpg

图片 14.jpg

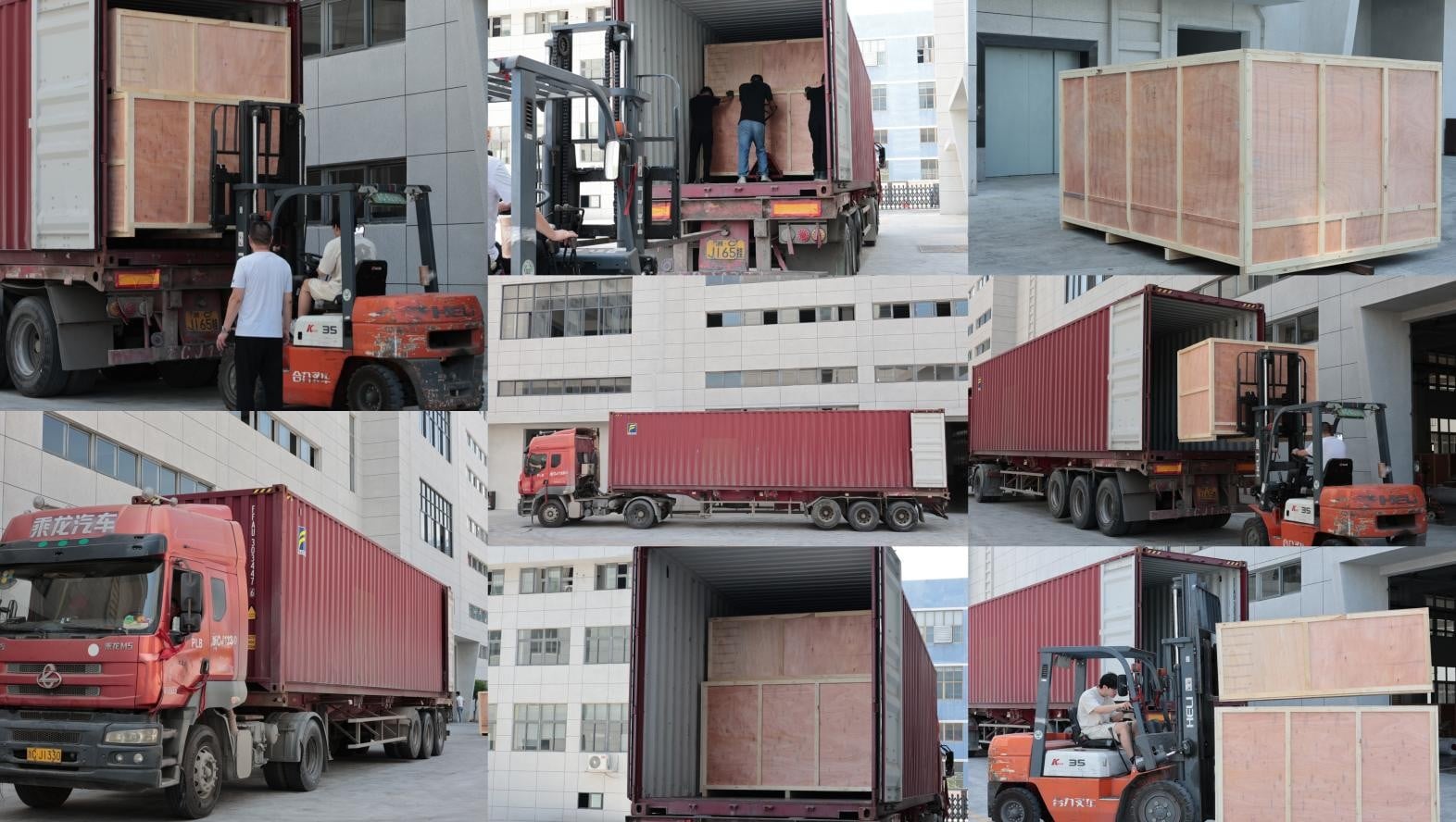

Packaging & shipment:

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.

图片 15.jpg



07. Who we serve?



图片 16.jpg



08. Why choose us?



Quality endorsement

图片 26.jpg

Cargo shipped all over the world, global logistics support!

NCN machining center

Stable quality starts with parts processing.

图片 28(9bb5ee8ae0).jpg

图片 27(bc3082ec32).jpg

Team

CEO:

With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert.

Technical Supervisor:

Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization.

Sales Manager:

Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost.

QC Manager:

All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries.

Equipment Salesman:

Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers.

Order Follow-up Personnel:

Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time.

Procurement staff:

With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.

图片 29.jpg

图片 30.jpg

After-sales guarantee

After-sales service team:

We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production.

Overseas on-site service:

Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently.

On-site service content:

Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands.

Warranty policy:

Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment).

Lifetime service:

We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.

I'm waiting for you in the workshop:

图片 31.jpg

图片 32.jpg

I'm waiting for you in the cloud:

We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face.

Tell me your specific needs at any time, and I can help you make a complete production line plan!

Related Products


图片25 (1).png

图片 24.jpg

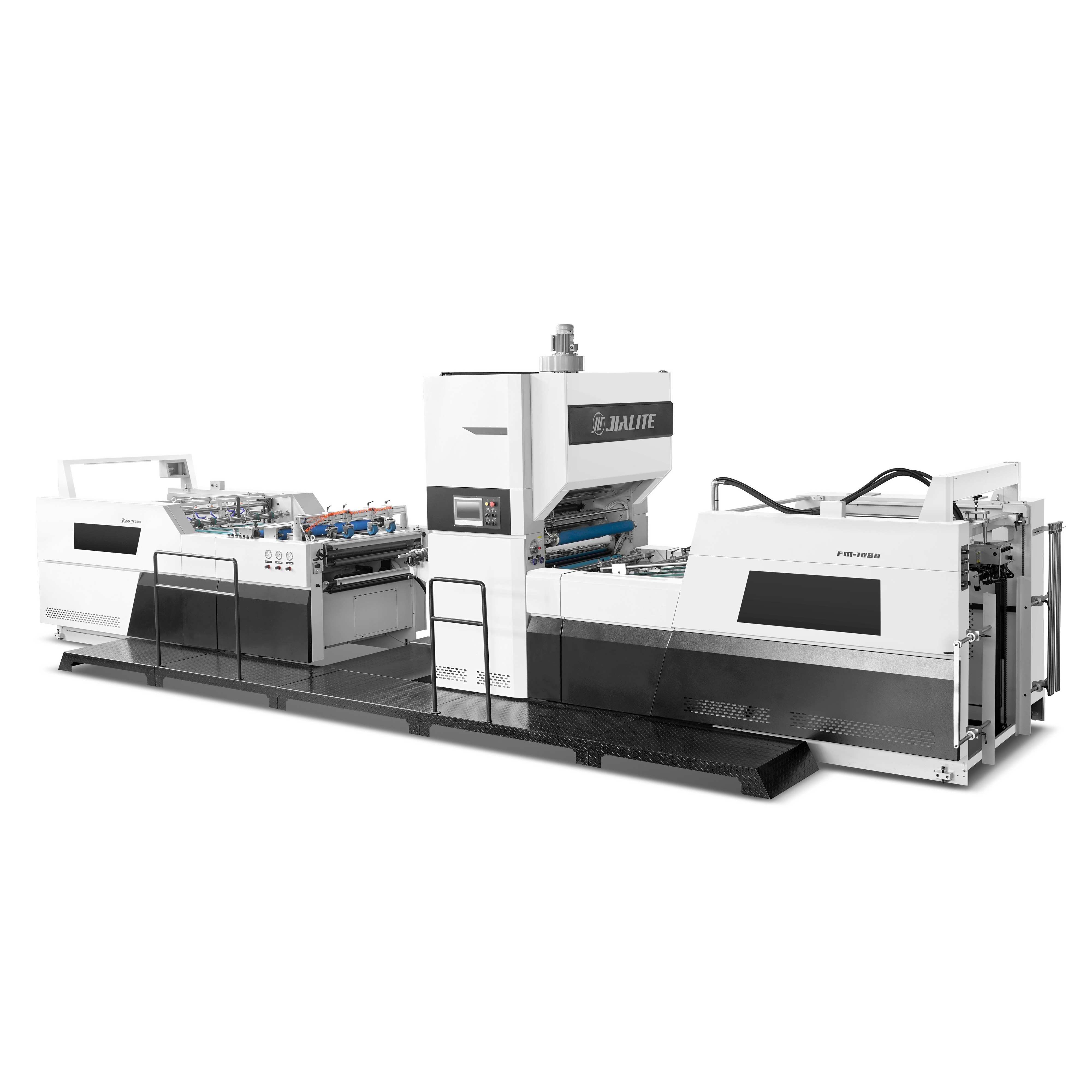

Automatic Film Laminating Machine

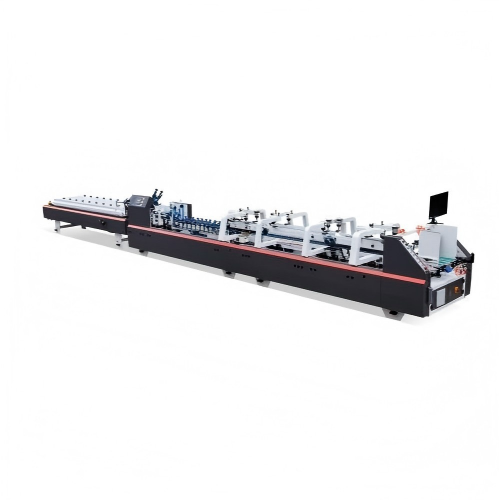

Automatic Box Folder Gluer

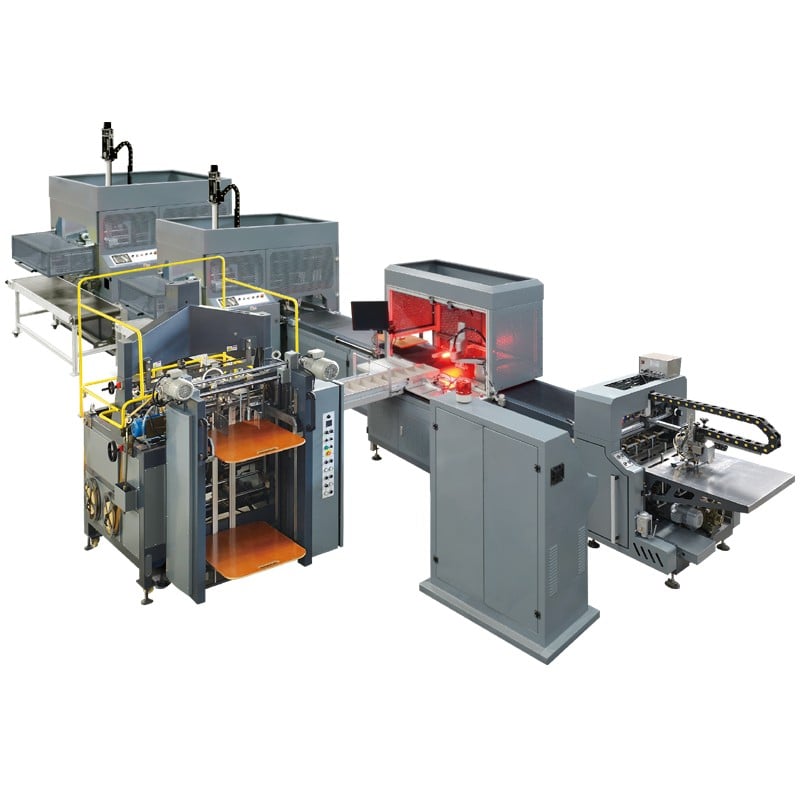

Automatic Rigid Box Making Machine
