Usage:
For 210-700g/m² paperboard（E/F) corrugated board.
Pharmaceutical packing, Clothing packing box, Food packing box, Electric Hardware packing box, Stationery packing box, Cosmetic packing box, Sanitary packing box, Wine packing box, etc.
Specification:
| Model |
ZH-900 |
| Paper Material |
210-700g/m² paperboard（E/F） corrugated board |
| Max. Liner speed |
0-220m/min continuous adjustment |
| Feeding way |
Automatic feeding |
| Way of folding |
single side gluing or both side gluing |
| Glue Material |
Cold glue/water-based glue |
| Electric power |
2.5KW AC220V 1P |
| Weight |
1200KG |
| Machine dimension |
5800*1000*1300mm |
| Package size |
PKG 1: 2700*1180*1250mm |
| PKG 2: 2660*930*1120mm |
| Total: 6.75cbm, 1100kg |

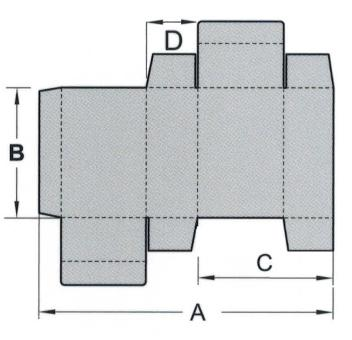

| Technical Sheet Unit: mm |
| Model |
Box type |
A |
B |
C |
D (min) |
 |
|
|
|
|
|
|
| ZH-900 |
Side-glue box |
110-700 |
80-550 |
50-330 |
7 |
|
|
Feature Highlights
Economy type, suitable for making small boxes
CONTROL PANEL AND FEEDING PART
The panel can control whole machine. Workers can turn on or off feeder and folding part. Speed also can be adjusted here.It's the beginning of the machine. Workers feed carton or corrugated paper into this part.
It's gluing box for single side gluing boxes. Gluing wheel is 3mm. We have 5mm for optional. Grinder is on the left of glue box, the dark grey one.
Boxes can be well folded on this part by line 2 and 4.
Electrical box is on the side of the machine. It includes PLC and counter. It's safer and superior of covered pressure part.
Professional Manufacturing:
A strong enterprise focused on the production of folder gluer machine.
Innovative Services:
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

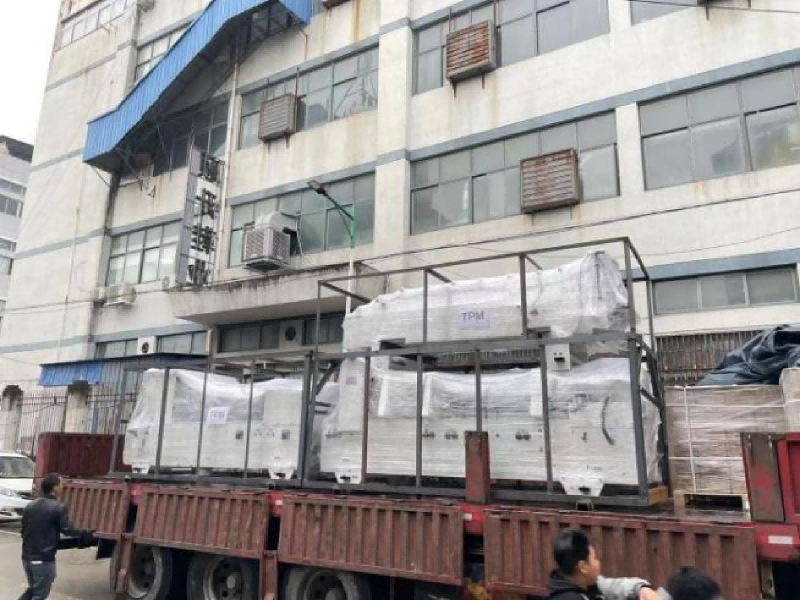

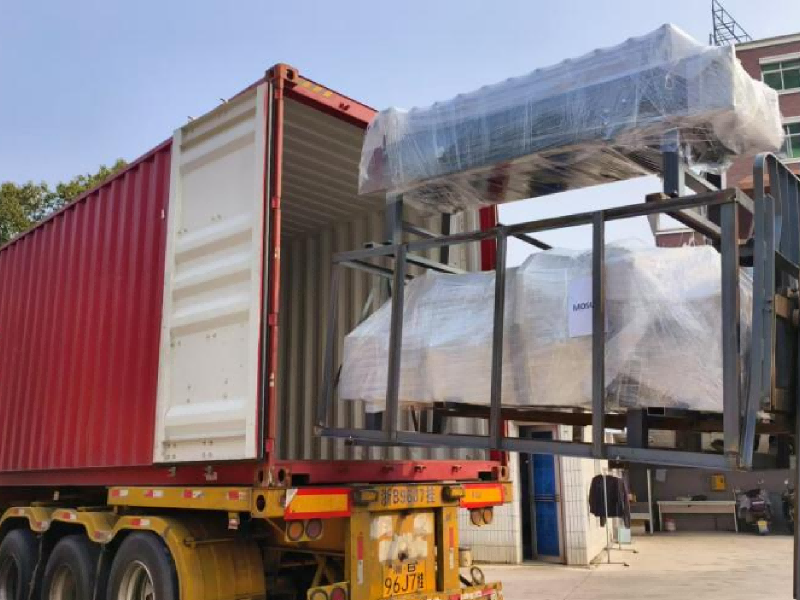

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
