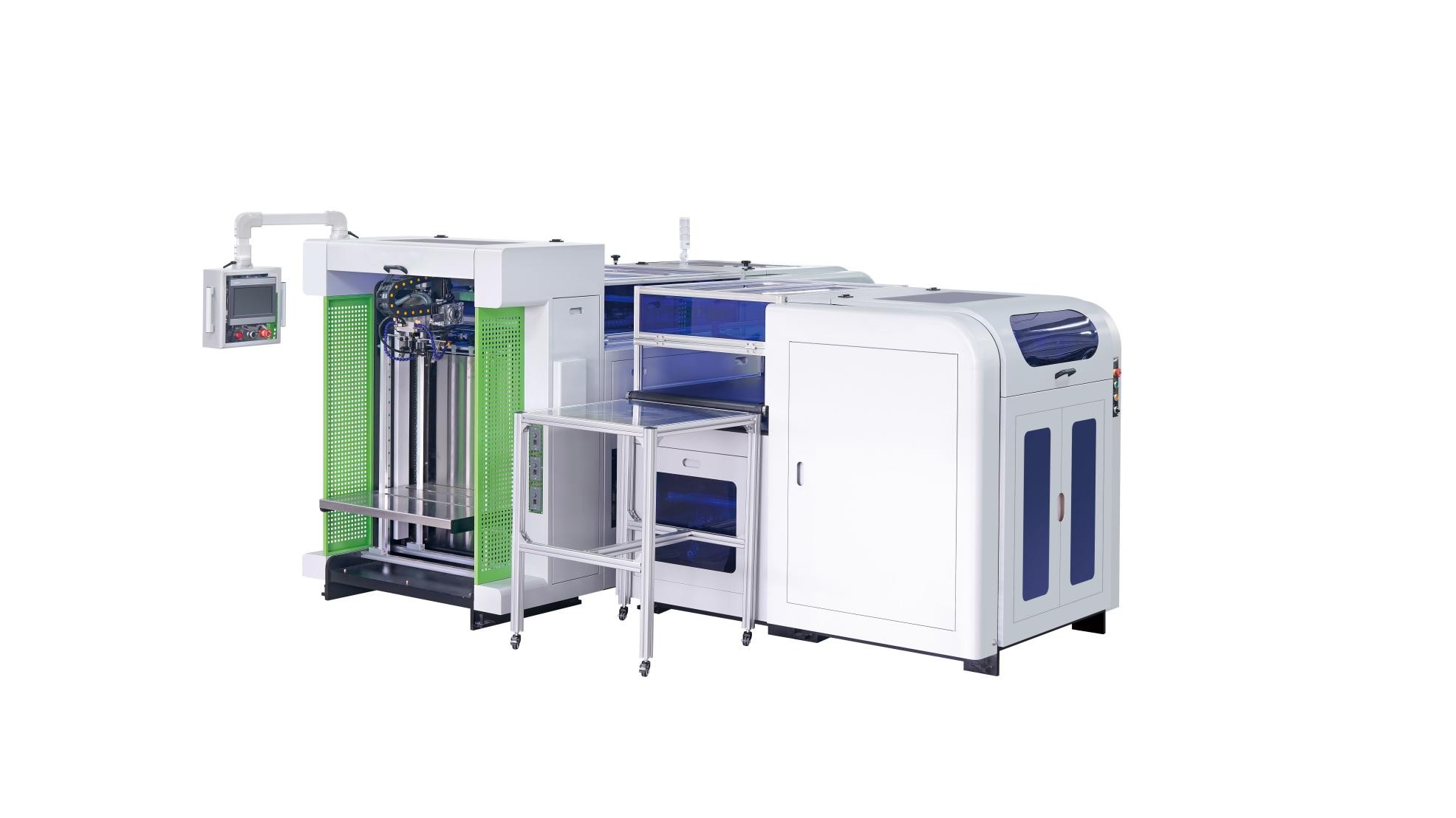

01. Usage:
Feeder gooving machine belongs to the box package production line equipment. The machine is special designed for paper card and cardboard V type grooving. It suits for box, case or other packaging product, such as phone box, medicine box, watch box etc.
02. Specification:
| Model |
MSKC-860FD |
| Min Sheet Size |
150*150MM |
| Max Sheet Size |
680*450MM |
| Thickness |
200-600GSM |
| Knife Angle |
80-140° ADJUSTABLE |
| Feeding Correction Length Of Host 1&2 |
1000MM |
| Max Feeding Paper Pile Height |
750MM |
| Total Grooving Knives Number |
18 SETS, EACH HOST WITH 9 SET GROOVING KNIVES, AND 3 ROW KNIFE HOLDER |
| Knife Material |
TUNGSTEN STEEL |
| Grooving Speed |
20-60M/MIN |
| Roll Diameter*Length Of Host 1&2 |
600*800MM |
| Power |
9 KW |
| Voltage |
380V 50HZ 3PHASE |
| Precision |
±0.1-0.2 MM |
| Net Weight |
3700KGS |
| Package Dimension |
3150*1630*1960MM |
| 2060*1630*1650MM |
| Gross Weight |
2200+1700KGS |
03. Feature Highlights
1. Our cross-shaped grooving machine enables single-pass can achieve horizontal and vertical grooving.
2.It can works for regular and irregular shaped papers.
3.The auxiliary blowing system adopts the adjustable delay pause function, which is environmentally friendly and energy-saving.
4.Feeder type paper feeding, suitable for various paper types, gold and silver card paper grooving can prevent scratching.
04. Details

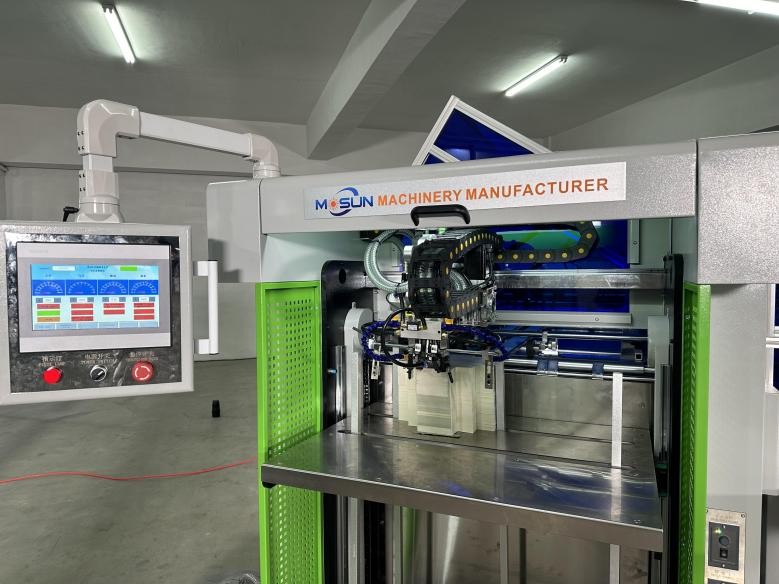

FEEDING PART |
|
|
|
1.Feeder suitable for the various kinds of paper, including the gold, silver card paper and matt laminated product.
2.10-inch removable display screen for easy operation
|

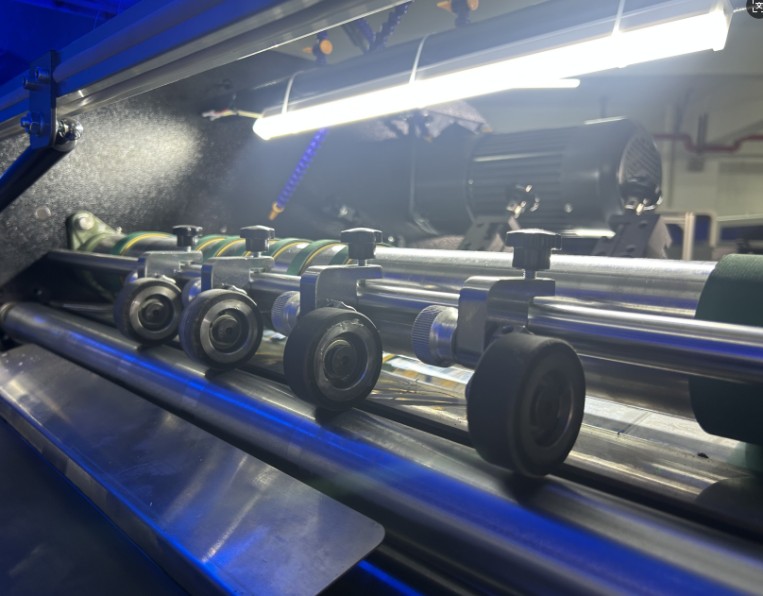

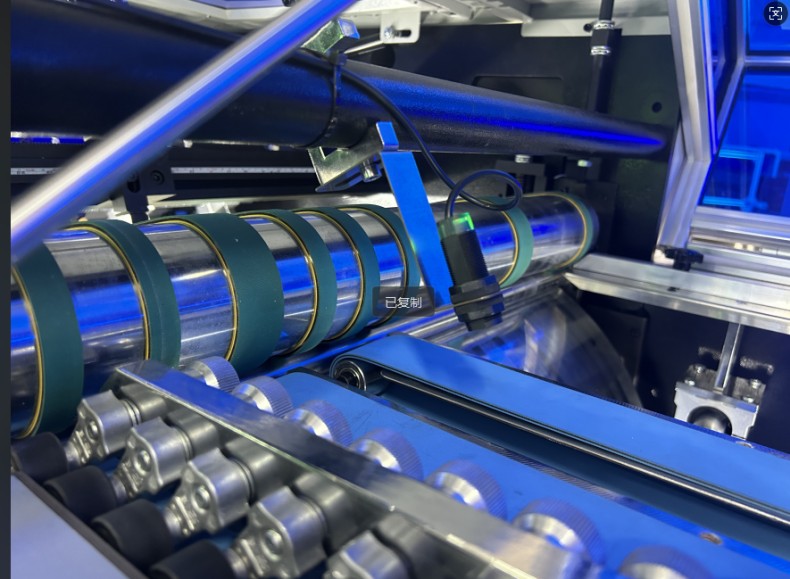

HOST 1 EDGE CORRECTION PART |
|
|
|
Single-sided pressure wheel correction is more accurate.
The counting photoelectric can count the output.
|

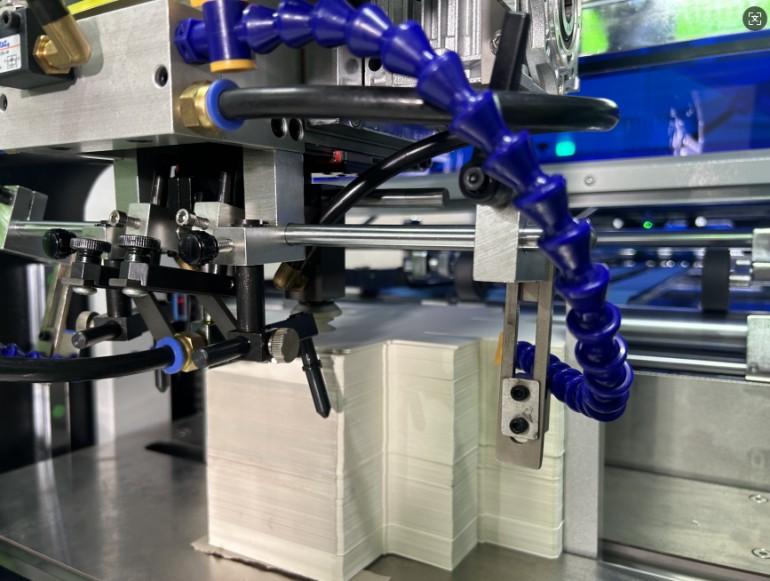

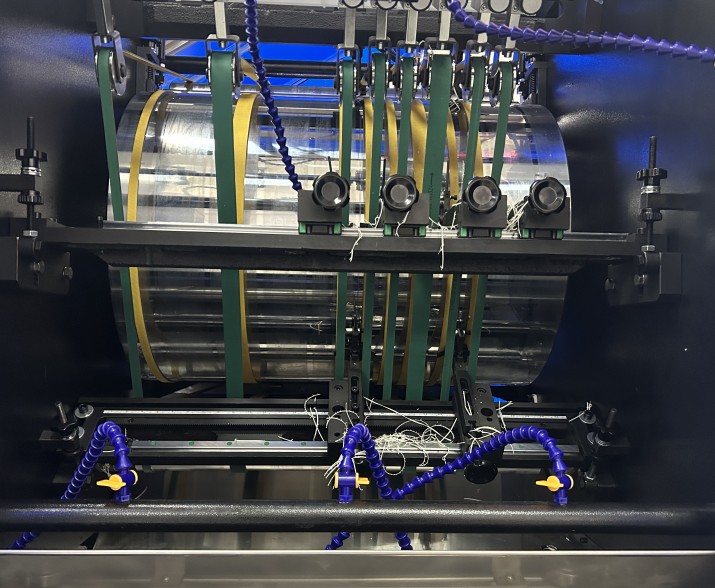

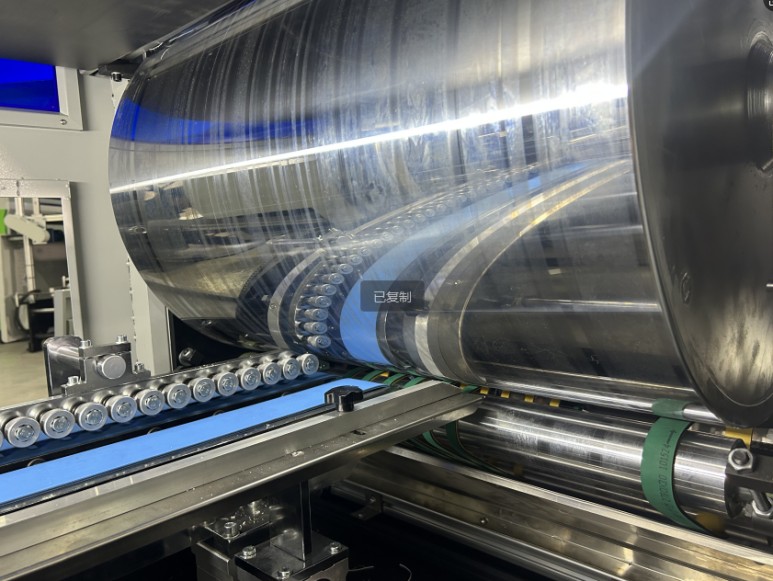

HOST 1 & HOST 2 GROOVING PART |
|
|
|
The part with 3 rows of knives, each row has 3 knives, which can meet the needs of multiple products to open multiple slots at one time.
The air blow pipe can adjust the position of the air blow port according to the needs, which is convenient for cleaning the slotting waste
The conveyor belt can help collect waste and reduce the workload of operators
|

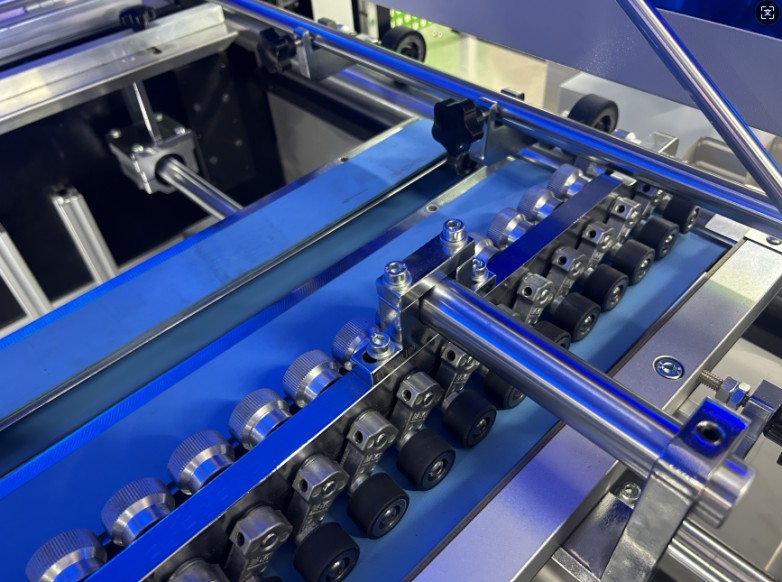

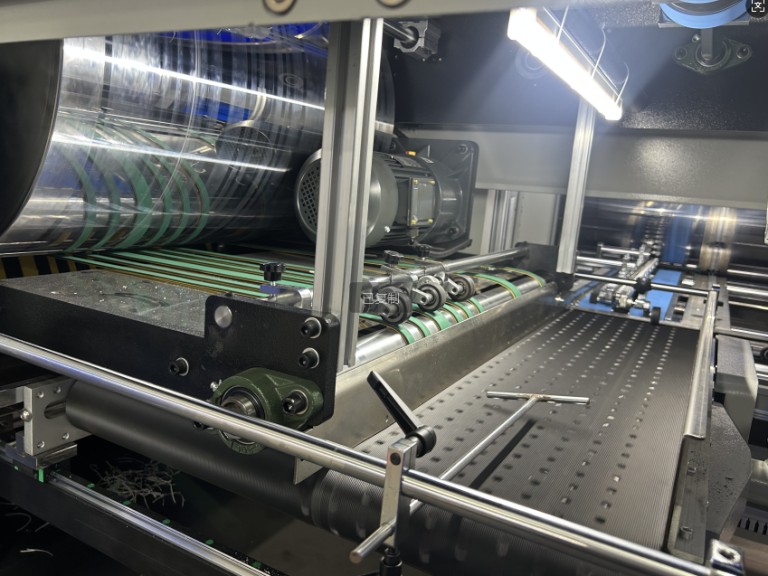

HOST 2 EDGE CORRECTION PART |
|
|
|
The belt with suction can ensure the smooth transportation of paper
The 1000mm length of deviation correction can ensure the accuracy of the second slotting
|

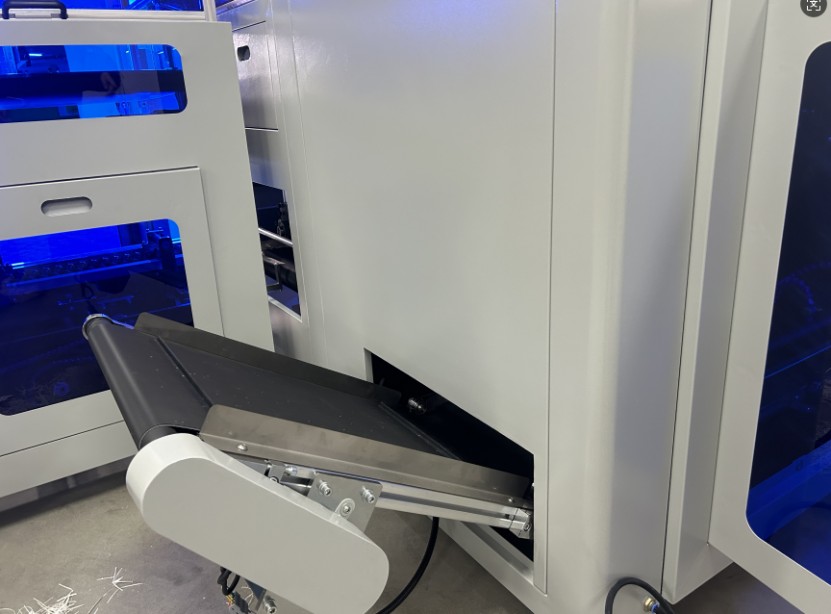

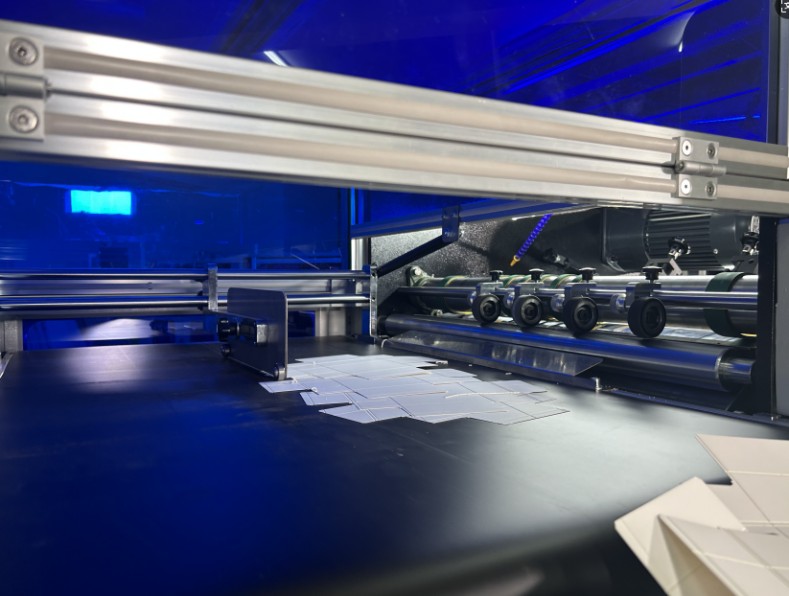

FINISHED PRODUCT OUTPUT PART |
|
|
|
After the second grooving, the pressing wheels, baffle and conveyor is confirm that the product is output neatly.
The output part is located on the right side of the feeder. One person operates one device to achieve high efficiency and save labor costs.
|
05. Main Configuration List
Name |
Origin/Brand |
Human-Machine Interface 10 Inches |
Huichuan |
Plc Easy 522-0808Tn |
Huichuan |
Servo Driver |
Huichuan |
Intermediate Relay Jzx-22F/2Z(D) |
Chint |
Ac Contactor Nxc-0910 |
Chint |
Ac Contactor Nxc-1810 |
Chint |
Air Switch Nxb-63 2P C25 |
Chint |
Air Switch Nxb-63 3P C32 |
Chint |
Inverter 2.2Kw |
Huichuan |
Inverter 0.75Kw |
Huichuan |
Knife Grinder Two-Phase 220V |
Makute |
Photoelectric Switch Xs618-G-Nal5 |
Military Industry |
Main Motor 380V/2.2Kw |
Haoxing |
Phase Sequence Protection Xj3-Q |
Chint |
Button. Flat Button. Knob |
Helijia |
Alarm |
Wenzhou |
Functions and details are constantly upgraded, The above configuration is subject to change without prior notice
