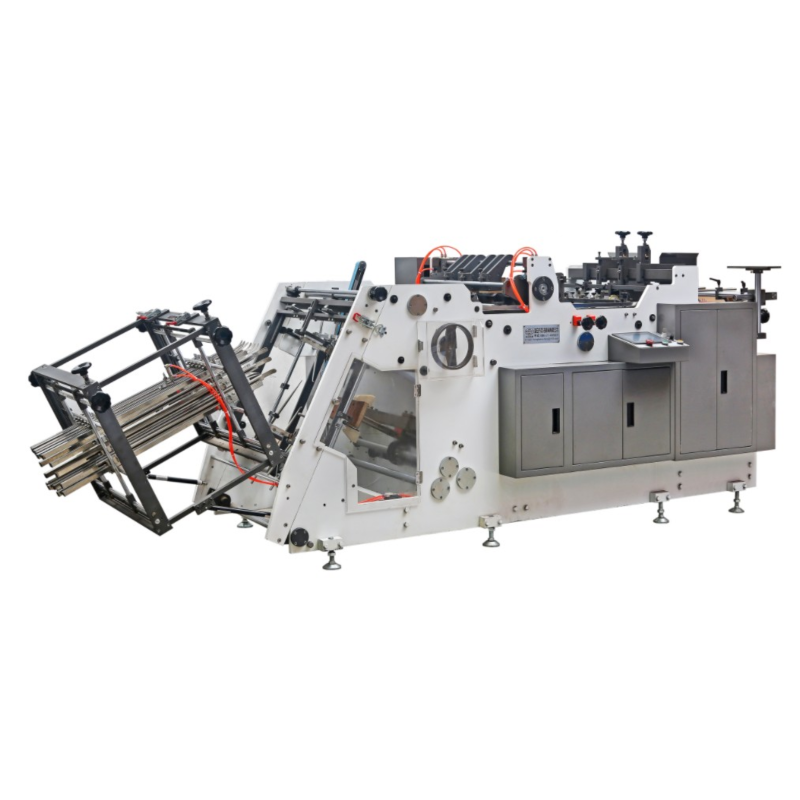

MSZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.
Type |
MSZF-800 |
Production Capacity |
50-200pcs/min |
Length |
100-650mm |
Width |
100-500mm |
Height |
15-200mm |
Degree |
5°- 40° |
Total Power |
5kw |
Total Weight |
1800kg |
Overall Dimension |
3600 * 1600 * 1700 mm |
Power Source |
380V 50HZ 3P |
It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.
All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.

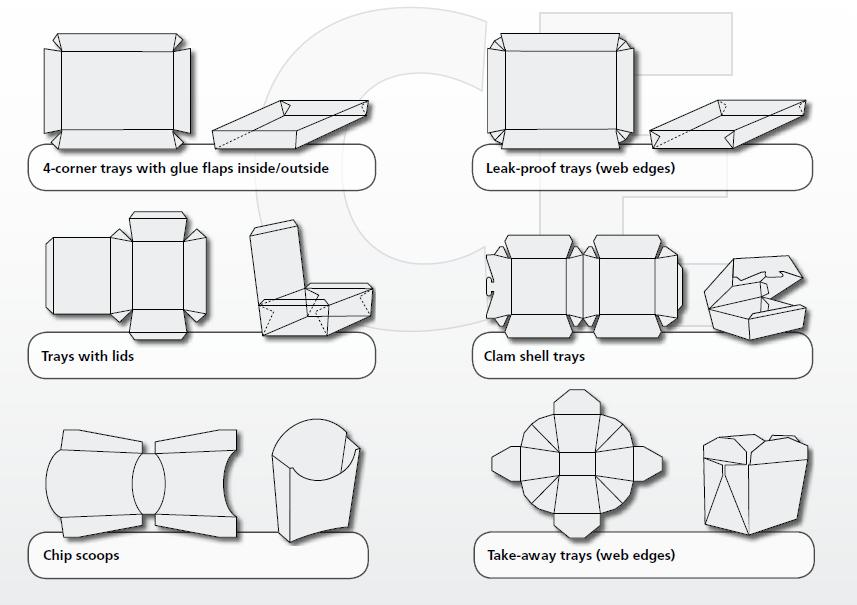

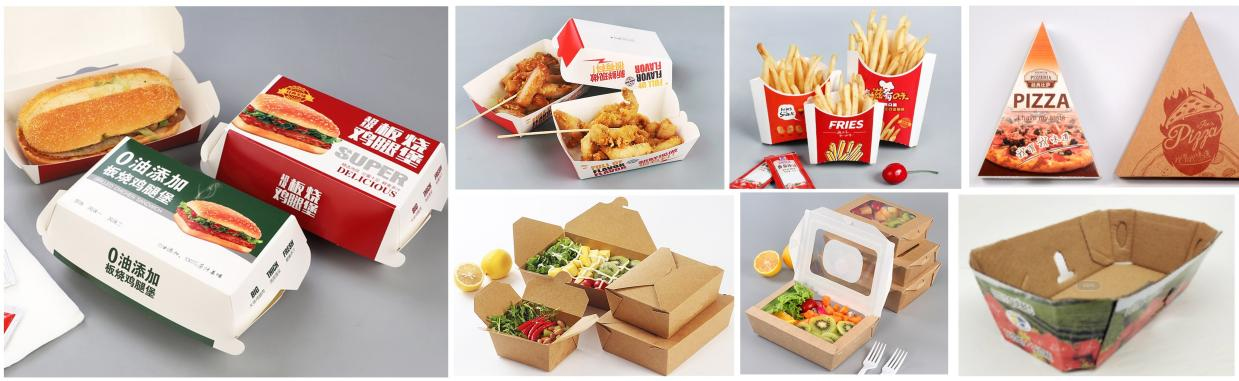

It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.

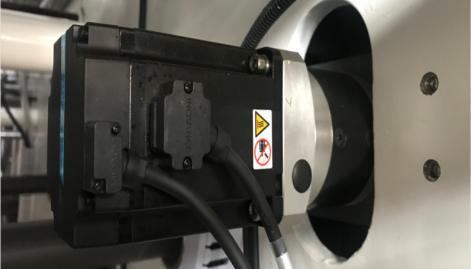

1.Servo controlled feeding system. No need the adjust the distance or change different size cam to control feeding .It save the time and more precision when change the mold.
2.Sensor detection to control start and stop feeding and will replace the up down part.Feeding will be much more steady.

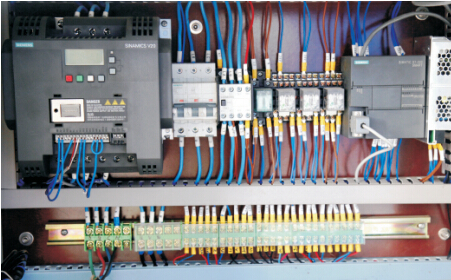

1.Standard electric box and marked clearly.

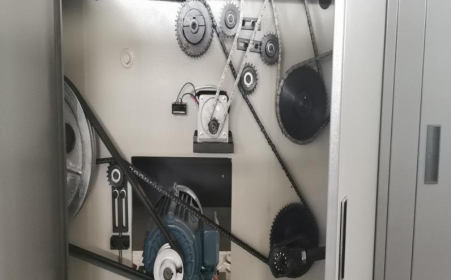

2.Chain drive system,and reinforce with metal frame and board.

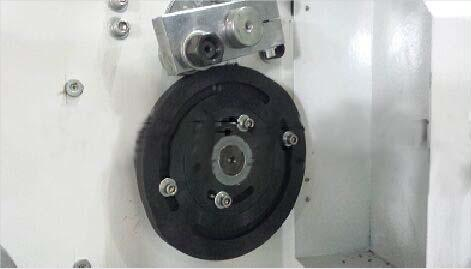

1.Motor controlled gluing system.Inject glue and change the gluing sponge easily and quickly.

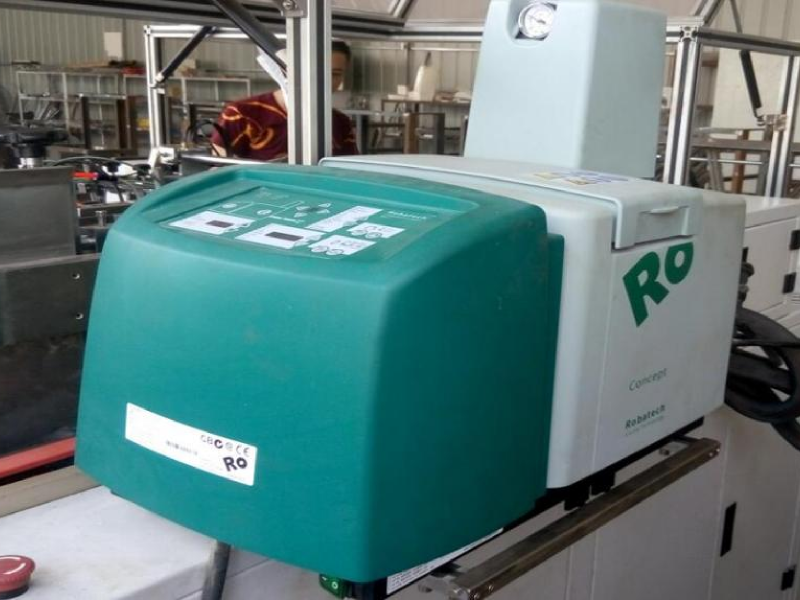

2.Option:It can additional installed with the hot melt glue system,Chinese and International brand can choose.

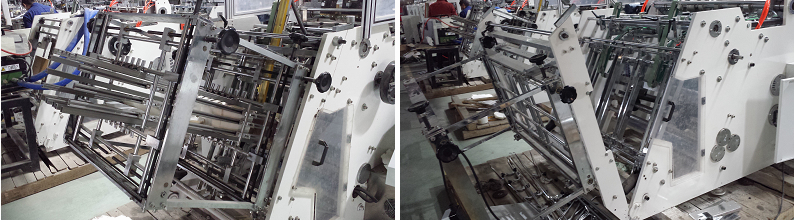

The collecting frame can be opened in three parts.It is easier to install the forming spare part and commissioning.

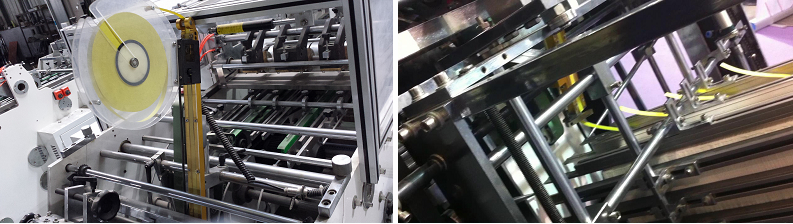

It adapts the paper tape inserting for counting.

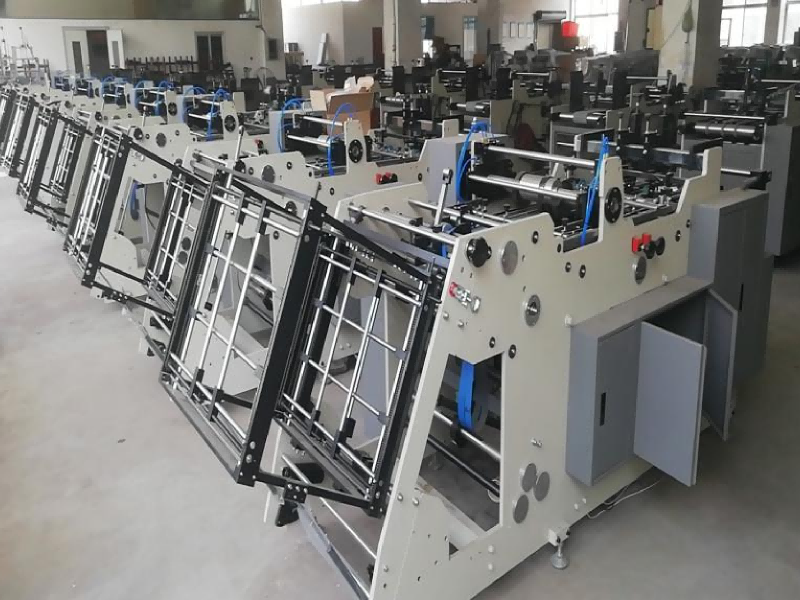

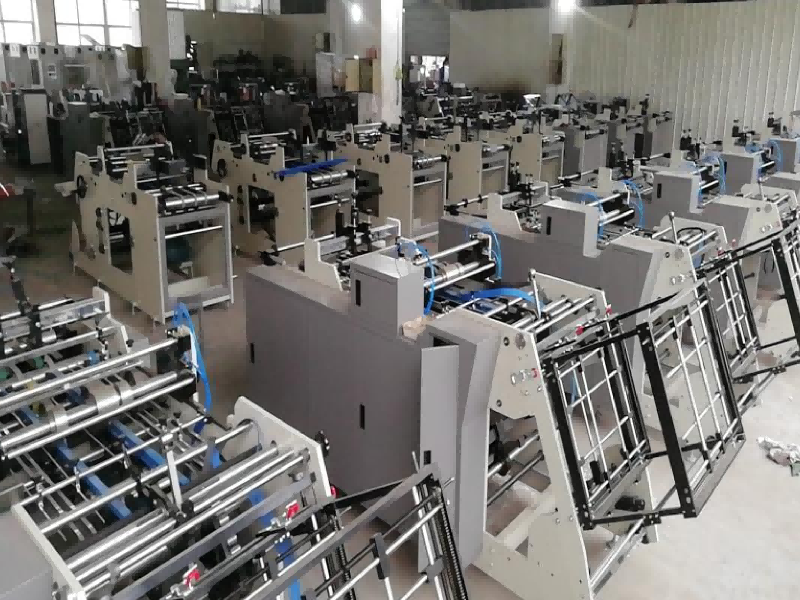

Professional Manufacturing:
A strong enterprise focused on the production of paper container forming machines.
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

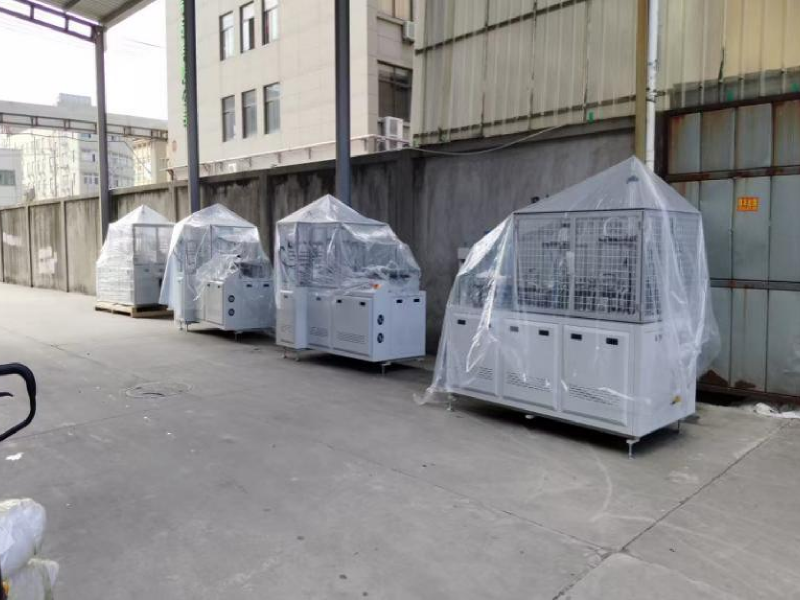

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
