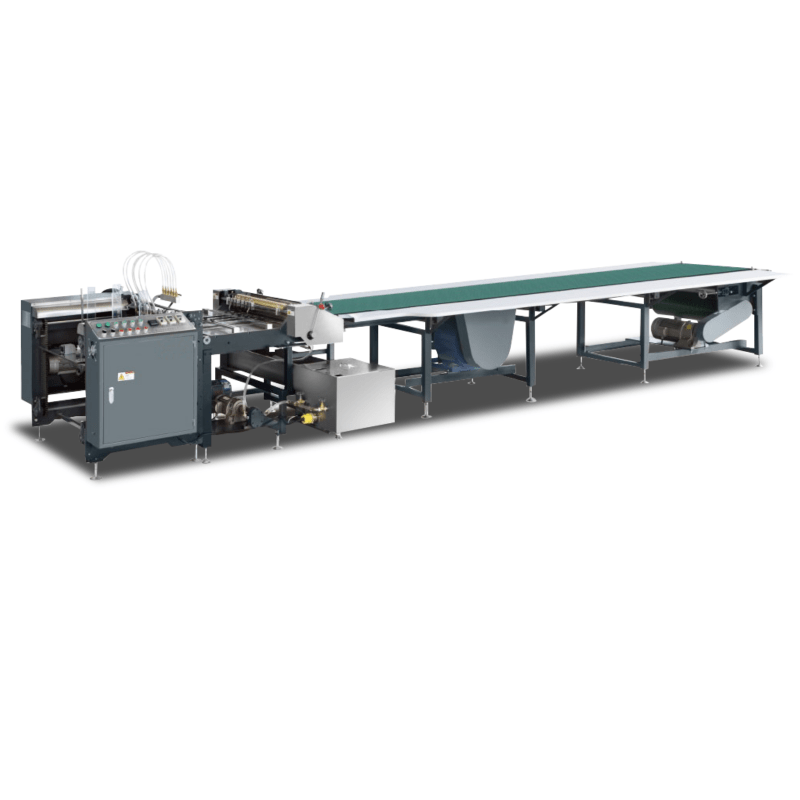

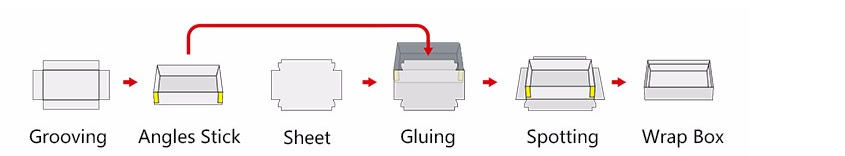

Auto feeder hardcover gluing machine is mainly used for the gluing of different thickness of paper, paperboard, special paper, Paper box, carton box, note book making, paperboard puzzle, instead of manual gluing, improve the efficiency of work.
The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.
Specification:
Model |
JS-650A |
JS-850A |
JS-1050A |
Paper thickness |
80-250g |
80-250g |
80-250g |
Paper width(max) |
600mm |
800mm |
1000mm |
Paper length(max) |
100-2000mm |
100-2000mm |
100-2000mm |
Speed |
8-40pcs/min |
8-40units/min |
8-40units/min |
Power |
9kw/380v |
9kw/380v |
9kw/380v |
Size of Machine(mm) |
8000×1350×1250 |
8000×1550×1250 |
8000*1750*1250 |
Weight of Machine |
950kg |
1150kg |
1350kg |
1. Machine with servo pneumatic, PLC control.
2. Machine is debugged by man-machine interface is simple and easy to adjust the selection.
3. Machine all control parts adopt international high-end brands, low failure, high precision.
4. Machine with touch the emergency stop switch, such as an emergency press automatic stop.

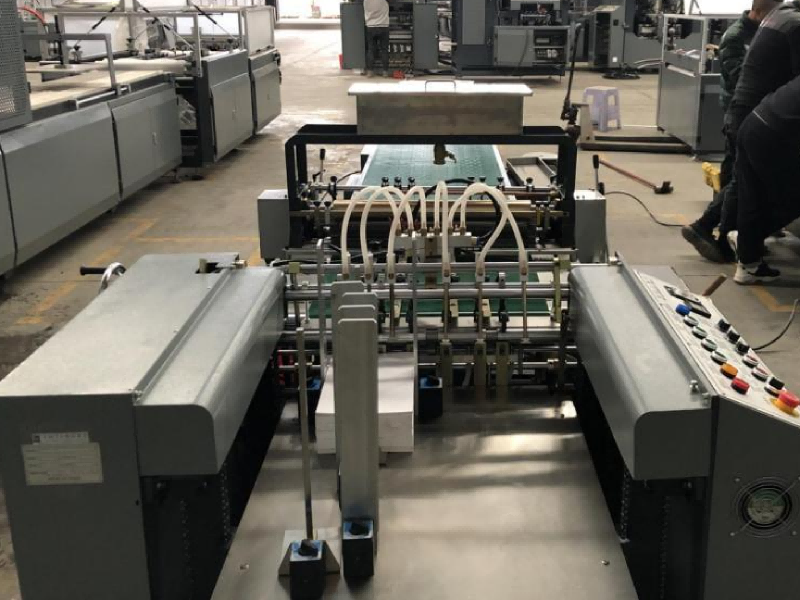

Automatic Feeding Part:

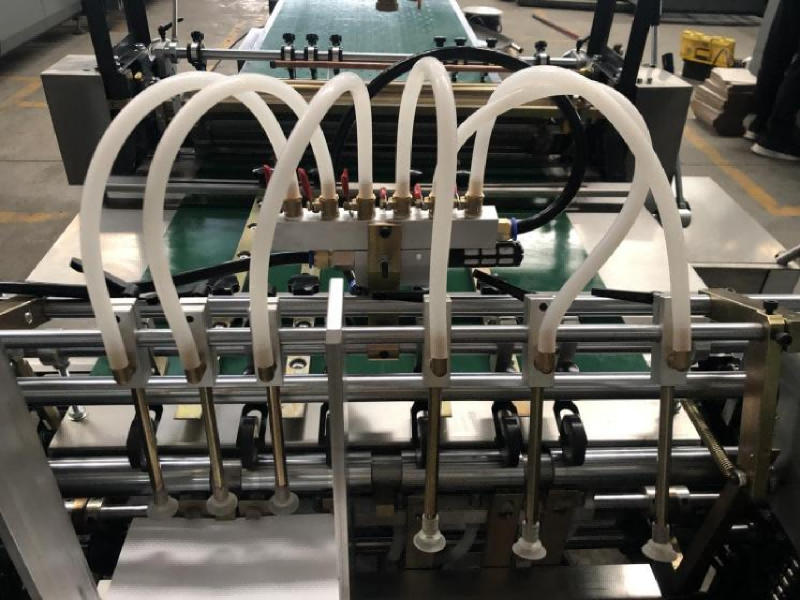

Automatic sheet-feed front edge suction for various sheet sizes. Paper pile max height is 400mm.
It can place one or two pile paper to feeder together.
Machine with foot panel which can control full machine start or stop
Gluing Part:

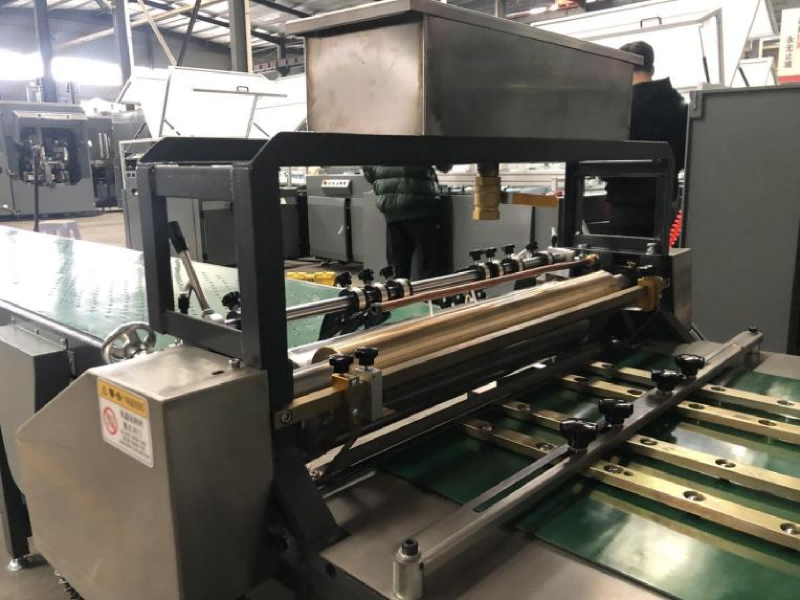

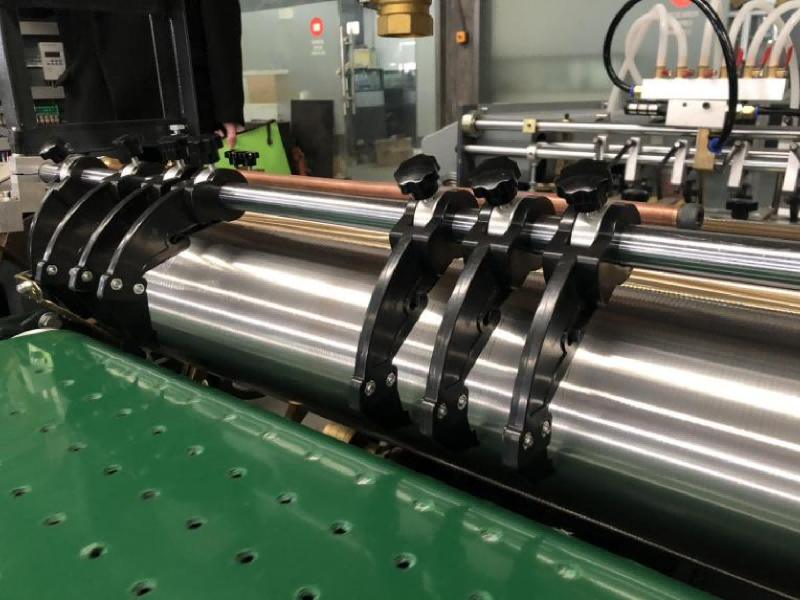

Gluing roller with copper knife, which avoid paper stick on roller, ball bearing design of feed table, the sheets are conveyed straight-through by pressure system.
Machine can use the jelly glue and cold glue, with separated glue tank.
Conveyor Belt Part:

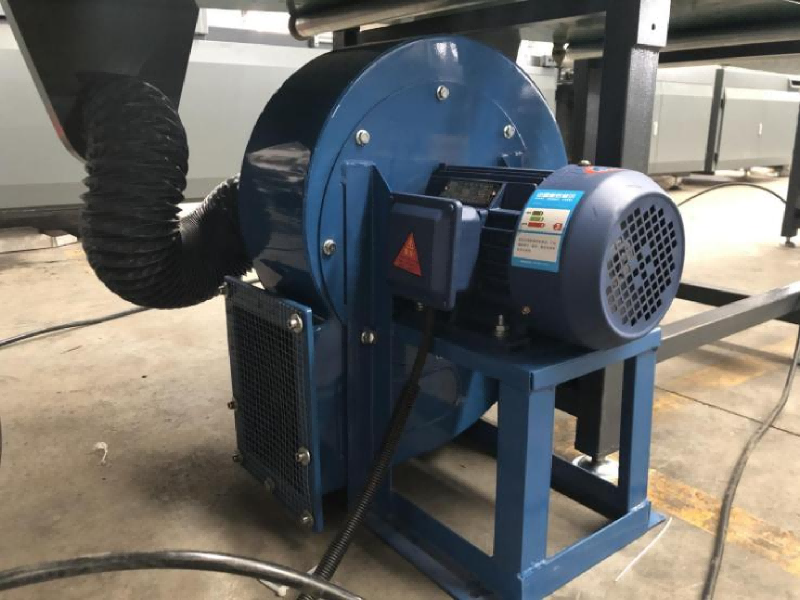

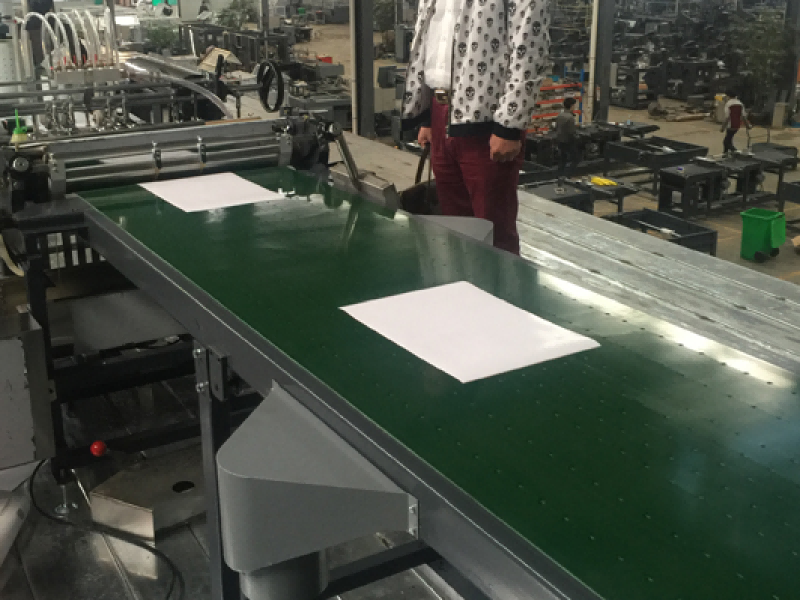

Conveyor equipped with air-suction system to forward sheet flat and stably.
Belt length common is 6 meters, and it can be customized, min length is 2.2 meters.
Professional Manufacturing:

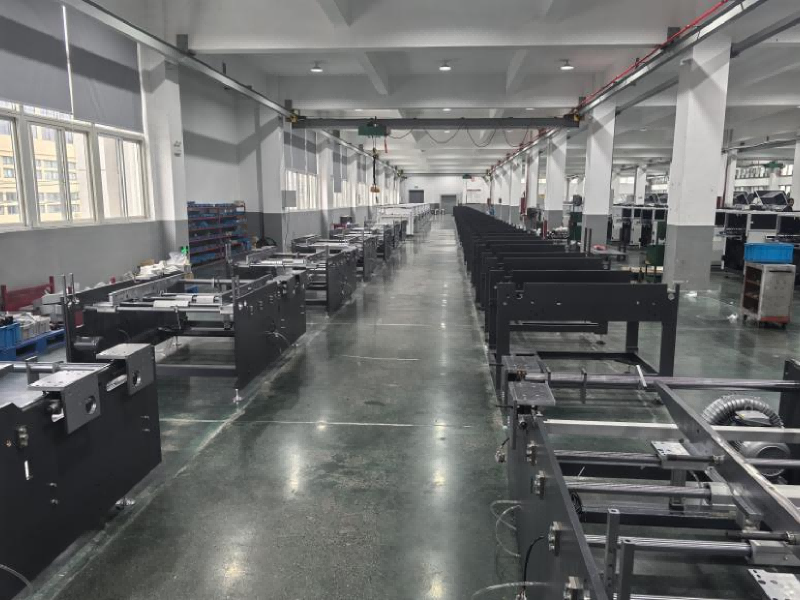

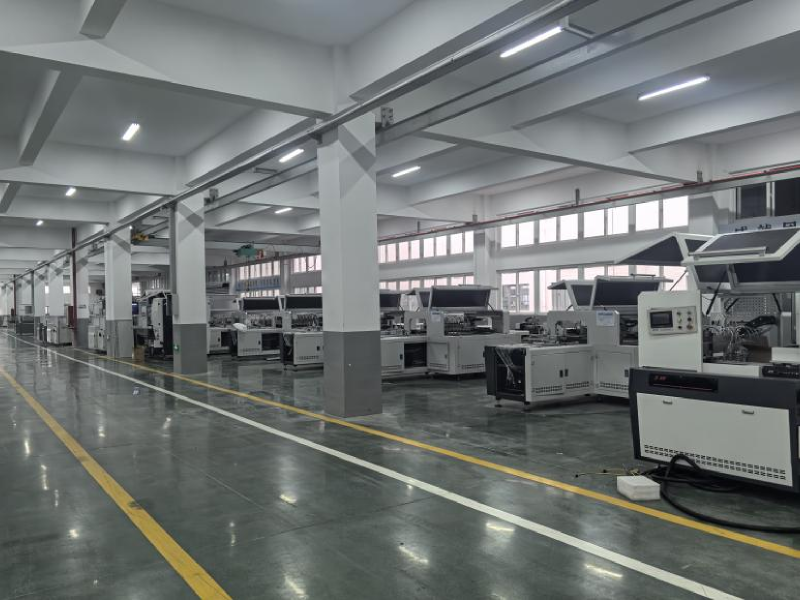

A strong enterprise focused on the production of rigid box making machines.
