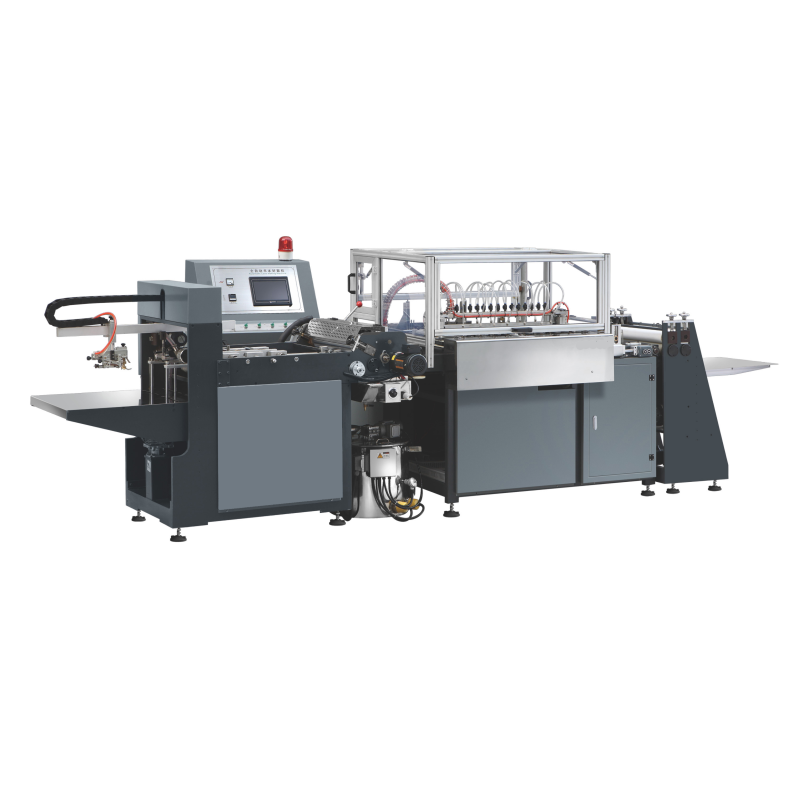

It used for making lining for perfect book covers, notebook covers, calendar covers, hanging calendars, box covers, file covers, etc. This suggests that the machine is designed for lining and gluing applications in the bookbinding and packaging industry.
Specification:
Model |
MSNB-460B |
MSNB-600B |
Length of paper |
190-830mm |
190-1030mm |
Width of paper |
100-460mm |
100-630mm |
Thickness of paper |
80-300gsm |
80-300gsm |
Thickness of cardboard |
1-3mm |
1-3mm |
Position precision |
≤± 0.25mm |
≤± 0.25mm |
Speed |
0-35pcs/min |
0-35pcs/min |
Power |
11kw |
13kw |
Weight |
2500kg |
3000kg |
Dimension |
4900x2150x1500mm |
6800x2600x1500mm |

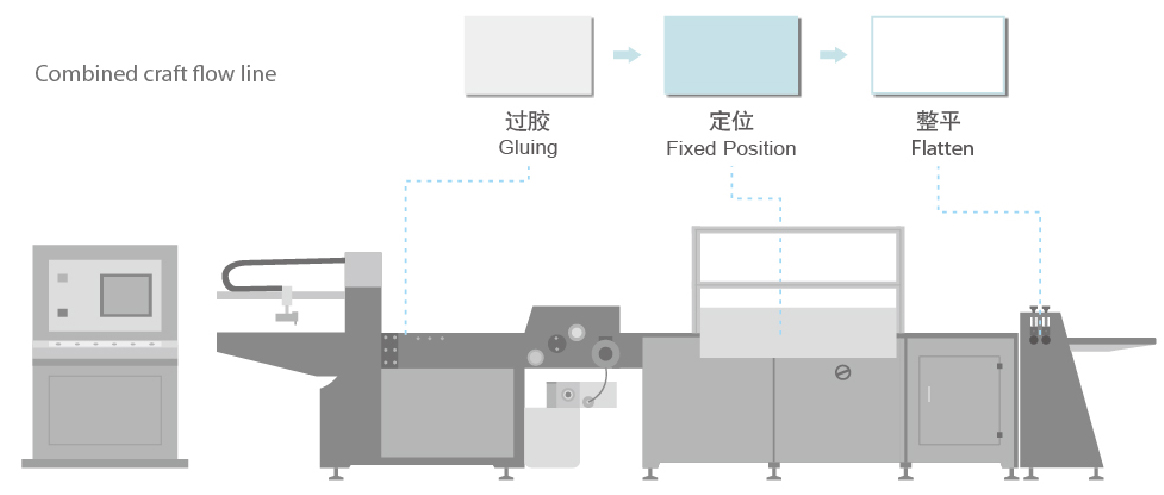

1.Transmission of paper adopts automatic paper transmission feeder with mutually combined with vacuum suction separated paper and computer controlled vacuum blower wheel paper delivery.

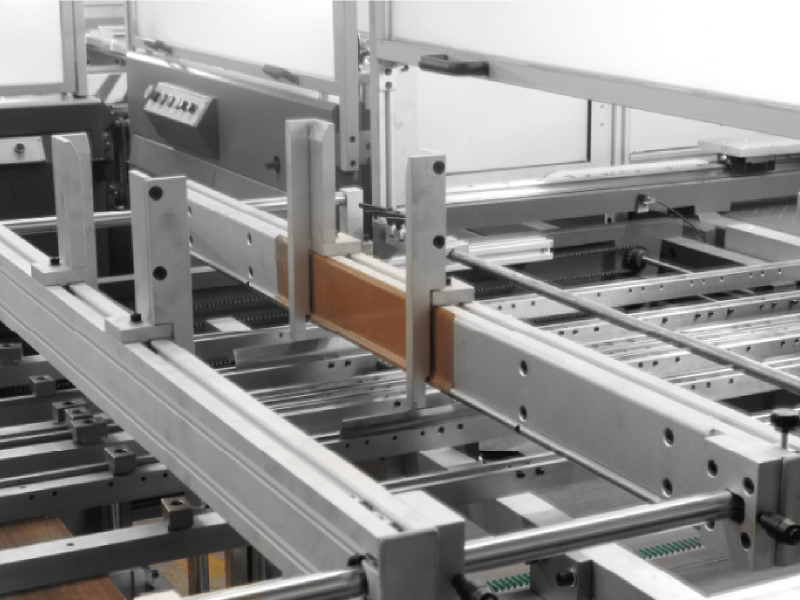

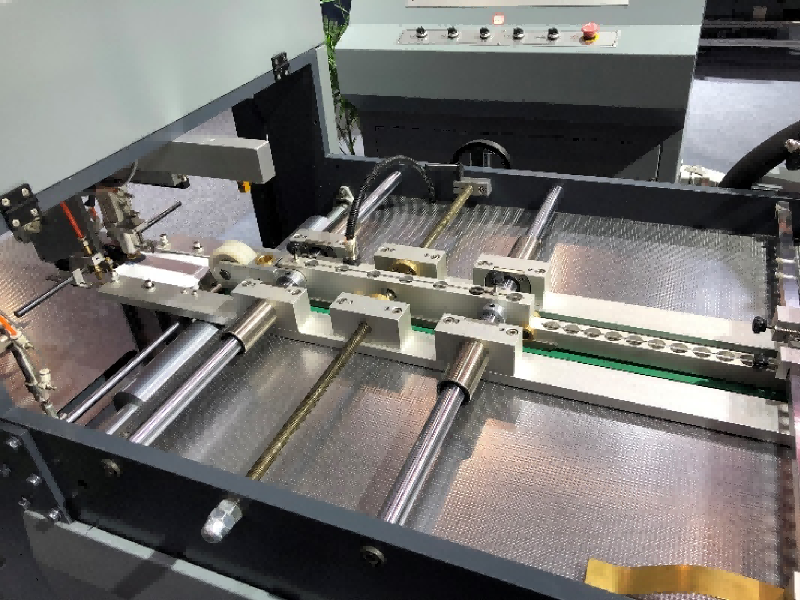

2.Paper enters band steel ball roller conveyors new guiding rail for positioning, and then automatically coat glue for re-adoption of optical fiber precise tracking error correction device.

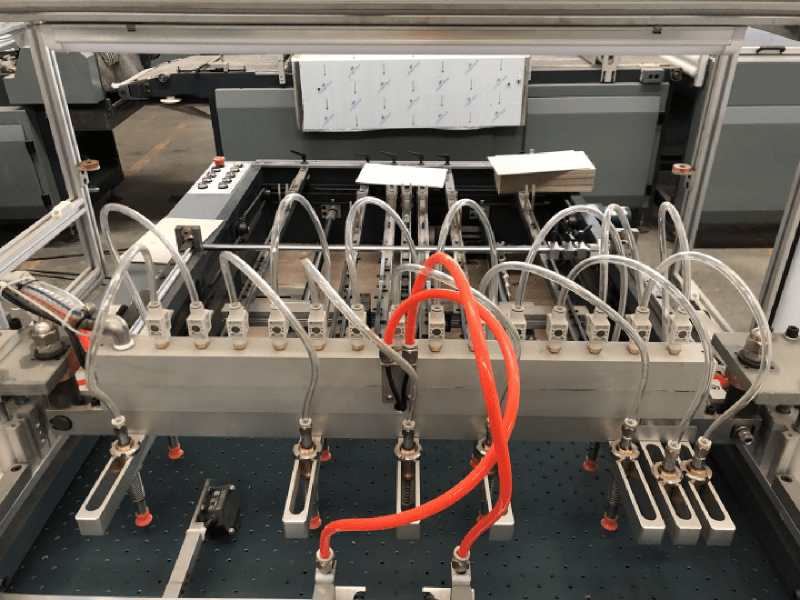

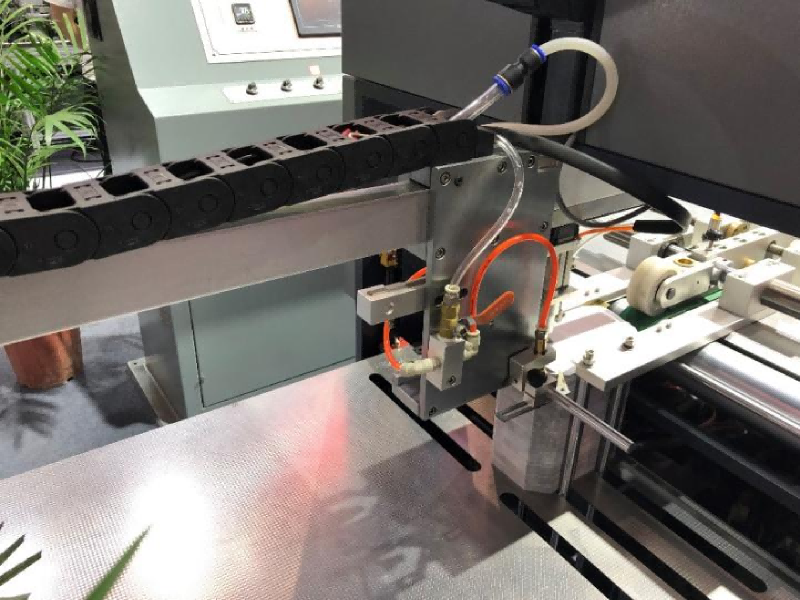

3.It adopts unique development philosophy to solve problems including getting dirty and scratching. Through belt-oriented chaff transmission system developed by unique professional technique, sucker manipulator transmits product onto vacuum air-transmission conveyor belt for transmission which can avoid phenomenon including surface occurring getting dirty and scratching to meet requirements for high-quality products.
Stable and accurate institution providing automatic feeder paper delivery's (patent no.: 2l201120141210.4) for implementation of this patent, utility model's structure is simple and compact, debugging is simple and convenient, and paper feeding is stable and accurate, it may not cause deformation of paper and simultaneously paper feeding is quick and production efficiency is high

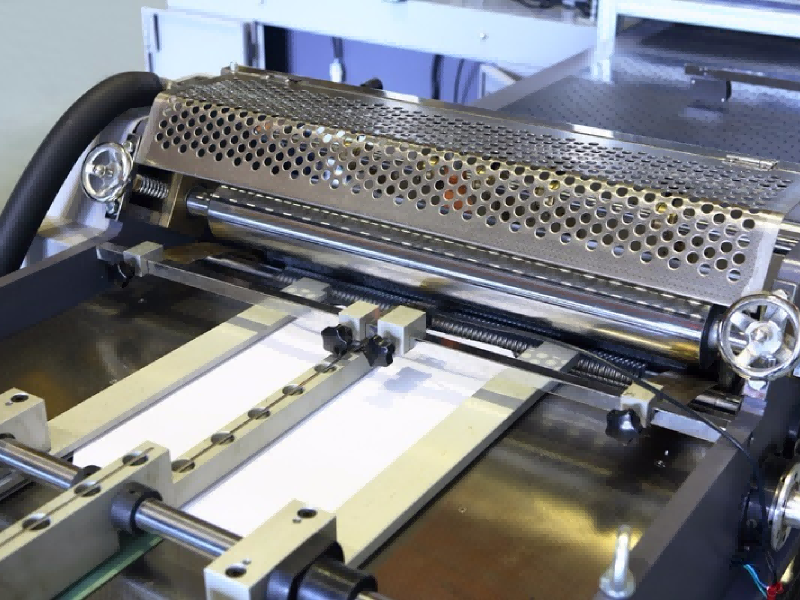

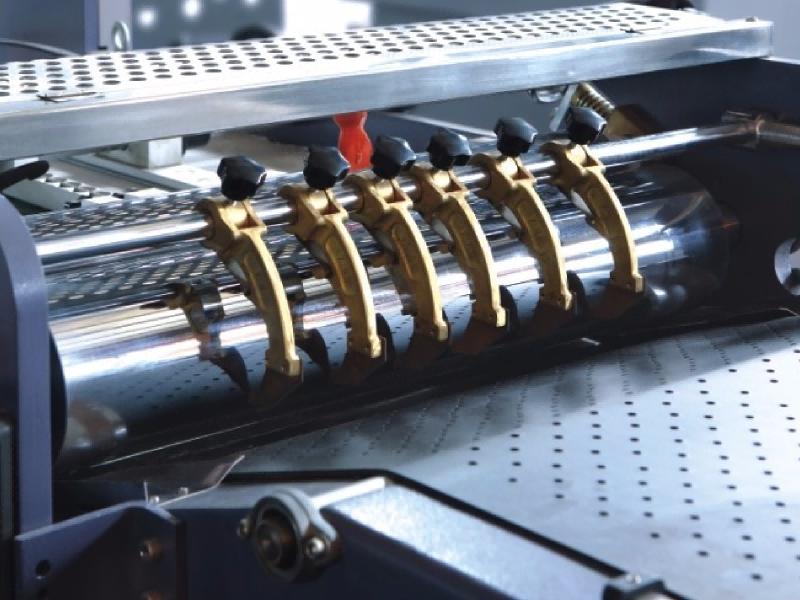

1. The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.
2.Pre-rectifying paper platform is equipped with ultrasonic double paper detector.
Adopt per-stacking non-stop bottom-drawn Cardboard Feeding device, which improves the production speed.

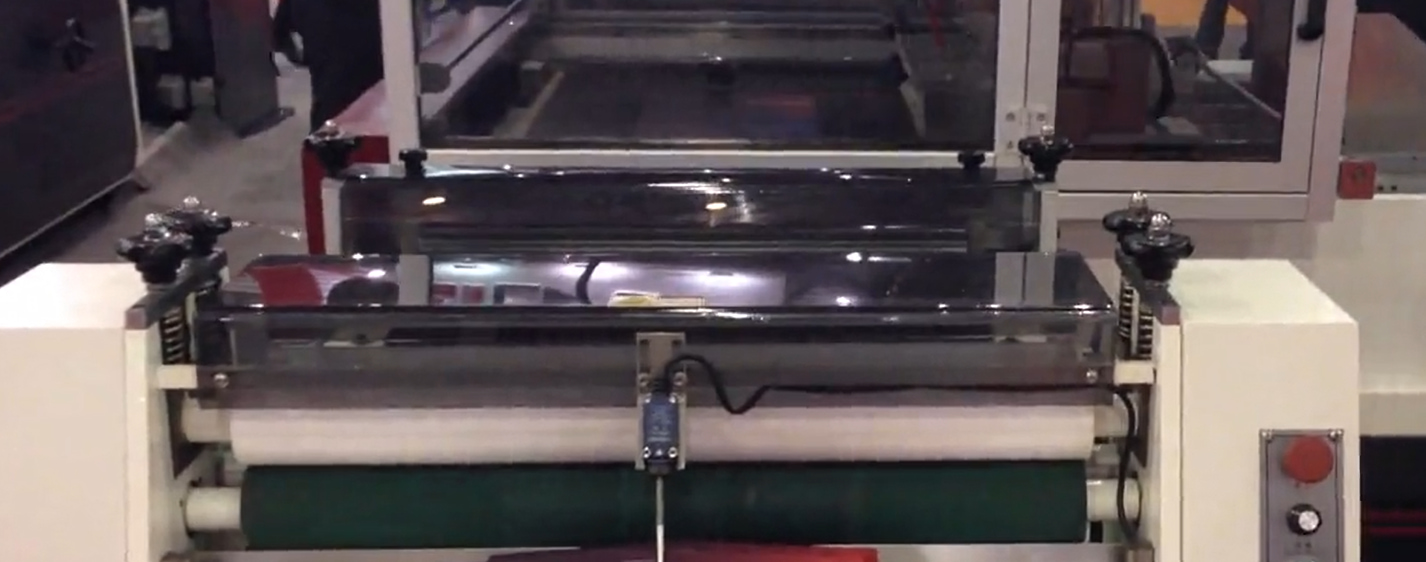

Rubber roller pressing process to enhance paper adhesion, smoothness and firmness
Professional Manufacturing:

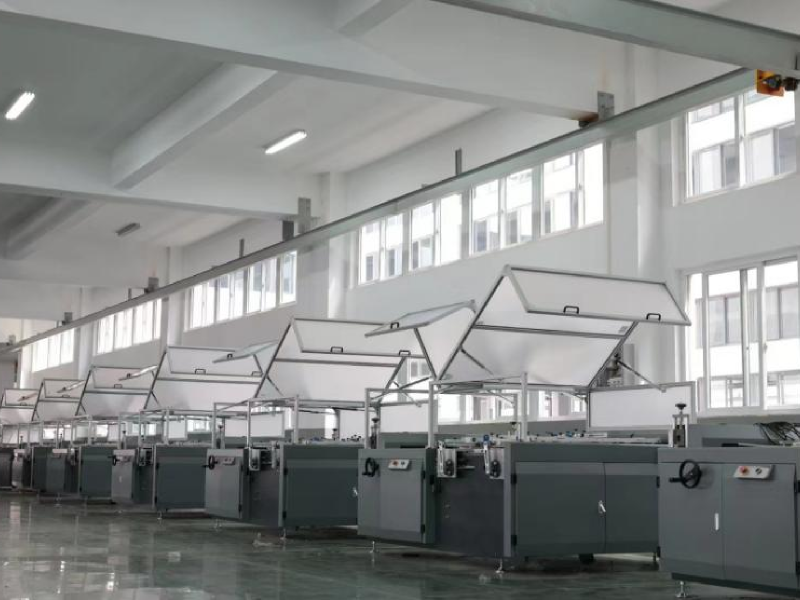

A strong enterprise focused on the production of rigid box making machine.
