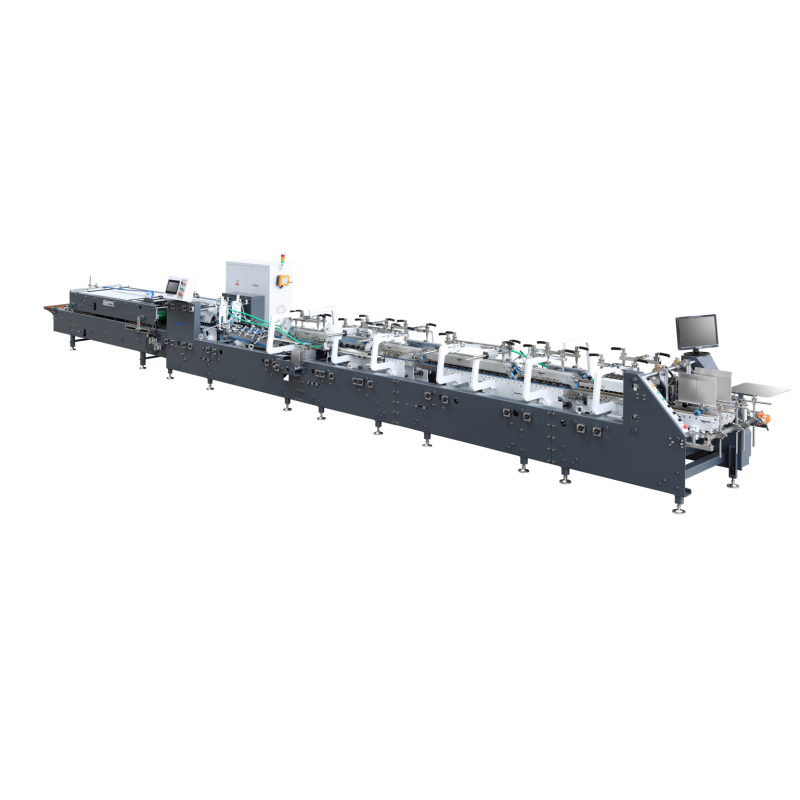

MSA-700 for straight line box, bottom lock box, side glue box, box inside box, mini box and some other special-shaped box (irregular box) of high-speed production. The machine max speed is 400 meters/min. Suitable for cardboard 200~800 gsm, corrugated board E-flute and F-flute.
Specification:
Model |
MSA-700 |
MSA-900 |
Cardboard |
200~800 gsm |
Corrugated Flute Type |
E-flute and F-flute |
Speed |
MAX. 350m/min |

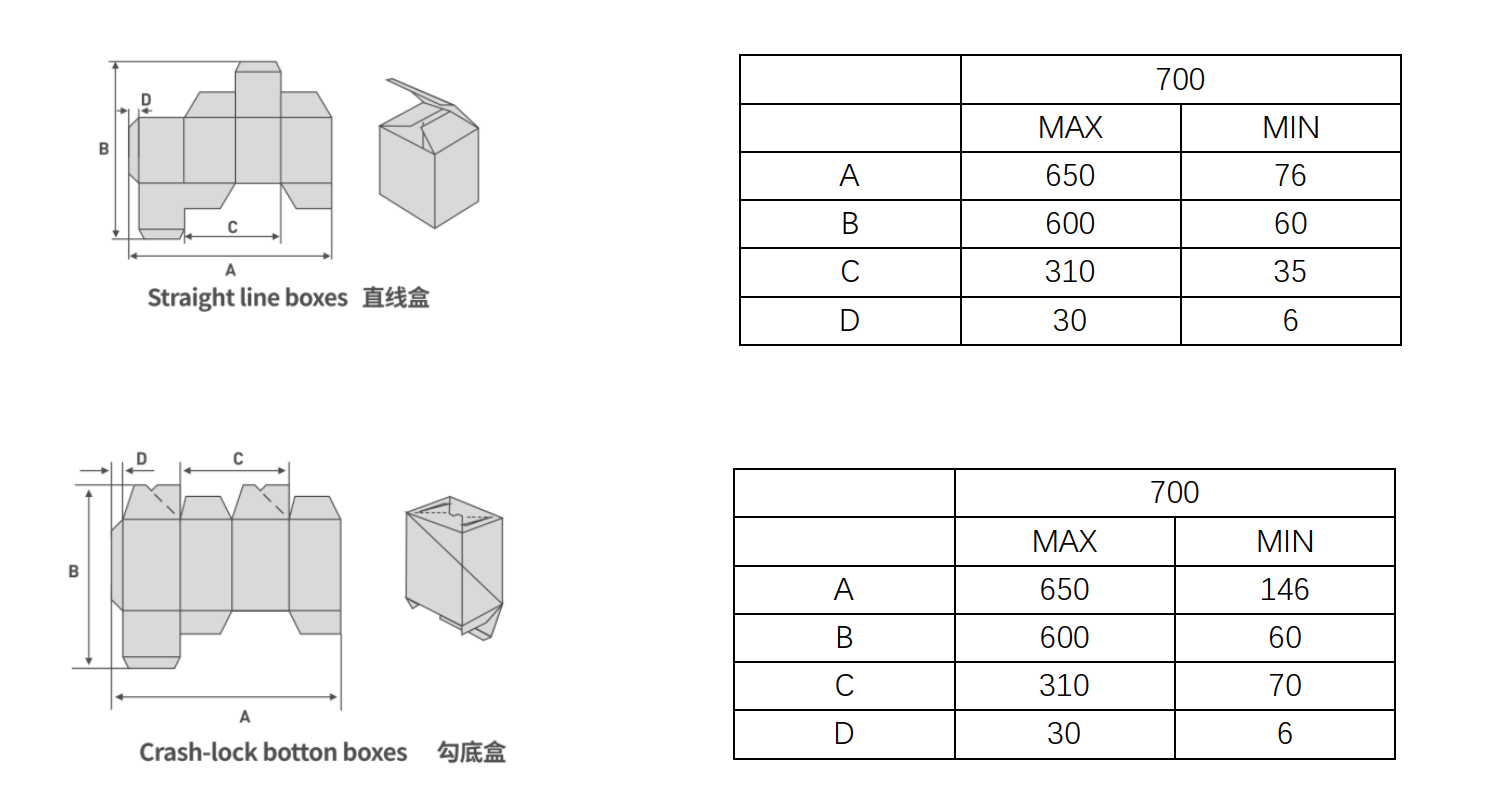

Max. Size(W*L) |
650*600mm |
850*600mm |
Min. Size(W*L) |
76*60mm |
Overall Dimension |
13.5*1.25*1.7m |
14*1.45*1.7m |
Feeding Way |
Automatically, independently and continuously feeding |
Pre-folder |
First crease line pre-folder up to 180°, Third crease line pre-folder up to 135° |
Power Supply |
380 Volts 3 Phase 50 Hz |
Total Power |
16KW |
Weight |
5.2T |
5.7T |
1. Modulation structure design, can upgrade machine function
according to customers' requires.
2. Humanized design of all devices, easy to adjust quickly.
3. Equipped with an Alignment device.
4. First crease line pre-folder up to 180°. Third crease line pre-folder up to 135°.

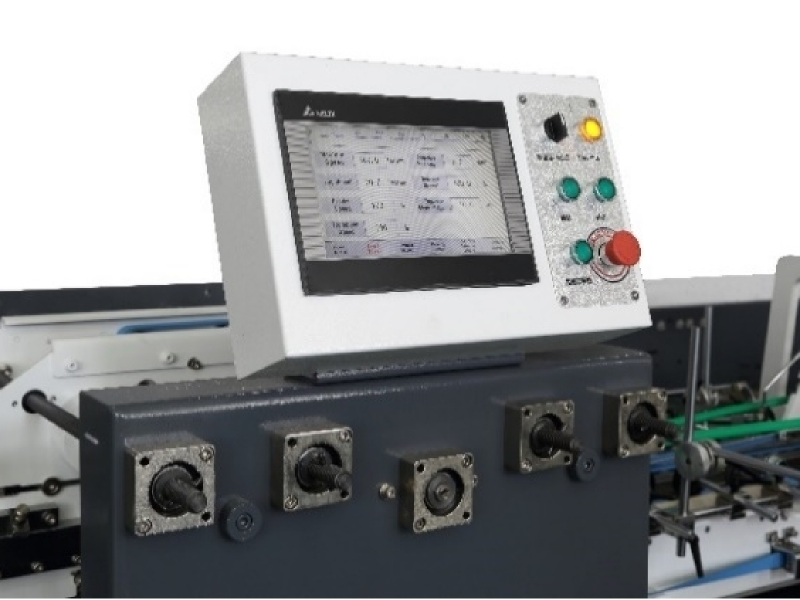

5. Sectional-type hook device6. Touch screen control plane.
7. High-speed electric counter with the kick-out device.
8. Pneumatic control system in pressing conveyor unit.
 |
 |

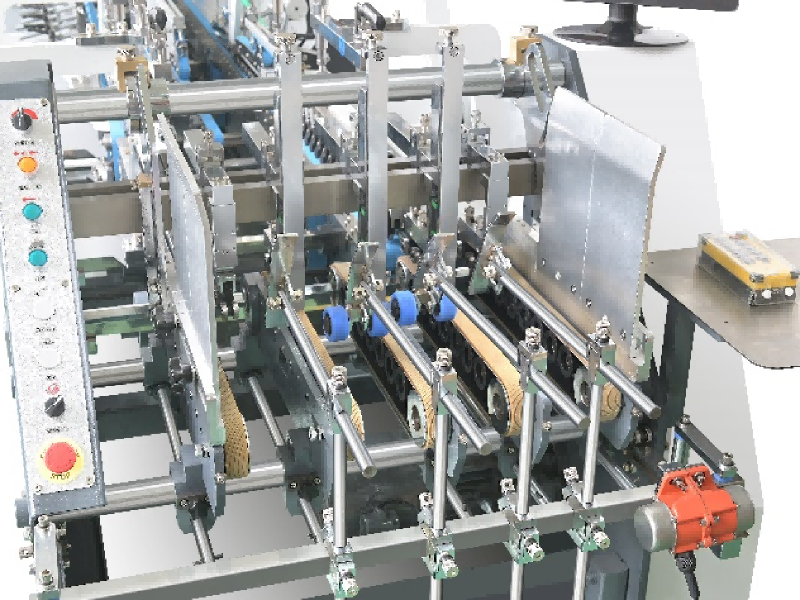

-Fully Automatic Feeder With Motor -6 pcs 30mm Friction Belts Soft Rubber Compound -3 Front paper supports (Quick adjustment for thickness of substrate) -Full Color Video Monitor (Supervise view final product at the end of the Machine) |

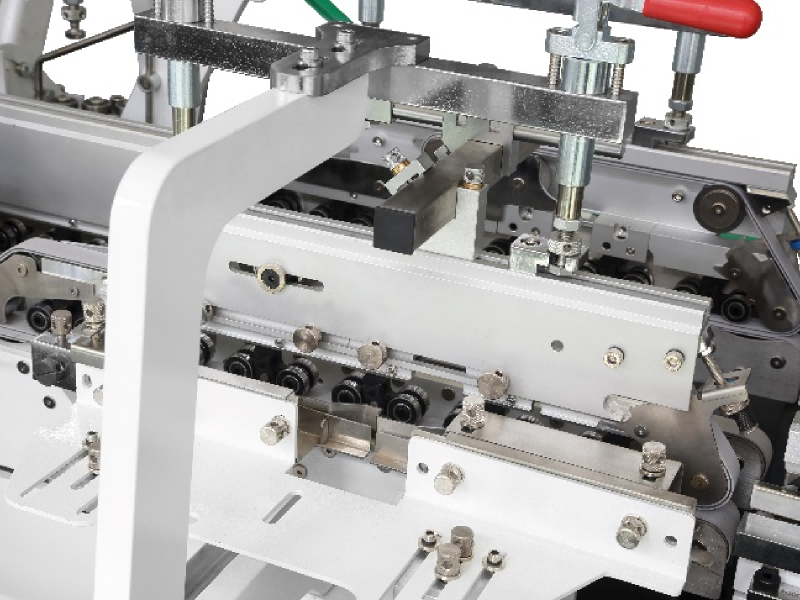

-2 Bottom Transport Carriers -1 left Hand Side Squaring Guide -1 Right Hand Side Squaring Guide -4 Top paper support guides -Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank |

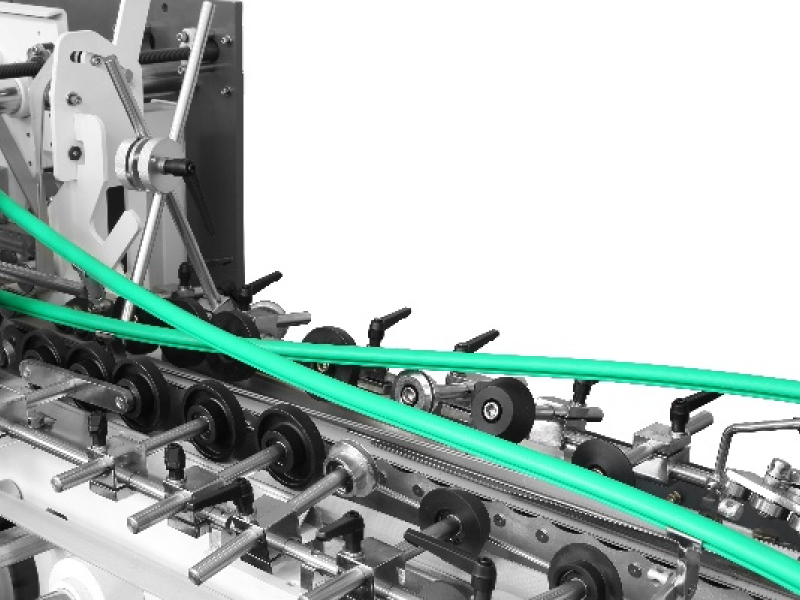

-First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º
-Pre-folding belt (right) and pre-folding sword (left)
 |
 |

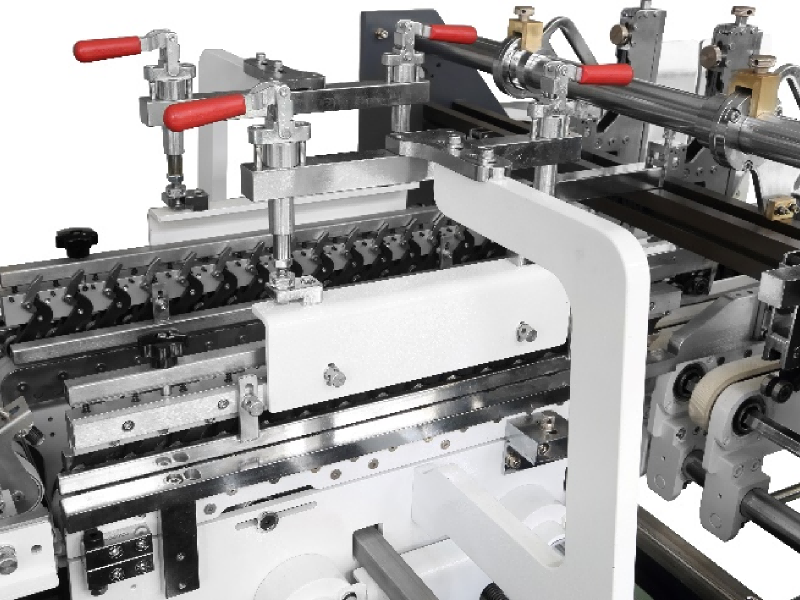

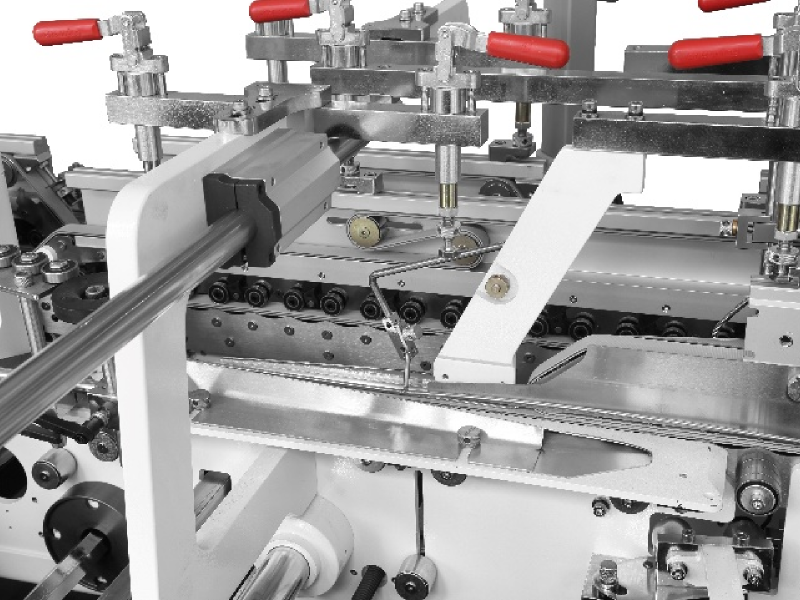

-3 Bottom Transport Carriers -3 Top Transport Carriers -4 Sets of crash lock hooks -3 Sets of diagonal folding shoes 2 Unit per Set -Bottom chromed support bars |
-Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc -Adjustable speed control of belts left and right |

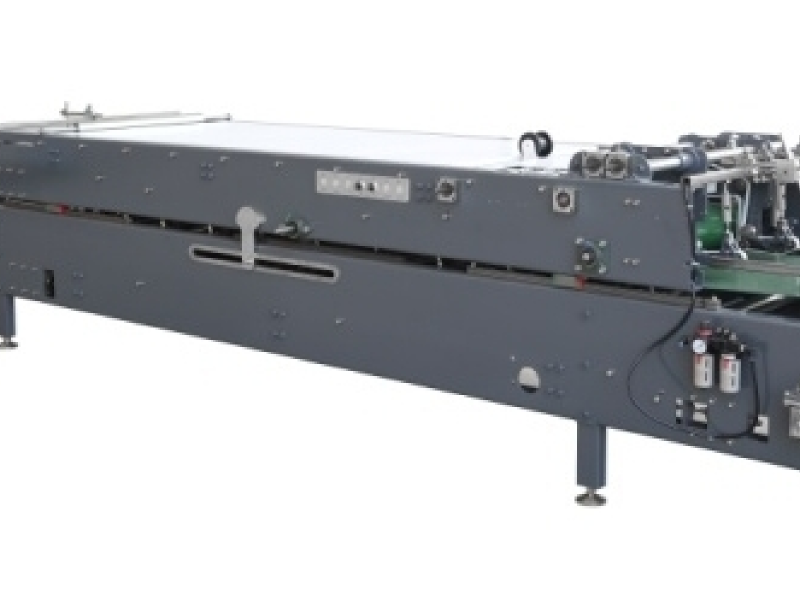

-Double Trombone (Telescopic)
-Motorized variable speed control of Belt Speed for smooth delivery
-Driven by motor independently
Who are we?

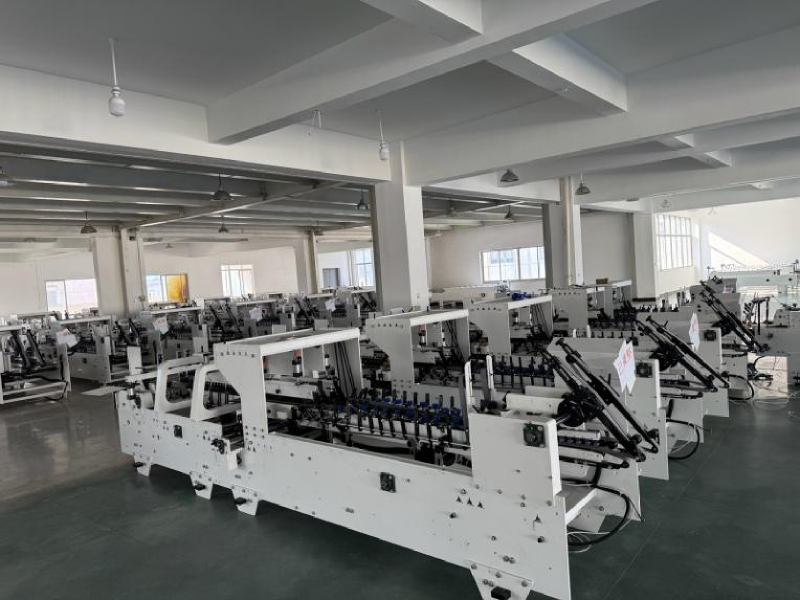

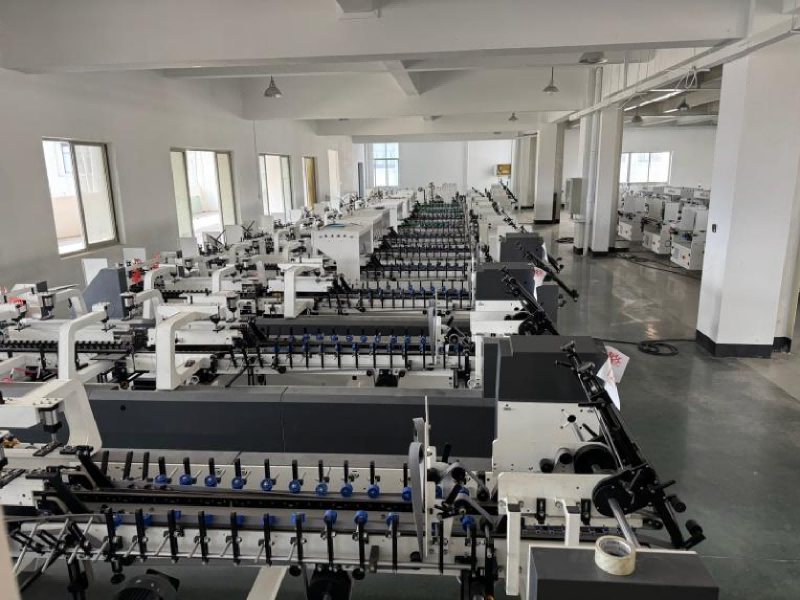

Professional Manufacturing:
