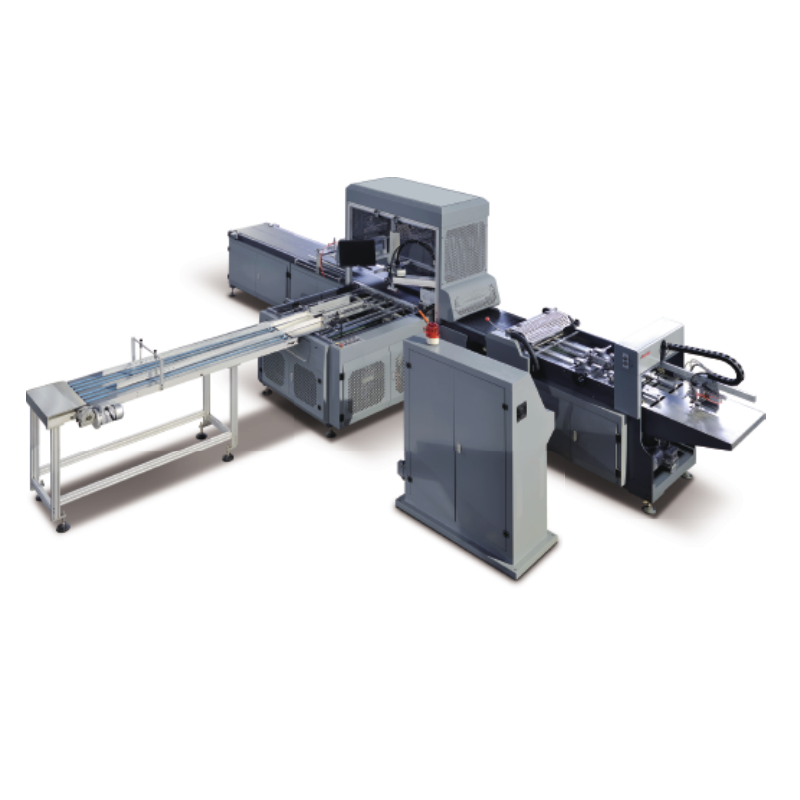

The machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, iPad, jewelry gift, makeup, etc.
It can work with box making machine or case making machine, such as the corner pasting or the side folding machine.

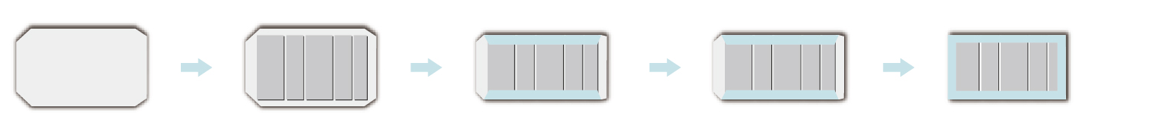

CASE MAKING
BOX MAKING
Specification:
Cover Length |
180-1000mm |
Cover Width |
80-600m m |
Cardboard Thickness |
1-3mm |
Min Width Of Spine |
8mm |
Box Size |
Max:450mm / 350mm / 150mm Min:100mm / 60mm / 15mm |
Length Of Paper |
190-1030mm |
Width Of Paper |
110-630mm |
Thickness Of Paper |
80~200g/m2 |
Position Precision |
≤± 0.1mm |
Power |
20kw |
Weight |
7000kg |
Dimension |
11000×5000×2800mm |
1. Adopts paper feeding principle same with automatic rigid box maker, with stable performance.
2. Adopts YAMAHA robot, can automatically fetch the rough box to the required position accurately.
3. Adopts visual positioning system, the positioning accuracy is ≤±0.1mm.
Feeder servo motor control. It can adjust the parameters of each functional position according to the product characteristics to adapt to more product types.

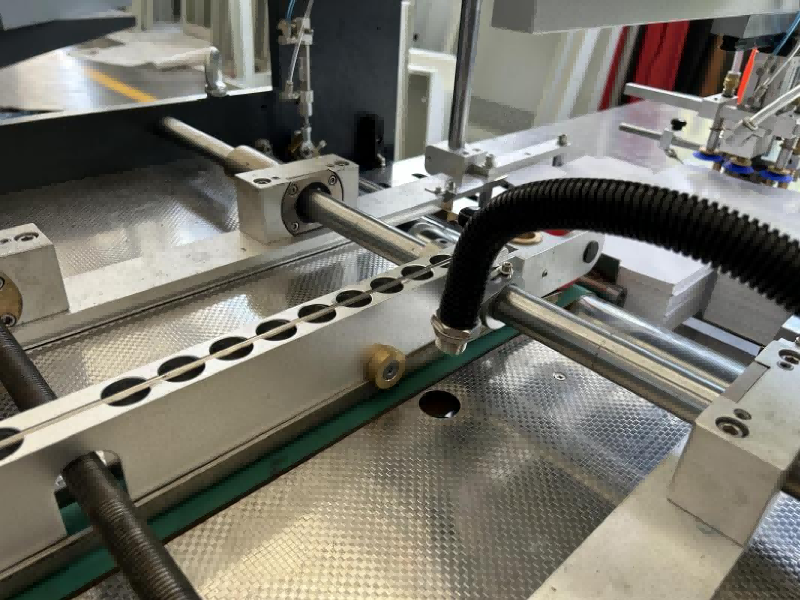

Feeder delivers paper automatically, it draws single sheet exactly each time, keep them still during conveyance.

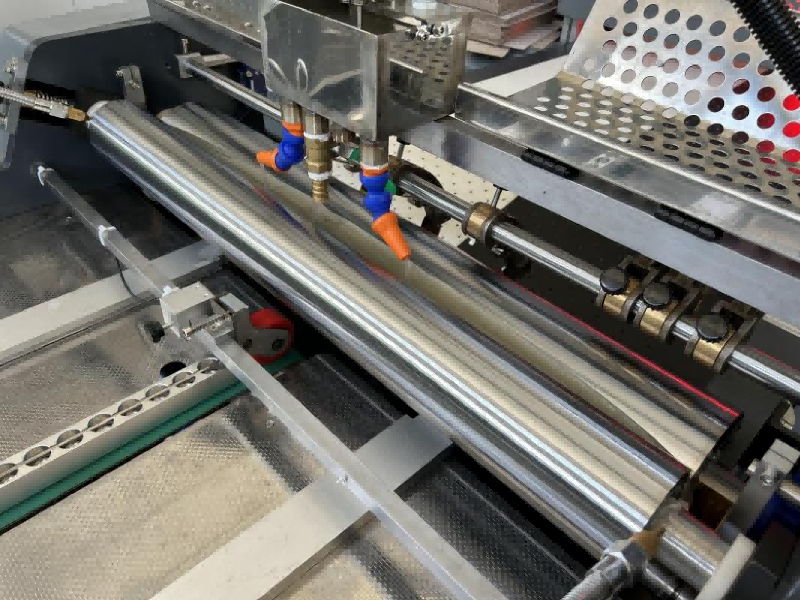

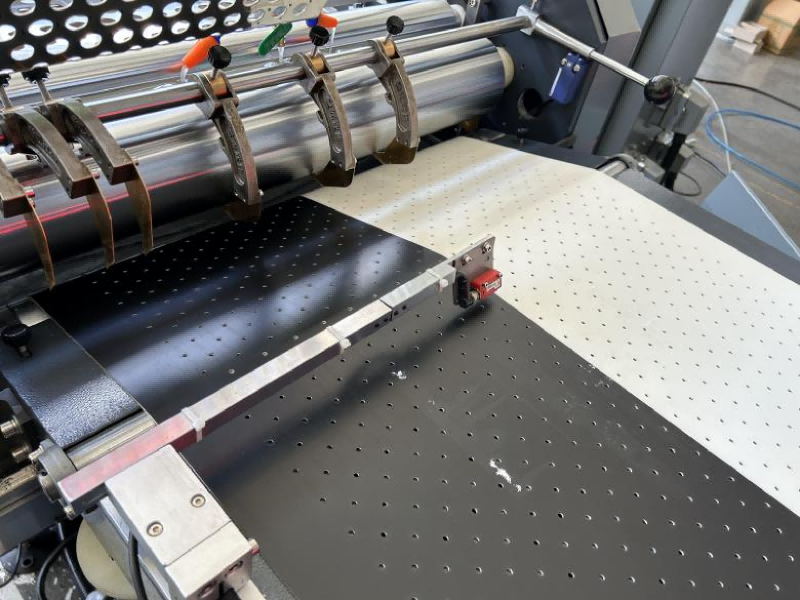

Gluing roller with copper blade to separate the paper to the rollers.
Hot melt glue system to automatic heating, circulation, mix the glue.Standard glue viscosity controller to avoid product quality problems caused by glue viscosity and reduce operation difficulty.

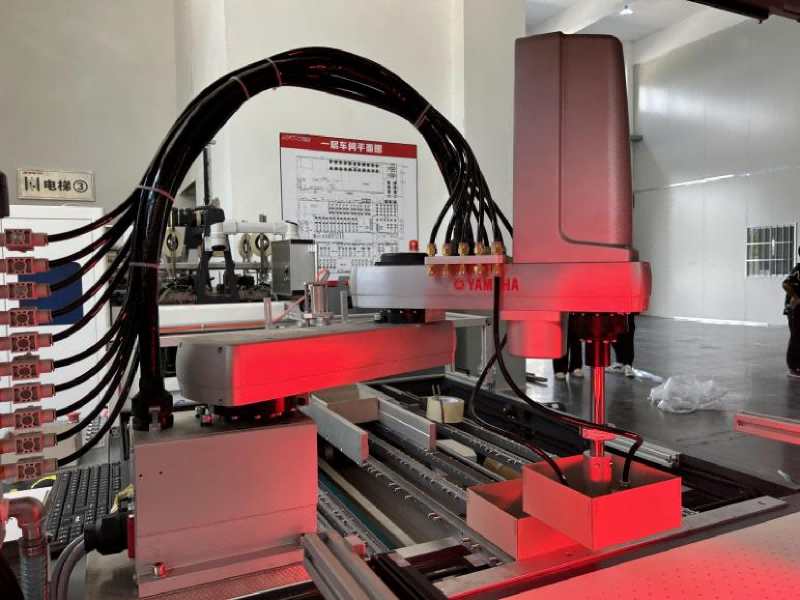

YAMAHA VISUAL POSITINOING PART

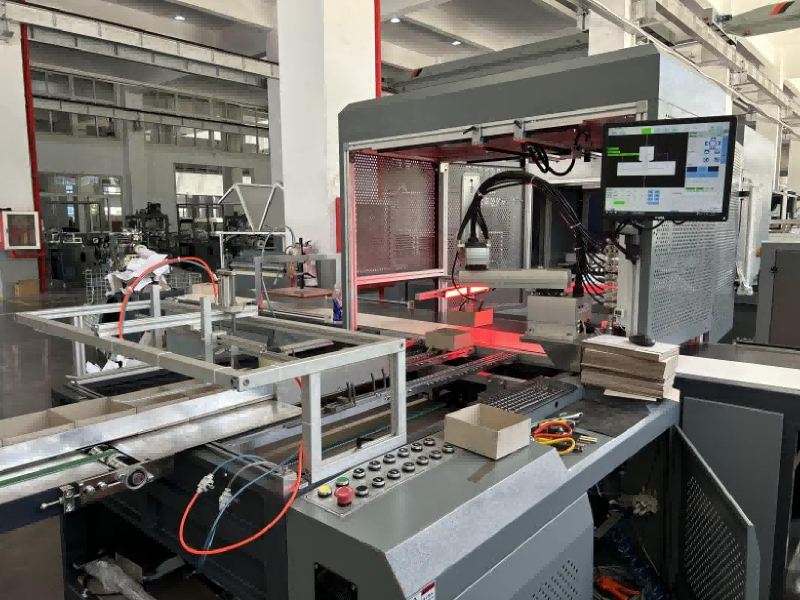

Motorized camera adjustment device. It is equipped with roller screws to achieve more precise camera position adjustment, with self-locking function to place the camera moving due to equipment movement.

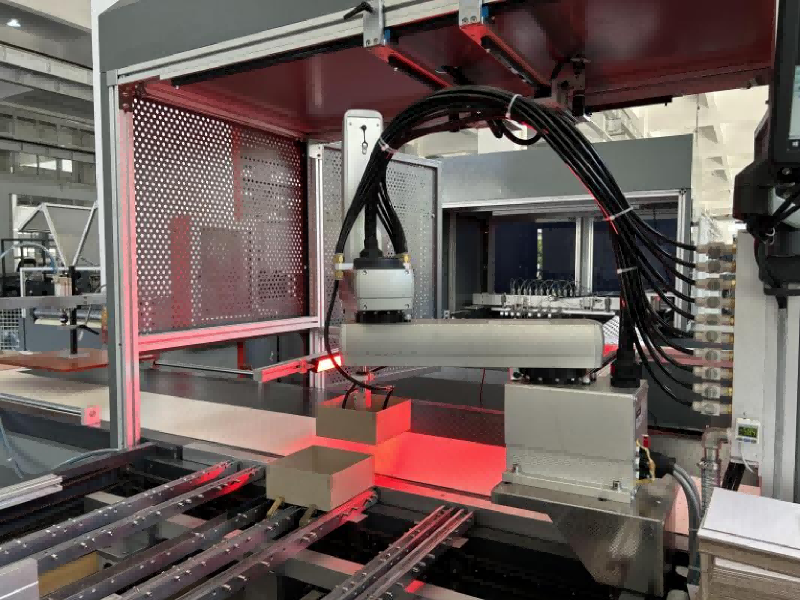

Japanese YAMAHA manipulator and dual 500W industrial cameras. It with a large field of view, it has better positioning accuracy, and a high-power SCARA achieves faster speed and accuracy.

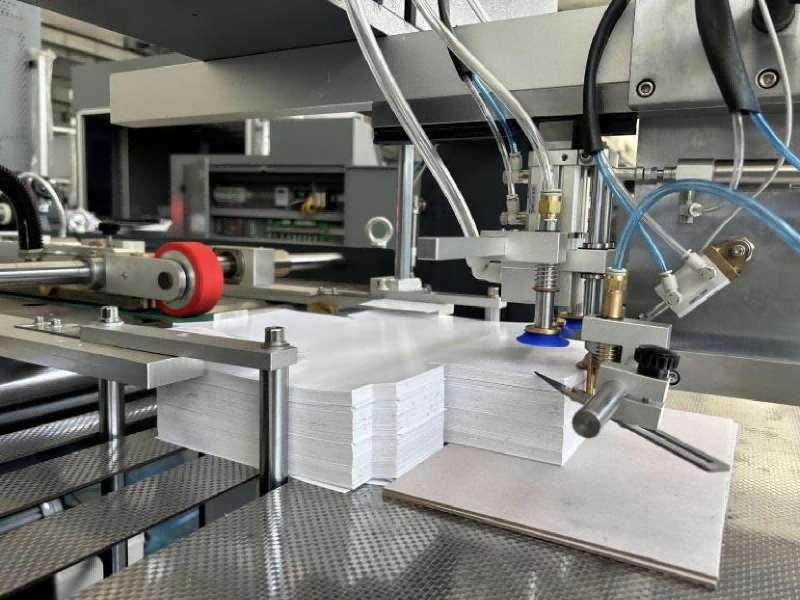

CARDBOARD OR BOX FEEDING PART

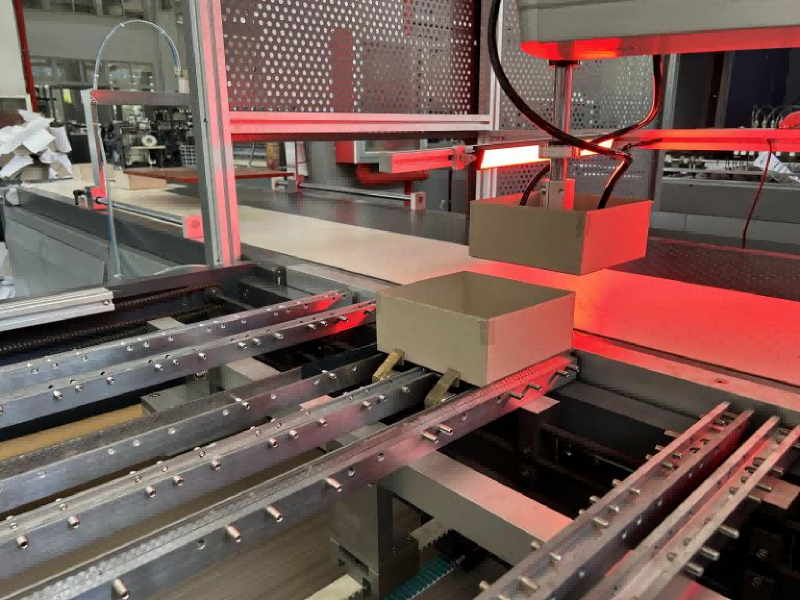

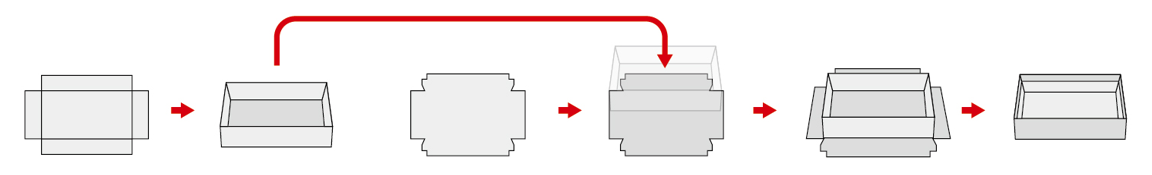

Dual use, modularization combination to achieve high efficiency. It can connected with the automatic corner pasting to work the rigid box automatic visual position to make the box.
Or it can place the cardboard to feeding, visual position the cardboard to make the case.

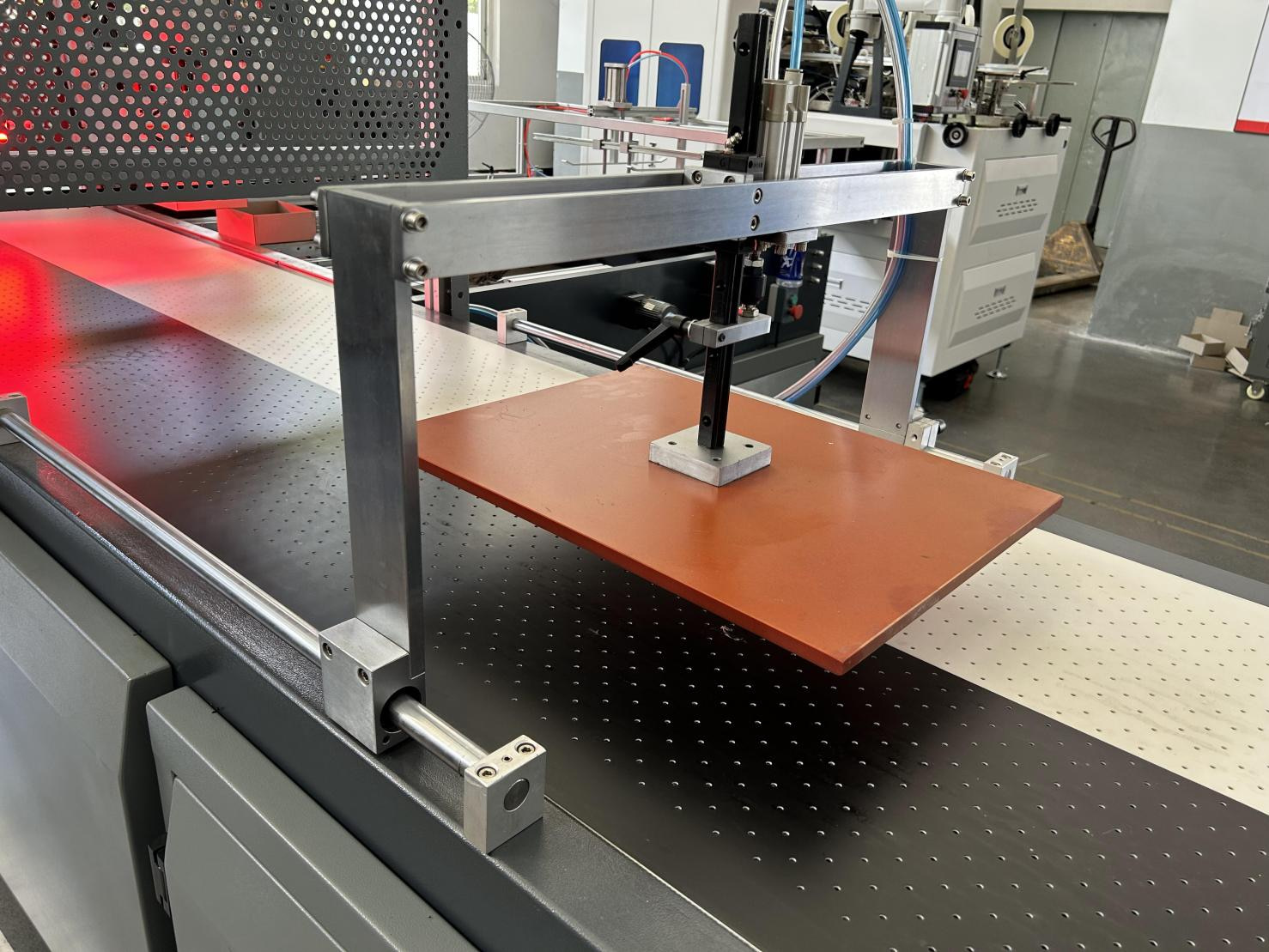

Pressing each conveying product to ensure adhesive tightly and remove the bubbles.
High-strength monochromatic PU conveyor belt. It can achieve smaller deformation than rubber and easier to wipe.
Professional Manufacturing:

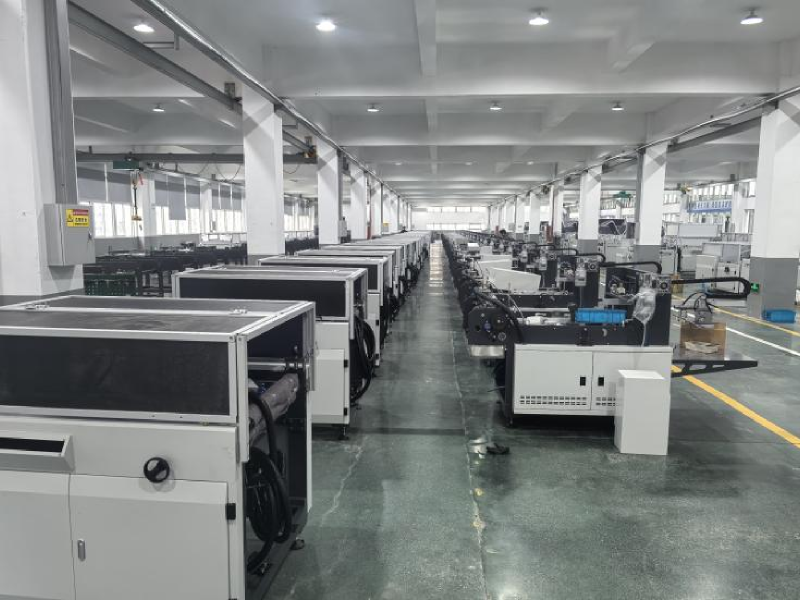

A strong enterprise focused on the production of rigid box making machine.
