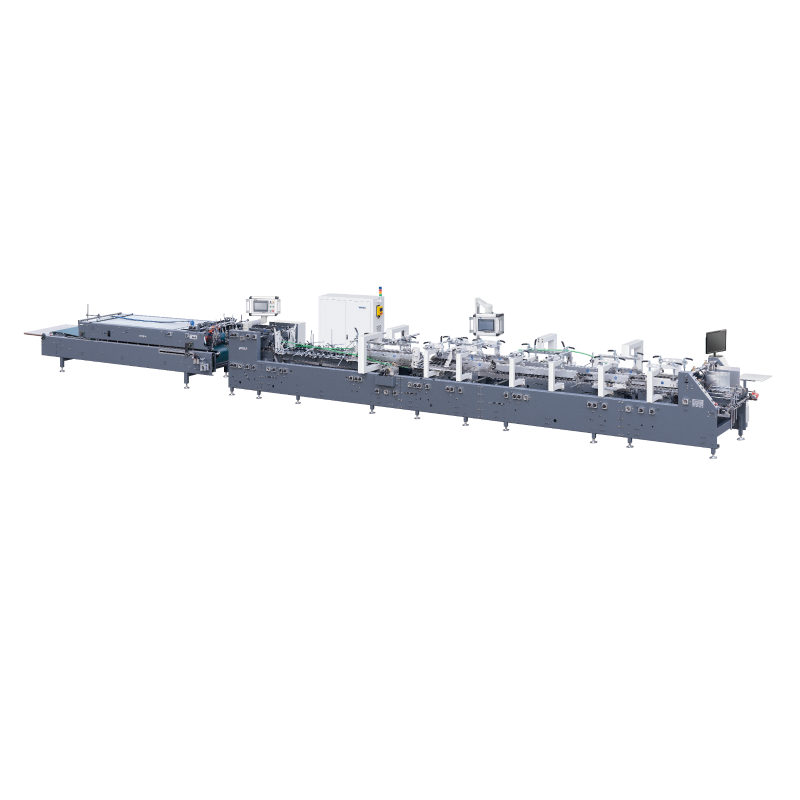

MSB-1100 for straight line box, bottom lock box, side glue box, box inside box, mini box and some other special-shaped box (irregular box) of high-speed production. The machine max speed is 400 meters/min. Suitable for cardboard 200~800 gsm, corrugated board E-flute and F-flute.
Specification:
Model |
MSB-1100 |
Cardboard |
200~800 gsm |
Corrugated Flute Type |
E-flute and F-flute |
Speed |
MAX. 400m/min |

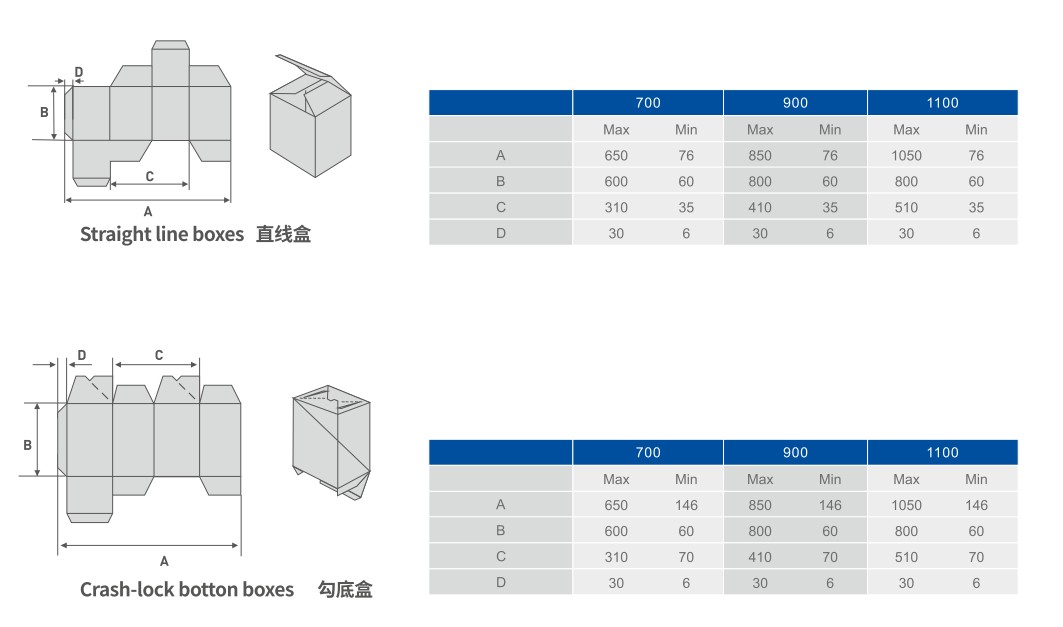

Size(W*L) |
Max. 1050 mm, Min. 76 mm |
Overall Dimension |
15.3*1.65*1.8m |
Power Supply |
380 Volts 3 Phase 50 Hz |
Total Power |
26KW |
Weight |
7T |
 |
 |

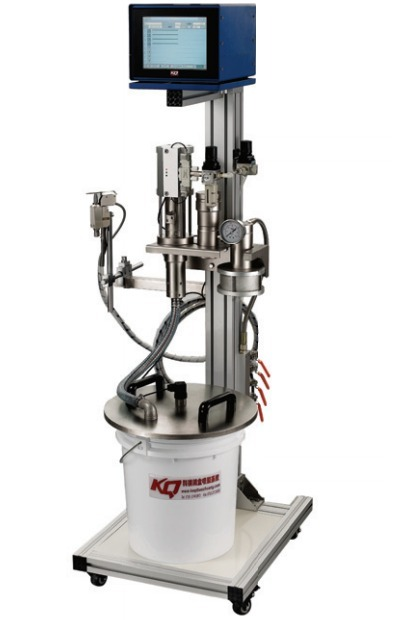

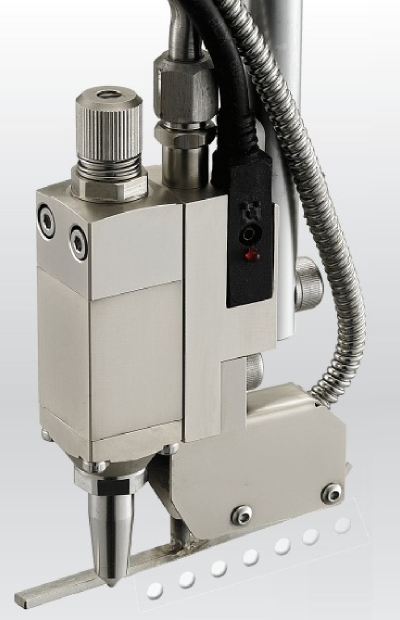

| KQ Electric cold glue guns system, 4guns |
Feature Highlights
1. Modulation structure design, can upgrade machine function
according to customers' requires.
2. Humanized design of all devices, easy to adjust quickly.
3. Equipped with an Alignment device.
4. First crease line pre-folder up to 180°. Third crease line pre-folder up to 135°.
5. Sectional-type hook device6. Touch screen control plane.
7. High-speed electric counter with the kick-out device.
8. Pneumatic control system in pressing conveyor unit.
 |
 |

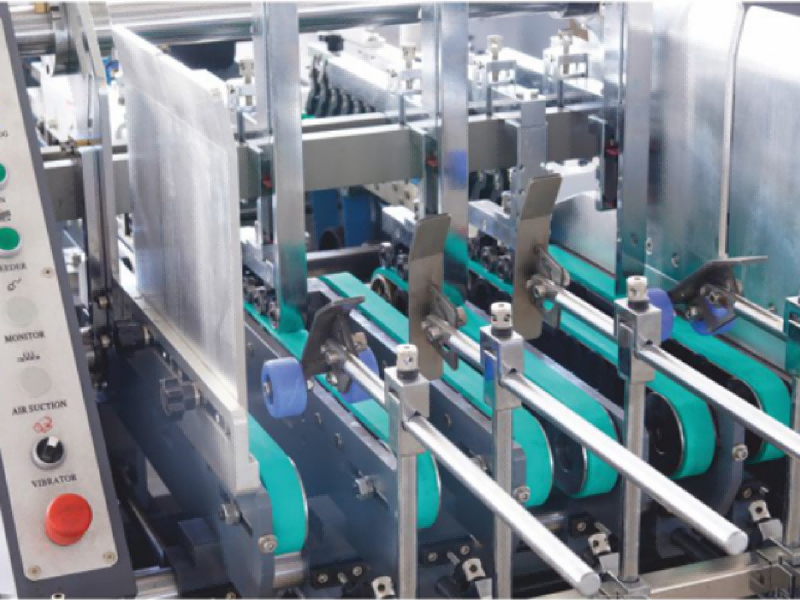

Fully Automatic Feeder With Servo Motor 8 pcs 30mm Friction Belts Soft Rubber Compound 3 Front paper supports (Quick adjustment for thickness of substrate) Full Color Video Monitor (Supervise view final product at the end of the Machine) |
2 Bottom Transport Carriers (fitted with 34mm wide Belts) 1 left Hand Side Squaring Guide 1 Right Hand Side Squaring Guide 4 Top paper support guides Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank Electronic movements of Carriers in and out of working position (Via remote control) |
 |
 |
1st and 3rd crease, Pre-folding belt (right) and pre-folding sword (left) First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º Electronic movements of Carriers in and out of working position (Via remote control) |

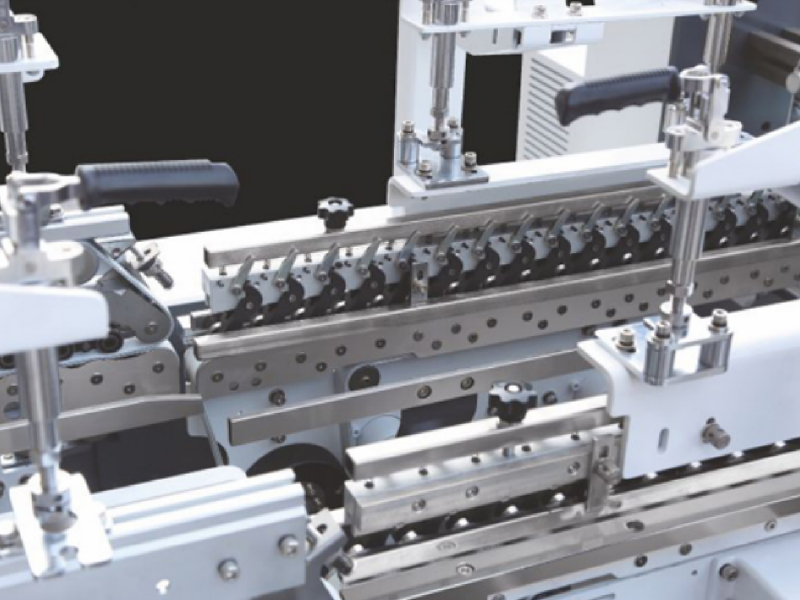

3 Bottom Transport Carriers 4 Sets of crash lock hooks 3 Sets of diagonal folding shoes 2 Unit per Set Bottom chromed support bars Electronic movements of Carriers in and out of working position (Via remote control) |
 |
 |
4&6 Corner Box Devic(Optional) 2 Servo Drive Motors 3kw Each 3 Folding Hooks 4 Corners 3 Folding Hooks 6 Corners 6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks) |
Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc Guide rollers Left and right Adjustable speed control of belts left and right 3 Carriers, Removable Center top and bottom Carriers (For production of small size boxes) Electronic movements of Carriers in and out of working position (Via remote control) |
 |
 |
Double Trombone (Telescopic) Motorized variable speed control of Belt Speed for smooth delivery Moveable Touch screen Commander Module Driven by motor independently Electronic movements of Carriers in and out of working position (Via remote control) |
1 Drive Motor (Standard 3.7 KW) Front and Backward position Pneumatic pressing (Adjustable via Pneumatic Regulator valves) |
