Machine function & structure

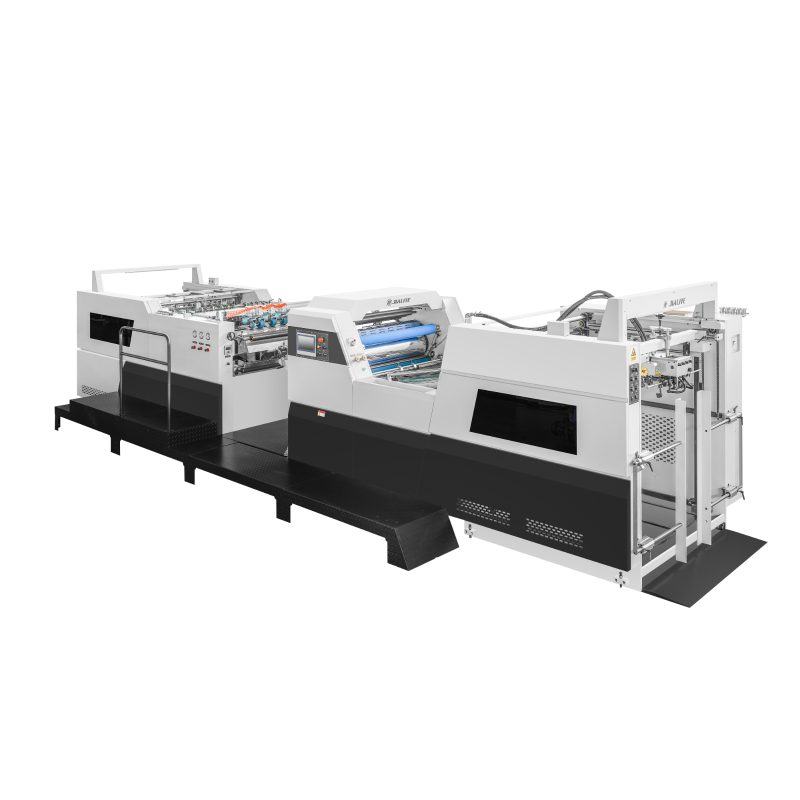

NFY-B series pre-coat glue automatic thermal laminating machine as a professional equipment used for plastic film laminating on the surface of paper printed matter. Improving the printing matter grades, and achieve the purpose of dust-proof, waterproof, oil proof.
Thermal laminating (Pre-coated /thermal film)
Film: OPP, BOPP, Metal film, glossy and met film, Anti-scratch film, soft touch film, laser film etc.
Specification
| Model |
NFY-B1080 |
| Max. Paper width (X) |
1080mm/1380mm/1580mm |
| Max. Paper length (Y) |
880mm/1250mm/1450mm/1650mm |
| Speed |
10-110m/min |
| Paper Thickness |
80-500gsm |
| Overlap Precision |
≤±2mm |
| Film Thickness (common micrometer) |
100,510,061,206 |
| (1508 and 1208 for deep embossing paper) |
| Non-Stop Feeding Height |
1320mm |
| Collector Paper Height (incl. pallet) |
1300mm |
| Main Motor Power |
5.5kw |
| Whole Machine Power |
35kw |
| Working Power |
25-28kw |
| Voltage |
380V-50Hz-3P |
| Roll Working Pressure |
0.9Mpa |
| Cable Thickness |
16mm |
| N.T/W.T |
6100kgs |

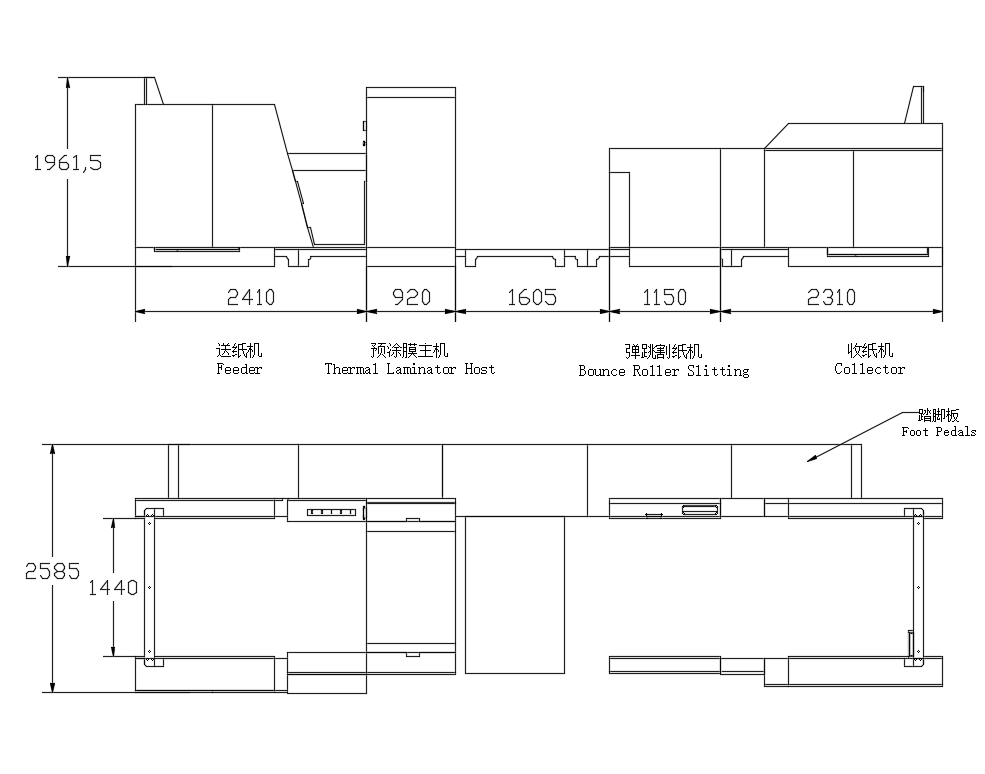

| Dimension (layout) NFY-B1080 |
7400*2600*2090mm |
| Loading |
40 GP (have 4m space loading the film together) |

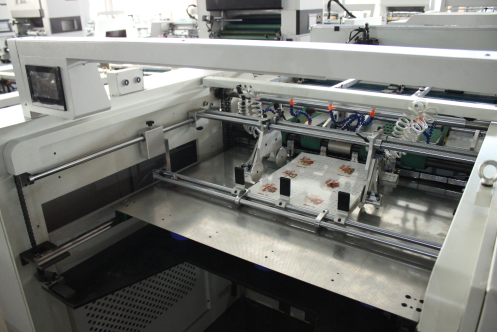

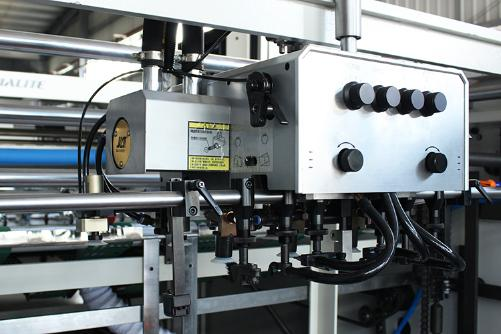

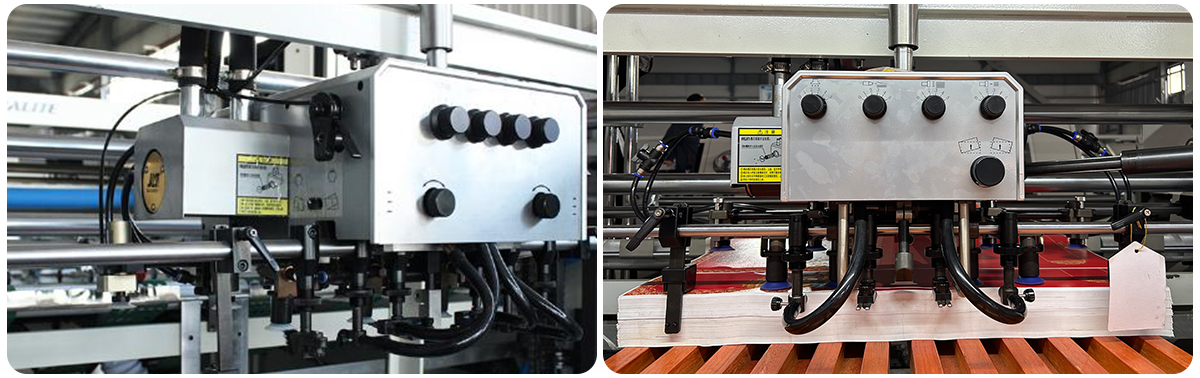

High Speed Servo motor control Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
The paper feeding table has upper and lower over-limit protection
The height of non-stop feeding can reach 1150mm, pre-stacking device, non-stop feeding

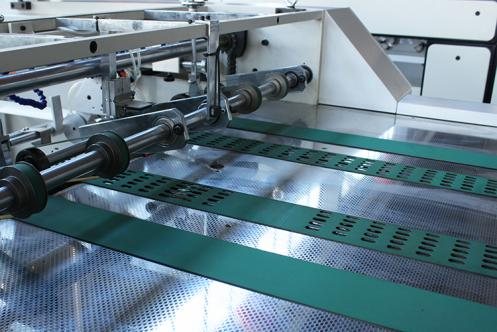

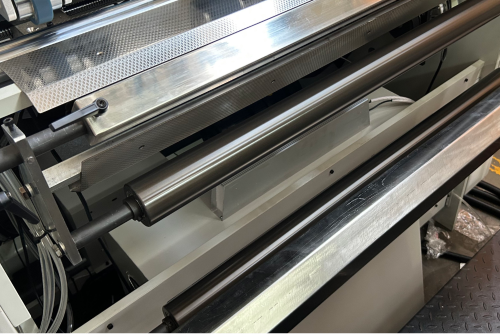

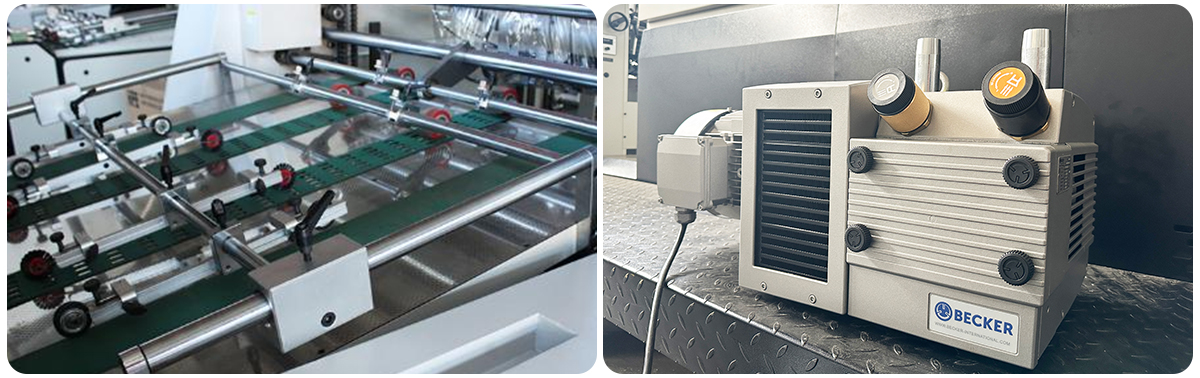

CONVEYING TABLE AND OVERLAP

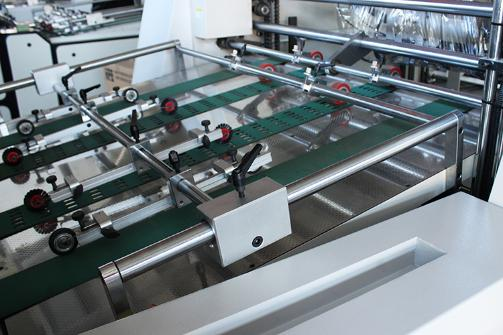

The conveying table adopts customized stainless steel corrugated board
The brush wheel and rubber pressing wheel move smoothly

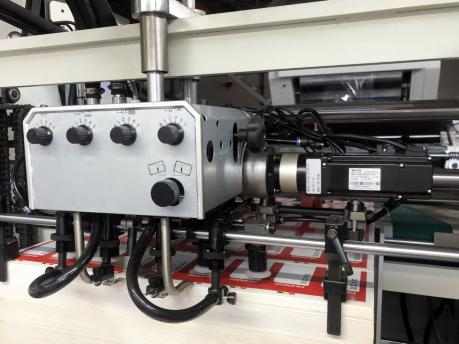

Servo motor overlap, improve accuracy of lap, error≤±2mm

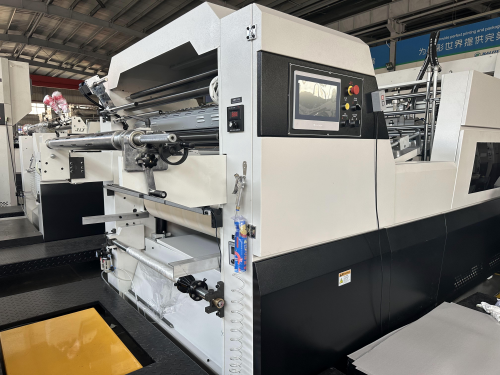

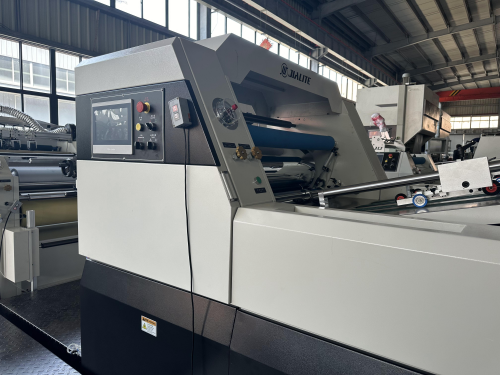

Touch screen control board, The Internet of things, long remote control.

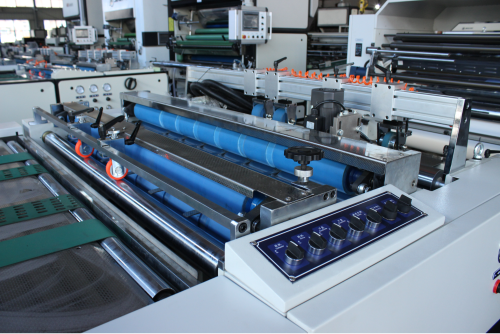

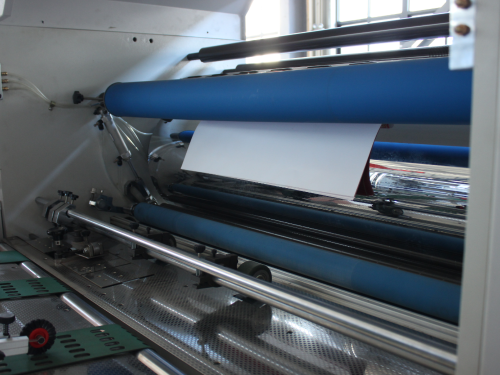

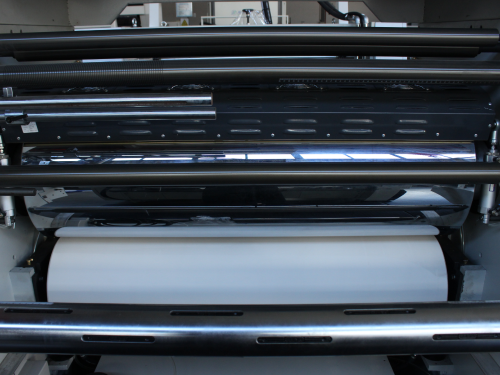

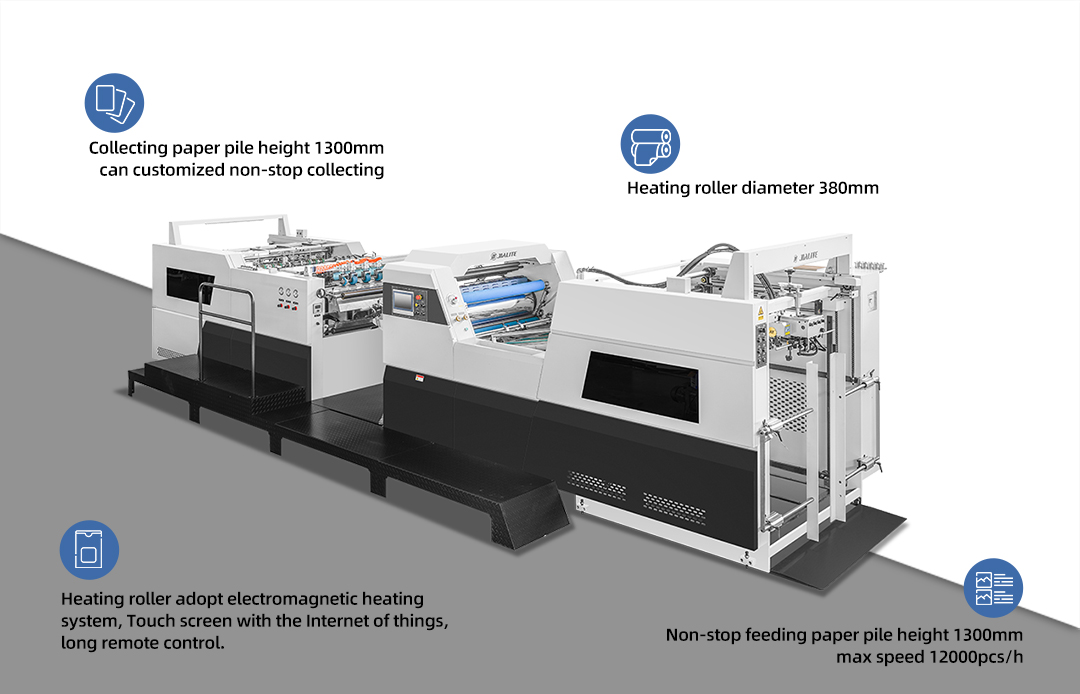

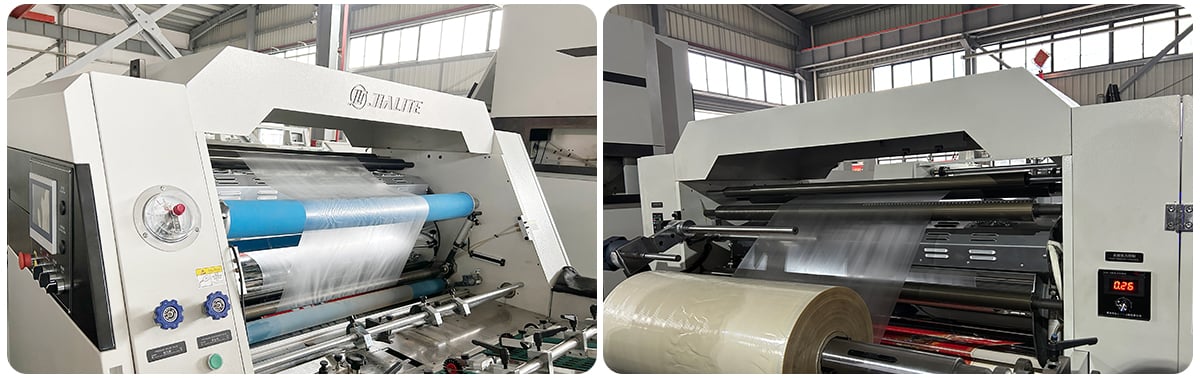

Heating roll with Chromium treatment, Electromagnetic heating system, Temperature sensor inner, Intelligent constant temperature system.
Rubber pressure roll automatic pressurization.
Paper miss detection, Automatic lubrication & cooling.

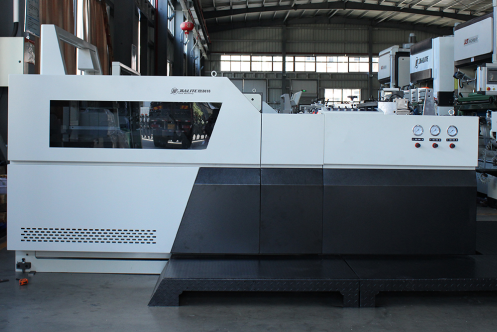

Disc knife film cutting automatic paper collection machine
 |
 |
 |
 |
| Bounce roller film cutting auxiliary |
Thin paper lamination anti-roll structure |
Sand belt wheel cutting film |

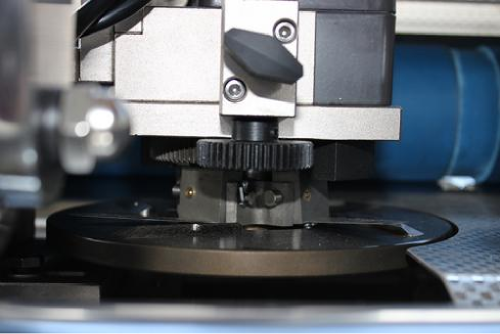

Disc knife cutting film |
The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.

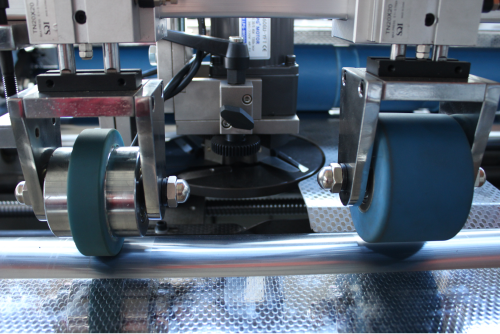

The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials
The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference
Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle
Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper
