Machine function & structure

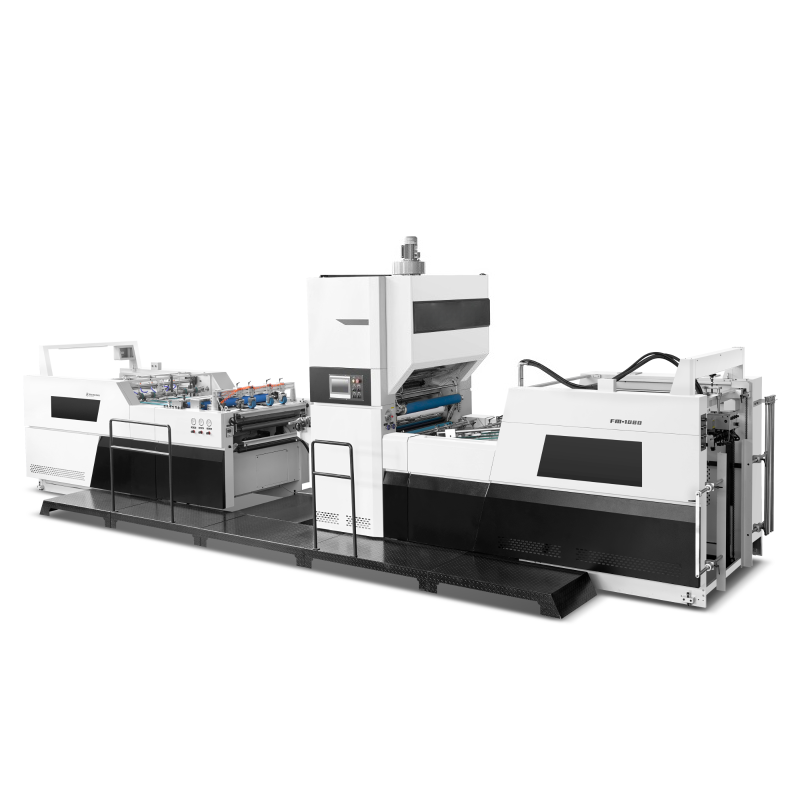

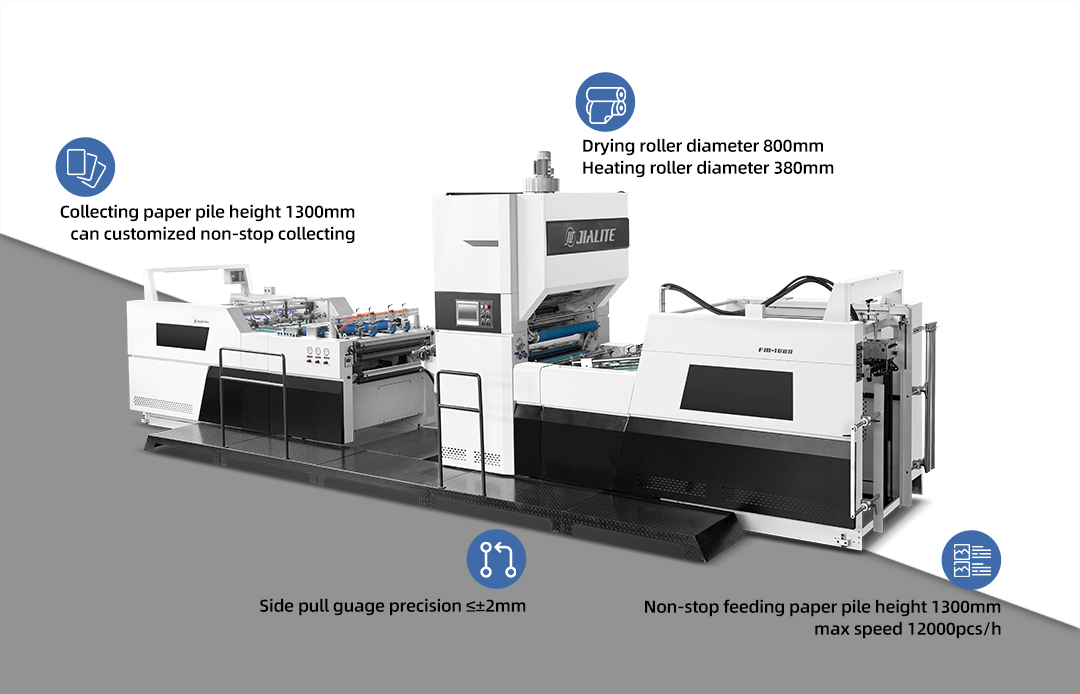

NFM-E fully Automatic Vertical High-precision and multi-duty lamination as a professional equipment used for plastic film laminating on the surface of paper printed matter.
Water-based gluing (waterborne polyurethane adhesive) dry laminating. (water-based glue, oil-based glue, non-glue film)
Thermal laminating (Pre-coated /thermal film)
Specification
| Model |
NFM-E |
| Max Paper width (X) |
1080mm/1380mm/1580mm |
| Max paper Length (Y) |
880mm/1250mm/1450mm/1650mm |
| Min Paper Size |
360*290mm |
| Speed |
10-100m/min |
| Paper Thickness |
80-500gsm(Above 100gsm easy to adjust, E type corrugated paper) |
| Overlap Precision |
≤±2mm |
| Water base film Thickness (common) |
2010/12/15 |
| Common Glue Thickness |
4-10g/m2 |
| Pre-Gluing Film Thickness (common) |
15~35μ |
| Non-Stop Feeding Height |
1300mm |
| Collector Paper Height (incl. pallet) |
1300mm |
| Power |
380V-50Hz-3P |
| working Pressure |
0.9Mpa |
| Cable Thickness |
25mm2 |
| Weight |
8000kgs |
| Dimension (layout) |
8400*2200*2800mm |
| Loading |
40HQ |

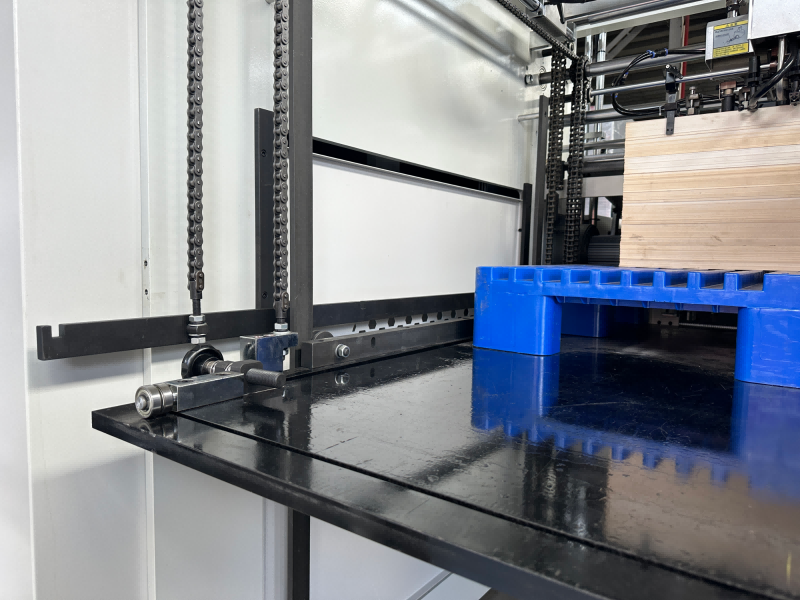

Two paper pile loading methods can be selected

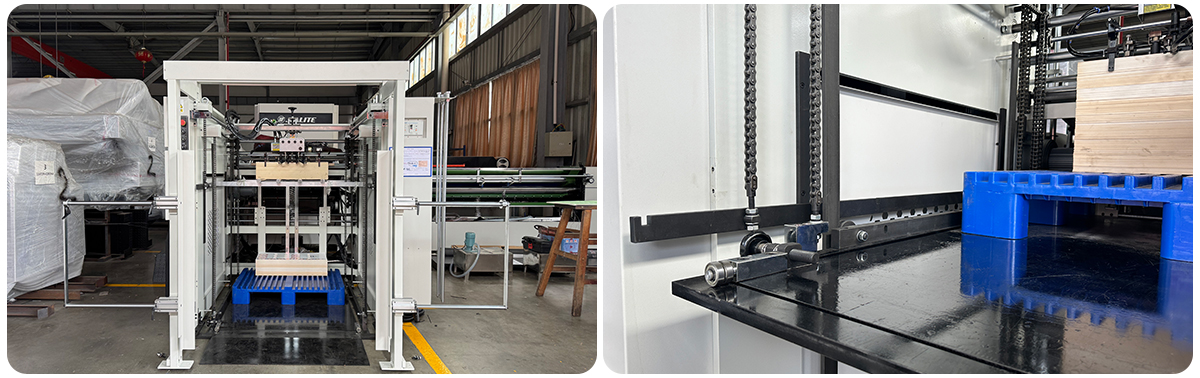

01 Trolley track pre-stack loading
02 Fine adjustment of the whole paper pile moving left and right
The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
The paper feeding table has upper and lower over-limit protection

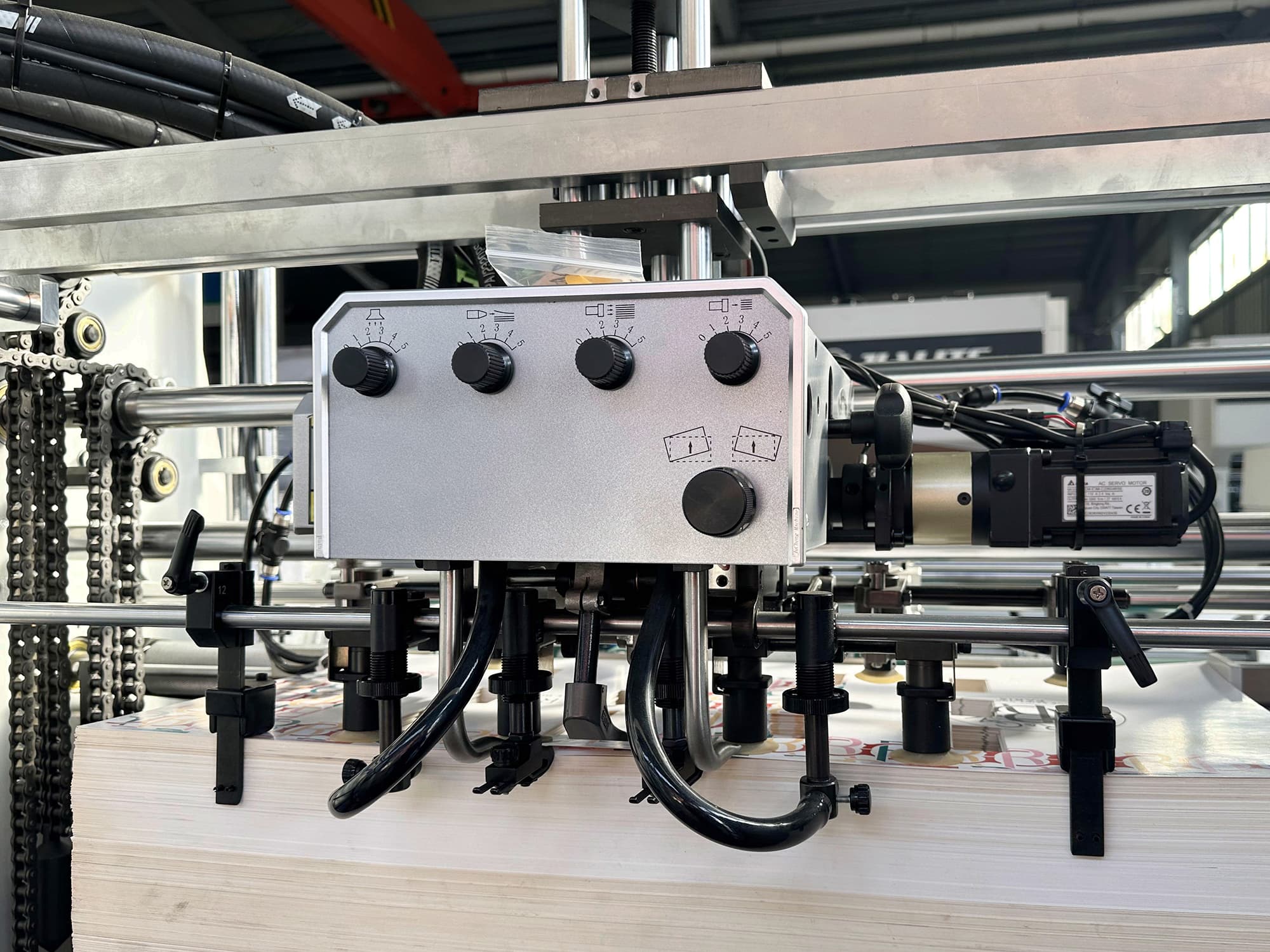

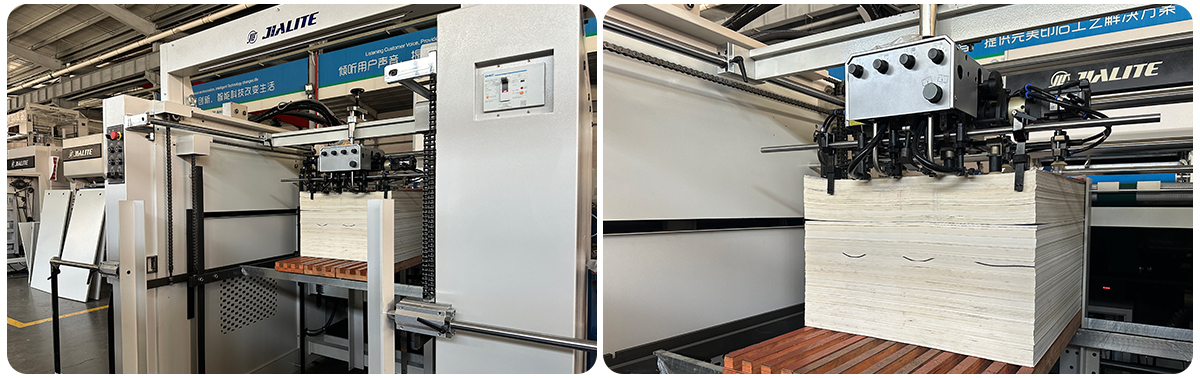

Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h

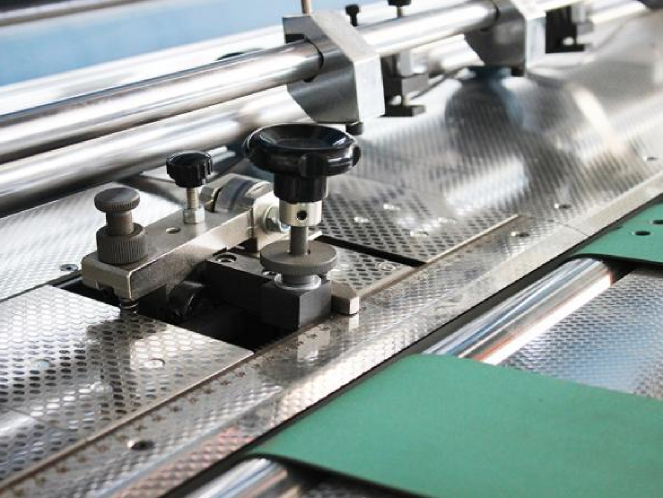

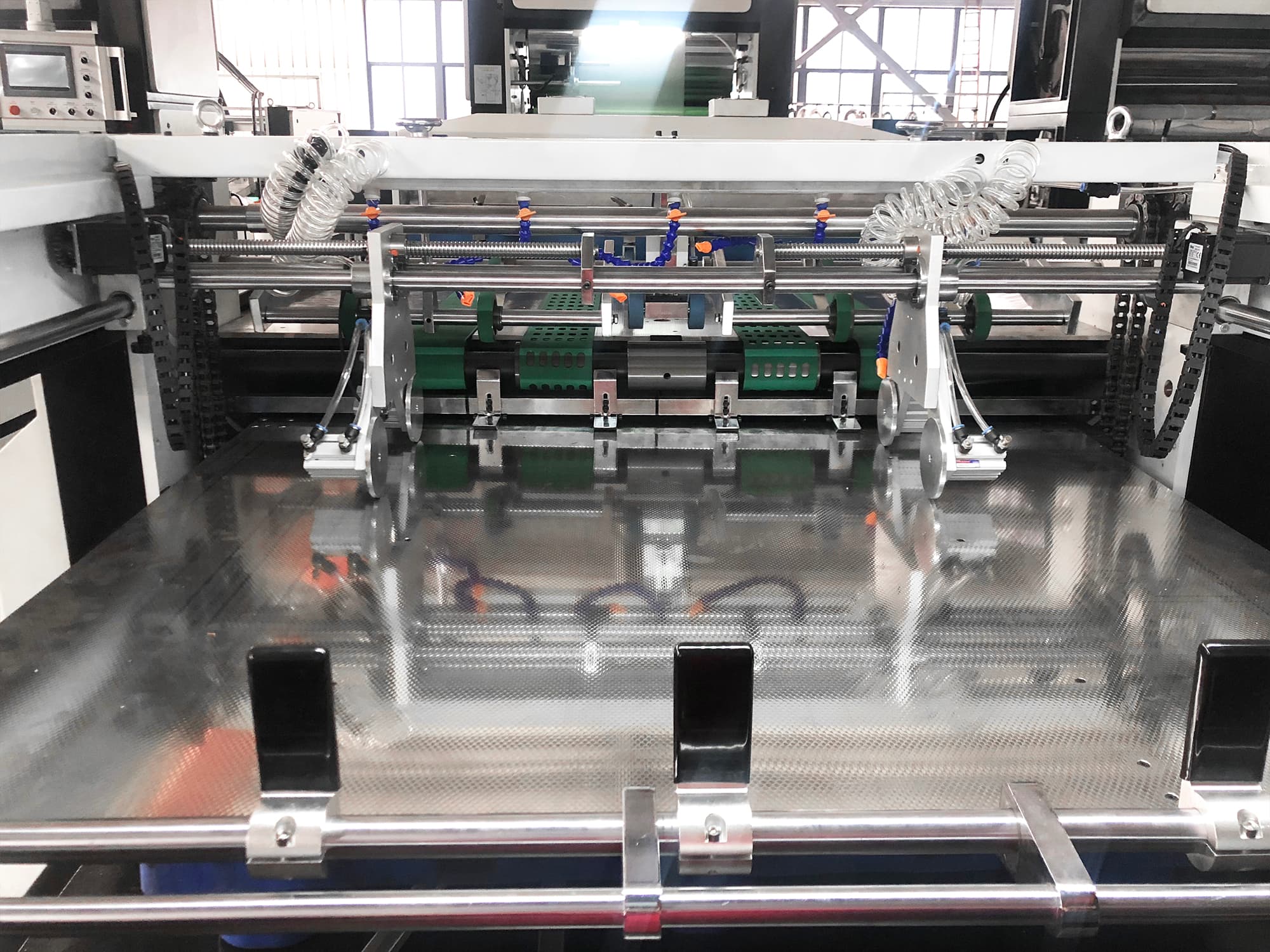

CONVEYING TABLE AND OVERLAP

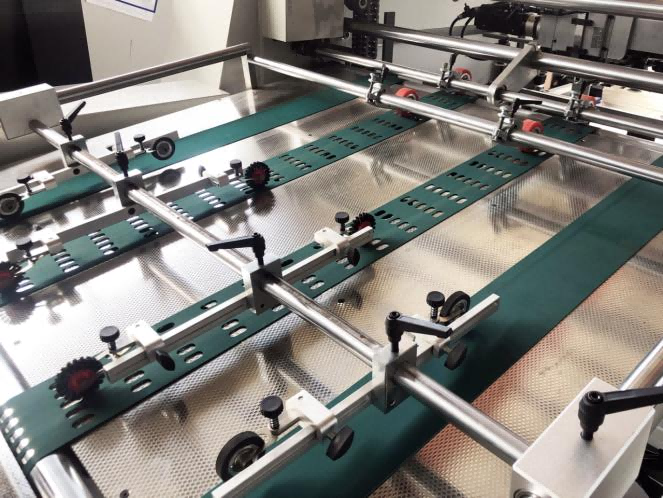

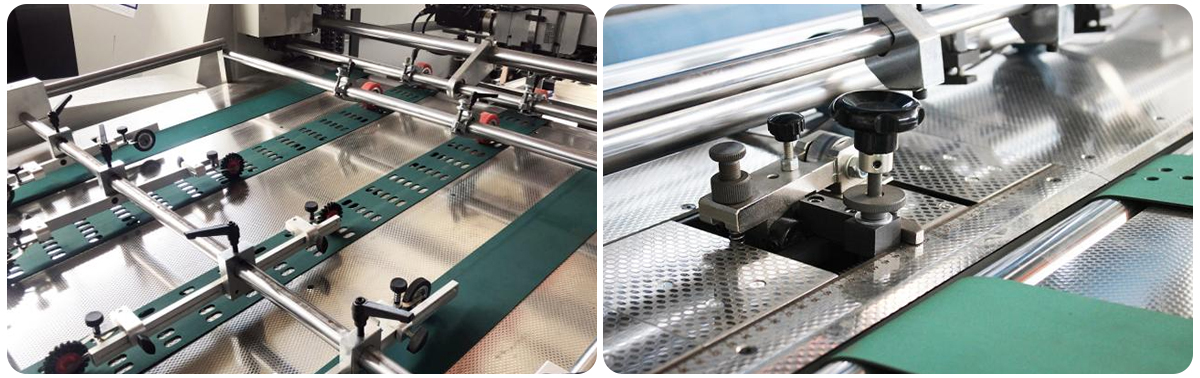

The conveying table adopts stainless steel corrugated board.
Moverable paper pressing holder make sure the sheet delivery stable.
Servo motor control sheet overlap, accuracy of overlap ≤±2mm
JIALITE laminator Host Heating System Overview

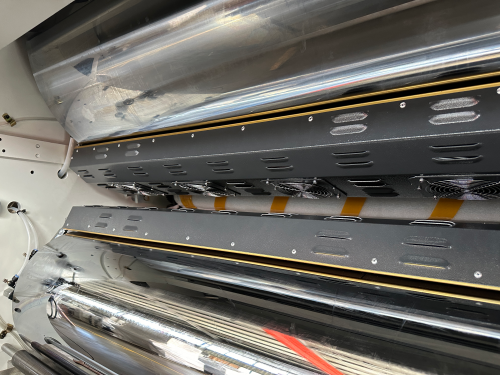

Drying Section (Drying Roller)
The drying roller diameter is 800 mm, utilizing an electromagnetic heating system with hot air assistance to ensure rapid temperature rise and optimized energy consumption.

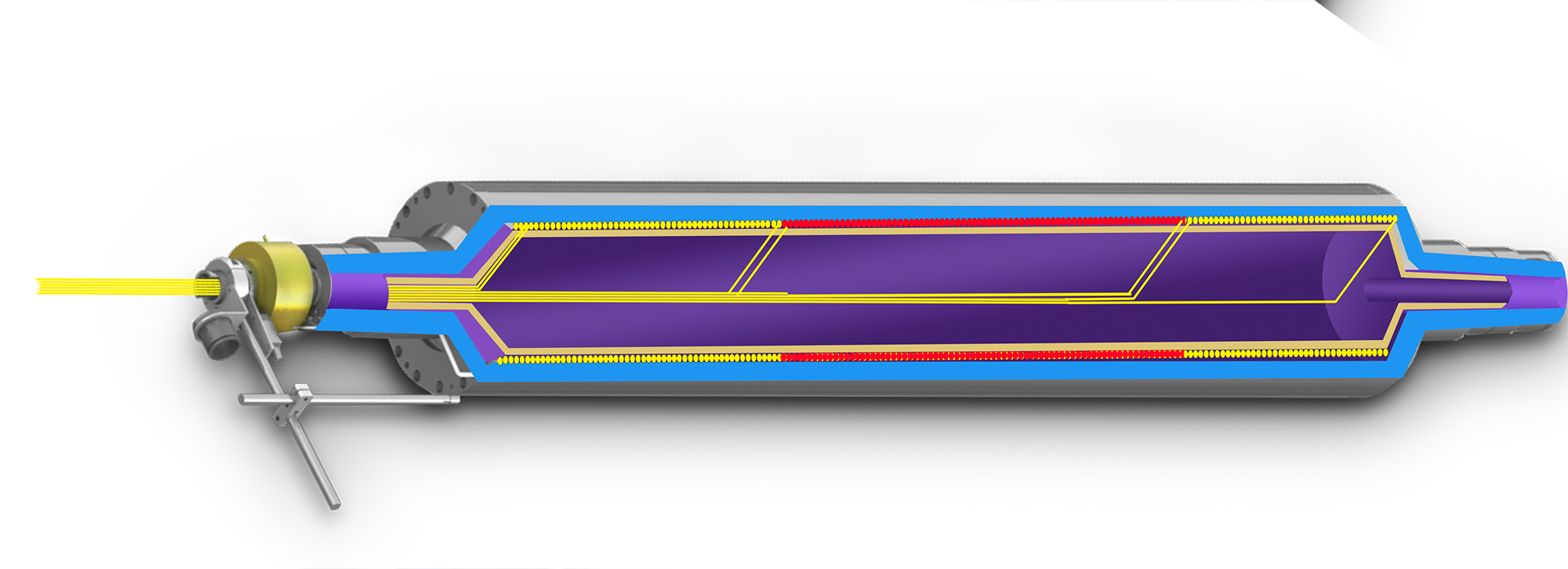

The roller is internally filled with a sealed thermal fluid, providing efficient and uniform heat distribution, creating a stable thermal foundation for the subsequent lamination process.
Under high temperature, the adhesive is evenly and rapidly coated onto the film surface, preparing it for firm bonding with paper.

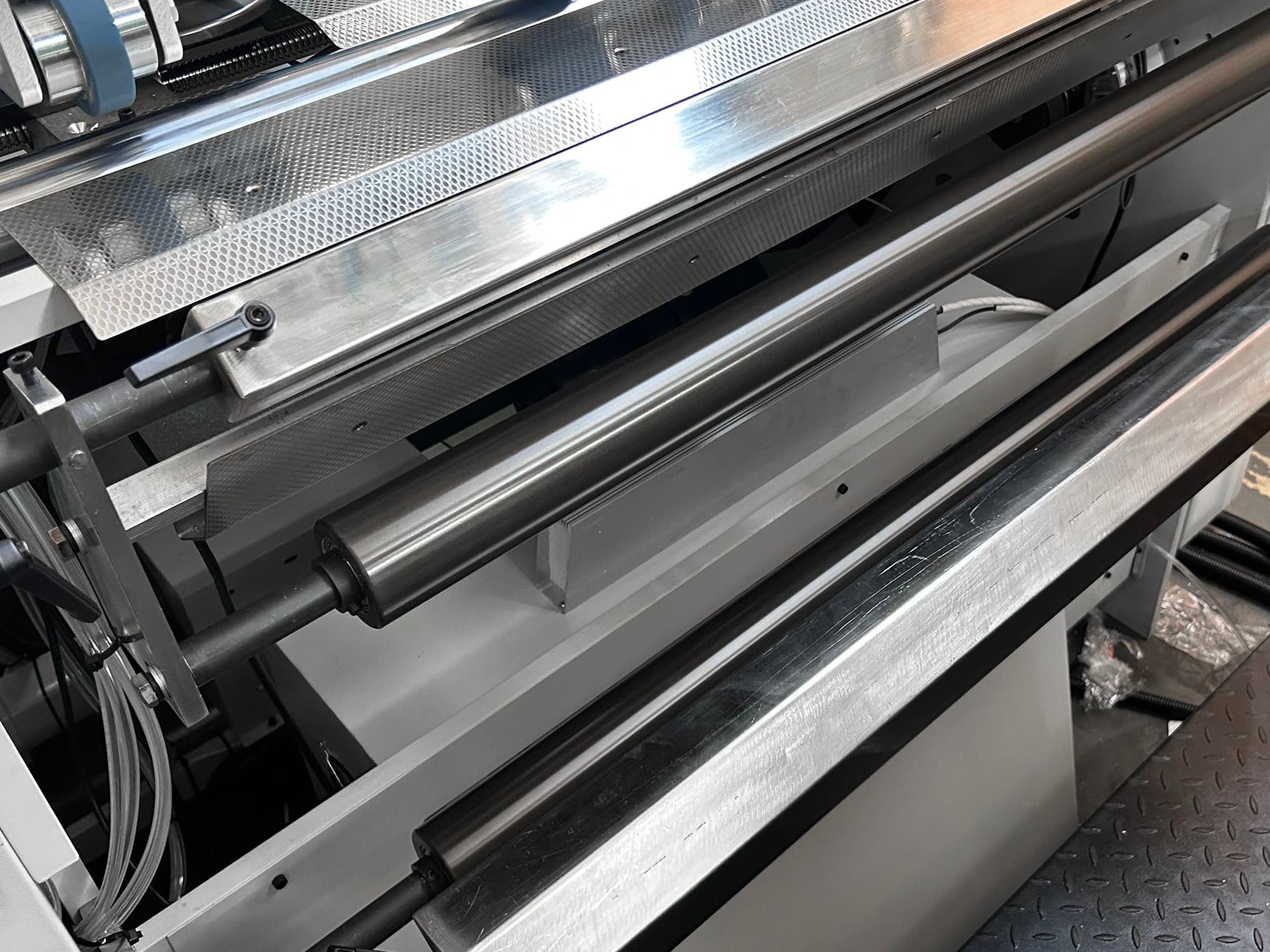

Mirror-Finish Chrome Heating Roller
With a diameter of 380 mm, this roller also employs an electromagnetic heating system, offering fast response and high thermal efficiency, suitable for a wide range of lamination materials.
Precision Temperature Control System
Both the drying roller and heating roller are equipped with PID intelligent temperature control modules, enabling quick response to thermal fluctuations and precise temperature regulation.
Temperature variation is controlled within ±1°C, ensuring thermal stability and consistent process quality during coating, drying, and lamination.
Main engine pressure adjustment: The hydraulic system controls the pressure, the maximum pressure can be adjusted to 20MPa, and the normal working pressure range is 12-15Mpa.
The mirror chrome-plated heating roller has a diameter of 380mm and the rubber roller has a diameter of 320mm.

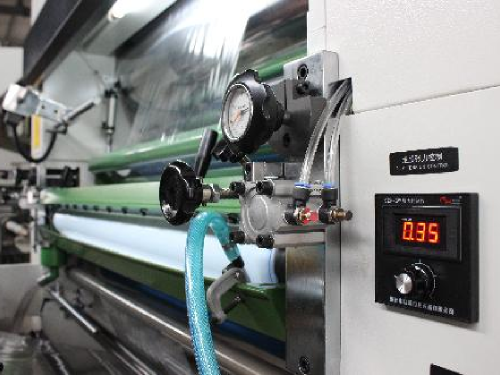

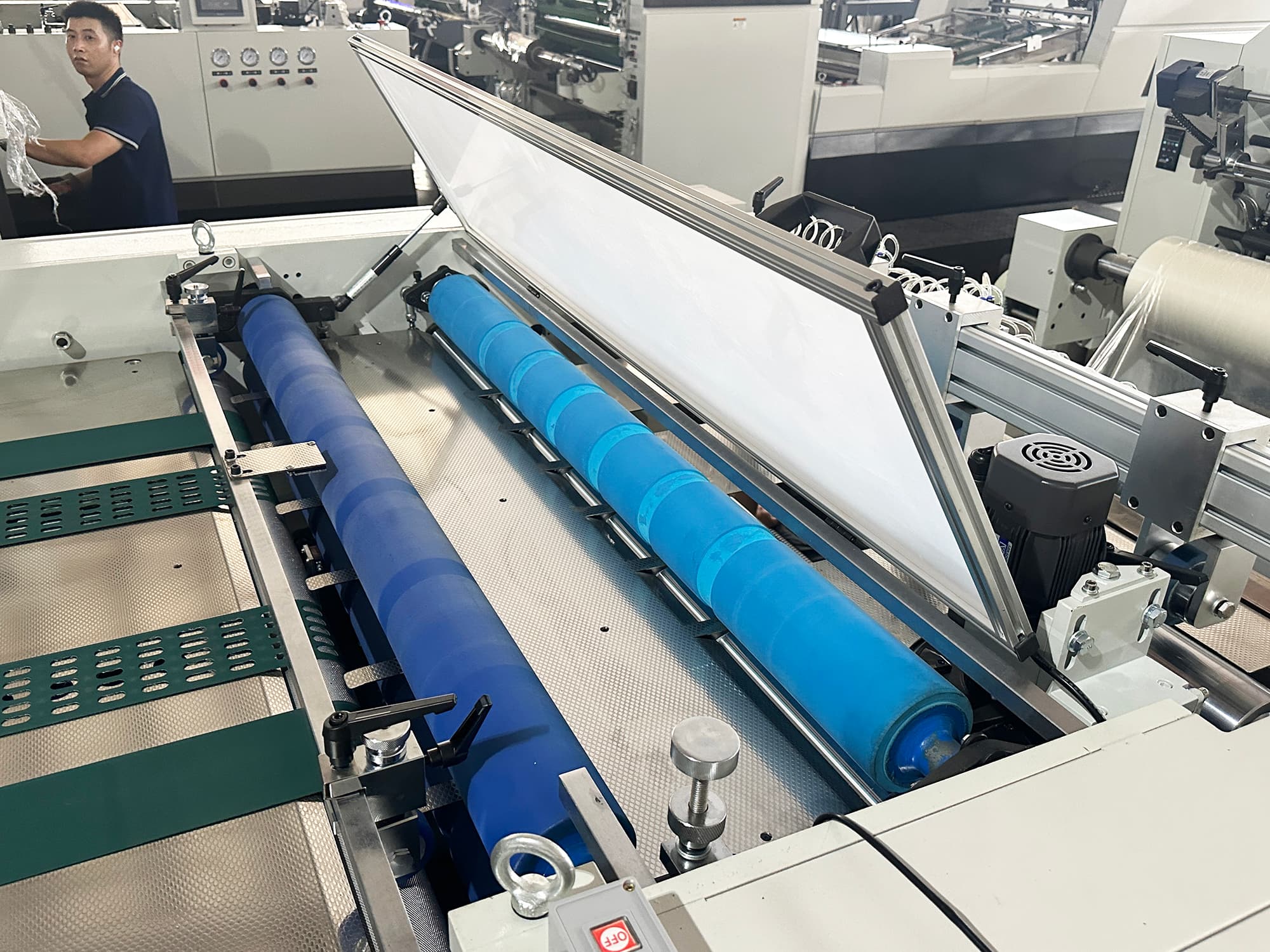

Glue layer thickness adjustment: pneumatically control the distance between the metering roller and the gluing roller, and the corrugated digital dial hand wheel mechanically fine-tune the glue amount to ensure uniform glue coating.

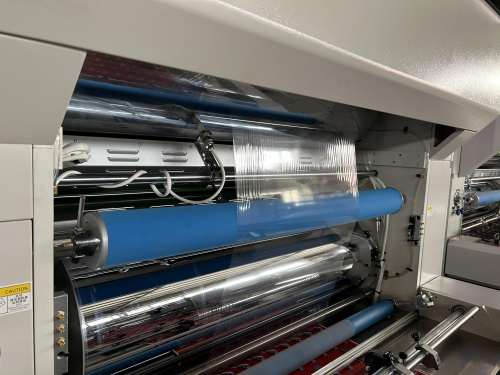

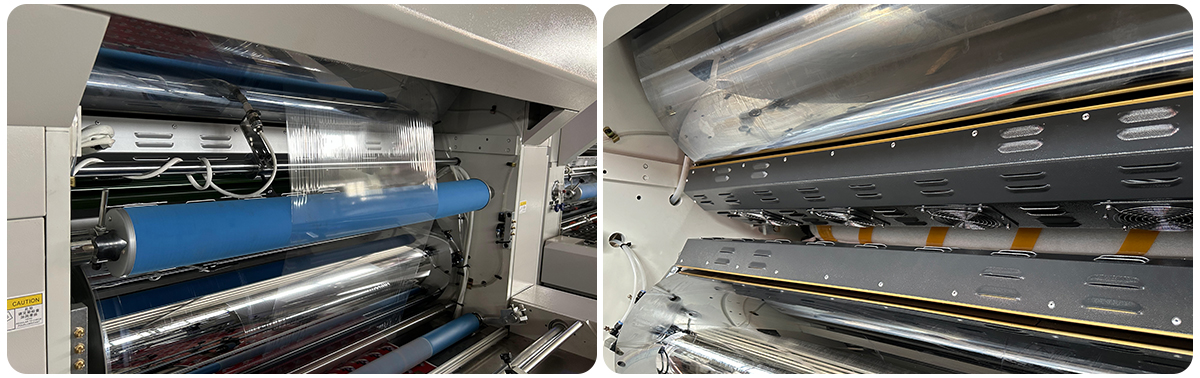

The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue.The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop
The heating press roller adopts a segmented heating system(optional), efficient and energy-saving.

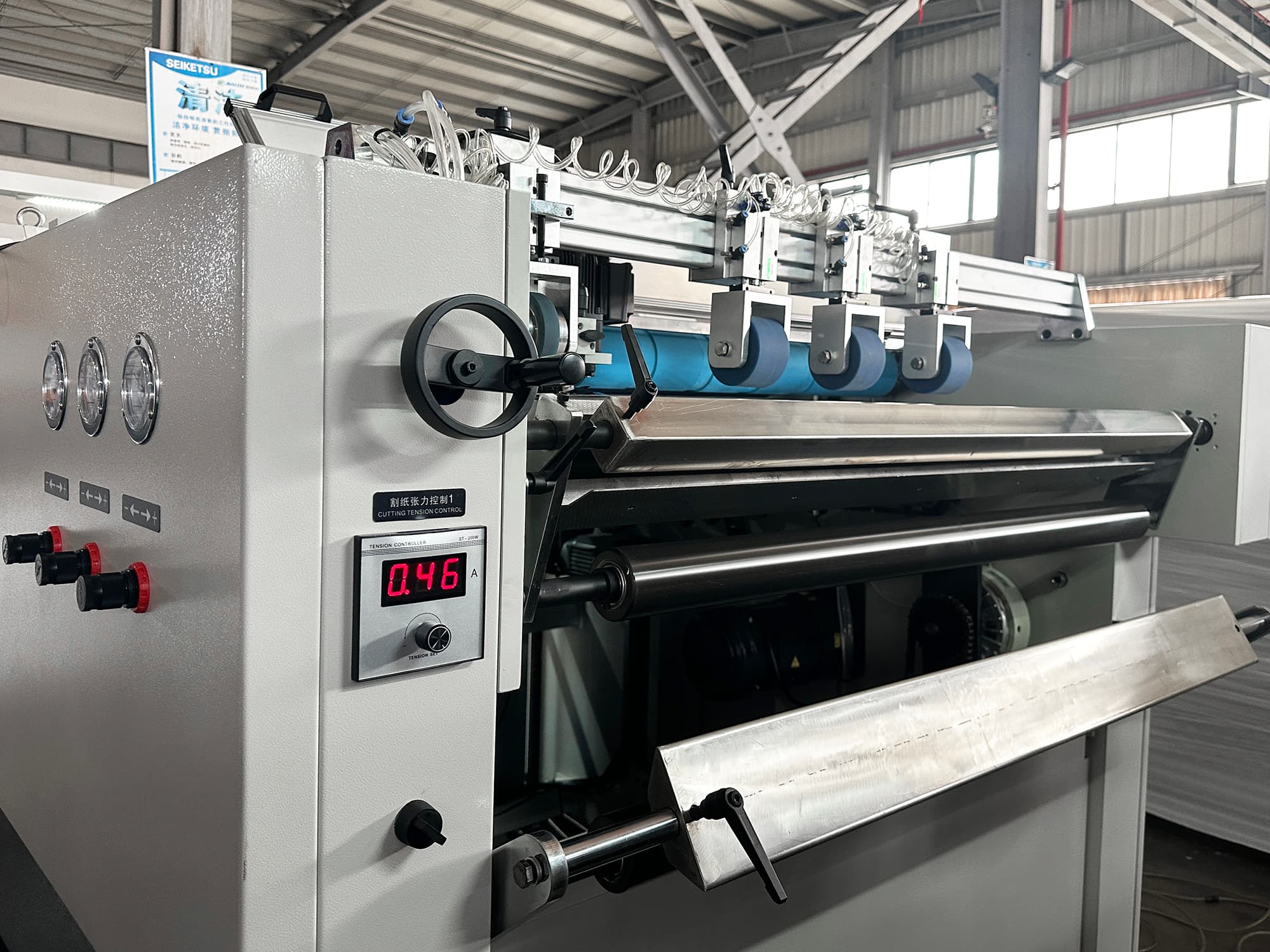

The paper cutter is equipped with a tension controller, double sets anti roll structure, flat and non curly after thin paper laminating.

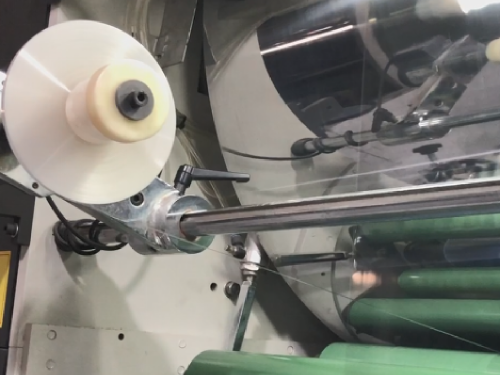

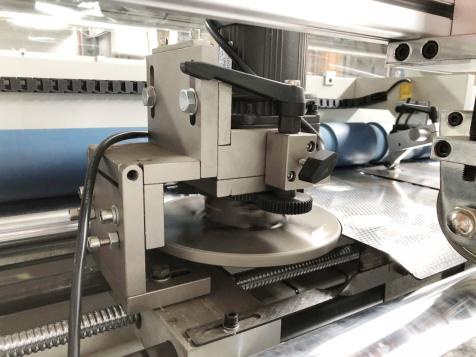

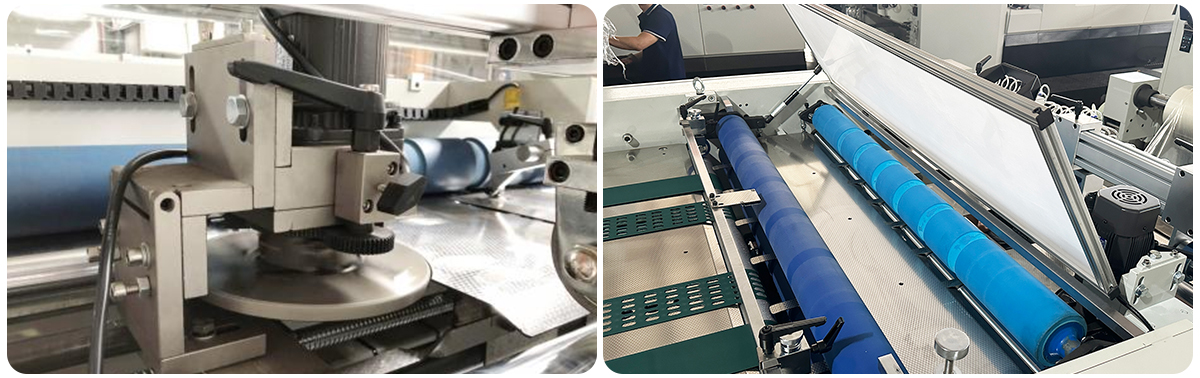

The paper cutting part include grinding wheel and disc knife for slitting, meeting customers' requirements for slitting films of different materials.
The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference, assistto film break.

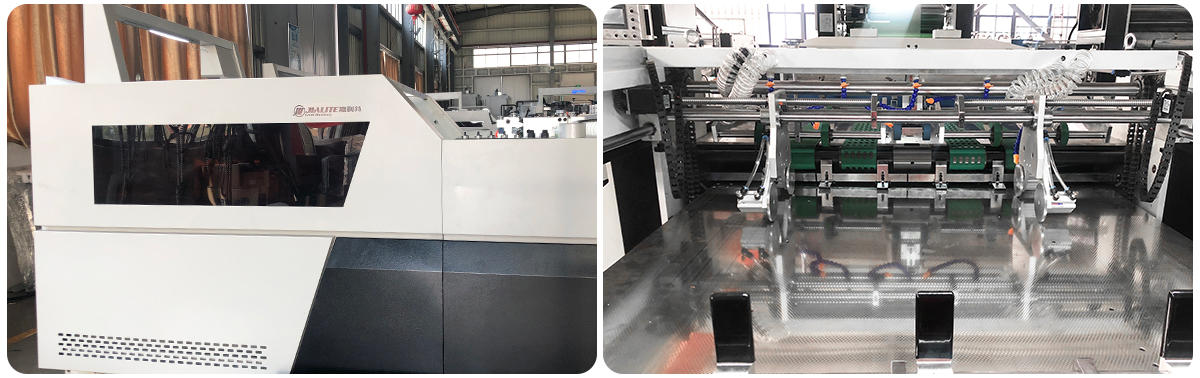

The non-stop collector height can reach 1300mm. When the stack is almost full, the delivery conveyor belt will automatically extend to accept the paper. The collector platform will drop. After the tray is replaced, the platform will recycle and complete the non-stop collector.(Option)
Adopt pneumatic paper sorting structure to ensure the neatness of the paper.
With a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt
will accelerate, and the baffle of the take-up machine will overturn and lift the paper
Counting electric eye, the number of running paper is displayed on the display screen at the
take-up machine, which can be cleared and accumulated.
 |
 |

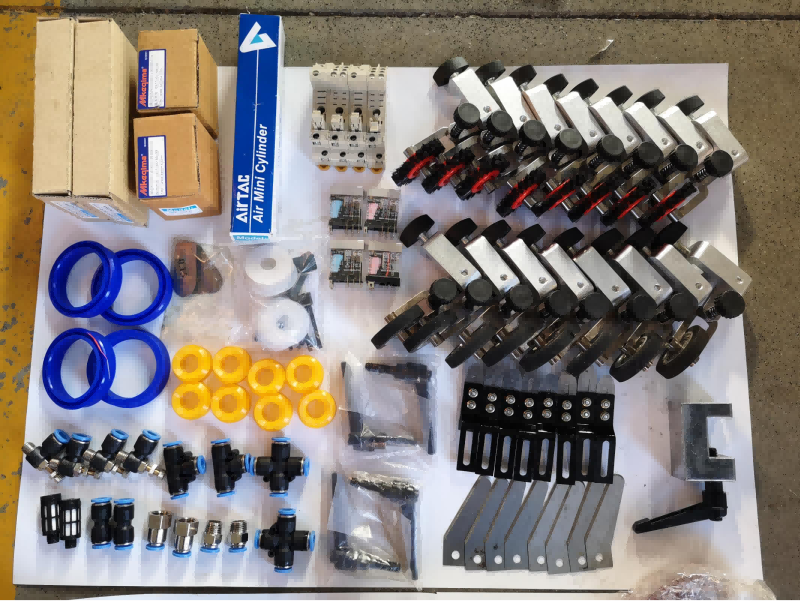

| Spareparts for free |

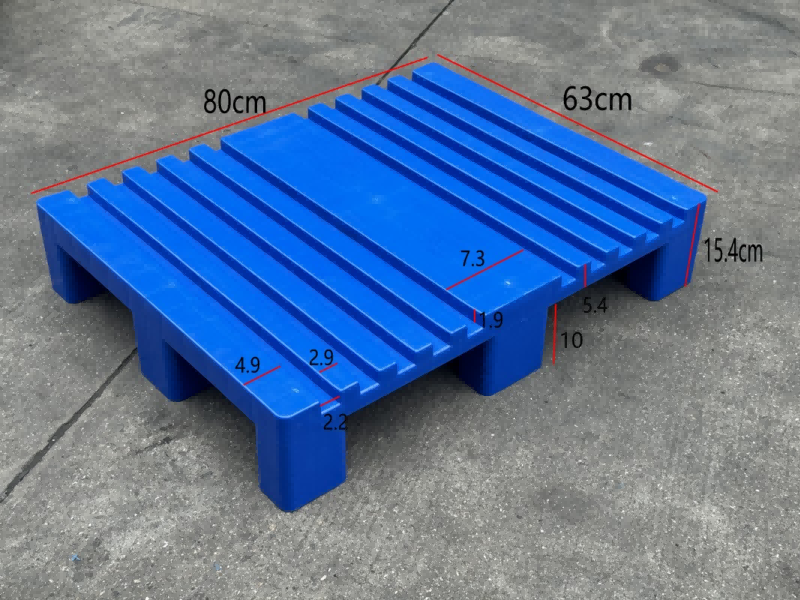

Whole paper pile loading way recommended purchasing |

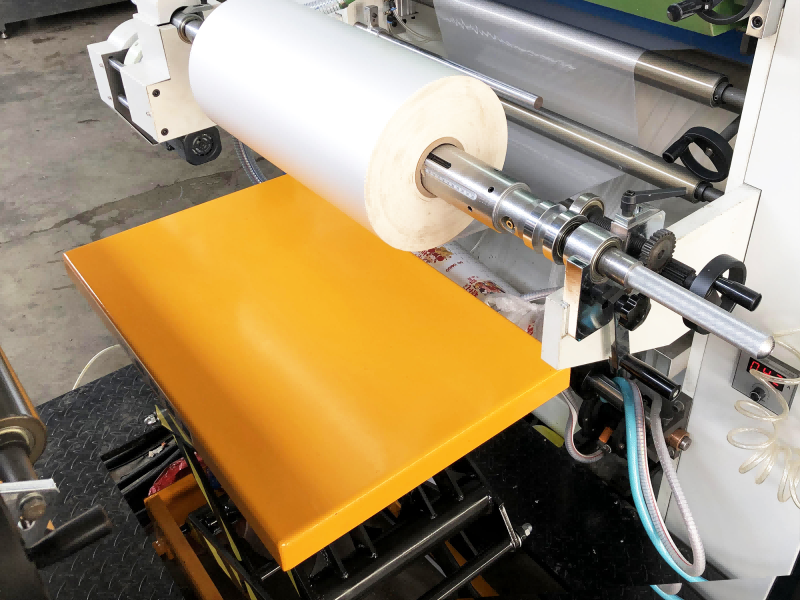

Film loading auxiliary waysoption one
 |
 |

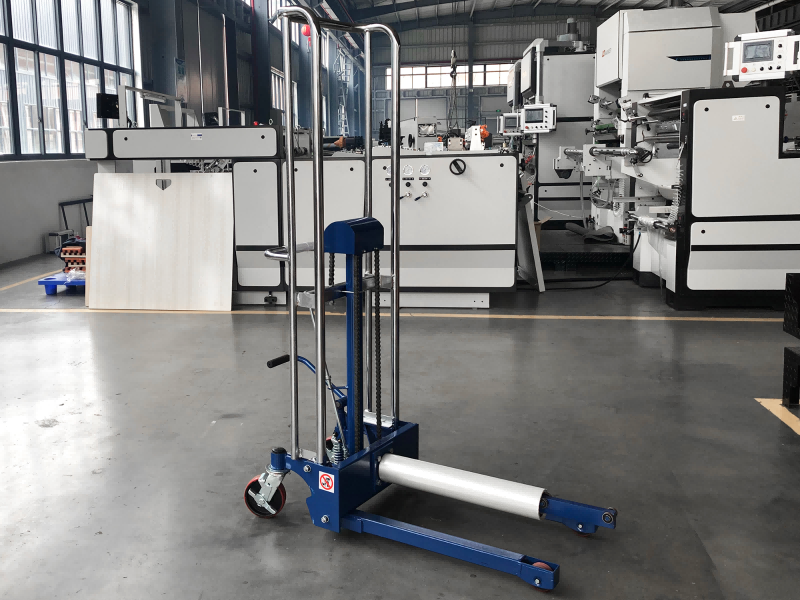

| Foot-operated hydraulic forklift |
Lifting device |
