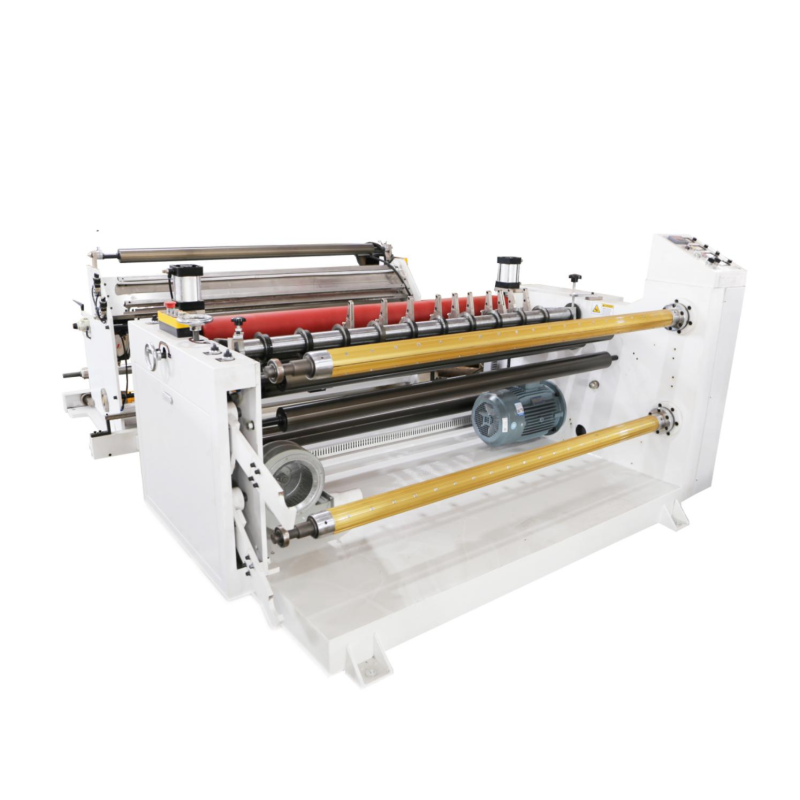

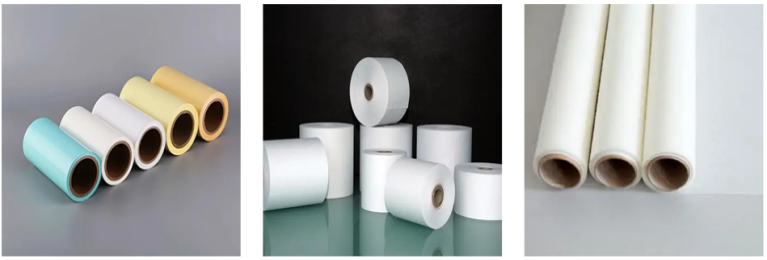

The automatic slitting machine is professionally for paper,laminated papers, label adhesive paper, release paper, carton board, paperboard, screen protective film, electronic film, etc. slitting and rewinding.
Specification:
| Model |
MSHC-1300 |
MSHC-1600 |
| Max unwinding width |
1300mm |
1600mm |
| Max unwinding roller diameter |
Φ1400mm |
Φ1400mm |
| Max unwinding weight |
2000kg |
2000kg |
| Max rewinding roller diameter |
Φ450mm（shaft diameter: 40mm） |
Φ450mm（shaft diameter: 40mm） |
| Main motor power |
3KW |
3KW |
| Speed |
100m/min |
100m/min |
| Precision |
±0.03mm |
±0.03mm |
1. Can be specially customized to meet customer requirements.

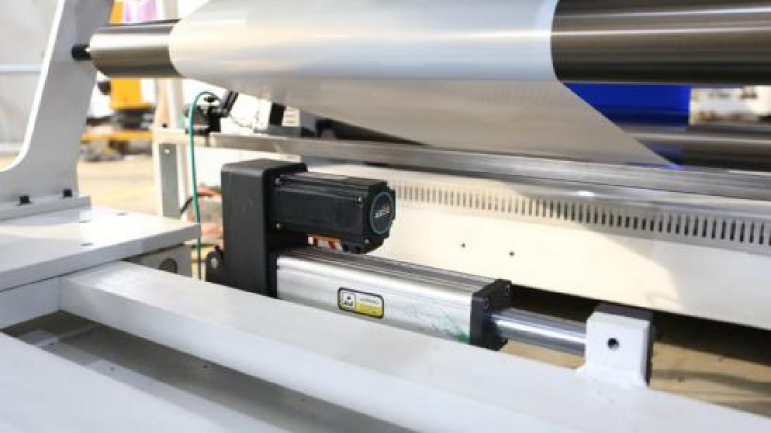

2. Edge web guide system, ultrasonic sensor , automatic left and right moving ensure slitting precision.
LOADING AND UNWINDING UNIT

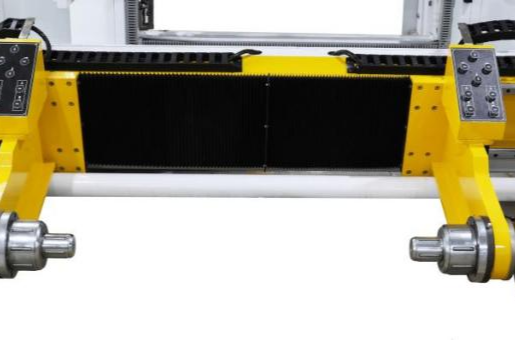

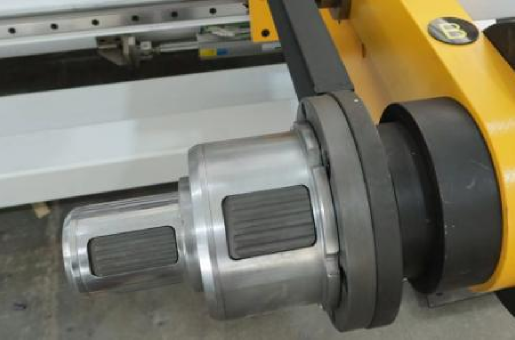

1.The shaft less unwinding unit is equipped with a 3” + 6” mechanical chuck and hydraulic automatic loading, capable of handling a maximum bearing weight of 2000 kg.
2.The hydraulic automatic loading system improves efficiency, reduces labor demands, and provides superior strength compared to pneumatic systems.

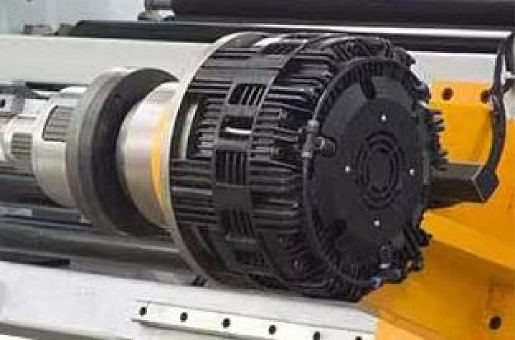

3.It use the pneumatic powder brake to control the unwinding tension.

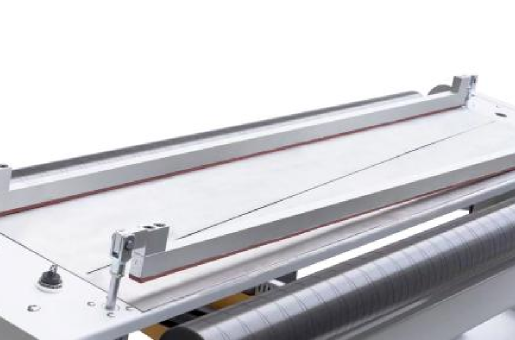

4.Separated unwinding section with splice table.

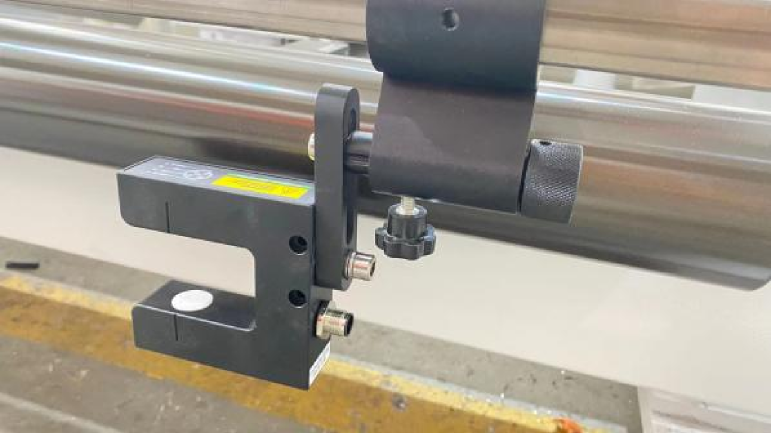

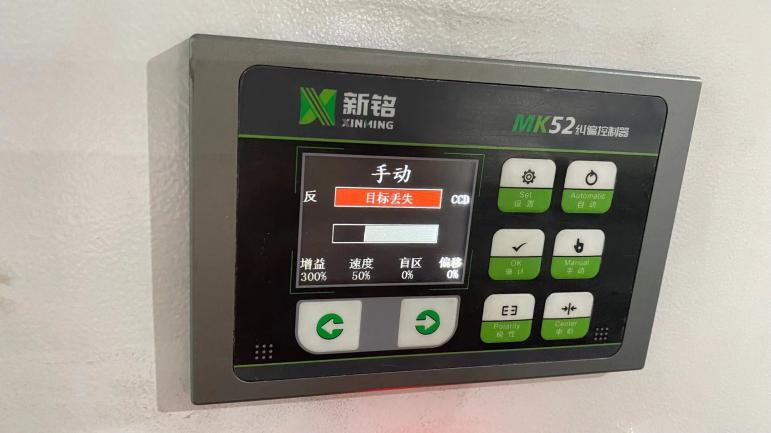

5. Edge web guide system, ultrasonic sensor , automatic left and right moving ensure slitting precision.
6.Automatic counter with two-step deceleration function. Not only can stop the machine when reaching the pre-set length but also can maintain stable tension before machine comes to complete stop.

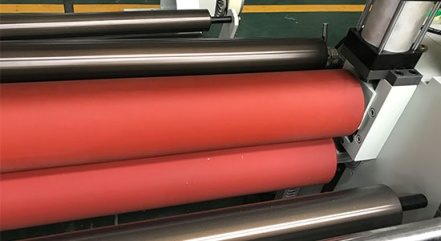

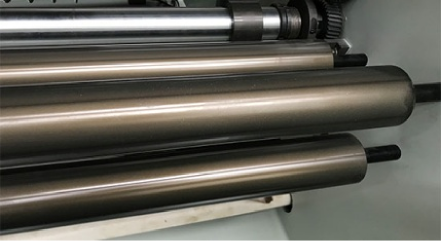

1. The polyurethane wear-resistant rubber-covered roller's movement is controlled by a cylinder.
2.The aluminum rod undergoes hard anodized treatment for enhanced protection and scratch resistance.

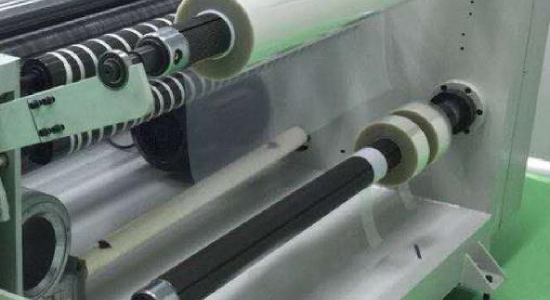

SLITTING AND REWINDING UNIT

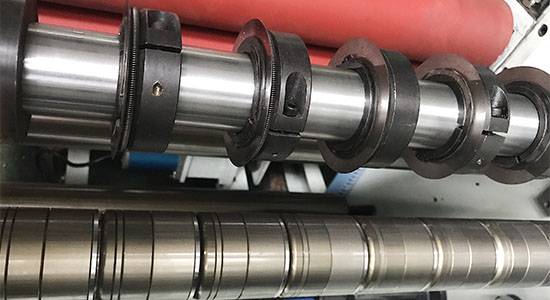

1.The machine comes with 8 sets circular knives. The knives needn’t take down and can be adjust at operator side, ensure the safety and conveniently of operation.
2.Dual air shaft unloading is very convenient,the normal shaft diameter is 40mm,can be customized.
3.Rewinding tension be controlled by magnetic powder clutch.
Who are we?
Professional Manufacturing:
A strong enterprise focused on the production of paper container forming machines.
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

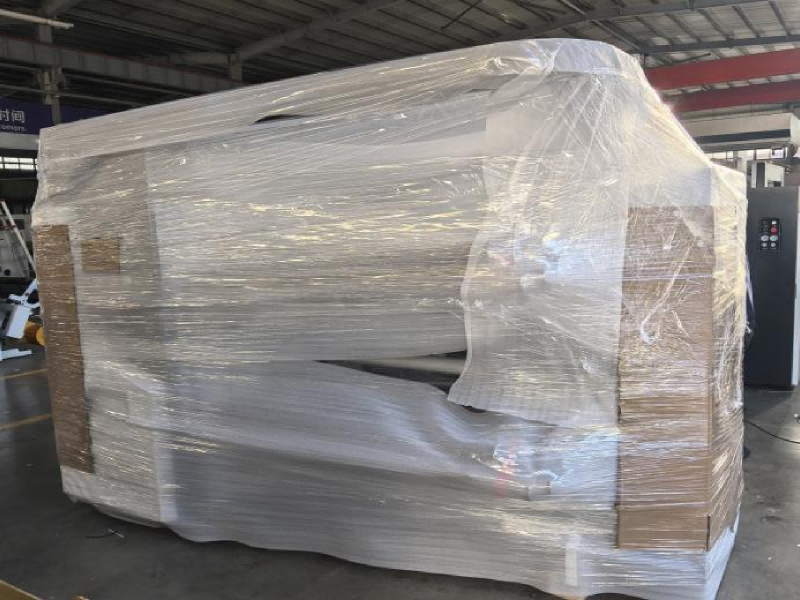

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
