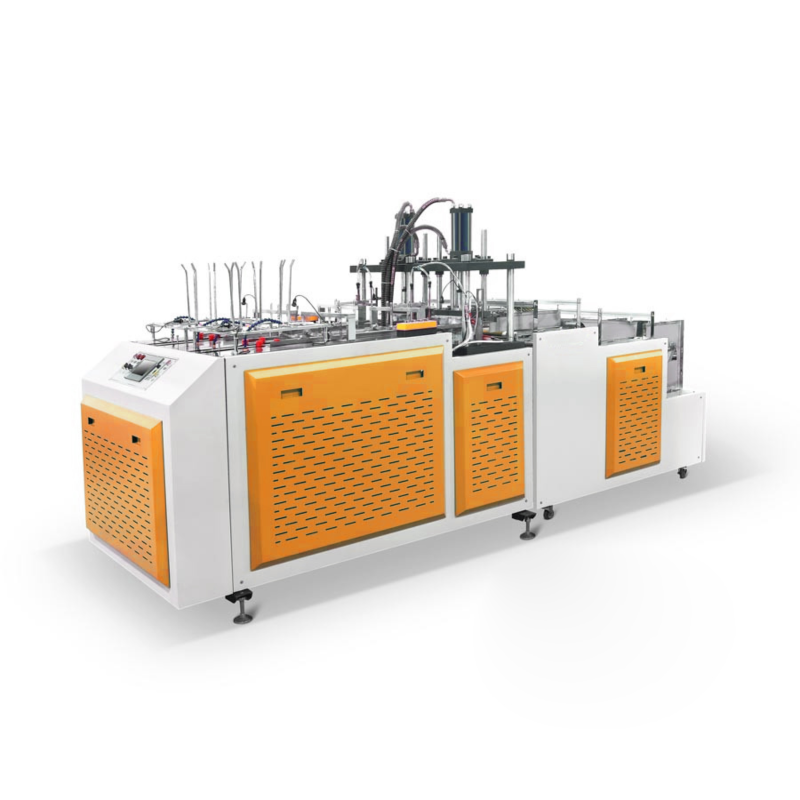

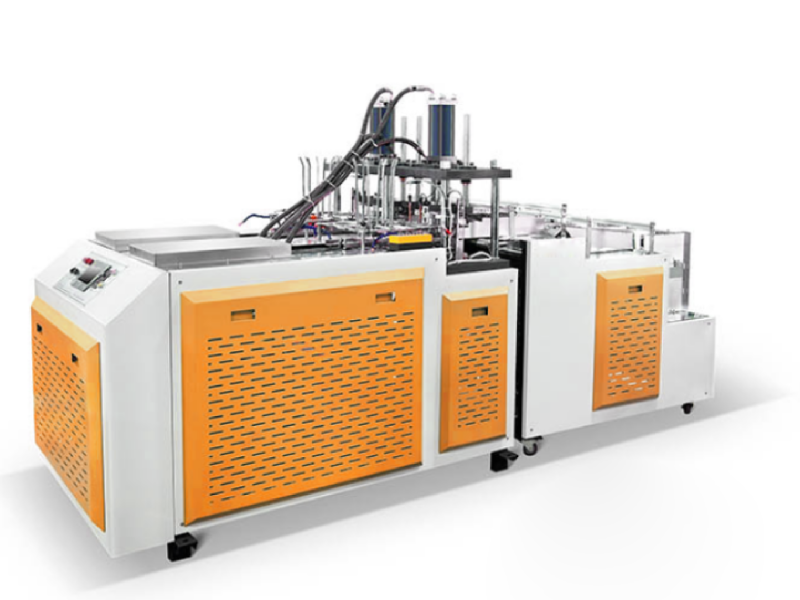

MSL600Y Automatic hydraulic paper plate machine as a professional equipment used to make the paper materials to be round,rectangle and square paper trays.
Model |
MSL600Y |
MSY600Y-GP |
MSL600Y-S |
Difference |
Normal shapes |
High grade with safe cover |
Strange shapes |
Paper Plate Size |
4-12.5” |
Paper Grams |
100-800g/m2 |
|
Capacity
(Double Stations )
|
40-120pcs/min |
40-120pcs/min |
40-110pcs/min |
Power Requirements |
380V 50HZ 3P |
Rated Power |
10KW |
Actual Power |
8KW |
Weight |
1600kg |
1600kg |
1600kg |
Specifications-mm |
3500×1300×1900 |
3500×1300×2000 |
3500×1300×1900 |
Air Supply Requirement |
0.4Mpa, 0.3cube/min |
Other Notes |
Customize |
Oil Cylinder |
ML-80-150-5T-X |
Cylinder Stroke |
150mm |
Feature Highlights
Two stations can work separately, realize that one machine can produce different sizes and shapes of paper plates at the same time.

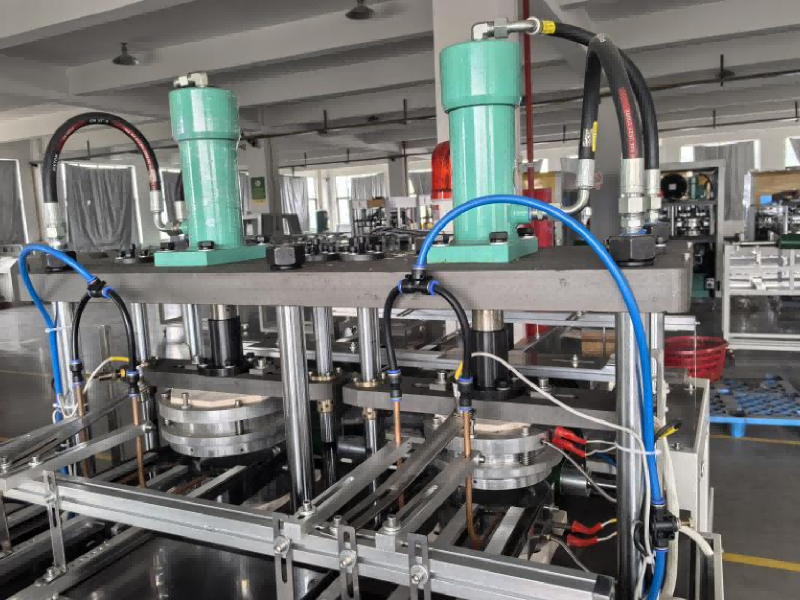

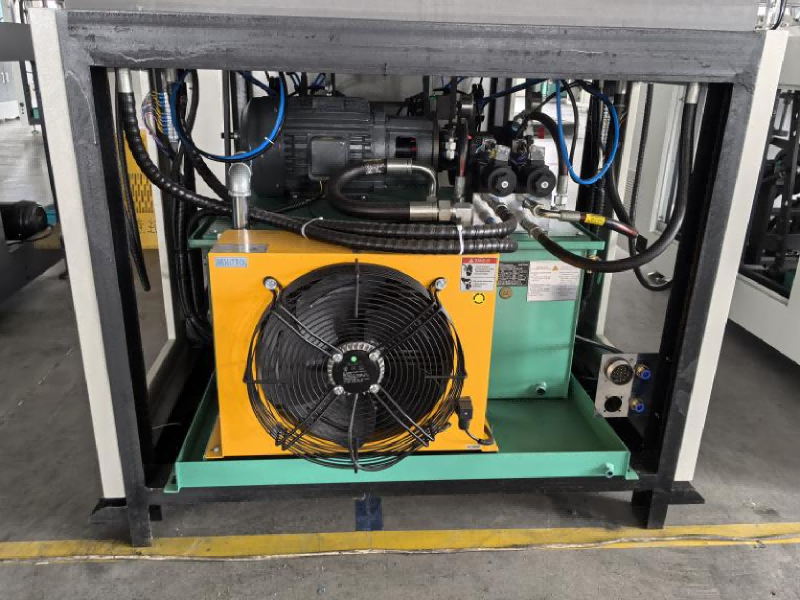

Machine adopts hydraulic system, compared with traditional plate machine, has the advantage of stable forming, high efficiency and energy saving.

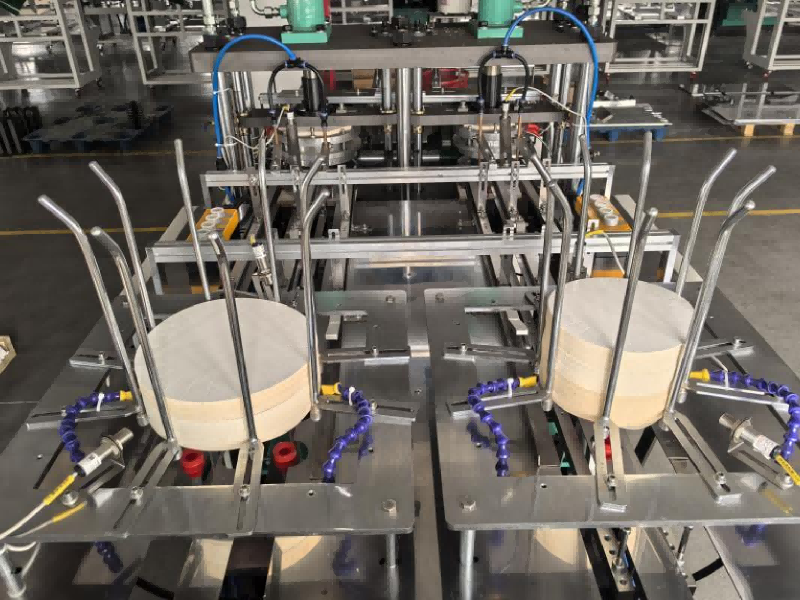

Two stations working separately, one machine can produce different sizes and shapes plates at one time.Paper feedingpart adopts aluminium profile, which is convenient to adjust the size after changing the mold. It is easy and simple tooperate.

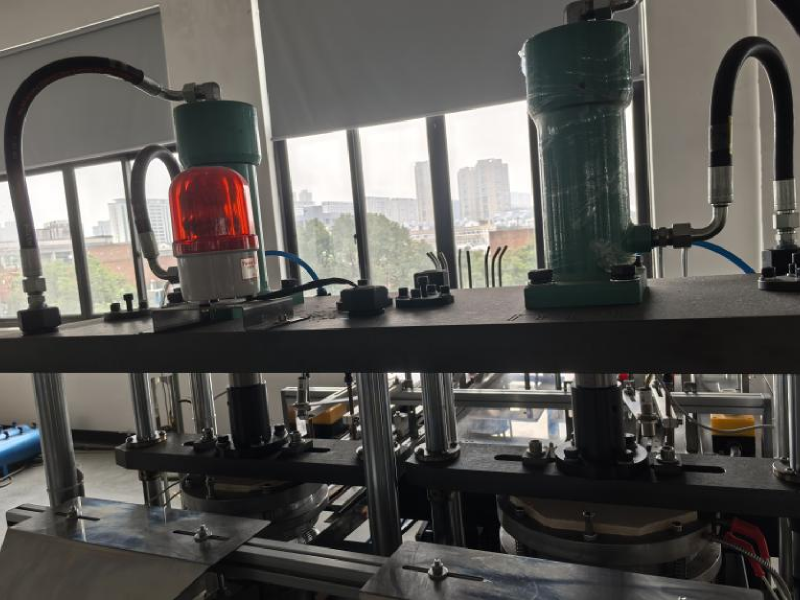

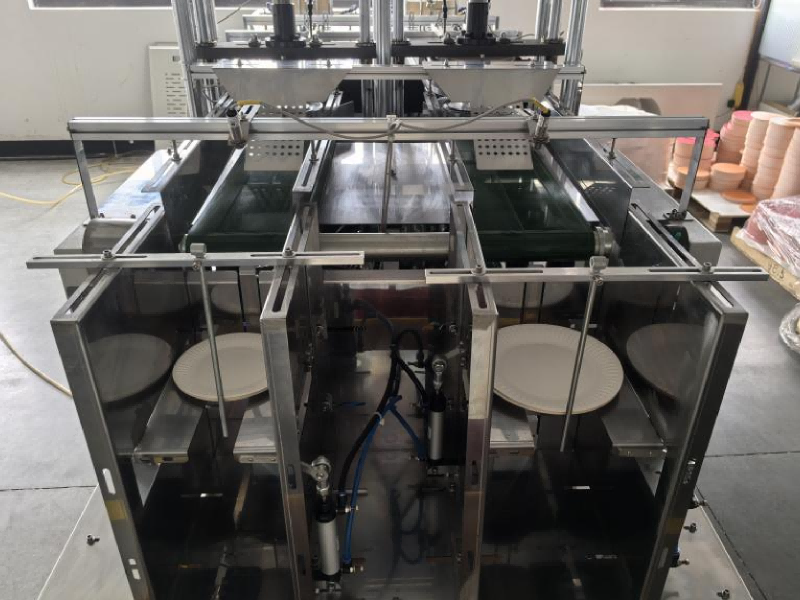

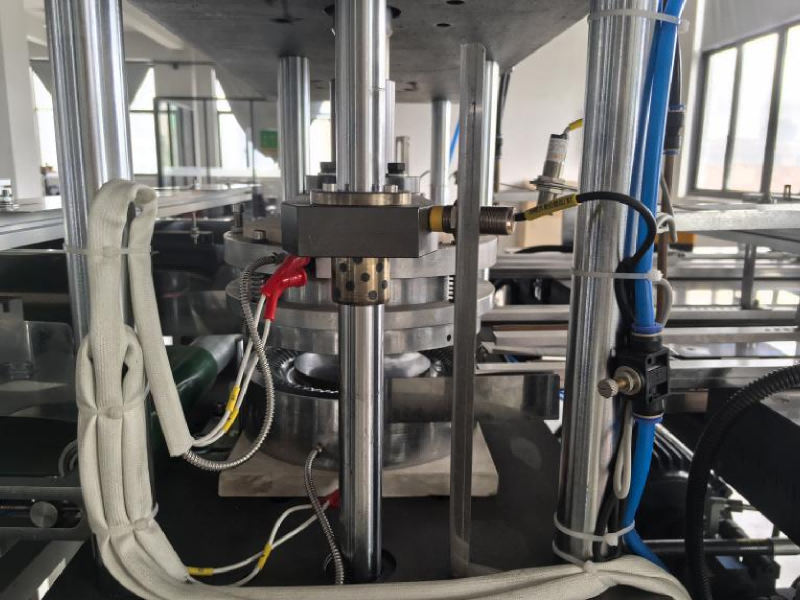

Machine adopts photoelectric tracking, automatic counting and collecting, machine will alarm and automatic stop in case of emergency, achieve safe and intelligent production.

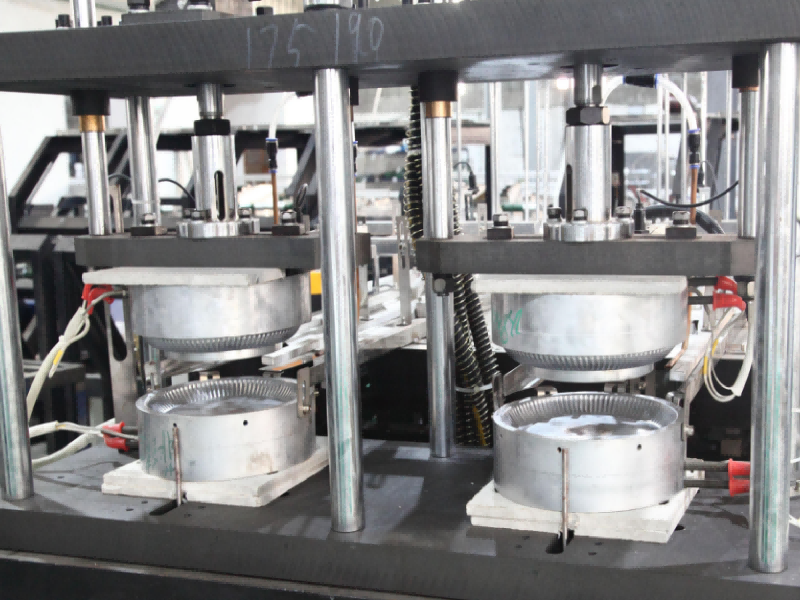

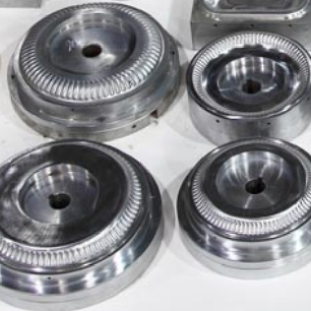

Mold uses carbon steel, compared with aluminum alloy material, it is not easy to be deformed, mold surface with anti-rust plating.

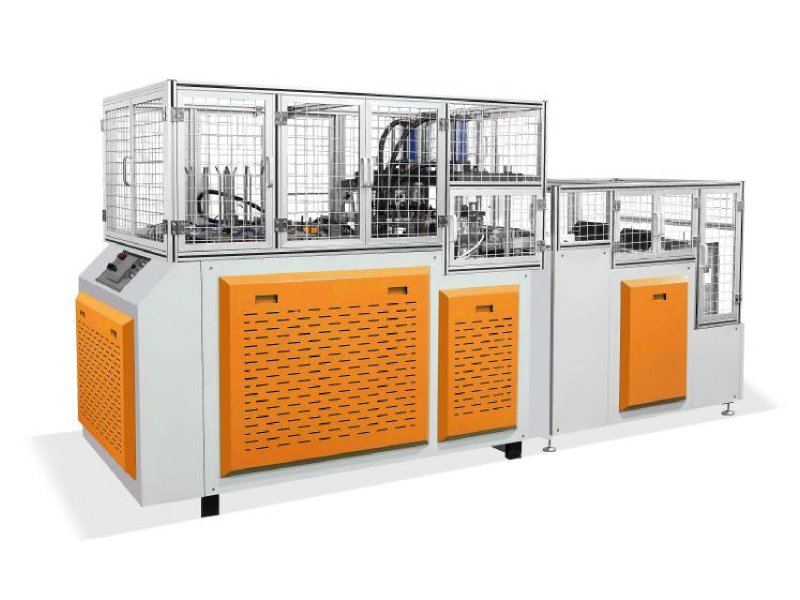

High grade choosing with safe cover & Strange shapes specific model
 |
 |
| MSL600Y-GP |
MSL600Y-S |
Who are we?

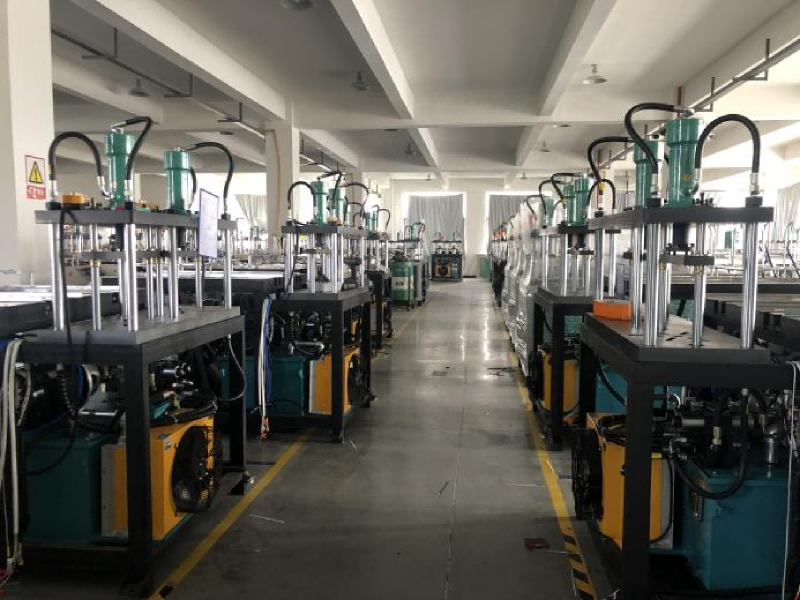

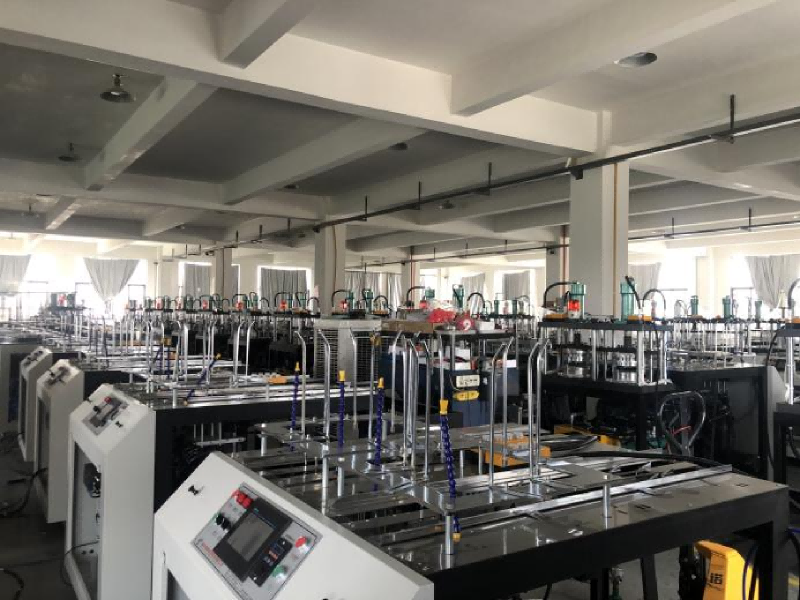

Professional Manufacturing:
A strong enterprise focused on the production of paper container forming machines.
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.
Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
