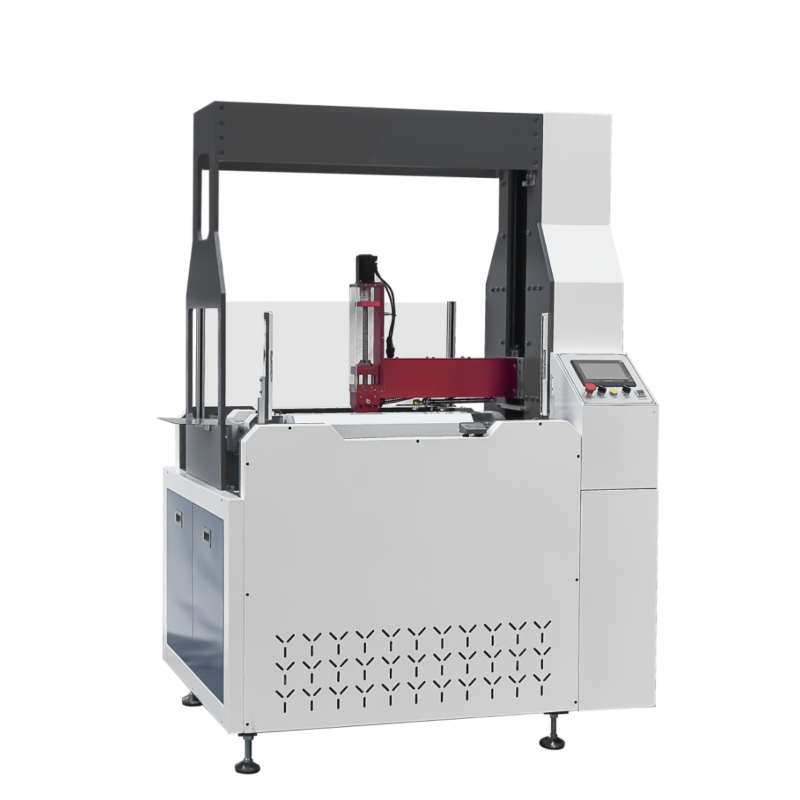

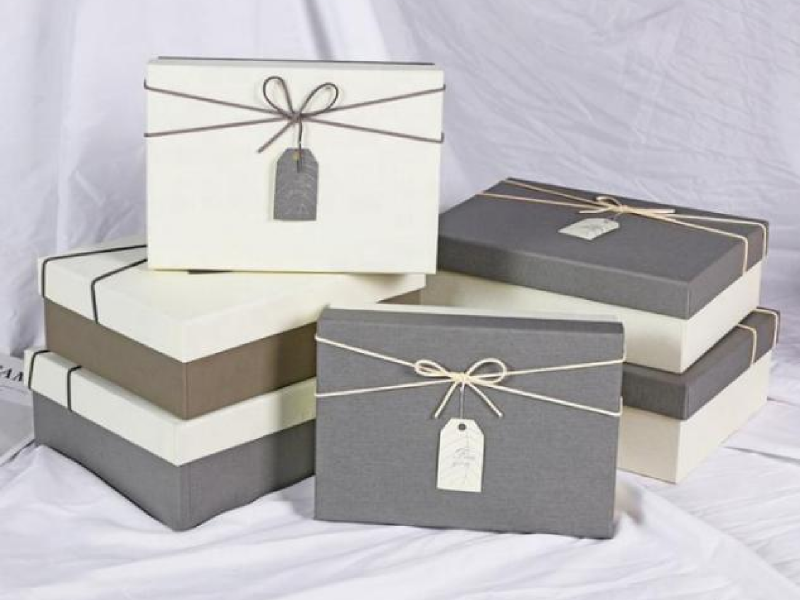

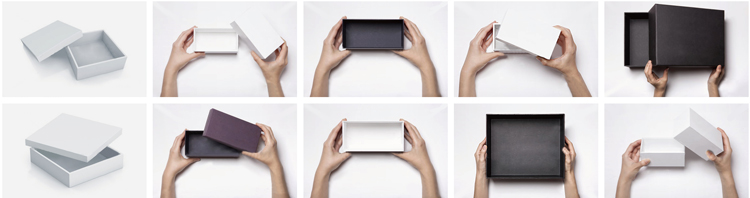

MSZD model servo automatic rigid paper box forming machine is the ideal processing equipment rigid box. It can greatly improve the production efficiency.
First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different molds, then automatic four side pasting, folding,
The size adjusting and bubble pressing action controlled by the servo motor ensure the high precision.
Specification:
| Model |
MSZD-550 |
MSZD-650 |
| Max box size |
500*450*120mm |
600x480x150mm |
| Min box size |
50*50*8mm |
50x50x10mm |
| Speed |
15-22 pcs/min |
15-22 pcs/min |
| Air supply |
≥0.6mpa |
≥0.6mpa |
| Precision |
±0.2mm |
±0.2mm |
| Voltage: |
220V 50HZ |
220V 50HZ |
| Power: |
8KW |
8KW |
| Net Weight |
980kgs |
1050kgs |
| Gross Weight |
1260kgs |
1350kgs |
| Dimension |
1550*1210*1950mm |
1600*1260*2100mm |
| Package dimension |
1670*1300*2270mm |
1700*1360*2370mm |

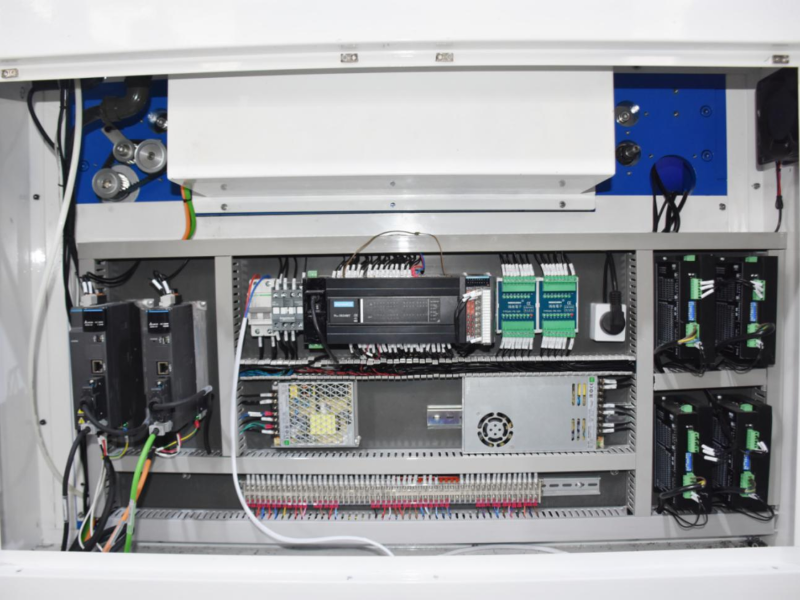

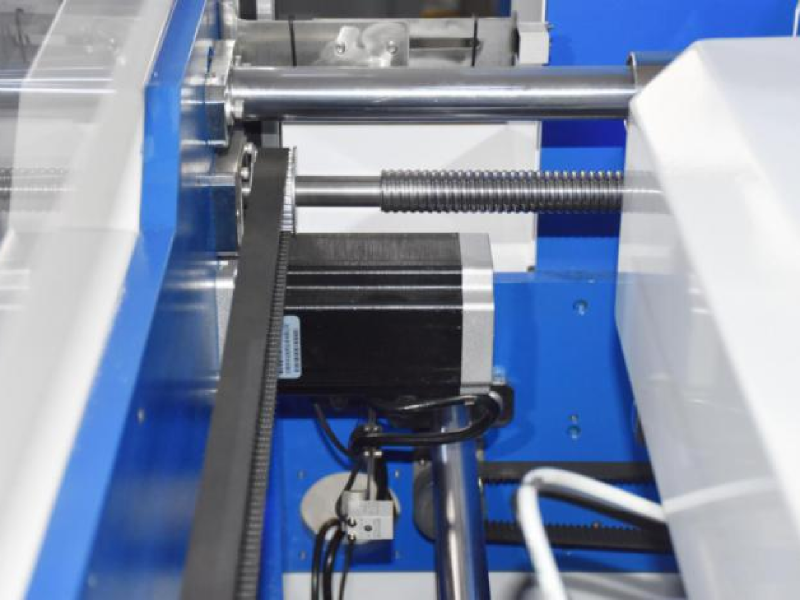

1. The machine is driven by servo motor and controlled by PLC program.

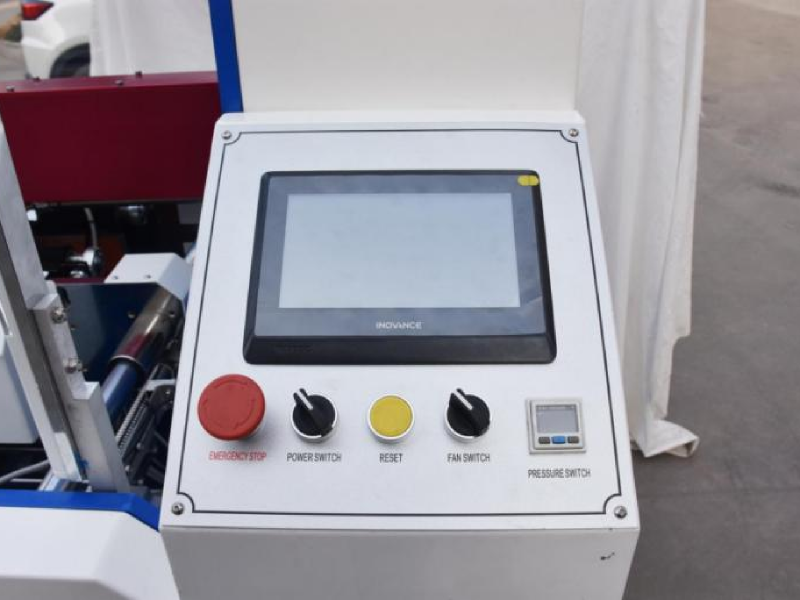

2. The machine debugging is completed by the man-machine-interface selection , which is easy to adjust.
3. The control accessories of this machine are selected from high-end brands, with low failure and high accuracy.
4. This machine has a fault display and alarm function. If there is a fault in the electrical component, the fault will be displayed on the screen.
5. This machine is equipped with a light-touch safety switch, which can be pressed in case of emergency, or it will automatically stop in case of non-safe operation (double insurance)

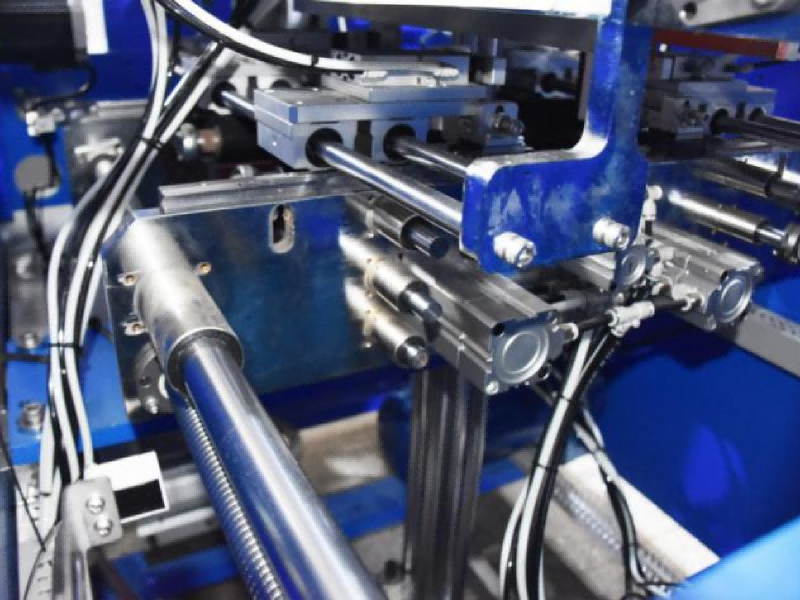

Each actions finished by the cylinder and also can setting the action lasting time, which are quick and high precision.

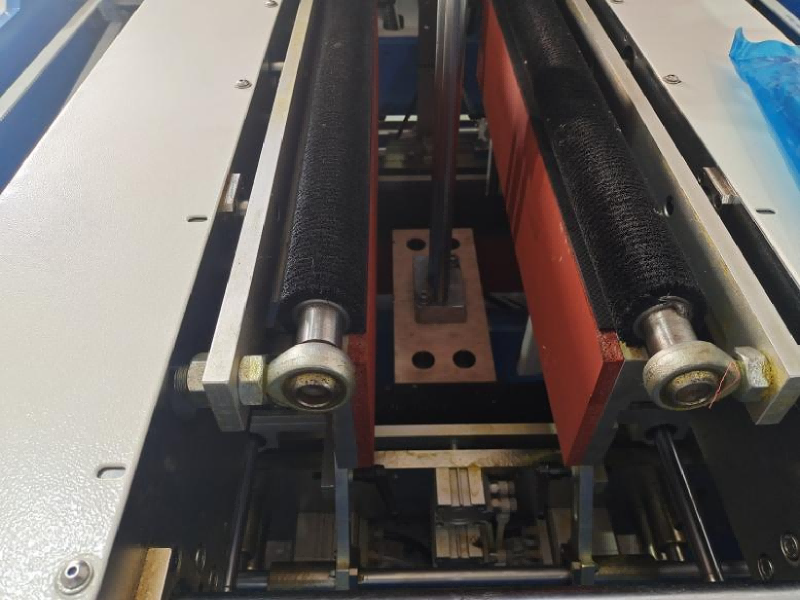

No need to replace the bubble pressing plate and the shovel blade, which effectively saves the adjustment time and the convenience of operation.
Machine with infrared guard rail, machine is safe when operating.

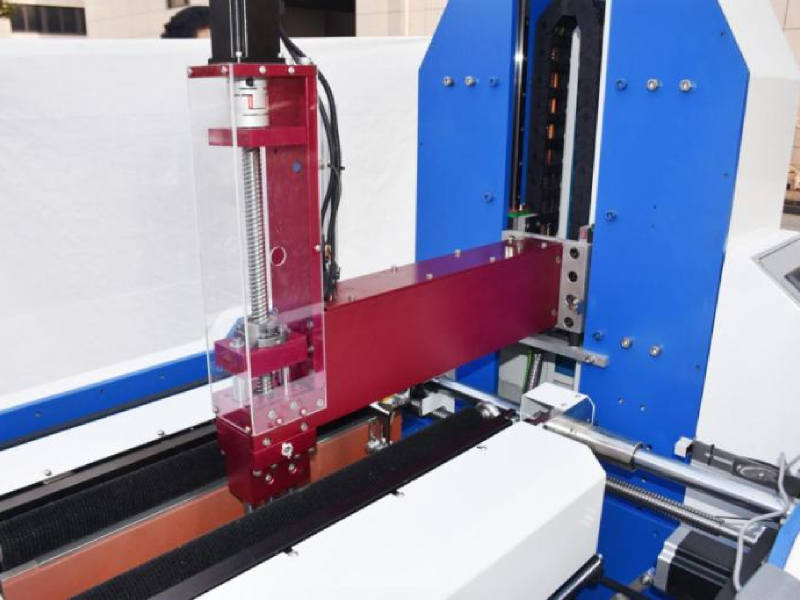

Size adjusting and bubble pressing action controlled by the servo motor, ensure the high precision and also easy operating.
No need to mechanical adjust, input the data on the touch screen, it will be adjusted automatically, high effective.
Machine with English, Spanish, Turkish, etc several languages.

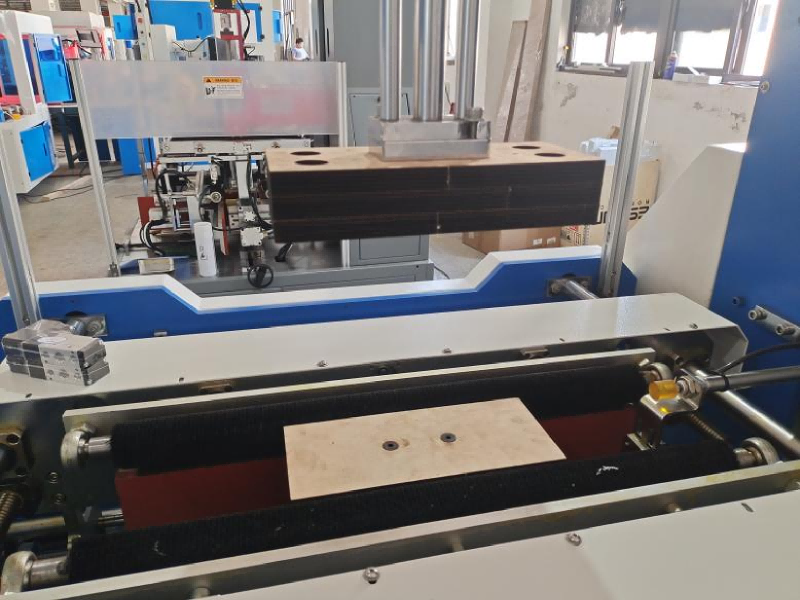

box mold, one set including three parts--upper, middle and under mold. Its material can be mold and plastic.

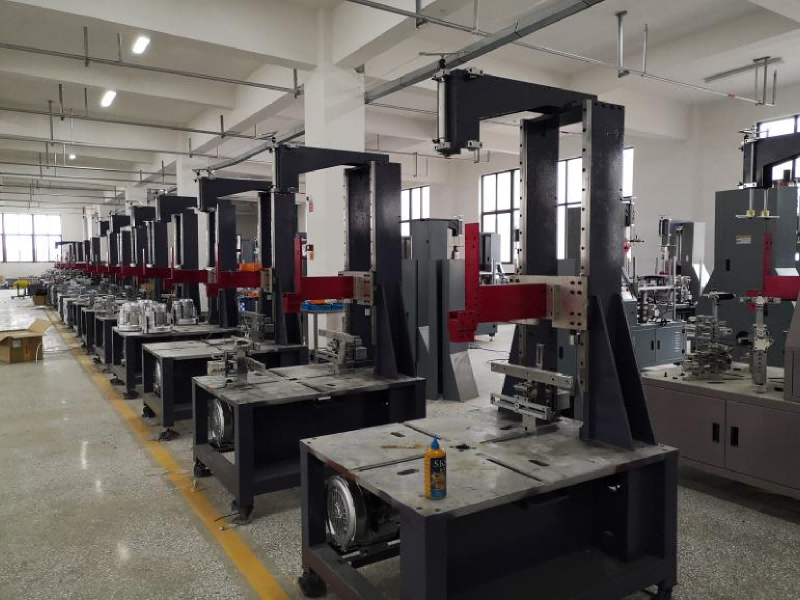

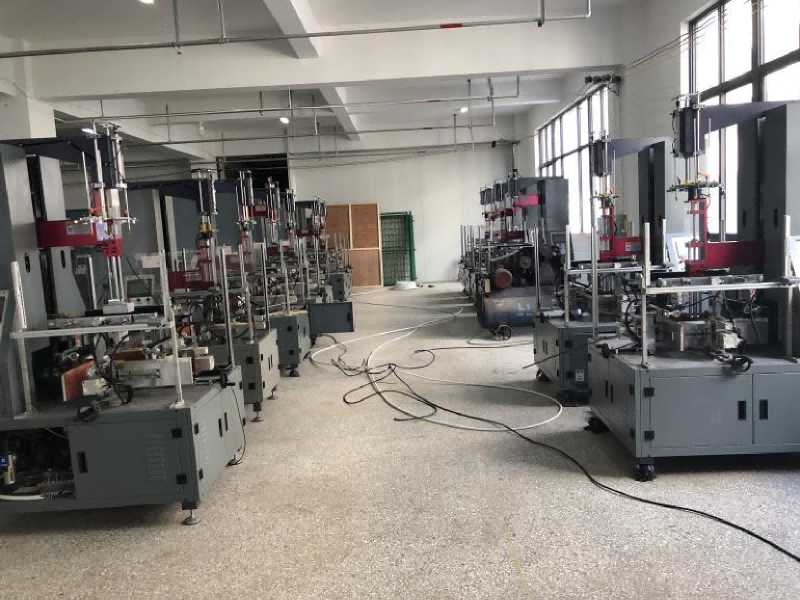

Professional Manufacturing:
A strong enterprise focused on the production of rigid box making machines.
Innovative Services:
A service-oriented company dedicated to researching paper surface processing technologies andpackaging, providing diversified solution services.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.
Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
