Usage:
NFM-Master fully Automatic laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter.

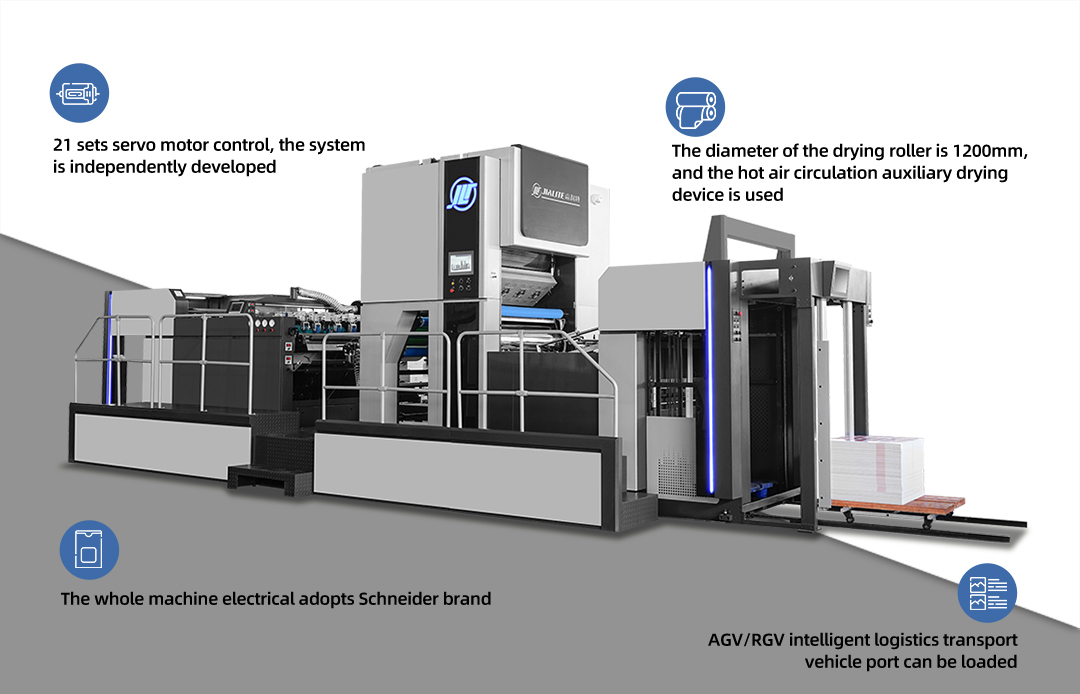

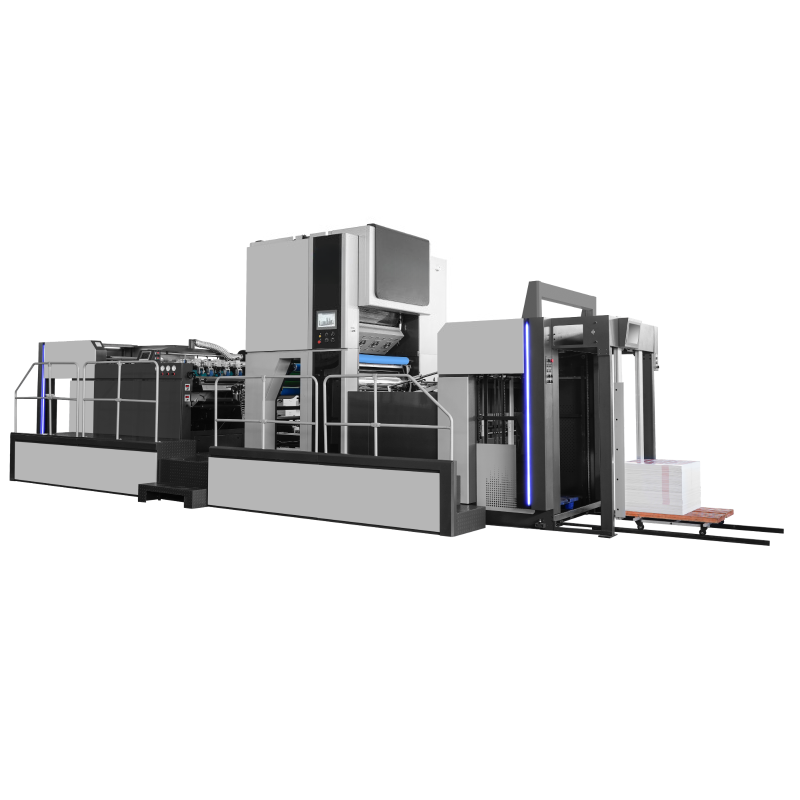

MODEL: NFM-1080 Master series
1. 19 sets servo motor control, the system is independently developed
2. The servo and PLC communication adopts EC mode
3. The whole machine electrical adopts Schneider brand
4. The temperature control adopts PID module control, the temperature difference is plus or minus 1°
5. AGV/RGV intelligent logistics transport vehicle port can be loaded
6. The diameter of the drying roller is 1200mm, and the hot air circulation auxiliary drying device is used
7. The maximum speed is 120m/min, the ultra-wide host wall panel, and the high-speed operation is stable
8. 24 voltage hot knife, hot knife automatic deviation correction
9. The delivery and receiving paper pile height is 1600mm
10. The overall appearance design conforms to the aesthetics of the printing industry
Specification
Heating roller temperature range |
80-130° |
Heating roller temperature accuracy |
±1.5° |
Hot knife heating method |
24V Low voltage high frequency heating |
Hot knife temperature setting range |
350-420° |
Hot knife temperature accuracy |
±1° PID Temperature analog control |
Rubber roller pressure control method |
Pneumatic (Hydraulic is optional) |
Normal pressure setting |
0.3-0.45 Mpa |
paper feeding pile Height |
1600mm |
paper collecting pile Height |
1600mm |
paper feeder control |
Non stop servo control feeder |
Paper collecting board |
Not stop automatic board change |
Power |
380V 50Hz 3P Customizable |
Working Pressure |
0.9Mpa |
Cable Thickness |
25mm2 |
Weight |
10200kgs |
Dimension (layout) |
10000*3400*3530mm |
Loading |
40HQ |
On-line service |
Support connection to local WIFI, remote online after-sales after networking |
On-site service |
Engineer on-site service |
According to the size of the print, servo control, automatic position adjustment.

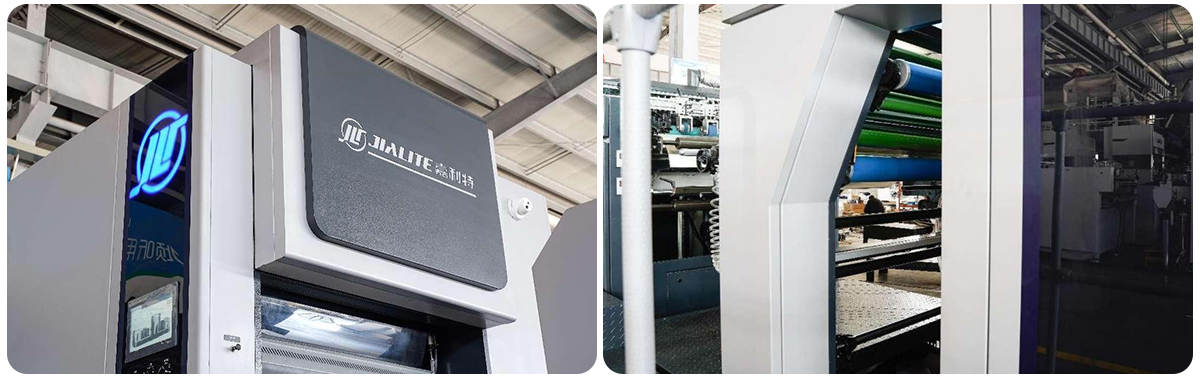

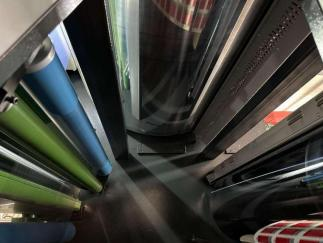

φ1200mm drying rod, larger film wrapping angle, more uniform temperature.
One-click startup for the entire process, saving material costs.
Double electromagnetic heating control system for improved efficiency and energy saving.
Online multifunctional unit modular, customers can choose as needed, maximizing the efficiency of the laminating machine.
Independently developed high-precision stable thermal knife system, automatic paper correction, providing retrofitting services for different brand laminating machines.
FEEDINGUNIT-7 setsservomotorcontrolsystem

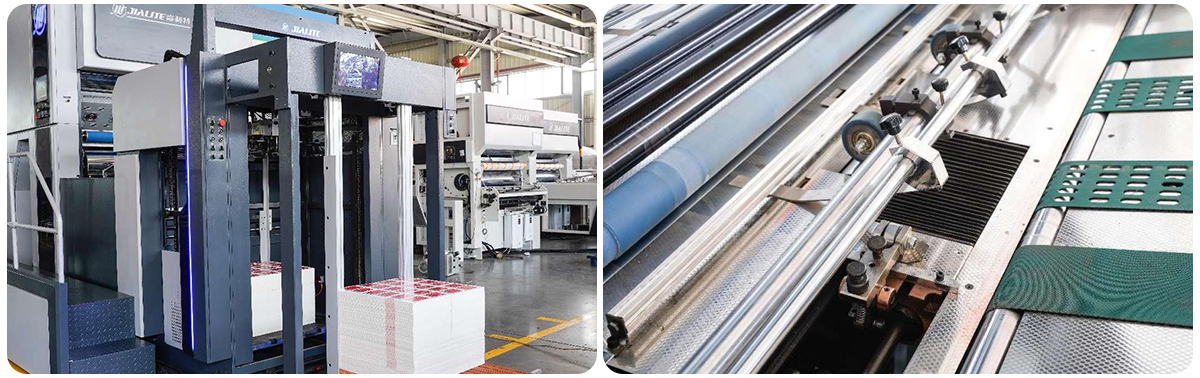

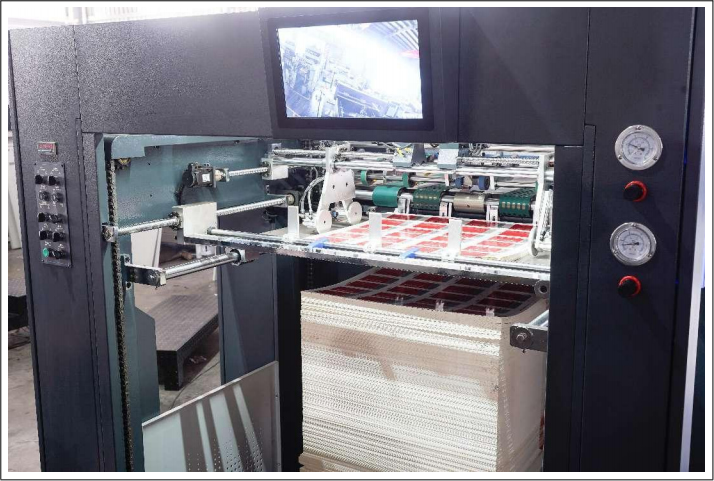

Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
The paper feeding table has upper and lower over-limit protection
The height of non-stop feeding can reach 1600mm, pre-stacking device, non-stop feeding
The feeder is controlled by 3 servomotors, the front and rear positions can be adjusted intelligently; just input product data on the control panel.
The thickness of the host's body wall is 30mm, ensuring the equipment operates at high speed and stability
The main drive uses a three-row chain, which is not easily deformed, allowing for smooth operation of the machine and a longer lifespan.
The main motor has a power of 7.5kw, providing greater output torque and stable transmission.
The position of the membrane material moves left and right for automatic photoelectric alignment, making adjustment more convenient. The eleventh servo motor.
The glue applicator roller and the metering roller are independently driven by their own motors, allowing for more uniform and quicker glue adjustment.

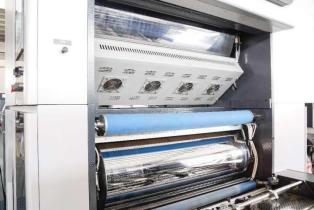

The main machine's auxiliary drying oven uses a hot air circulation system, with heat recovery and low energy consumption.

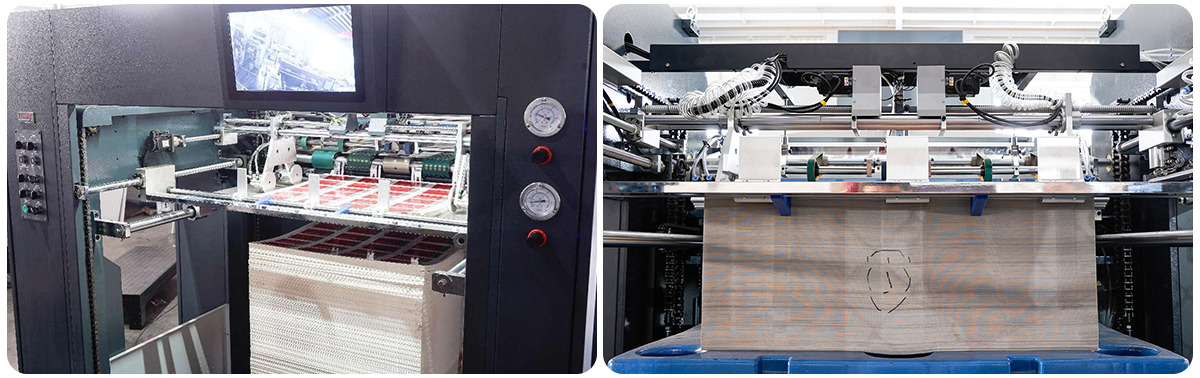

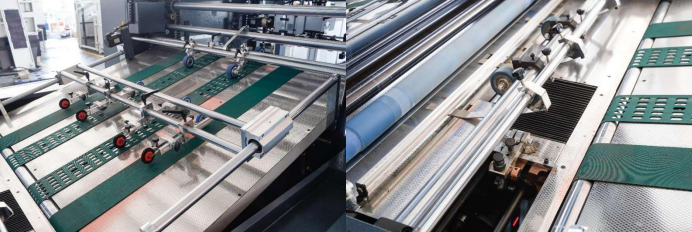

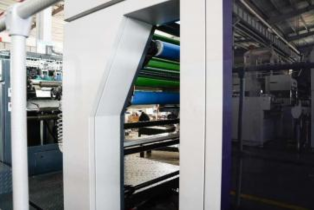

The host machine features a widened design with an accessible structure, providing ample space between the glue roller and the main steel rod, making it easier and less strenuous to clean the membrane of the machine.

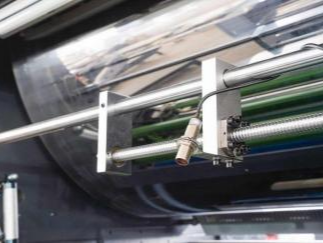

Thepositionof the filmrollis automatically setbyphotoelectricmeans,allowing foreasy calibration.

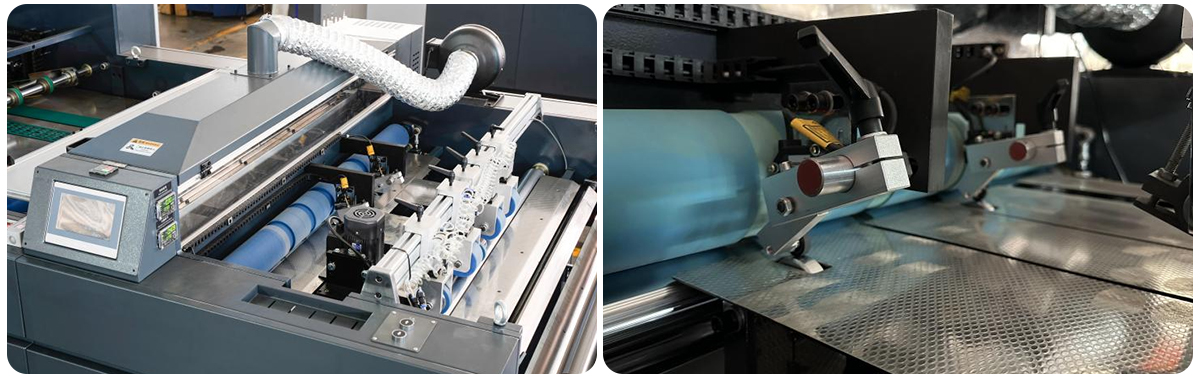

Cutting machine: rotary knife for cutting paper, hot knife for cutting paper
The rotary knife combined with a bouncing roller utilizes the speed difference to tear the BOPP film, making a clean and neat cut
The forward and backward movement of the rotary knife is precisely controlled by a servo motor, ensuring stability and efficiency.
The diameter of the bouncing roller is 120mm, providing stable bouncing.

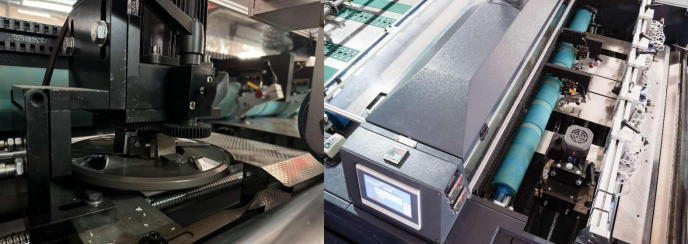

The newly independently developed hot knife system adjusts the cutting angle of the blade automatically according to the tilt of the paper, ensuring precise cutting.
It senses the precise cutting position based on variations in paper thickness, with a PID module controlling the temperature to a difference of plus or minus 1°, allowing paper to be cut without tail film.
The hot knife operates at a low pressure of 24 volts, ensuring safety and reliability.
Thehotknifeis suitable for full-widthpaper filmlamination andisapplicable for extremely narrow edge overlaps.
Automatic Paper Collector
The paper collection uses an automatic deceleration device to protect the front edge of the paper from damage caused by impact during rapid output.
The lateral movement of the paperboard is controlled and adjusted by a servo motor.
The front and rear movement of the paperboard is controlled and adjusted by a servo motor.
The front and rear movement of the rear paperboard is controlled and adjusted by a servo motor.
The automatic board change is controlled by servo drive.
The paper collection height is increased to 1600 mm.
Professional Manufacturing:
A strong enterprise focused on the production of laminating machines and varnishing machines.
A service-oriented company dedicated to researching paper surface processing technologies and providing diversified solution services.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.
