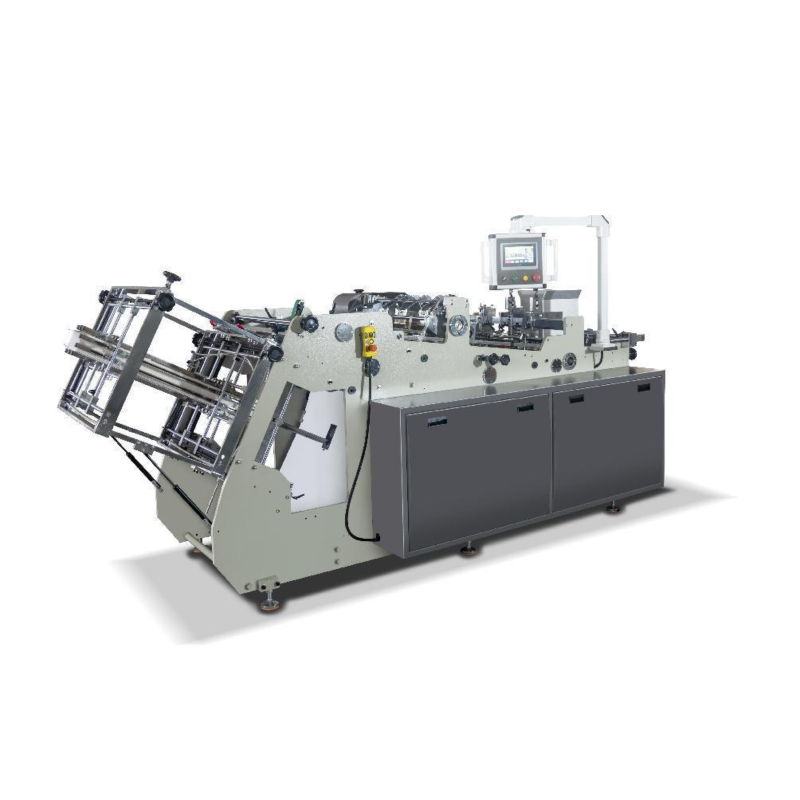

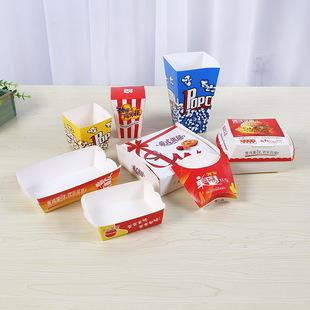

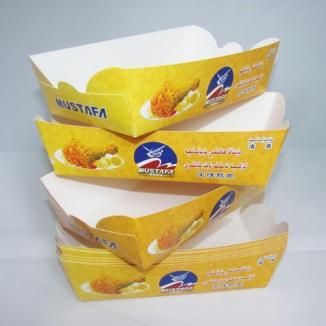

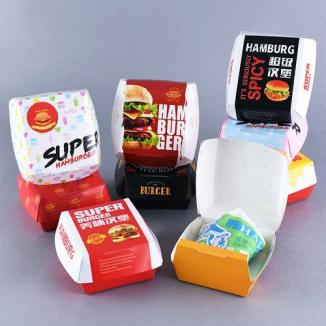

MSZF-800PLUS is an ideal choice to produce hamburger boxes,chips boxes,takeout container,etc.It adopts micro-computer, PLC,alternating current frequency converter ,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting, chain drive.All of these main parts and electric control system adopts imported brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Type |
MSZF-800PLUS |
Production Capacity |
50-300pcs/min |
Length |
100-650mm |
Width |
100-500mm |
Height |
15-200mm |
Degree |
5°- 40° |
Total Power |
8kw |
Total Weight |
2200kg |
Overall Dimension |
3600 * 1600 * 1600 mm |
Power Source |
380V 50HZ 3P |

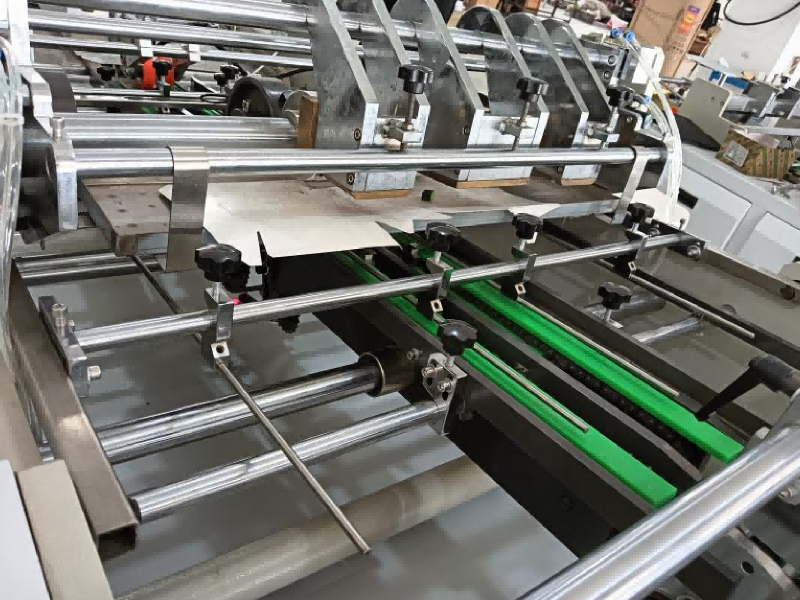

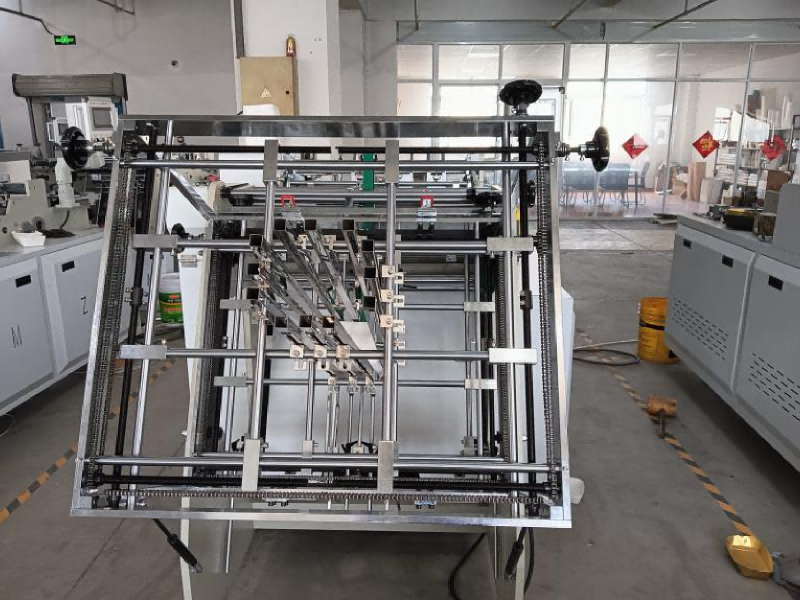

Four Servo motor independent control of paper feeding: more accurate control, adjust the distance of paper feeding more convenient and save time.
1.The carton erecting machine is highly efficient.The working speed of this model is 50-300pieces per minute and finished produces are automatically counted.It can do different size and shape boxes through changing mold.

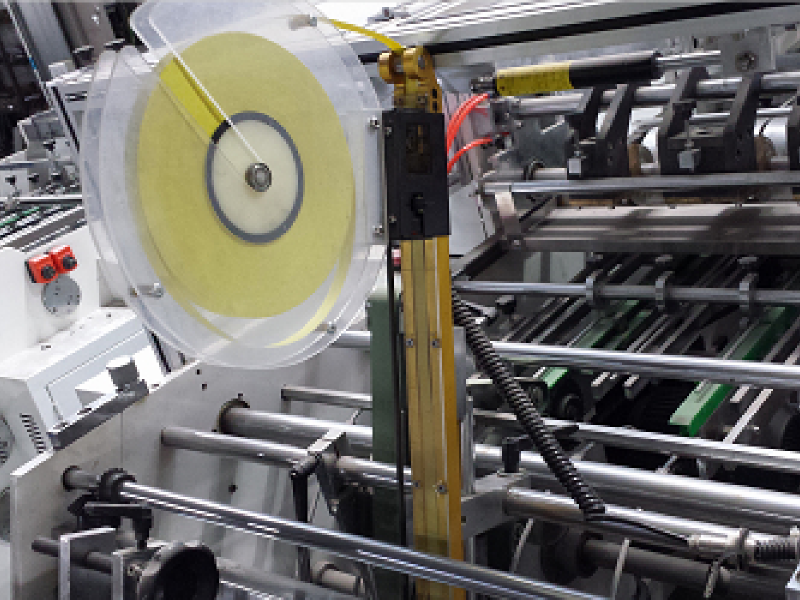

2.Adopt automatic paper tape insert and cut counting device or cylinder thimble dot counting method, counting is accurate, can carry on automatic nondestructive counting to any box type.

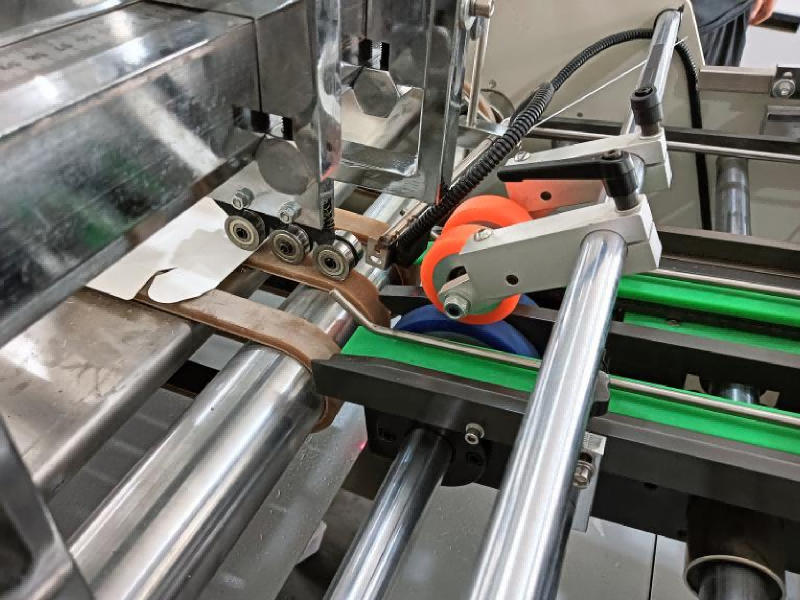

Automatic gluing system controlled by reduce motor from china. Gluing point is made of sponge and adjusted convenient.
FORMING AND COLLECTING SYSTEM

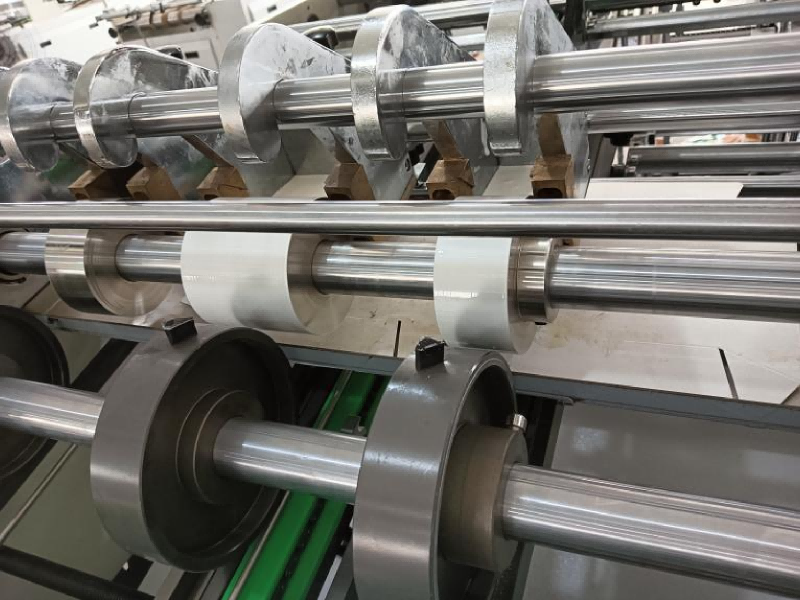

Every parts of forming and collecting system can be adjusted according to the size of mold.The whole collection system can be opened to change mold and install the forming parts conveniently.

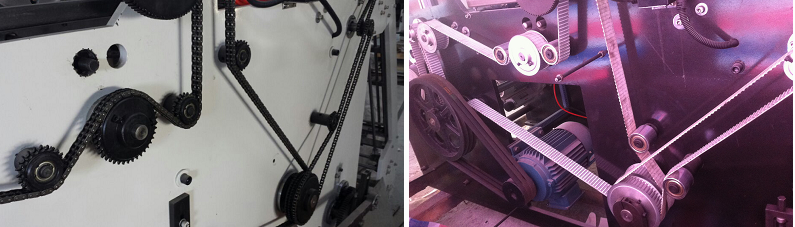

New design driving uses chain instead of belt.The belt is easy to be damaged under the high speed running,and costed much after sold.

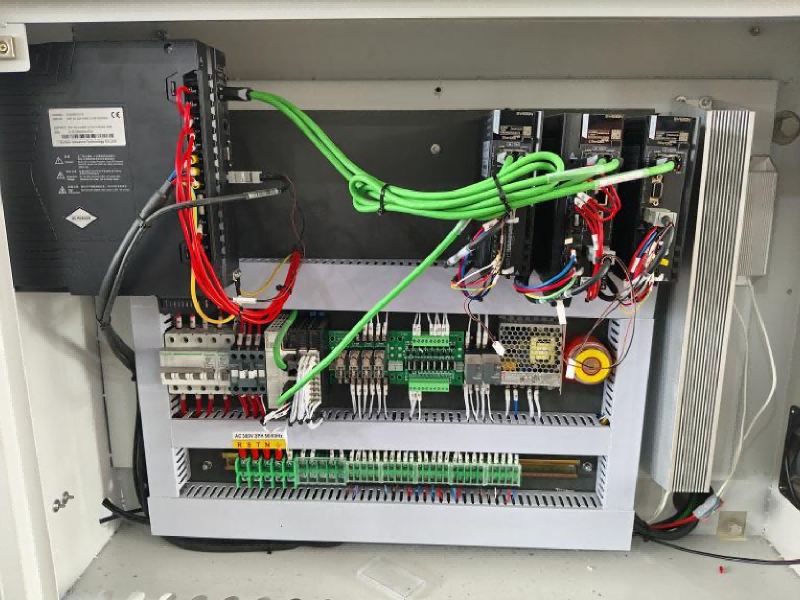

Four servo motors independently control paper feeding, paper advancement, paper ejection, and forming, ensuring higher precision and enabling faster and more convenient adjustment of distances for feeding, advancement, ejection, and forming, ultimately saving time.

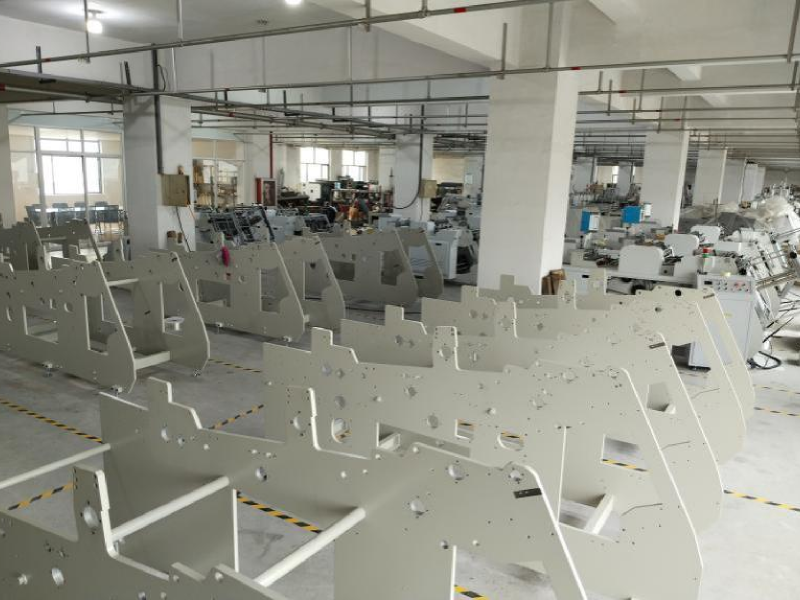

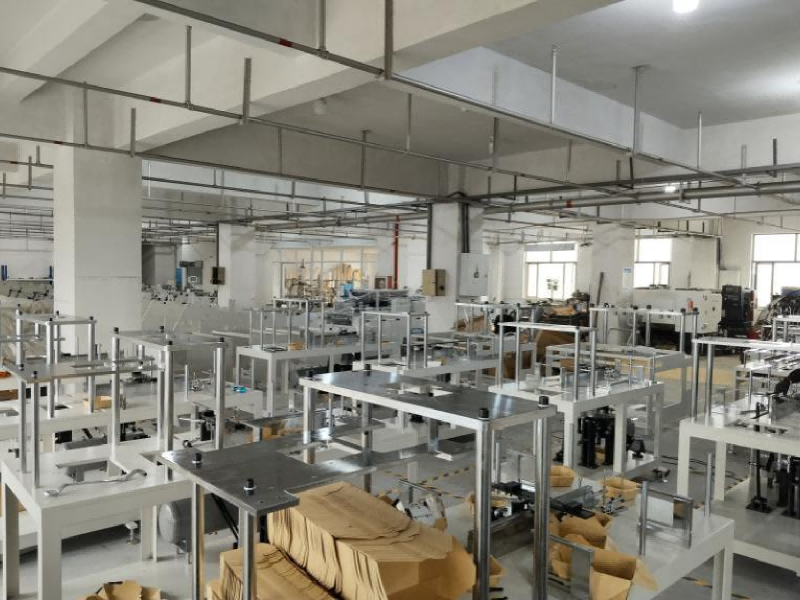

Professional Manufacturing:
