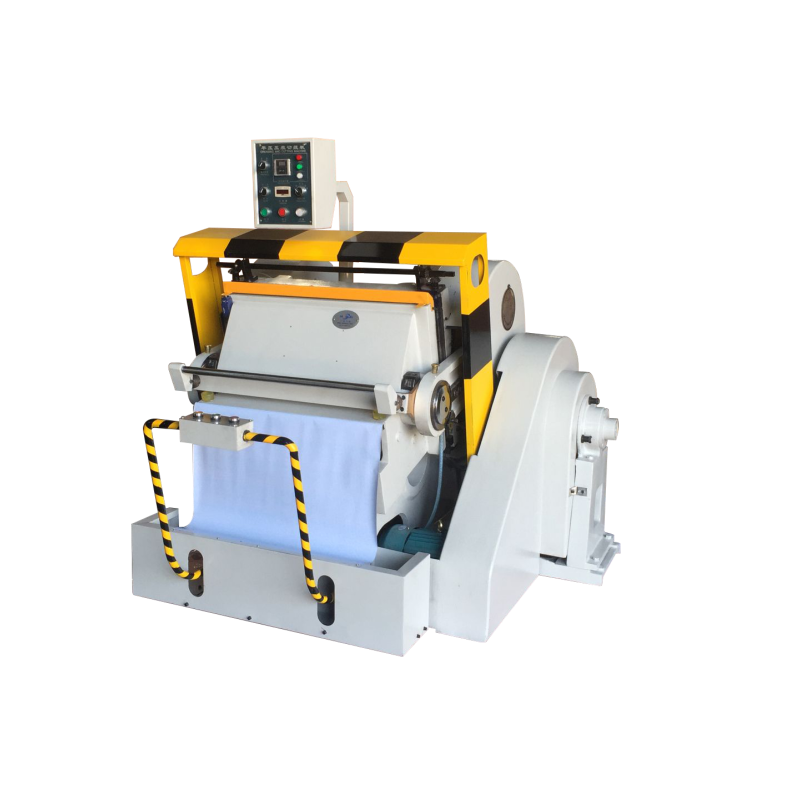

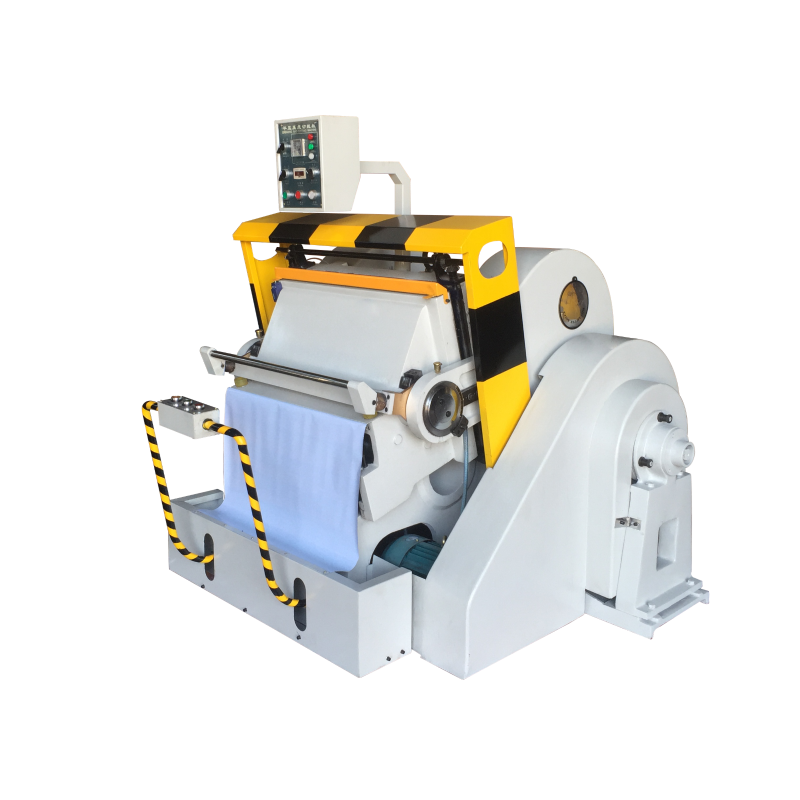

Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to Post press processing and product packaging industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
Specification
MODEL |
Unit |
ML750 |
Platen Size |
mm |
750*520mm (29.5*20.5 inch) |
Max Cutting rule |
m |
≤15m |
Impressions Per Min |
times |
25±2 |
Motor Power |
kw |
2.2kw |
N.T |
kg |
1600kg |
G.T |
kg |
1700kg |
Package size |
mm |
1520*1340*1550mm |
Package |
Wooden case with free fumigation |
Voltage |
220/380/415V 50/60Hz 3Phase |
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
OPTION
CE model(Infrared ray device and safe guard choose one)
