01. Usage:
New paper cup forming machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), copper hot head welding, transfer of mechanical paper tube, oil injection, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications. It is a paper cup equipment independently researched and improved by our company to improve the stability of the whole machine.
FPaper materials: 150-190GSM single PE coated paper (190-350gsm option with ultrasonic welding, double PE coated paper option with ultrasonic welding and water-cooling device)
03. Specification:
| Model |
MYB-9 |
| Paper Cup Size |
4ML-16oz (Various molds can be replaced according to the actual capacity of the user.) |
|
| Production Capacity |
65-85pcs/min |
| Power Voltage |
220V 50Hz or380V 50Hz |
| Total Power |
4KW |
| Weight |
1700kg |
| Dimension |
2000*1000*1700mm |
04. Feature Highlights
1. Full automatic new upgrade model
2. Multiple paper feeding
3. Automatic fueling system
05. Details:
 |
 |
 |
 |
 |
 |

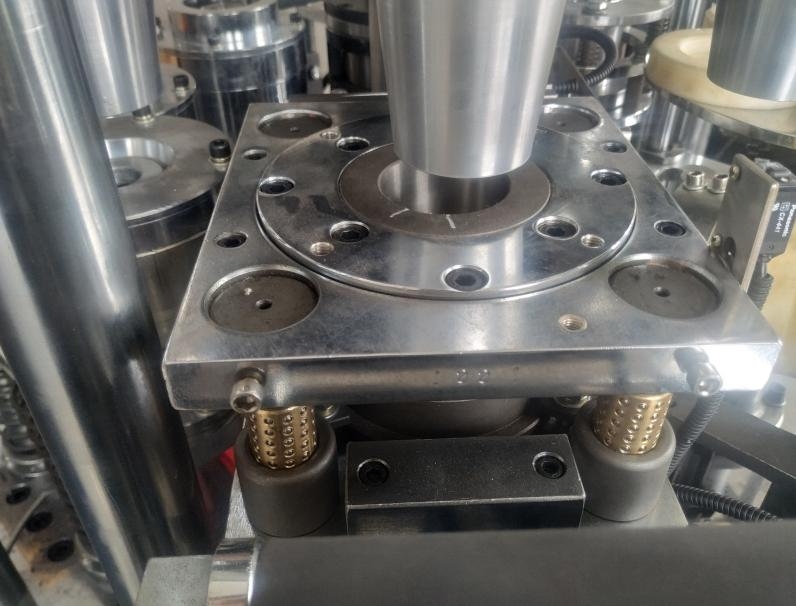

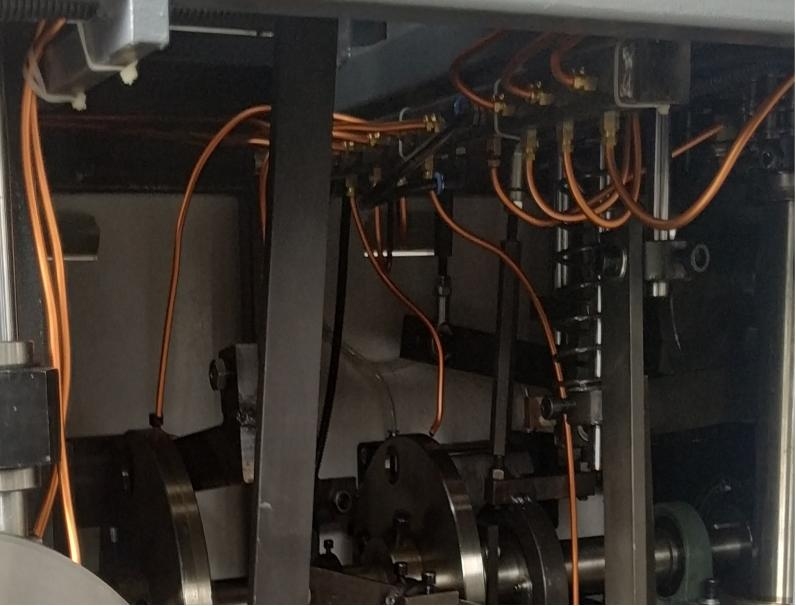

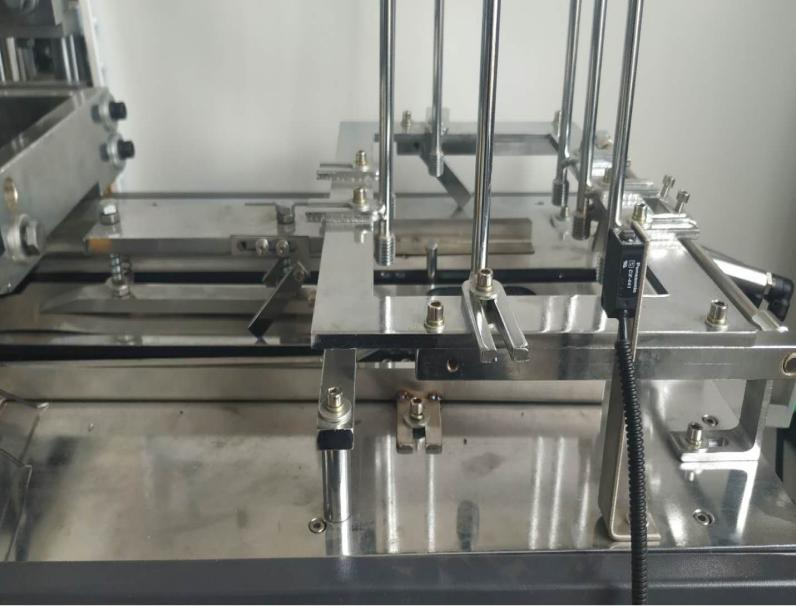

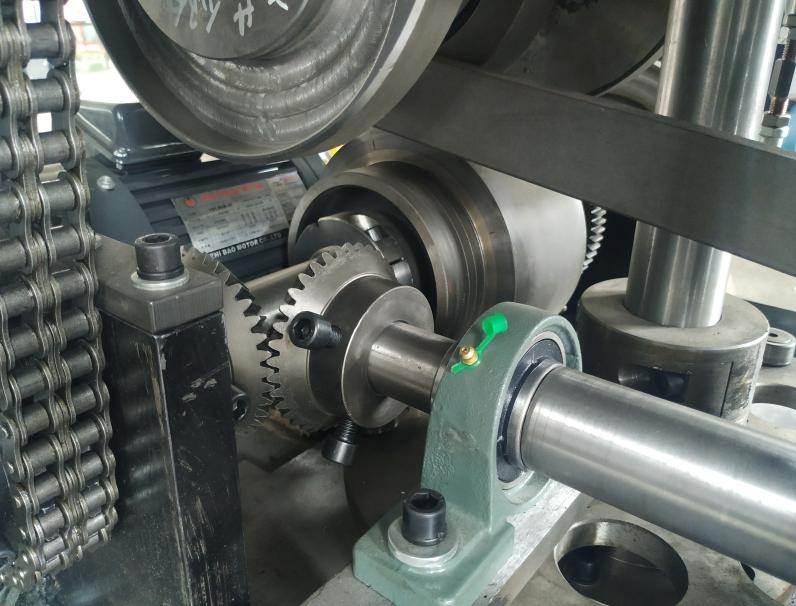

1. Three times of paper feeding, multiple mediation, to avoid unevenness on both sides of the paper cup. 2. The encoder and the optical eye control the machine at the same time, and a fan-shaped piece is equipped with a cup bottom to avoid waste.Fault alarm, automatic shutdown. 3. The machine automatically refuels the positions that need to be refueled through the copper pipe, saving labor. 4. The inside of the machine is connected by a sheave, and the parts are connected more closely. It is not easy to loosen during the operation of the machine. 5. Drain the bottom:In the past, the process of feeding the bottom paper to the bottom paper is prone to the bottoming phenomenon. The equipment is used to directly feed the bottom to the bottom, and the bottom is avoided in one step. |
06. Main configuration list:
| NO |
SPARE PARTS |
SUPPLIER |
| 1 |

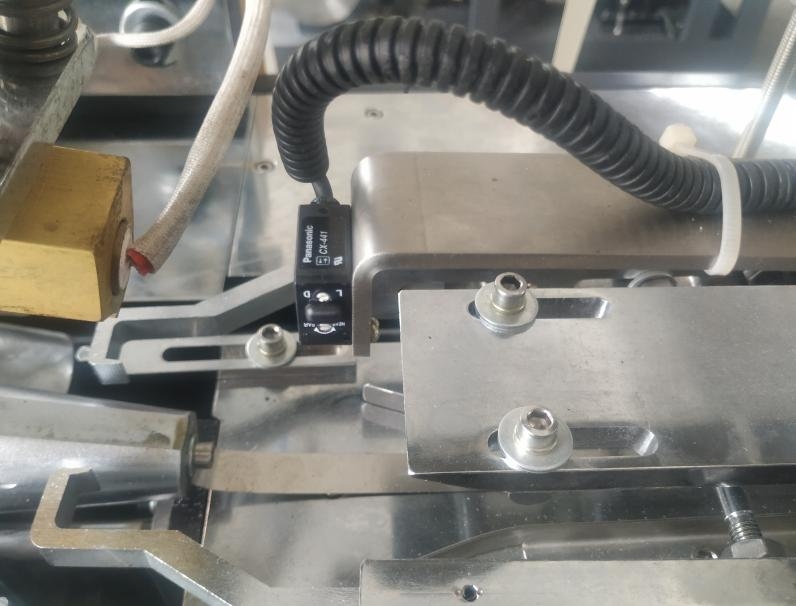

Photoelectric 441 |
Panasonic Japan |
| 2 |
Frequency Converter |
Haipu |
| 3 |
Small relay |
CHNT |
| 4 |
Solid State Relay |
Yangming, Taiwan |
| 5 |
AC contactor |
CHNT |
Functions and details are constantly upgraded, The above configuration is subject to change without prior notice.
07. Who are we?
Professional Manufacturing:
A strong enterprise focused on the production of paper container forming machines.
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers. |
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products. Complete Specifications: Meet diverse needs and cover a wide range of industry applications. Vertical Technology: Deepen every production process to continuously enhance technological standards. Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality. |
 |
 |

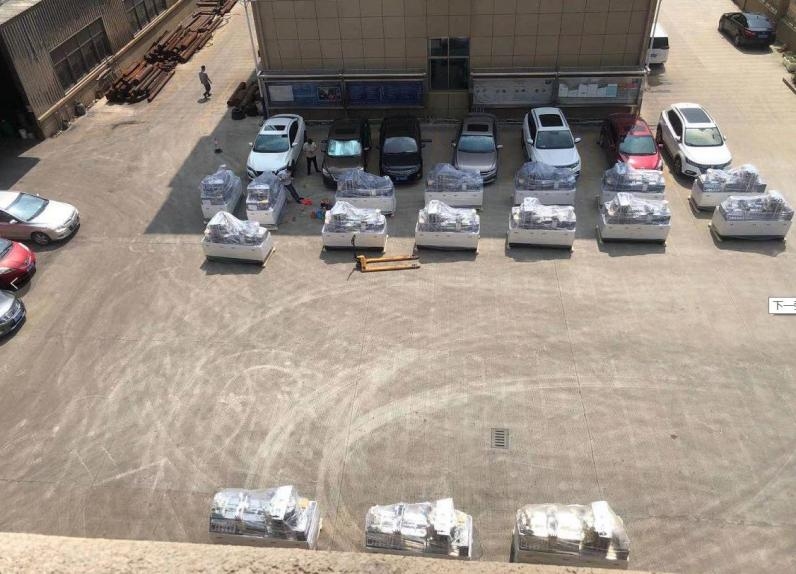

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods. |
 |
 |
Printing and packaging machinery traders
Cargo import and export trading company
paper offset printing plant
label flexographic printing plant
cardboard box manufacturer
corrugated box manufacturer
color box carton manufacturer
book and magazine manufacturer
paper product container manufacturer
Bakery packaging box manufacturer
plastic sheet product packaging manufacturers
Paper products processing enterprises
Food packaging manufacturer
09. Why choose us？
| QUALITY ENDORSEMENT |
|
Cargo shipped all over the world, global logistics support!
|

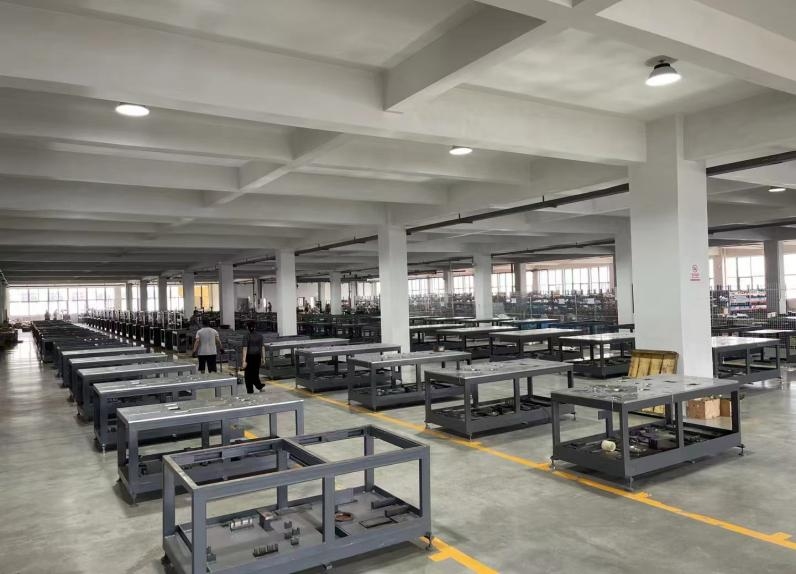

Stable quality starts with parts processing. |
