01. Usage:

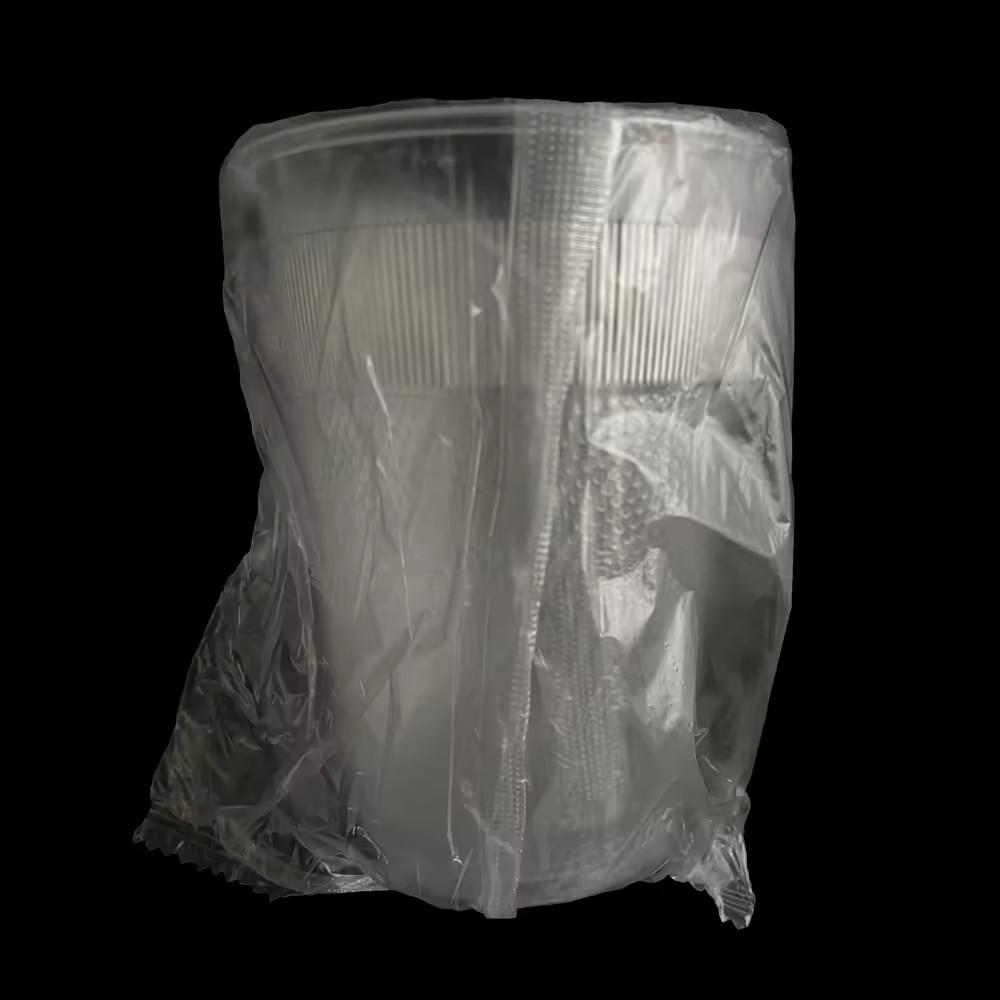

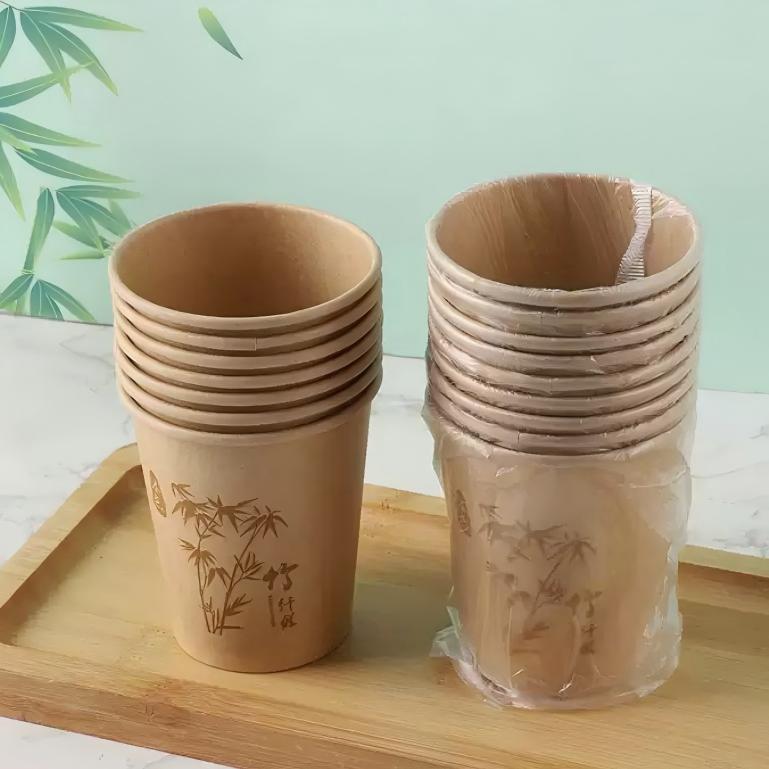

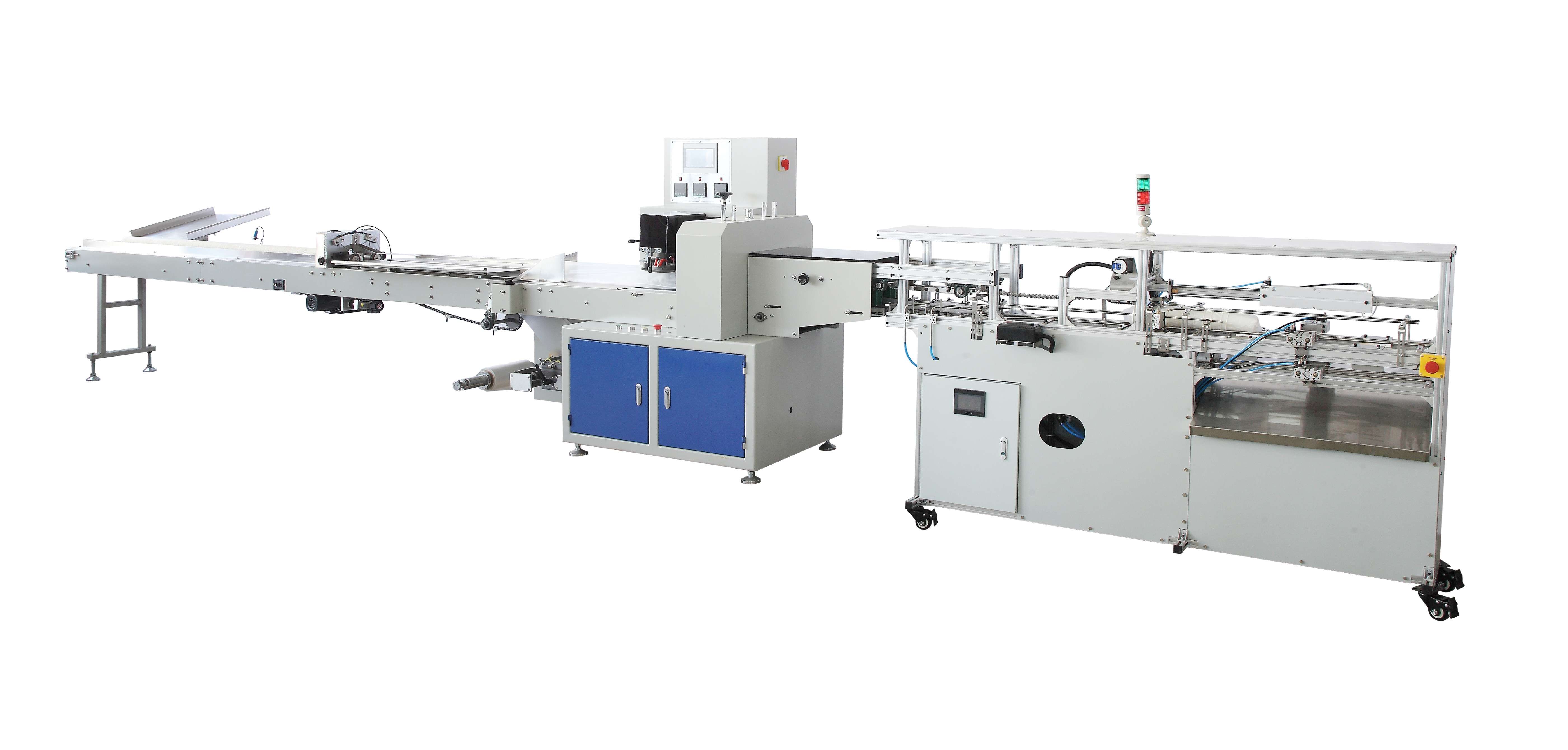

This machine is designed for automatic single-cup wrapping and stacking. It individually wraps paper or plastic cups with LDPE film, providing a protective barrier against dust, dirt, and handling contamination during storage and transport. The wrapped cups are then stacked neatly for bulk packing. Widely used in high-end hotels, catering services, airline meal provisioning, and disposable tableware suppliers to ensure hygienic, presentable cup dispensing for guests.
02. Consumables:
Film materials: 0.012-0.06mm LDPE
03. Specification:
| Model |
MSZW-450 |
| Film max-width |
450mm |
| Film thickness |
0.012-0.06mm |
| Packaging film material |
LDPE |
| Packing speed |
120pcs/min |
| Bag dimensions |
L (60–300mm) * W (30–80mm) * H ≤35mm |
| Weight |
1200kg |
| Working Power |
2.5kw |
| Cup diameter |
50-100mm |
| Number of single counting |
1pc |
| Number of cup stacking |
25/50pcs |
| Counting speed |
120-140pcs/min |
| Count equipment |
Spiral |
| Machine dimension |
7700*1100*1500mm |
| Power |
220 50Hz 1Phase 2.8kw |
| Packaging dimensions |
2700*1300*1700mm;3900*650*700mm;2400*600*1300mm |
| N.W./G.W |
850kg/1000kg |
04. Feature Highlights
1.Ultra-thin film compatible: Supports film thickness as low as 0.012mm (12µm), perfectly matching your LDPE spec.
2.High-speed servo-driven: Packing speed up to 120 pcs/min, with servo motors from INOVANCE for precision and stability.
3.Integrated stacking: Built-in spiral counting and stacking system, streamlining the packing line.
05. Details:

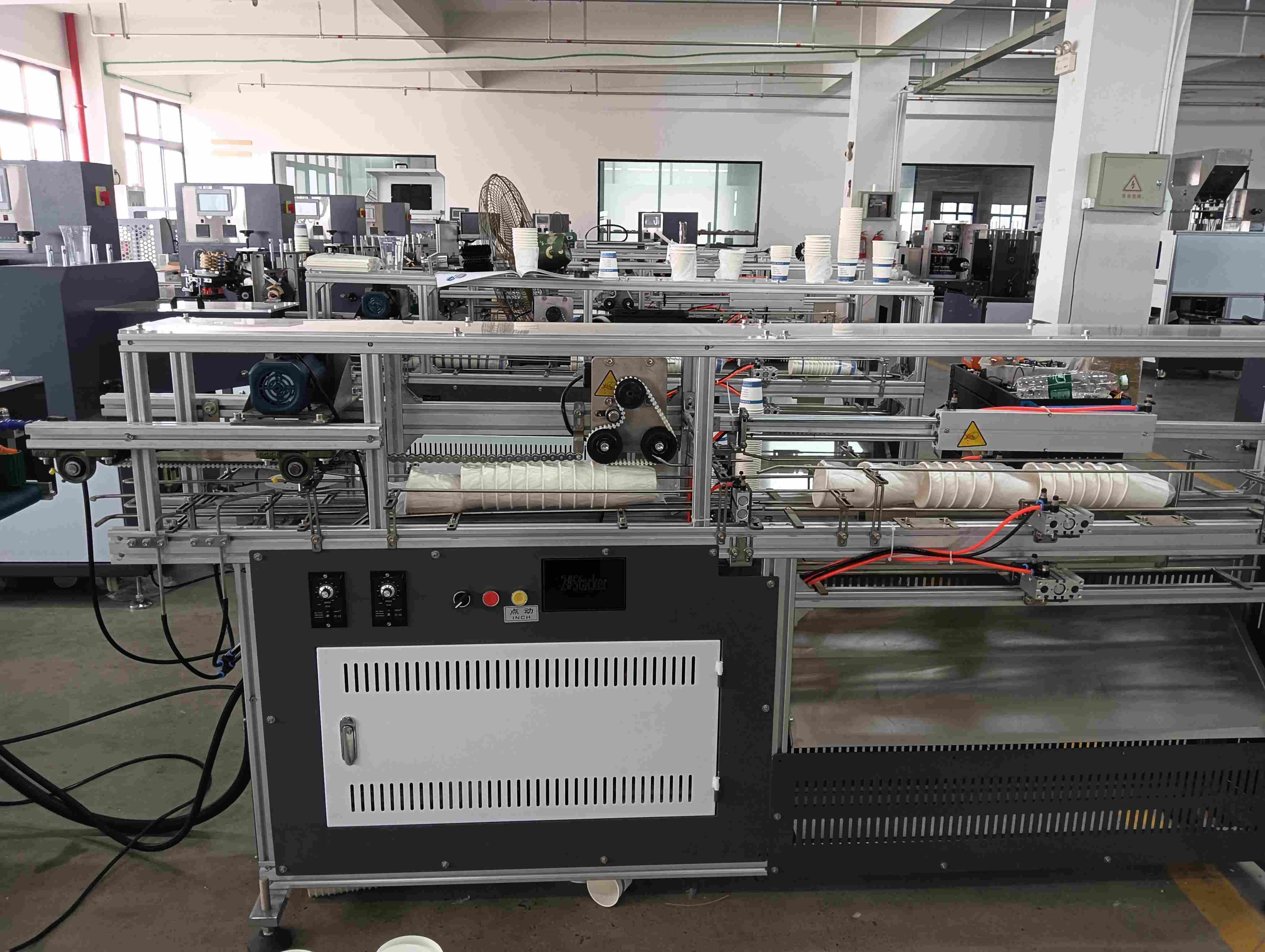

Feeding & Cup Collection Section |

|
|

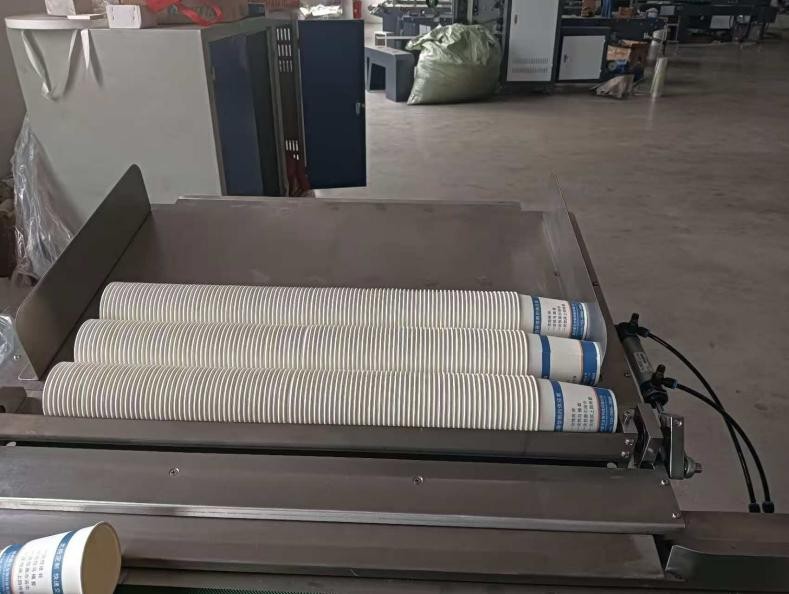

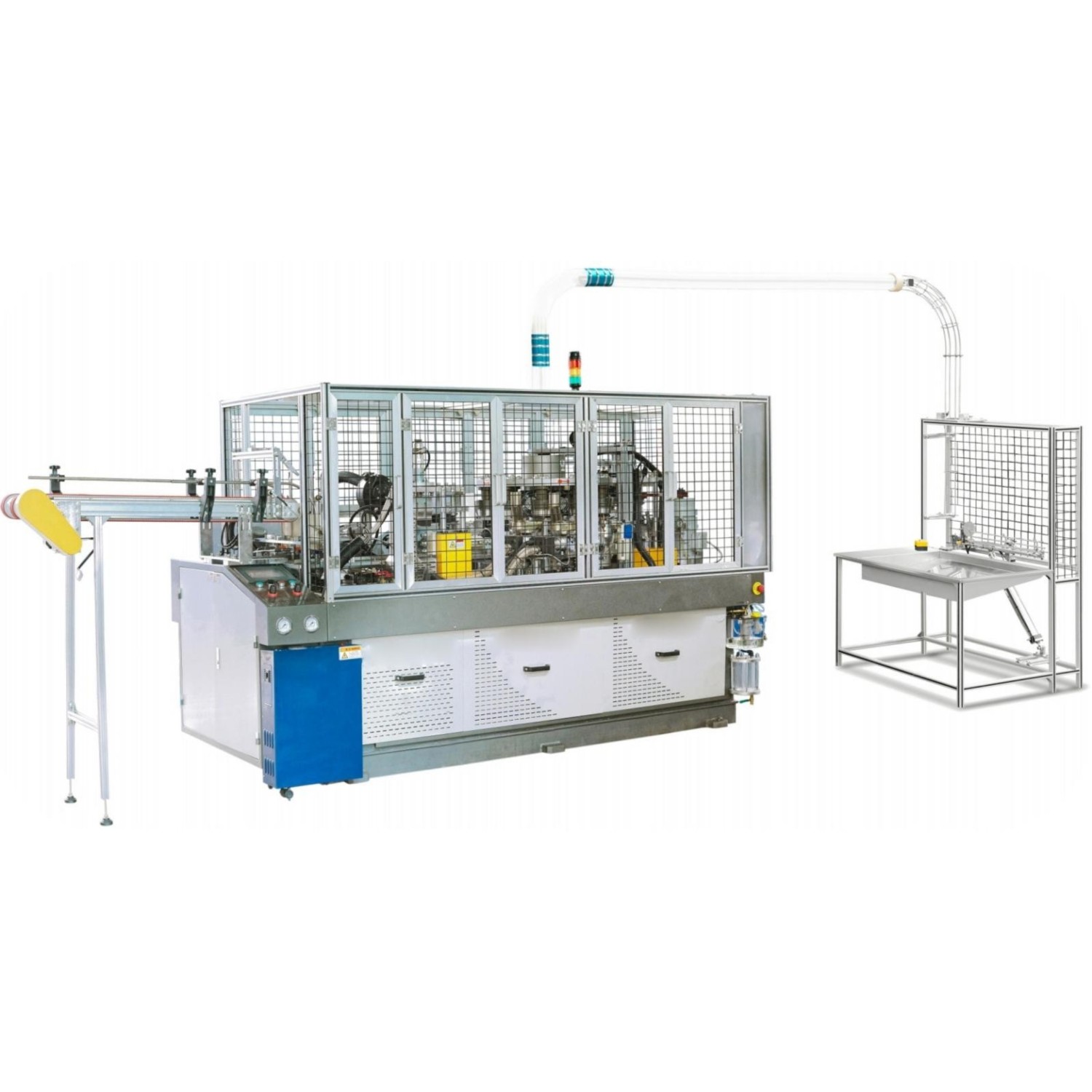

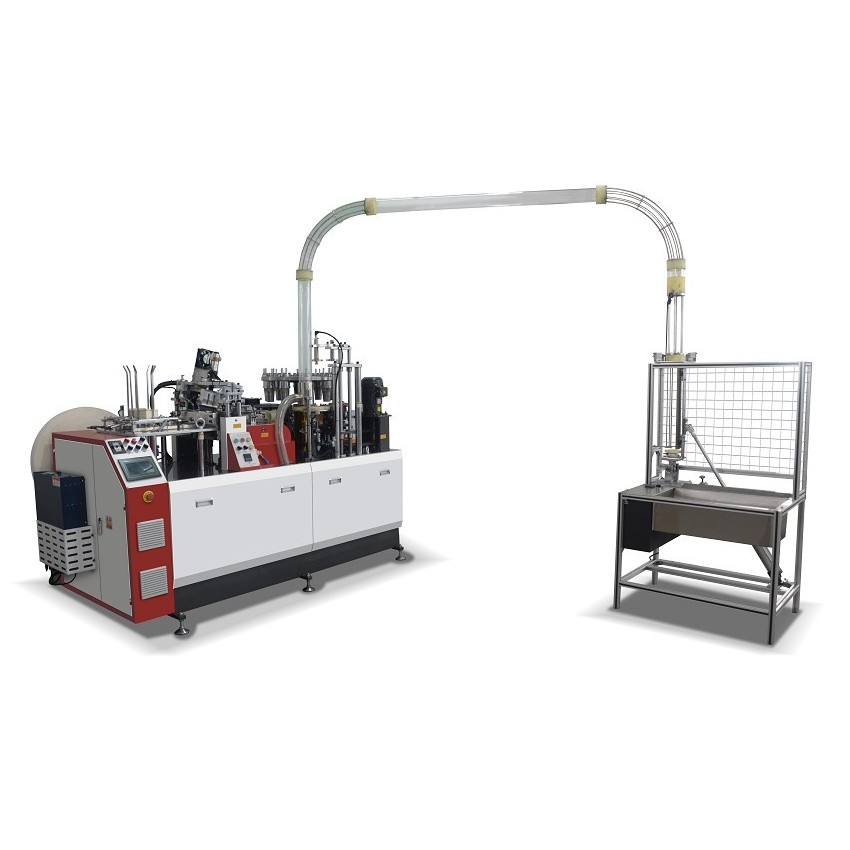

Equipped with a cup collection rack that interfaces directly with upstream cup forming machines, allowing finished cups to be collected and smoothly transferred into the wrapping line for inline continuous production.

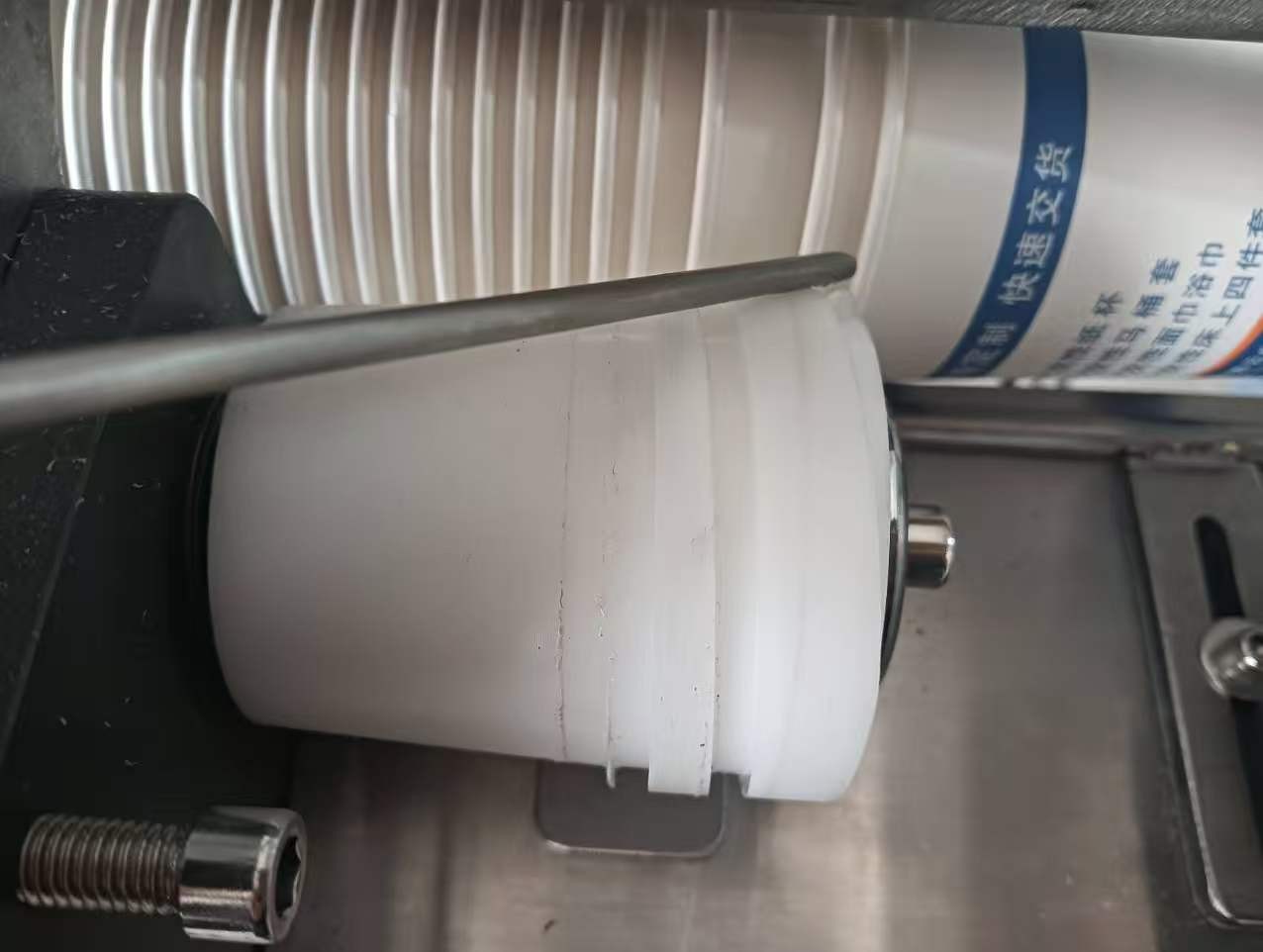

Spiral counting system automatically counts and feeds cups into the wrapping line at 120–140 pcs/min.
|

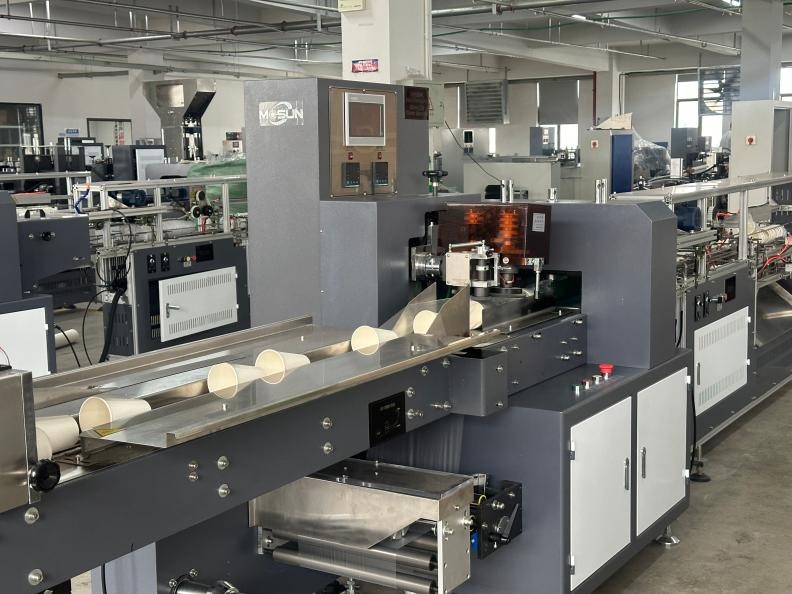

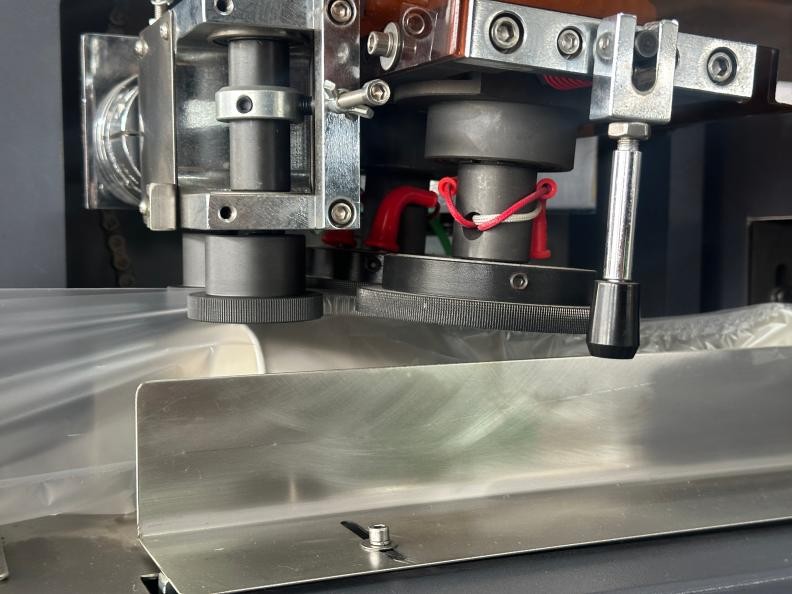

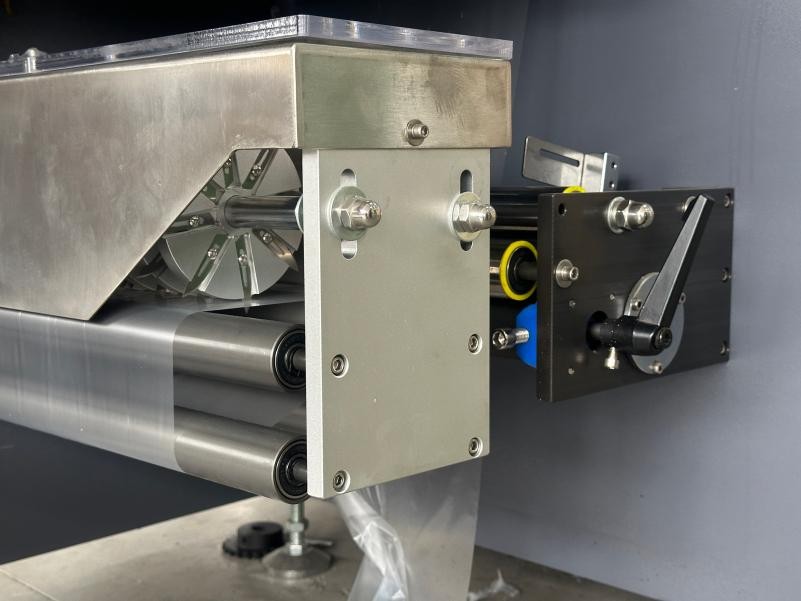

Wrapping Section |

|
|
Supports LDPE film from 0.012mm to 0.06mm, perfectly matching your 12–15µm requirement.
Servo-driven film feeding and sealing ensure precise, consistent wrapping at speeds up to 120 pcs/min.
|
Ventilation & Perforation System |

|
|
Two options available for air release:

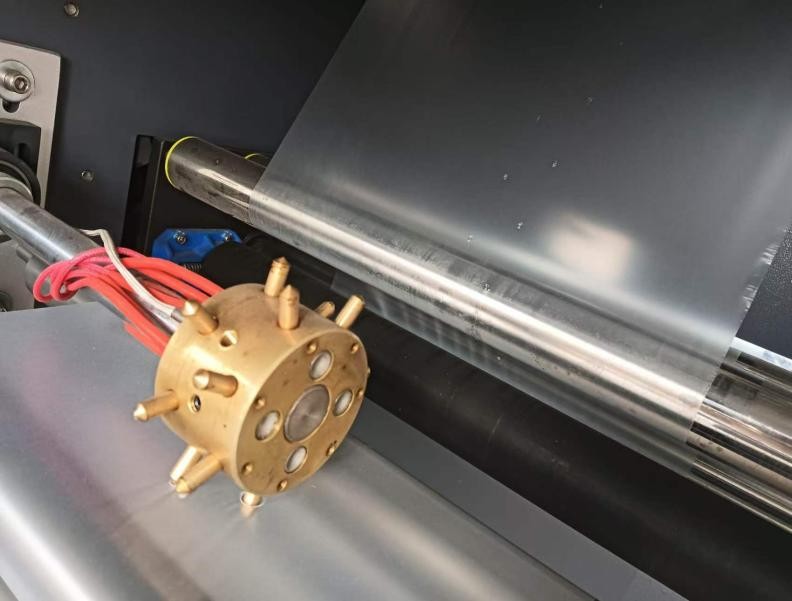

Heated puncture needle – Heated pins melt through the film, creating clean holes without film debris. The melted edge around each hole provides added tear resistance, preventing further tearing during stacking and handling. Ensures consistent hole size and shape for reliable performance. A slight solidified bump remains around each hole.
Blade slitting – Sharp blades make small slits on the film for air release. The film surface remains smooth with no bumps. Simple and reliable structure with low maintenance cost.
Both options effectively release trapped air, ensuring cups nest tightly for stable stacking while maintaining protective coverage. Please select your preferred option.
|

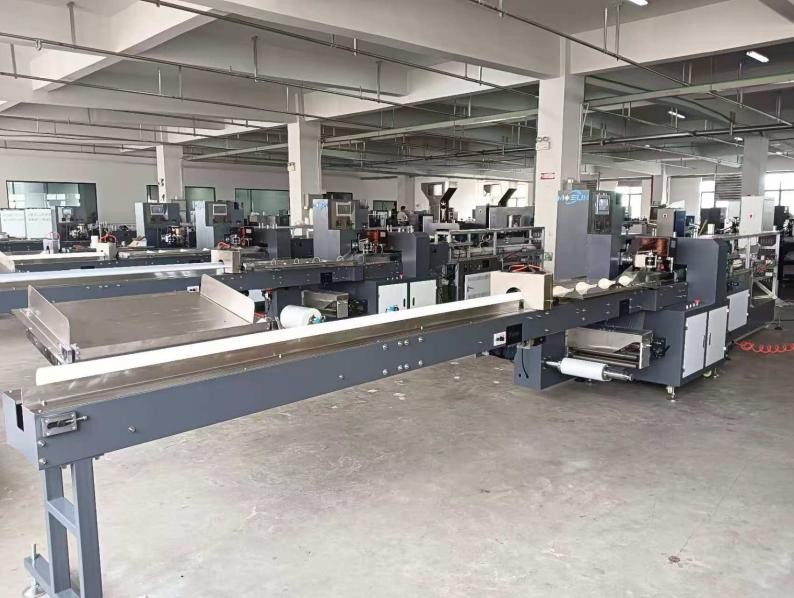

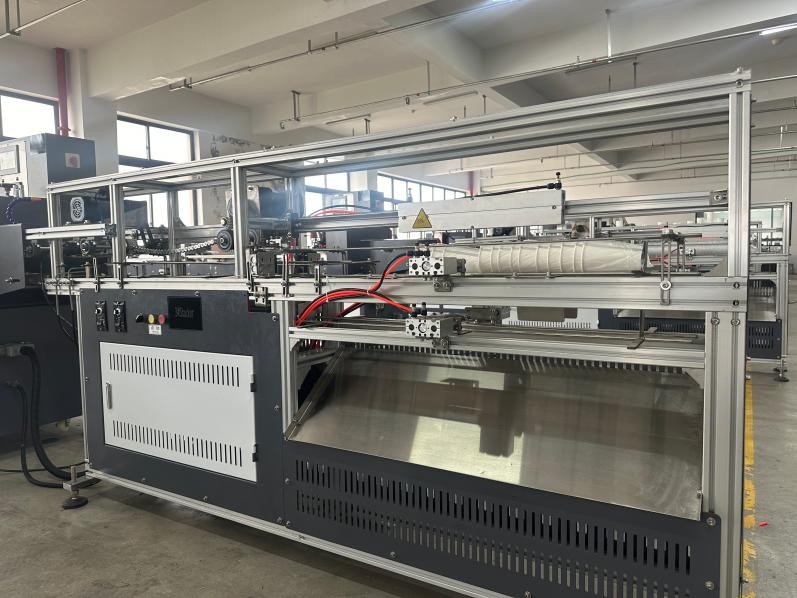

Stacking & Output Section |

|
Wrapped cups are automatically stacked and conveyed to the end of the line for packing. |
Control & Monitoring System |

|
|

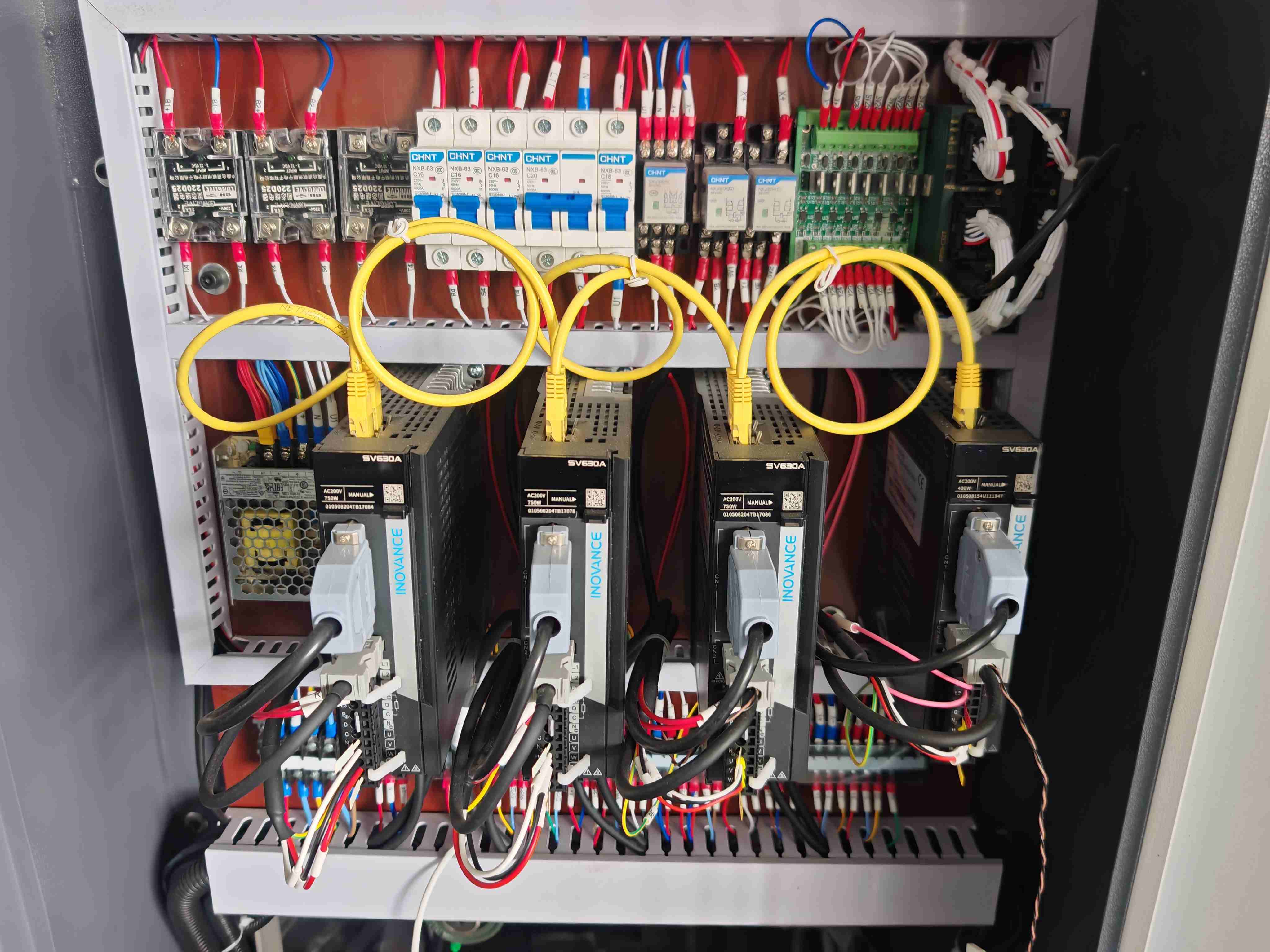

Panasonic PLC with MCGS touchscreen for intuitive operation, real-time monitoring, and quick parameter adjustments.

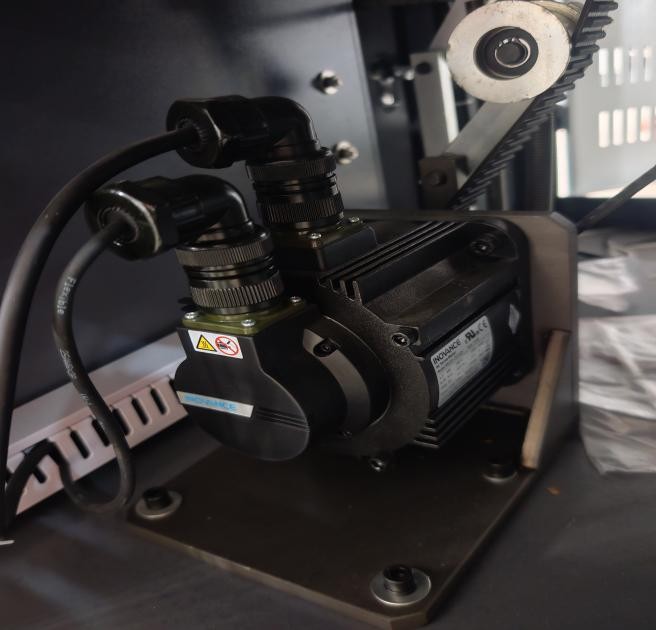

INOVANCE servo motors and premium electrical components (CHNT, MEANWELL, etc.) ensure reliable, long-term performance.
|
