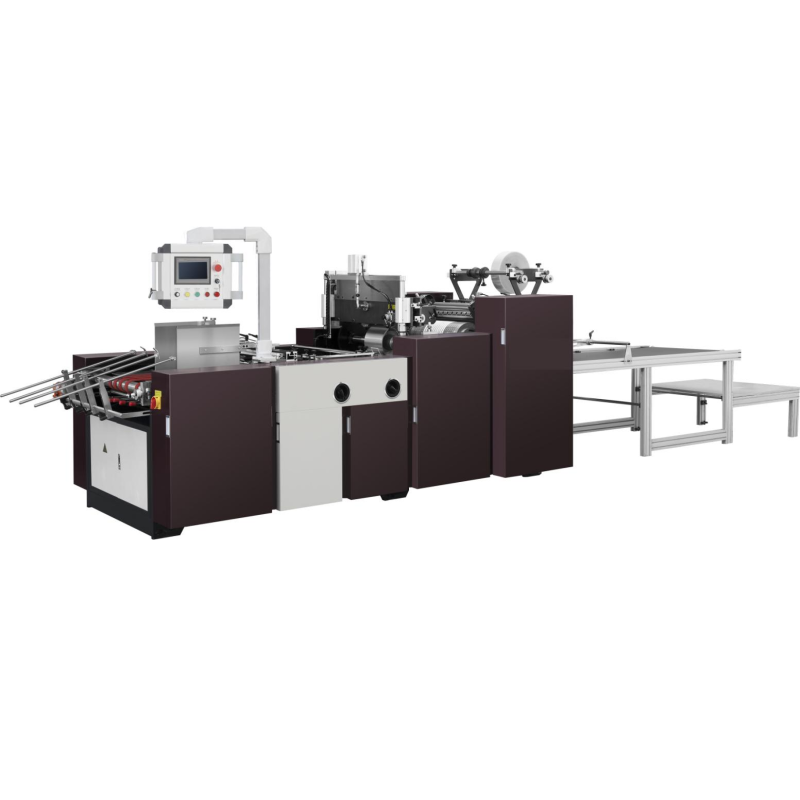

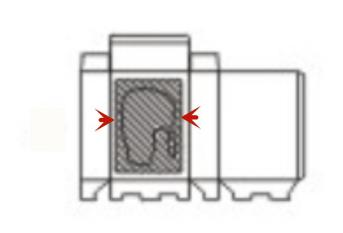

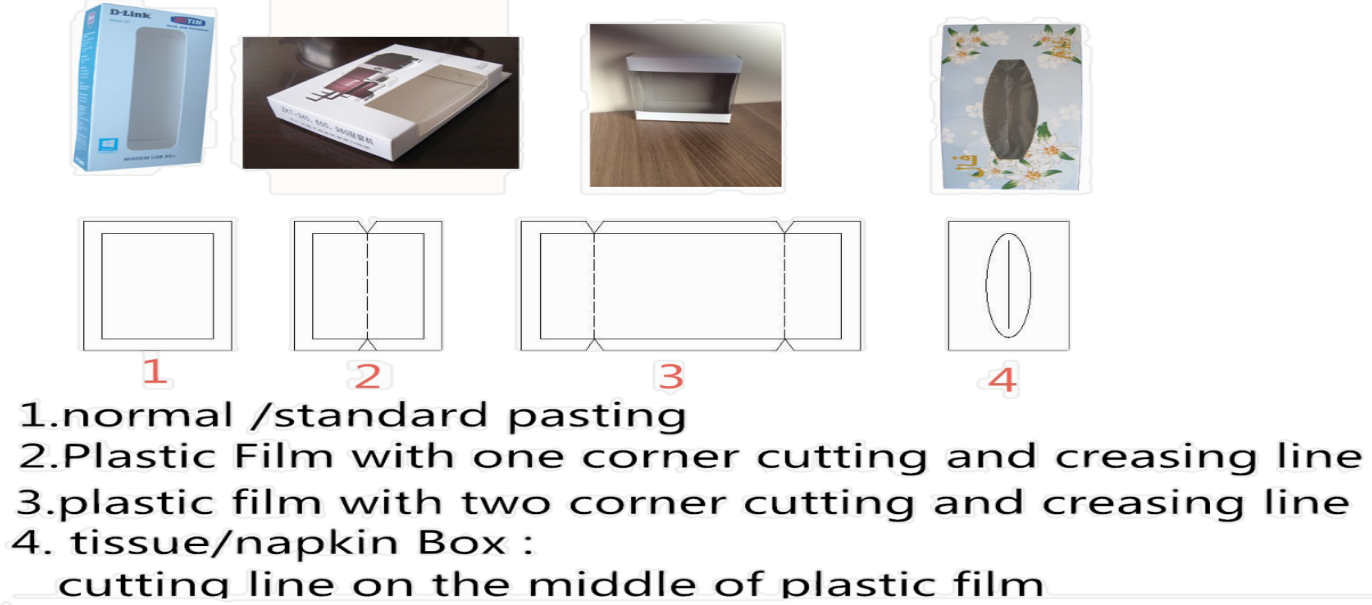

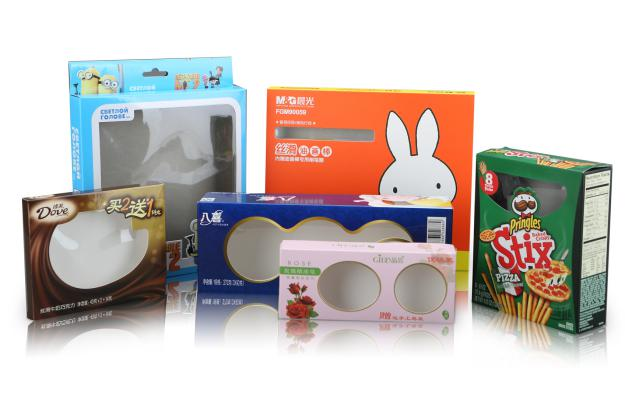

Window Patching Machines are widely used for sticking films on the windows of various color window boxes ,color boxes and paper boxes,e.g medicine box ,shirt box,etc.
Specification:
| Model |
ZKT-700 |
ZKT-1080 |
|

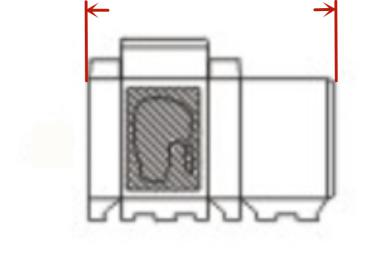

Paper length
|
120 - 700mm |
200 - 680mm |
|
|
|
|
|
|

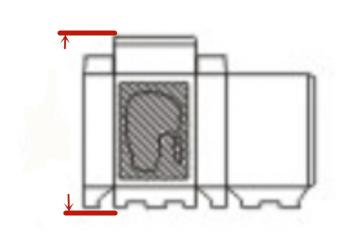

Paper width
|
160-680mm |
100-1080mm |
|
|
|
|
|
|
| Material thickness |
Paper box&Cardboard box：250-1000g/m2, |
| Max corrugated board thickness：3mm |
|

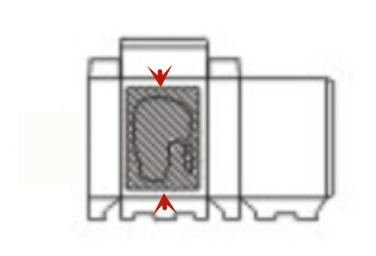

Film Length
|
60- 330mm |
70- 330mm |
|
|
|
|
|
|
|
Film width
|
30-400mm |
30-500mm |
|
|
|
|
|
| Film thickness |
0.03 - 0.25mm,OPP,PVC,PET,PE ect. |
| Normal pasting speed |
7000-31000pcs/h |
6000-19000pcs/h |
| Pump of power |
1.5KW |
4.5KW |
| Main power |
2.2KW |
| Machine weight |
2300KG |
3000KG |
| Machine dimension |
6500*1650*1950mm |
6500*2150*1950mm |
1.The paper feeder adopts photoelectric control, so it is not needed to adjust paper length by hand, thus making paper feeding easy, quick and accurate. It applies to card paper and corrugated paper.

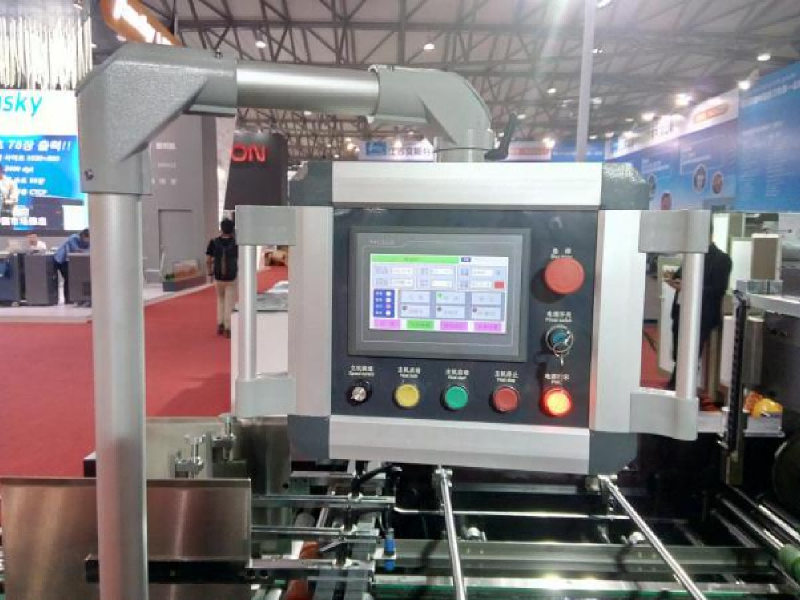

2.The film feeder has an imported servo control system. It is OK to input cutting length on the touch screen, which helps improve precision and facilitate adjustment.

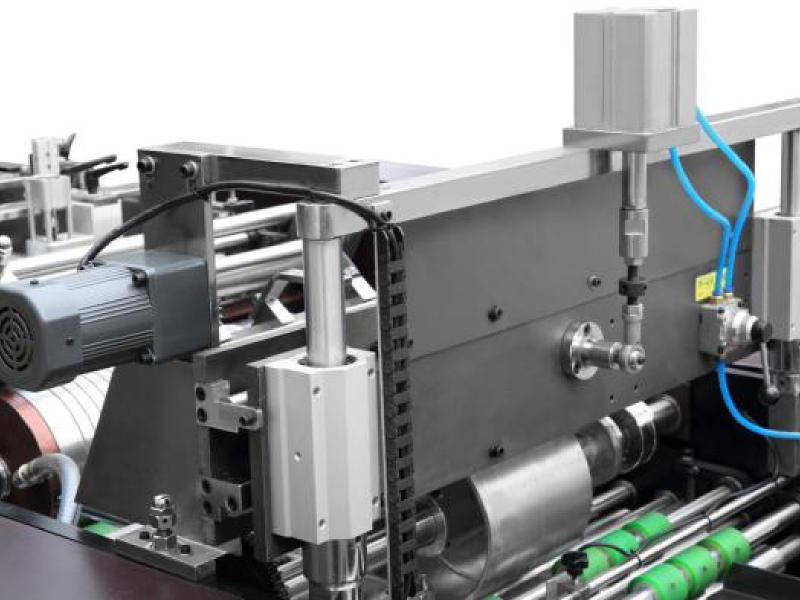

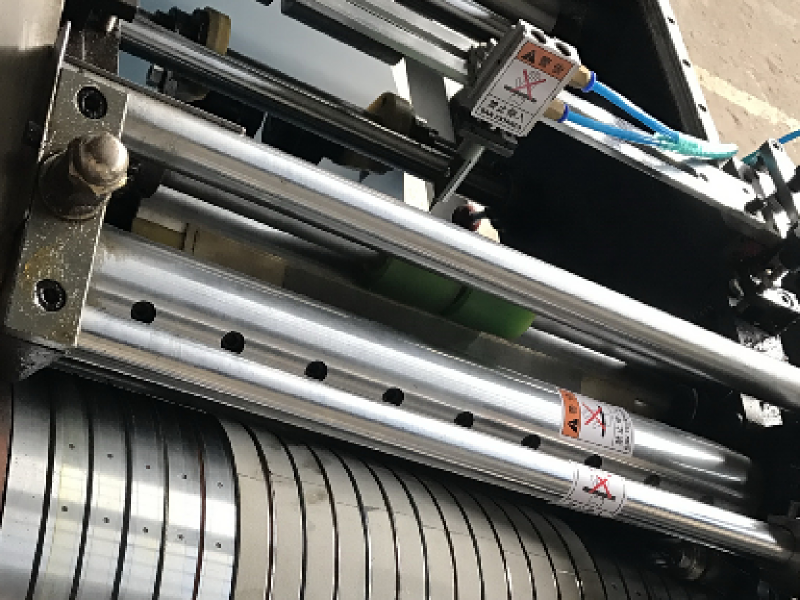

3.The gluing section consists of chrome-plated sizing roller, glue separating guide,side limit and gluing stencil roller. It can be pulled out easily, which simplifies both setting and cleaning. The adjustable glue separating guide can control gluing range and glue volume. After shutdown, the cylinder raises the gluing roller and drives it with a separate motor to prevent glue from solidifying. The printing roller can be adjusted freely in the axial and radial directions without being stopped.
4.A device on the film cuter can rotate axially freely in order to fit different window positions, which helps save the adjustment time and improve efficiency significantly.
5.Compared to the previous machine,each section of this product has improved, thus saving the adjustment time, making it more efficient and friendly in use.
6.The paper and film feeding sections are equipped with a chain guide imported from Germany and a linear guide imported from Taiwan, and other accessories, which helps improve film patching accuracy and reduce noise.
7.The touch screen is equipped with a speed shifting unit. So it can double speed for small-sized products.
 |
 |
The paper feeder is controlled by PLC with a human-computer interface. The length of paper to be fed without adjustment, so that paper can be input quickly and accurately.Also,it applies to card paper and corrugated paper. |
The pin paper feeding part adopts servo control, which can be operated directly on the touch screen,it can change the angle to adjust the connection speed between the paper and the pin, so that make different papers can be fed more stably and smoothly. |
 |
 |

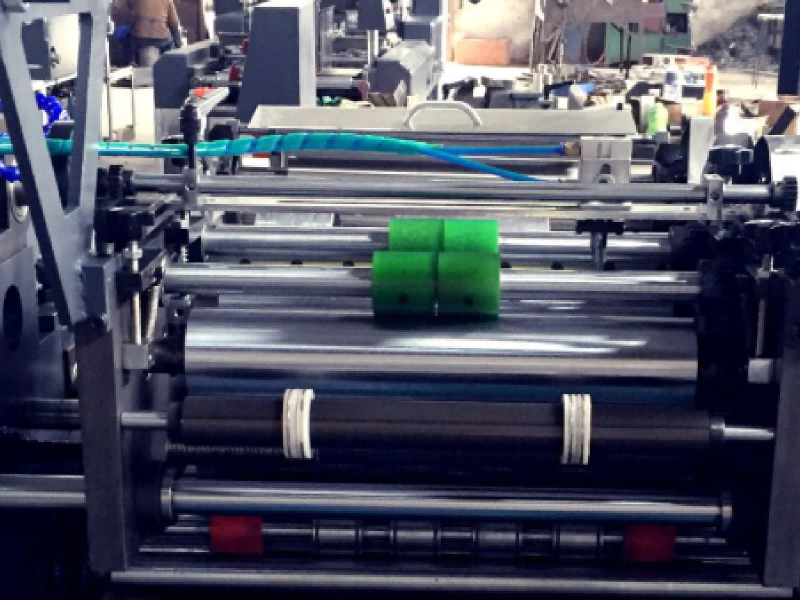

The Gluing Part have been improved,more easily adjustment.the working principle is pneumatic principle, gluing in the basis of the window position, don't need the big gluing plate, is more easier for cleaning. |
Based on the original mechanism, the layout of each section of this product has been improved in order to reduce the adjusting time, so that it becomes more efficiency and friendly. |
