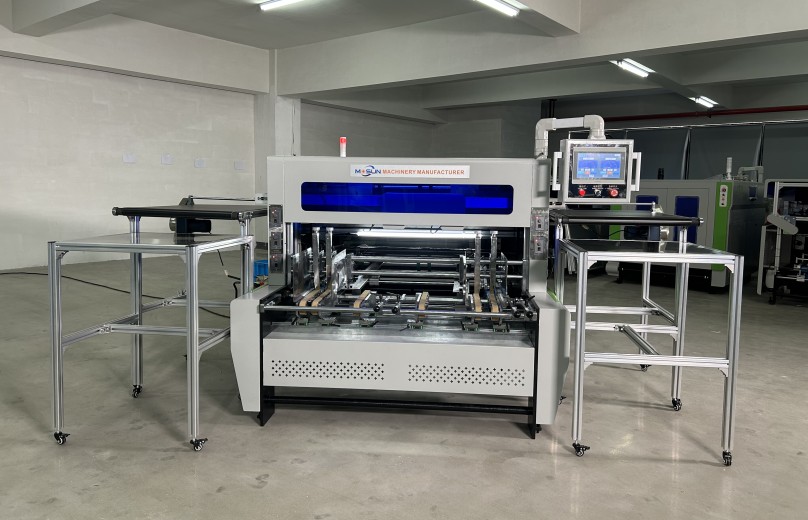

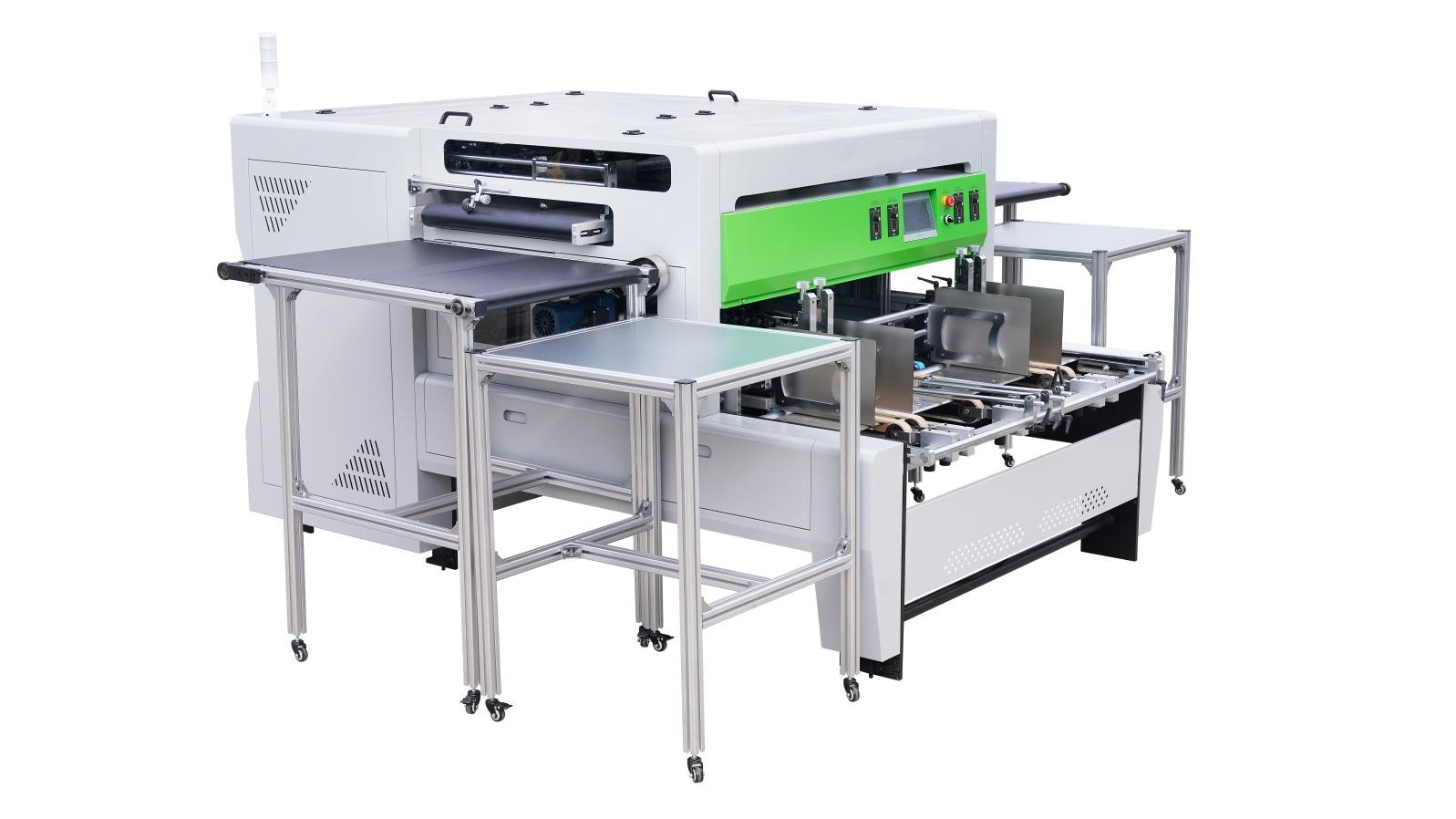

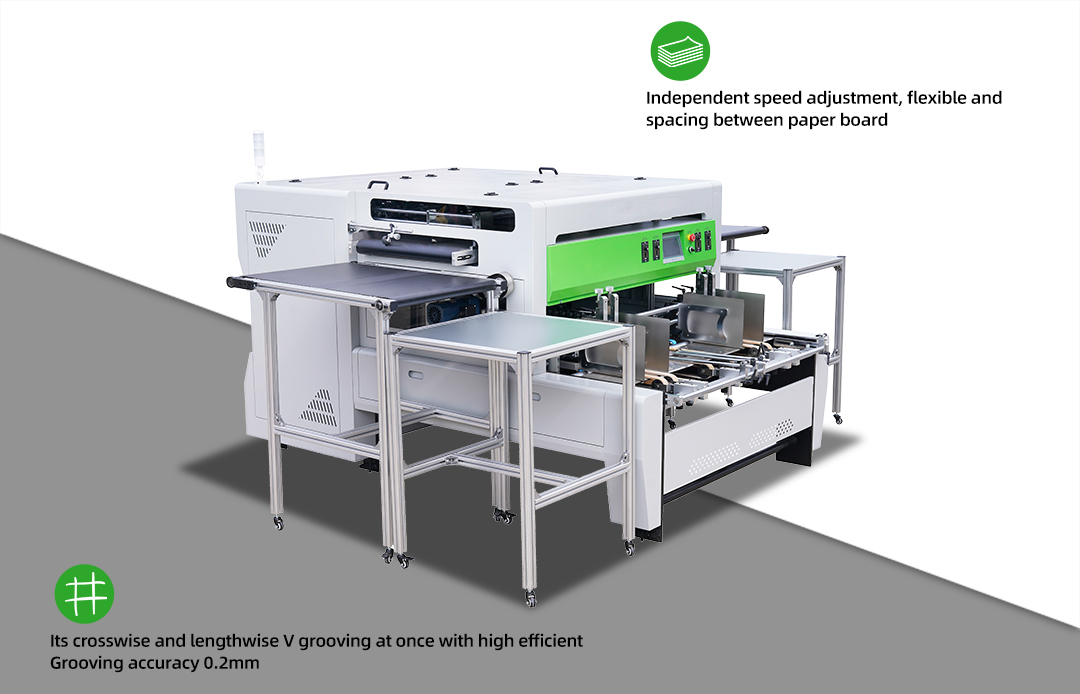

Automatic Dual Station Grooving Machine

Model

MSKC-1000C

Min board size

100*130mm

Max board size

630*1200mm

Grooving accuracy

0.2mm

Thickness of board

0.6mm-4mm

Knife angle

80-140° Adjustable

Knife material

Tungsten steel

Knife shape

V shape grooving

Total knife

10 pieces

Grooving Speed

60-80m/min

Correction length

1465mm

Roller size

Φ600*1300

Power

5.5KW/380V

Machine weight

1780KGS

Machine dimension

2800x1950x1670mm

Packaged weight

2130KGS

Packaged dimension

2950*2100*1820mm

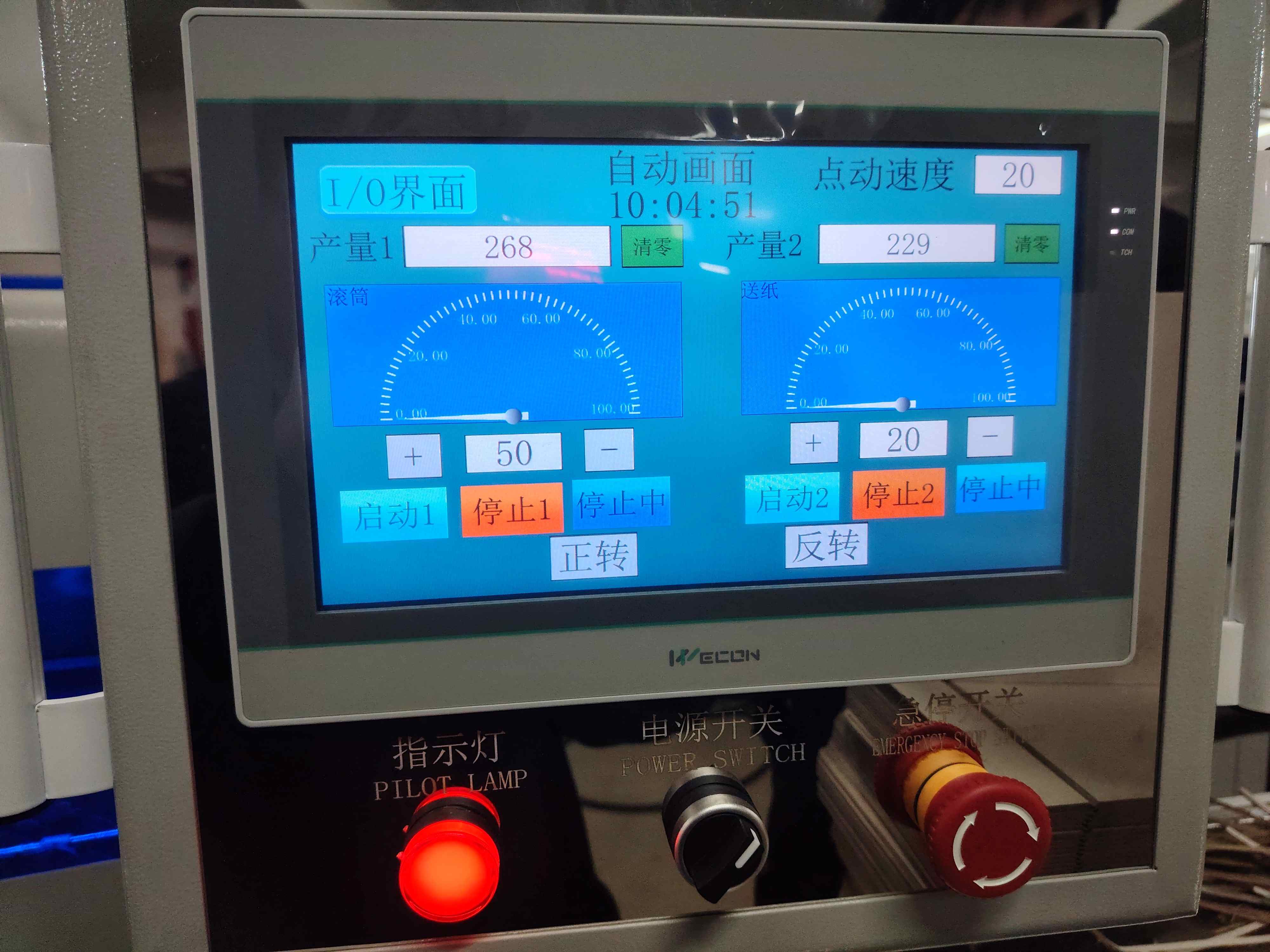

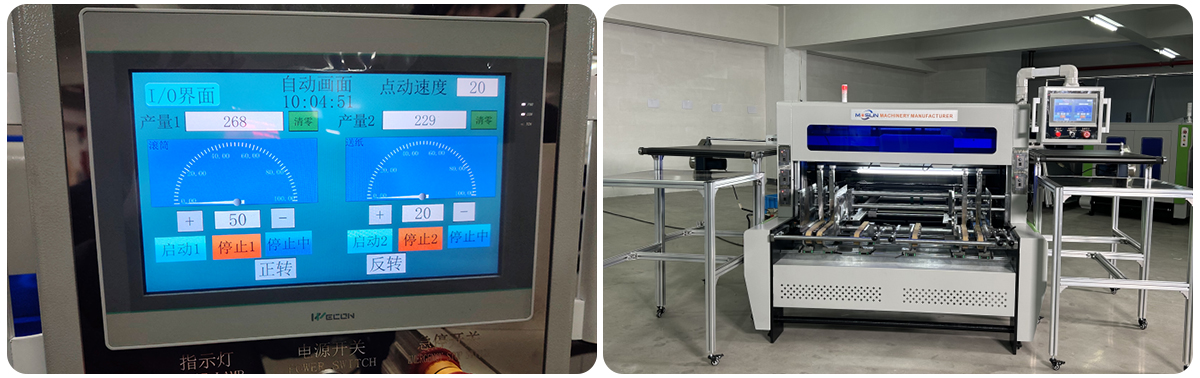

Machine is controlled by a PLC programmable controller(separated computer cabinet) for synchronization and coordination. It with 10-inch WEINVIEW touch screen for easy operate.

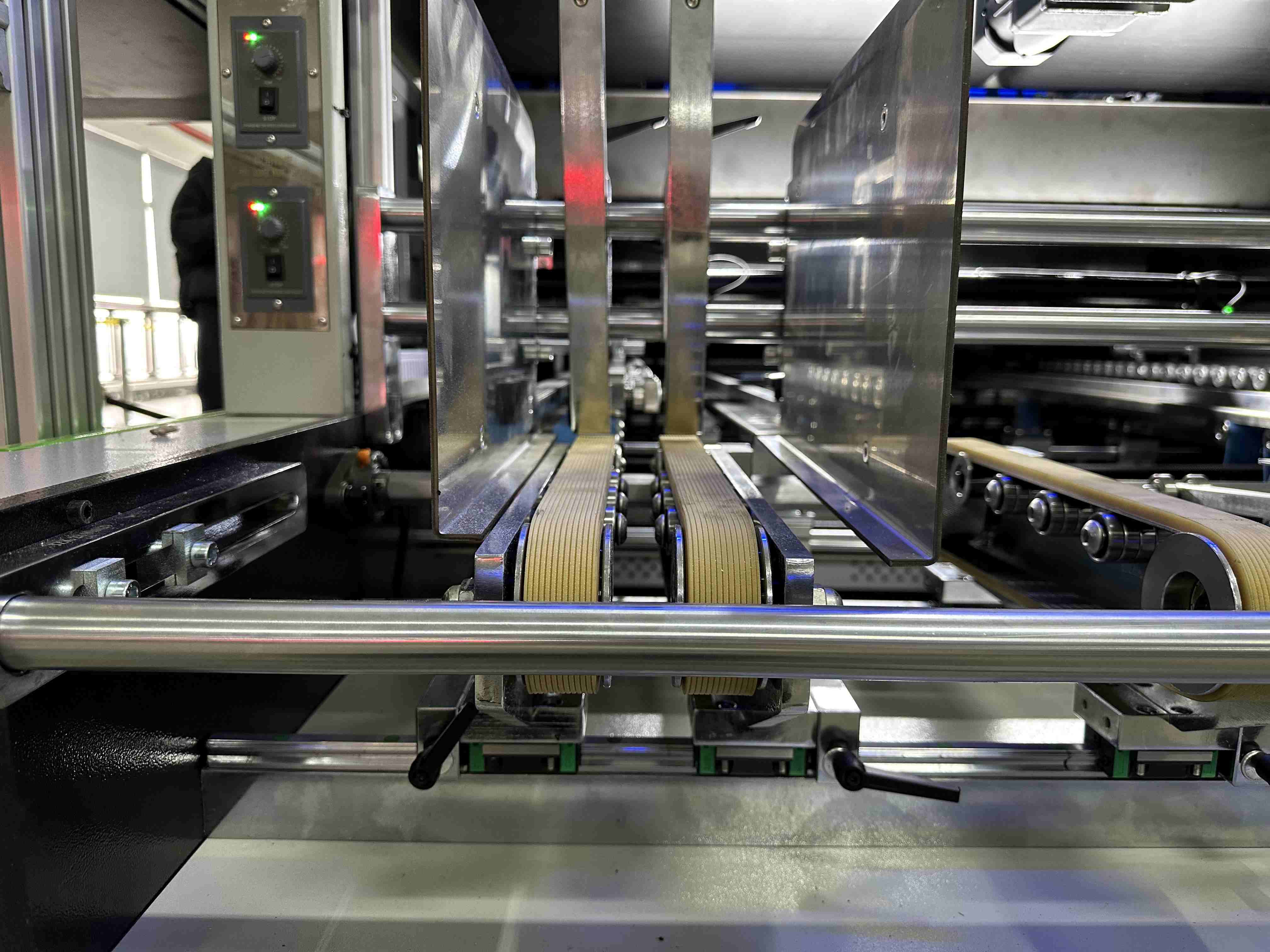

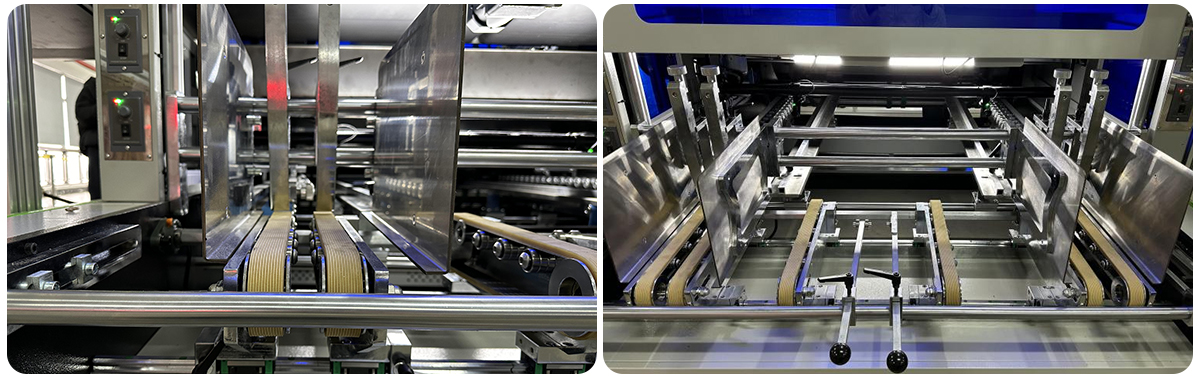

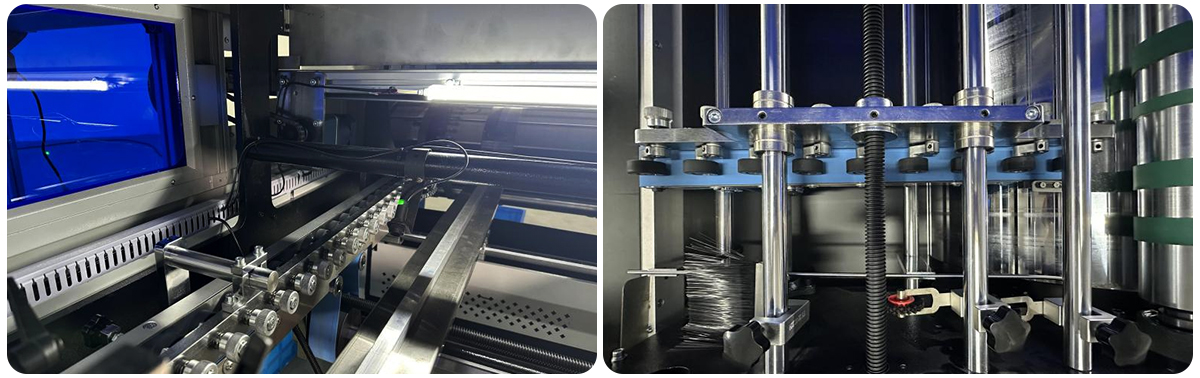

Automatic feeding part. Cardboard carry by the convey belt, double sides position plate are adjustable, they can ensure the precision. Max grooving size of dual station grooving at same time is 550*700mm.

The correction device. It will correct the direction of the cardboard and make it precision.

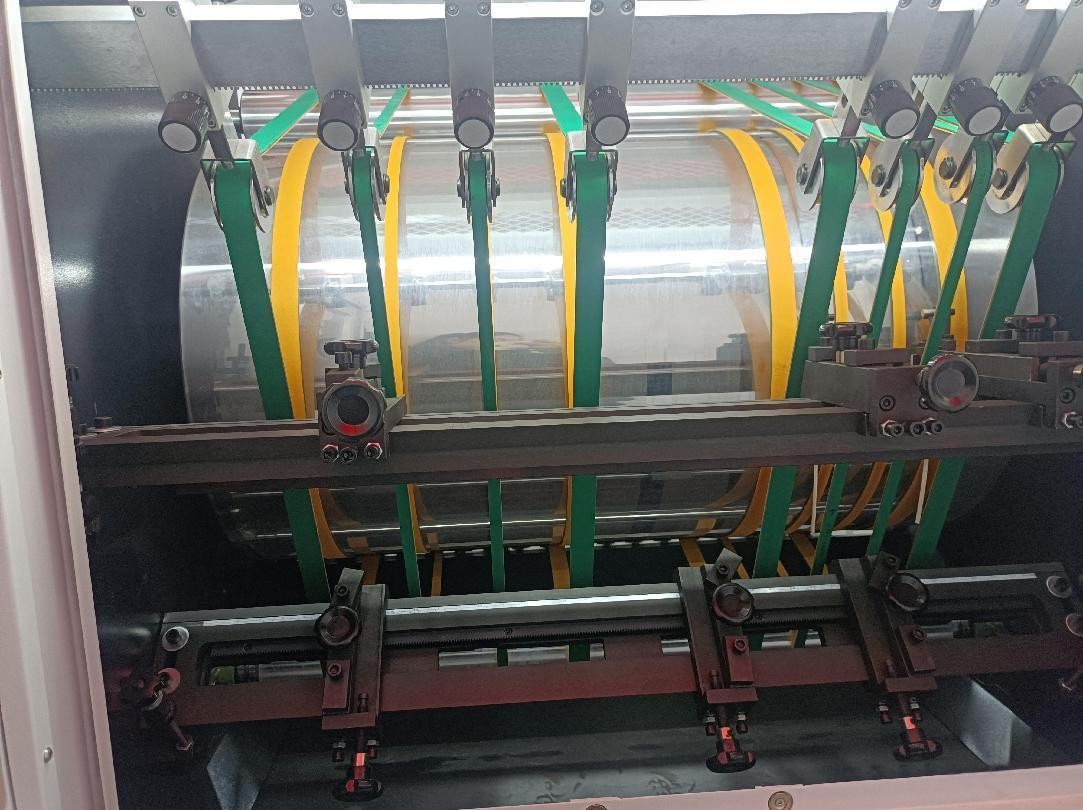

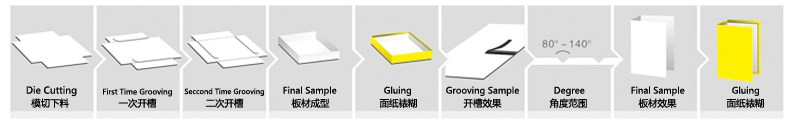

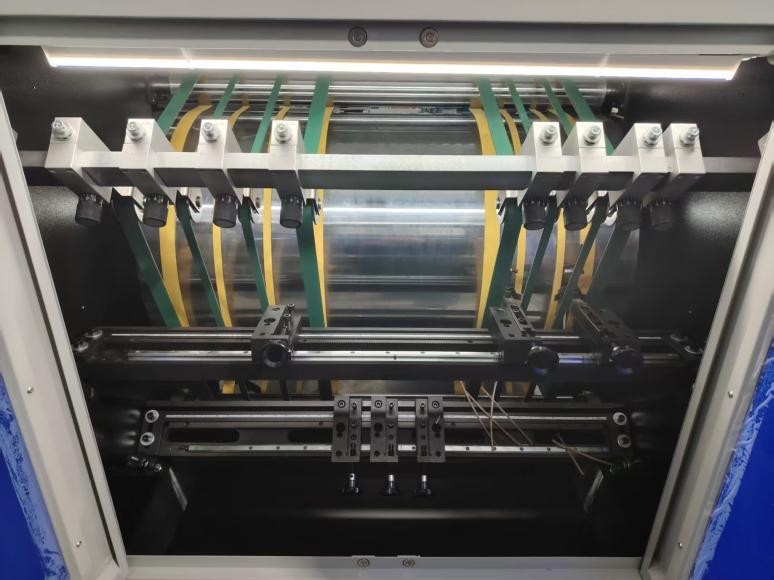

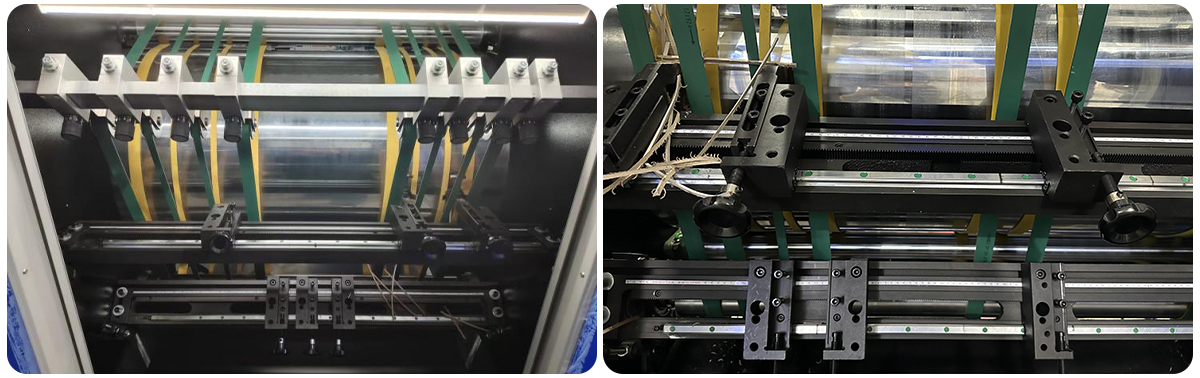

Cardboard grooving, belt transported to keep the cardboard on the large roller surface and knife make grooves. Easy to adjust the degree and adjust range is 80-140 degrees.

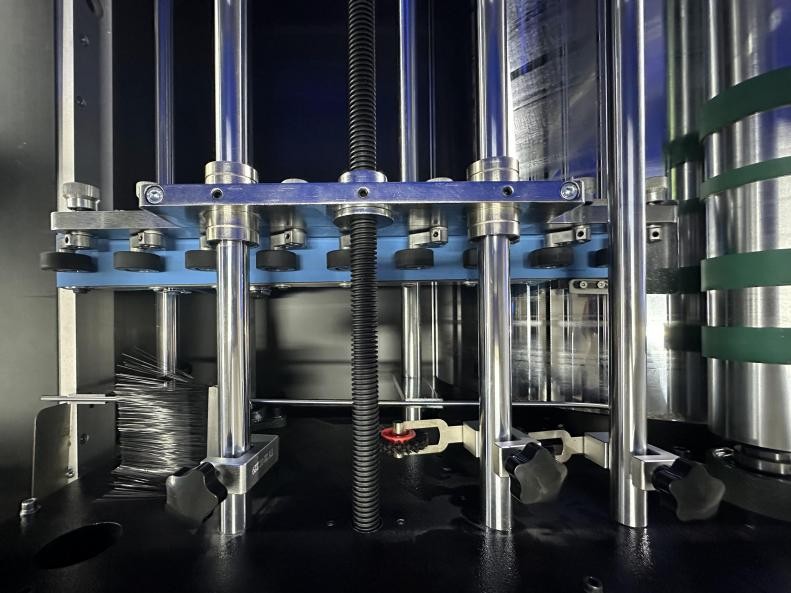

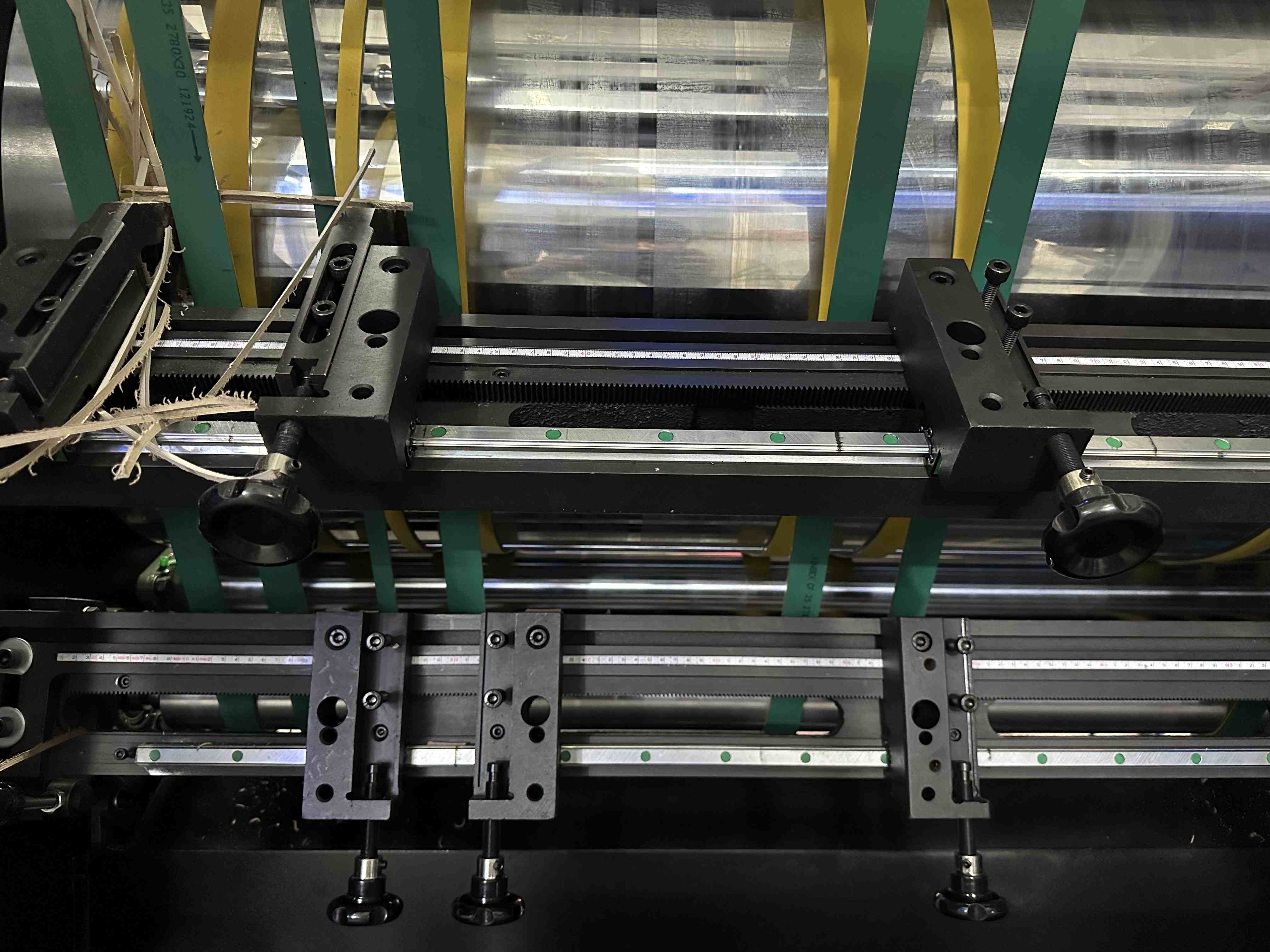

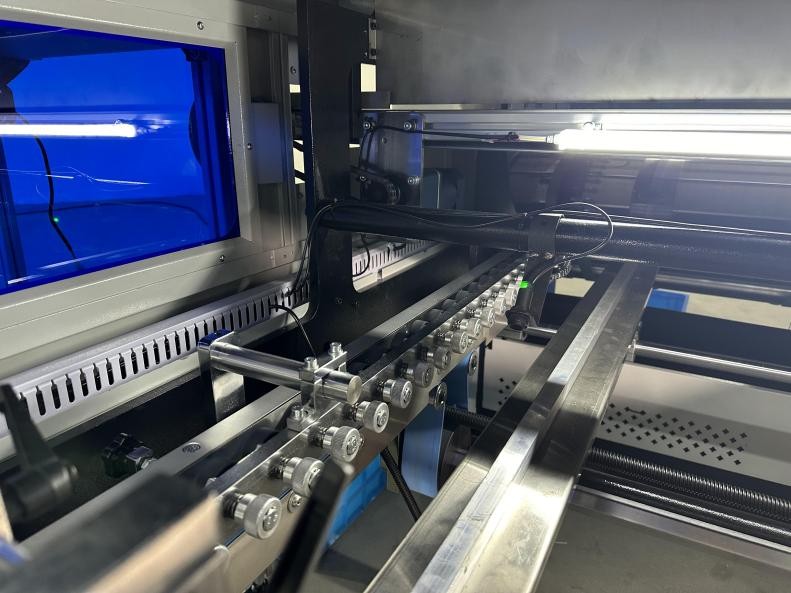

The tool holder is equipped with guide rails, resulting in higher grooving accuracy.

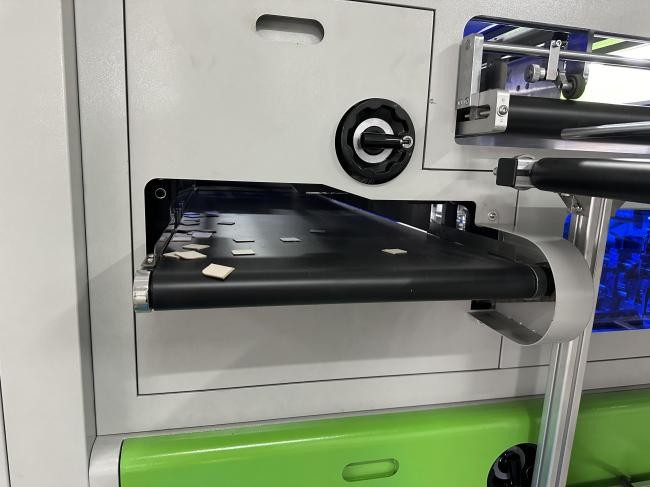

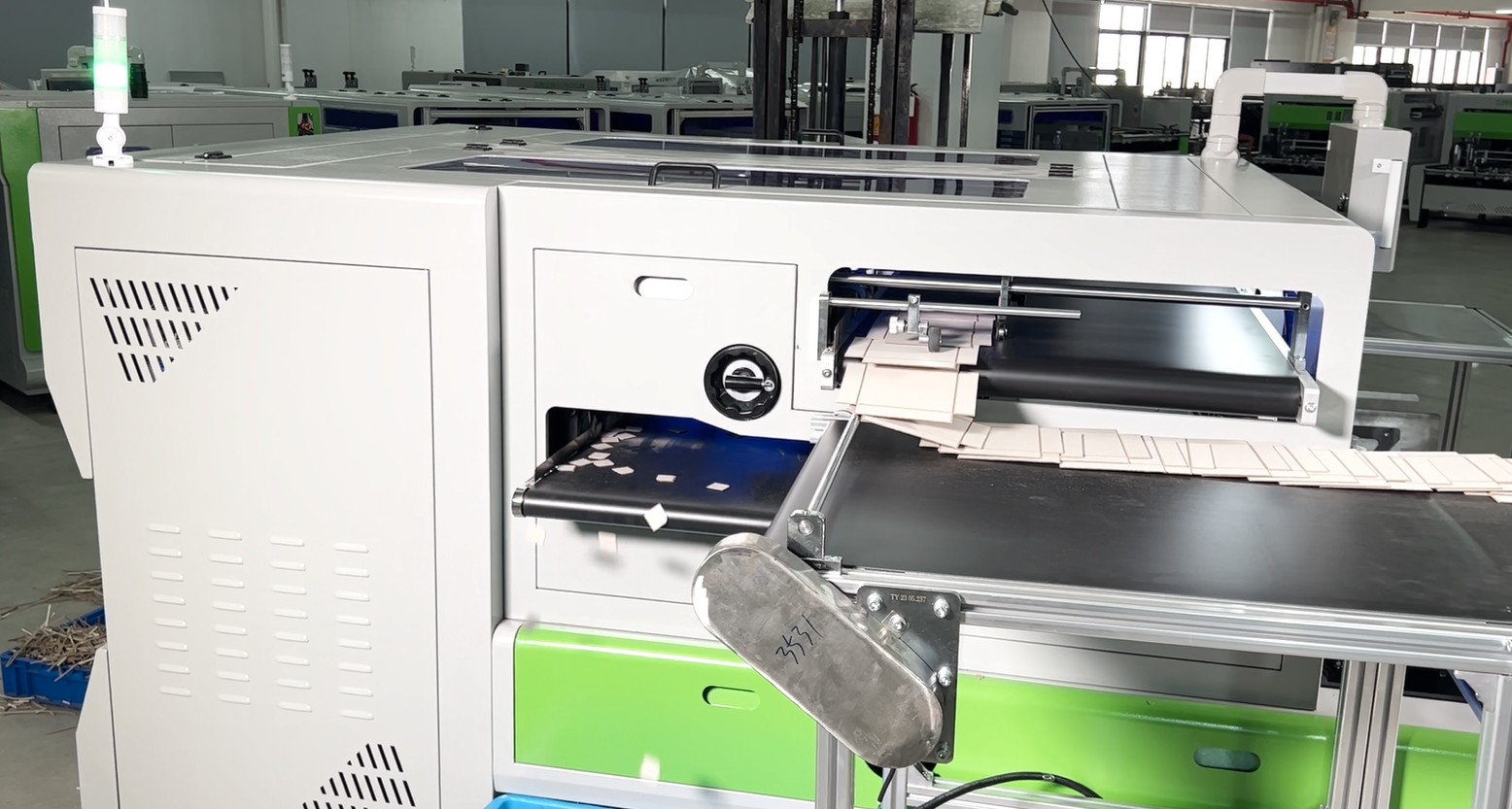

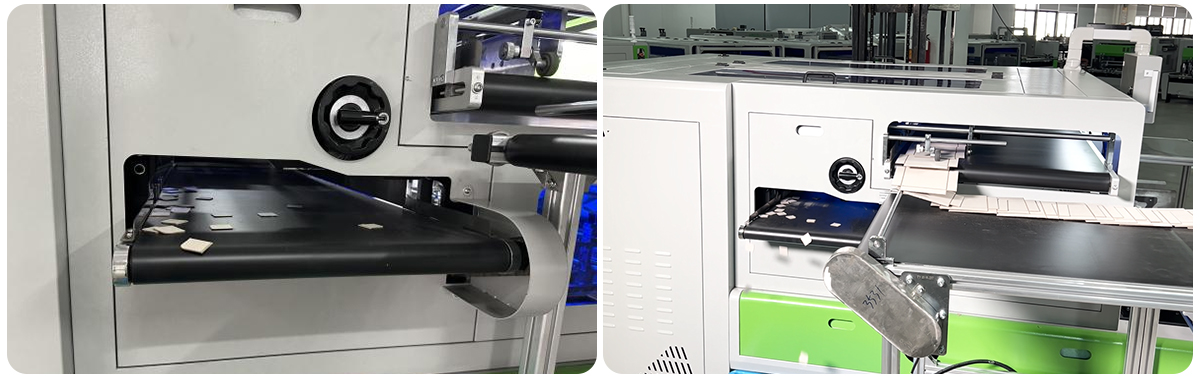

Four corner waste cleaning function, the waste part after grooving is discharged through the conveyor belt and falls into the waste collection box for easy cleaning.

The collecting part adopts a set of conveyor belts and paper delivery platforms on the left and right sides respectively.

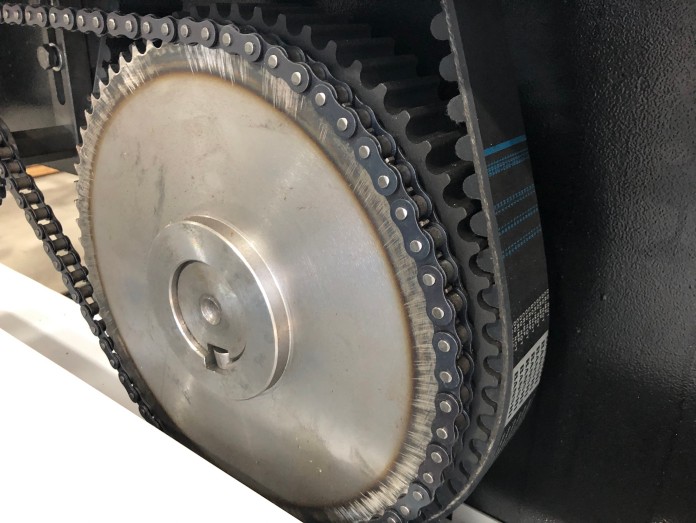

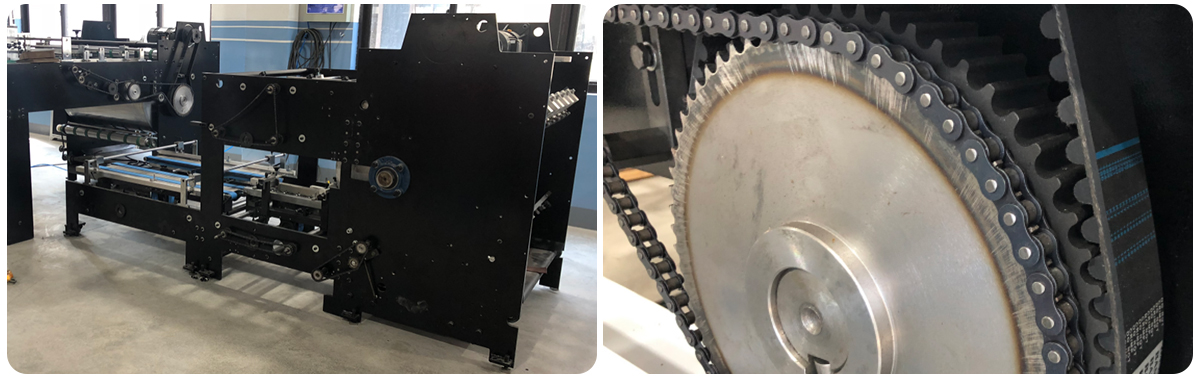

The whole transmission system has controlled by gear, chain and timing belt transmission, which extends the service life of the whole equipment and improves the quality of the equipment.

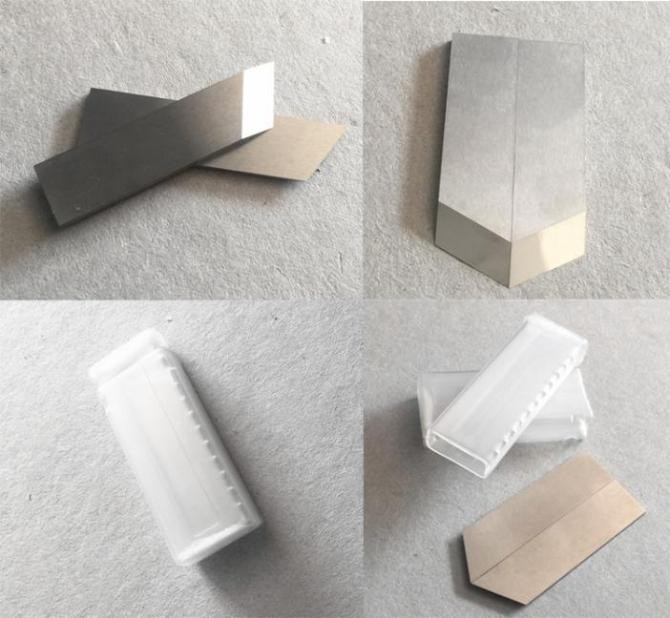

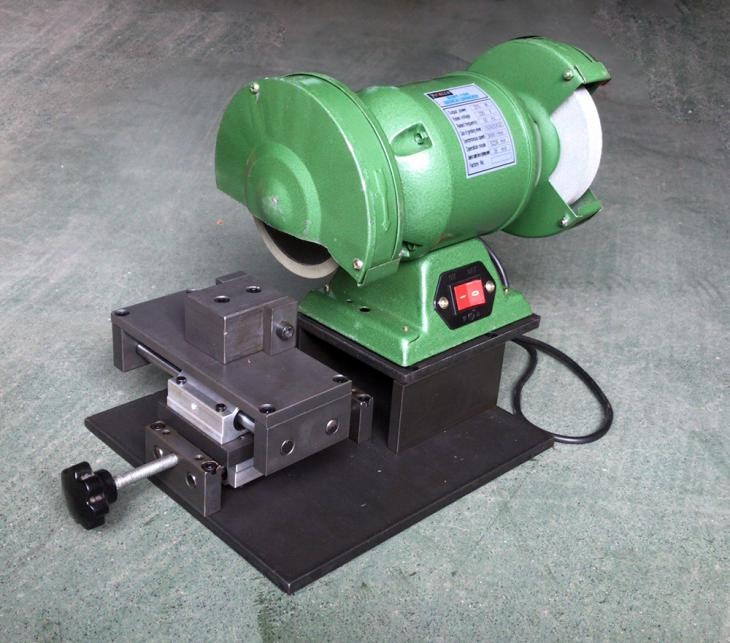

The imported alloy blade can be repeatedly sharpen and reused. Each machine is equipped with a sharpener. It will take only 2-5 minutes to sharpen the knife.

Model

Name

Brand

Addition

1

PI3102ie

Touch Screen-10’

VECON Technology

China

2

LX3V-1408MT

PLC

VECON Technology

China

3

NXC-1810

AC contactor

CHINT

China

4

/

Button, flat knob, rotary knob

Helijia

/

5

NXB-63 1P C6

Air Switch

CHINT

China

6

NXB-63 2P C20

Air Switch

CHINT

China

7

2.2KW VC1800-2R2G3

Frequency converter

GREAT

China

8

0.75KW VC1800-R75G1

Frequency converter

GREAT

China

9

380V/2.2KW

Motor

HaoXing

China

10

/

Sharpening machine two-phase

Makute

/

11

XS618-G-NAL5

Photoelectric switch

Military Industry

China

12

/

Alarm bell

/

China

Professional Manufacturing:

A strong enterprise focused on the production of grooving machine.

Innovative Services:

A service-oriented company dedicated to researching paper surface processing technologies and providing diversified solution services.

Thoughtful Cooperation:

A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

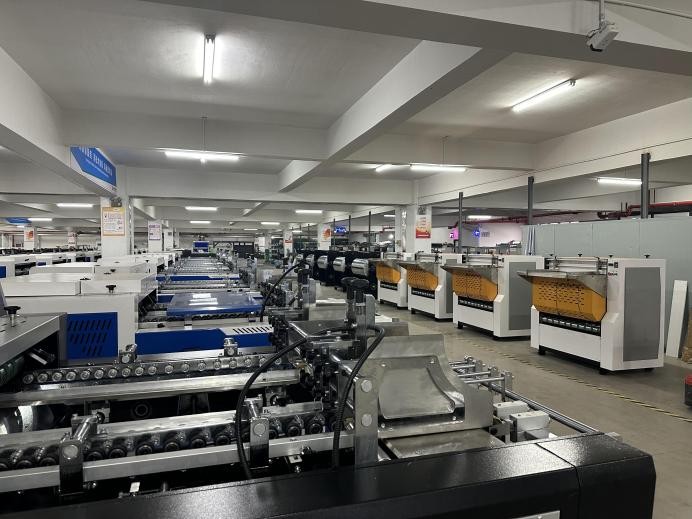

Workshop

Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.

Complete Specifications: Meet diverse needs and cover a wide range of industry applications.

Vertical Technology: Deepen every production process to continuously enhance technological standards.

Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

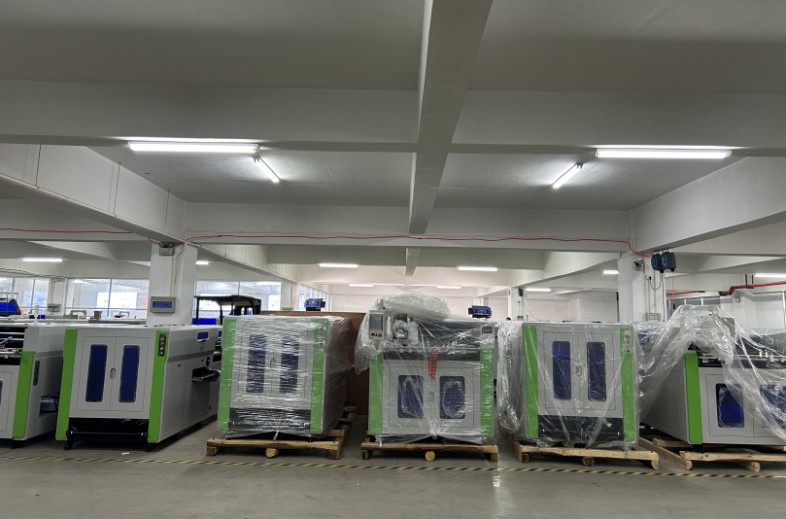

Packaging & shipment:

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.

Quality endorsement

Cargo shipped all over the world, global logistics support!

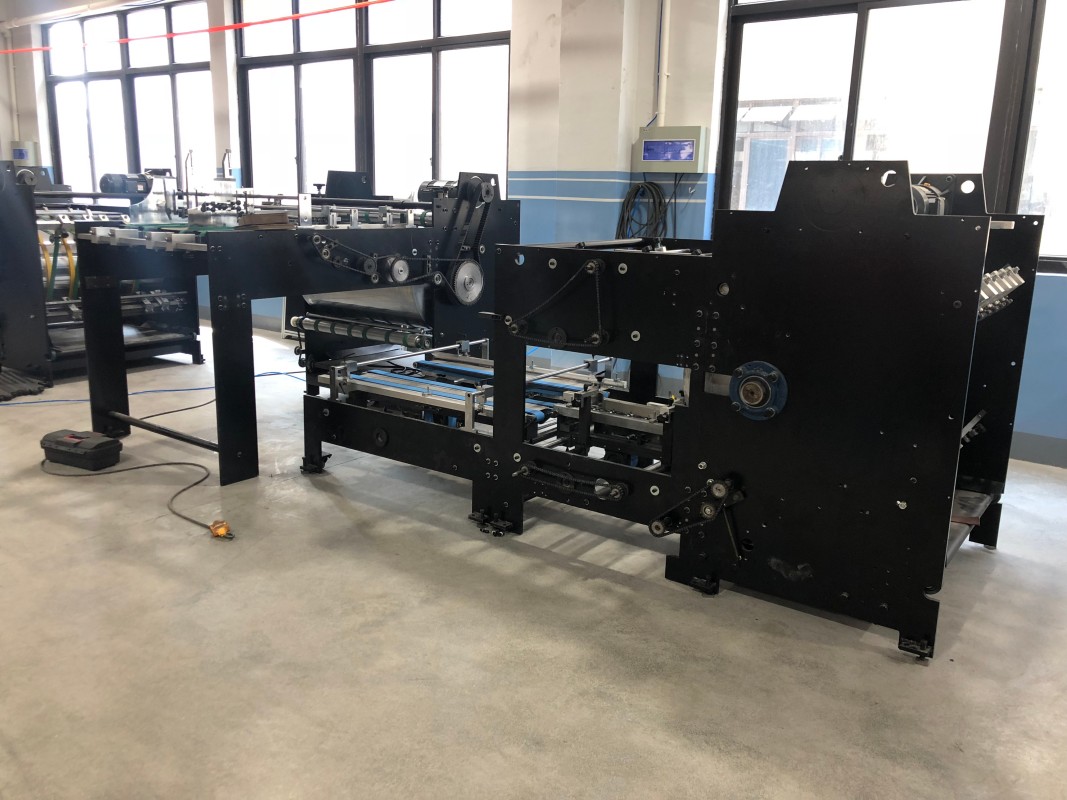

NCN machining center

Stable quality starts with parts processing.

Team

CEO:

With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert.

Technical Supervisor:

Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization.

Sales Manager:

Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost.

QC Manager:

All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries.

Equipment Salesman:

Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers.

Order Follow-up Personnel:

Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time.

Procurement staff:

With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.

After-sales guarantee

After-sales service team:

We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production.

Overseas on-site service:

Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently.

On-site service content:

Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands.

Warranty policy:

Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment).

Lifetime service:

We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.

I'm waiting for you in the workshop:

I'm waiting for you in the cloud:

We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face.

Tell me your specific needs at any time, and I can help you make a complete production line plan!

Related Products

Automatic Box Corner Pasting Machine

Automatic Positioning and Gluing Machine

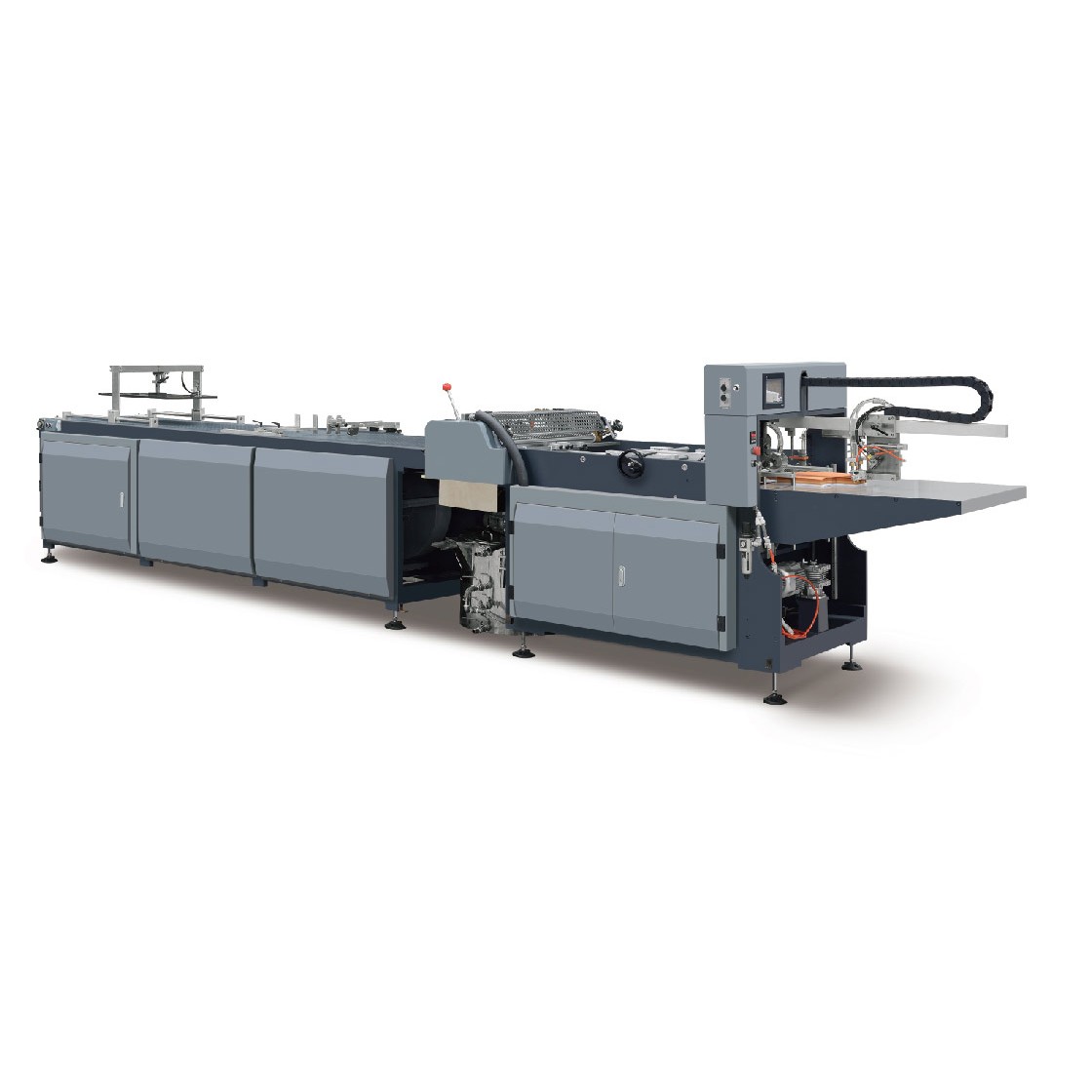

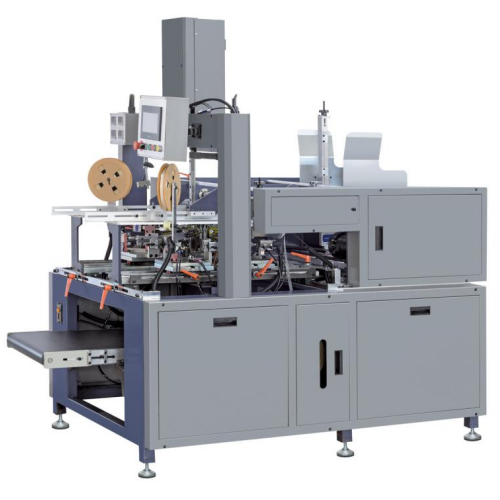

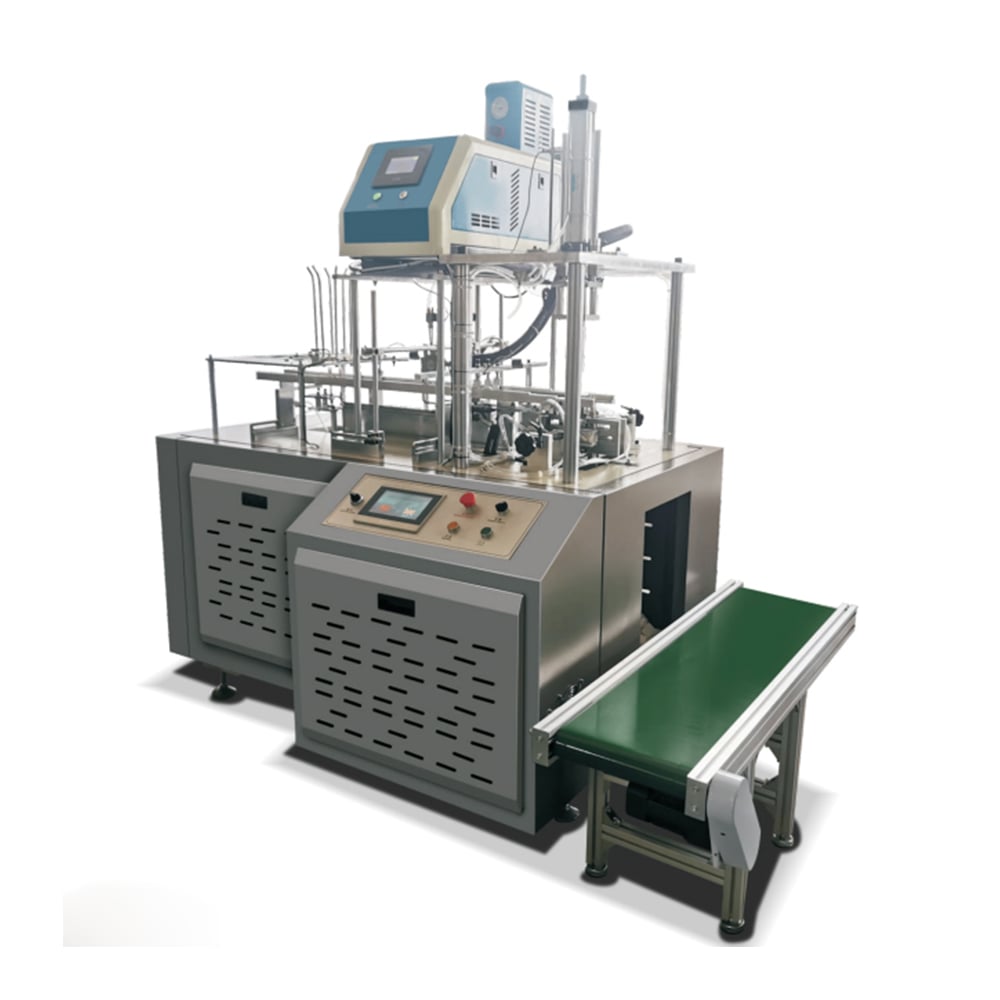

Automatic Box Making Machine
