Full Servo Thermoforming Machine

MSDH-500/600

Introduction

图片 2.jpg

01. Usage:

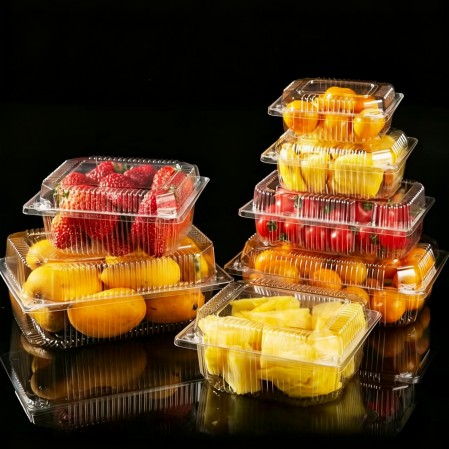

MSDH-500/600 is a new type machine that use full servo working of main forming machines and also brings to more improvement and innovation. With easy operation, stable running, convenient maintenance and stable function. It can produce PVC,PET,PS,PLA etc for all kinds of covers.

图片 3.jpg 图片 4.jpg

02. Consumables

materials: PVC. PS. PET. PLA

03. Specification:

Model	MSDH-500	MSDH-600
Max. Forming Area	500×350mm	600×500mm
Max. Forming Depth	70mm	80mm
Forming Speed	20-30 cycles/min	20-30 cycles/min
Suitable Sheet	PVC. PS. PET. PLA	PVC. PS. PET. PLA
Max. Sheet Width	520mm	625mm
Air Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Power Supply	AC380V/220V,35kw	AC380V/220V,40kw
Overall Dimension	7300×1200×1950mm	8700×1400×2500mm
Weight	3200kg	7000kg

04. Feature Highlights：

1.Full servo intelligent control, stable and efficient
2.The workstation structure is modular, forming, punching and cutting are completed continuously and automatically.

05. Details：

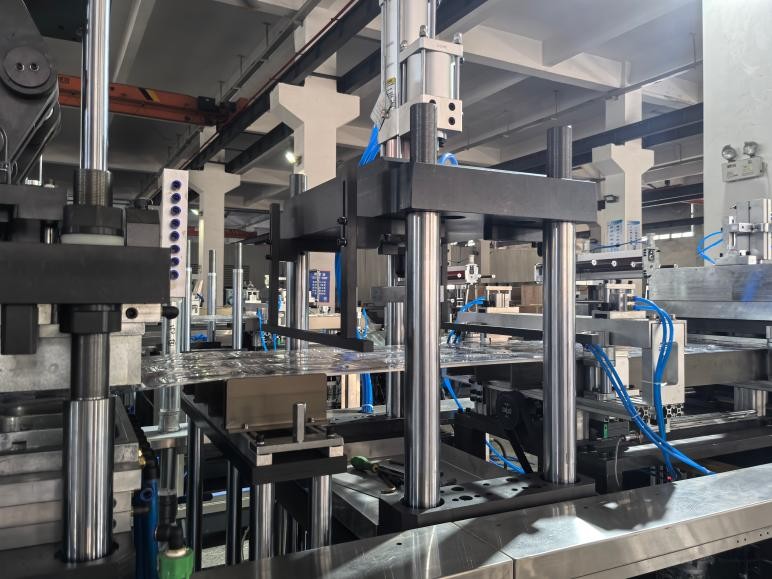

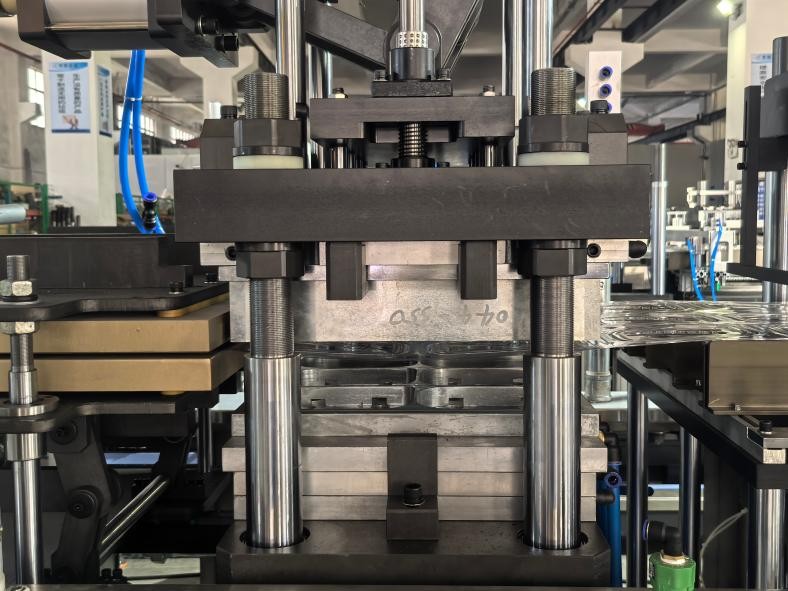

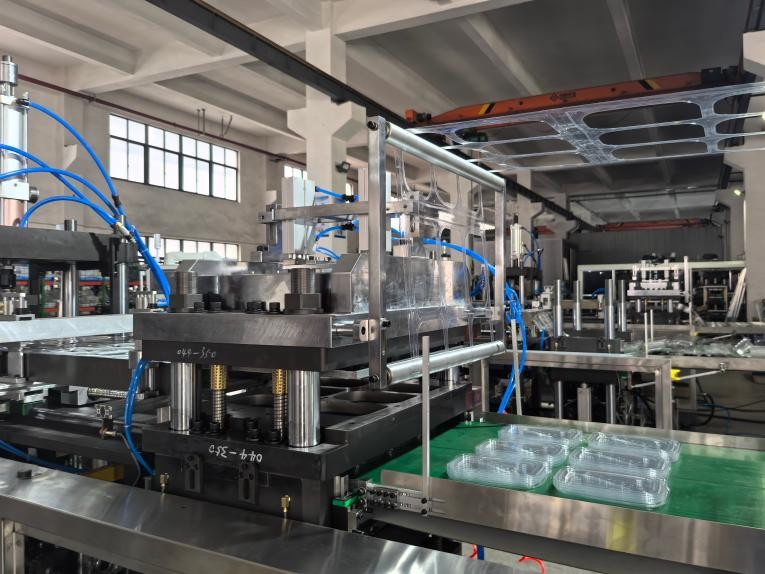

Feeding unit	Forming unit

Punching unit	Cutting and stacking unit

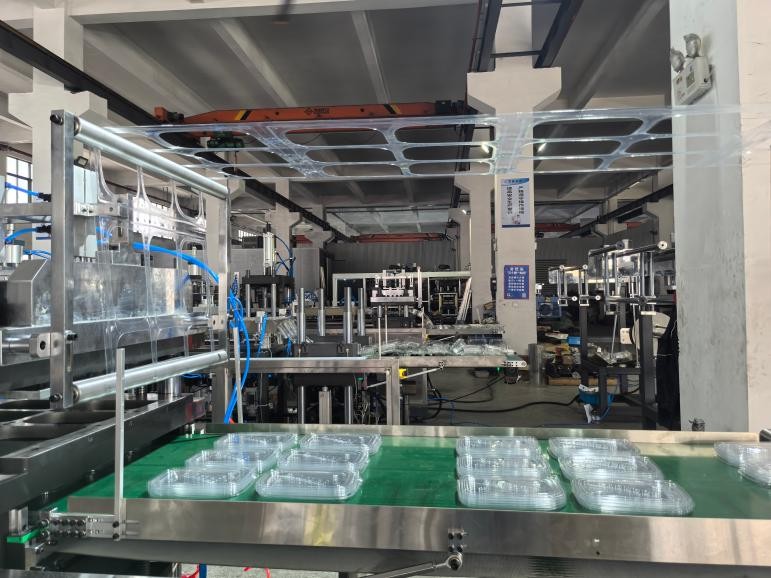

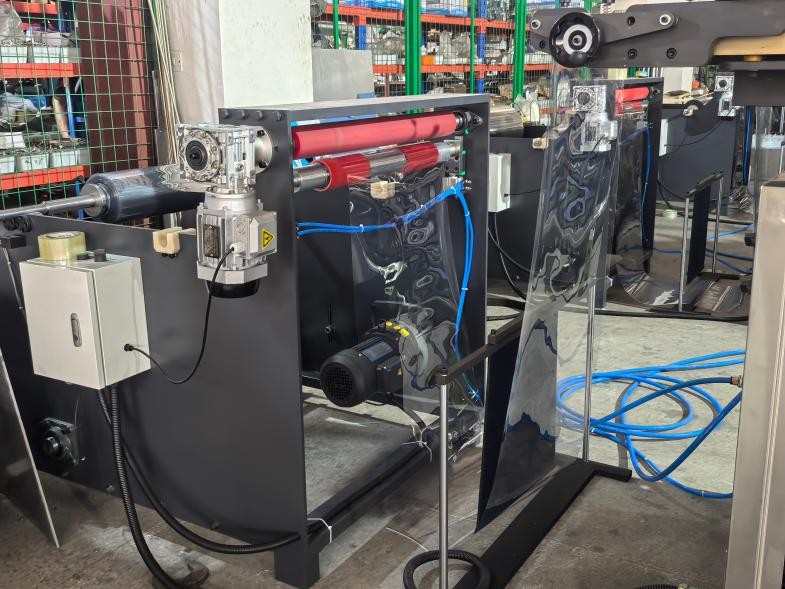

Finished product conveying	Waste winding unit

06. Main configuration list

NO	Name	Brand
1	PLC	Delta, Taiwan, China
2	Servo Motor	Delta, Taiwan, China
3	Touch screen/HMI	Delta, Taiwan, China
4	Forming solenoid valve	FESTO, Germany
5	other solenoid valve	Mindman, Taiwan, China
6	AC Contactor	Scheneider, France
7	Intermediate Relay	Scheneider, France
8	Air Cylinder	Festo/Airtac, Germany /China

Functions and details are constantly upgraded, The above configuration is subject to change without prior notice

07. Who are we?

Professional Manufacturing:

A strong enterprise focused on the production of plastic container forming machines.

Innovative Services:

A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services and paper container field.

Thoughtful Cooperation:

A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

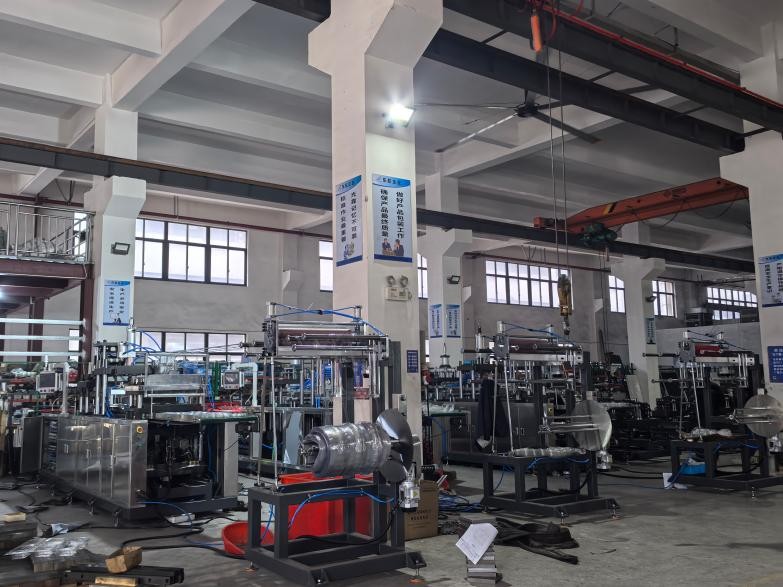

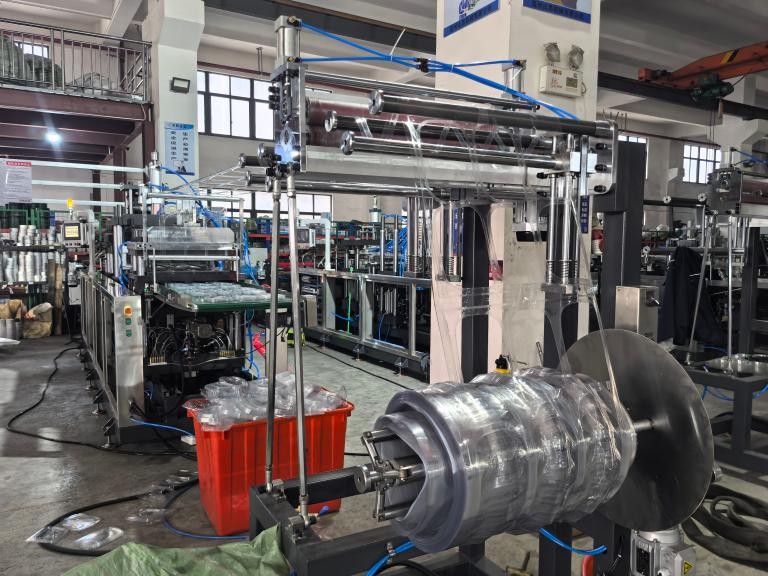

Workshop:

Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.

Complete Specifications: Meet diverse needs and cover a wide range of industry applications.

Vertical Technology: Deepen every production process to continuously enhance technological standards.

Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

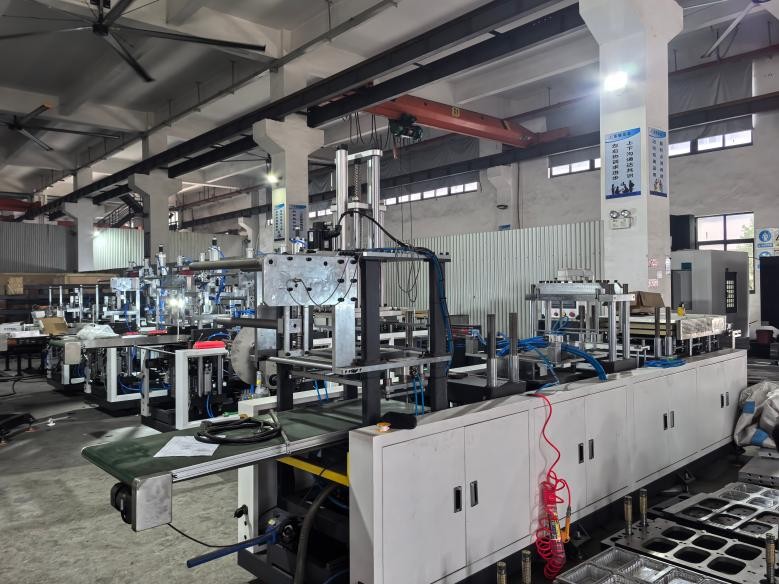

图片 12.jpg

图片 11.jpg

Packaging & shipment:

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.

08. Who we serve？

Printing and packaging machinery traders
Cargo import and export trading company
Paper mills
paper offset printing plant
label flexographic printing plant
cardboard box manufacturer
corrugated box manufacturer
color box carton manufacturer
card tag manufacturer
book and magazine manufacturer
paper product container manufacturer
Bakery packaging box manufacturer
plastic sheet product packaging manufacturers
Paper products processing enterprises
Food packaging manufacturerWhy choose us？

09. Why choose us?

Quality endorsement
Cargo shipped all over the world, global logistics support!

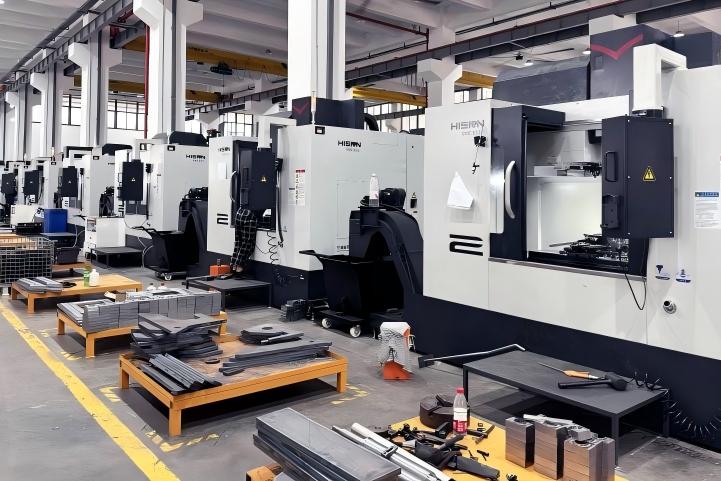

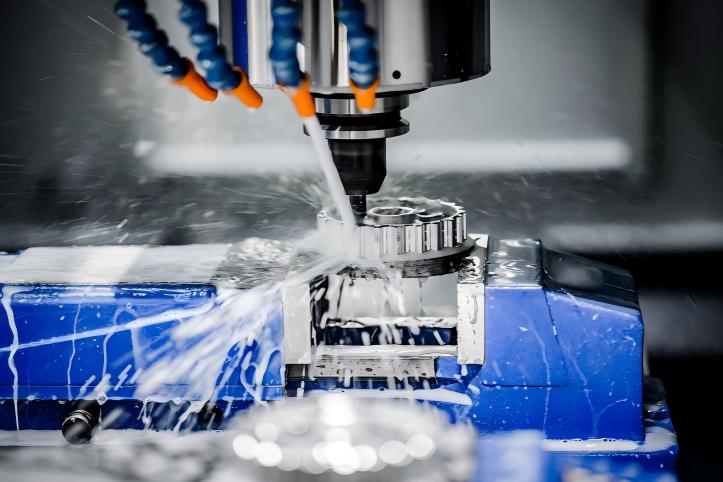

NCN machining center Stable quality starts with parts processing.

Team
CEO: With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert. Technical Supervisor: Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization. Sales Manager: Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost. QC Manager: All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries. Equipment Salesman: Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers. Order Follow-up Personnel: Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time. Procurement staff: With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.

After-sales guarantee
After-sales service team: We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production. Overseas on-site service: Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently. On-site service content: Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands. Warranty policy: Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment). Lifetime service: We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.
I'm waiting for you in the workshop:

I'm waiting for you in the cloud: We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face. Tell me your specific needs at any time, and I can help you make a complete production line plan!
Related Products

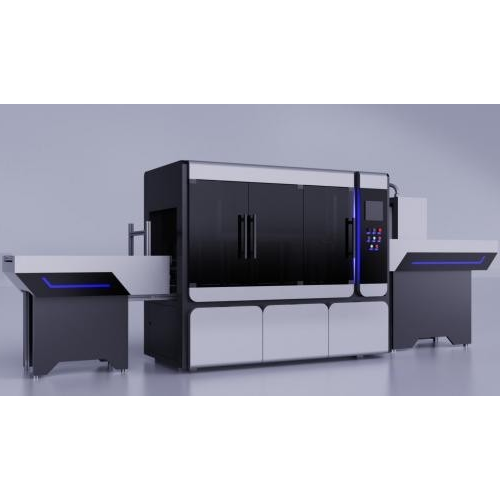

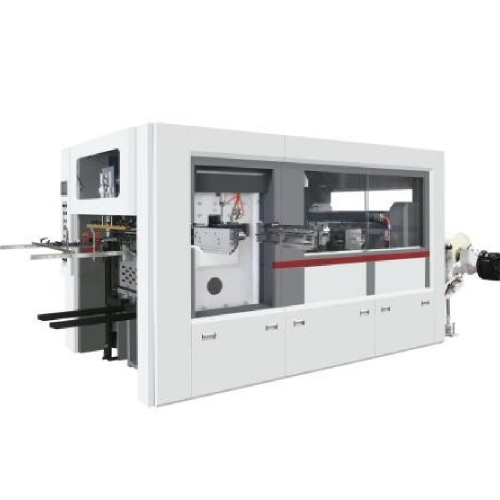

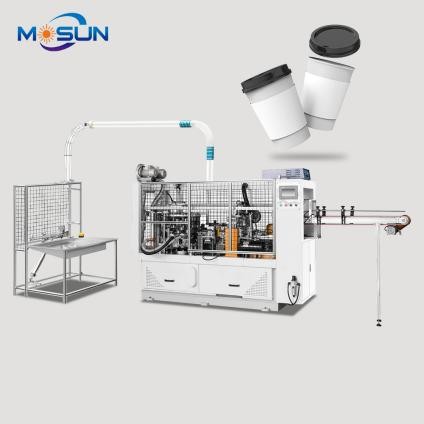

Automatic Paper Cup/Bowl Machine	Full Servo Rolling Paper Box Tray Forming Machine	Automatic Paper Roll Die Cutting Machine
