MSQ-450 automatic slitting machine is the auxliary products of automatic die cutting machine. It has functions of automatic meter counting,number counting ,The unwinding is controlled by photoelectric eyes .The structure is compact with high speed ,high efficency ,easy and stead operation.


| Slitting Speed | 120m/min |
| Max.Web Width | 320/450mm |
| Max. Slitting Width | 310/440mm |
| Min. Slitting Width | 16mm |
| Max.Unwinding Diameter | 700mm |
| Max. Up Rewiding Diameter | 250mm |
| Max.Rewinding Diameter | 600mm |
| Precision of Slitting | ±0.15mm |
| Dimension(L*W*H) | 1100*1300*1700mm |
| Weight | 500/800KG |
| Voltage | 220V-1phase |
Frequency transformer |
Schneider |
Manual tension for unwinding |
ZXT(China) |
Manual tension for rewinding |
ZXT(China) |
Magnetic Clutch |
Guanhua(China) |
Magnetic brake |
Guanhua(China) |
Web Guiding motor |
China |
Counting |
SICK from Germany |
Photoelectric |
CNBDL |
Sensor |
Shielded sensor |
Power Switch |
Schneider |
Pneumatic Switch |
Schneider |
Switch |
CHNT(China) |
Shaft 3inch |
2 pcs |
Rotary blade |
7/10 set |
|
|

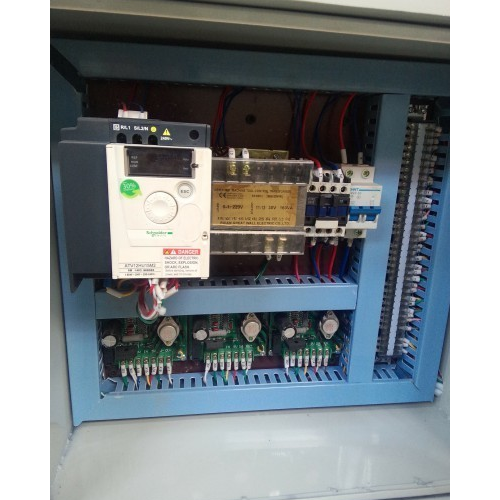

Electrical cabinet |

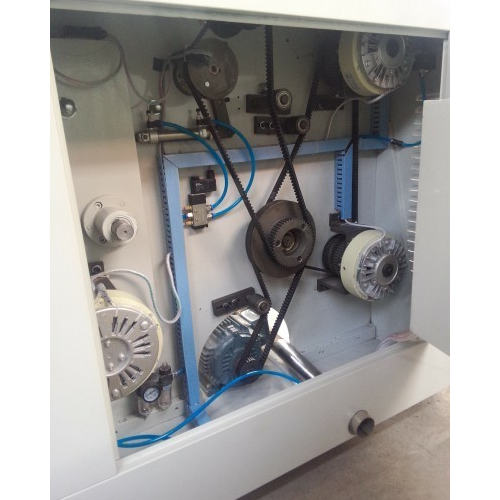

Internal structure |
|
|

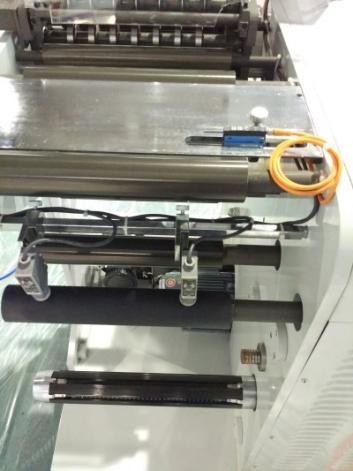

Web guiding and counting sensor |

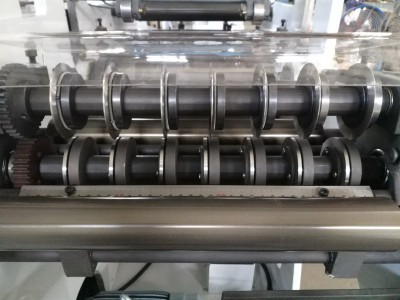

Rotary blade |
|
|

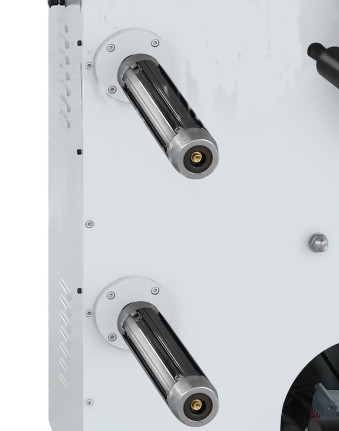

Rewinding with UP and Down |

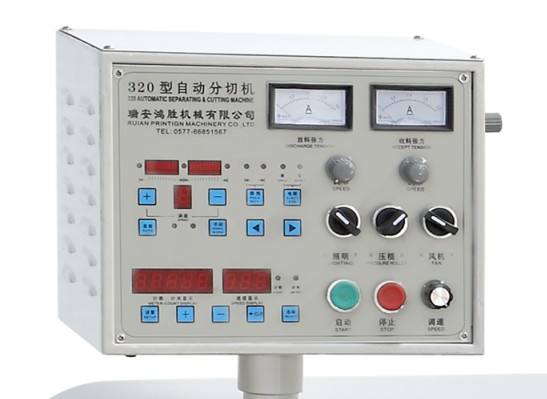

Operation panel |
| |
