Automatic Grooving Machine

Model:MSKC-1000A/1200A/1300A

Introduction

01. Usage

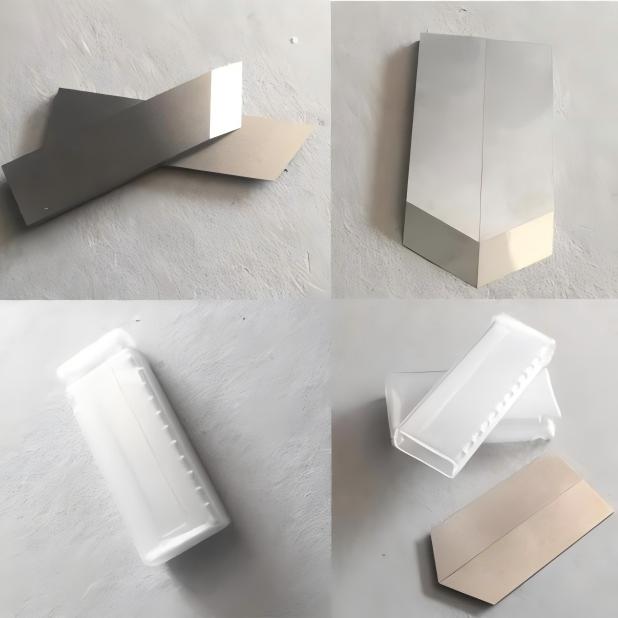

The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging products.

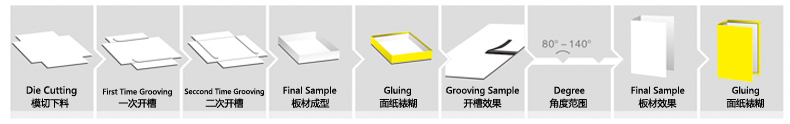

图片 3.png

02. Consumables

knife

03. Specification

Model	MSKC-1000A	MSKC-1200A	MSKC-1300A
Min board size	130*130mm	130*130mm	130*130mm
Max board size	550*930mm	550*1130mm	550*1230mm
Grooving accuracy	0.2mm	0.2mm	0.2mm
Thickness of board	0.6mm-4mm	0.6mm-4mm	0.6mm-4mm
Knife angle	80-140° Adjustable	80-140° Adjustable	80-140° Adjustable
Knife material	Tungsten steel	Tungsten steel	Tungsten steel
Knife shape	V shape grooving	V shape grooving	V shape grooving
Total knife	9 pieces	9 pieces	10 pieces
Grooving Speed	20-25m/min(300*300mm, 130pcs/min)	20-25m/min(300*300mm, 130pcs/min)	20-25m/min(300*300mm, 130pcs/min)
Correction length	920mm	920mm	1220mm
Roller size	Φ600*1000	Φ600*1200	Φ600*1300
Power	2.2KW	2.2KW	2.2KW
Machine weight	1500KGS	1600KGS	1700KGS
Machine dimension	240015001500mm	2400x1700x1500mm	270018001500mm
Packaged weight	1850KGS	1950KGS	2050KGS
Packaged dimension	255016501750mm	255018501750mm	285019501750mm

04. Feature Highlights

Grooving accuracy 0.2mm;
Max speed can reach to 150pcs/min.

05. Details

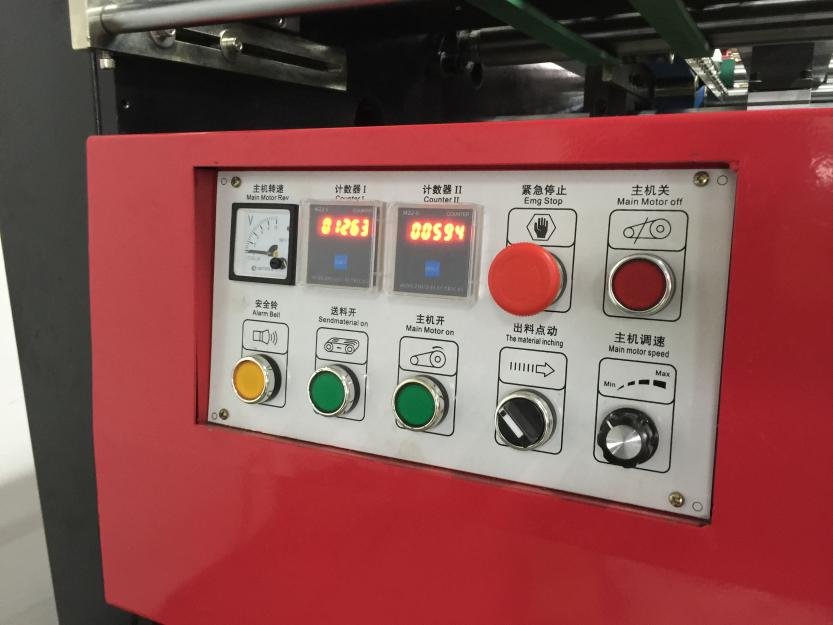

Operate plate and the control panel (Chinese and English)

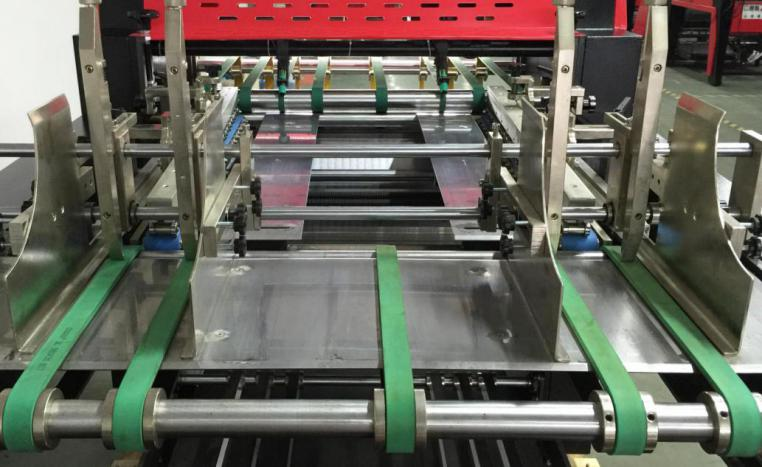

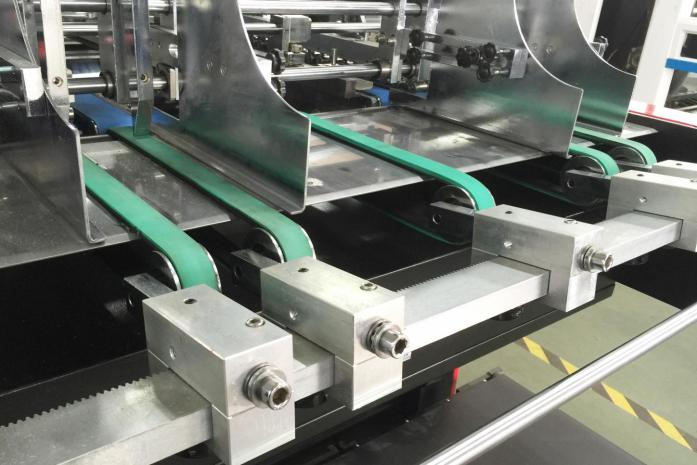

Automatic feeding part(automatic paper feeding speed 80-120 meters per minute). Cardboard carry by the convey belt, double sides position plate are adjustable, they can ensure the precision.The independent adjustment device of the paper conveyor belt tightness, ensures that the conveying is uniform, easy to adjust.

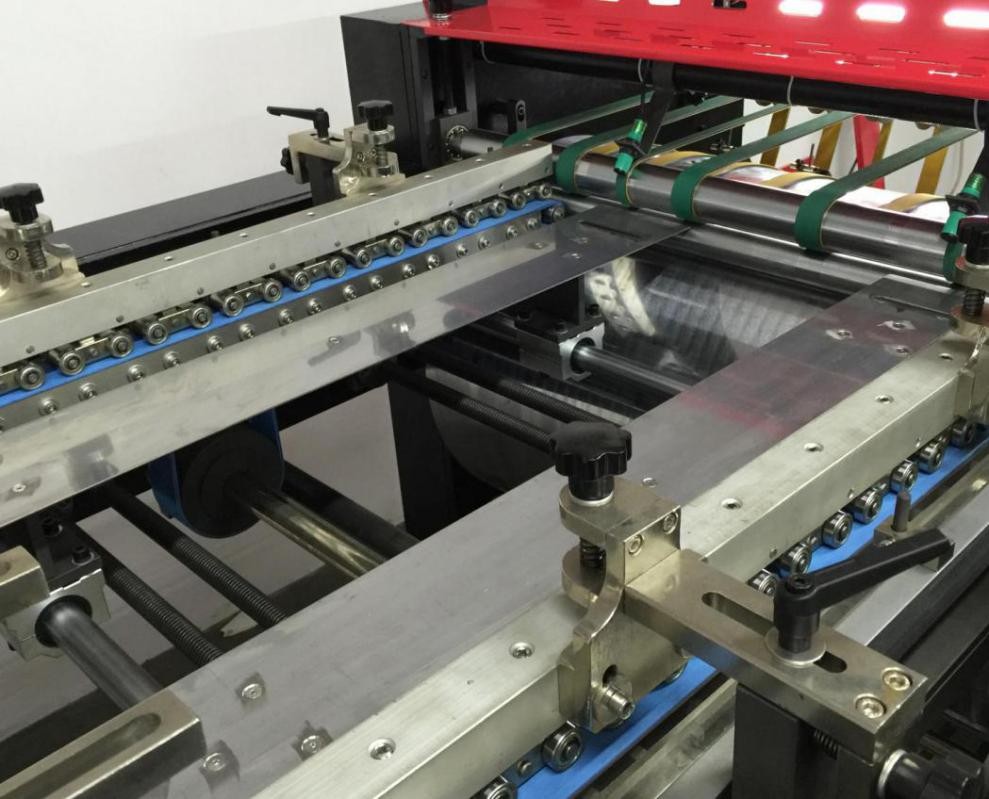

The correction device. It will correct the direction of the cardboard and make it precision.

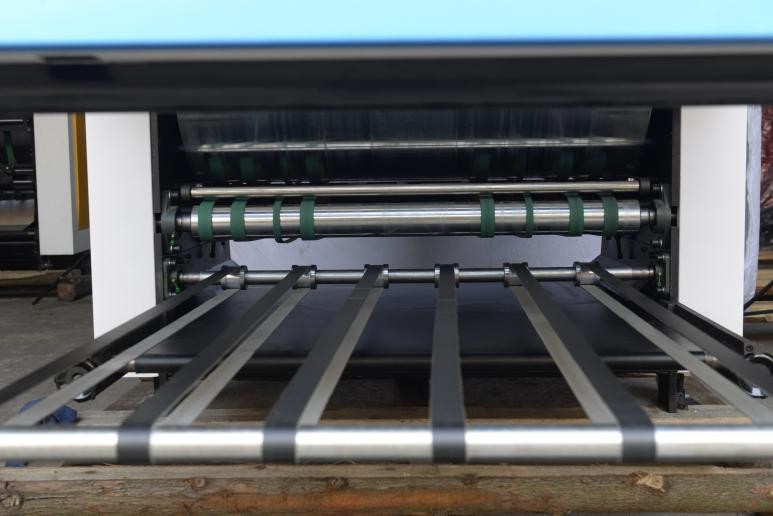

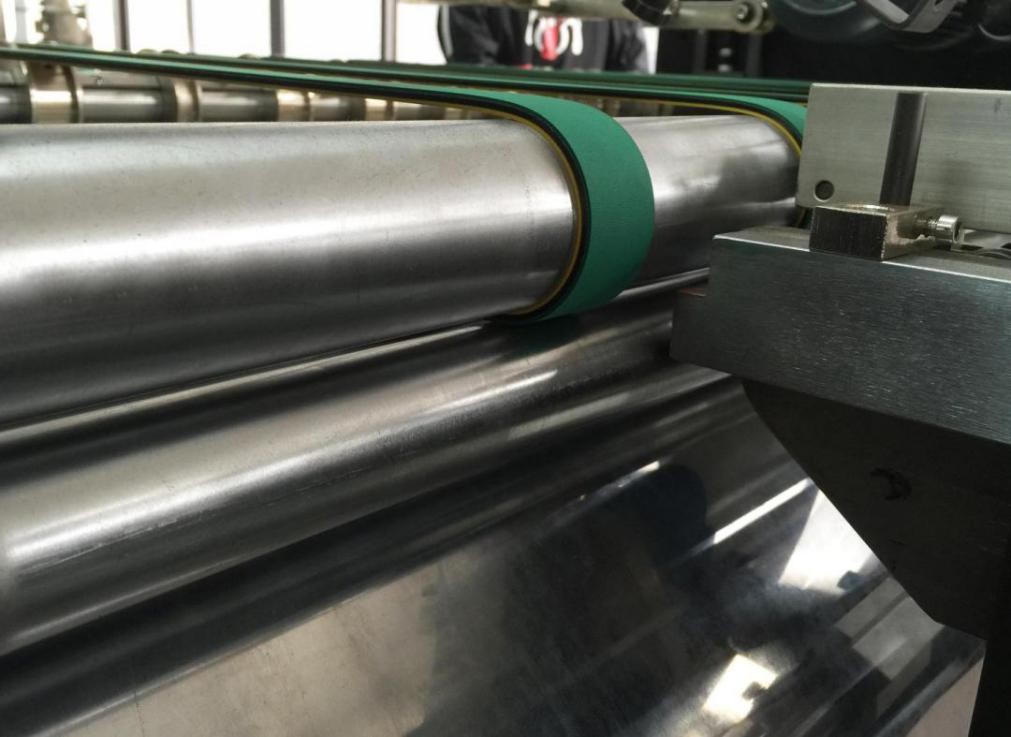

Design bright point: Large roller and transport roller with middle bridge roller, ensure the the card paper (paper board) is contacted with the largest area of the roller, and the paper is more tightly attached to the large drum for grooving operation, so as to avoid slotting error.

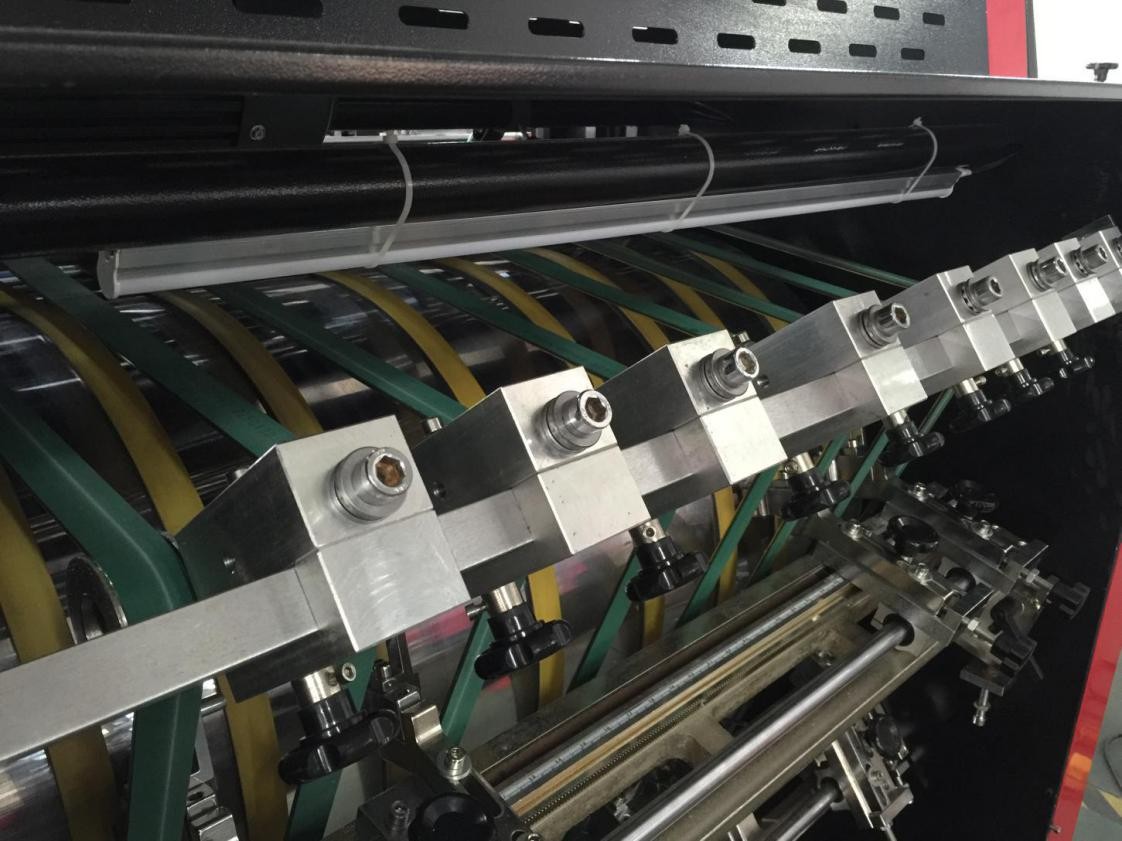

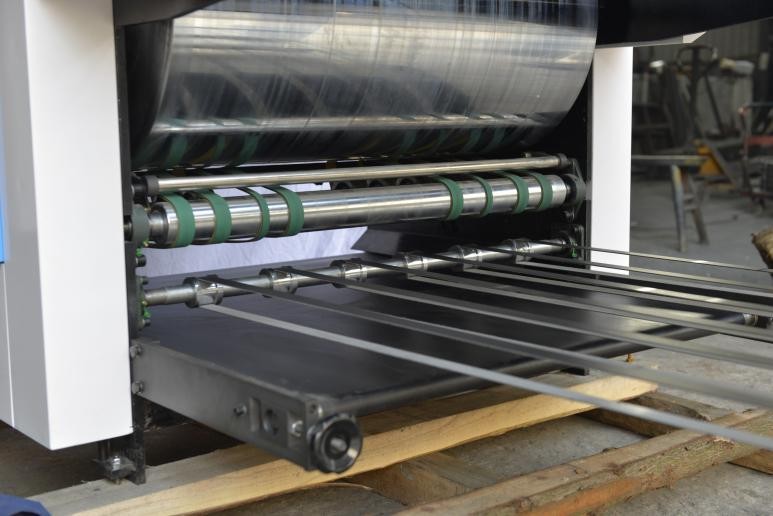

Cardboard grooving, belt transported to keep the cardboard on the large roller surface and knife make grooves

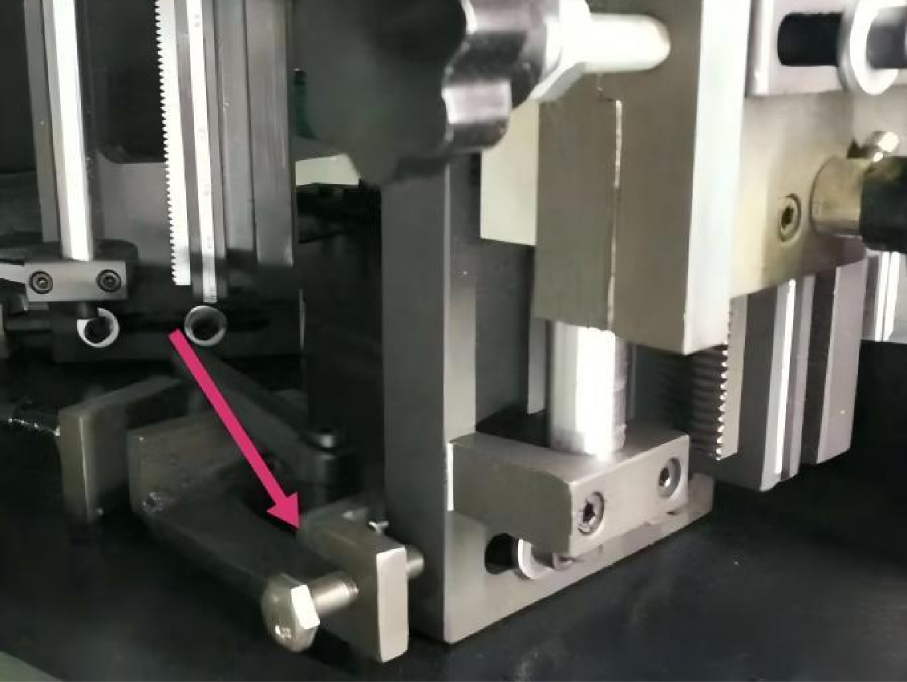

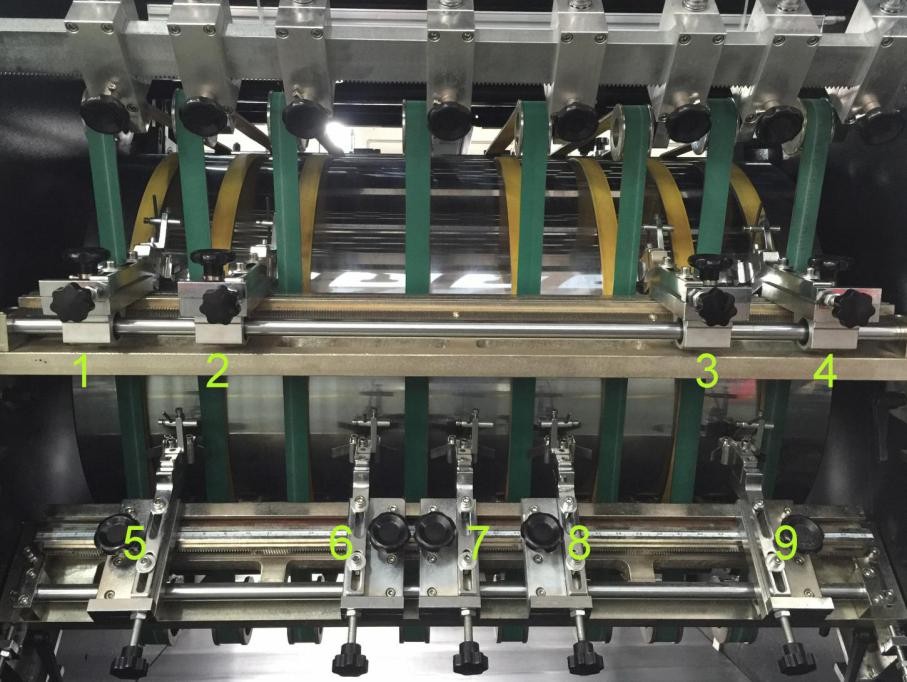

Total 9 sets knife holders. Easy to adjust the degree and adjust range is 80-140 degrees. The grooving degree adjust by loosening the screws and swinging up and down knife holder.

Output part. Finished grooving cardboard out by conveyor belt

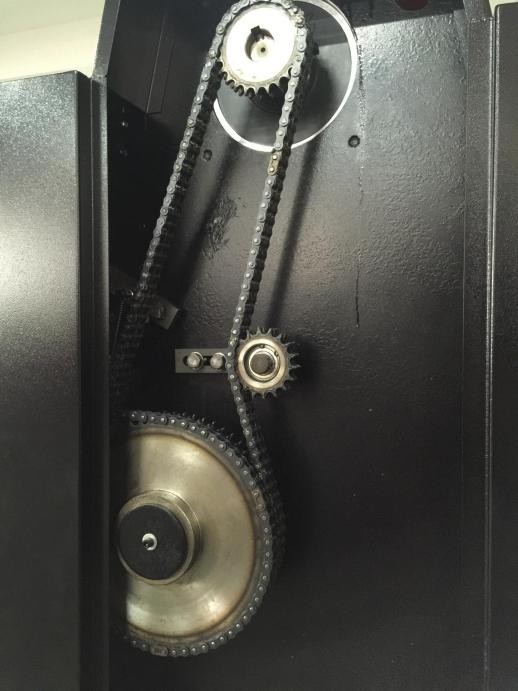

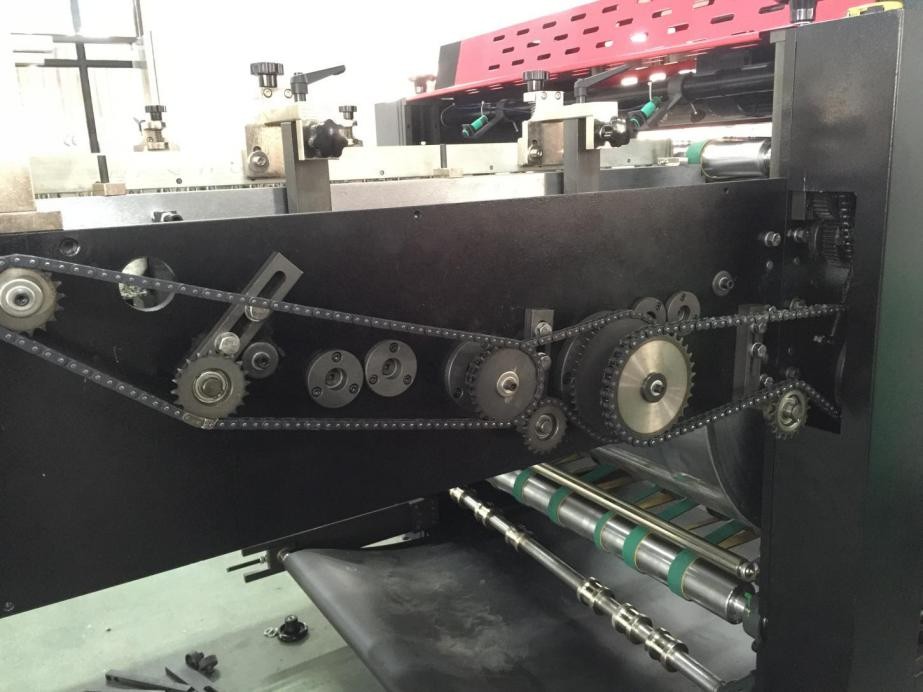

The whole transmission system has controlled by gear and chain, rather than belt transmission, which extends the service life of the whole equipment and improves the quality of the equipment.

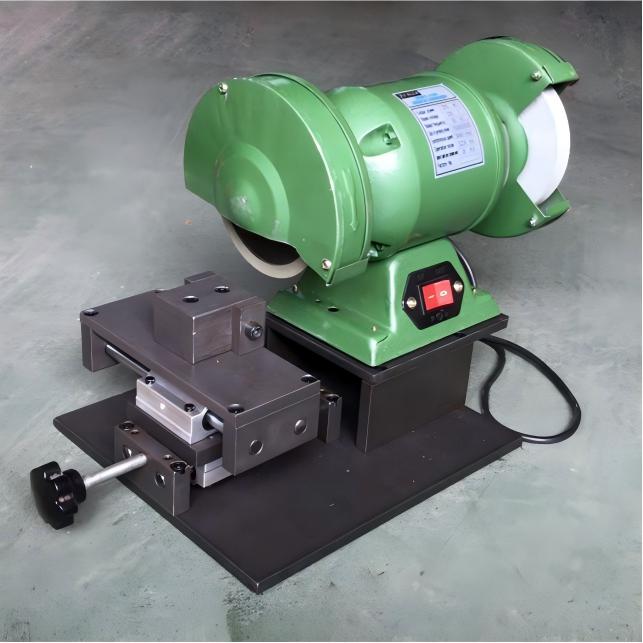

The imported alloy blade can be repeatedly sharpen and reused. Each machine is equipped with a sharpener. It will take only 2-5 minutes to sharpen the knife.

06. Main configuration list

	Model	Name	Brand	Addition
1.	JZX-22F/2Z(D)	Intermediate relay	CHINT	China
2.	NXC-0910	AC Contactor	CHINT	China
3.	NXB-63 3P C32	Air Switch	CHINT	China
4.	NXB-63 3P C10	Air Switch	CHINT	China
5.	380V/2.2KW AD350-4T2.2GB	Frequency Converter	KEWO	China
6.	380V/2.2KW	Motor	HaoXing	China
7.	/	Sharpening machine two-phase	Makute	/
8.	XS618-G-NAL5	Photoelectric Switch	Military Industry	China
9.	/	Alarm bell	/	China
10.	/	Button, flat knob, rotary knob	Helijia	/

Functions and details are constantly upgraded, The above configuration is subject to change without prior notice
