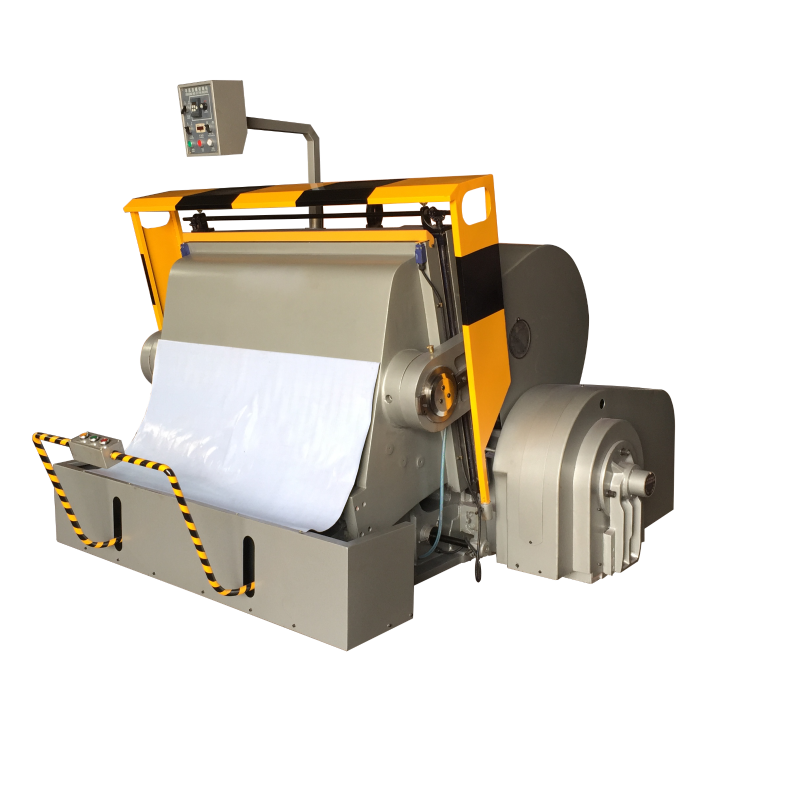

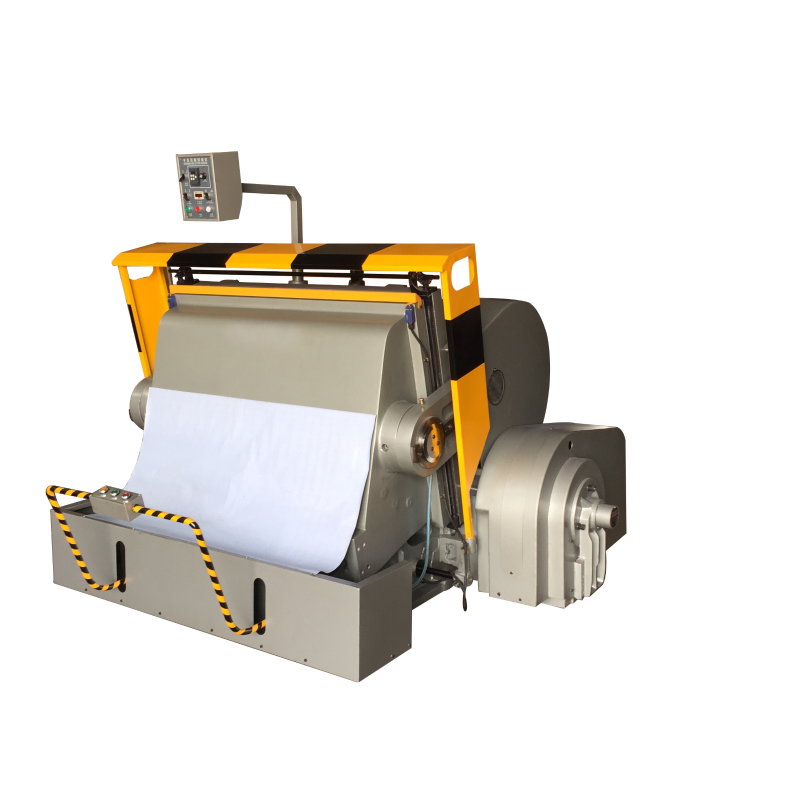

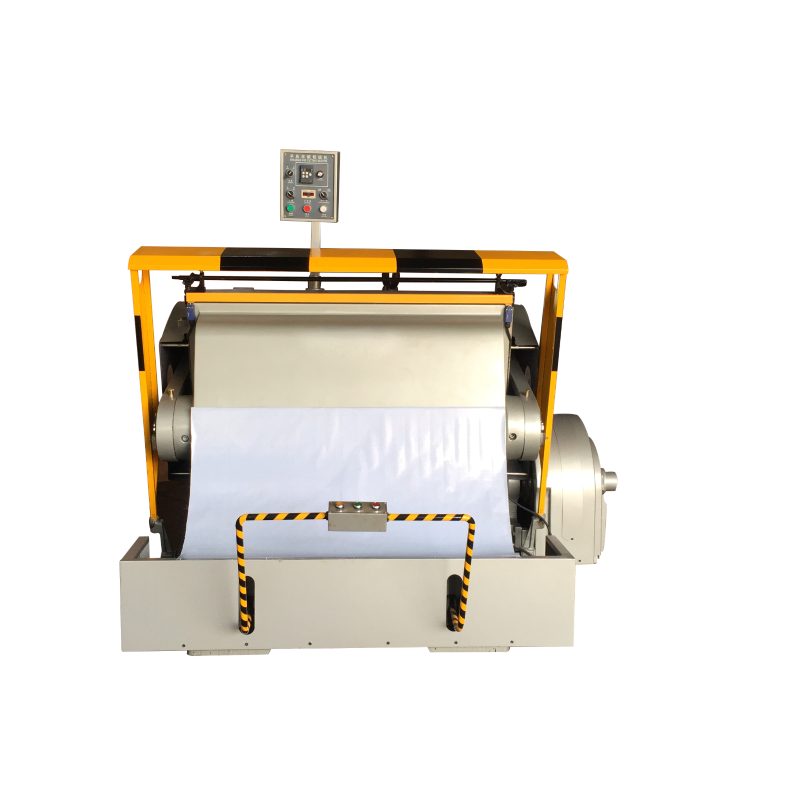

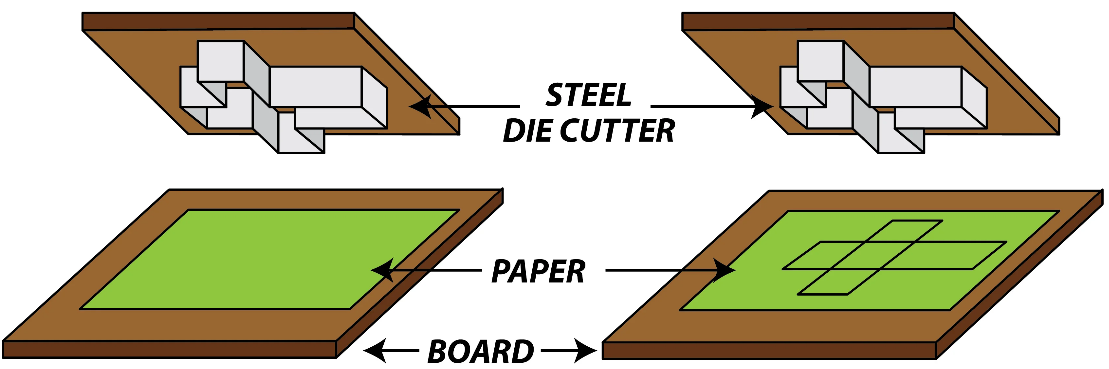

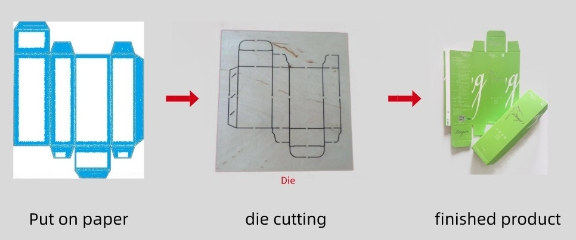

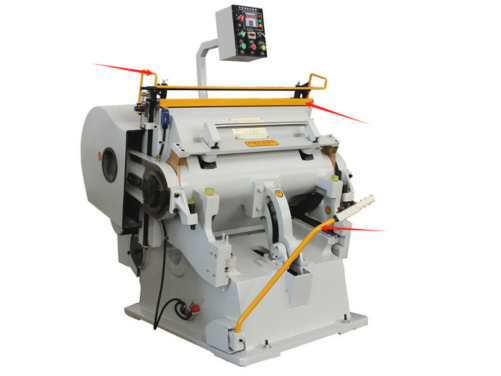

Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to Post press processing and product packaging industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
Specification
| MODEL |
Unit |
ML1300 |
HML1300 HEATING |
| Platen Size |
mm |
1300*920mm (51.1*36.2 inch) |
| Max Cutting rule |
m |
≤40m |
| Impressions Per Min |
times |
15±2 |
| Motor Power |
kw |
5.5kw |
| Heat Power |
kw |
* |
15kw |
| Heat Group |
groups |
* |
3 groups |
| Temperature: C(F) |
℃ |
* |
0-170c(338F) |
| Heating speed |
Min |
* |
About 20 min |
| N.T |
kg |
5100kg |
5200kg |
| G.T |
kg |
5300kg |
5400kg |
| Package size |
mm |
2150*2200*1800mm |
| Package |
Wooden case with free fumigation |
| Voltage |
220/380/415V 50/60Hz 3Phase |

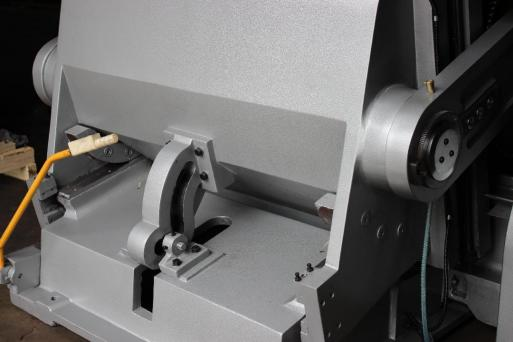

1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing

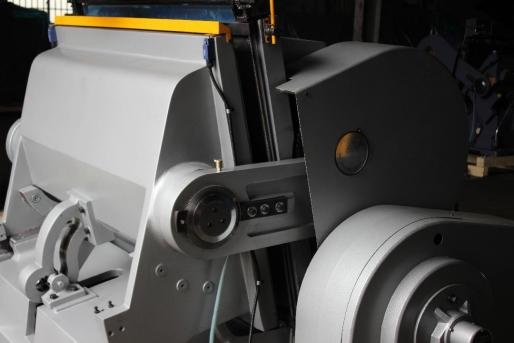

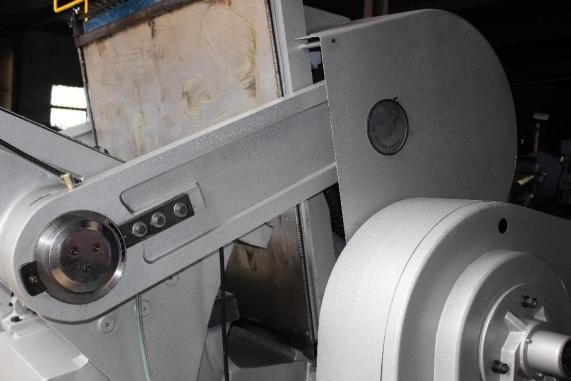

2.Flywheel is with big moment of force and large pressure.

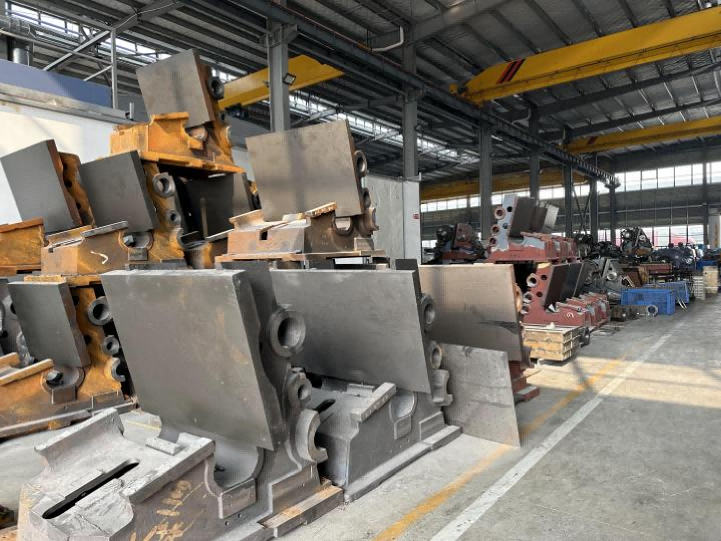

3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.

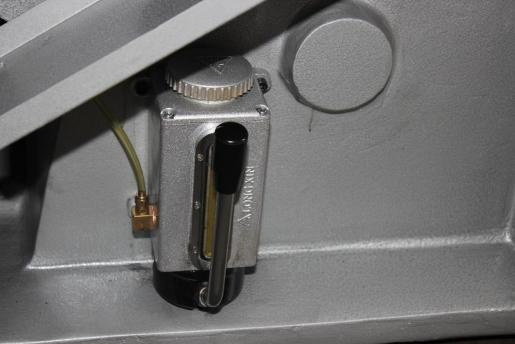

8.Can equip inner and outer movable frame and central lubrication device.
OPTION
CE model(Infrared ray device and safe guard choose one)

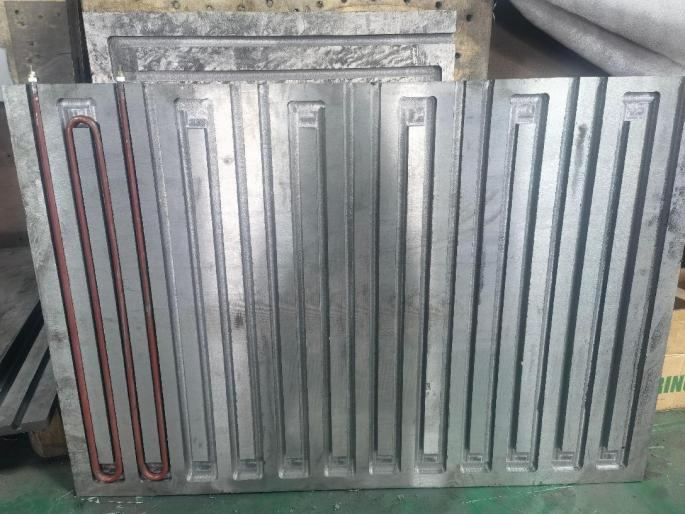

Heating Type--suitable for palstic sheet creasing and die cutting
Who are we?

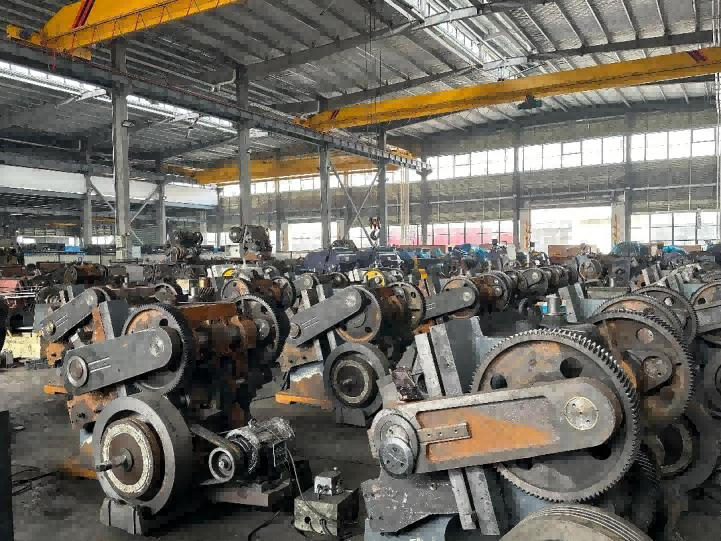

Professional Manufacturing:
A strong enterprise focused on the production of die cutting machines and hot foil stamping machines.
Innovative Services:
A service-oriented company dedicated to researching paper surface processing technologies and providing diversified solution services.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

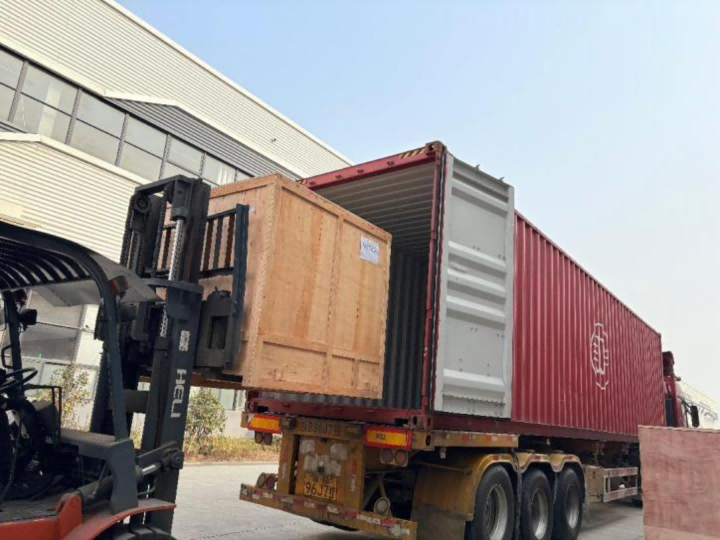

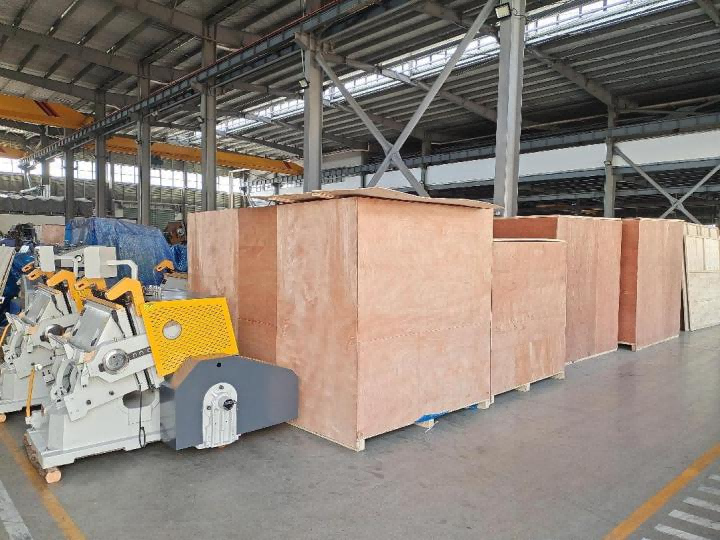

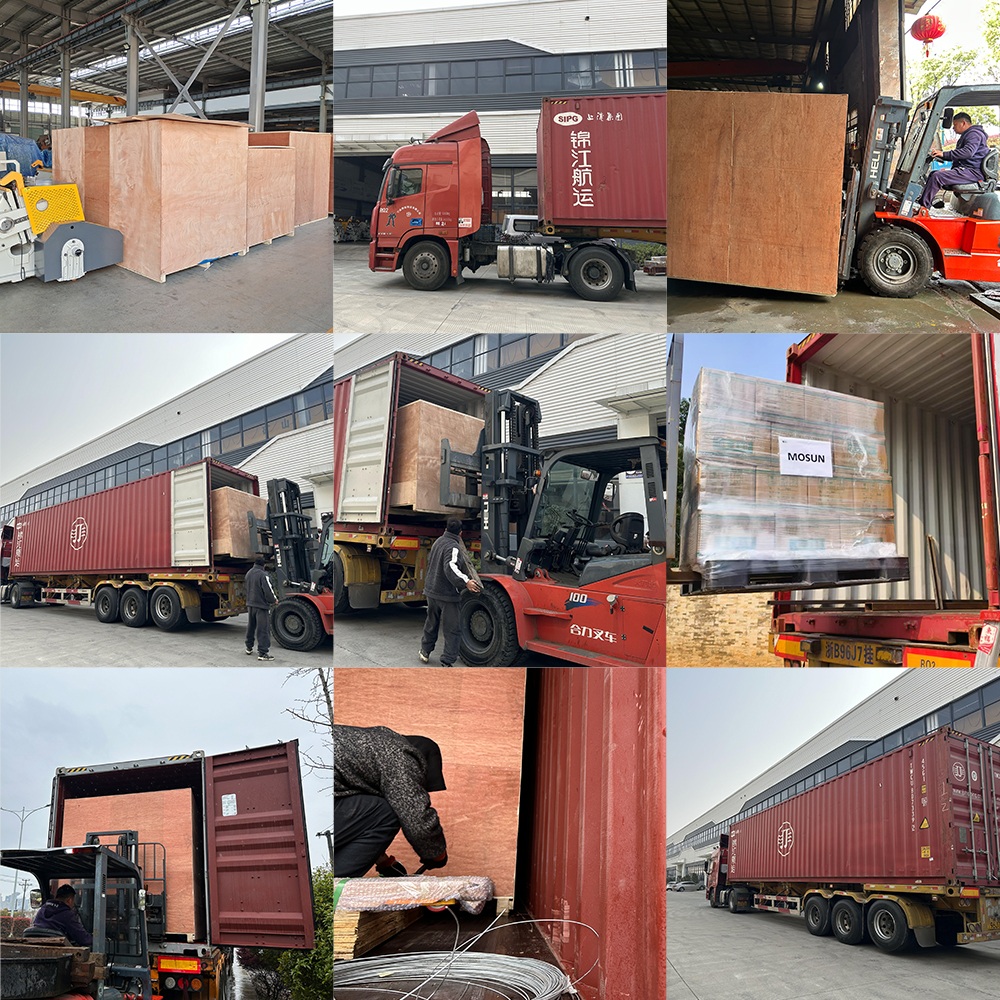

Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
