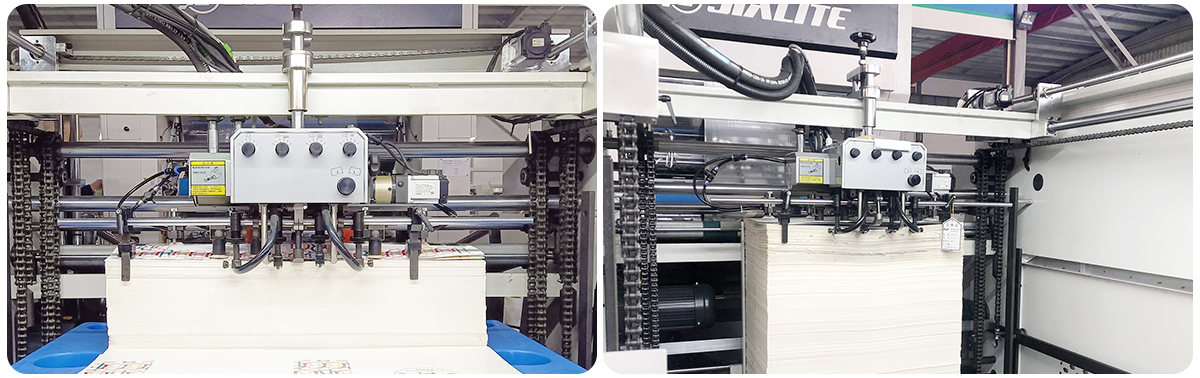

1.Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection
3.The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
4.The feeder is controlled by 3 servo motors, the front and rear positions can be adjusted intelligently, just input product data on the control panel
5.BECKER VACUUM PUMP
CONVEYING TABLE AND OVERLAP

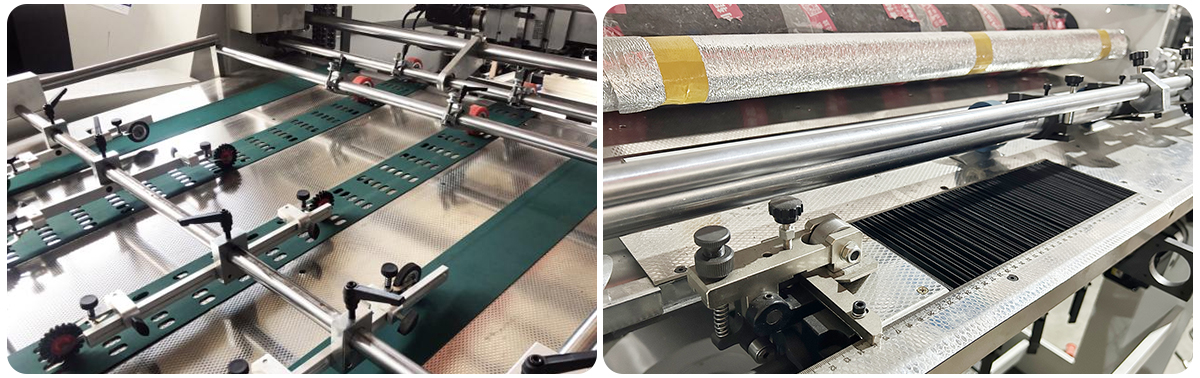

1.The conveying table adopts customized stainless steel corrugated board
2.The brush wheel and rubber pressing wheel move smoothly
3.Double Servo motor control sheet overlap, accuracy of overlap, error≤±1.5mm
4.The side pull is controlled by a servo motor, and the position is automatically adjusted
WINDOW LAMINATING

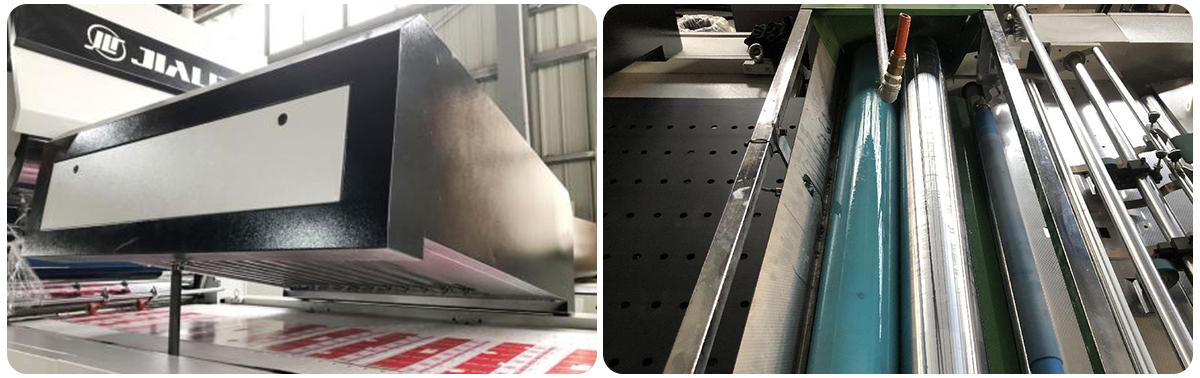

1.Window coating (optional), composed of gluing machine head and infrared oven. After the paper is glued, it is bonded to the film after passing through an infrared oven.
2.Drying unit with 12 pcs IR light, Total heating power 14.4kw.
3.When not using window products, this part can be used as a water powder removing device
LAMINATOR HOST
1.Machine frame wall board thickness, Integrated casting molding for more stable high-speed operation, Casting body 65mm thickness.

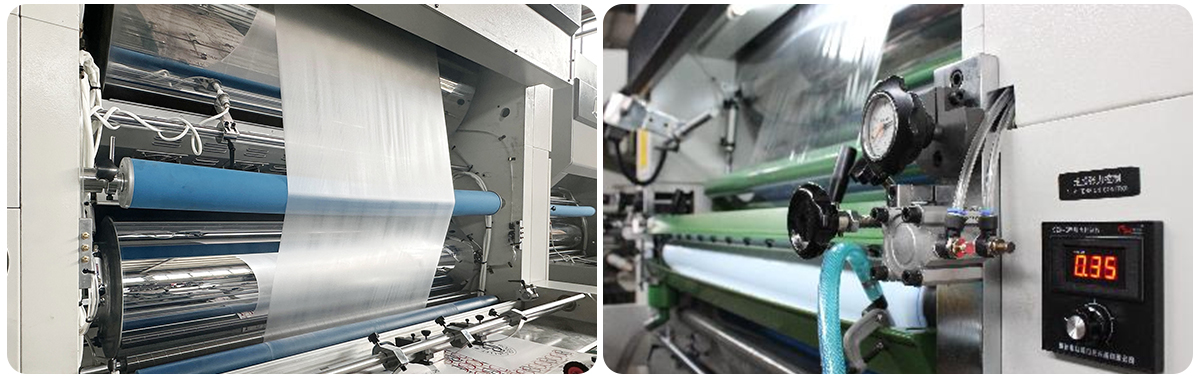

2.Drying roller diameter is 1000mm, fill liquid into the roller and seal it. Electromagnetic heating control system is adopted for drying, the film is heated evenly, and the
drying speed is more faster, lower energy consumption. The stainless steel fin electric heating tubes are built in the auxiliary oven.
3.Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe for accurate temperature reading.
4.The diameter of the pressure rubber roller is 300mm/320mm, and the pressure can be up to 15MPA.
5.The gluing roller and the measuring roller drive controlled by independent motors, More uniform glue control.
Glue thickness micro adjust, easy to control by the Gauges
6.The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue. The gluing system Teflon process
treatment, easy to clean and non-sticky. When machine stop.
CUTTING UNIT

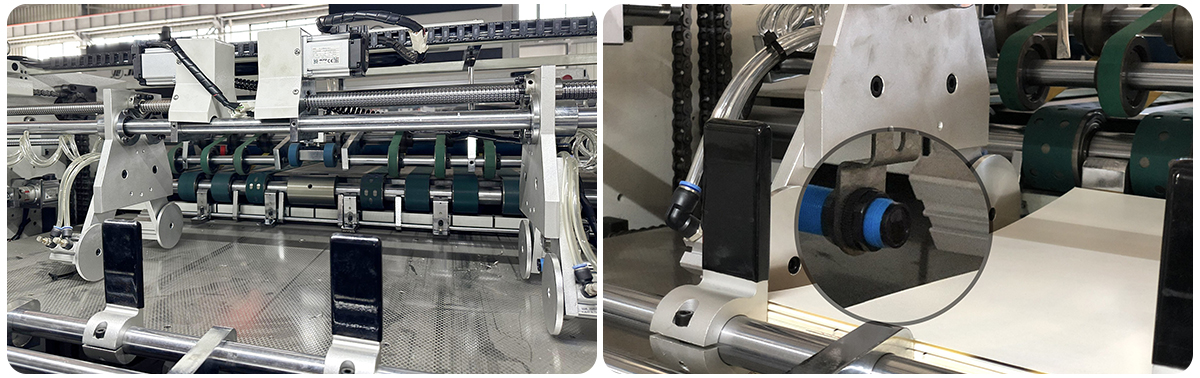

1.The paper cutter is equipped with a tension controller, the an anti-curl device to ensure that the thin paper flat and not curled.
2.The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials
3.The disc knife is controlled by a servo motor and automatically adjusts the position
4.The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference
5. Hot knife with 24V low voltage direct heating the blade, then slitting plastic film, after slitting the paper without film. The hot knife system is controlled by servo motor,
determines the position of the cut point by detecting the change of the thickness of the paper overlap, Accurately cut every printed piece, clean and tidy, without any tail film.
NON-STOP COLLECTOR
1.The non-stop paper receiving part is controlled by four servo motors, the left and right front and rear positions of the paper pat cylinder, and the automatic adjustment
of the paper stop baffle position
2.The non-stop collector height can reach 1300mm. When the stack is almost full, the delivery conveyor belt will automatically extend to accept the paper. The collector
platform will drop. After the tray is replaced, the platform will recycle and complete the non-stop collector.
3.Adopt pneumatic paper sorting structure to ensure the paper in the good order.
4.Avoid paper breakage due to excessive speed hitting the baffle.
5.Counting electric eye: the number of running paper is read by the display, and the data can be cleared and totalized.
6.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the collector will overturn, paper is
kicked out
