Machine function & structure

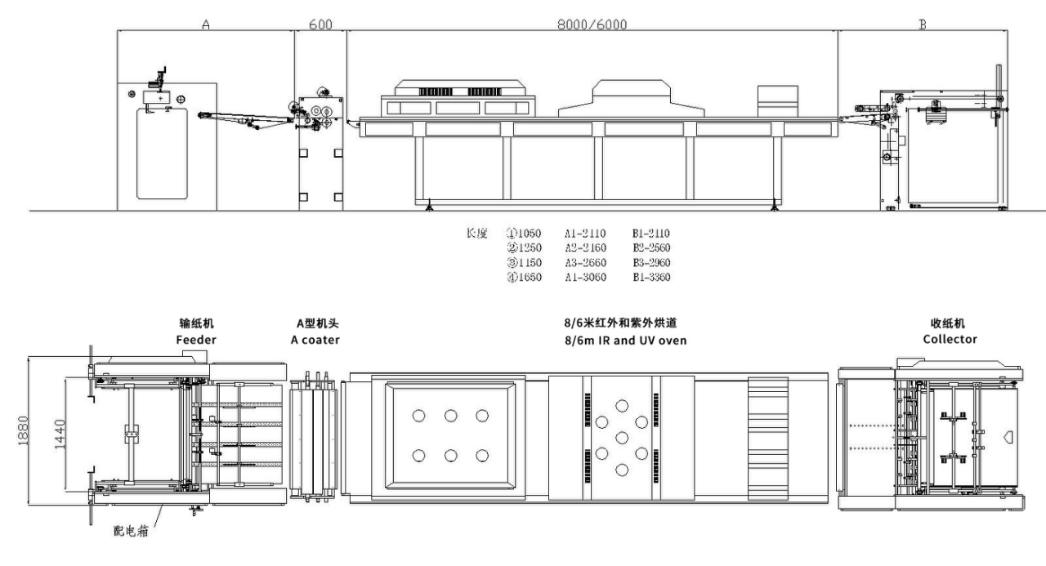

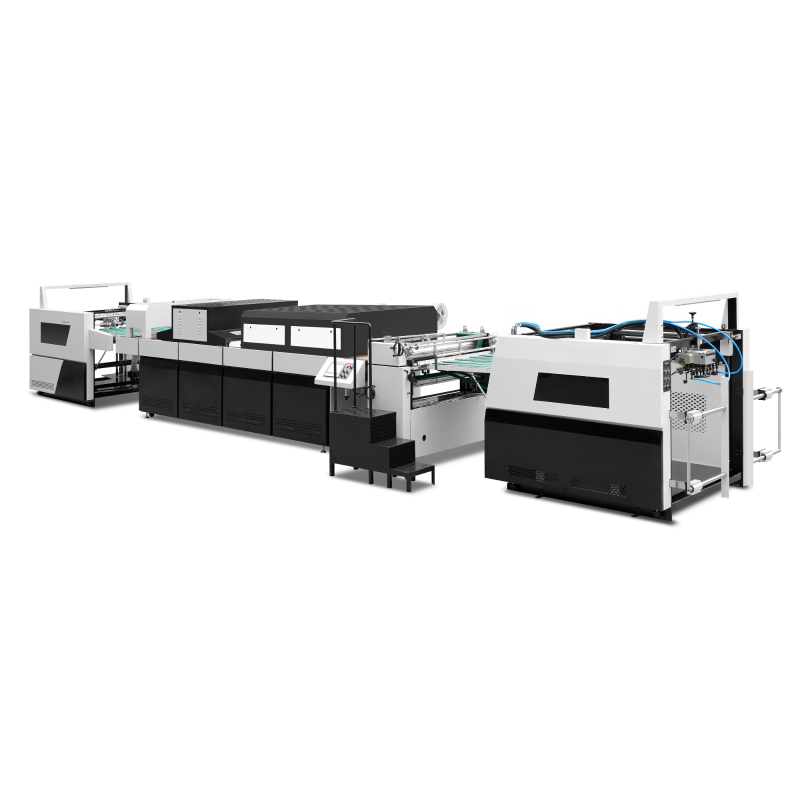

SG-A series UV oil coating machine which is suitable for the varnishing and polishing process of various paper (250-600g/m²), machine for water-based oil, UV oil and blister varnish oil coating, after processing the print surface has the damp-proof and water-proof effects. Machine adopts the reversing mechanism to make the oil layer smooth and fine, save varnish oil and meets the high quality requirements.
Water base oil, UV oil, blister varnish oil, plastic oil
| Model |
SG-A |
| Model |
SG-A1200/SG-A1500/SG-A1700/SG-A1900 |
| Max Paper Width-(X) |
1150/1450/1650/1850mm |
| Max Paper Length (Y) |
1150/1450/1650/1850mm |
| Min Paper Size |
390*320mm |
| Roller Length |
1250/1550/1750/1950mm |
| Paper Thickness |
250-600gsm |
| Working Speed |
10-100m/min |
| Working Power |
2010/12/15 |
| Feeding Paper Pile Height |
1150mm |
| Collecting Paper Pile Height |
1050mm |
| Voltage |
380V 50Hz 3P |
| Breaker Load |
100A |
| Main Motor Power |
2.5kw |
| Total Power |
60/70kw/85kw/85kw |
| Infrared Lamp Power |
1.2kw*18pcs/1.2kw*18pcs/1.5kw*18pcs/1.5kw*18pcs |
| Ultraviolet Lamp Power |
8kw*3pcs/10kw*3pcs/15kw*3pcs/15kw*3pcs |
| Weight |
5200kgs |
| Dimension |
11600*2100*2080mm |
| Dimension 1200-1650 |
13100*2100*2080mm |
| Oil Type |
Water Based Oil, UV Oil, Blister Oil, Plastic Oil |
Detail configuration
 |
 |

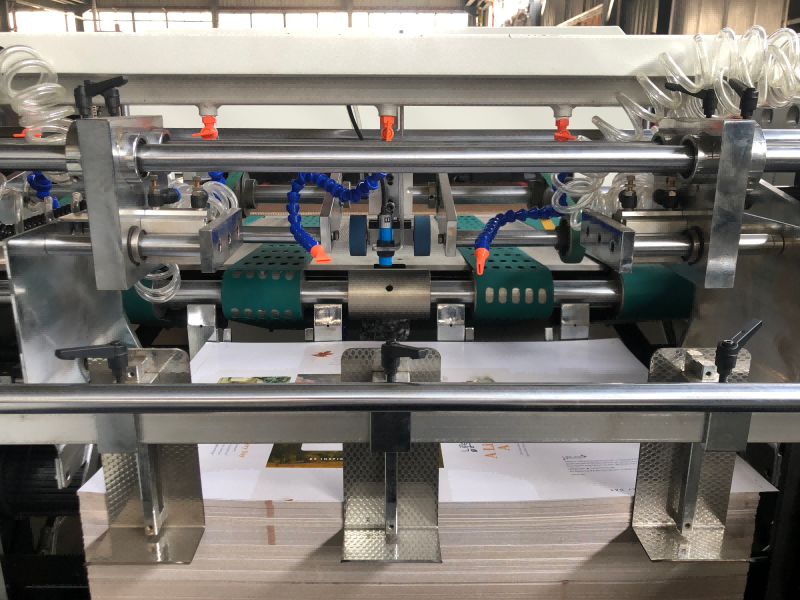

High SpeedFeeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h The paper feeding table has upper and lower over-limit protection Double or multi-sheet detectiondevice
The paper pile table rise protection device, there is a micro
Becker Vacuum Pump
|

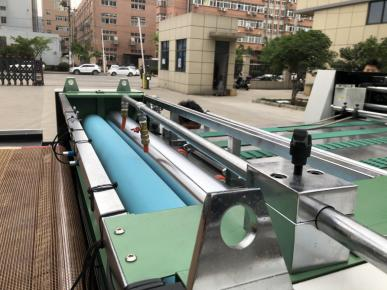

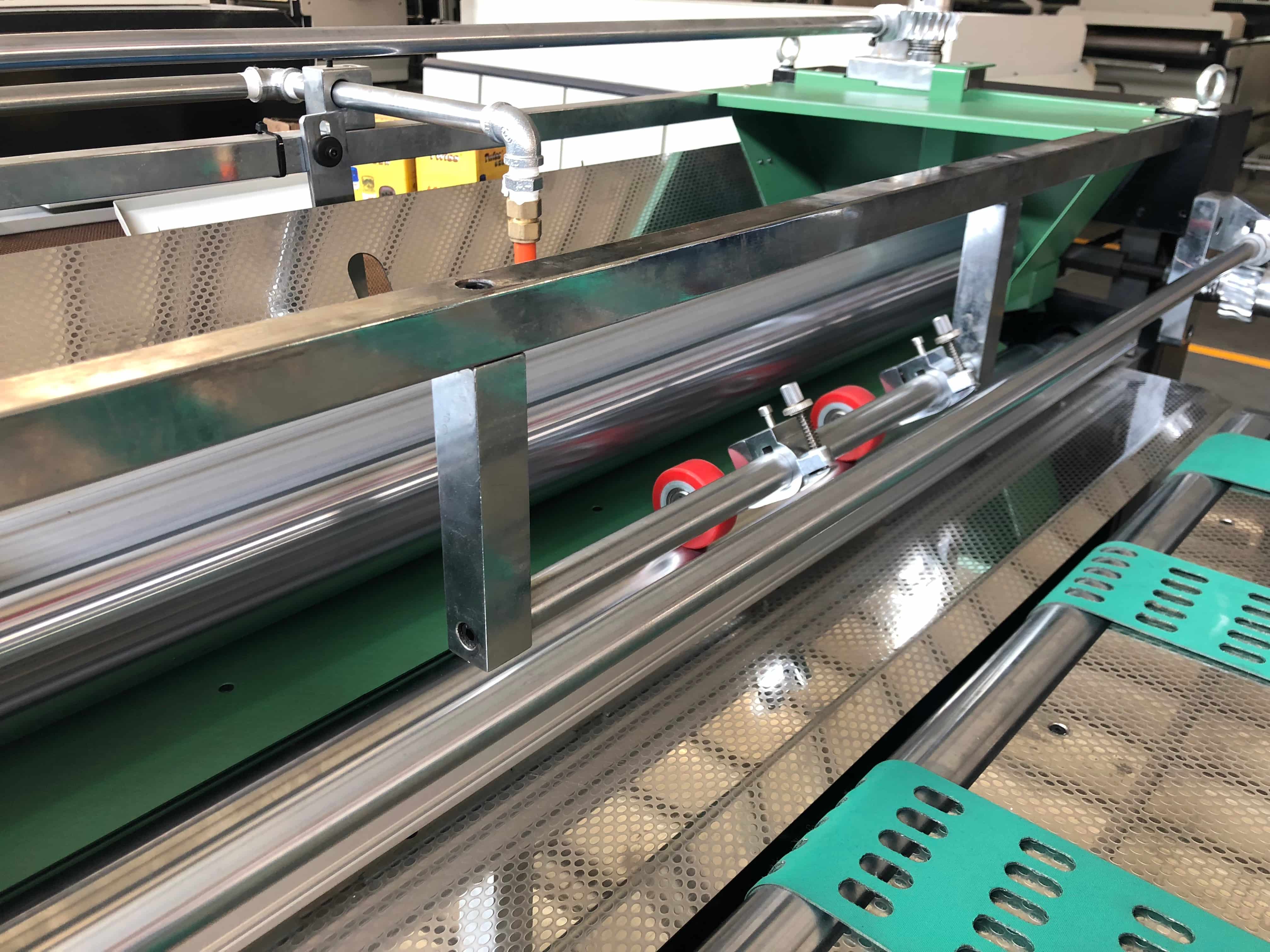

CONVEYING TABLE AND OVERLAP The conveying table adopts customized stainless steel corrugated board The brush wheel and rubber pressing wheel move smoothly |
 |
 |
DUST REMOVERAND INKJET PRINTER(OPTIONAL) Water powder remover device (optional)increase one coating unit for water powder remover, remove the dust on the surface of the paper after printing to avoid white spots after the paper is coated. |

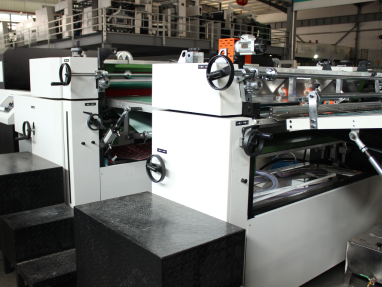

Add pedal for workers to step on and use, more convenient to debug the machine, and add railing behind the pedal for more safety. Upgrade the touch screen operation center console, more convenient and accurate operation. |
Infrared drying with 18pcs Infrared lamp

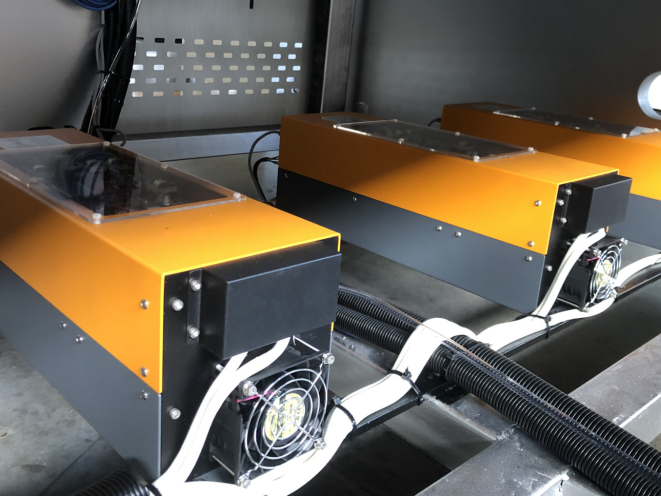

Ultravioletdrying with 3pcs ultravioletlamp
The intelligent transformer for Ultraviolet lamp (optional), energy saving 30-40%.

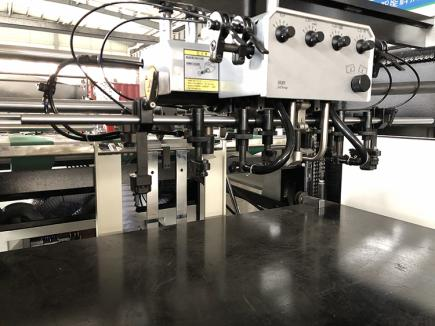

Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and lift the paper.
Reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle.
Marketing & Technical Service Center Technical Training Professional operating engineers sent by GREAT is responsible for equipment installation and commissioning work at the same time, training for user operators.
The customer need to bear his Visa, round-trip ticket, whole trip room and board and afford 100.00 USD per day wage.
All machines have been finished all adjustment and test in HANYU workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
13 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 13 months)
