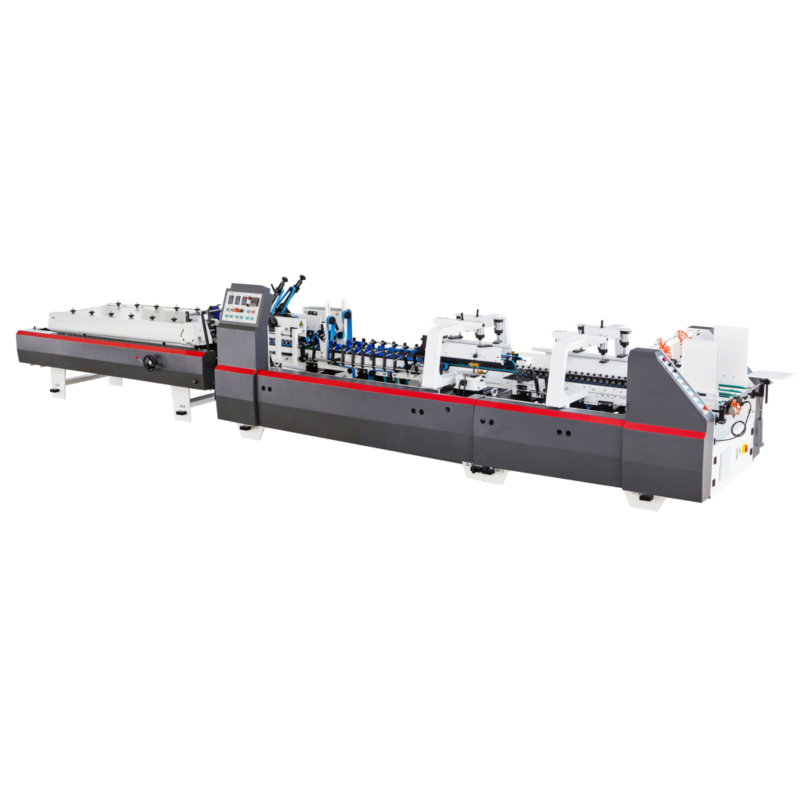

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180°and 135°,perfectly combing the requirements of auto packaging together.
Specification:
Model |
YZHH-800/1050GK |
Paper Material |
Cardboard 200-800g E-flute /F-flute |
Max. Liner speed |
Max. 280 meter/minute |
Feeding way |
Automatically and continuously feeding |
Way of folding |
Fold 1 and fold 3 are 180°and 135°
Fold 2 and fold 4 are 180
|
Glue Material |
Water-base cold glue |
Electric power |
7.5KW 380V 50HZ 3P |
Weight |
2200/2400KG |
Over dimension |
9700 x1500（1700）x 1400mm |
1. Deviation correction function: can effectively correct the paper output of the box blank, ensuring more accurate folding;
2. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.

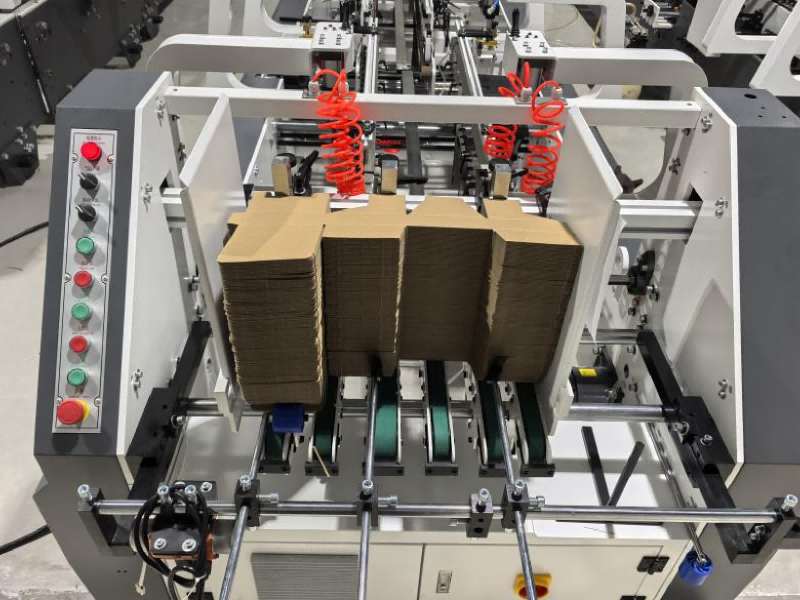

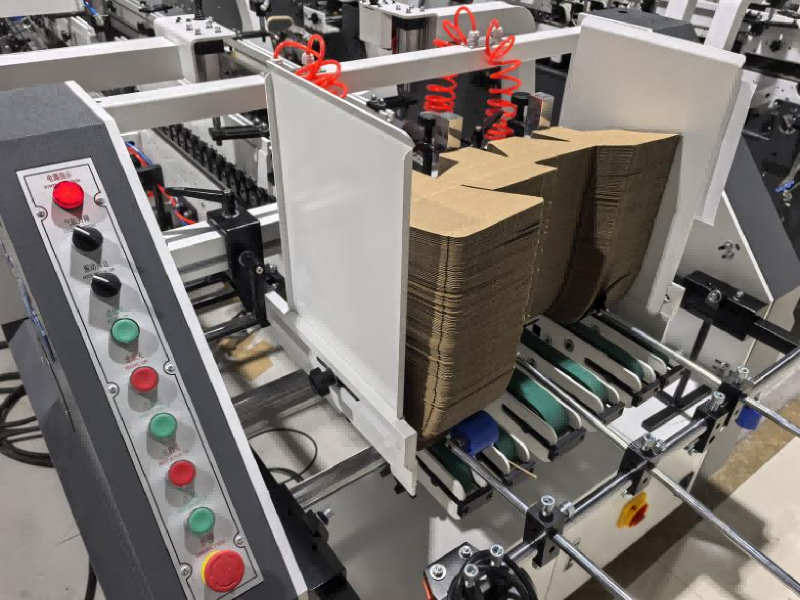

1. Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission.
2. One-touch Pneumatic knife, easy for the adjustment of feeding belts.

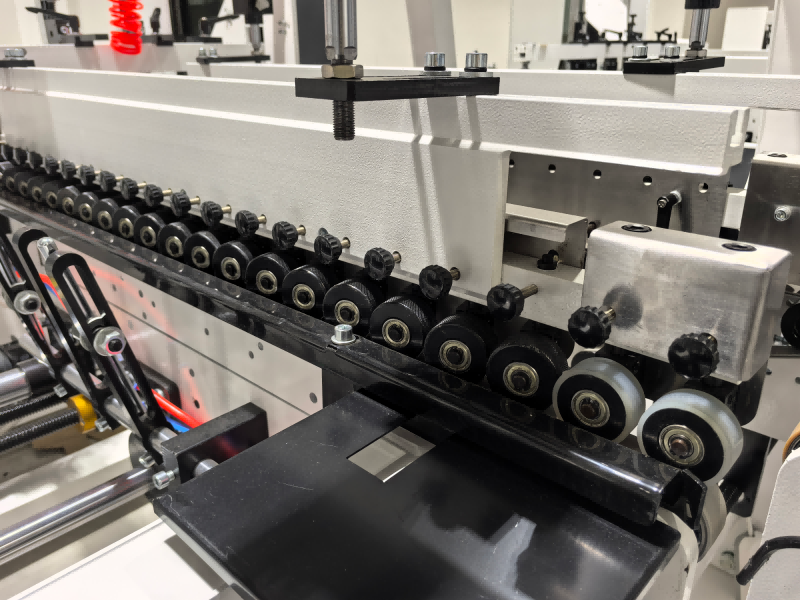

Alignment section, which automatically corrects the box after it is ejected from the paper feed section.

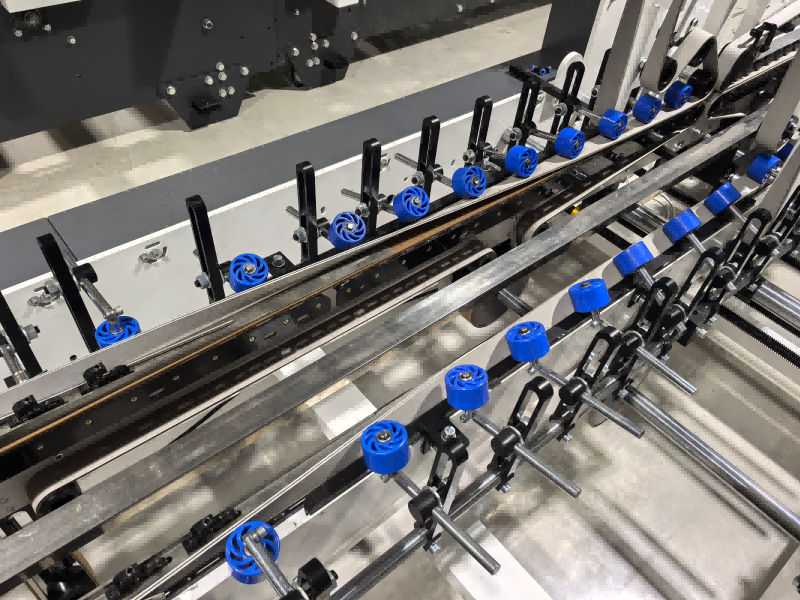

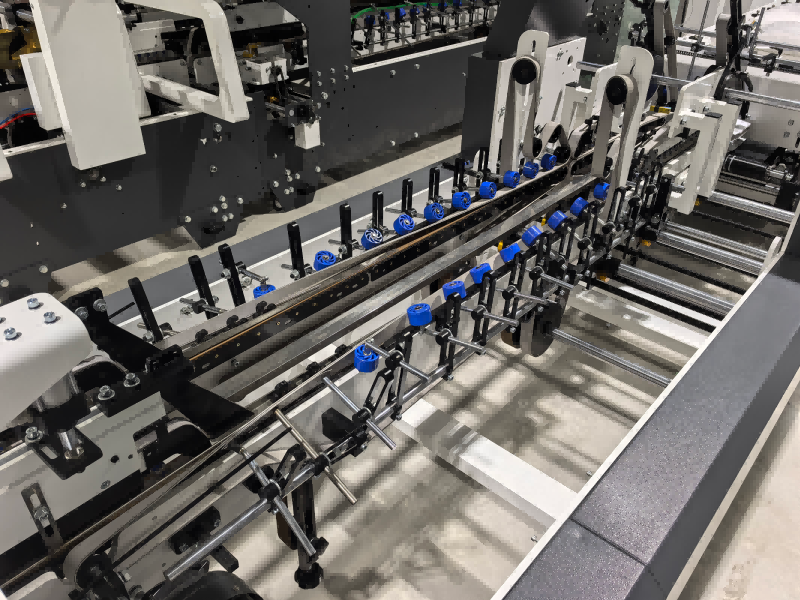

Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.

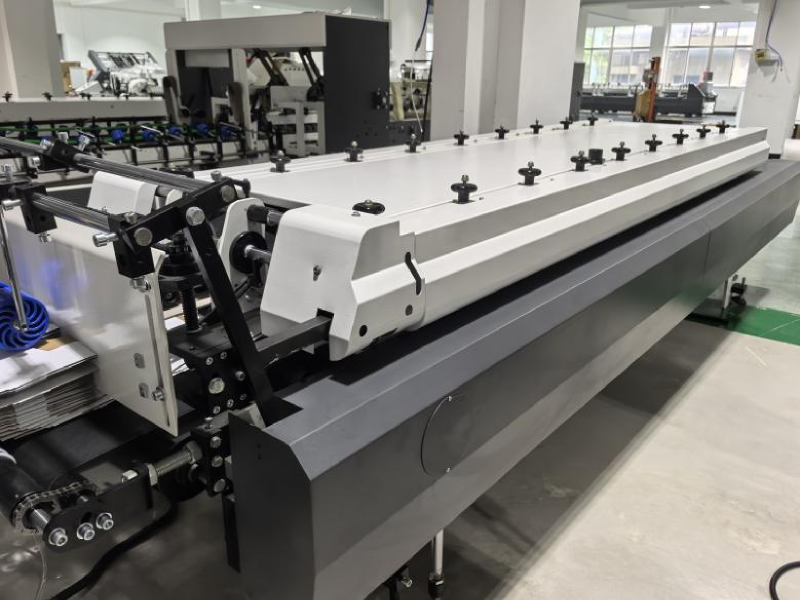

With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
1.Equipped with feeding paper inspection device.
2.Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
More effective treatment of paper surface UV, the carton adhesive more stronger
MACHINE OPTIONAL CONFIGURATION LIST
 |
 |

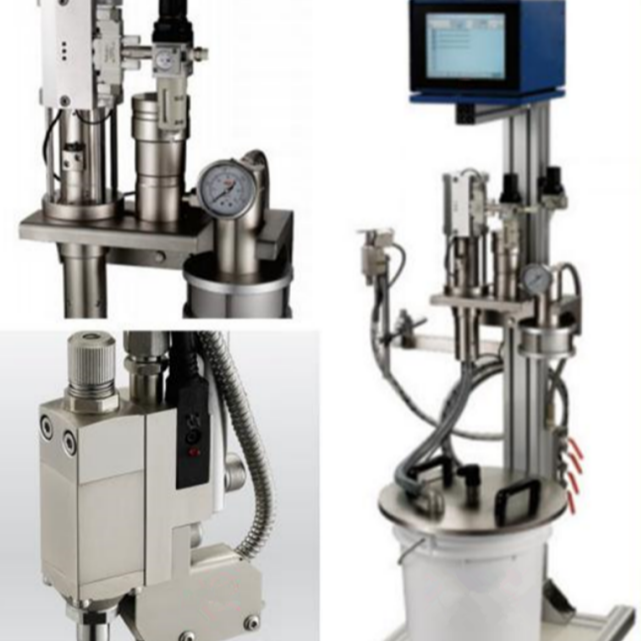

1.Optional Spraying System (water-base cold) For irregular box, Need Extra Spraying System. Equipped with three guns, convenient in the production various special box, gluing quickly and accurately sizing. (Options: customized on user order) |

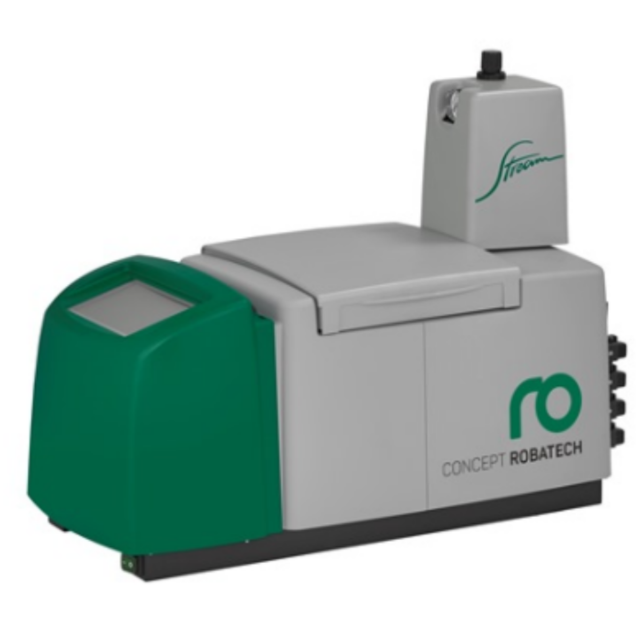

2.Optional hot melt system The tank less hot melt system is designed for melting and pumping of thermoplastic hot melt in granulate form. It gently melts on demand and therefore is applicable for both high and low glue consumption applications. Optional volume control monitors changes in adhesive consumption. Thanks to the fast heat-up time of 16 minutes to 160 °C the Concept Stream is quickly operational. In addition, the adhesive system achieves a high melting rate performance of 8 kg/h or 15 kg/h with minimum space. |
 |
 |

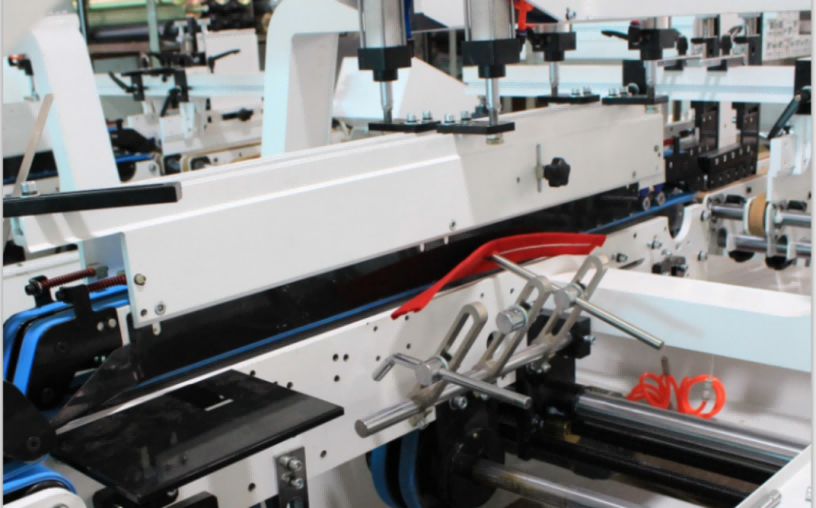

3.Optional Pre-fold (two rows) Double-board structure with a set of pre-folding knife. Pre-fold angle is 135°, especially suitable for small but high cartons, more satisfactory while rapid prototyping |

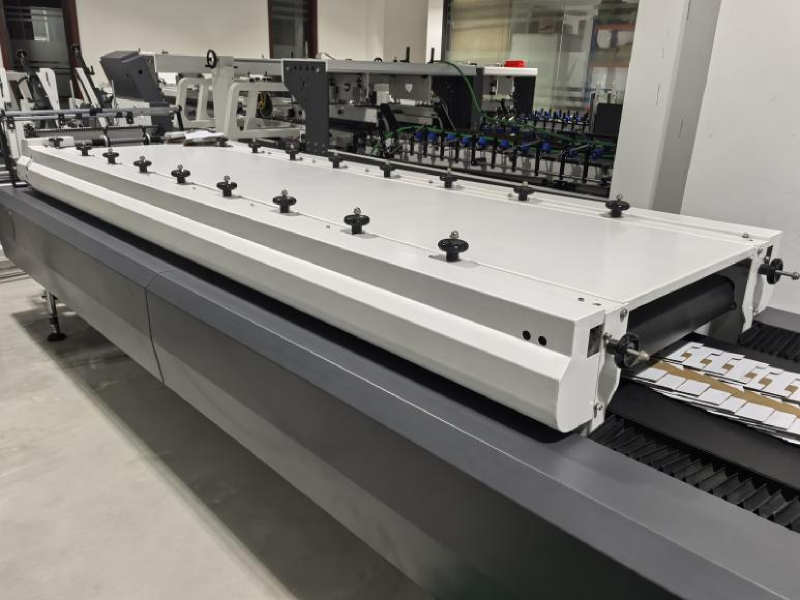

Through surface coating treatment,to strengthen the adherence and make cartons easier to be glued. |
 |
 |

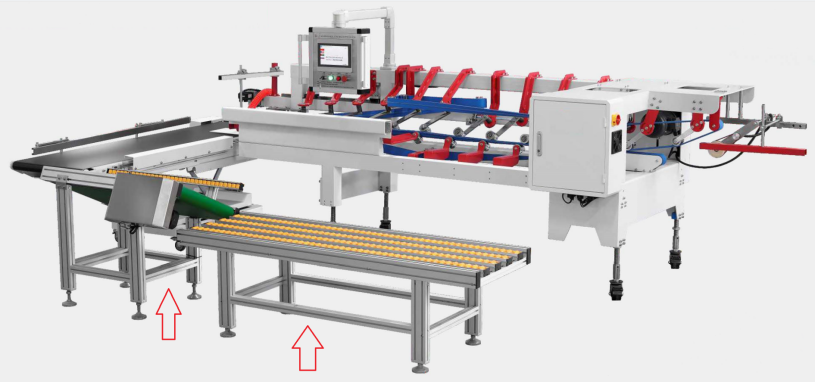

5.Optional Box collection device The machine reduces labor intensity, saves manpower, improves the working efficiency of the folder gluer machine, and can make the performance of the folder gluer machine fully play. |

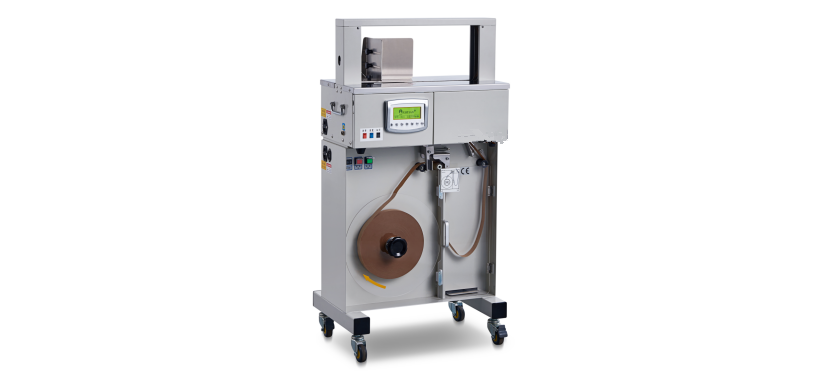

6.Optional banding Machine The machine reduces labor intensity, saves manpower, improves the working efficiency of the folder gluer machine, and can make the performance of the folder gluer machine fully play. |

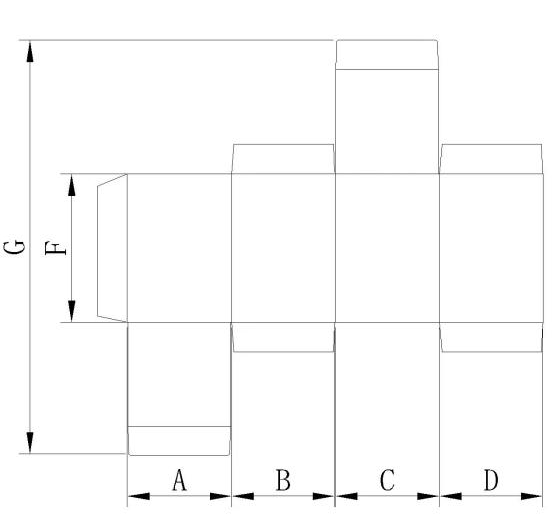

| Common box type and size： |
| Model |
YZHH-800GK |
YZHH-1050GK |
| Paper type |
Cardboard |
E/FCorrugated |
Cardboard |
E/FCorrugated |
|
| A+B+C+D |
180-780mm |
200-980mm |
| C+D Min |
90mm |
90mm |
| D Min |
8mm |
8mm |
| F Min |
50mm |
50mm |
| G |
150-700mm |
150-700mm |
|
 |
