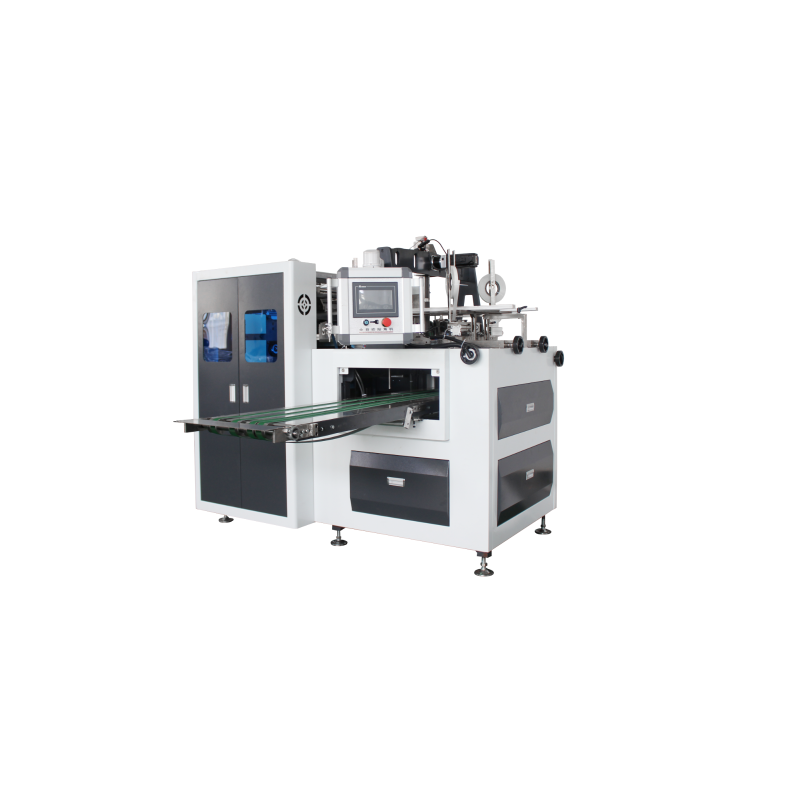

TJ-40A belongs to rigid box forming processing line machine. Automatic box corner pasting /taping/sticking machine, which is flexible, can speed up with the manual gluing machine or match with automatic line, conveyor box to the robot positioning part.
Machine conveyor belt with different height to meet various automatic line.
Specification:
Model |
TJ-40A |
Min sheet size |
120*120mm |
Max sheet size |
680*620mm |
Min box work size |
80*80*15mm |
Max box size |
440*380*120mm |
Max box height |
140mm |
Tape Width |
19mm |
Work Speed |
30-40pcs/min |
Voltage |
380V/50Hz |
Power |
3.5KW |
Machine dimension |
2040*1260*1890mm |
Net Weight |
1400KGS |
Gross weight |
1480KGS |

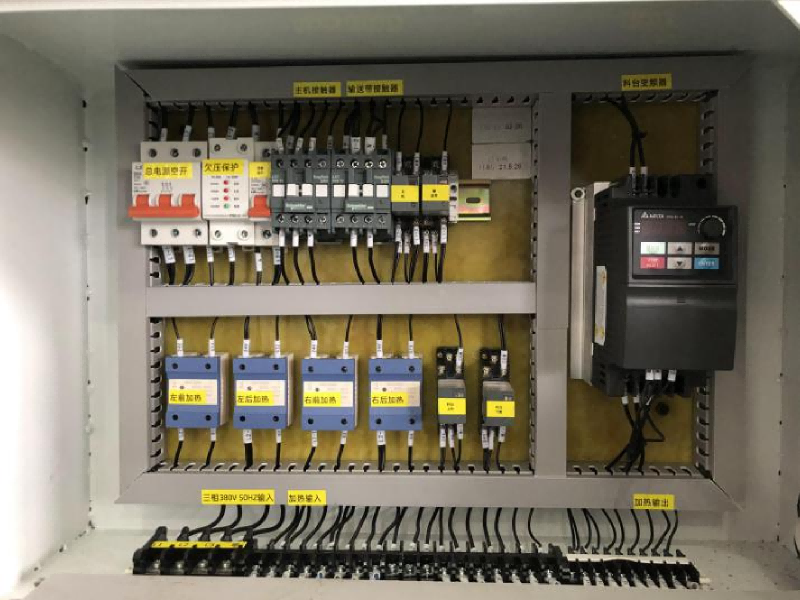

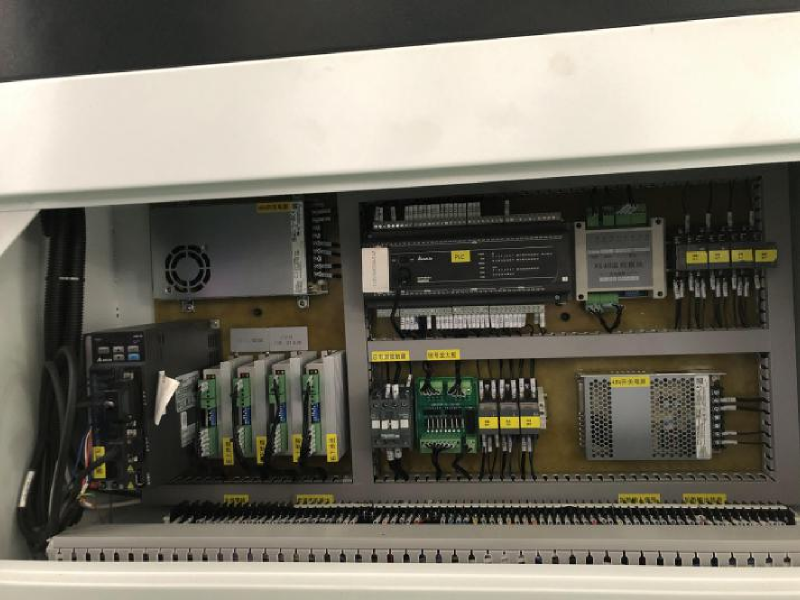

1. It adopts PLC control and friendly HMI.
2. Non-stop automatic feeding cardboard, stacking height with 1000mm and 1200mm.
3. (According to the existing production line structure of the customer's factory, we can flexibly supply TJ-40A Rigid Box Corner Pasting Machine with different heights for matching.)
4. In order to improve working speed, cardboard table adopt on-line feeding
5. Easy to change mold, suitable for different sizes of products.
6. The hot-melting glued tape auto conveying, cutting and four-angle sticking, forming the box in one process.
7. The auto alarm when the tape run out also lacking of the feeding pile.

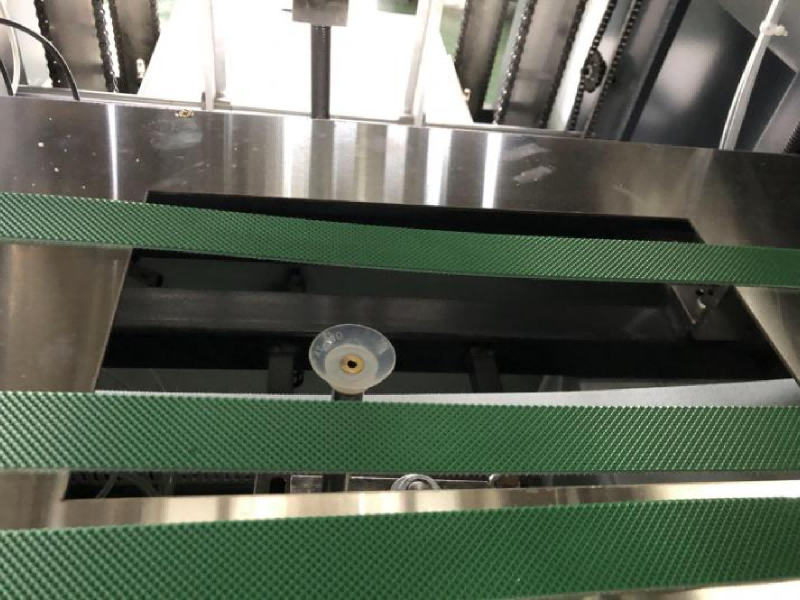

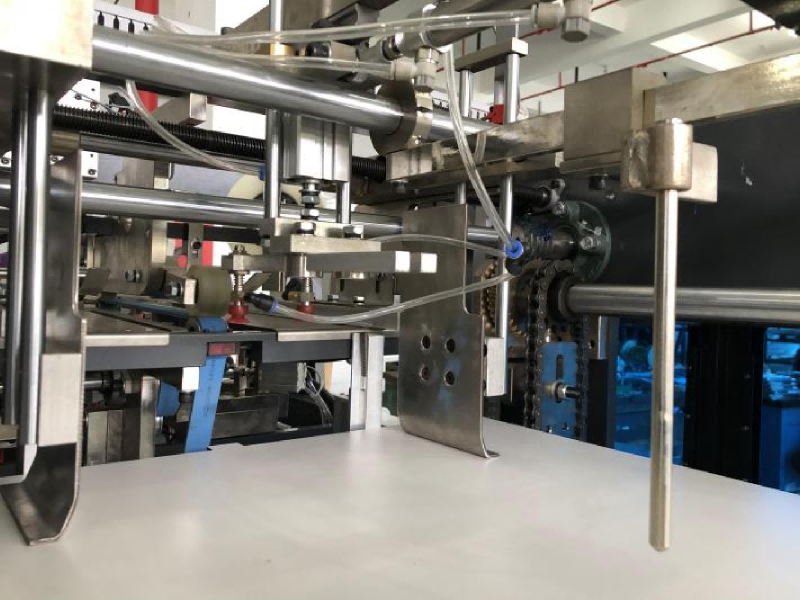

Feeding parts adopts the feeder feeding instead of belt friction feeding, feeder no matter the cardboard size or the cardboard with the groove, the suction nozzle size and position can adjust according to the exact sample.

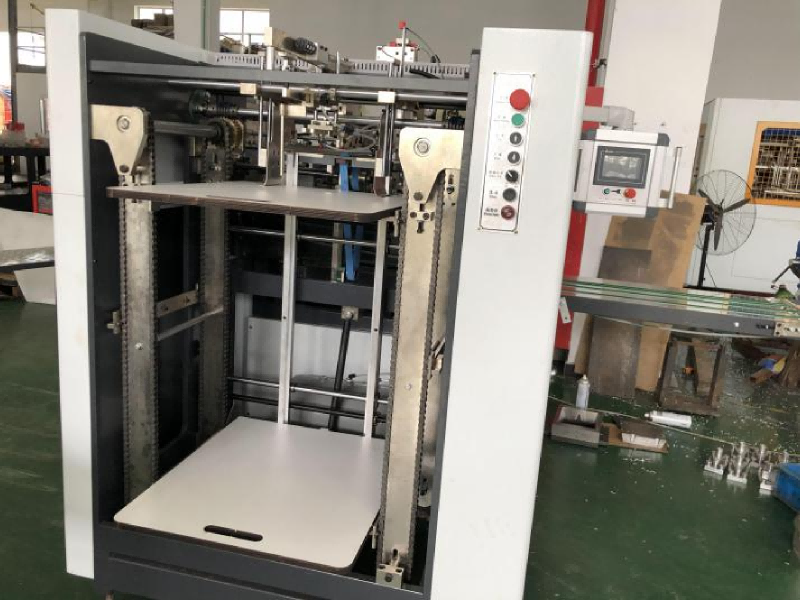

Non-stop feeding, once the main cardboard pile lacking, the alarm will ring send the signal, and prepare the sub pile of the cardboard to guarantee feeding continuously to achieve high effective.
This parts with the mold, which can be the wood or plastic, mold is easy to installation and change by the screw.

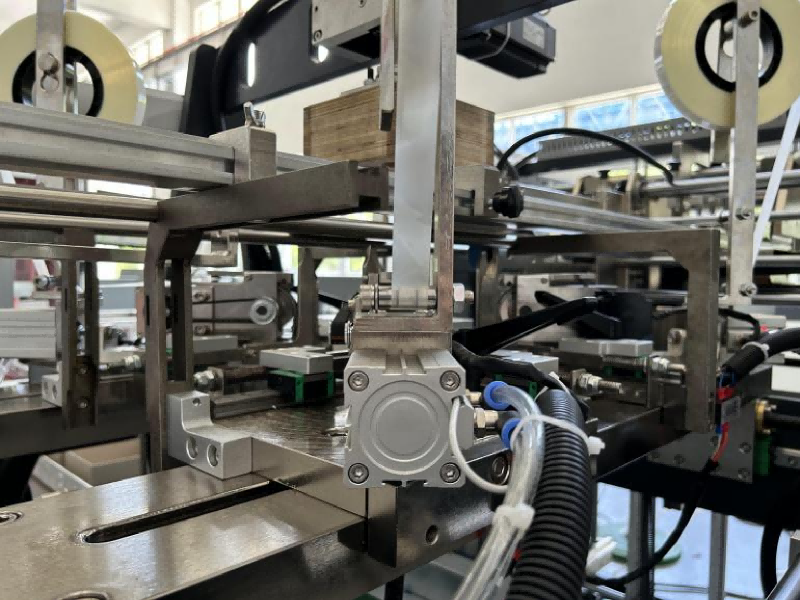

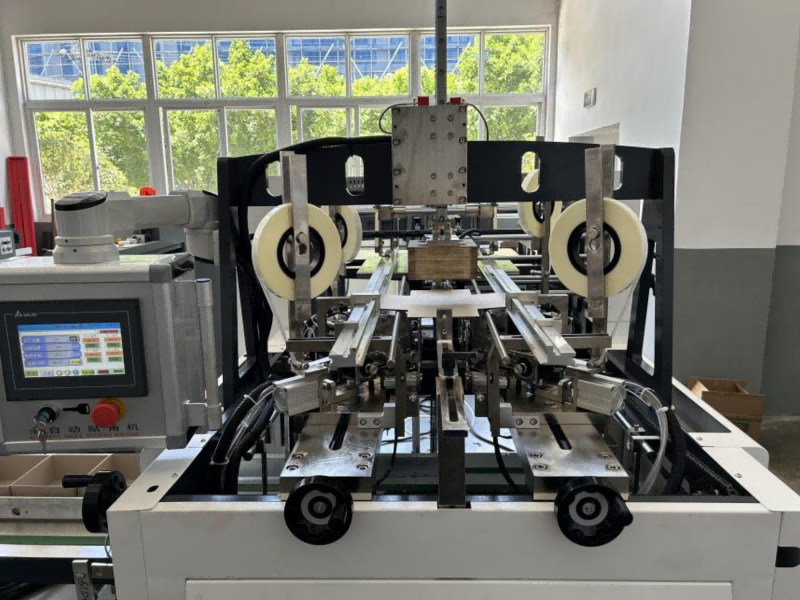

Pasting parts controlled by the cylinder(AIRTAC) ensure the high precision, by setting the control panel , it can be pasting one time or time.
Cutter feeding system: Cutter adopts high strength tool steel.
According to the exact box size, manual adjust the distance by handle wheel, tape easy to change when run out.

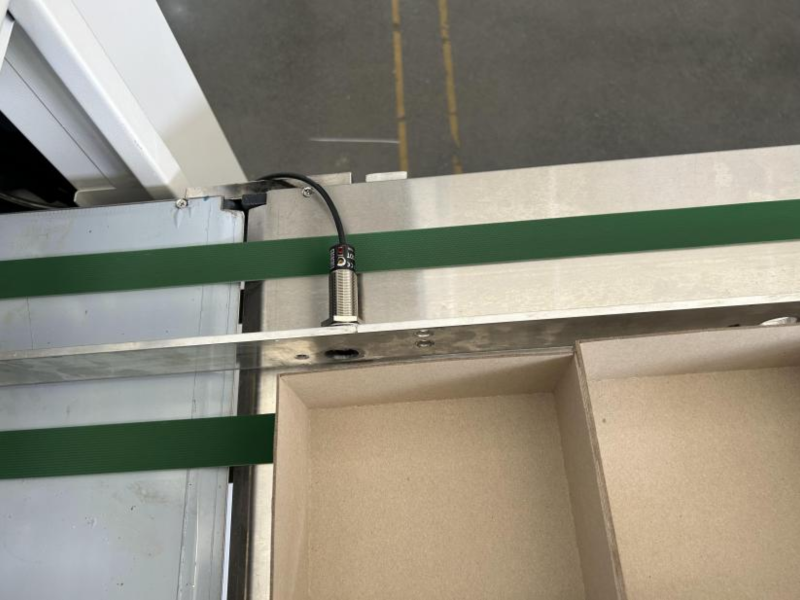

Conveyor belt height and direction can be customized according to the match automatic line conveyor height. It with nozzles to keep the box in order come out in the conveyor belt.
Machine with the Machine with the speed controller, the belt speed is adjustable.

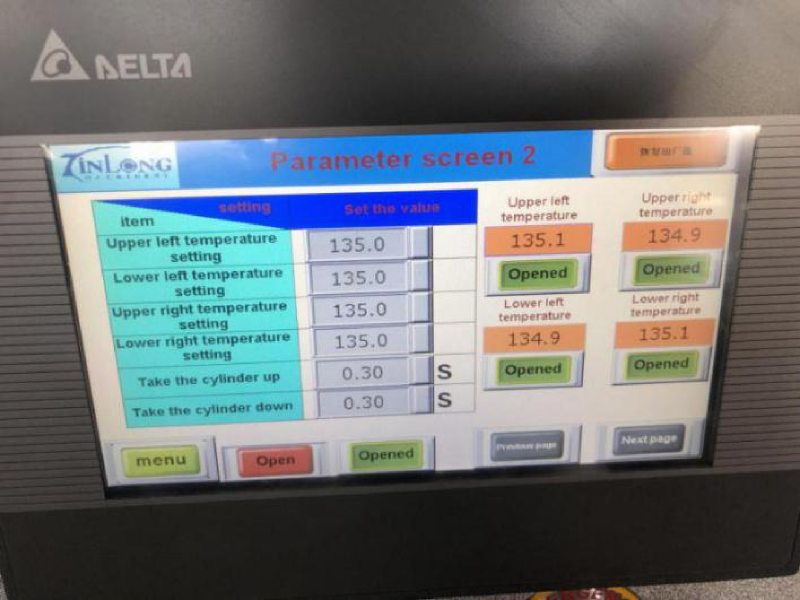

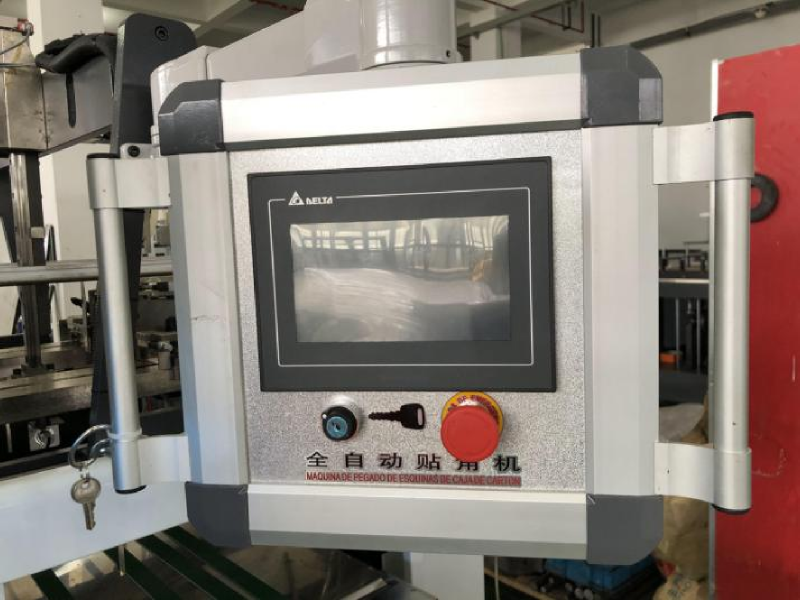

Intelligent human-machine page, easy to operate, with optional Chinese and English languages

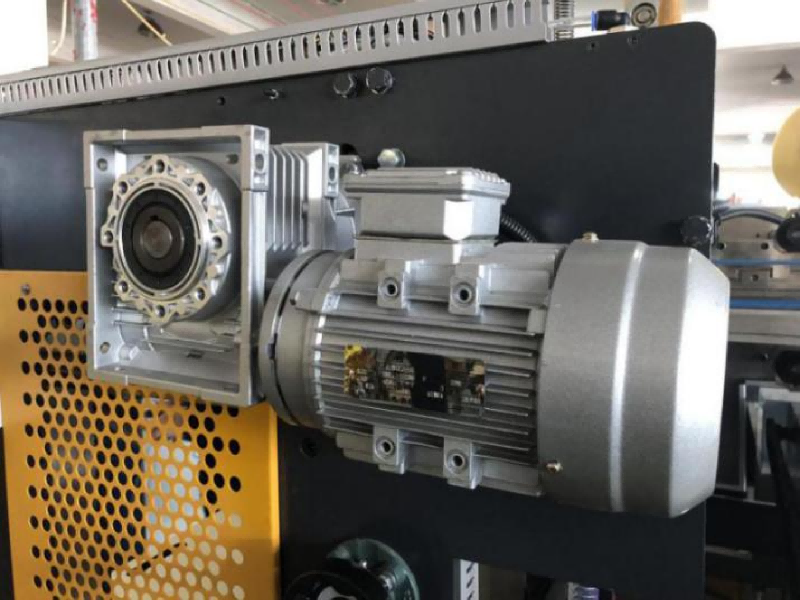

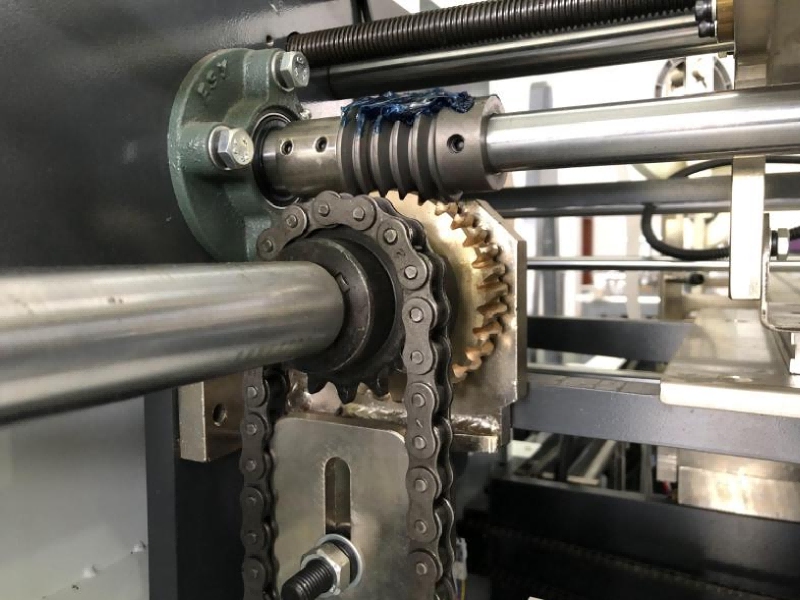

Separated motor control the feeder chain, and drive by synchronous belt to reduce noise of the machine.
The frame and outer cover sprayed with carbon steel.
The positioning guide groove adopt aluminium alloy. Other parts are plated white, and treated with blackening and phosphating.

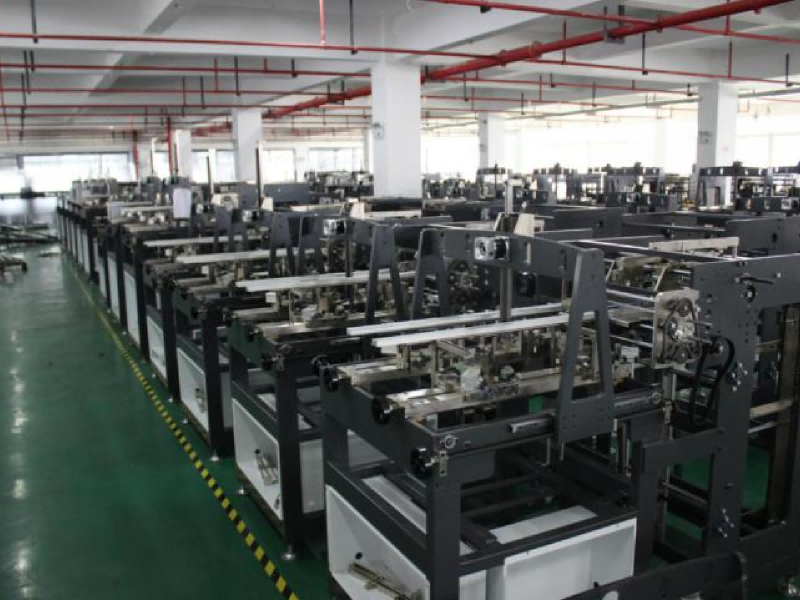

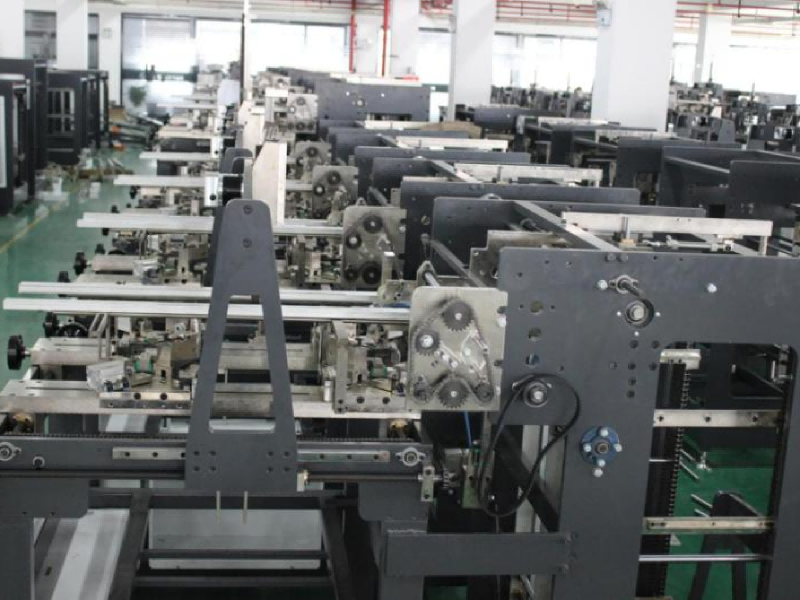

Professional Manufacturing:
