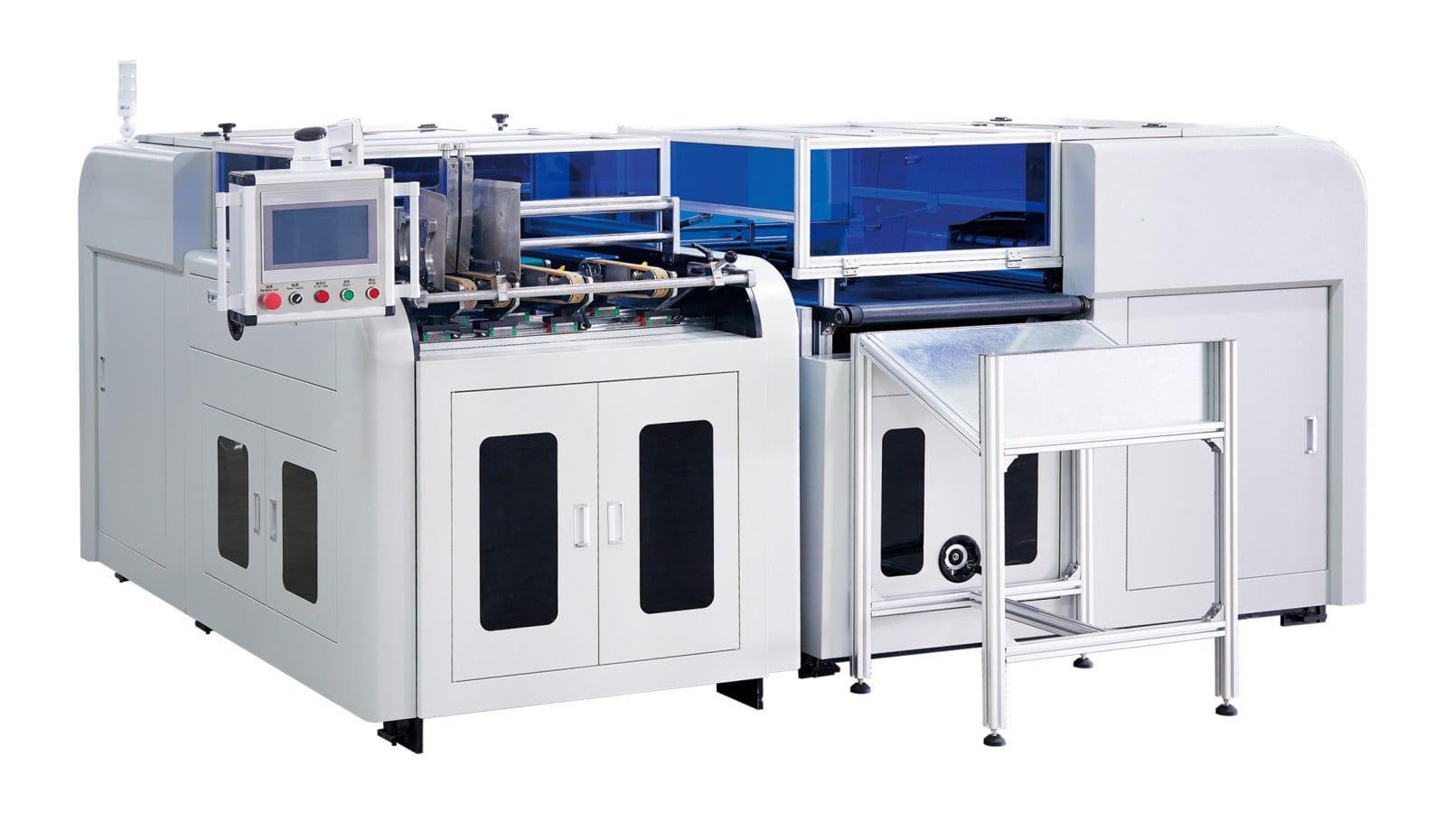

01. Usage:
Under suction grooving machine belongs to the box package production line equipment. The machine is special designed for paper card V type grooving. It suits for box, case or other packaging product, such as phone box, medicine box, watch box etc.
02. Specification:
| Model |
MSKC-W800K |
| Min Sheet Size |
80*120MM |
| Max Sheet Size |
470*620MM |
| Thickness |
220-600GSM |
| Knife Angle |
80-140° ADJUSTABLE |
| Feeding Correction Length Of Host 1 |
895MM |
| Feeding Correction Length Of Host 2 |
1010MM |
| Total Grooving Knives Number |
18 SETS, EACH HOST WITH 9 SET GROOVING KNIVES, AND 3 ROW KNIFE HOLDER |
| Knife Material |
TUNGSTEN STEEL |
| Grooving Speed |
20-100M/MIN(130-200pcs/min) |
| Roll Diameter*Length Of Host 1&2 |
600*800MM |
| Power |
6 KW |
| Voltage |
380V 50HZ 3PHASE |
| Precision |
±0.1-0.2 MM |
| Net Weight |
3500KGS |
| Package Dimension |
2500*1530*1780MM |
| 2050*1400*1570MM |
| Gross Weight |
3700KGS |
03. Feature Highlights
1. Our cross-shaped grooving machine enables single-pass can achieve horizontal and vertical grooving.
2.The auxiliary blowing system adopts the adjustable delay pause function, which is environmentally friendly and energy-saving.
3.The paper feeding method with downward suction is suitable for 220-600gsm products
04. Details

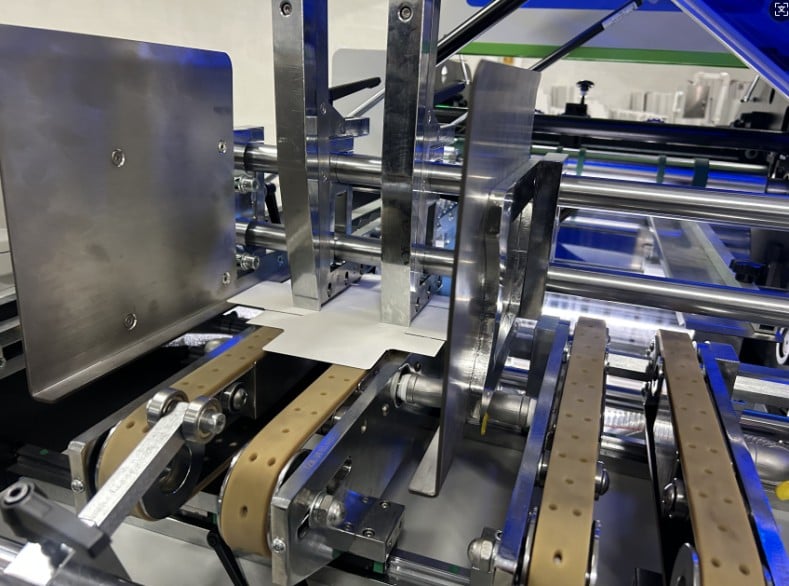

FEEDING PART |
|
|
|

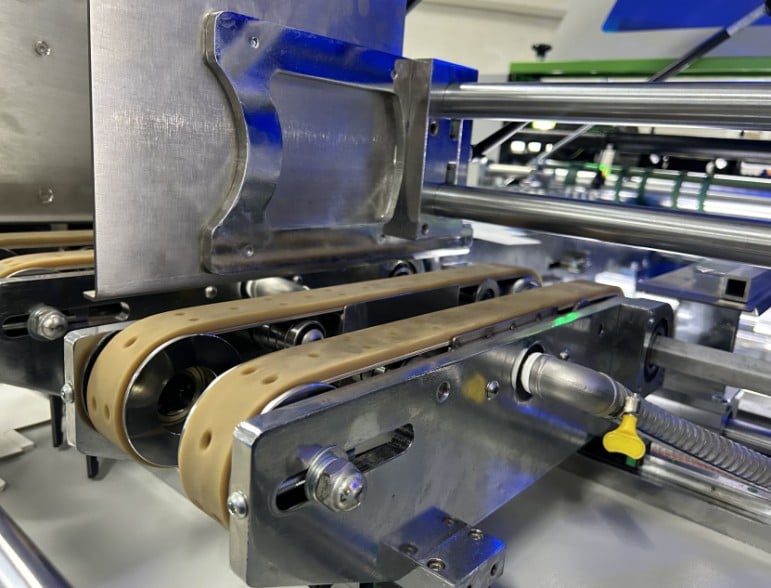

1.The paper feeding belt with suction ensures smooth product transportation
2.Adjustable size to suit large and small sizes
|

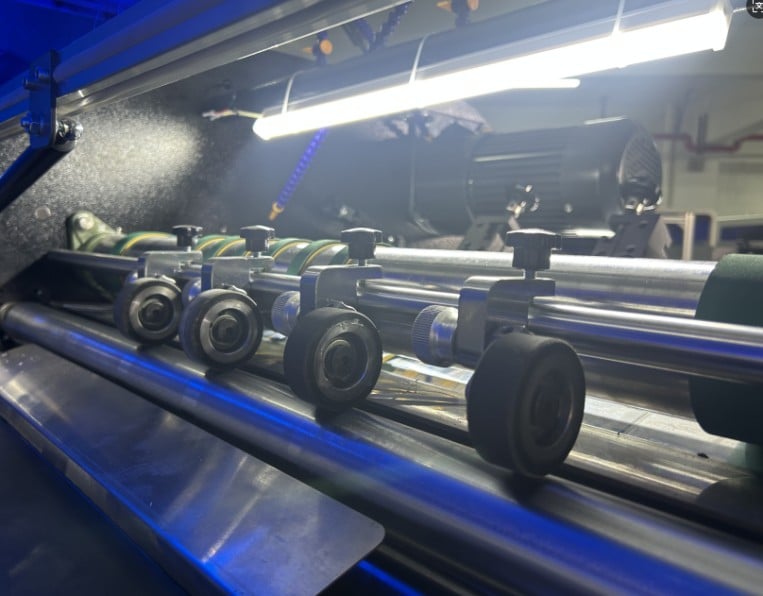

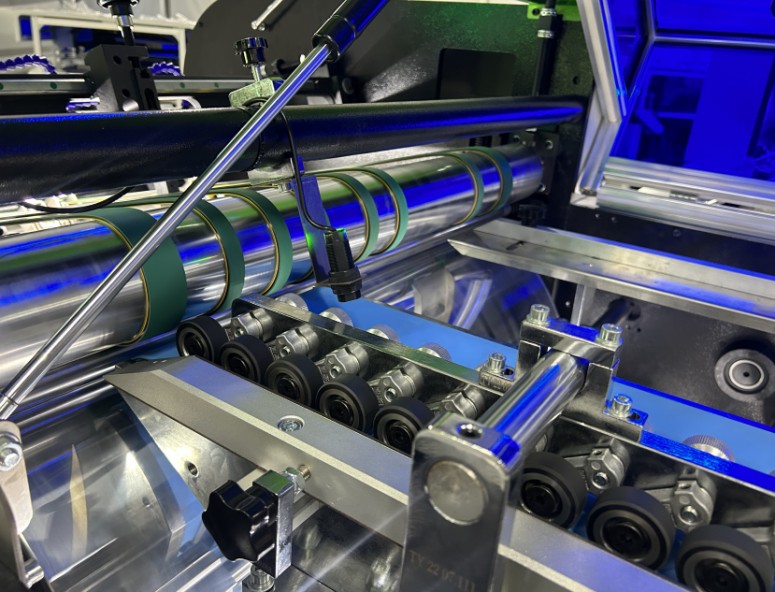

HOST 1 EDGE CORRECTION PART |
|
|
|
Single-sided pressure wheel correction is more accurate.
The counting photoelectric can count the output.
|

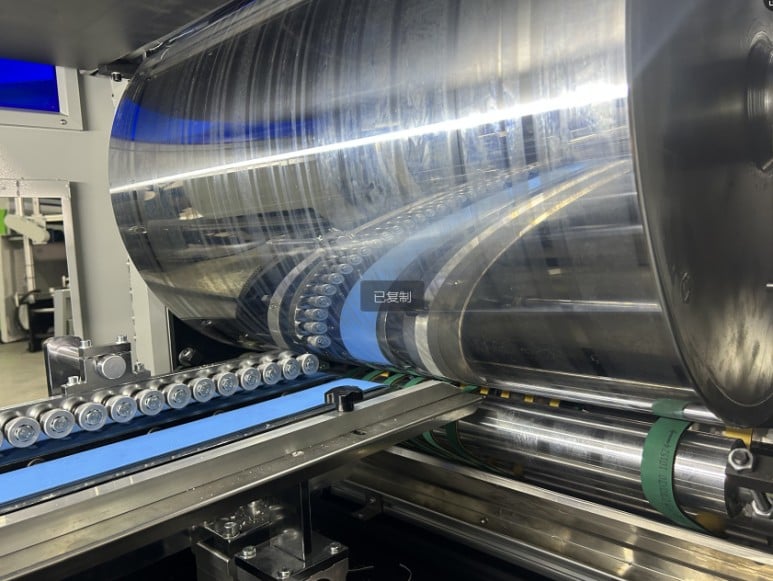

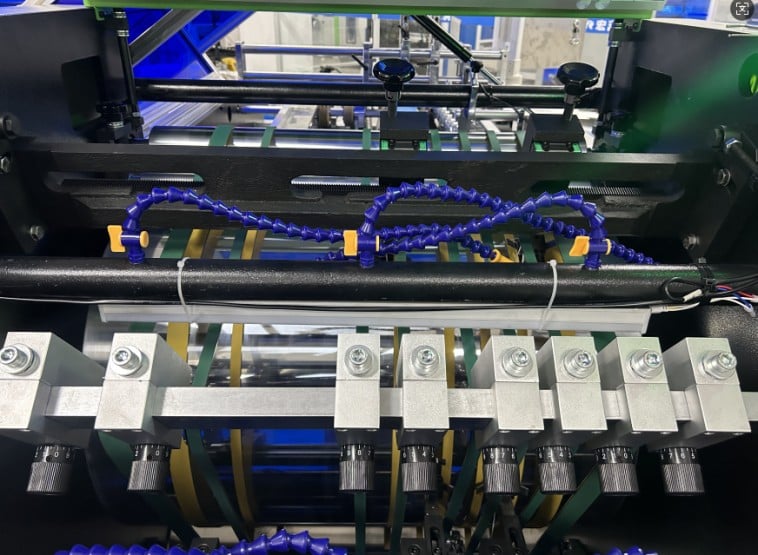

HOST 1 & HOST 2 GROOVING PART |
|
|
|
The part with 3 rows of knives, each row has 3 knives, which can meet the needs of multiple products to open multiple slots at one time.
The air blow pipe can adjust the position of the air blow port according to the needs, which is convenient for cleaning the slotting waste

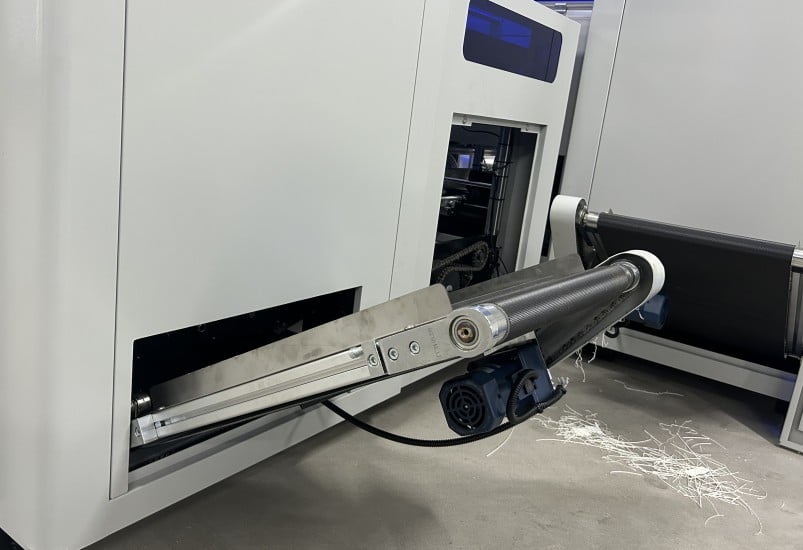

The conveyor belt can help collect waste and reduce the workload of operators
|

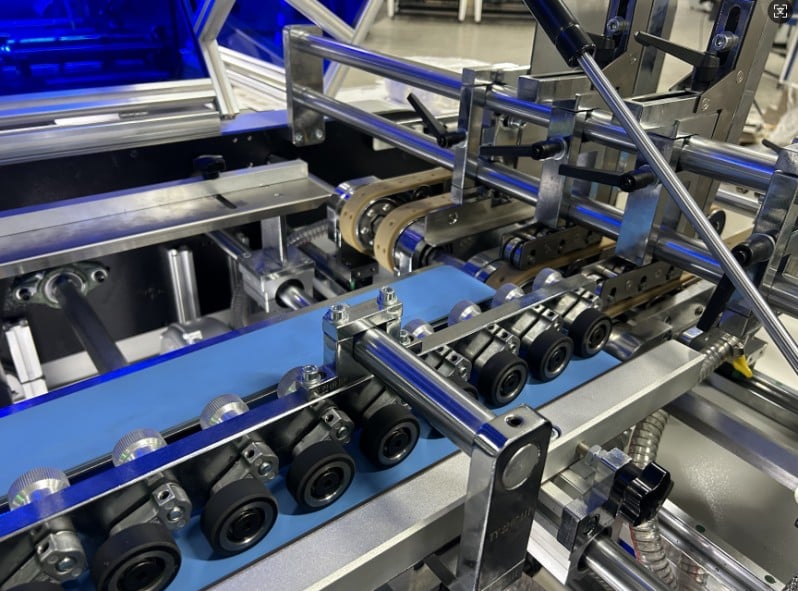

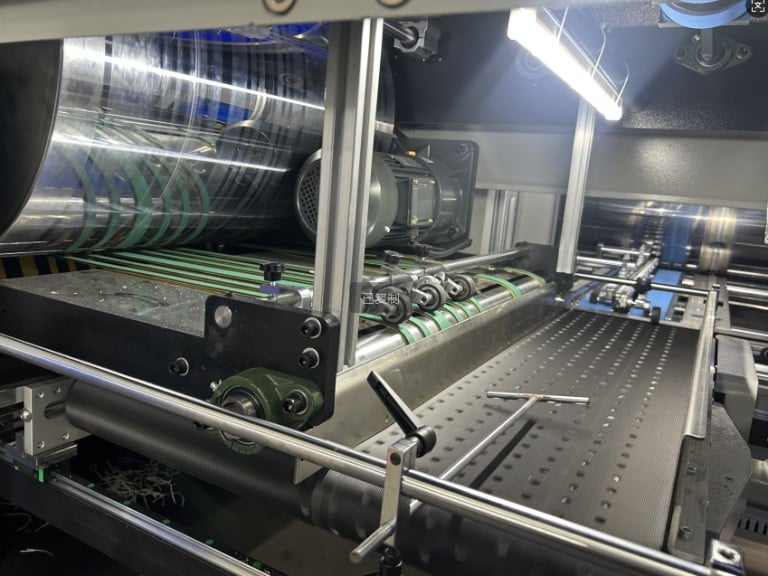

HOST 2 EDGE CORRECTION PART |
|
|
|
The belt with suction can ensure the smooth transportation of paper
The 1010mm length of deviation correction can ensure the accuracy of the second slotting
|

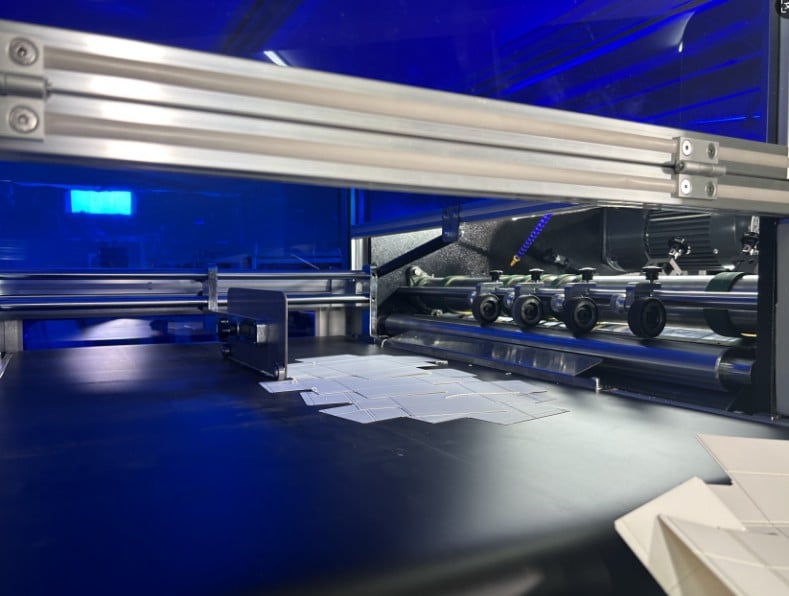

FINISHED PRODUCT OUTPUT PART |
|
|
|
After the second grooving, the pressing wheels, baffle and conveyor is confirm that the product is output neatly.
The output part is located on the right side of the feeder. One person operates one device to achieve high efficiency and save labor costs.
|
05. Main Configuration List
Name |
Origin/Brand |
Human-machine interface 10-inch PI3102IG-C(4G) |
WEIKONG TECHNOLOGY |
PLC LX5V-2424MT |
WEIKONG TECHNOLOGY |
Intermediate relay JZX-22F/2Z(D) |
CHINT |
AC contactor NXC-0910 |
CHINT |
AC contactor NXC-3210 |
CHINT |
Air switch NXB-63 1P C10 |
CHINT |
Air switch NXB-63 2P C25 |
CHINT |
Air switch NXB-63 3P C32 |
CHINT |
Inverter 2.2KW VC1800-2R2G3 |
SHANGHAI GLOITE |
Inverter 1.5KW VC1800-1R5G3 |
SHANGHAI GLOITE |
Main motor 380V/2.2KW |
HAOXING |
Button.Flat button.Knob |
HELIJIA |
Sharpener two-phase 220V |
MAKUTE |
Photoelectric switch XS618-G-NAL5 |
MILITARY INDUSTRY |
Alarm |
WENZHOU |
Functions and details are constantly upgraded, The above configuration is subject to change without prior notice
06. Who are we?
|
Professional Manufacturing:
A strong enterprise focused on the production of rigid box making machine.
Innovative Services:
A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
|
|
Workshop
Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.
|
|
|
|
Packaging & shipment:
Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.
|
|
07. Who we serve？
08. Why choose us？
Quality endorsement |
|
Cargo shipped all over the world, global logistics support!
|
|
NCN machining center
Stable quality starts with parts processing.
|
|
|
Team |
|
CEO:
With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert.
Technical Supervisor:
Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization.
Sales Manager:
Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost.
QC Manager:
All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries.
Equipment Salesman:
Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers.
Order Follow-up Personnel:
Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time.
Procurement staff:
With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.
|
|
|
After-sales guarantee |
|
After-sales service team:
We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production.
Overseas on-site service:
Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently.
On-site service content:
Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands.
Warranty policy:
Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment).
Lifetime service:
We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.
|
I'm waiting for you in the workshop: |
|
|
|
I'm waiting for you in the cloud:
We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face.
Tell me your specific needs at any time, and I can help you make a complete production line plan!
|
Related Products |
|
|
|

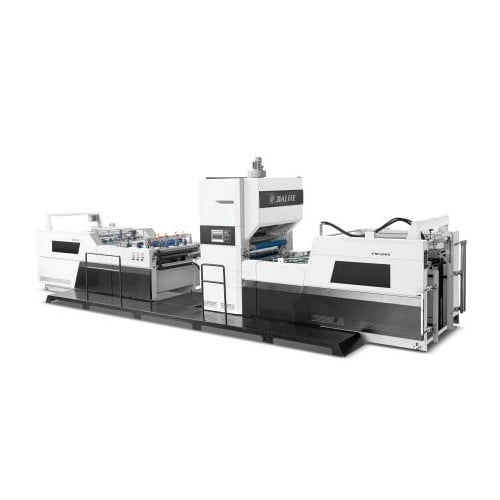

Automatic Film Laminating Machine |
