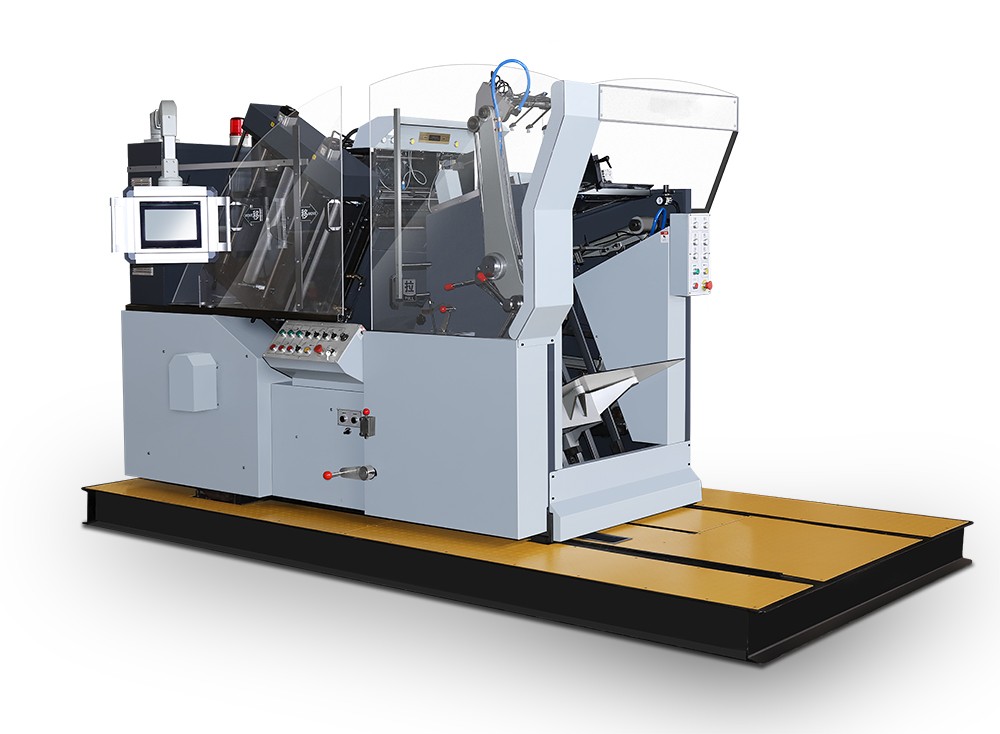

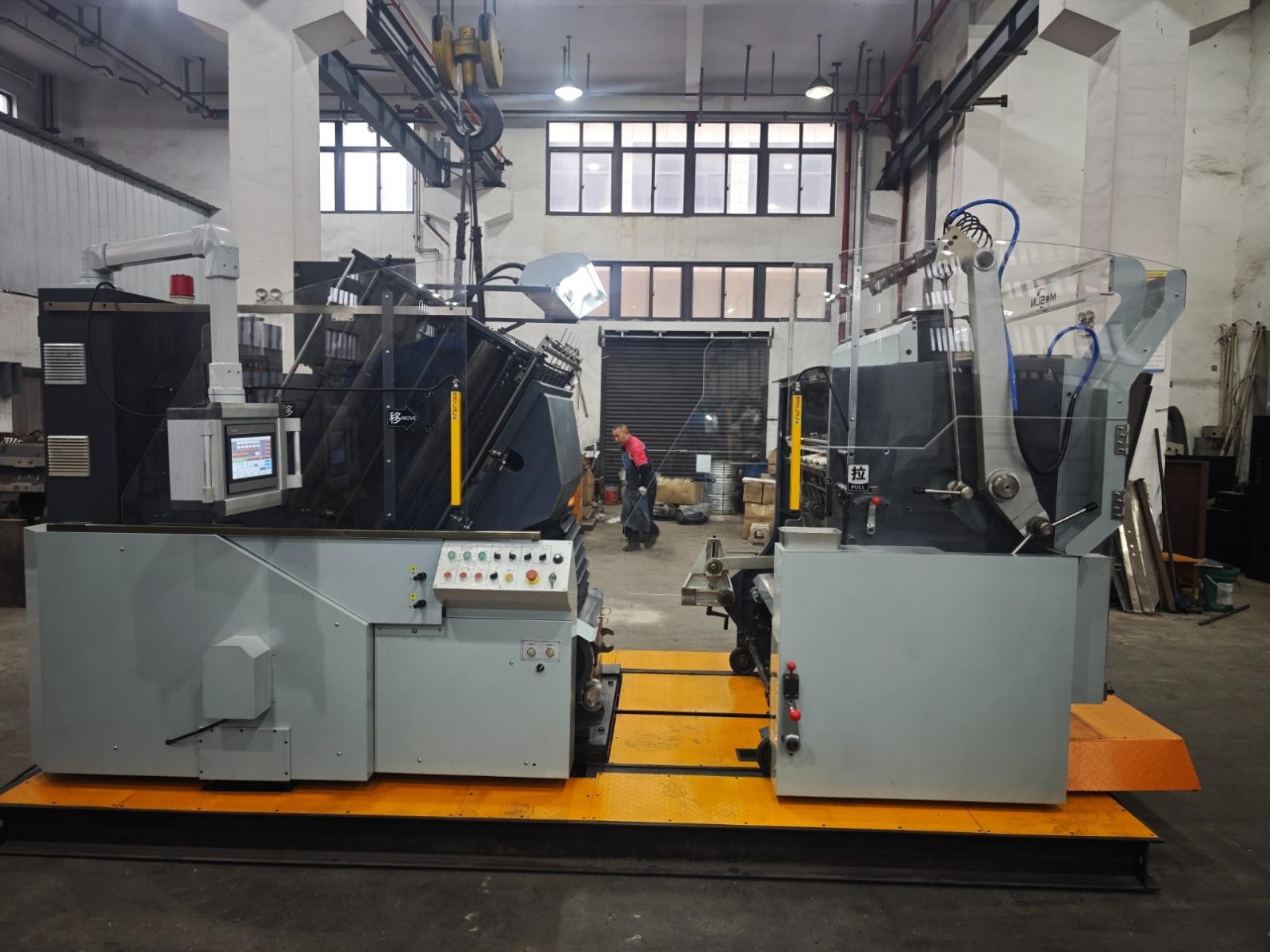

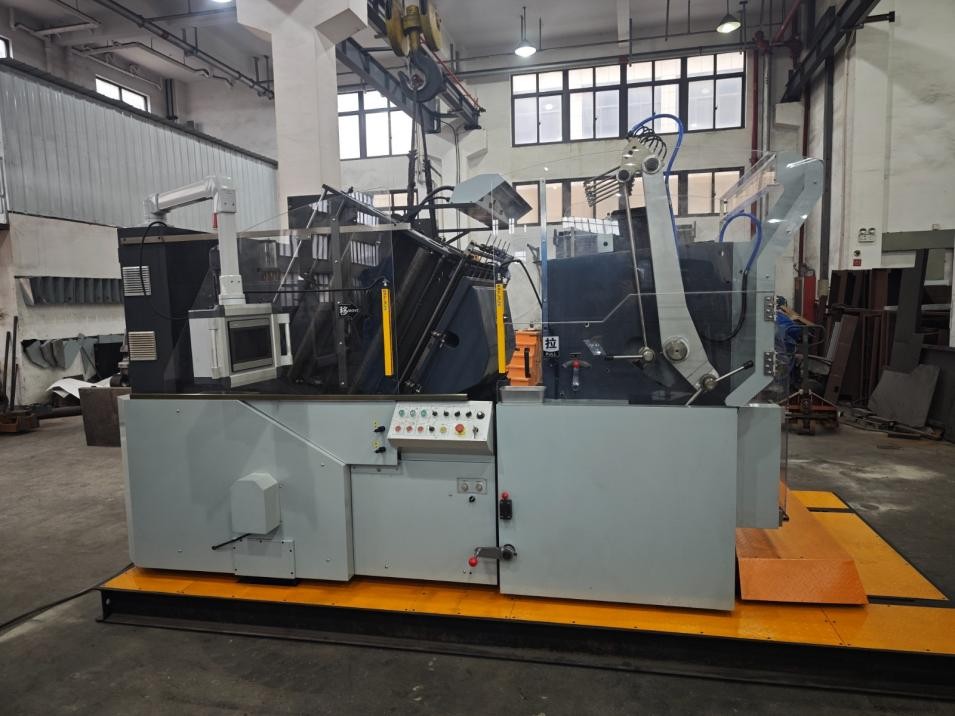

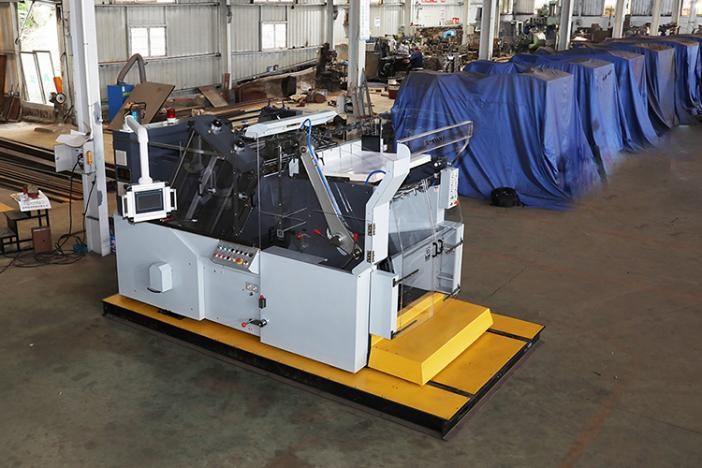

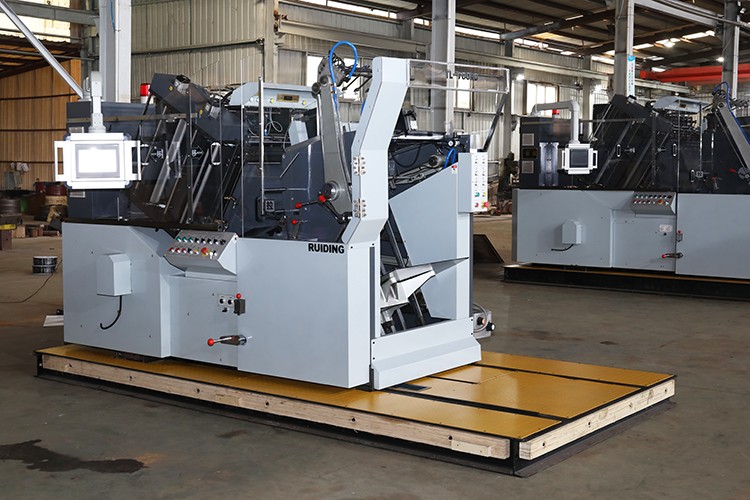

AUTOMATIC FOIL STAMPING AND DIE CUTTING MACHINE

AUTOMATIC FOIL STAMPING AND DIE CUTTING MACHINE

Model:MSTL-780/930/1080

Introduction

01. Usage

This machine mainly carries out hot stamping, embossing, die-cutting, creasing and hot die-cutting on the surface of paper and plastic sheet.
They are used for hot stamping all kinds of colored aluminum foil and embossing or die cutting different kinds of pictures, clothing ticketing, greeting cards, trade mark, books cover, note book, packaging cartons, paper boxes, paper bags, Cork pad, folders, and other high grade decoration and printing materials, etc.

图片 3.jpg

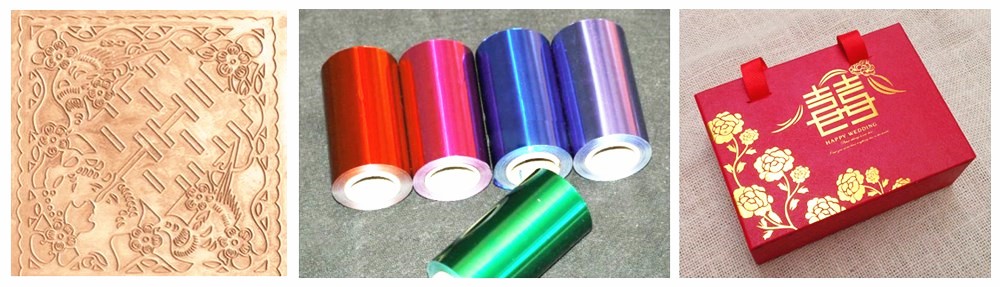

02. Consumable

Hot foil
Hot foil plate

03. Specification

1	Model	MSTL-780	MSTL-930	MSTL-1080
2	Max paper size	780mm×560mm	930mm×660mm	1080mm×780mm
3	Min paper size	200mm×200mm	300mm×300mm	350mm×350mm
4	Foil stamping size	720mm×500mm	870mm×600mm	1020mm×720mm
5	Paper pile of feeding	700 mm	700 mm	750mm
6	Paper pile of collecting	160 mm	160 mm	160mm
7	Paper thickness	120g-2000g / m²	120g-2000g / m²	150g-2000g/㎡
8	Hot stamping accuracy	±0.1mm	±0.1mm	±0.1mm
9	Running max speed Speed could adjustment	1500 s/h 1800s/h (1800g Grey board) 2800 s/h	1500 s / h 1800s/h (1800g Grey board) 2500 s / h	1,500-2,000pcs/h
10	Air pump	40 m3/h	40 m3/h	40 m3/h
11	Stand by power	15kw	16kw	20kw
12	Heating plate power	8 kw	10kw	12kw
13	Electric plate area	4	4	6
14	Working power(kw）	8kw	10kw	10kw
15	Max pressure	110×10 4	200×10 4	200×104 N
16	Vertical foil axle	2	2	2
17	Horizontal foil axle	2	2	2
18	Machine weight	6000 kg	7500 kg	9000kg
19	Dimension	3850×1920×2200mm	4120×2100×2300mm	4230×2270×2280mm
20	Loading suggestion	20” container	20” container	20” container
21	Touch screen supports multilingualism	Touch screen supports multilingualism	Touch screen supports multilingualism	Touch screen supports multilingualism
22	Machine noise(db)	<77db	<77db	<77db

04. Feature Highlights

Hot stamping accuracy ±0.1mm;
Dual purpose hot stamping and die cutting;
Avoid safe accidents caused by manual paper placement, reduce labor intensity and improve production efficiency.

05. Details

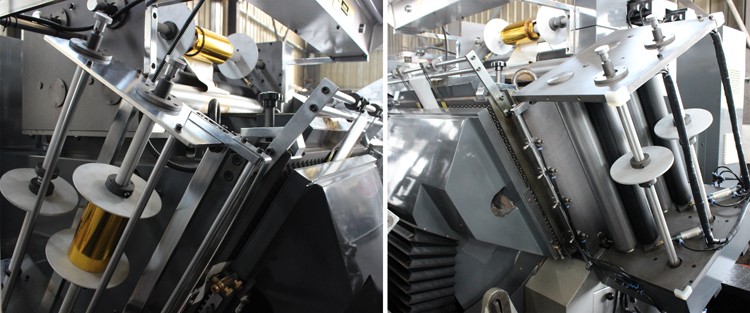

Two sets of transverse aluminum running devices and two sets of longitudinal aluminum running devices save the use of aluminum foil.

Automatically calibrate the separation and connection position of the paper feeding and collection unit. The "PUSH" and "PULL" actions of the separation and connection of the paper feeder unit are controlled by the air cylinder to improve the use experience of the operators

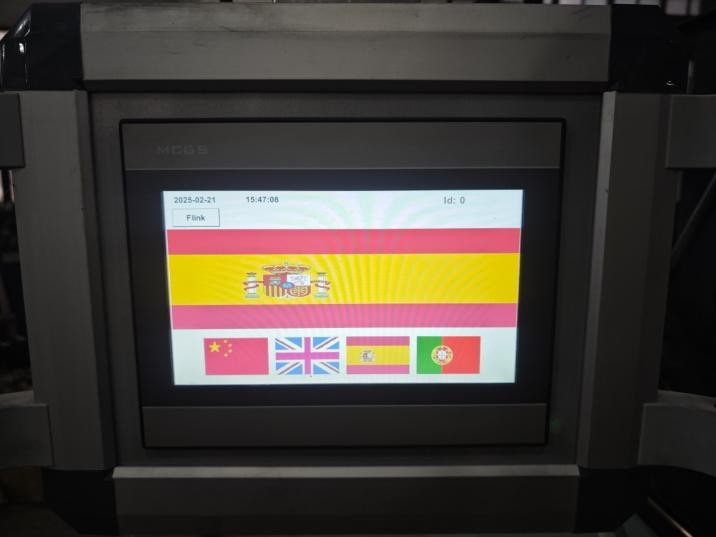

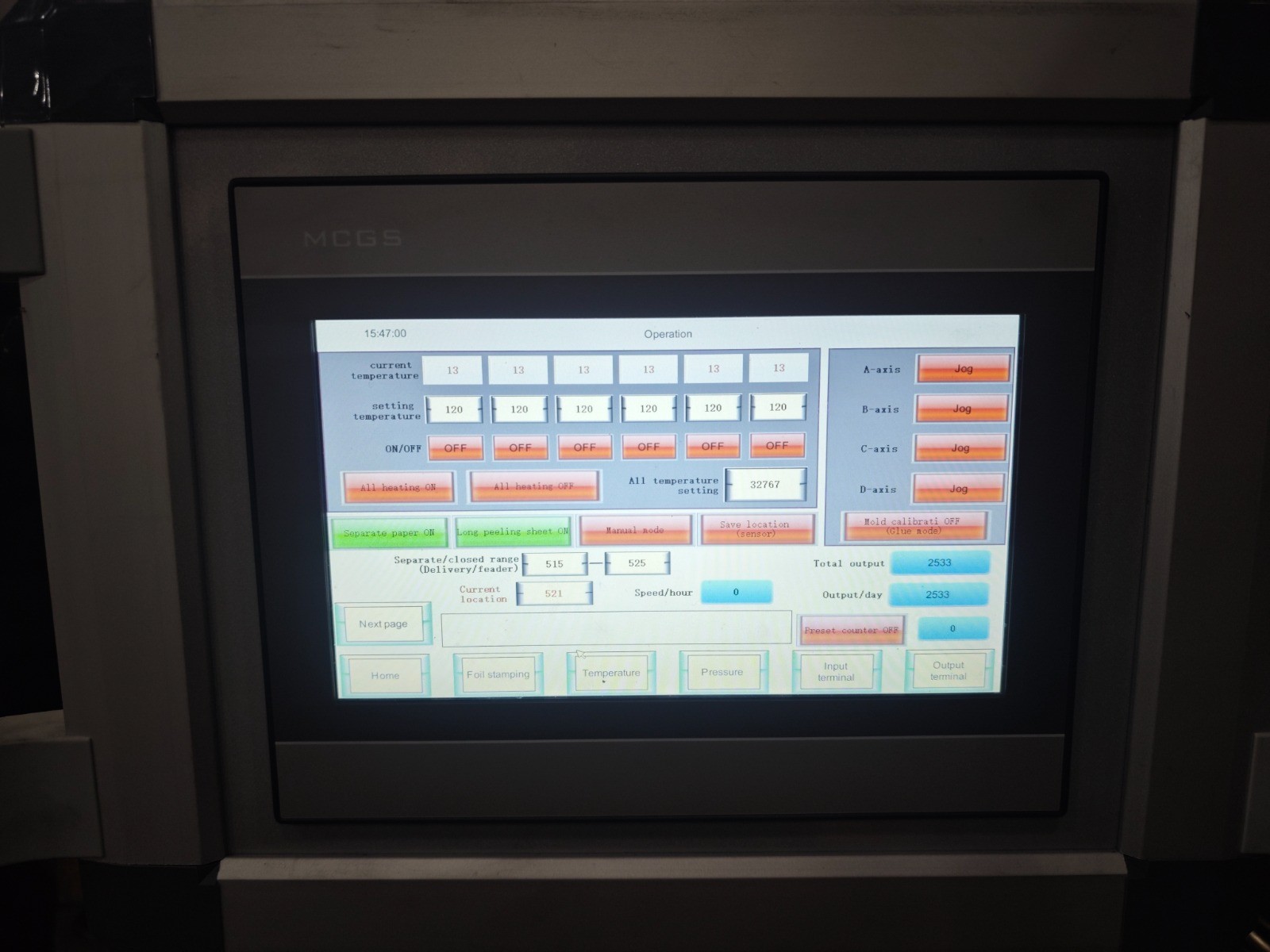

The servo motor controls the pressure adjustment. The pressure can be adjusted through the touch screen keys (the left and right pressure adjustment are more flexible) and supports minor pressure adjustment. (the pressure adjustment range is ± 2mm, and the minor adjustment is based on the process effect.) The factory pressure settings is 25mm, the setting range is 23-27mm, the thickness of honeycomb plate is 18mm, and the thickness of bronzing plate is 6-7mm. Therefore, the factory settings is 25mm. 4 languages can choose.

The automatic lubrication system adopts the intermittent oil filling mode of oil pump, and the mechanical lubricating oil can be recycled and filtered.
The aluminum foil pressing roller is controlled by air cylinder, the pressure is uniform without slipping, and the foil running is stable.
Fixed installation of longitudinal and transverse four groups of aluminum foil components, all of which are designed with pull back action, so as to improve the smooth movement of aluminum foil and improve the accuracy of bronzing.

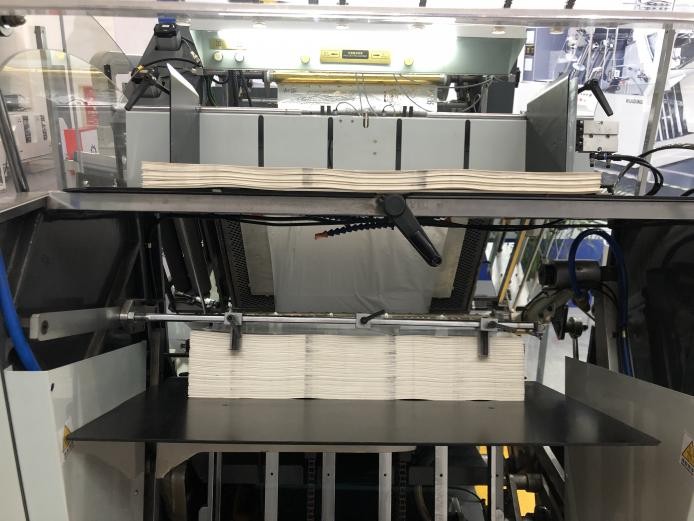

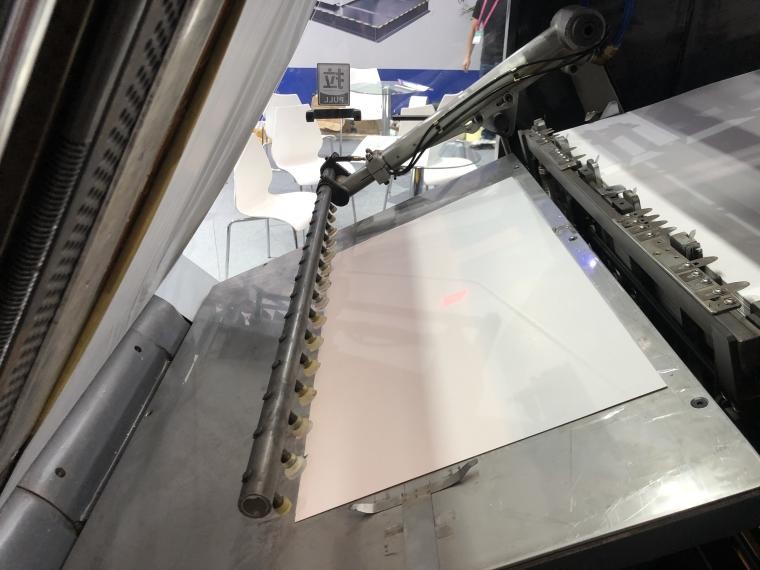

The maximum speed of the machine can reach 2500s/h after the upgrading of the paper conveying manipulator and the paper collecting manipulator. 180-500g paper card, normal operation speed 2200s/h; The working speed of 2000g gray board (paperboard within 2.5mm) is about 1800s/h.

The main structures such as the separation structure of the paper feeding unit and the host, paper separation device, control cam etc have been upgraded and improved. At present, this machine is the most recognized vertical automatic hot stamping die-cutting machine by domestic customers;
Pneumatic clutch, sensitive and stable action;

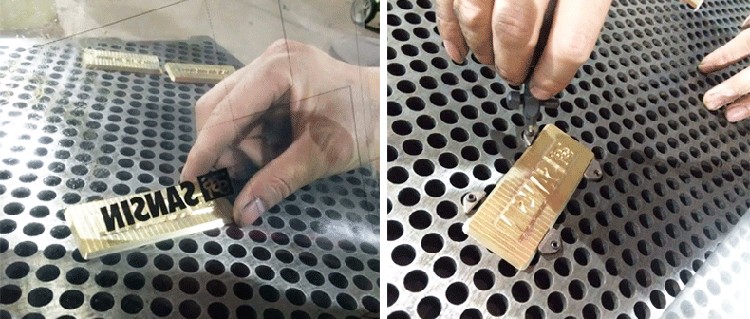

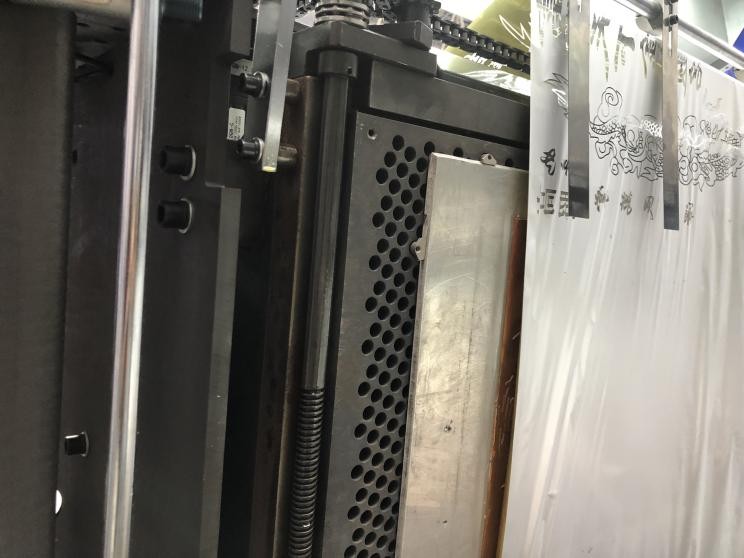

The fixing method of bronzing plate adopts honeycomb plate, which is flexible and convenient to install; Automatic foil stamping machine usually uses laser engraving copper plate, with a thickness of 6mm, which is directly locked on the honeycomb plate. The manual foil stamping machine usually uses corrosion zinc plate with a thickness of 1.5-2.0mm. The surface of honeycomb plate is first installed with 4mm aluminum plate, and then the zinc plate is adhered to the surface of aluminum plate.

The die-cutting dies and honeycomb plate are locked by electric plate frame to save the time of function conversion operation;

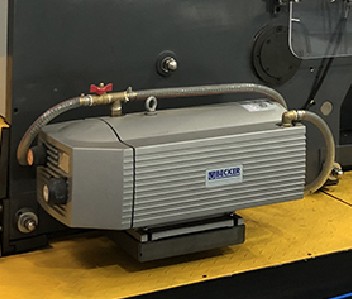

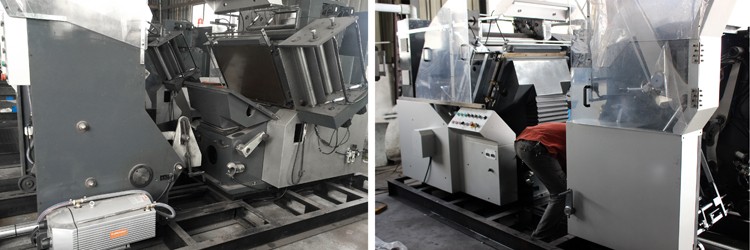

German Baker oil-free rotary vane compound vacuum pump.

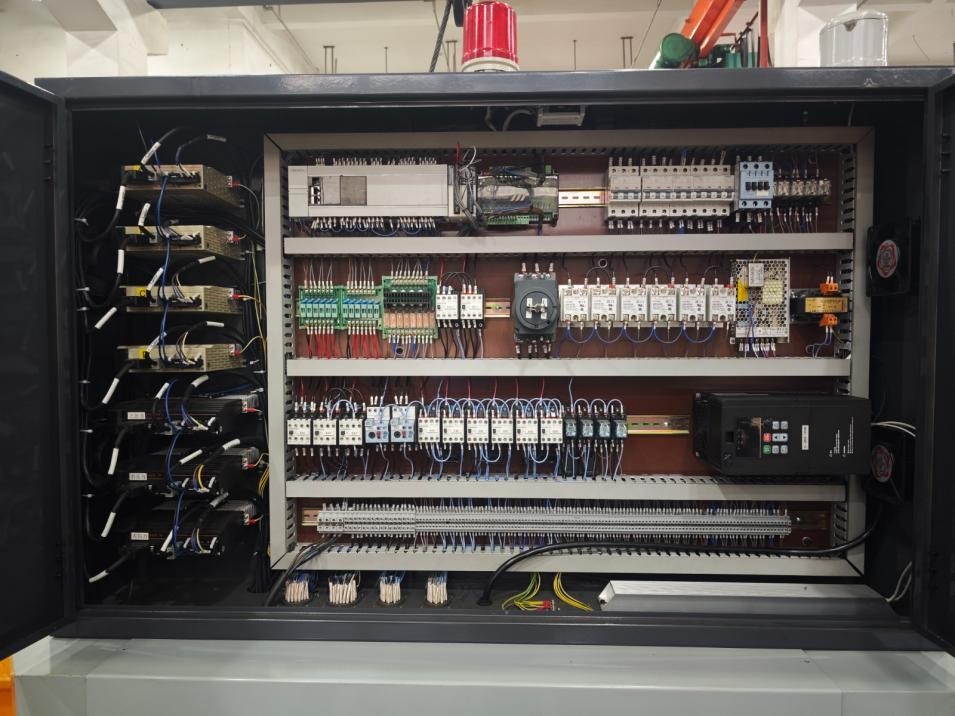

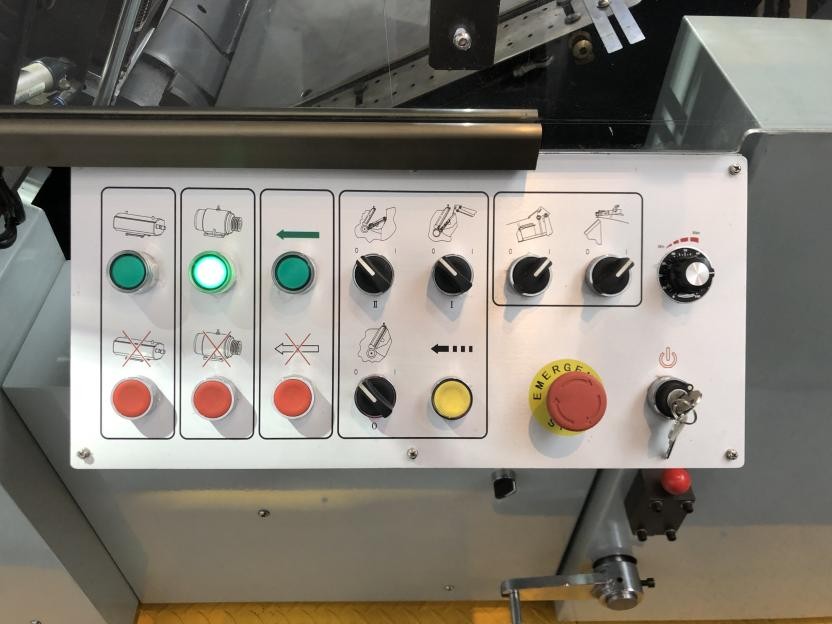

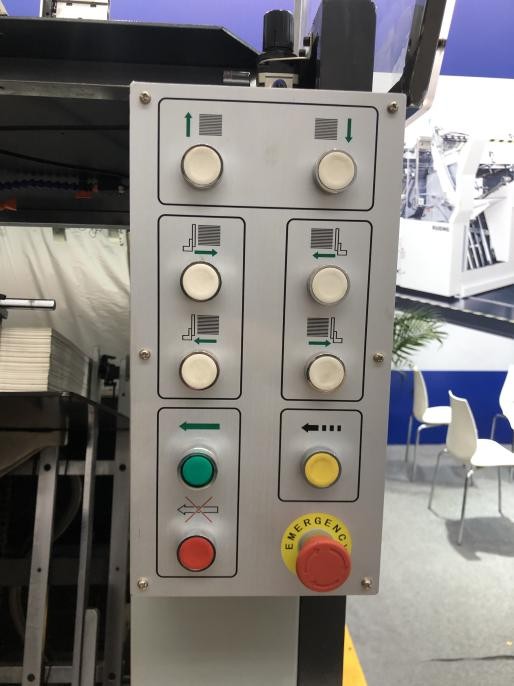

Electric control

One skilled operator and one general worker can operate three machines, which greatly improves the production efficiency.

06. Main configuration list

	Model	Name		Brand	Addition
1	5SY6332-7CC	Circuit breaker	1	Siemens	Germany
2	5SY6316-7CC	Circuit breaker	1	Siemens	Germany
3	5SY6225-7CC	Circuit breaker	1	Siemens	Germany
4	5SY6232-7CC	Circuit breaker	1	Siemens	Germany
5	5SY6110-7CC	Circuit breaker	1	Siemens	Germany
6	MY2NJ DC24V	Relay	14	OMRON	Japan
7	PYF-08A	Relay socket	14	OMRON	Japan
8	MY4NJ DC24V	Relay	1	OMRON	Japan
9	PYF-14A	Relay socket	1	OMRON	Japan
10	HCA8C-4PG	Heating module	1	Delta	Taiwan China
11	3TB4222 220V	contractor	2	Siemens	Germany
12	3TB4022 220V	AC contractor	10	Siemens	Germany
13	3TF47 220V	AC contractor	1	Siemens	Germany
14	3UA5940-1F(5-10A)	AC contractor	2	Siemens	Germany
15	SSR-40 DA	Solid-state relay	4	Taiwan FOTEK	Taiwan
16	NSC60E3060	Breaker	1	Schneider	France
17	NSC100ROTE	breaker accessories	1	Schneider	France
18	Z-15HW24-B	Inching switch	5	OMRON	Japan
19	Z-15GQ22-B	Limit switch	5	OMRON	Japan
20	Z15GD-B	Limit switch	1	OMRON	Japan
21	E6B2-CWZ6C 2000P/R	Encoder	1	OMRON	Japan
22	XCKN2145P20 C	Limit switch	1	Schneider	France
23	ZB2BA2C	Control button	14	Schneider	France
24	ZB2BD2C	Control button	6	Schneider	France
25	ZB2BW33C	Control button	4	Schneider	France
26	ZB2BWB31C	Control button	4	Schneider	France
27	ZB2BZ101C	Control button	23	Schneider	France
28	ZB2BZ102C	Control button	2	Schneider	France
29	ZB2BA4C	Control button	4	Schneider	France
30	ZB2BC4C	Control button	2	Schneider	France
31	ZB2BG2C	Control button	1	Schneider	France
32	HCA8-40X40YT-A	PLC	1	HCFA	Quzhou China
33	HCA8C-4PG	Pulse positioning module	1	HCFA	Quzhou China
34	HCA8C-CNV5V-TX2N	Expansion module	1	HCFA	Quzhou China
35	HCA8C-8EX	CPU	1	HCFA	Quzhou China
36	TP2510-E	Touch screen	1	HCFA	Quzhou China
37	1.5KW	Servo motor	3	HCFA	Quzhou China
38	750W	Servo motor	4	HCFA	Quzhou China
39	E3ZG-D61-S	Photoelectric switch	2	OMRON	Japan
40	E2B-M18KN10-WZ-C1	Sensor	1	OMRON	Japan
41	DTE10T+V20	Heating module	1	Delta	Taiwan China
42	RXLG-300W 50Ω	Resistor	1	Langwo	China Tianjin
43	AT500-T3-5.5KW	Frequency converter	1	JACT	Wuxi China

Functions and details are constantly upgraded, The above configuration is subject to change without prior notice

07. Who are we?

Professional Manufacturing: A strong enterprise focused on the production of grooving machine. Innovative Services: A service-oriented company dedicated to researching paper surface processing technologies and providing diversified solution services. Thoughtful Cooperation: A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.
Workshop Focus on Specialization:Concentrate on a single product category to create more competitive and professional products. Complete Specifications: Meet diverse needs and cover a wide range of industry applications. Vertical Technology: Deepen every production process to continuously enhance technological standards. Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

Packaging & shipment: Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.

08. Who we serve？

Printing and packaging machinery traders
Cargo import and export trading company
Paper mills
paper offset printing plant
label flexographic printing plant
cardboard box manufacturer
corrugated box manufacturer
color box carton manufacturer
card tag manufacturer
book and magazine manufacturer
paper product container manufacturer
Bakery packaging box manufacturer
plastic sheet product packaging manufacturers
Paper products processing enterprises

09. Why choose us？

Quality endorsement
Cargo shipped all over the world, global logistics support!
NCN machining center Stable quality starts with parts processing.

Team
CEO: With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert. Technical Supervisor: Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization. Sales Manager: Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost. QC Manager: All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries. Equipment Salesman: Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers. Order Follow-up Personnel: Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time. Procurement staff: With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.

After-sales guarantee
After-sales service team: We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production. Overseas on-site service: Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently. On-site service content: Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands. Warranty policy: Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment). Lifetime service: We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.
I'm waiting for you in the workshop:

I'm waiting for you in the cloud: We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face. Tell me your specific needs at any time, and I can help you make a complete production line plan!
Related Products

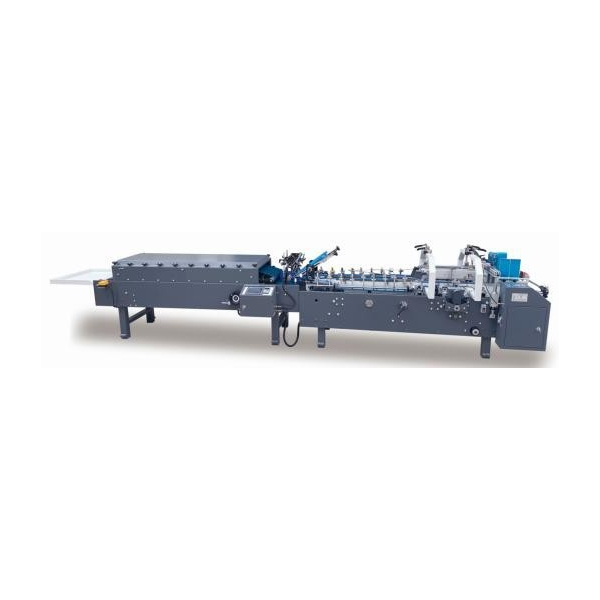

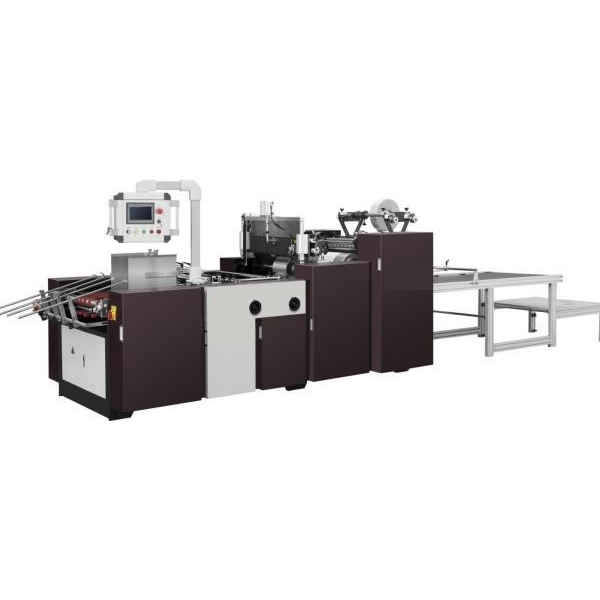

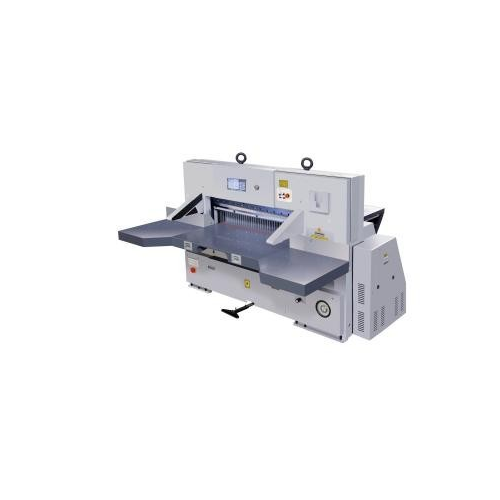

Paper Cutting Machine	Window Patching Machine	Folder Gluer Machine
