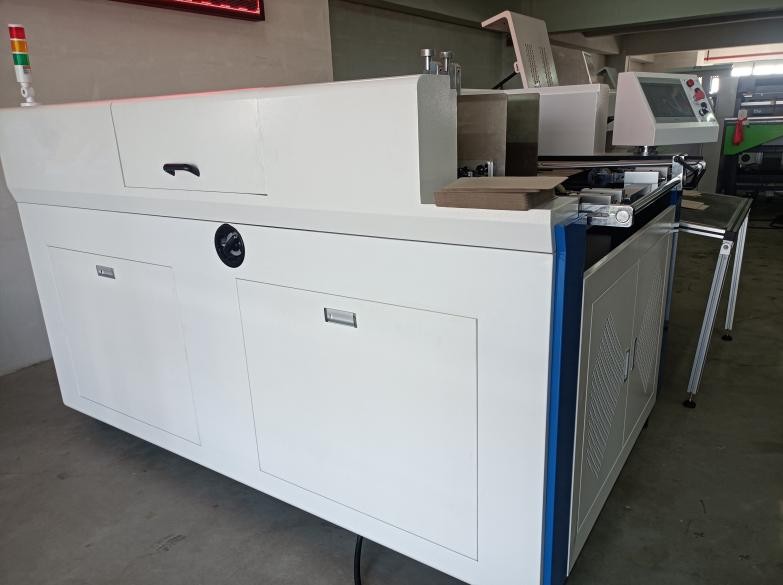

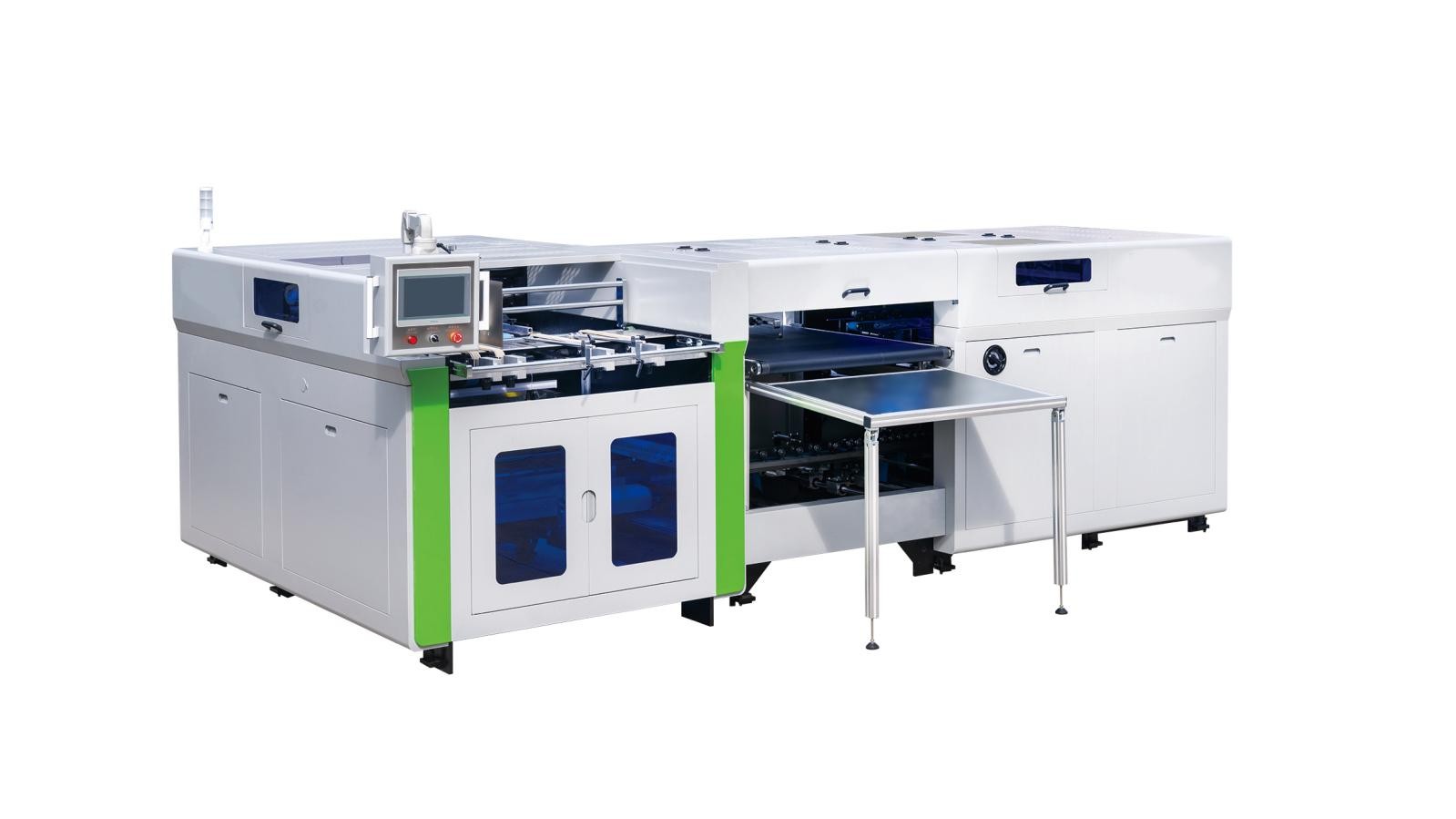

Automatic Vertical Line V Grooving Machine

Model

MSKC-700 (rigid box)

MSKC-1000 (rigid box & hardcover)

Min board size

130*130mm

130*130mm

Max board size

500-600mm

630*900mm

Grooving accuracy

0.1mm

0.1mm

Thickness of board

0.6mm-4mm

0.6mm-4mm

Knife angle

80-140° Adjustable

80-140° Adjustable

Knife material

Tungsten steel

Tungsten steel

Knife shape

V shape grooving

V shape grooving

Total knife

12 pieces

12 pieces

Grooving Speed

50-80m/min

(200*200mm, 150pcs/min)

50-80m/min

(200*300mm, 110pcs/min)

Host 1 correction length

895mm

920mm

Host 2 assisted Correction length

/

1130mm

Host 2 correction length

1310mm

980mm

Host 1 roller size

Φ600*700

Φ600*1000

Host 2 roller size

Φ600*600

Φ600*800

Power

6KW/380V

6KW/380V

Machine weight

3200KGS

3500KGS

Machine dimension

3200*2300*1550mm

4350x2300x1520mm

Packaged weight

3370KGS

3670KGS

Packaged dimension

(2 Wooden Cases)

2450*1300*1750mm

2300*1500*1650mm

2440*1560*1750mm

2980*1550*1670mm

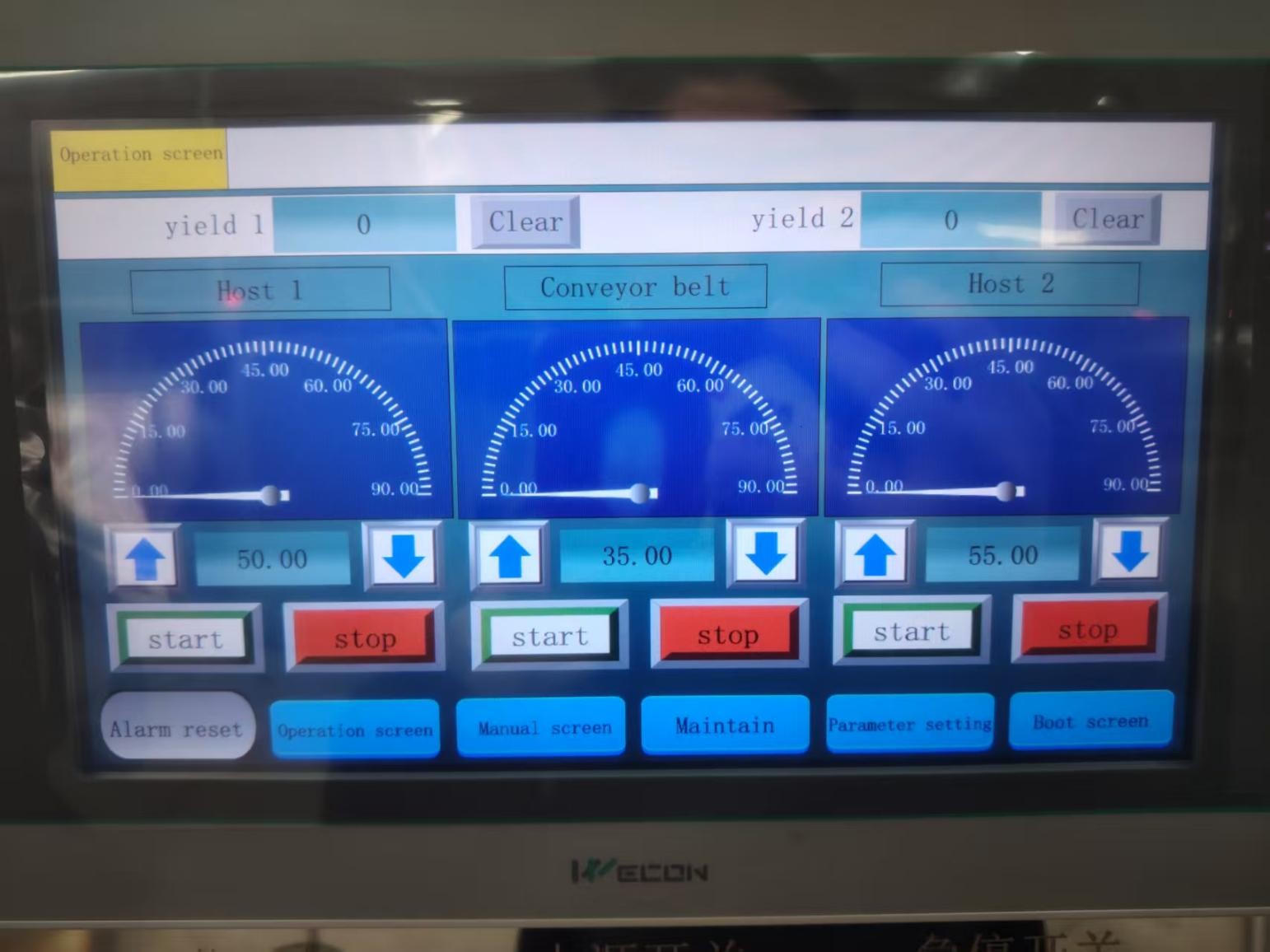

Machine is controlled by a PLC programmable controller(separated computer cabinet) for synchronization and coordination. It with 10-inch WEINVIEW touch screen for easy operate.

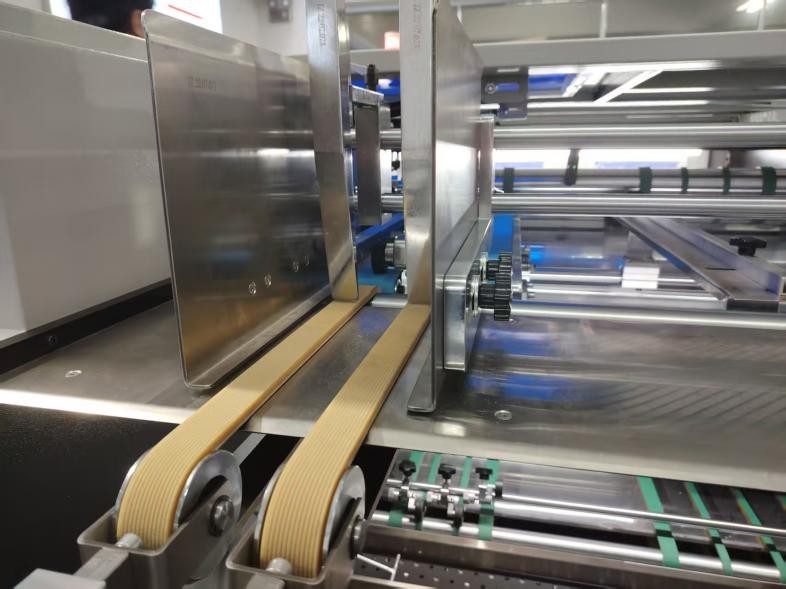

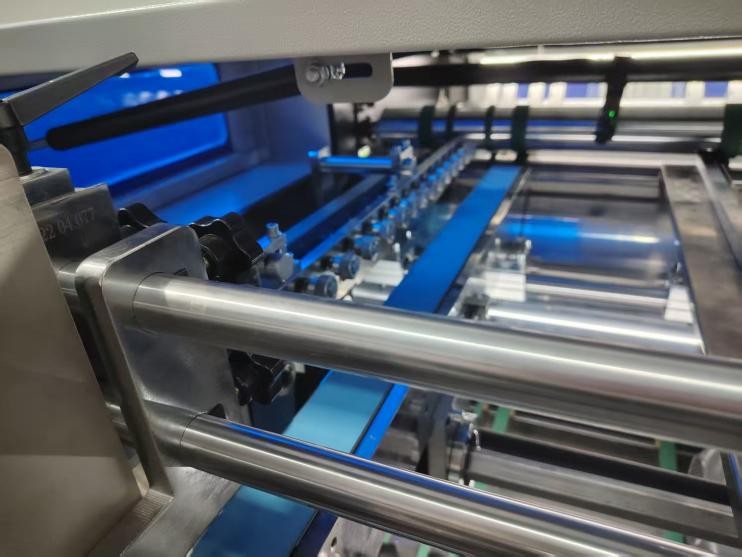

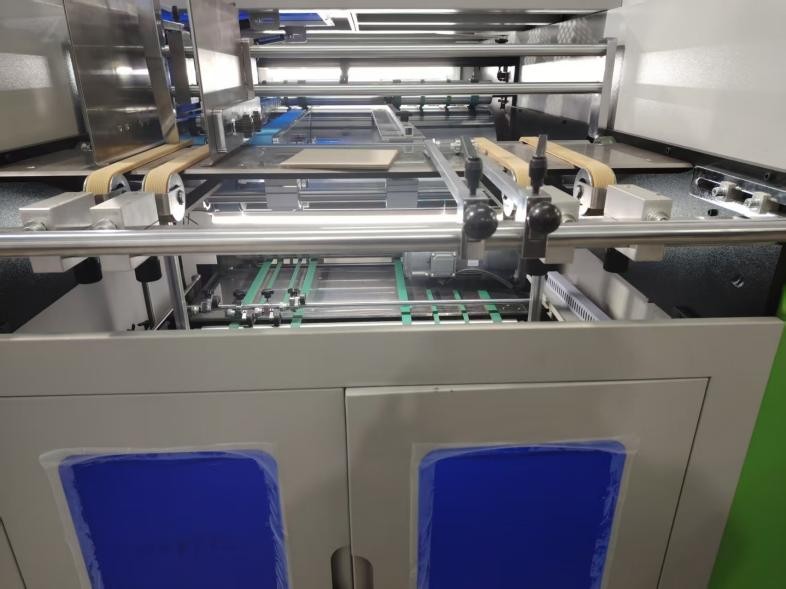

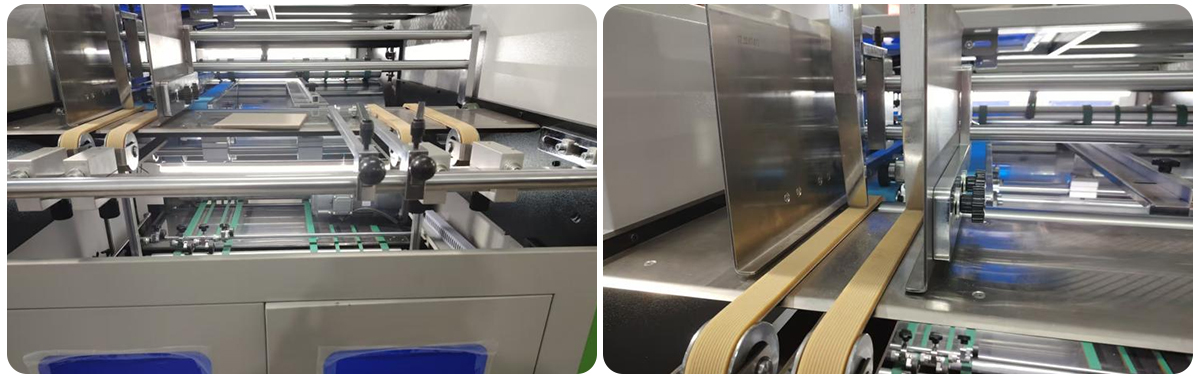

Automatic feeding part. Cardboard carry by the convey belt, double sides position plate are adjustable, they can ensure the precision.

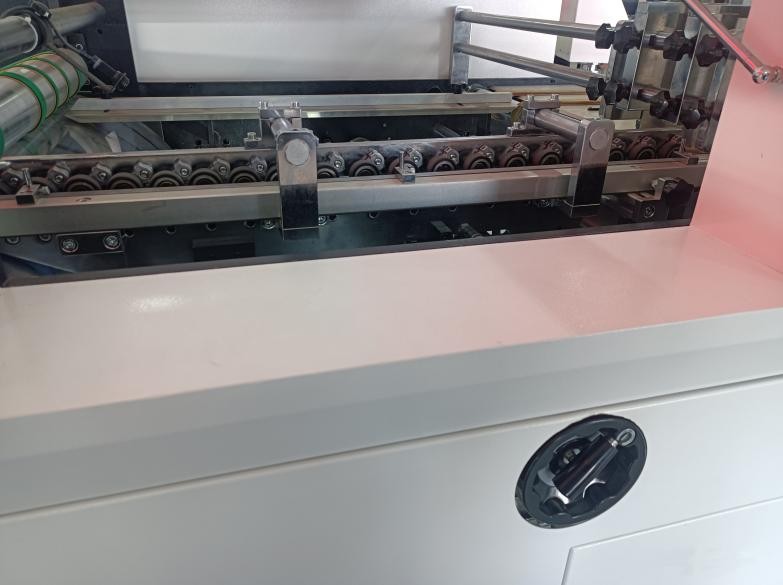

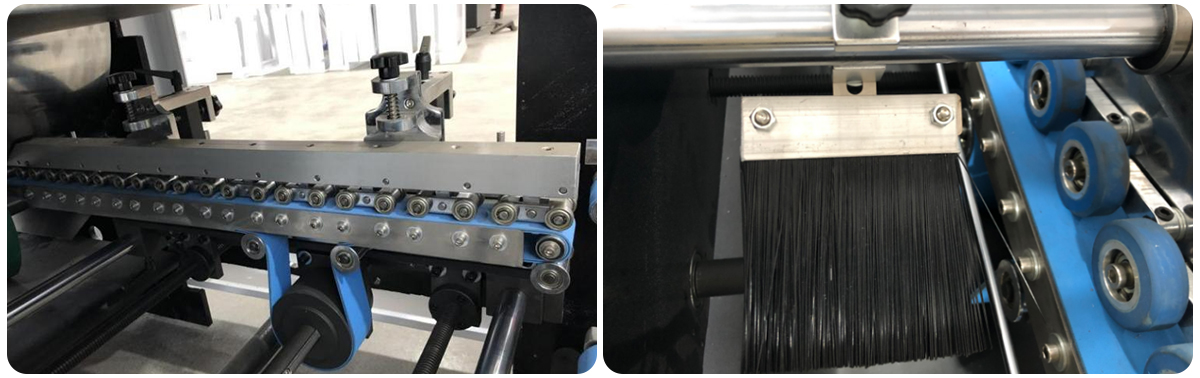

The correction device. It will correct the direction of the cardboard and make it precision.

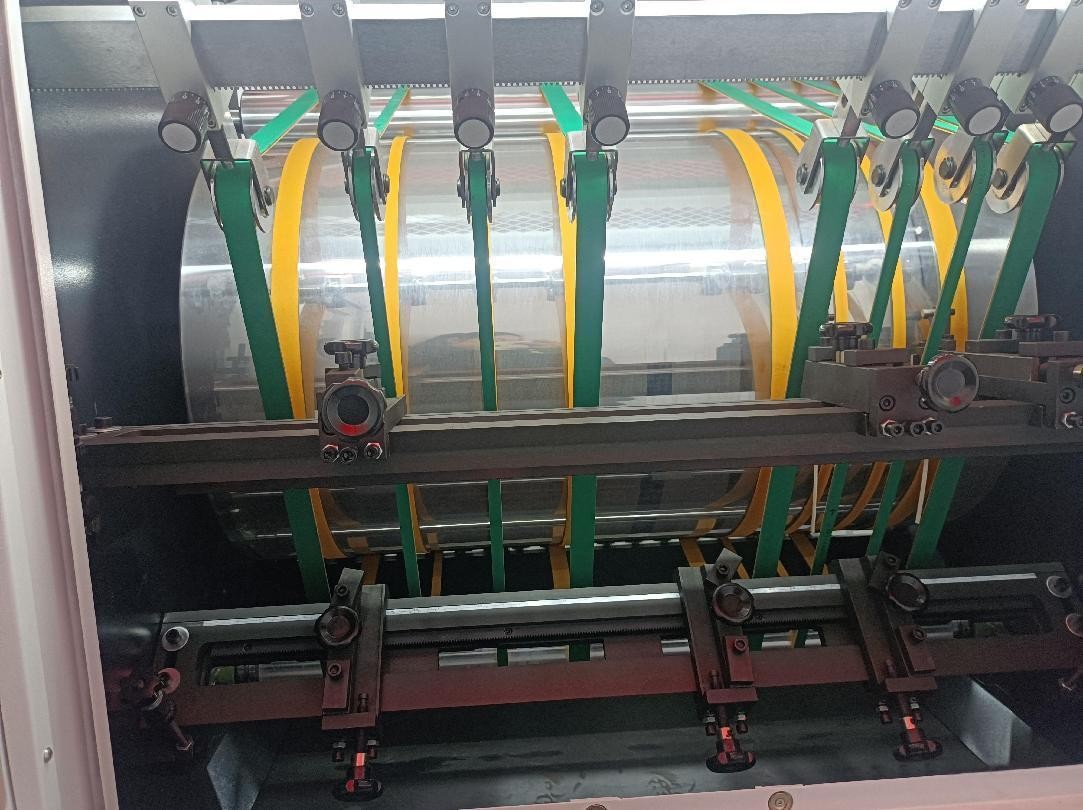

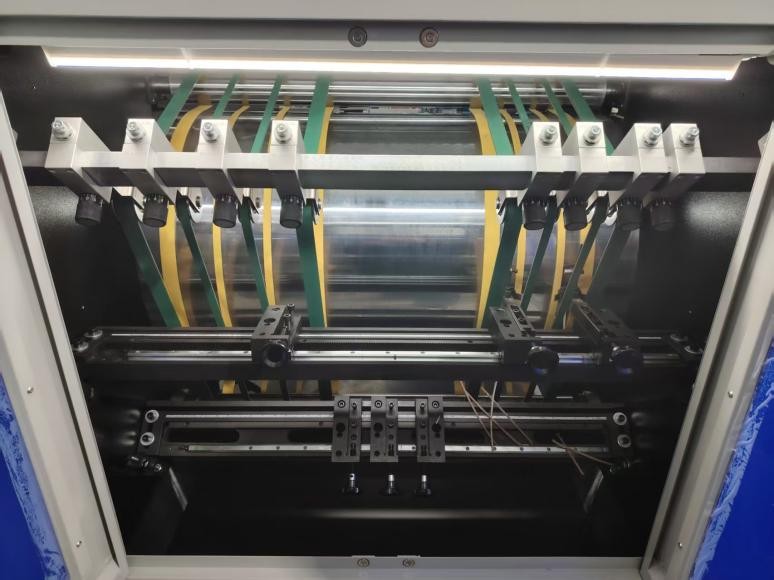

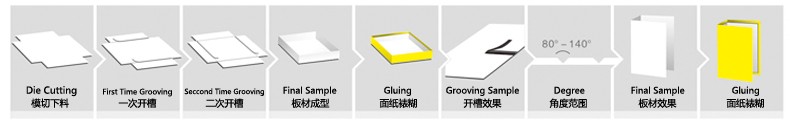

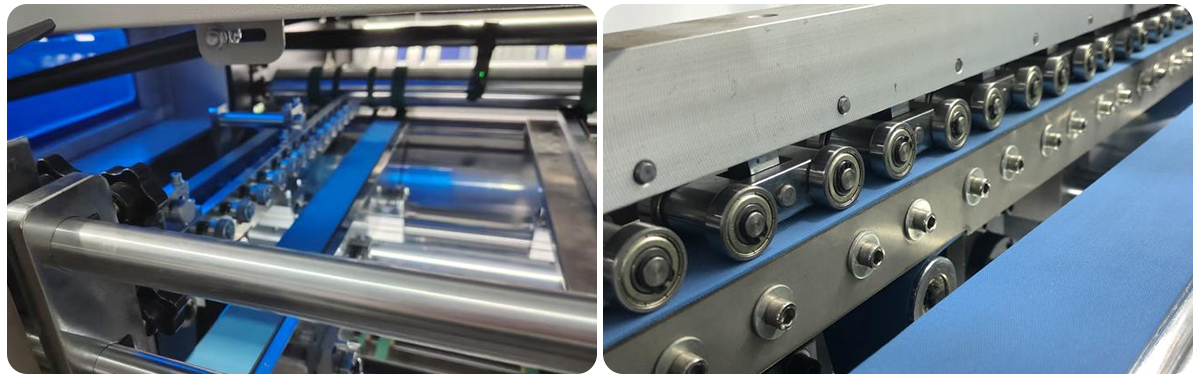

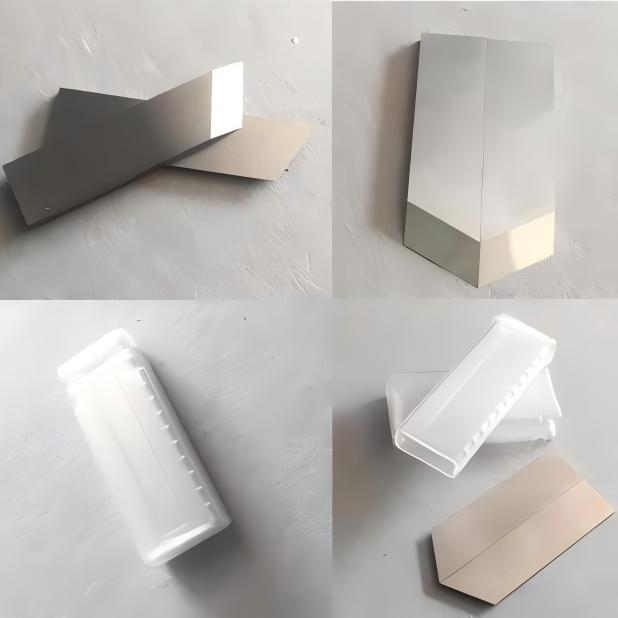

Cardboard grooving, belt transported to keep the cardboard on the large roller surface and knife make grooves. Easy to adjust the degree and adjust range is 80-140 degrees.

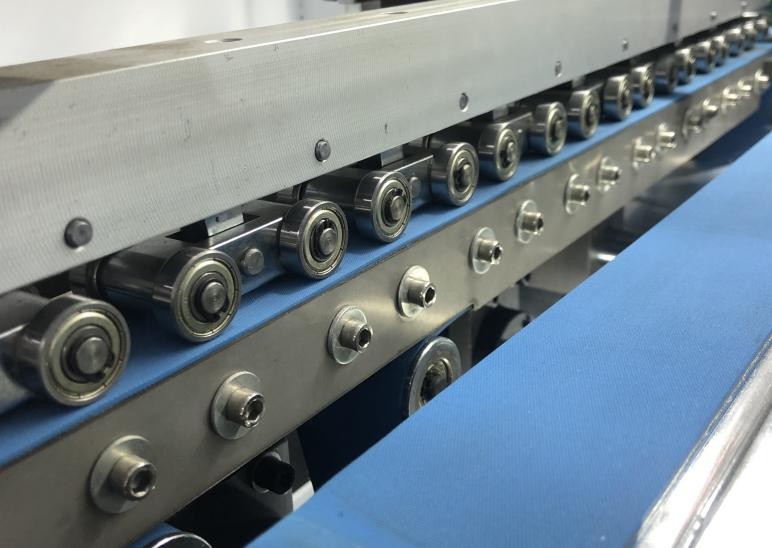

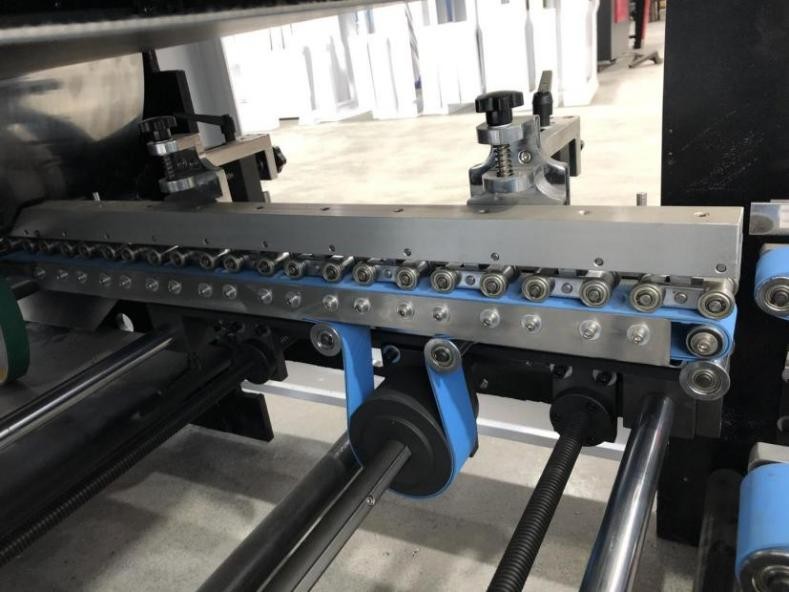

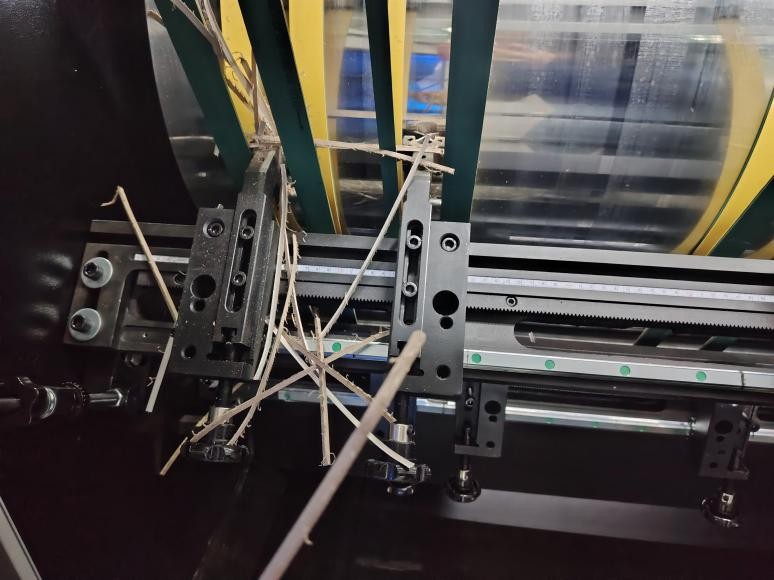

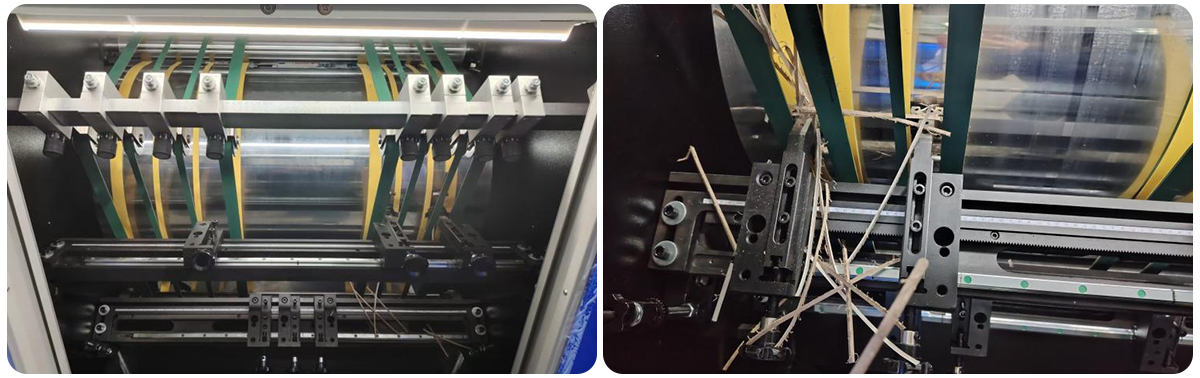

The tool holder is equipped with guide rails, resulting in higher grooving accuracy.

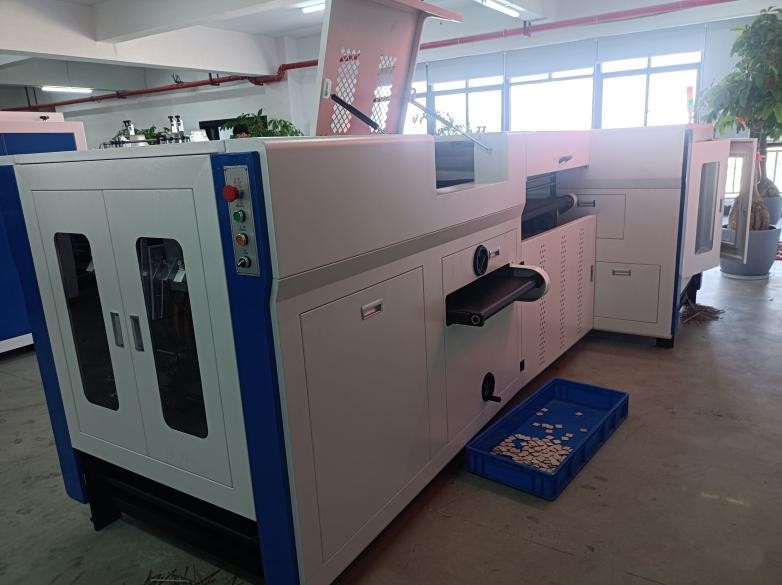

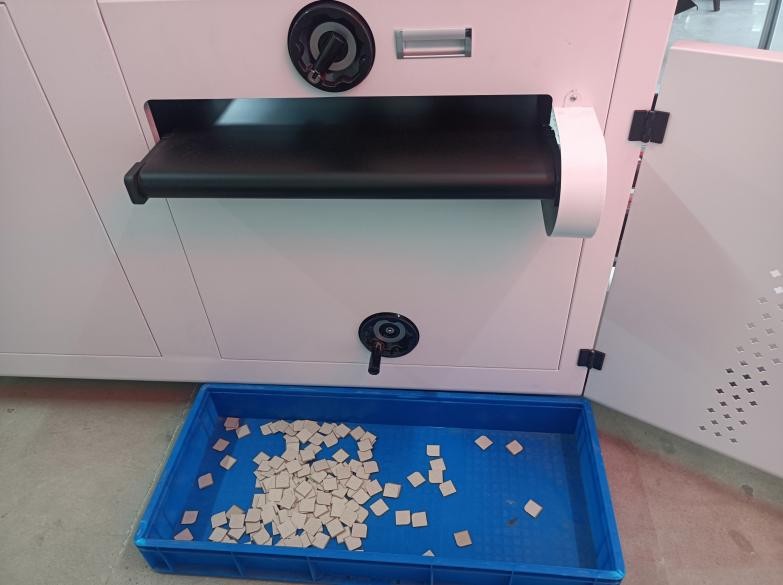

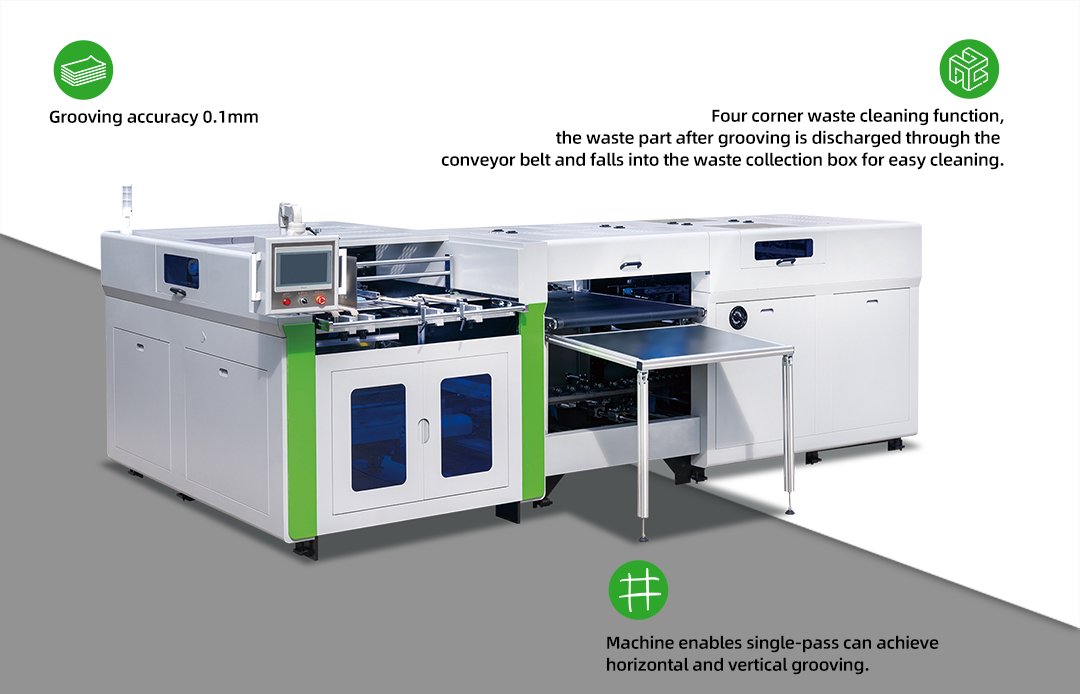

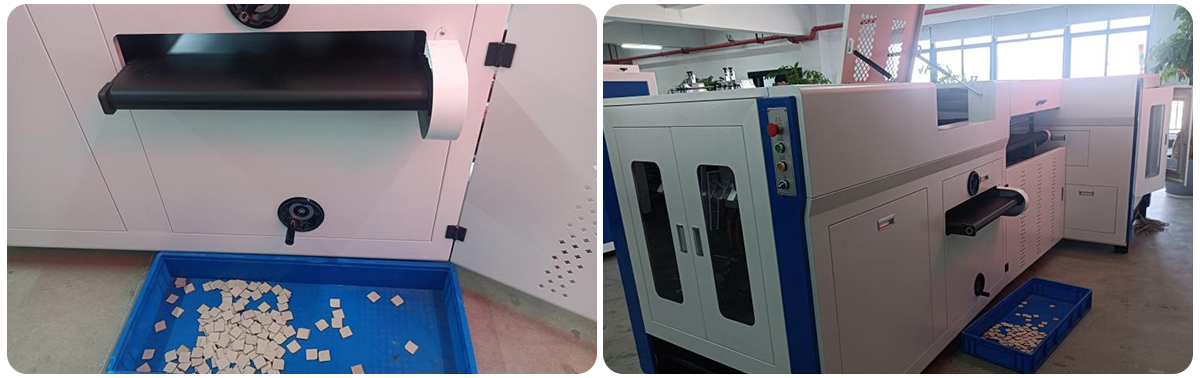

Four corner waste cleaning function, the waste part after grooving is discharged through the conveyor belt and falls into the waste collection box for easy cleaning.

By adjusting the position through the handwheel screw, the conveyor belt is fully controlled by the connecting rod transmission, making it more convenient to operate.

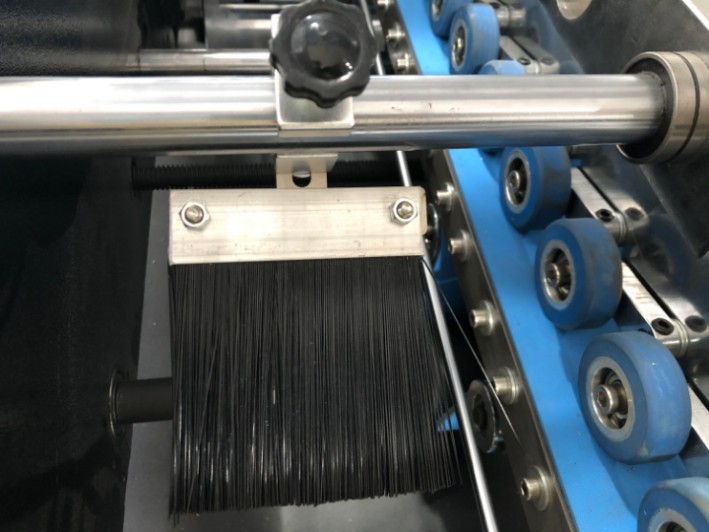

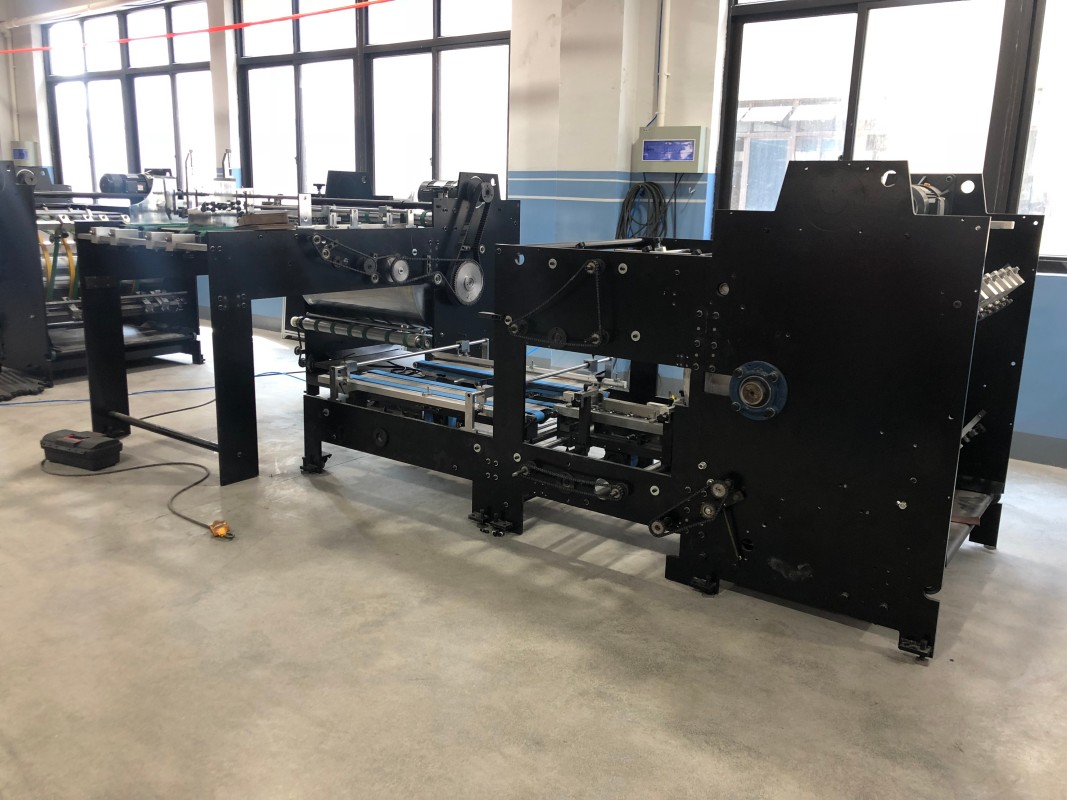

Second grooving correction device, and transport the cardboard via belt from bottom to up. After second grooving the brush auxiliary to remove corners. MSKC-1000 model has 2 sections correction device, MSKC-700 model has 1 section correction device.

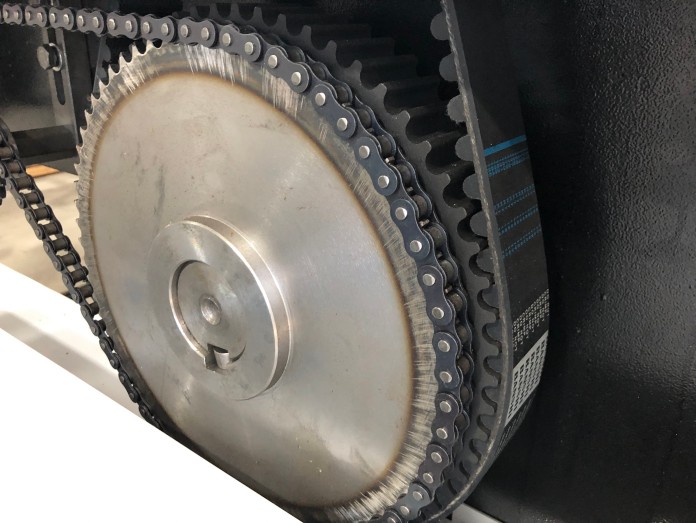

The whole transmission system has controlled by gear, chain and timing belt transmission, which extends the service life of the whole equipment and improves the quality of the equipment.

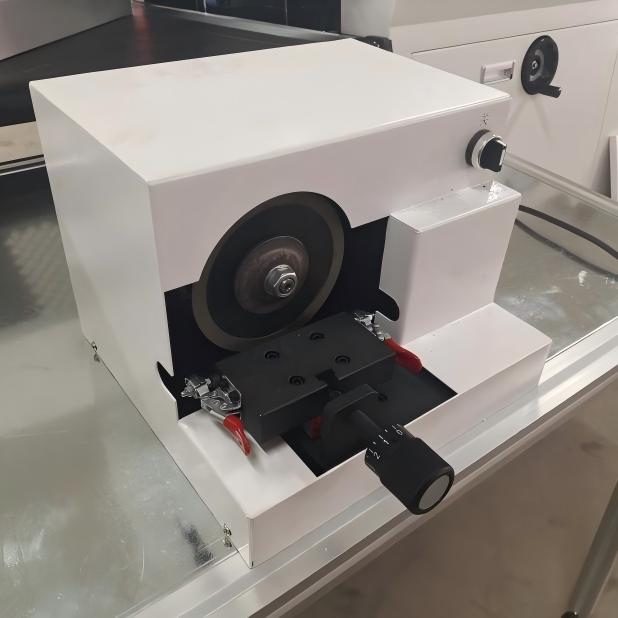

The imported alloy blade can be repeatedly sharpen and reused.Each machine is equipped with a microtome knife sharpener. It will take only 1-3 minutes to sharpen the knife.

Model

Name

Brand

Addition

1.

PI3102ie

Touch Screen-10’

VECON Technology

China

2.

LX3V-1412MT

PLC

VECON Technology

China

3.

JZX-22F/2Z(D)

Intermediate relay

CHINT

China

4.

/

Button, flat knob, rotary knob

Helijia

/

5.

NXB-63 3P C32

Air Switch

CHINT

China

6.

NXB-63 3P C10

Air Switch

CHINT

China

7.

2.2KW VC1800-2R2G3

Frequency converter

GREAT

China

8.

1.5KW VC1800-1R5G3

Frequency converter

GREAT

China

9.

380V/2.2KW

Motor

HaoXing

China

10.

/

Sharpening machine two-phase

Makute

/

11.

XS618-G-NAL5

Photoelectric switch

Military Industry

China

12.

/

Alarm bell

/

China

Professional Manufacturing:
A strong enterprise focused on the production of grooving machine.
Innovative Services:
A service-oriented company dedicated to researching paper surface processing technologies and providing diversified solution services.
Thoughtful Cooperation:
A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

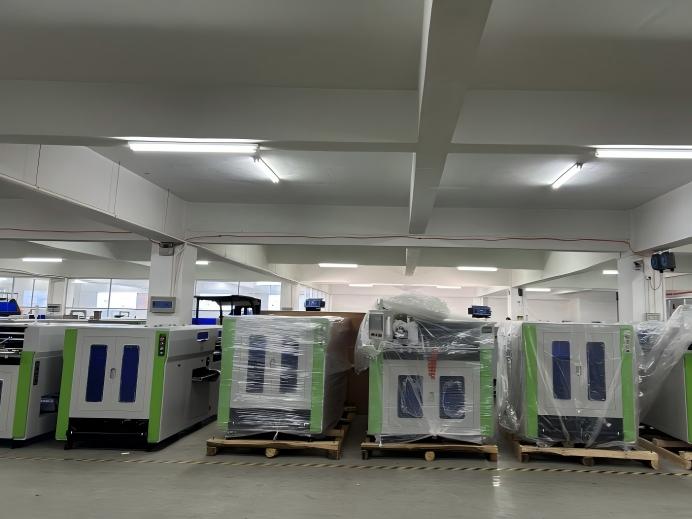

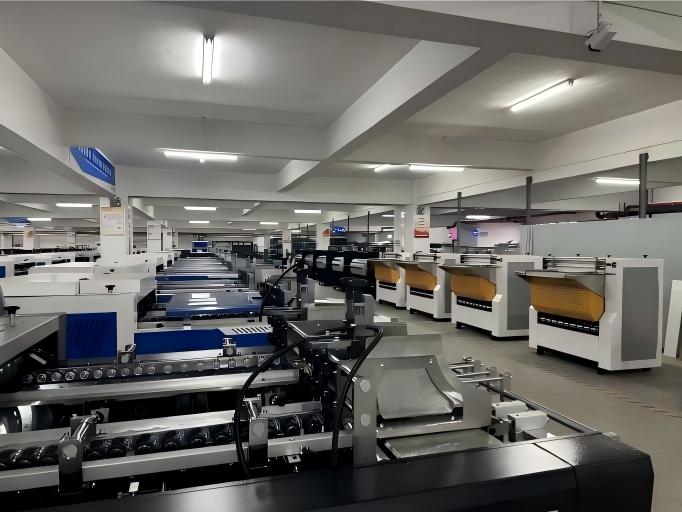

Workshop

Focus on Specialization: Concentrate on a single product category to create more competitive and professional products.
Complete Specifications: Meet diverse needs and cover a wide range of industry applications.
Vertical Technology: Deepen every production process to continuously enhance technological standards.
Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality

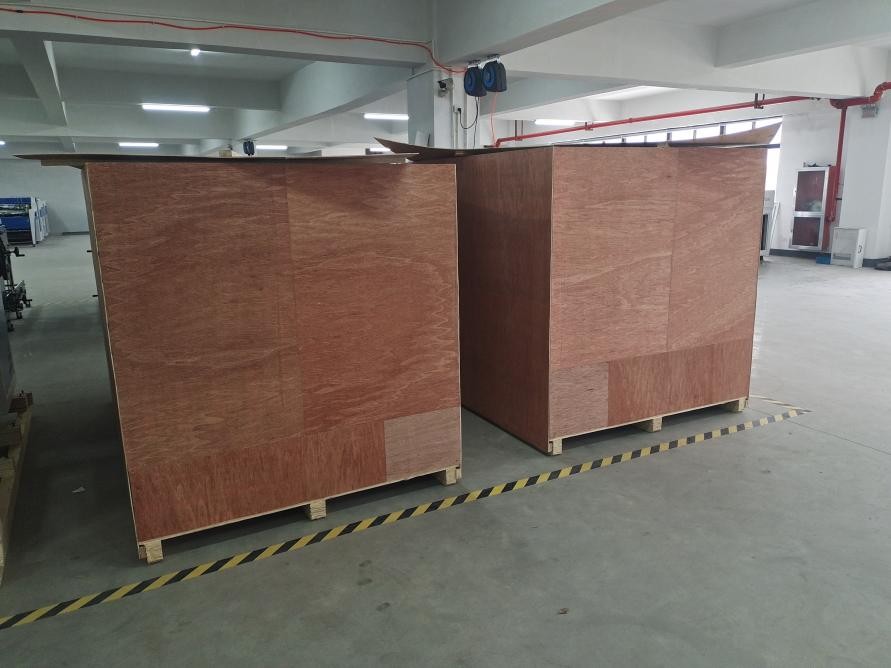

Packaging & shipment:
