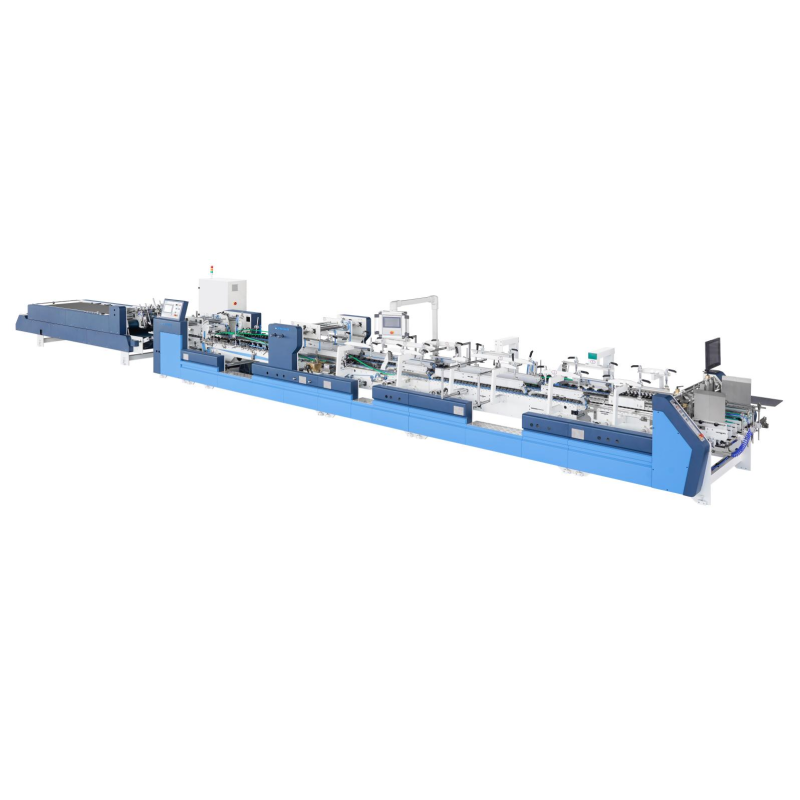

MS-G fully automatic folder gluer mainly used for small packaging boxes, such as cosmetic boxes, medicine boxes, etc.
Specification:
Model |
MS-G-650 |
MS-G-800 |
MS-G-1100 |
Paper material |
Cardboard 200-800 |
Max. line speed without load |
400m/s |
Power of the whole machine |
21.5KW |
25.5KW |
25.5KW |
Weight of the whole machine |
6400KG |
7400KG |
7800KG |
Dimensions ( L×W×H ) |
14.4x1.5x1.65m |
16.4x1.7x1.65m |
16.4x2.0x1.65m |
Air pressure |
6 Bar |
Air consumption |
10m³/h |
1. Deviation correction function: can effectively correct the paper output of the box blank, ensuring more accurate folding;
2. The third line pre-folding can reach 160 degrees;
3. All hexagonal steel transmission shafts of the whole machine are powered by high-strength plastic sleeves, and the machine runs more quietly;
4. Universal tools are integrated, and the whole machine uses a single installation and debugging tool, making it easier and more convenient to adjust and install the machine;
5. All transmission bearings of the whole machine adopt the temperature difference method assembly process, which makes the transmission more precise and the service life longer;
 |
 |

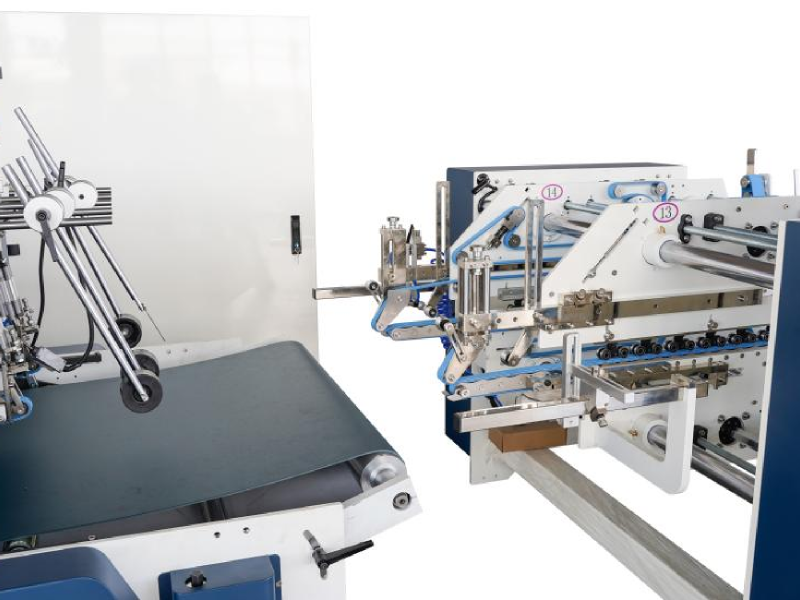

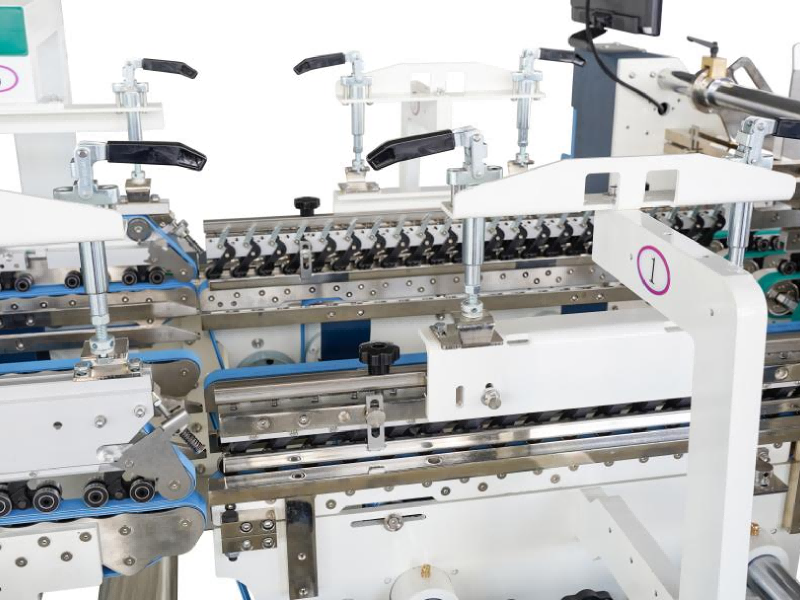

1. Paper is fed by 6 30mm belts; 2. Each set of guide plates can be adjusted horizontally, and the embossed power guide wheel guides the paper output belt; 3. Baffles are set on the left and right sides to cooperate with the vertical paper output of the product; 4. The paper feeding part is equipped with two paper output knives, and the asymmetric length is adjusted according to the actual sample; 5. The vibrator is adjusted according to the in and out of the vibration frame; 6. The overall coordination completes fast, simple, continuous and automatic correct paper feeding; 7. Equipped with independent servo to adjust the paper feeding distance. |
1. It consists of two sets of guide plates; 2. Each set of guide plates is equipped with an adjustable tilt belt; 3. There is a row of adjustable pressure bearings on the upper belt; 4. It can correct the parallel error of the paper box to ensure that the paper is parallel to the next |
 |
 |
1. The front section is equipped with a pre-folding knife on the left; 2. The first line of the box can be pre-folded 180 degrees; 3. The right side is equipped with a belt conveyor pre-folding device 4. The third line of the box can be pre-folded 160 degrees 5. It makes it easier to open the box. |

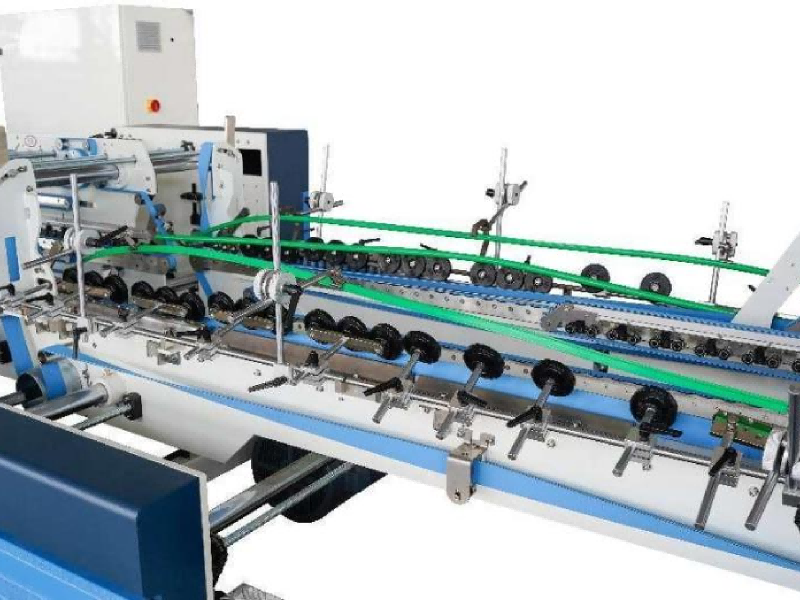

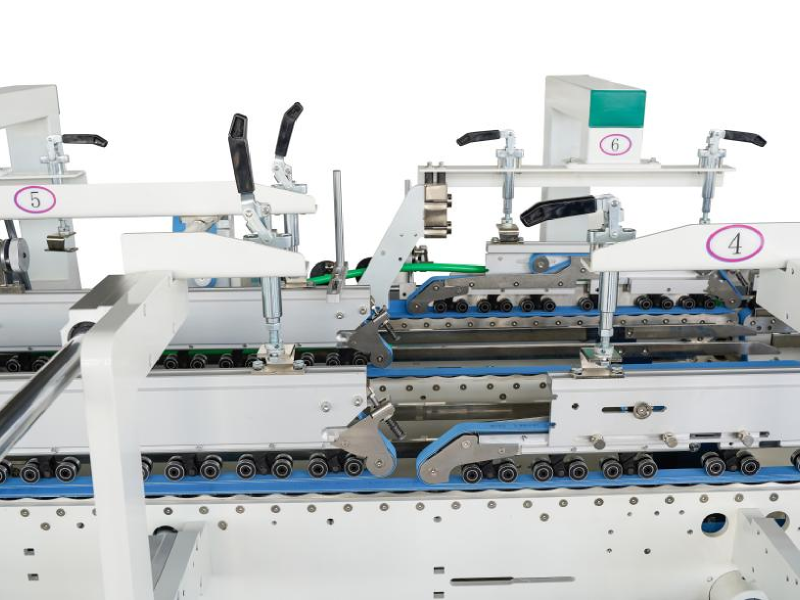

1. It is composed of three sets of guide plates; 2. The left and right sets of guide plates are equipped with segmented upper aluminum hanging plates, which makes the folding function of the machine more powerful and can effectively fold various complex box types. 3. With the cooperation of the hook bottom combination and the aluminum sliding sleeve, this part can lock the bottom of the hook bottom box and fold it; 4. The anti-hook device is suitable for four-hexagonal boxes (optional). |
 |
 |

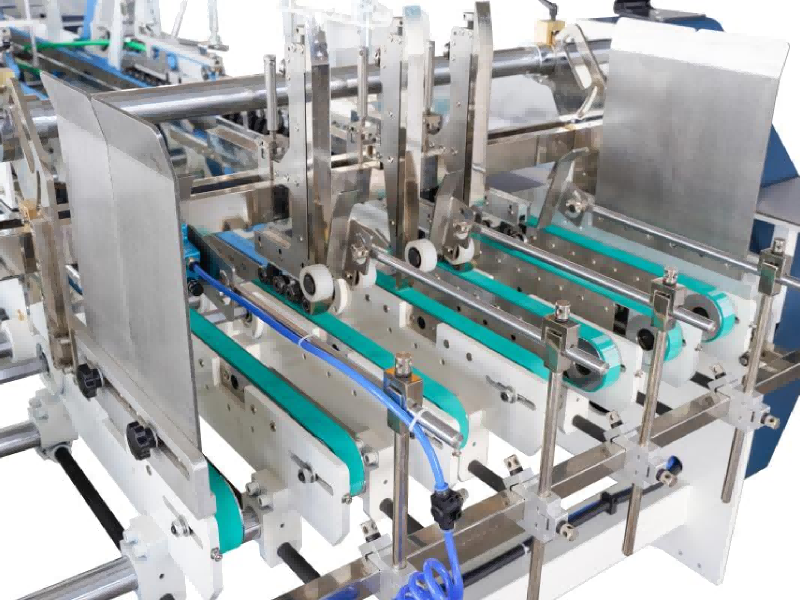

1. This folding part is composed of a bottom belt and a turning belt; 2. The second folding line is completed 180 degrees on both sides, and the fourth folding line is completely combined at 180 degrees; 3. With the support of the upper transmission, the paper box runs more smoothly; 4. The left and right guide wheels are adjusted according to different positions to cooperate with smoother box folding; |

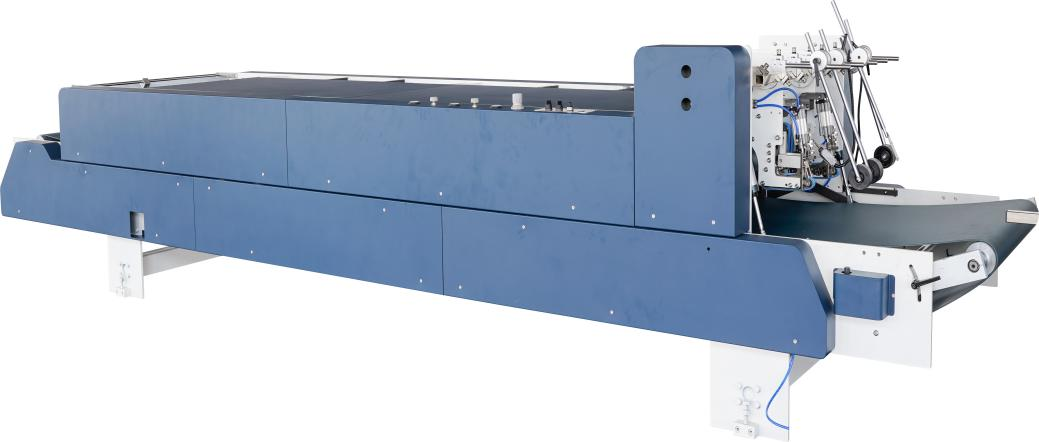

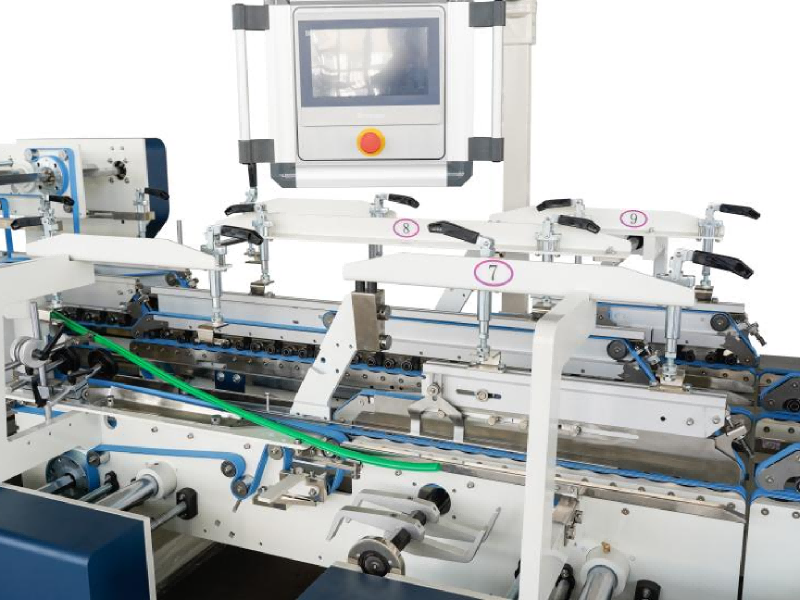

PRESSURE TRANSMISSION UNIT 1. Two sets of guide plates and four belts convey the boxes; 2. The length of the upper and lower transmission can be adjusted according to the shape of the box; 3. The continuous automatic box stacking method ensures that the boxes enter the conveying part neatly; 4. Equipped with a photoelectric counting device, the counter controls the cylinder to kick out the paper box for identification. |
1. The independent sponge belt is soft and will not crush the finished product;
2. The entire conveying part can move forward and backward;
3. Balanced pressure and neat conveying ensure perfect quality;
4. The conveying speed is automatically adjusted according to the rotation speed of the main machine and the photoelectric device;
5. Manual operation mode and speed can also be selected;
6. The terminal has a full function, and the bottom of the carton is flatter (optional).

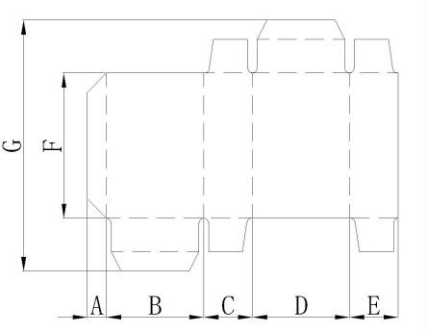

Linear Box Parameters
| Straight box |
| Model number |
650 |
800 |
1100 |
| A+B+C+D+E |
130-650 |
140-800 |
140-1100 |
| E |
20-300 |
20-300 |
20-300 |
| F |
70-800 |
70-800 |
70-800 |
| G |
75-800 |
75-800 |
75-800 |
| D+E |
68-320 |
68-320 |
68-320 |
| A（MIN） |
10 |
10 |
10 |
|
 |

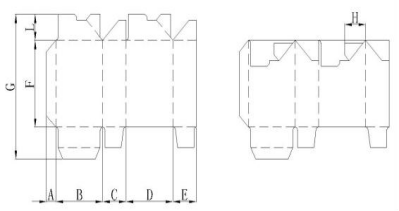

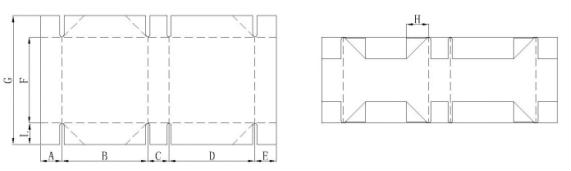

Hook Bottom Box Parameters
| Bottom tray box |
| Model number |
650 |
800 |
1100 |
| A+B+C+D+E |
130-650 |
140-800 |
140-1100 |
| E |
20-300 |
20-300 |
20-300 |
| F |
70-800 |
70-800 |
70-800 |
| G(Max) |
75-800 |
75-800 |
75-800 |
| H(Min) |
25 |
25 |
25 |
| D+E |
68-320 |
68-380 |
68-380 |
| L |
|
|
30-100 |
|
 |

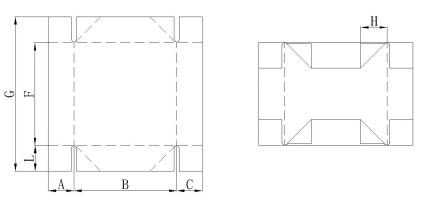

4&6 Corner Box Parameters
| Quadrangular box |
| Model number |
650 |
800 |
1100 |
| A+B+C |
NA |
160-800 |
160-1100 |
| B |
NA |
90-600 |
90-850 |
| G |
NA |
160-850 |
160-850 |
| H(MIN) |
NA |
25 |
25 |
| L |
NA |
25-120 |
25-150 |
| Hexagonal box |
| Model number |
650 |
800 |
1100 |
| A+B+C+D+E |
NA |
270-800 |
370-1100 |
| B |
NA |
90-300 |
180-500 |
| G |
NA |
160-450 |
160-450 |
| H(MIN) |
NA |
25 |
25 |
| L |
NA |
25-120 |
25-150 |
|
|
