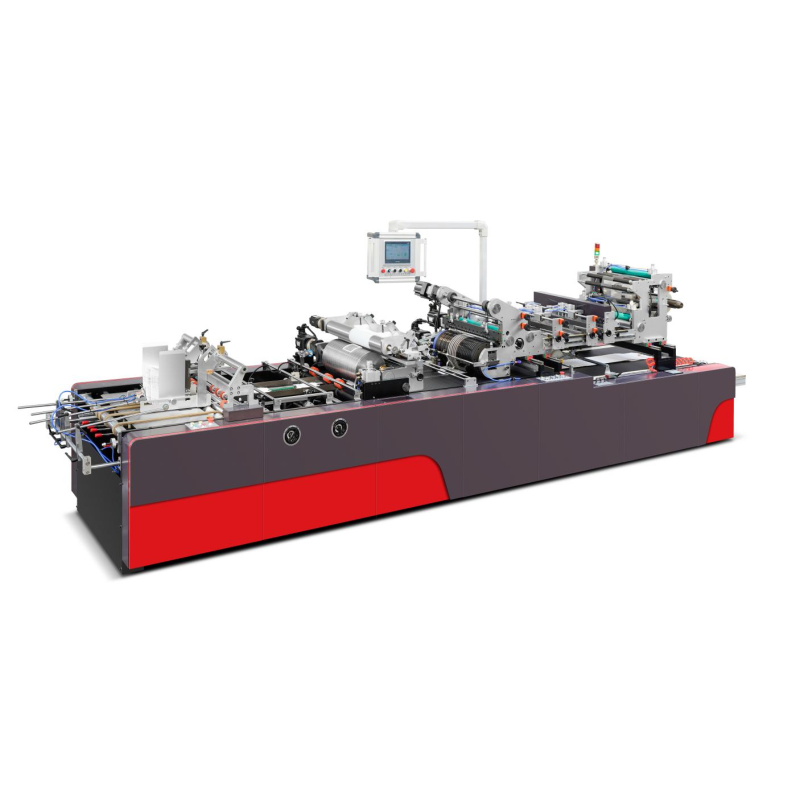

ZKT-1200A Fully Automatic Window Patching Machine

Name: Window Patching Machine

Model:ZKT-890A/1200A

This machine can do normal pasting and corner cut & creasing; Machine equipped with 11 groups of servo motors.

Introduction

Usage:

ZKT-890A/1200A window patching machine is a fully servo machine. This machine could been used for normal pasting. It equipped with 11 groups of servo motors in paper feeder part, chain rail pusher part, the suction belt part, gluing roller part, film suction drum part, the cutting knife part and film feeding part. Touch screen computer controls the machine, and has the magic eye tracking compensation system, equal to every movement has the servo to tracking, This is a complete motion control system, error compensation system, high precision! Intelligent operation, convenient staff training.

Specification:

Model	ZKT-890A	ZKT-1200A
Paper length	120 - 780mm	120 - 780mm





Paper width	140-800mm	140-1200mm






Material thickness	Paper box&Cardboard box：250-1000g/m2,
	Max corrugated board thickness：3mm
Film Length	60- 400mm	60- 400mm






Film width	40-450mm	40-500mm





Film thickness	0.03 - 0.25mm,OPP,PVC,PET,PE ect.
Normal pasting speed	4000-13000pcs/h	4000-13000pcs/h
Corner cut&creasing speed	4000-12000pcs/h	4000-12000pcs/h
Pump power	4.5KW	4.5KW
Main power	19.5KW	19.5KW
Machine weight	2300KG	3000KG
Machine dimension	650016501950mm	650021501950mm

Feature Highlights

This machine can do normal pasting and corner cut & creasing;

Machine equipped with 11 groups of servo motors.

Details

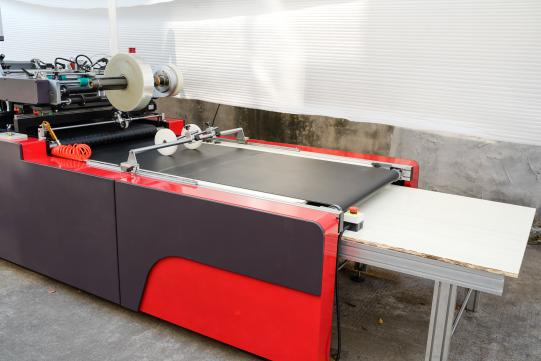

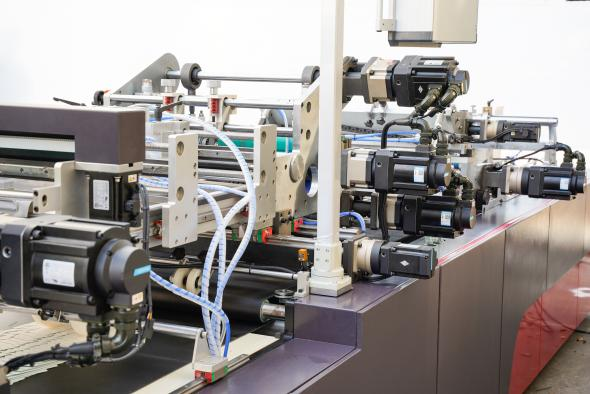

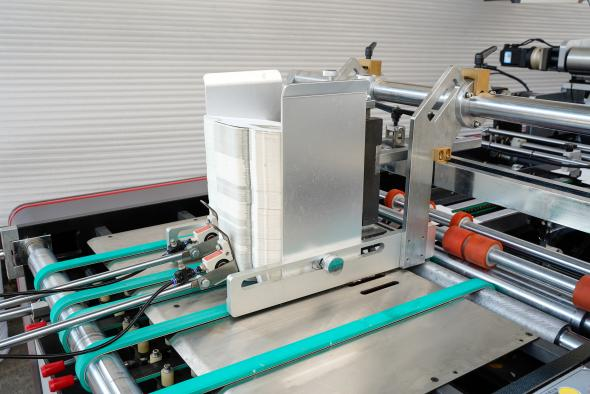

Servo System The whole machine adopts intelligent motion control system (a total of 9 sets of servo systems) and man-machine interface. The close cooperation between the servo and the photoelectric sensor enables the deviation of the product to be effectively monitored and corrected at each parts, and finally make the high quality products that customers need.	Paper Feeding Part The paper feeding part adopts servo photoelectric to feeding paper, input the length and speed on the touch screen, so that make the paper feeding is fast and accurate. Suitable for cardboard and corrugated paper with laminating, reverse UV, nano UV, oil and water varnishing. In addition, the punching part is reserved, which is suitable for paper output smoothly of thin paper and slightly warped paper.

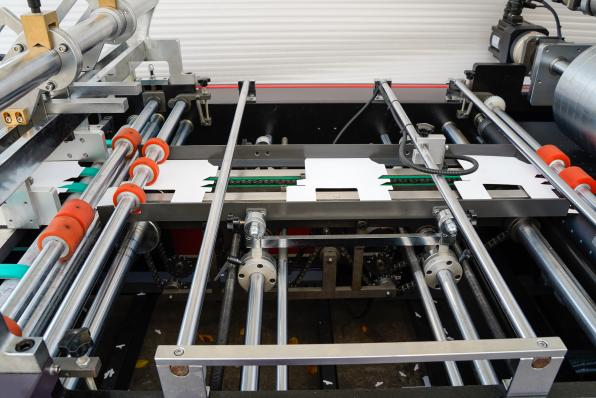

Pin Paper Feeding Part The pin paper feeding part adopts servo control, which can be operated directly on the touch screen,it can change the angle to adjust the connection speed between the paper and the pin, so that make different papers can be fed more stably and smoothly.	Gluing Part 1. The gluing part is composed of servo motor, cylinder, photoelectric, solenoid valve, 304 stainless steel roller, glue separating guide plate, side limiter and gluing roller, which can be easily pulled out for setting and cleaning conveniently. 2. Adjustable glue separating guide plate to control the glue range and outflow volume. After stopping machine, the cylinder can lift the gluing roller and drive it with another independent servo motor to avoid the glue from solidifying. 3. The gluing roller can freely adjust its position axially and radially without stop the machine. Once meet with double sheets or empty sheet in the gluing part,the gluing part have the function of lifting glue, which prevents the glue from contacting the suction belt effectively.

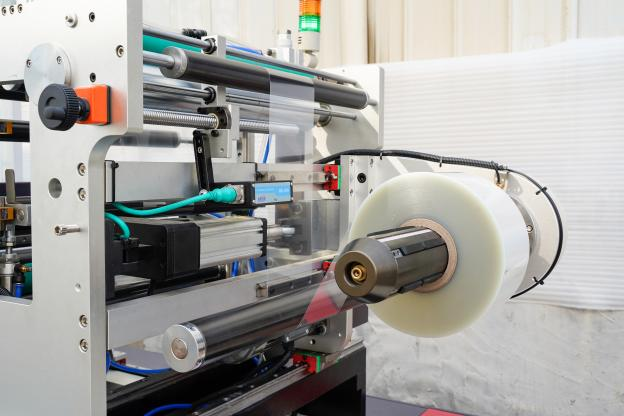

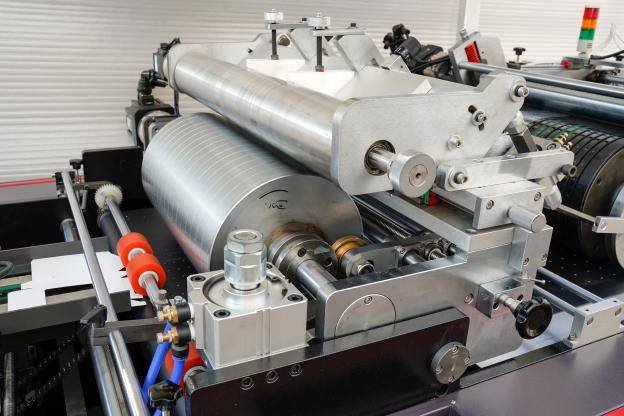

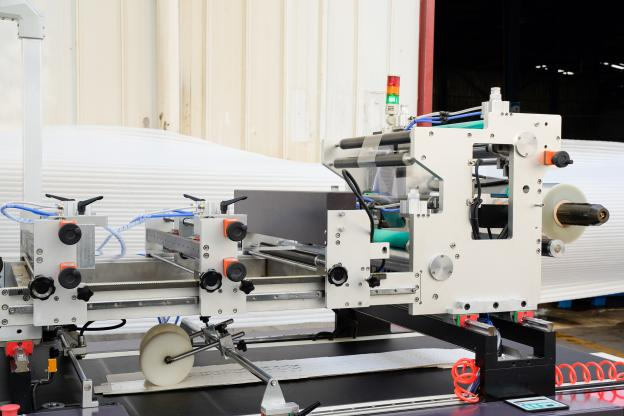

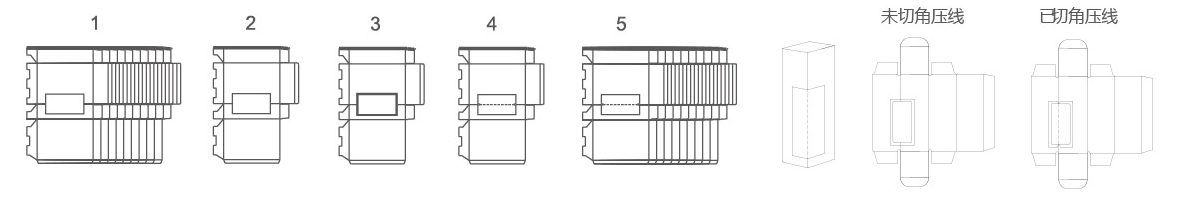

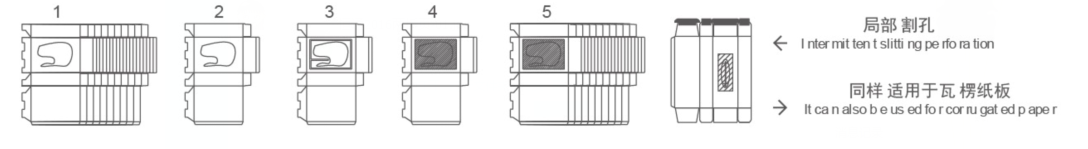

Film Cutting ,V-cut & Creasing Part 1. The film cutting and film with corner cutting and creasing parts are controlled by servo motor and automatic deviation correction, with high precision.This machine can produce normal pasting, single or double corner cutting and creasing, horizontal corner cutting and creasing(optional), and customization of some special-shaped windows(optional). 2.The film mechanism also adopts servo control, which can be jogged as a whole, fine-tuned left and right, and quickly aligned with the window.	Film Feeding Part 1. The film feeding part uses an air expansion shaft to load the film, and automatically corrects the deviation to keep the film feeding in a straight line. 2. The tension control function makes the servo film feeding more stable, eliminating stretching and reducing inertia. At the same time, it is also equipped with the function of printed film side tracking and stop due to lack of film.
