AUTOMATIC HIGH SPEED 4&6 CORNER FOLDER GLUER

AUTOMATIC HIGH SPEED 4&6 CORNER FOLDER GLUER

Model:SHH-1450FS

Introduction

01. USAGE:

SHH-FS Series folder gluer machine with 4/6 corner function, each set is controlled by independent servo motor, adopts electrical regulating board, imported electronic components, three plates track mode device. Aluminum plates are all chute structure, which is easy to add spare parts. The machine is especially designed for all kinds of 4/6 corner cardboard packaging boxes, which can meet to all kinds of requirements of automatic packaging area.

02. SPECIFICATION:

Name	SHH-FS Auto High Speed 4&6 corner folder gluer machine
Paper Material	Cardboard 200-800gsm，A,B,C,E,F,N corrugated
Max. Liner speed	Max.300 meter/minute
Feeding way	Automatically and continuously feeding
Way of folding	Fold 2 and 4 are 180°, 1 line 180°, 3 line 90°
Glue Material	Water-base cold glue
Electric power	40KW 380V 50HZ 3P
Weight	9 Ton
Over dimension	192.21.7M

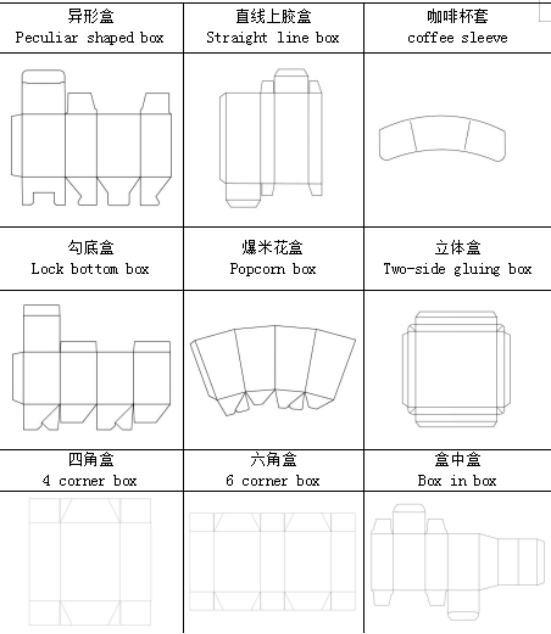

Box sample

03. Features

Wide range of accessories allows production of various carton designs

Fast, stable and precise machine with easy setup and operation

Each section is driven by an independent servo motor system

Motorized carrier movement with high-precision linear guides

Capable of producing complex carton structures ,include straight line, lock bottom, 4&6 corner, disproportionate cartons etc

Auto setting (with memory )

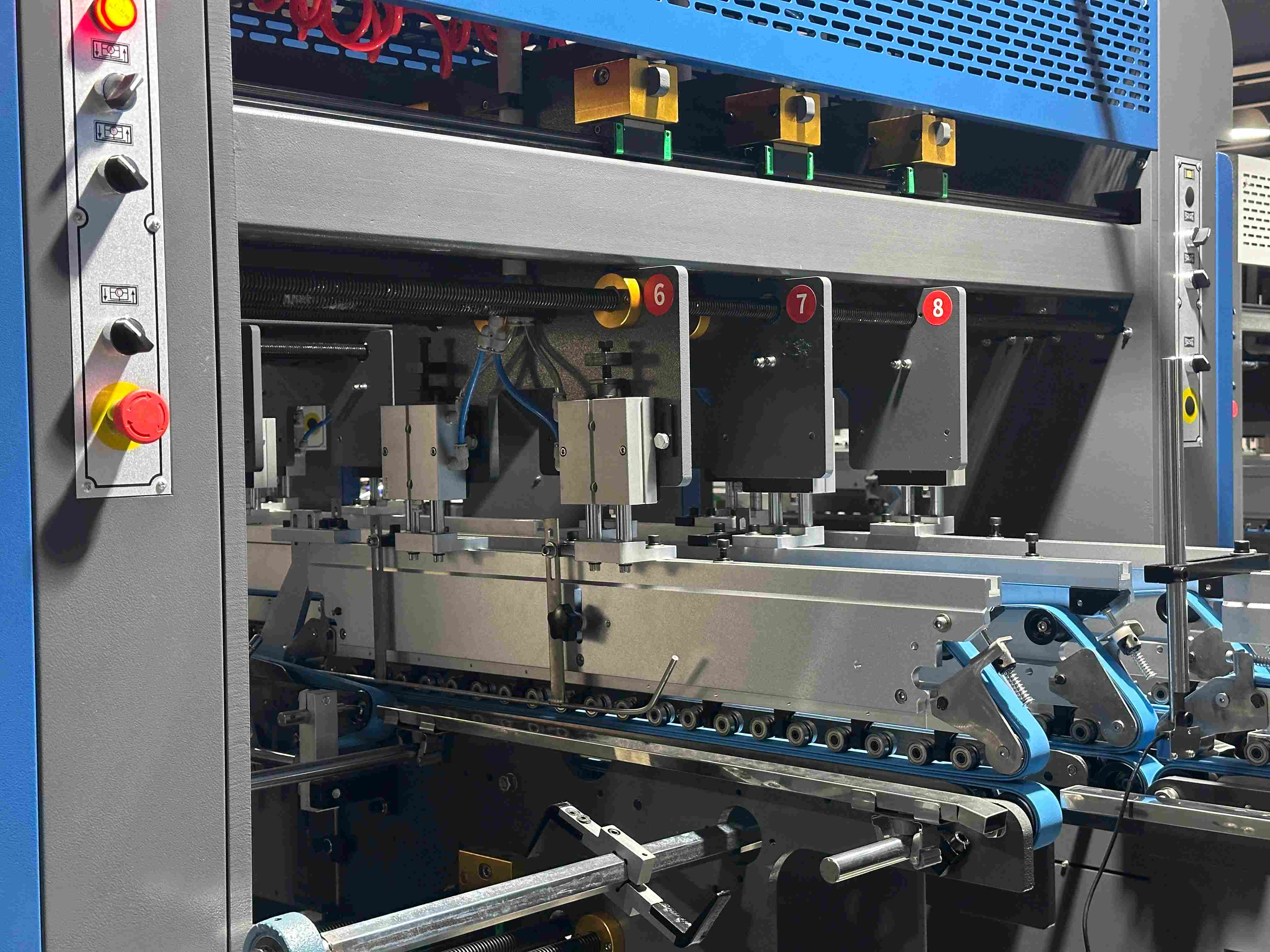

04. DETAILS

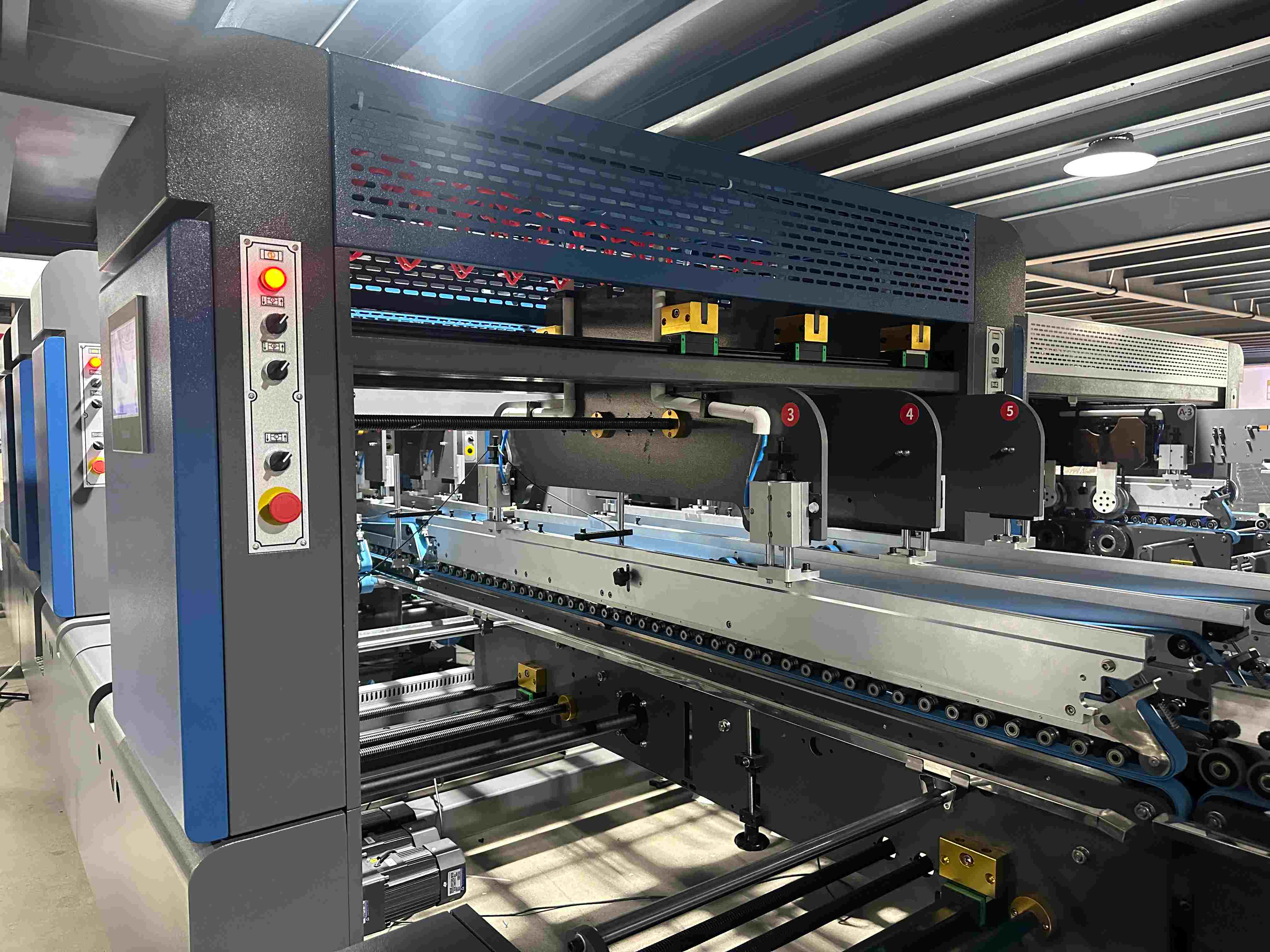

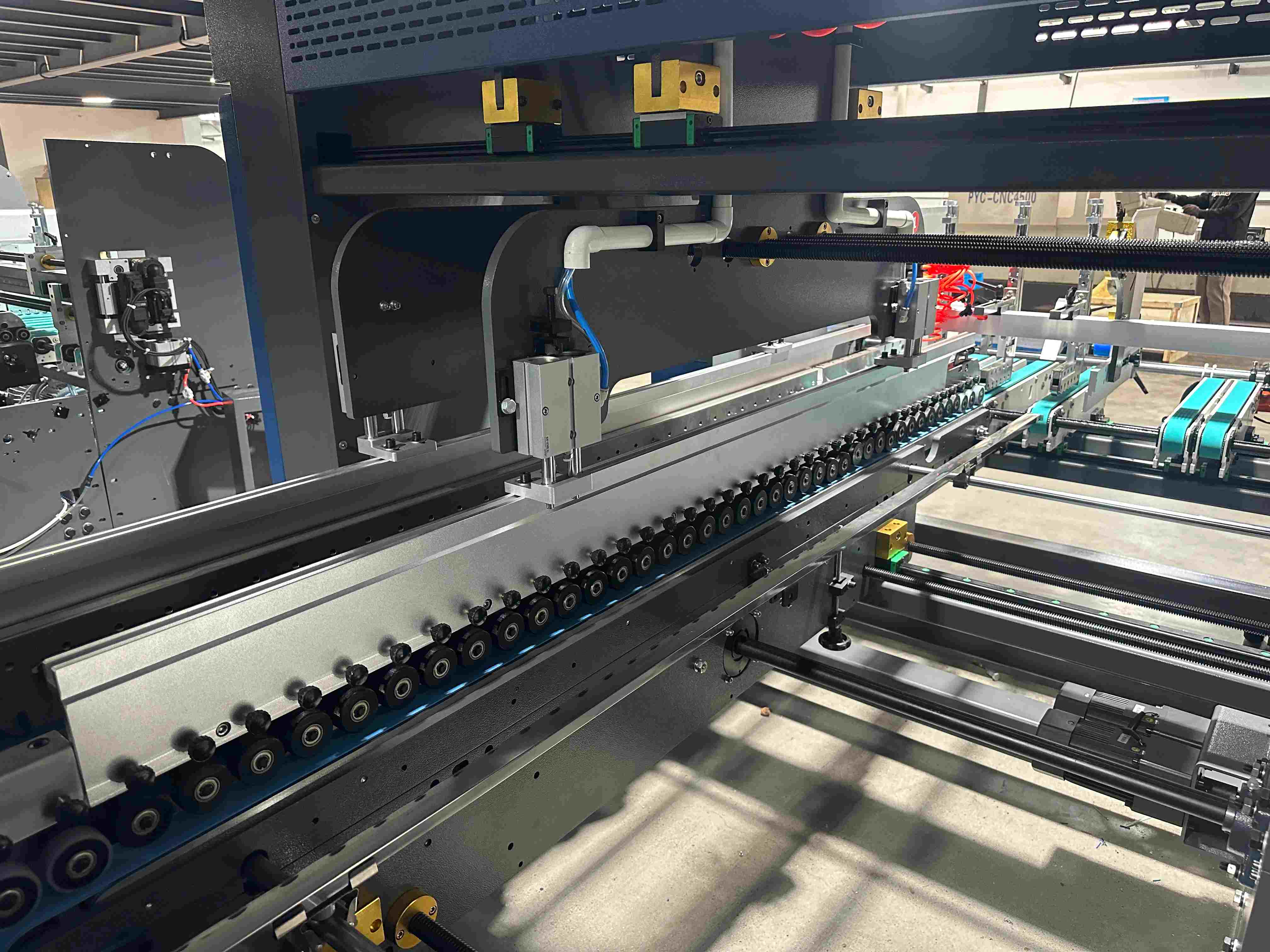

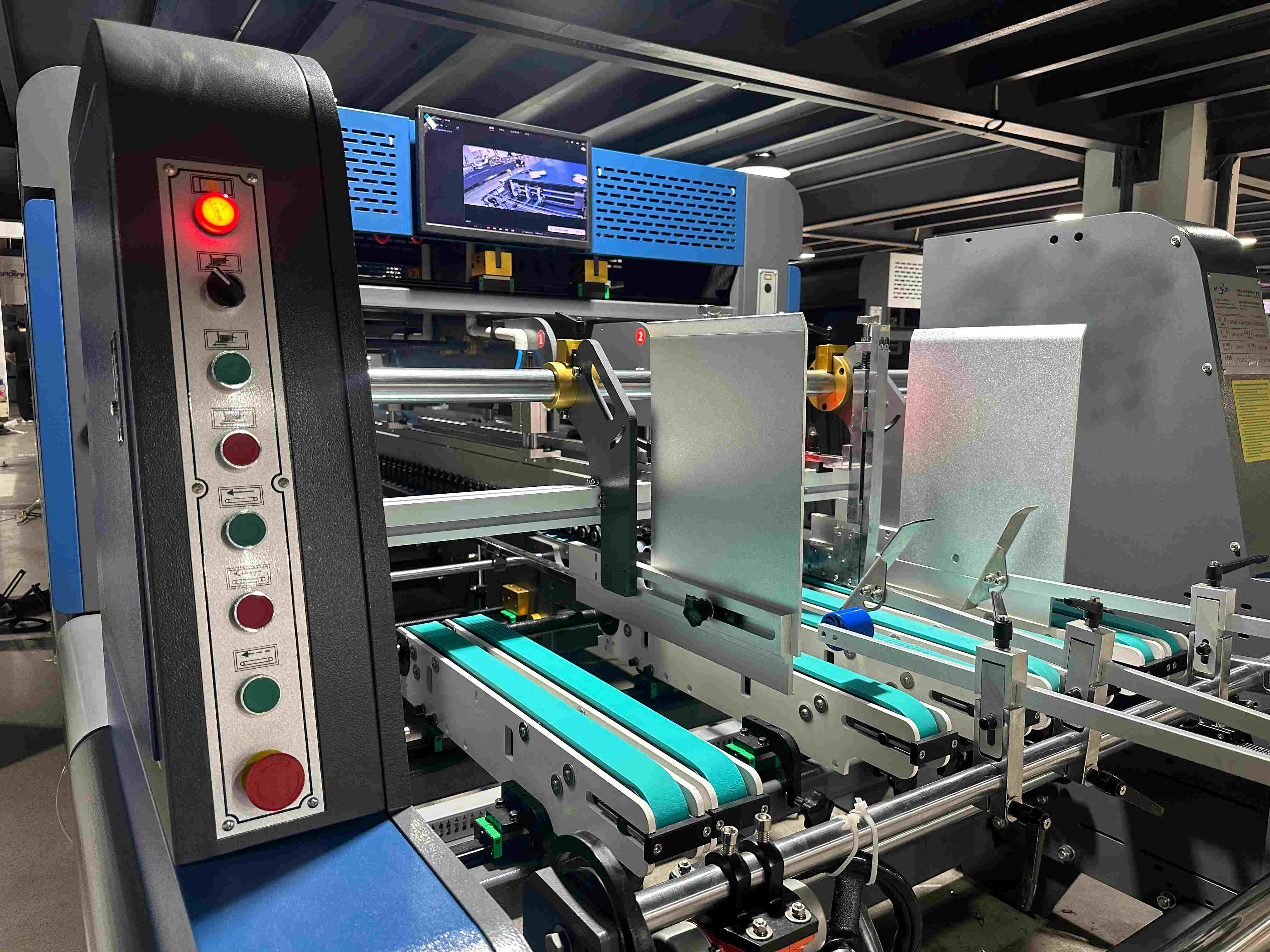

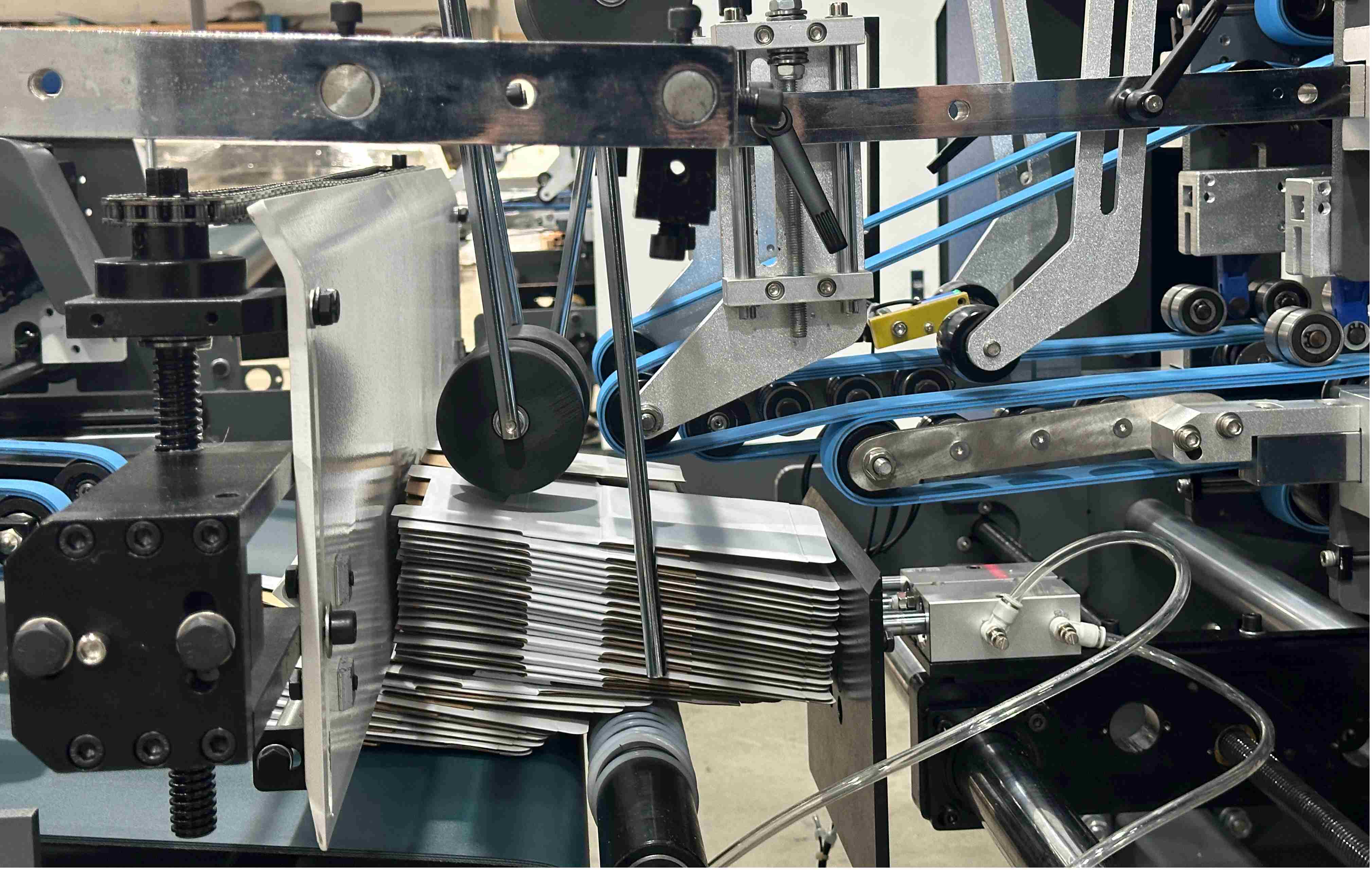

FEEDING 1.With vibrator ,ensure smooth and continuous feeding. 2.Touch screen for control machine working 3.Box feeding length adjustable 4.With monitor screen for checking the pre-pressing status 5.With independent servo motor control, independent speed adjustment 6.Three feed cutters with linear guide 7.With Cylinder Pressure device 8.Left and right baffles can be adjusted up and down to reduce adjustment and carton changeover time.	ALIGNMENT Make sure blank paper feeding straightly to ensure box forming quality 1.With independent servo motor control 2.Each row move by Remote control 3.It can align the carton to its left or right depending upon the design. 4.Length : 2.1m

PRE-FOLDING & BACK FOLDER The pre-fold section features a special device designed to precisely meet the requirements of the automatic carton packaging line. 1.First creasing line pre-folded to180° 2.Third creasing line pre-folded up to 90° 3. 1 & 3 crease opener	BOTTOM-LOCK& BACK FOLDER 1.Modular design method, improves the installation and conversion time of accessories 2.4&6 corner system adopts servo motor to ensure the folding accuracy of the rear hook 3.The encoder is used to track the speed , and the host’s bonus speed is synchronized with the back tick

FOLDING 2 and 4 line 180°folding ,fold and glue blanks 1.The upper pressure belt uses the main drive and cylinder pressure system, more suitable for corrugated products of varying thicknesses. 2.With independent servo motor control	FULL PRESSING With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.

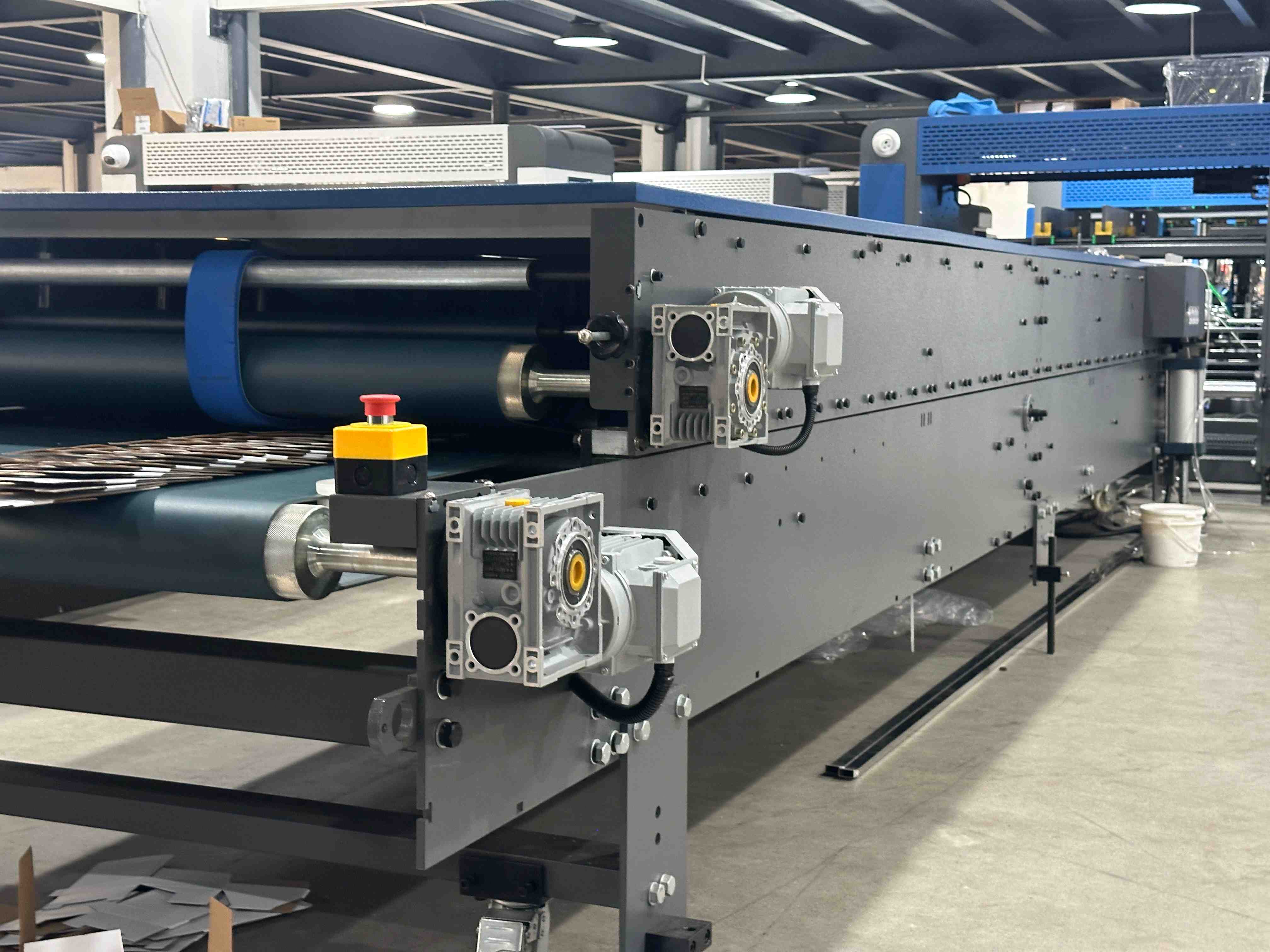

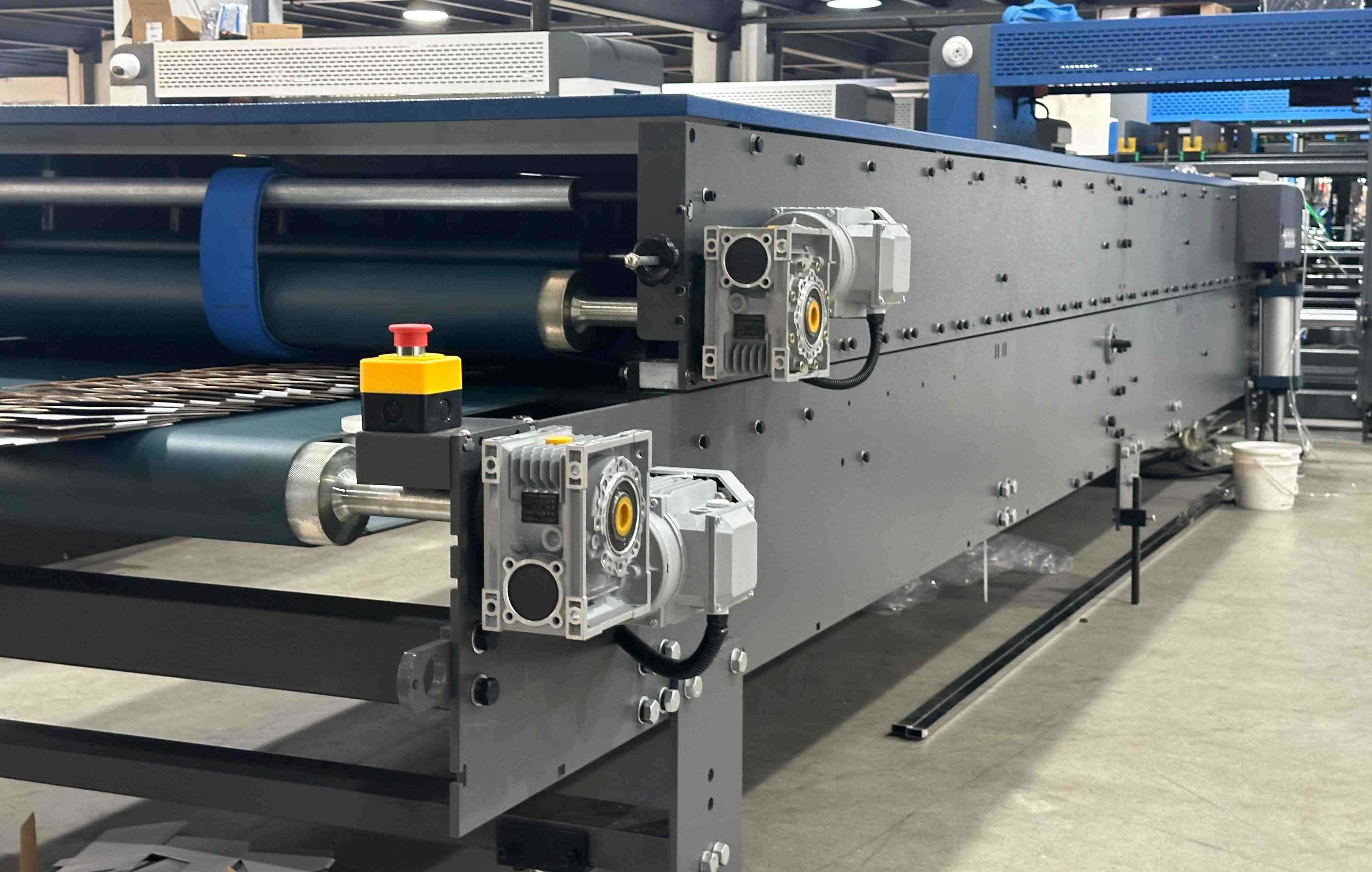

PATTING DEVICE Pneumatically controlled patting device that moves back and forth to correct the disproportionate	TRANSMISSION 1.Pneumatically adjust the height and back and forth 2.With table for collecting paper box 3.Can be flexibly moved according to box type and length 4.With blue sponge belt 5.With independent motor control

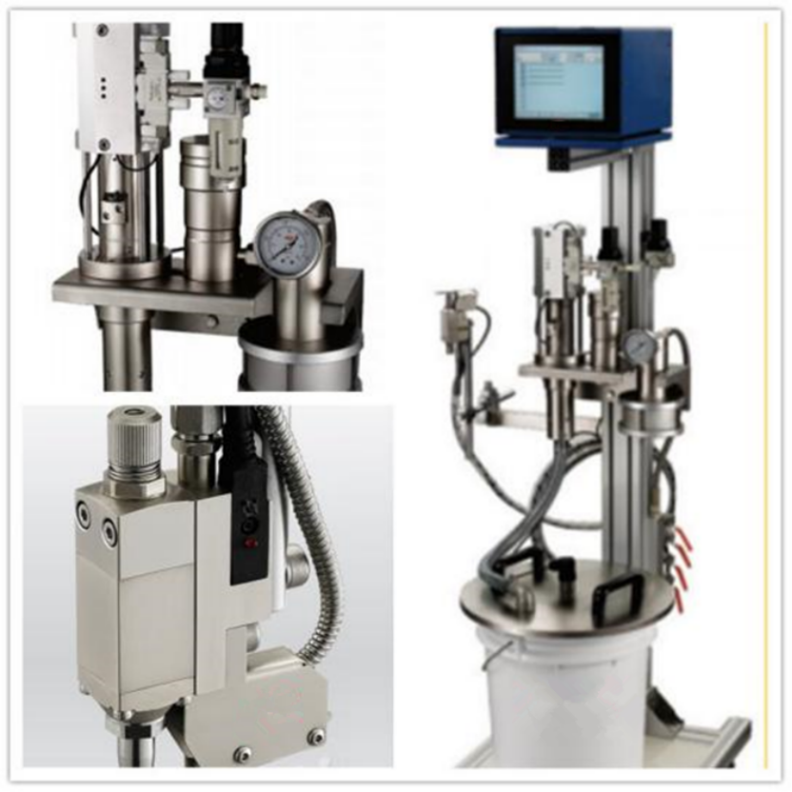

SPRAYING SYSTEM (WATER-BASE COLD) For irregular box, Need Extra Spraying System. Equipped with three guns, convenient in the production various special box, gluing quickly and accurately sizing. (Options: customized on user order)

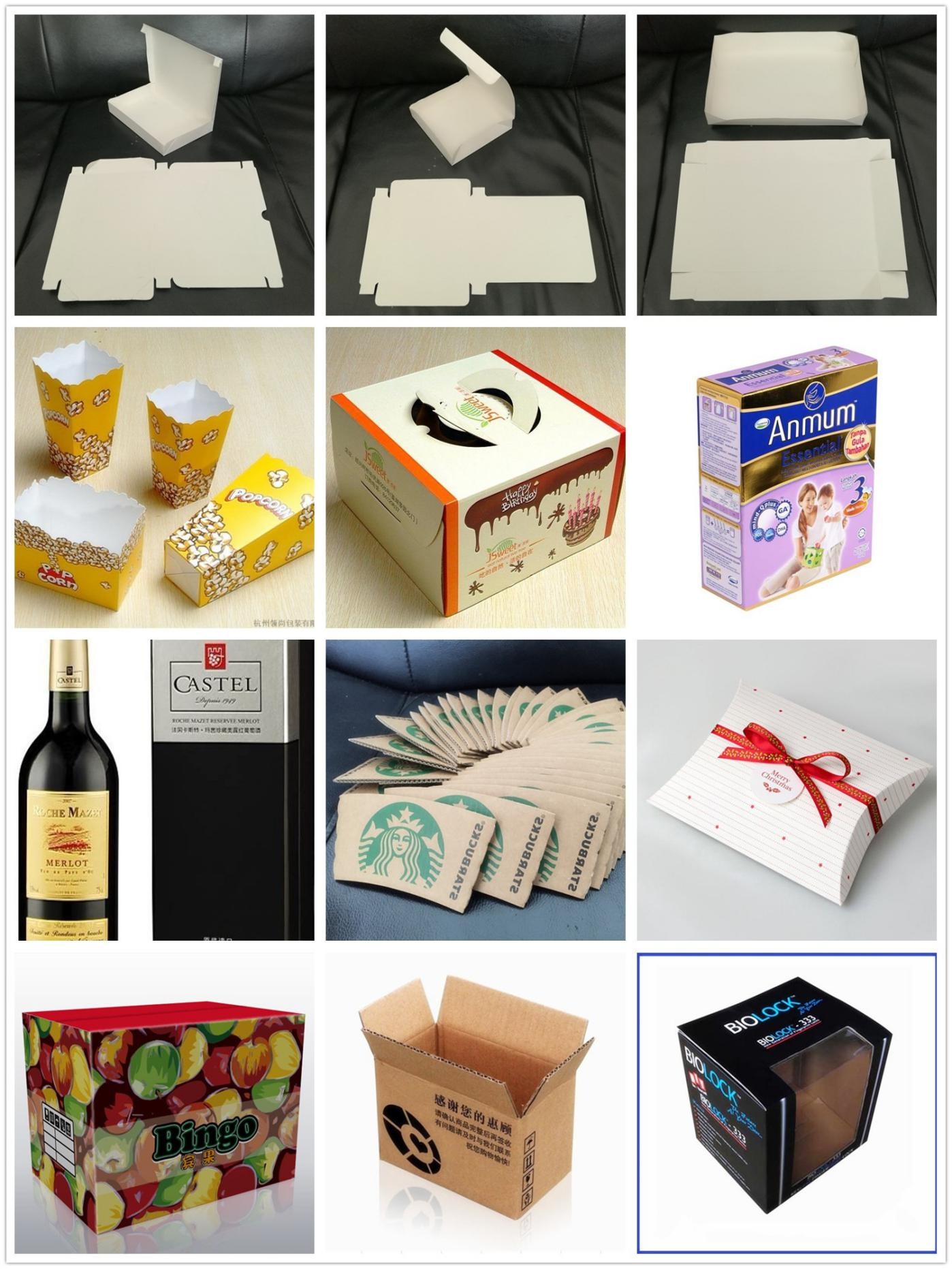

Samples

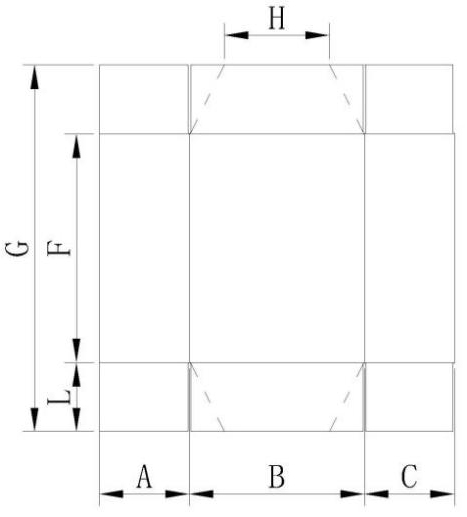

Four corner box type and size (mm)
Four corner box type and size (mm)
Model	1250FS	1450FS	1650FS	1850FS	2050FS
A+B+C	180-1150	180-1350	180-1550	180-1750	180-1950
B Min	130	130	130	130	130
F	70-800	70-800	70-800	70-800	70-800
G Max	800	800	800	800	800
H Min	10	10	10	10	10
L	25-100	25-100	25-100	25-170	25-170

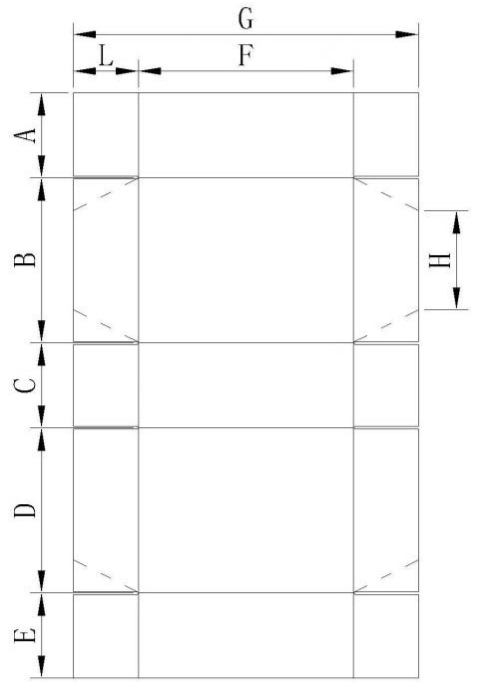

Six corner box type and size(mm)
Six corner box type and size(mm)
Model	1250FS	1450FS	1650FS	1850FS	2050FS
A+B+C+D+E	290-1200	290-1400	340-1600	340-1800	340-2000
B+C Min	80	80	140	140	140
B Min	80	80	80	80	80
C Min	30	30	30	30	30
D Min	70	70	70	70	70
F	70-800	70-800	70-800	70-800	70-800
G Max	800	800	800	800	800
H Min	10	10	10	10	10
L	25-100	25-100	25-100	25-170	25-170

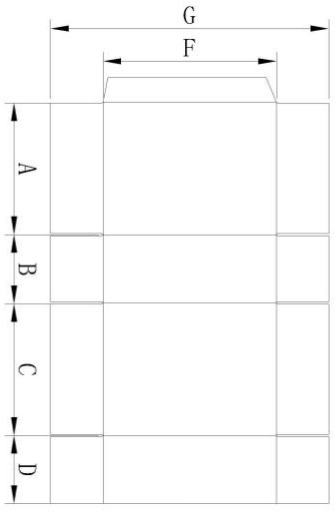

Flat box type and size (mm)


Model	1250FS	1450FS	1650FS	1850FS	2050FS
A+B+C+D	200-1200	200-1400	200-1600	280-1800	280-2000
C+D Min	100	100	100	140	140
D Min	25	25	25	25	25
F Min	100	100	100	100	100
G	150-800	150-800	150-800	150-800	150-800

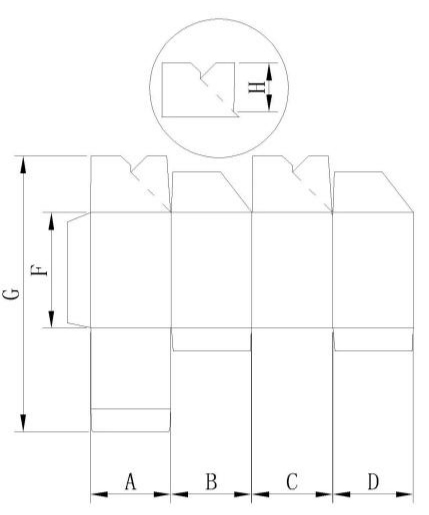

Lock bottom carton type and size(mm)
Lock bottom carton type and size(mm)
Model	1250FS	1450FS	1650FS	1850FS	2050FS
A+B+C+D	250-1150	250-1350	250-1550	380-1750	380-1950
C+D Min	125	125	125	190	190
D Min	25	25	25	25	25
F Min	100	100	100	100	100
G	150-800	150-800	150-800	150-800	150-800
H Min	30	30	30	30	30
NOTE:The machine speed should be based on the actual sample box size .

Machine configuration list

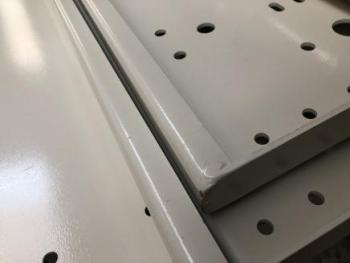

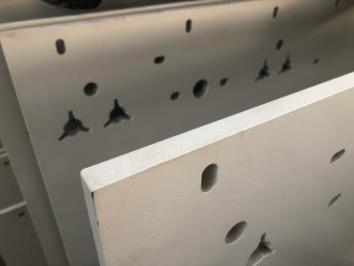

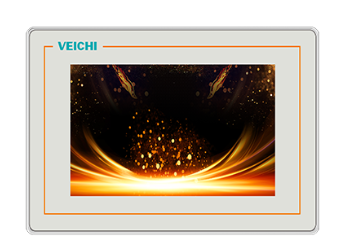

Main Board 20MM hot and cold processed standard steel plate	Board for conveyor 10MM hot and cold processed standard steel plate	Touchscreen WEICHI Made in china

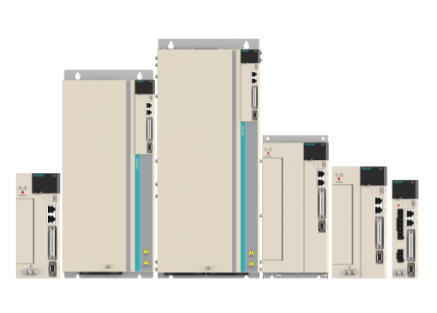

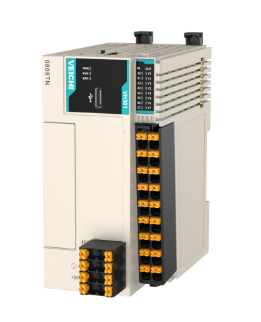

servo motor WEICHI Made in china	PLC WEICHI Made in china	Servo drive WEICHI Made in china

Photoelectric Germany SICK	Incremental CHINA	Contactor SIEMES Germany

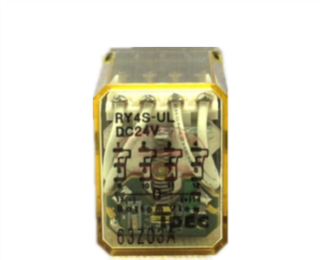

Circuit Breaker Schneider France	Photo electricity Bedook Germany	Intermediate relay IDE JAPAN

E-STOP Schneider France	Button Schneider France	Button Schneider France

Switch power supply Changxin Made in china	Travel Switch TENGEN Made in china	DC Switch power supply MEAN WELL Made in china

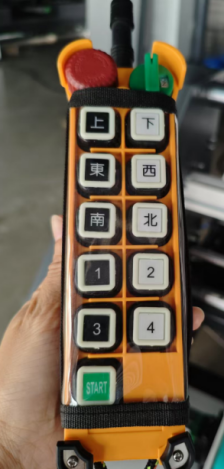

Press Switch+ Remote controller Made in china	Main bearing NSK JAPAN	Main conveyor belt Ammeraal Beltch Netherlands

07. Who are we?

Professional Manufacturing: A strong enterprise focused on the production of paper box packaging machines. Innovative Services: A service-oriented company dedicated to researching paper packaging and surface processing technologies and providing diversified solution services. Thoughtful Cooperation: A comprehensive supplier committed to offering equipment support, optimizing printing processes, and providing high-cost-performance consumables for customers.

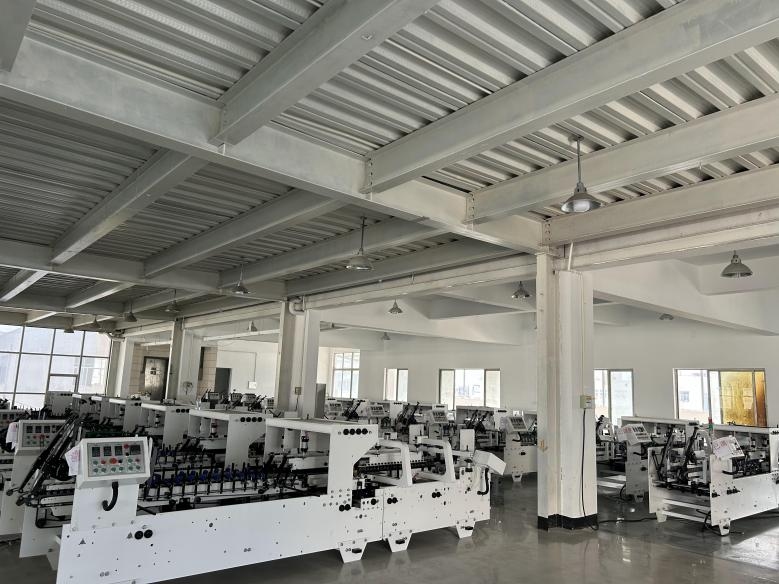

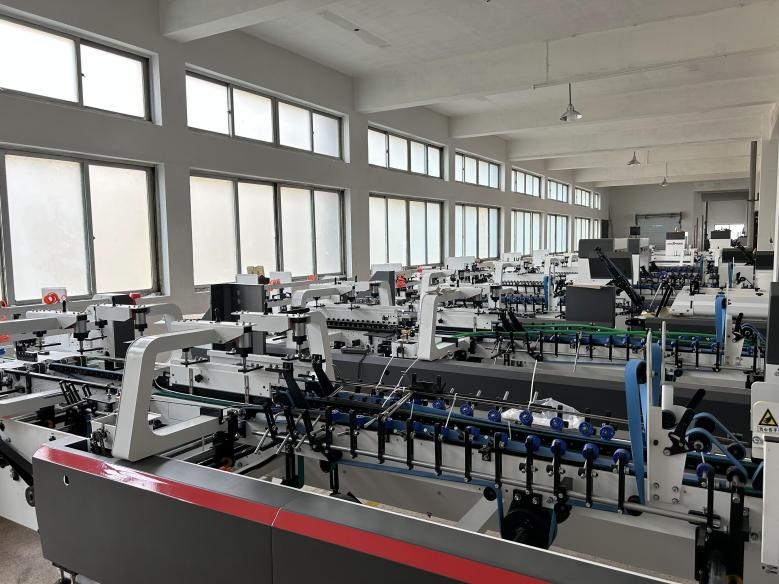

Workshop Focus on Specialization: Concentrate on a single product category to create more competitive and professional products. Complete Specifications: Meet diverse needs and cover a wide range of industry applications. Vertical Technology: Deepen every production process to continuously enhance technological standards. Professional Leadership: Focus on excellence, with craftsmanship creating a benchmark for quality.

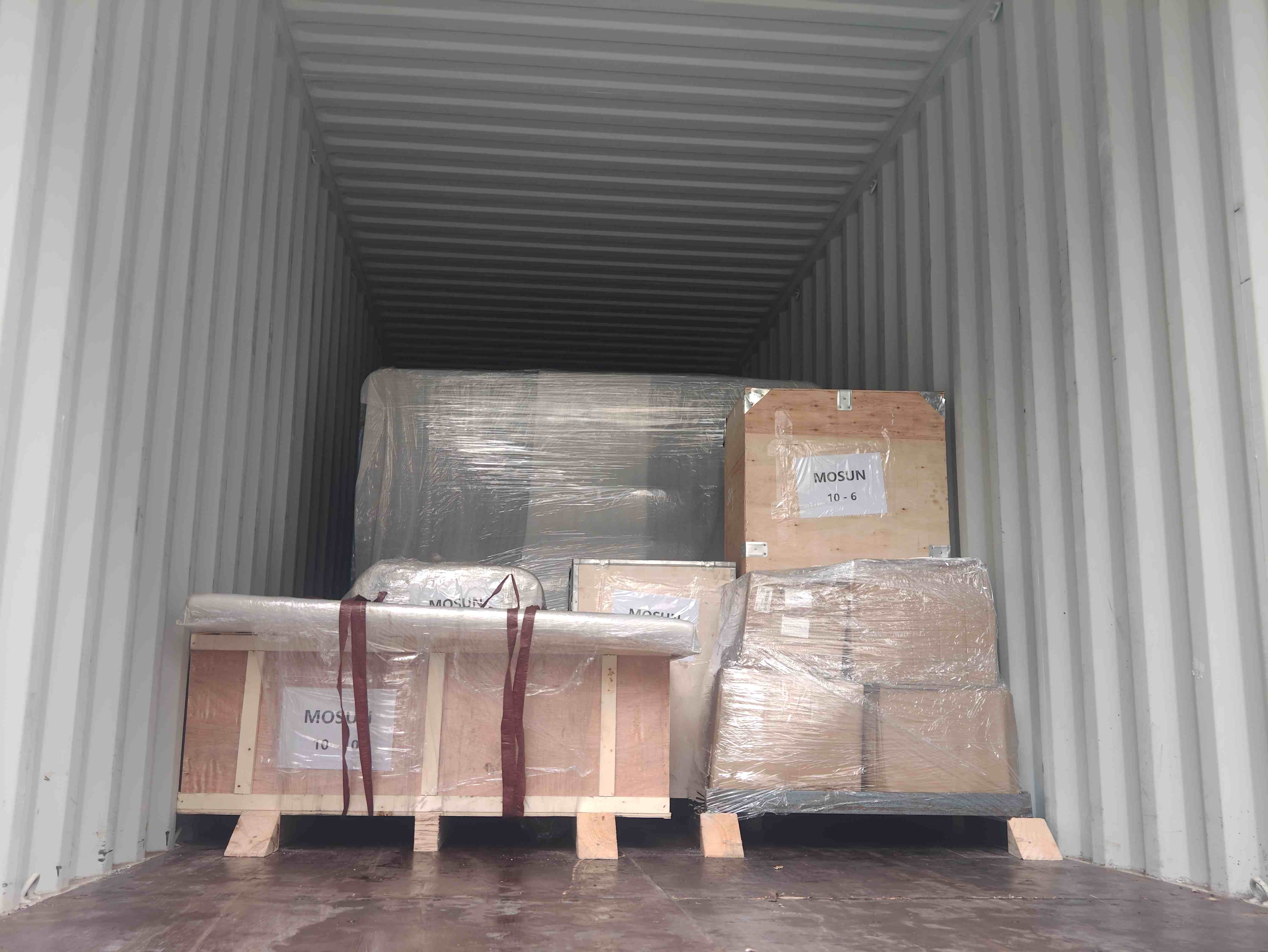

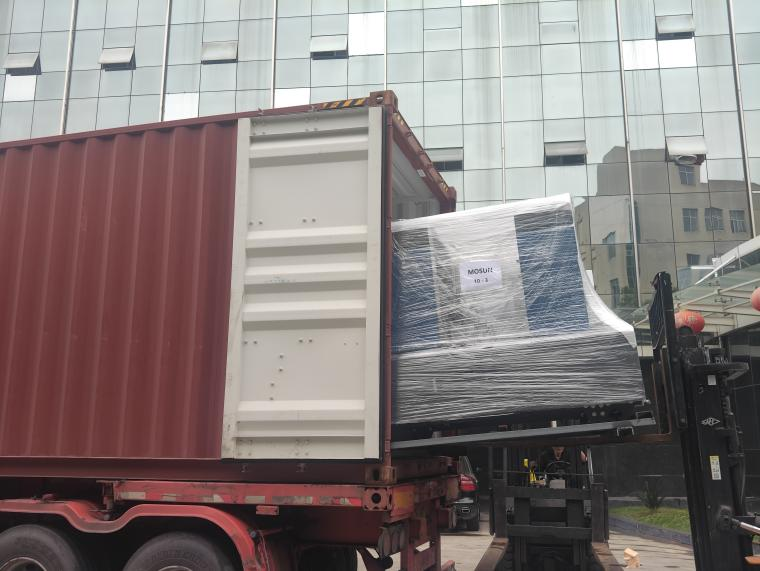

Packaging & shipment: Across the ocean, from inside to outside, full protection is provided to ensure the safe and timely delivery of goods.

Cargo shipped all over the world, global logistics support!

08. Who we serve？


09. Why choose us？

QUALITY ENDORSEMENT

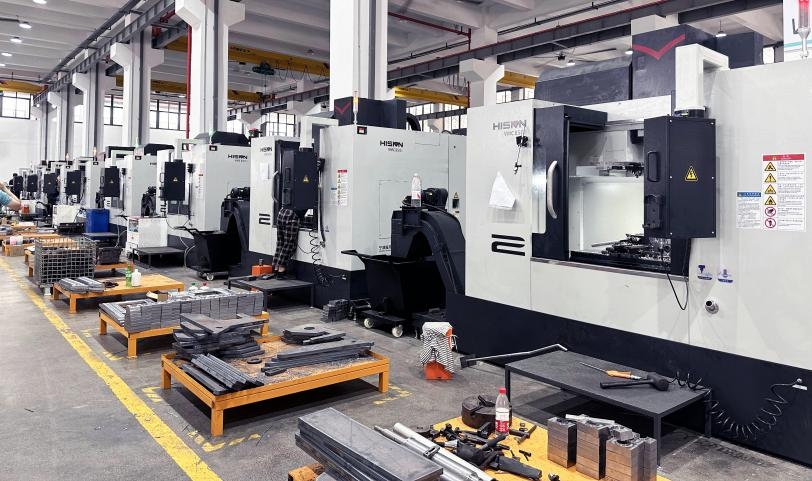

NCN MACHINING CENTER Stable quality starts with parts processing.

TEAM
CEO: With more than 19 years of experience in the field of paper printing and packaging equipment, he is good at formulating efficient process solutions and is an industry expert. Technical Supervisor: Senior electrical engineer and senior mechanical engineer, with more than 15 years of rich experience and superb technology, providing solid guarantee for equipment research and development and optimization. Sales Manager: Engaged in export trade services for more than 10 years, he is not only familiar with printing and packaging processes, but also good at providing customers with efficient services, saving time and cost. QC Manager: All equipment has been strictly debugged in the production workshop before leaving the factory, strictly controlling the quality, ensuring that the random accessories are complete and the parts are rust-proofed, and striving to ensure that customers can use it without worries. Equipment Salesman: Proficient in the company's SOP process, with keen insight into needs, and can quickly recommend efficient production solutions to customers. Order Follow-up Personnel: Full-process dynamic service expert. From production order production and verification, follow-up of production progress, provision of inspection videos, to supervision of safe loading and shipment of goods, ensure that each link is smooth and correct, and remind customers to clear customs in time. Procurement staff: With more than 12 years of procurement experience, we focus on price evaluation and quality control of outsourced equipment and accessories, and provide customers with comprehensive supporting support.

AFTER-SALES GUARANTEE
After-sales service team: We provide 7×24 hours online support service! After the equipment arrives at your factory, we will immediately start the in-depth cooperation mode to provide you with online installation and operation guidance to ensure rapid production. Overseas on-site service: Experienced technical engineers will go to the site to install and debug the equipment, and provide detailed operation training to help you use the equipment efficiently. On-site service content: Including mechanical structure, component adjustment, electrical switch operation, precautions and daily equipment maintenance training. Ensure that the equipment can operate stably for a long time in your hands. Warranty policy: Electrical components enjoy a 13-month warranty (calculated from the date of equipment shipment). Lifetime service: We promise to support lifetime service! If you need to replace paid accessories or warranty accessories, we will arrange delivery as soon as possible, and the express delivery fee will be borne by the customer.
I'm waiting for you in the workshop:

I'm waiting for you in the cloud: We can make an appointment online at any time to learn about the equipment you are interested in, and then communicate and explain online face to face. Tell me your specific needs at any time, and I can help you make a complete production line plan!
