Machine function & structure

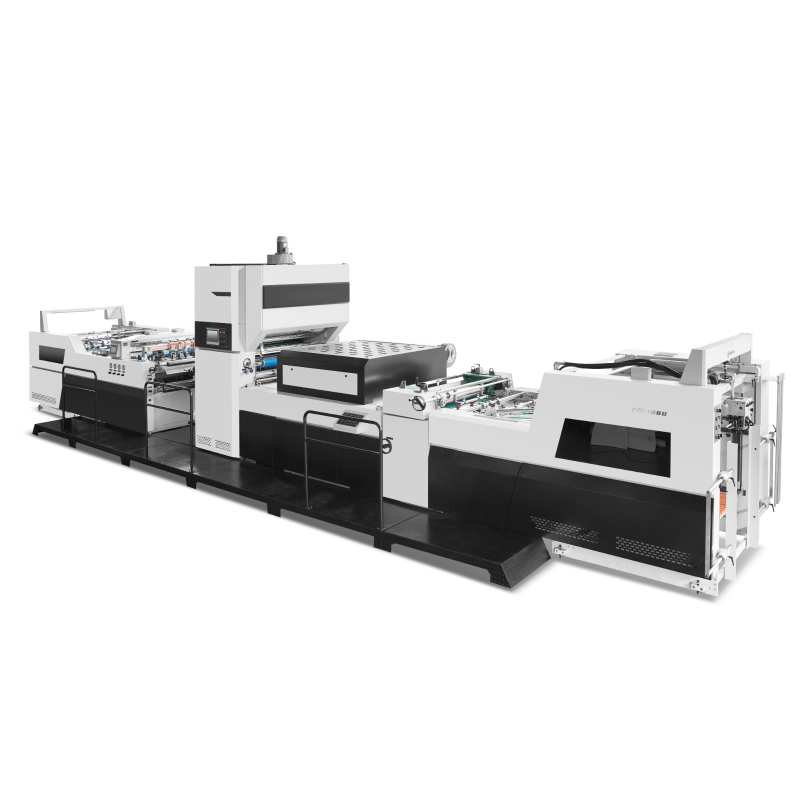

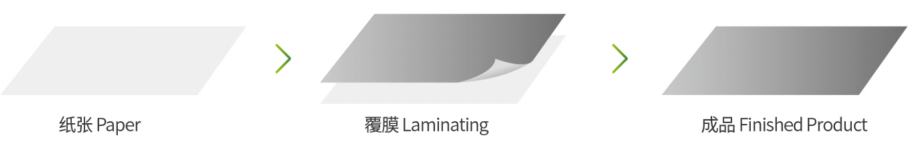

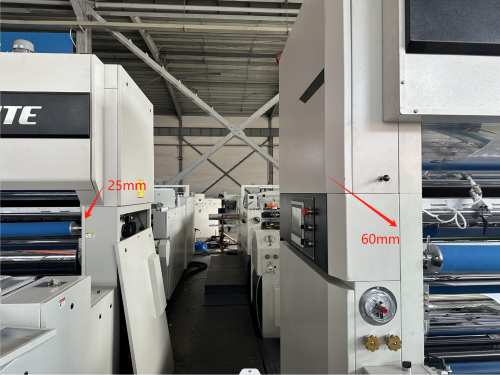

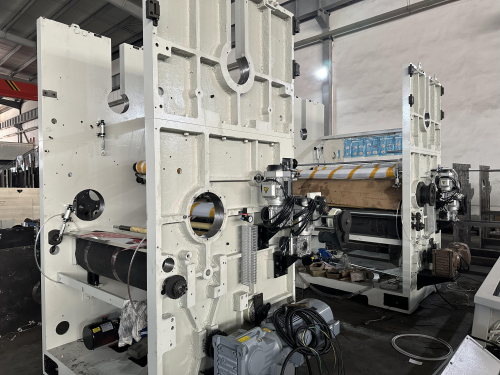

NFM-H fully Automatic Vertical High-precision and multi-duty laminator as a professional equipment used for plastic
film laminating on the surface of paper printed matter.
Water-based gluing (waterborne polyurethane adhesive) dry laminating. (water-based glue, oil-based glue, non-glue film)
Thermal laminating (Pre-coated /thermal film)
Film: OPP, BOPP, PET, PVC, METALIC, NYLON, etc
Specification
| Model |
NFM-H |
| Max Paper width (X) |
1080 |
| Max paper Length (Y) |
880 |
| Min Paper Size |
360×320mm |
| Speed |
10-110m/min |
| Paper Thickness (Round Knife) |
80-500gsm (Above 100gsm easy to adjust, E type corrugated paper) |
| Paper Thickness (Hot Knife) |
≥115gms |
| Overlap Precision |
≤±1.5mm |
| Water base film Thickness (common) |
2010/12/15 |
| Common Glue Thickness |
4-10g/m2 |
| Pre-Gluing Film Thickness (common) |
15~35μ |
| Non-Stop Feeding Height |
1300mm |
| Collector Paper Height (incl. pallet) |
1300mm |
| Power |
380V-50Hz-3P |
| working Pressure |
0.9Mpa |
| Cable Thickness |
25mm2 |
| Weight |
10500kgs |
| Dimension (layout) |
11570*2595*2700mm |
| Loading |
40HQ |

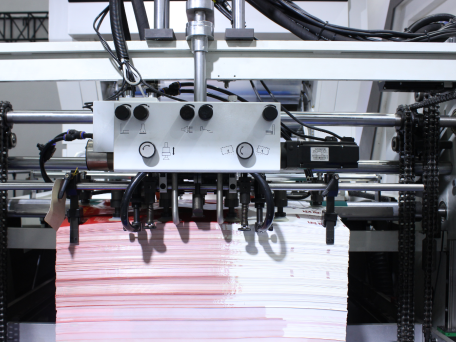

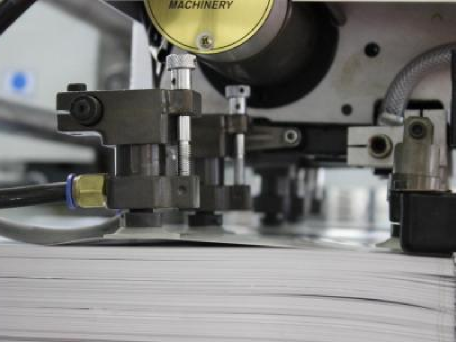

Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
The paper feeding table has upper and lower over-limit protection
The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
The feeder is controlled by 3 servo motors, the front and rear positions can be adjusted intelligently, just input product data on the control panel

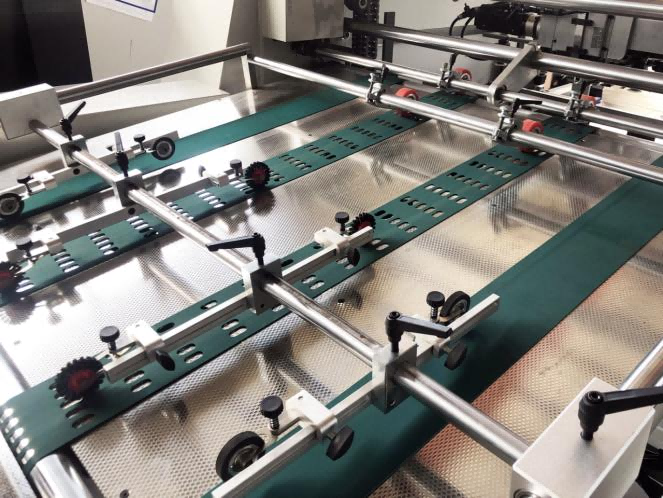

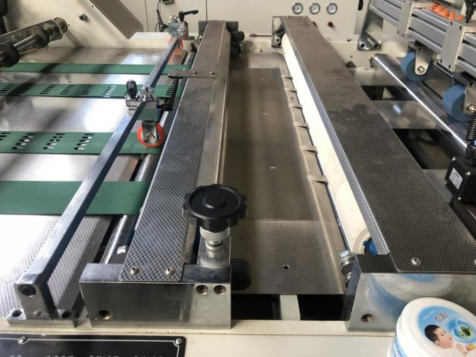

CONVEYING TABLE AND OVERLAP
The conveying table adopts customized stainless steel corrugated board
The brush wheel and rubber pressing wheel move smoothly
Double Servo motor control sheet overlap, accuracy of overlap, error≤±1.5mm

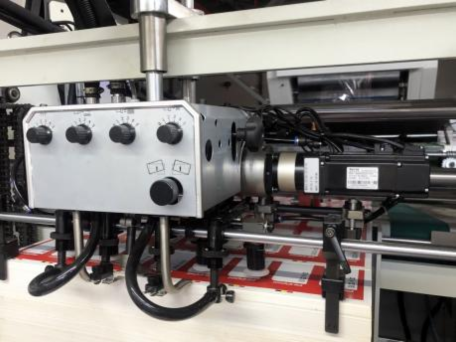

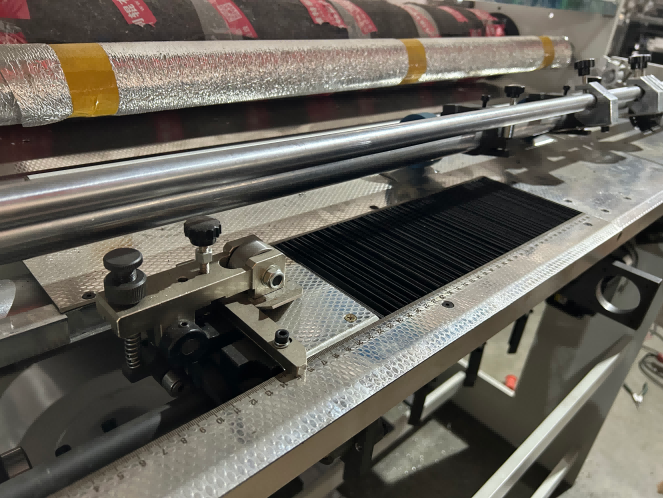

The side pull is controlled by a servo motor, and the position is automatically adjusted.
200-500gms window die cutting paper laminating process.
Paper gluing and IR drying, then pasting with film, special use for food box, Underwear packaging box, Cosmetics packaging box, Toy box and different kinds of color paper box making.

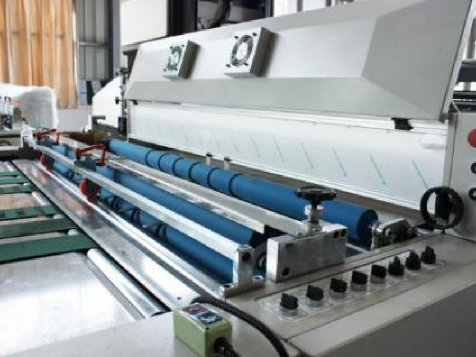

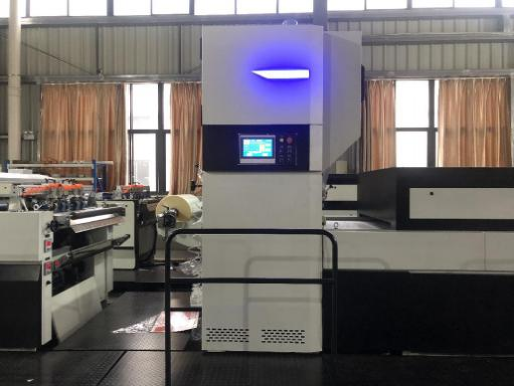

Dry unit include 12 pcs IR lamps, total heat power is 14.4kw. Depend on product and paper glue thickness, esay control the three group lamps’ power.
Window laminating sample:

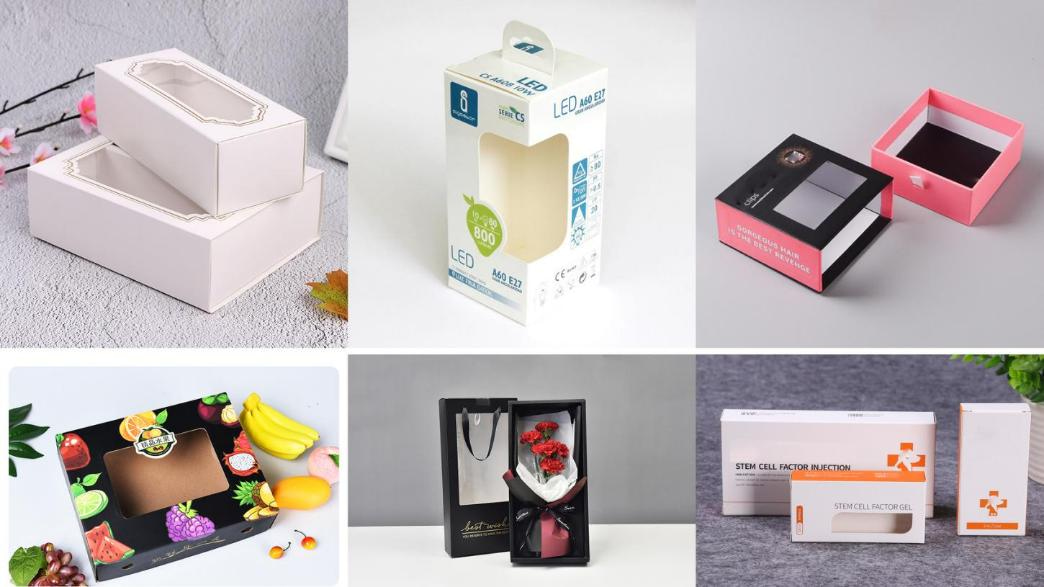

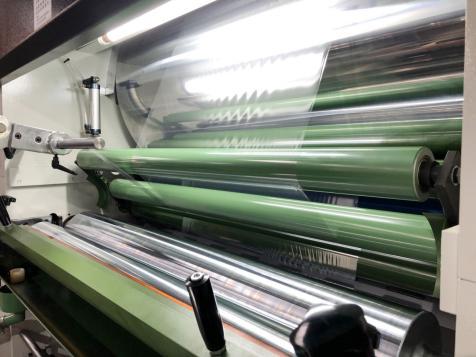

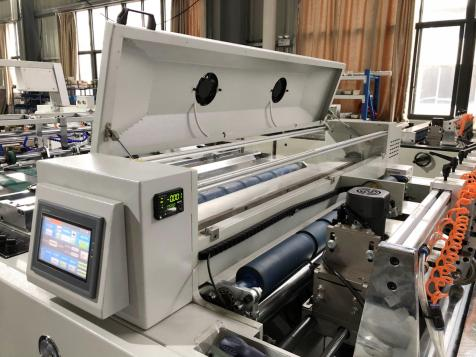

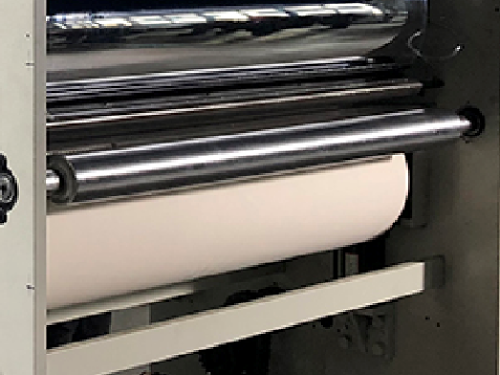

Drying roller diameter is 1000mm, fill liquid into the roller and seal it. Electromagnetic heating control system is adopted for drying, the film is heated evenly, and the drying speed is more faster, lower energy consumption. The stainless steel fin electric heating tubes are built in the auxiliary oven.
Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe for accurate temperature reading.

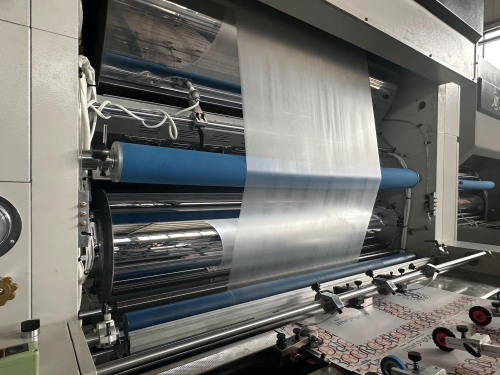

The diameter of the pressure rubber roller is 300mm/320mm, and the pressure can be up to 15MPA.

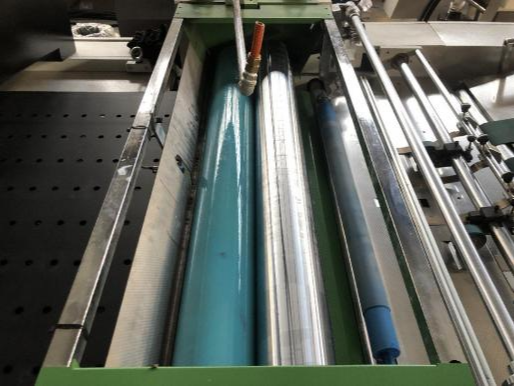

The gluing roller and the measuring roller drive controlled by independent motors, More uniform glue control.

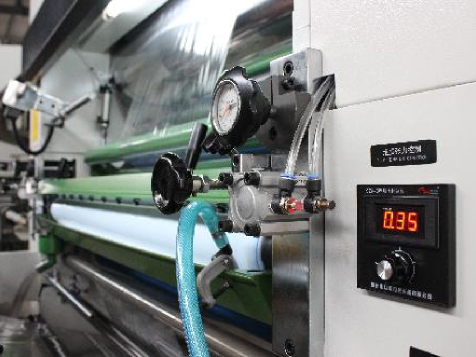

Glue thickness micro adjust, easy to control by the Gauges
The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue. The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop.

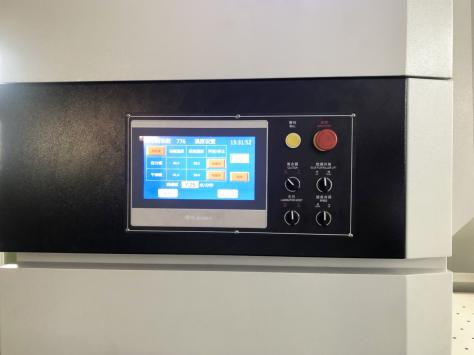

Simple design of total control touch screen.
Waste film winding device
The paper cutter is equipped with a tension controller, the an anti-curl device to ensure that the thin paper flat and not curled.

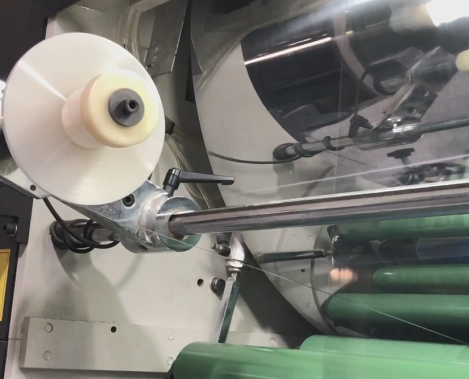

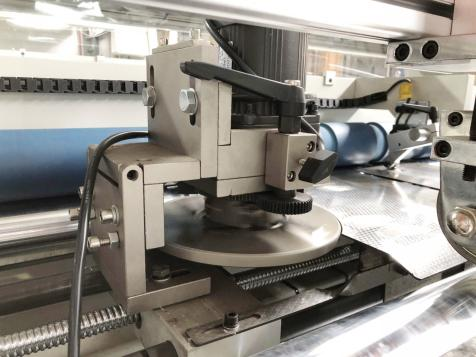

The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials
The disc knife is controlled by a servo motor and automatically adjusts the position

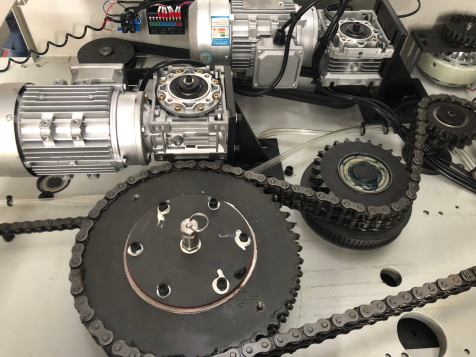

The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference

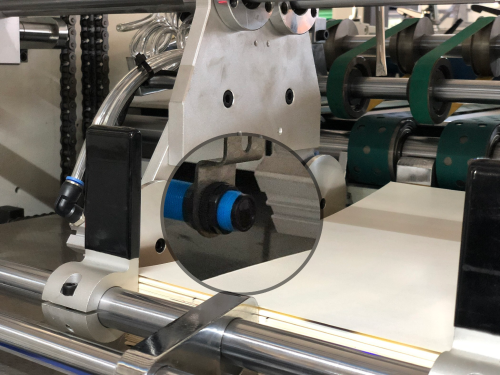

Hot knife with 24V low voltage direct heating the blade, then slitting plastic film, after slitting the paper without film. The hot knife system is controlled by servo motor, determines the position of the cut point by detecting the change of the thickness of the paper overlap, which is precise and efficient.

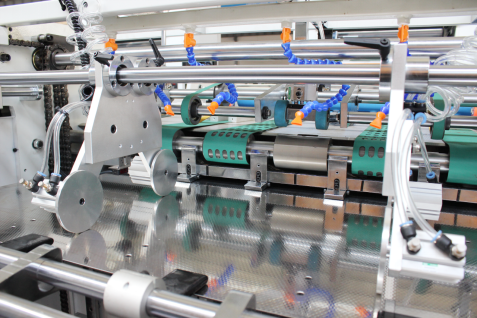

The non-stop paper receiving part is controlled by four servo motors, the left and right front and rear positions of the paper pat cylinder, and the automatic adjustment of the paper stop baffle position

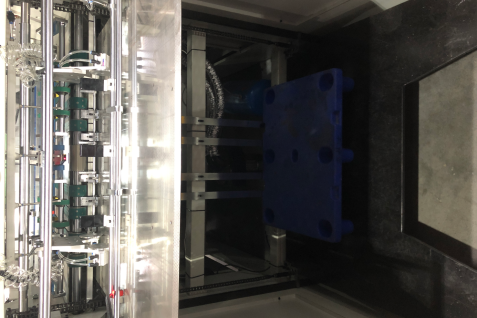

The non-stop collector height can reach 1300mm. When the stack is almost full, the delivery conveyor belt will automatically extend to accept the paper. The collector platform will drop. After the tray is replaced, the platform will recycle and complete the non-stop collector.
Adopt pneumatic paper sorting structure to ensure the paper in the good order.
Avoid paper breakage due to excessive speed hitting the baffle.

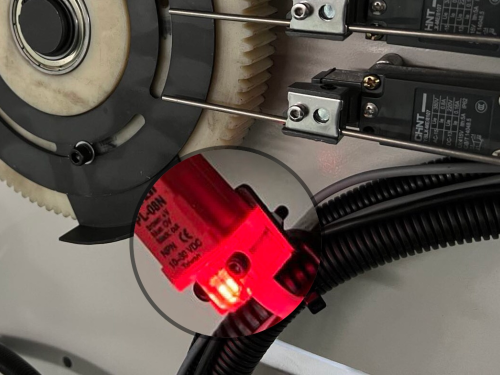

Counting electric eye: the number of running paper is read by the display, and the data can be cleared and totalized.
Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the collector will overturn, paper is kicked out..
 |
 |

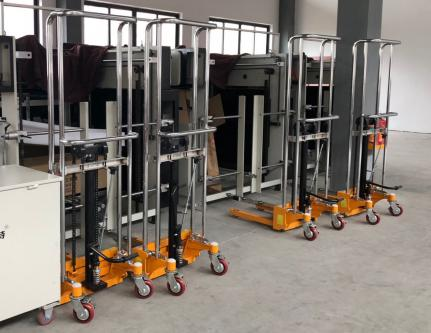

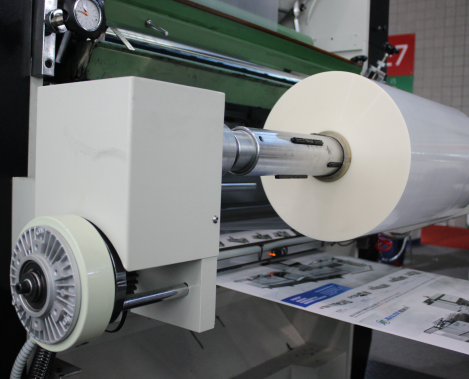

| Film lift |

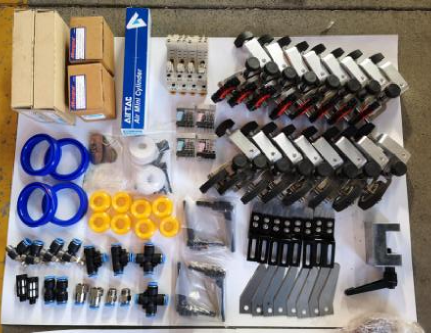

Spare parts |
