01. Usage:
Roller Die Cutting machine is to cut the paper with the mould. It can be applied to normal paper, coated paper and cardboard, (composite paper (covered with polypropylene) or plastic film cannot be processed ).
Speed can reach 6000 cycles per hour. It can remove the waste automatically, easy to operate and save time with the efficient work.
02. Consumable
die cutting mold
03. Specification:
Model |
MS-A4055 |
Sheet feeding system |
Vacuum Feed Belts |
Sheet Size(before processing) |
Width*Length |
Max.400X550mm/15.74X21.65
Min.200X275mm/ 7.88X10.83
|
Cut product Size The size may be limited depending on shape and sheet weight range. |
|
With separator |
Max.376X530mm/14.8X20.8 |
|
|
|
Min.50X80mm/1.97X3.15 |
Processed Material |
Normal paper, Coated paper, Cardboard |
|
Material Thickness
|
127.9~400gsm
Die cutting:Max.0.5mm/0.019
(In case of blade height:0.8mm/0.031)
Die cutting:Max.0.3mm/0.001
(In case of blade height:0.6mm/0.023)
Creasing:Max.0.4mm/0.015
(In case of blade height:0.8mm/0.031)
|
Die cutting precision |
±0.1mm |
Feeder stack Height |
500mm/19.68 |
Die Size Upper Die |
Max.400X560mm/15.74X22.04
Min.160X100mm/6.30X3.94
|
Upper Cutting Blade Height |
0.6mm or 0.8mm/0.0236 or 0.0315 |
Production Speed |
6000cycles per hour |
Voltage/Frequency |
Single Phase 200 to 240V,50/60Hz |
Machine Weight |
With separator:1200KG
Without separator:900KG
|

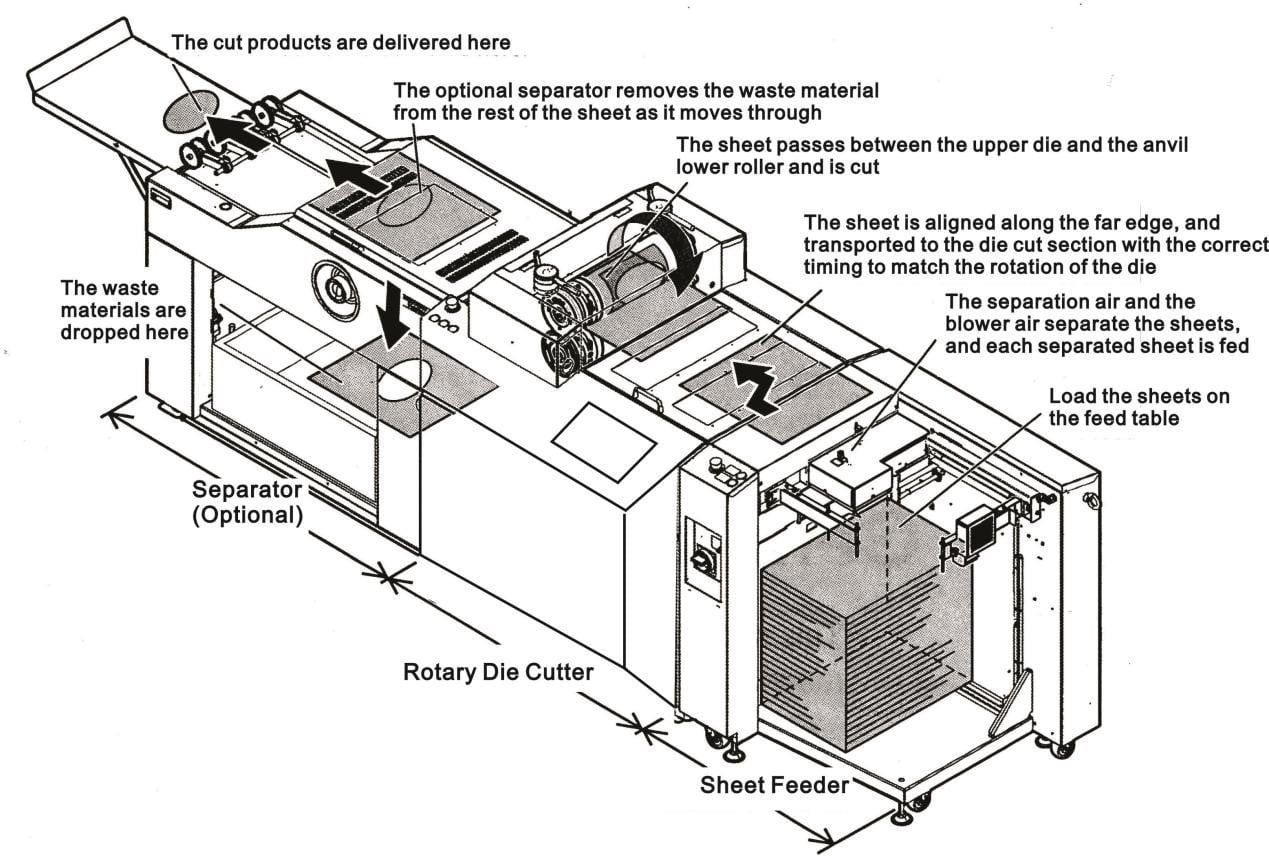

04. Feature Highlights
1.Multi-functional system die cutting, kiss cutting, creasing, repeat cutting.
2.Rotary Die cutting machine (Max.400x550 mm)-Rotary Die-Cutter designed to meet the growing demand.
3.Flexible substrate-Die cut, Crease, Perforation, Silt, Hole punch and round corner in various substrates up to 0.5mm(only for die cutting)thickness for digital and offset printed sheets.
4.One pass processing-Feeding, die cutting and separating are achieved in one pass at a speed of 6,000 cycles per hour.
5.Save the cost of making die-Uniquely designed servo motor controlled ”Repeat Register” feature allows multiple-up applications from single-up die to minimize die cost.
6.Simple and easy operation-Reduces costly labor steps and increases productivity.
05. Details
|
|

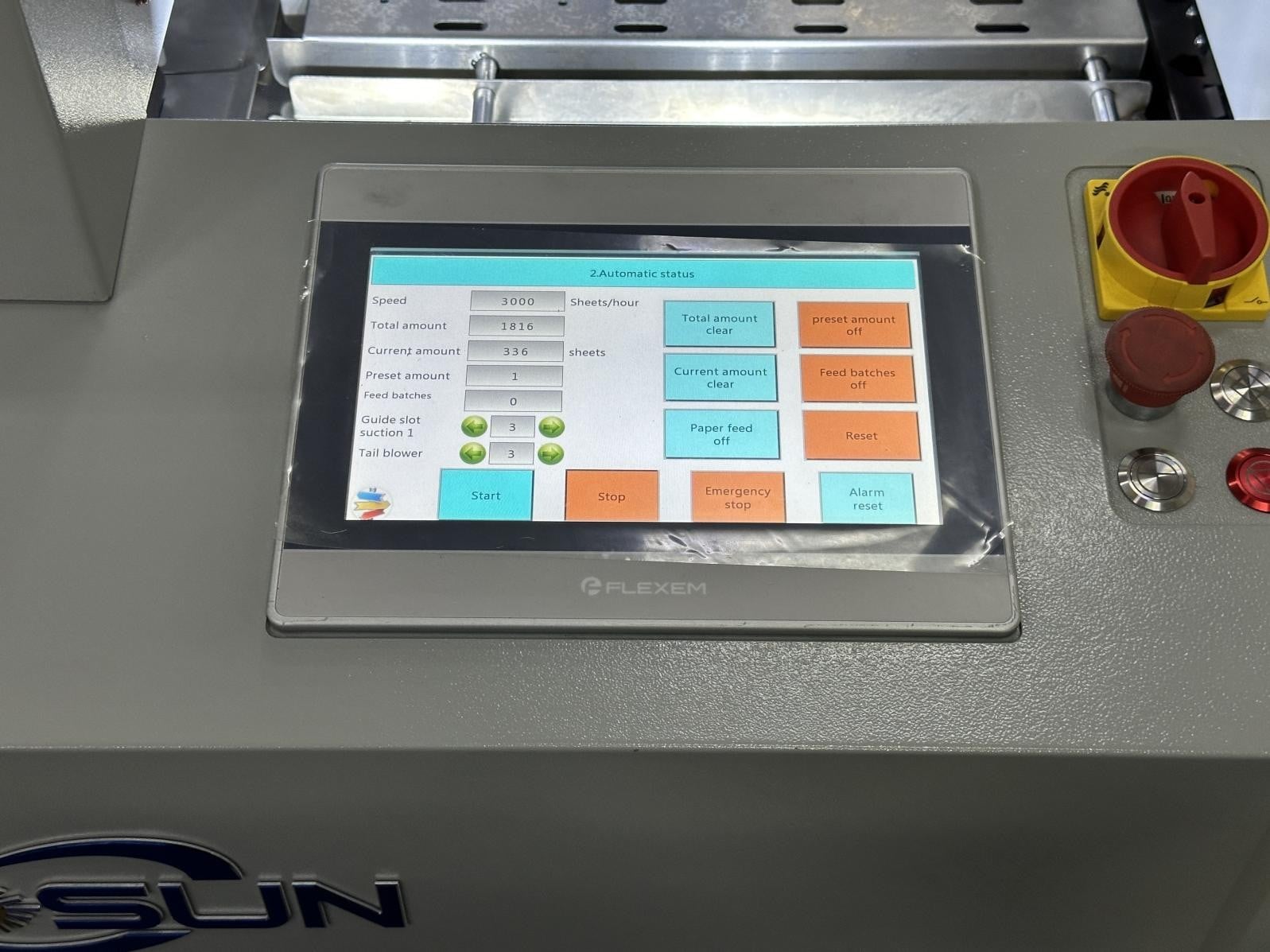

Operation Console:
Both setup and control can be done though the intuitive touch screen. After setting upper and lower die, the system can be set up by simply inputting sheet size and product size. The graphical illustrations on the screen are simple and easy to understand.
|
|
|

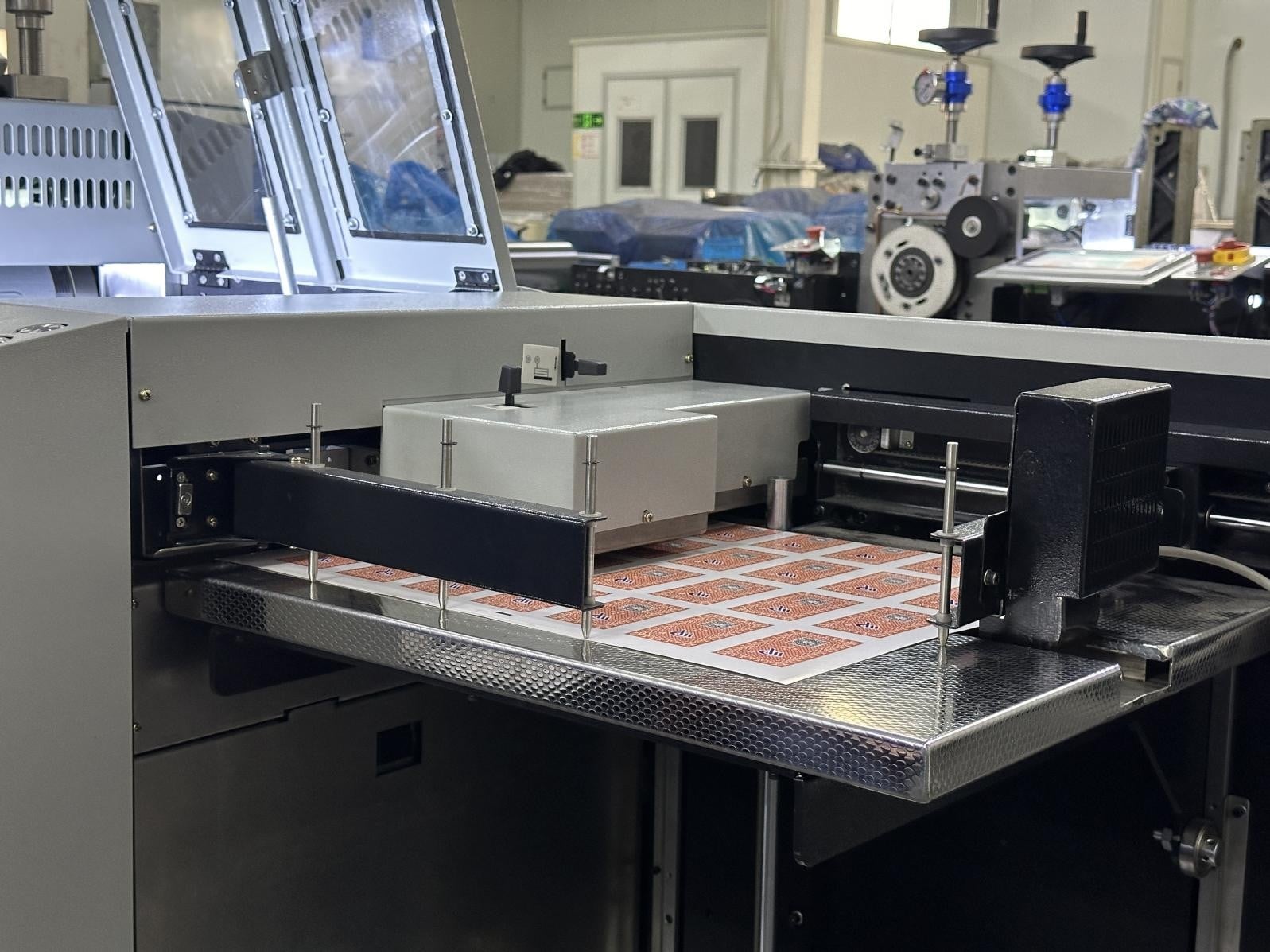

Feeder Section:
Vacuum belt feeding enables superior feeding with easy setup and operation. An ultrasonic sensor is used for double feed detection on a wide range of substrates.
|
|
|

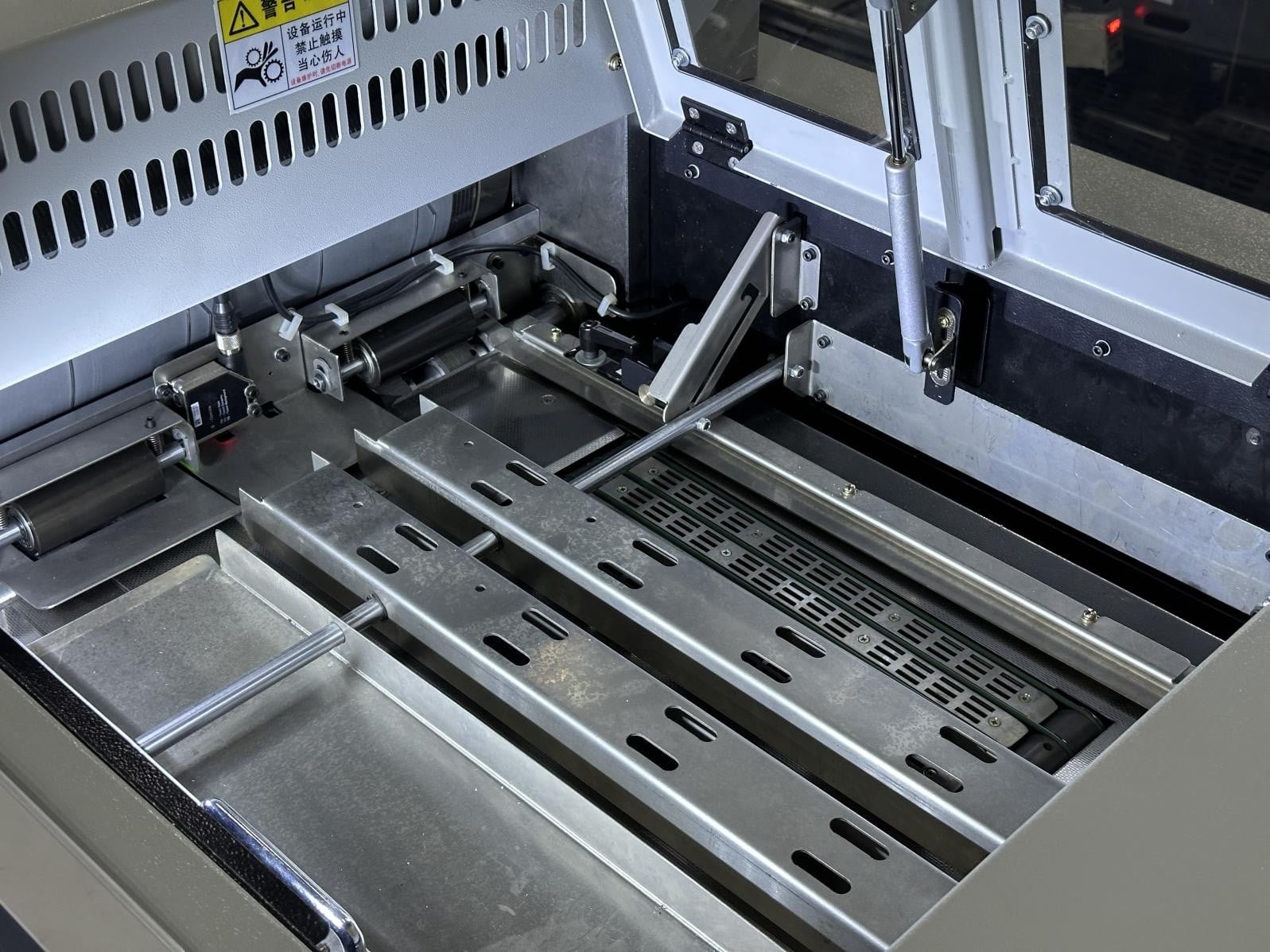

Transport Section:
Sheets are registered by vacuum belt and position is firmly secured with gripper rollers for high quality finish. Servo motor driven gripper rollers ensure the die cut position without effecting processing speed.
|
|
|

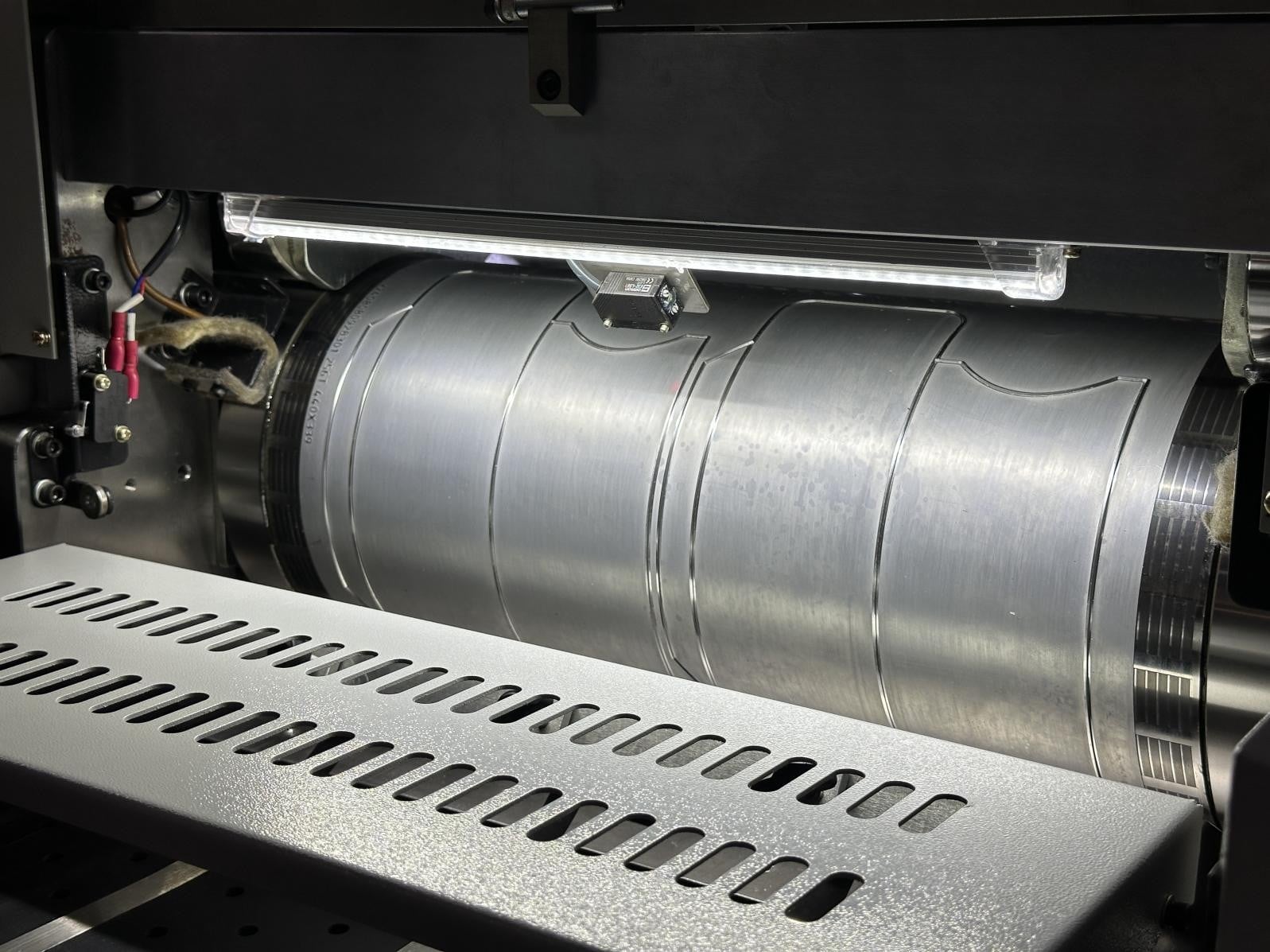

Die Cutting:
Rigid magnetic upper roller and solid lower anvil roller ensure high quality die cutting. Uniquely designed die cutting section enables easy and quick die setting. Both 0.6mm and 0.8mm/0.0236’’and 0.0315’’thickness of flexible die plates can be used.
|
|
|

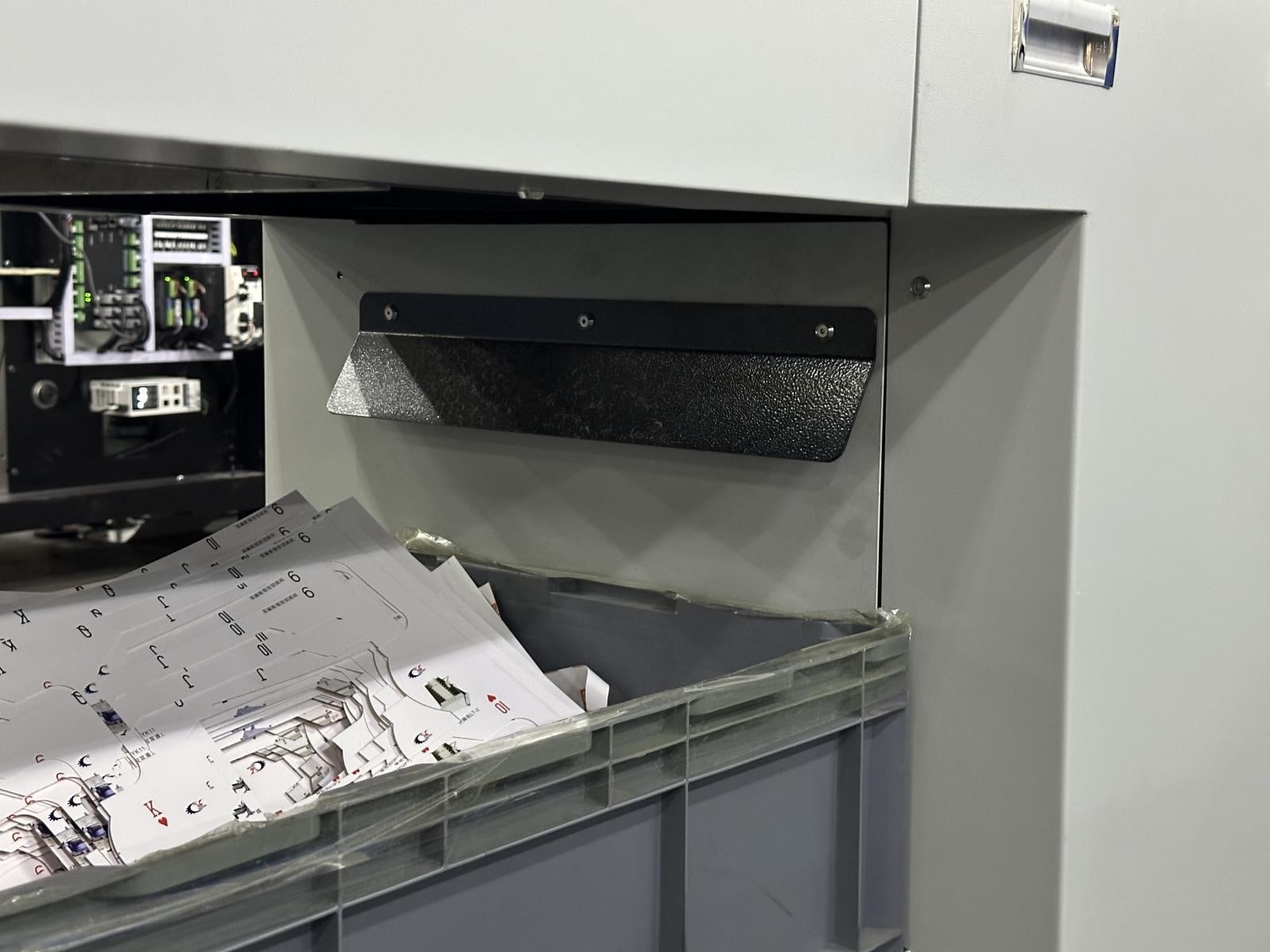

Separator:
The separator removes the waste from the finished product and delivers it to the waste bin. Air cylinder driven separator pins and sir jets can be used depending on size of the waste.
|
|
|

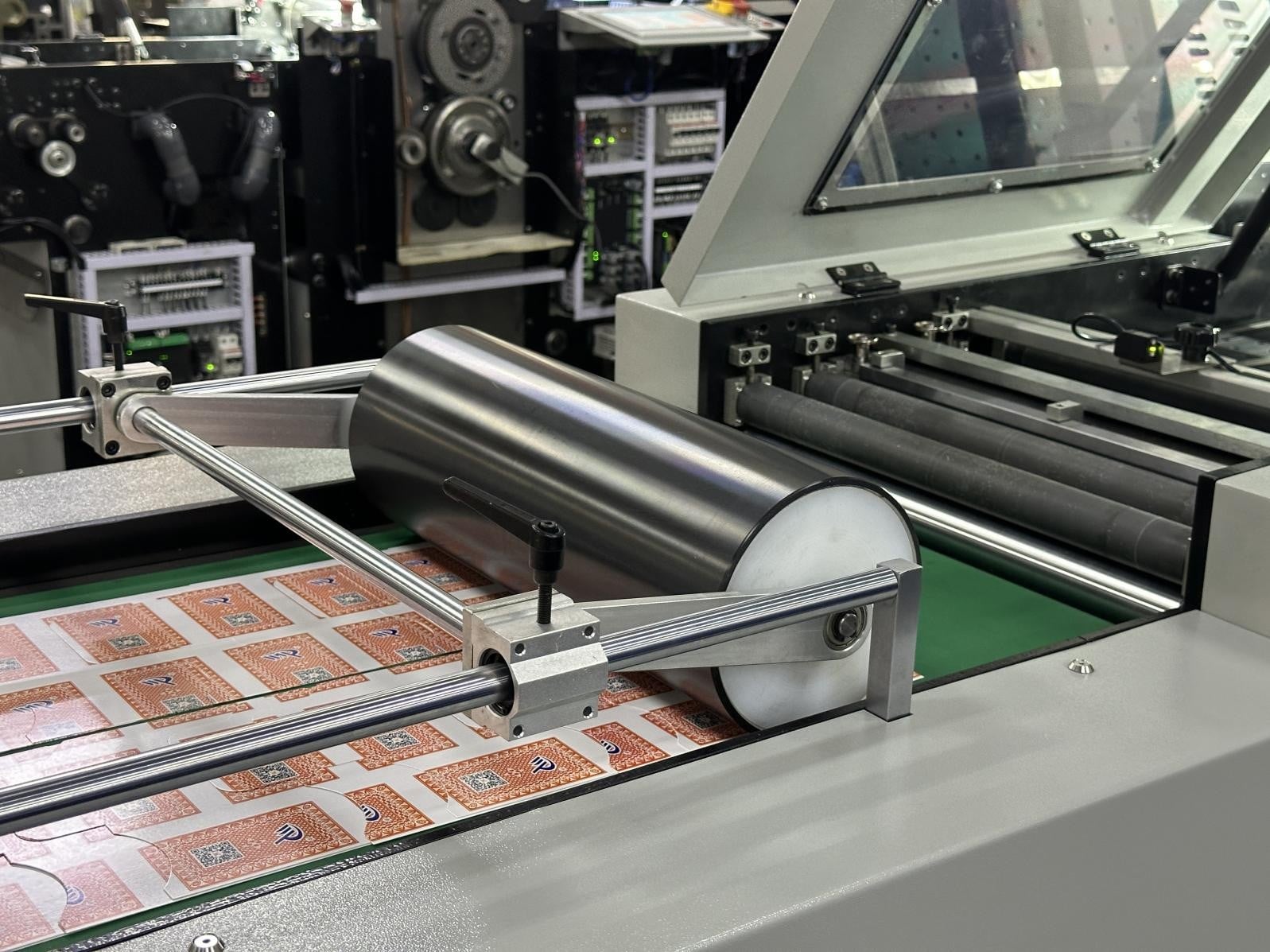

Delivery Section:
Finished products are delivered on the motorized conveyor. Intermittent conveyor movement maximizes the continuous operation in a small space. Gap can be adjusted depending on the size of the product for easy handling.
|
